USER MANUAL OTK 2 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/40

230V~ 50Hz 3230W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

1. Small cooking plate

2. Big cooking plate

7. Carrying handle for baking tray and rack

2. Grande plaque chauffante

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

A. Temperature knob of the left cooking plate B. Temperature knob of the right cooking plate C. Function selector switch of the oven D. Oven temperature knob

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

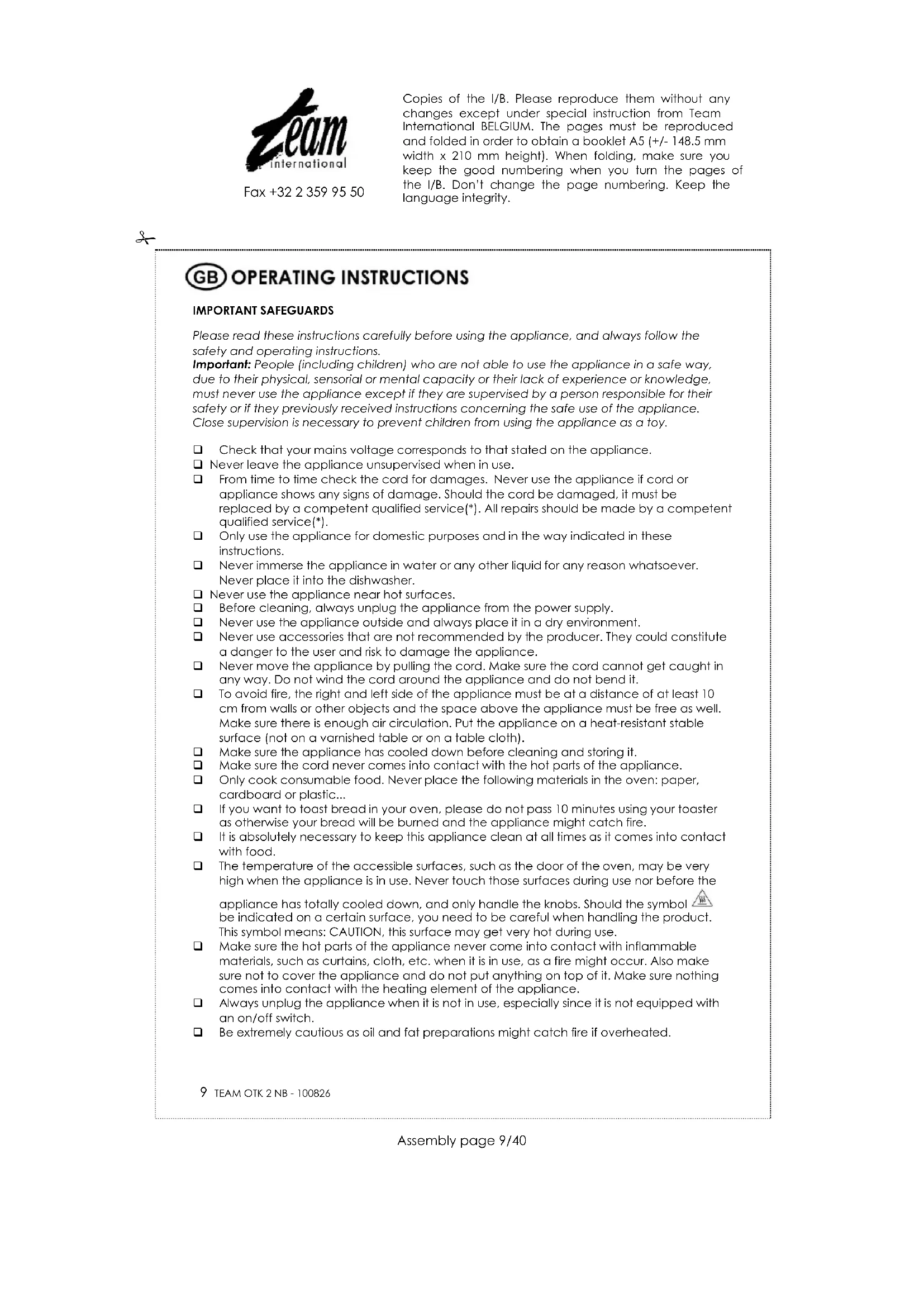

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified service(*). All repairs should be made by a competent qualified service(*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Before cleaning, always unplug the appliance from the power supply. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. To avoid fire, the right and left side of the appliance must be at a distance of at least 10 cm from walls or other objects and the space above the appliance must be free as well. Make sure there is enough air circulation. Put the appliance on a heat-resistant stable surface (not on a varnished table or on a table cloth). Make sure the appliance has cooled down before cleaning and storing it. Make sure the cord never comes into contact with the hot parts of the appliance. Only cook consumable food. Never place the following materials in the oven: paper, cardboard or plastic... If you want to toast bread in your oven, please do not pass 10 minutes using your toaster as otherwise your bread will be burned and the appliance might catch fire. It is absolutely necessary to keep this appliance clean at all times as it comes into contact with food. The temperature of the accessible surfaces, such as the door of the oven, may be very high when the appliance is in use. Never touch those surfaces during use nor before the appliance has totally cooled down, and only handle the knobs. Should the symbol be indicated on a certain surface, you need to be careful when handling the product. This symbol means: CAUTION, this surface may get very hot during use. Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur. Also make sure not to cover the appliance and do not put anything on top of it. Make sure nothing comes into contact with the heating element of the appliance. Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch. Be extremely cautious as oil and fat preparations might catch fire if overheated. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] When using the appliance under an extractor hood, make sure to observe the minimal distance advised by the producer. It is even wiser to double this distance. Immediately unplug the appliance if a crack appears and make sure it is controlled by a qualified competent electrician(*). Your appliance must never be switched on through an external timer or any kind of separate remote control system. (*) Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

SHORT CORD INSTRUCTIONS

A short power supply cord is provided to reduce the risk resulting from becoming entangled in, or tripping over a longer cord. Extension cords may be used if care is exercised in their use. Please pay attention to the following: The diameter of the extension cord must correspond to the one of the power cord of the appliance, in other words, it must be suitable for at least 16 ampere. Extension cords for a lower amperage could overheat. The longer cord should be arranged so that it will not drape over the counter top or table top, where it can be pulled on by children or tripped over. BEFORE USE Unpack the appliance and accessories, then wash and wipe these accessories. It is normal if some smoke or smell emanates from the appliance when using it for the first time. Therefore, we advise you to use your appliance empty once before the first use. If you want to use the oven, put the function selector switch (C) in position and turn the temperature knob (D) to the maximum position (250) for about 10 minutes. This way, the invisible protective coating of the heating elements will be burned. If you want to use the cooking plates, preheat them during 10 minutes by turning their temperature knob to the maximum position. Just like with a traditional cooker, the functions of this appliance can be used individually (thus oven only or cooking plates only) but you can also use both functions simultaneously.

Operation When using for the first time, clean the surface of the tray with a damp cloth and wipe dry. Then grease the tray with butter, margarine or cooking oil. Put the crumb tray on the bottom of the oven cavity. Put the baking tray or the rack at the desired level inside the oven. Plug the unit into the power supply socket. To turn on the oven, turn the function selector switch (C) of the control panel to the desired position: - : only the lower heating element heats up to bake or reheat a preparation without roasting it. - : only the upper heating element heats up in order to roast the preparation. - : both heating elements will heat up to bake and roast the preparation. The indicator lamp of the switch will light up. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] After you have set the function selector switch to the desired position, regulate the temperature of the furnace by means of the thermostat (D). When the food is ready, put the function selector switch in "0" position. The pilot light goes out. Carefully open the glass door, preferably using an oven glove. Be very careful when removing the rack or the tray. These parts become very hot during use and you might get burned. Use the supplied, separate handle. Unplug the appliance after use.

USING THE COOKING PLATES

Make sure the temperature knobs (A and B) are in the 0 position. Plug in the appliance. Always use flat-bottomed saucepans, which make good contact with the cooking plates. The saucepan bases should ideally be of the same size as the cooking plates. To heat up the cooking plates, turn their temperature knobs (see picture on page 4) to the right. Due to the cooking plates’ construction, residual heat will remain after switching off. This may be used to keep food warm for a short period. After use, turn the temperature knob to "0" and unplug the appliance.

Before cleaning, unplug the appliance from outlet and allow it to cool down. Inside cleaning of the oven Wipe the baking tray, the rack and the crumb tray with absorbent paper towels or a soft cloth. To remove baked on food, pour a little cooking oil on the food and allow to stand for five to ten minutes. This should soften the food and allow it to be removed with absorbent paper towels or a soft cloth. If the above method fails to remove the food, then we suggest wiping the trays with a damp cloth and a little detergent. Never use abrasive products or steel wool. Never immerse the appliance in water and make sure no water or damp can enter the appliance. Never clean the appliance with a steam cleaner. Make sure no water splashes on the glass door when the latter is still hot. Outside cleaning of the oven and cooking plates Wipe clean with a soft dry cloth. Do not use steel wool, scouring pads or abrasive cleaners. Always keep the cooking plates dry; dampness can cause rust spots. Some special products are also available for cleaning the cooking plates. Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] waste recovery by means of reuse, recycling or use for other applications in accordance with the directive. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
