USER MANUAL FS 989 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity. Front cover page (first page)

eGenerated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

Fax [phone] Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

5. Slices thickness regulation

2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

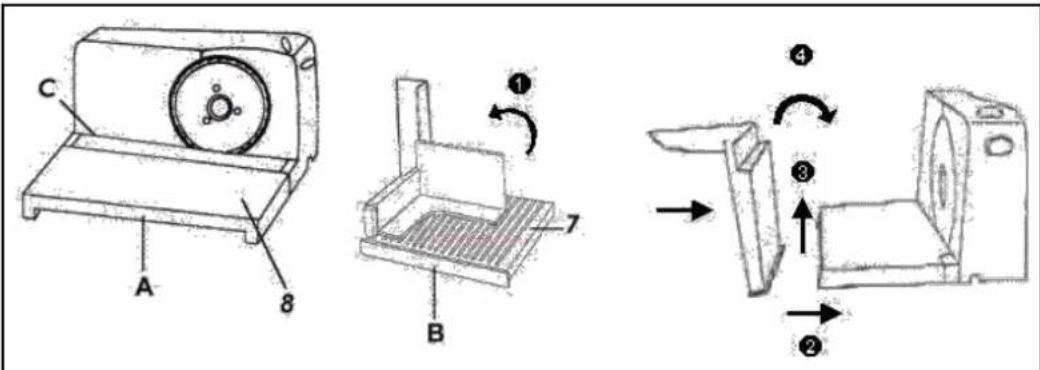

MOUNTING OF THE PLATFORM

Put the platform (7) in a vertical position in order to mount it correctly on the table (8). Put edge (B) under edge (A). Lift it up so that edge (B) is next to edge (A). Turn the platform down (horizontally) so that it is located on the table and can be moved easily. The platform should be secured in the table groove (C).

Fax [phone] Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

Fax [phone] Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

O P E R A T IN G IN S T R U C T IO N S

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Should the cord be damaged, it must be replaced by a competent qualified electrician

Before cleaning, always unplug the appliance from the power supply. All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Make sure the appliance is set on a flat surface. Unplug the appliance when not in use. Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and preparations. Never cut frozen food with this slicer. Never cut food only by using your hands. Always use the slide and its food guide unless it is impossible because of the size and dimension of the article. Make sure never to touch the knife. This kind of appliance cannot function continuously, it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual. The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Make sure the appliance is unplugged when disassembling it before cleaning or other. Never touch the blade when the appliance is in use. Furthermore, never try to stop the movement of the blade in any way whatsoever. Be careful never to remove the platform when the appliance is connected as it protects the user from the blade. Therefore never try to overstep the 0 and 15 mm graduations. Be careful, the platform (7) guiding the food is delivered in kit (3 parts). Before any use, it is absolutely necessary to make sure that the parts have been put together correctly and that no part is missing. Please see the picture on page 2.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

IMPORTANT INFORMATION This appliance is not for professional use. You should follow the requested breaks. Failure to follow this instruction carefully may result in damage to the motor. Please refer to the rating label for the maximum continuous usage time (KB xx min where xx is the maximum usage time). The breaks should last at least 10 minutes. UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY) This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow). USING THE SLICER (see Page 4/5) Clean all parts of the appliance before the first use. Make sure the appliance is steady and open the table (8). Put the platform (7) on top of the table. The platform should be secured in the table groove. Now add the pusher (6) and the thumb guard (10) as described on the picture. Select the slicing thickness by turning the adjusting knob (5). You can control millimetres on the side of the appliance. Plug in the appliance. The slicer is now ready for use. Lay the food to be sliced between the blade (2) and the pusher. Push simultaneously the on/off button (3) and the safety lock (4). The blade will start rotating. For safety reasons, the appliance only works if both buttons are pushed. Push the platform with the other hand to bring the food to the blade. As a safety measure, the platform cannot be moved easily. This means that the pressure has to be sufficiently strong in order to obtain regular slices. To avoid food sticking to the appliance, you can moisten the blade with a wet towel beforehand. This also allows you to slice more easily. Always use the pusher when slicing small parts and leftovers. Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts. CLEANING Before cleaning, always unplug the appliance. Wipe the inside and outside of the appliance with a paper towel or a soft and damp cloth. It should not be washed in a dishwasher. Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish. Do not immerse in water or any other liquid. Do not place any piece in the dishwasher. The blade can be taken off by turning the blade-locking knob (1) clockwise. Caution: the blade is very sharp. Clean the blade with soapy water and give it a rinse. Then turn the knob anticlockwise to fasten it. Dry all parts well before storage.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.

In order to make the cleaning of your appliance easier, you can, besides the platform, take the table (8) apart. Therefore close it and take the lower left side (on the opposite side of the cord) of its housing, then the right side. To replace it, proceed inversely.Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B . Don’t change the page numbering. Keep the languages integrity.
