Product type	Bagged vacuum cleaner
Brand	Team
Model	ST 30 H
Category	Vacuum cleaner
Power supply	220-240 V, 50/60 Hz (standard estimate)
Power	Not specified in the manual
Bag capacity	Not specified
Noise level	Not specified
Cord length	Not specified
Weight	Approximately 4 kg (estimate)
Dimensions	Not specified
Included accessories	Universal brush, round brush, crevice tool, flexible hose, tube
Filtration system	Paper bag, motor filter, air filter
Bag replacement frequency	When power decreases or fill indicator
Motor filter cleaning frequency	Approximately every 3 months
Air filter replacement frequency	Approximately every 3 months
Recommended use	Hard floors, carpets, rugs, upholstered furniture, mattresses
Safety instructions	Unplug before cleaning, do not vacuum liquids, do not use near heat source
Maintenance	Changing the bag, cleaning filters, checking for blockages
Repairability	Contact a qualified competent service
General information	On/off switch, shoulder strap, top cover, body

Frequently Asked Questions - ST 30 H TEAM

How to replace the dust bag of the Team ST 30 H vacuum cleaner?

Unplug the appliance. Open the top cover, remove the bag from its holder and discard it without folding. Insert a new paper bag into its holder and close the cover. Check that the bag is installed correctly before use.

How often to clean the motor filter?

The motor filter should be cleaned approximately every 3 months. Unplug the appliance, open the compartment and clean the filter according to the instructions in the manual.

Can I vacuum liquids with this vacuum cleaner?

No, this vacuum cleaner is intended only for vacuuming dust and dry waste. Never vacuum liquids as this may damage the appliance and pose a danger.

What to do if the suction of the vacuum cleaner decreases?

First check the filling level of the dust bag and change it if necessary. Then check that there is no blockage in the tube, hose or brush. If the problem persists, consult a qualified service.

How to use the supplied round brush?

The round brush is recommended for mattresses, upholstered furniture, sofas and tapestries. Attach it to the end of the hose and use it to clean these delicate surfaces.

Is it possible to clean the air filter instead of replacing it?

No, the air filter is a consumable and should be replaced approximately every 3 months. Do not clean it with water as this could damage it.

Where to find spare parts for the Team ST 30 H?

Contact a qualified competent service (after-sales service of the manufacturer or importer) to obtain original spare parts. Do not use non-recommended accessories.

How to change the power cord if it is damaged?

The damaged cord must be replaced by a qualified competent service to avoid any danger. Do not attempt to repair it yourself.

What is the required voltage for this vacuum cleaner?

Before use, check that the mains voltage corresponds to that of the appliance (generally 220-240 V in Europe). Check the label on the appliance for the exact value.

How to store the vacuum cleaner after use?

Unplug the appliance, wind the cord without twisting it and store it in a dry place, away from children and heat sources.

USER MANUAL ST 30 H TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Asplarolyere

C E

I/B Version

010123

TEAM ST 30 H

230V~400W

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

D

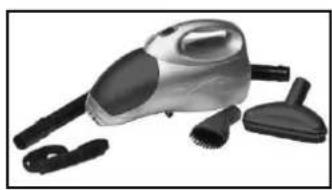

1. Shoulder strap
   2.0/1 switch
2. Handle
3. Body
4. Dust cover
5. Cord
6. Tube
7. Floor brush
8. Round brush

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

ZUSAMMENBAUEN DES STAUBSAUGERS

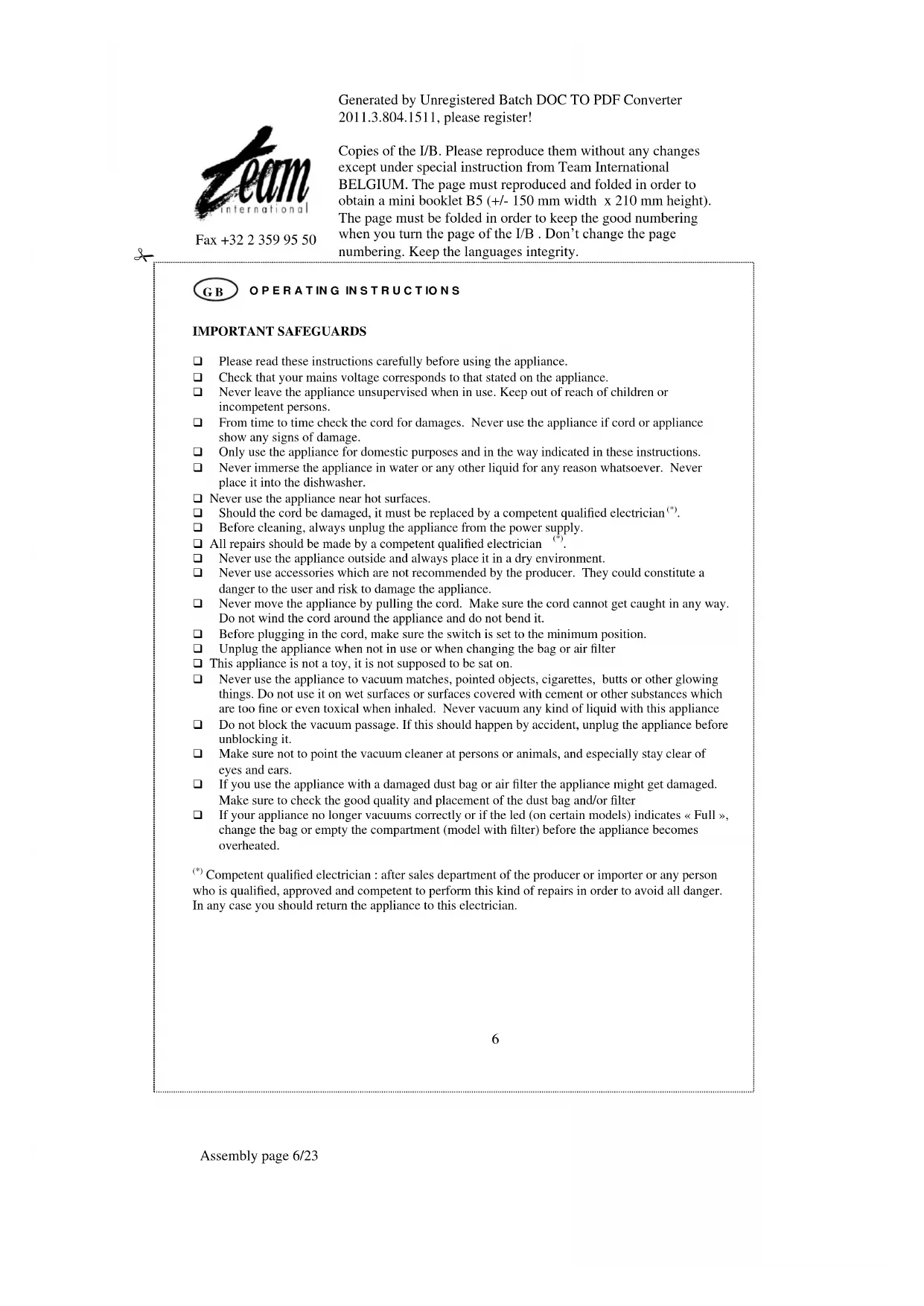

Please read these instructions carefully before using the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.

From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces.

Should the cord be damaged, it must be replaced by a competent qualified electrician (e).

Before cleaning, always unplug the appliance from the power supply.

All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Before plugging in the cord, make sure the switch is set to the minimum position.

Unplug the appliance when not in use or when changing the bag or air filter

This appliance is not a toy, it is not supposed to be sat on.

Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance

Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.

Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.

If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter

If your appliance no longer vacuums correctly or if the led (on certain models) indicates « Full », change the bag or empty the compartment (model with filter) before the appliance becomes overheated.

(^*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories.
- To fit the tube, insert it into the air intake duct.
- Then fit the tube to the nozzle or the selected brush.
- To remove tube and accessories, pull firmly apart.

OPERATION

• Insert the plug into the power socket and press on the 0/I switch.
  The floor brush is ideal for the daily cleaning of carpets and hard floors.
• The round brush is intended to clean curtains, shelves, books, inlaid furniture, lamps and other delicate objects.

WHEN CLEANING IS FINISHED

• Stop the vacuum cleaner by pressing on the 0/I switch.
• Disconnect plug from electrical outlet.

DUST BAG AND FILTERS

Replacing the dust bag

• Always operate the cleaner with dust bag installed
• Disconnect from electrical outlet before changing dust bag.
• Raise dust cover.
• Remove bag collar from bag holder and pull out dust bag.
• Put in new dust bag and close the dust cover.

Motor Filter

• Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

• Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
• Disconnect from electrical outlet, before changing filter.
  Pull filter supporter at the back of appliance upward, and replace filter.

TIP

• The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.

• We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events:

• Blocked filter: clean as described elsewhere
  Full or punctured bag: replace as described elsewhere

• Blockage in tubes: switch OFF before disassembling and removing the blockage; always switch OFF before attempting to clean or unblock the unit.
