ST 34 EC - Vacuum Cleaner TEAM - Free user manual and instructions

Brand	Team
Model	ST 34 EC
Product type	Canister vacuum cleaner
Power supply	220-240 V, 50 Hz
Power control	Electronic with slider control
On/off pedal	Yes, foot pedal
Cord winder	Yes, automatic with pedal
Cord length	Approximately 8 m
Bag fill indicator	Red indicator light
Bag type	Paper bag
Motor filter	Washable (every 3 months)
Air filter	Micro filter (replace approximately every 3 months)
Overheat protection	Yes (thermal cut-off)
Included accessories	Universal brush 2 positions, small brush, crevice tool, furniture nozzle
Use	Household only
After-sales service	Authorized center (fax [phone])

Frequently Asked Questions - ST 34 EC TEAM

How to start the Team ST 34 EC vacuum cleaner?

Gently press the ON/OFF pedal (6) with your foot. Before plugging in, ensure the switch is in position 0 and the voltage matches the rating plate.

How to adjust the suction power?

Use the adjustment button (5) to electronically adjust the power. Use low power for curtains, delicate surfaces and upholstered furniture, and maximum for carpets and hard floors.

When and how to change the dust bag?

Change the paper bag when the red indicator is completely red after checking there is no obstruction. Unplug the appliance, open the lid, remove the used bag without folding it, and insert a new bag by sliding the cardboard onto its holder.

How to clean the motor filter?

The motor filter should be cleaned approximately every 3 months. Remove it from its housing, rub it or wash it with water and mild detergent, rinse thoroughly and let it dry completely before reinstalling.

How to replace the micro filter?

Unplug the appliance, open the top grid by pinching the tab, replace the micro filter (effective for about 3 months), then close the grid. Check its condition regularly.

What to do if the red light turns on even though the bag is not full?

This may indicate an obstruction (large debris, thick carpet). Unplug, check the hose and tube, clear the obstruction if necessary. If the indicator remains red after lifting the brush, the bag might be full.

How to use the cord winder?

After use, stop the appliance and unplug it. Press the cord winder pedal (7) to automatically wind the cord. Do not exceed the red mark when unwinding.

What accessories are included and what are they for?

The universal brush has 2 positions (retracted for carpets, extended for hard floors). The small brush is for upholstered furniture and mattresses. The crevice tool is very fine for corners and baseboards. The furniture nozzle is for sofas and upholstery.

Can I vacuum liquids with this vacuum cleaner?

No, this appliance is designed for dry vacuuming only. Never vacuum liquids, hot ashes, matches, or sharp objects, as this could damage the appliance and pose a danger.

Where can I find replacement bags or get the appliance repaired?

Contact the store where you purchased the vacuum or the After-Sales Service mentioned on your warranty card. For repairs, contact a qualified service center (fax [phone]).

USER MANUAL ST 34 EC TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Bodenstaubsauger

Vacuum Cleaner

Aspirateur

Sledestofzuiger

Aspirador

Aspirador

Asplarapolvere

CE

I/B Version

020708

TEAM ST 33 E & 34 EC

230V~1400Wmax

D

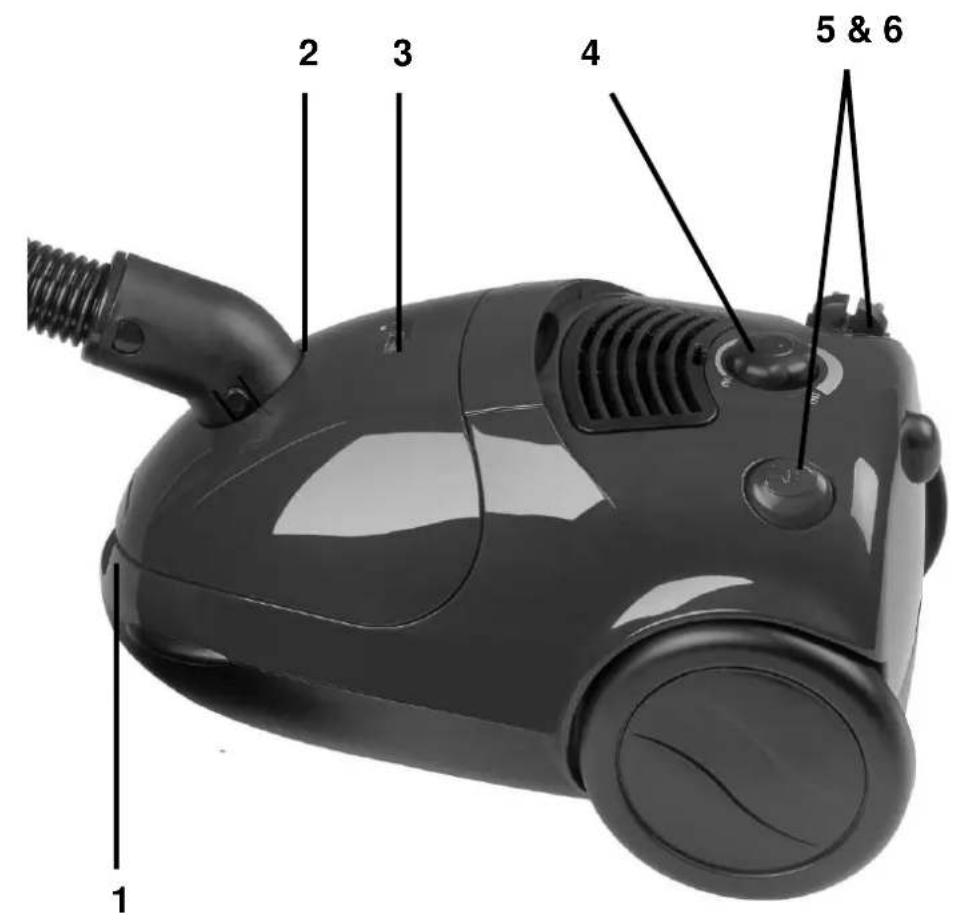

1. Handle
2. Hose connection inlet
3. Dust bag indicator
4. Electrical power control switch
5. ON/OFF switch
6. Cable rewind button

F

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+/- 150 mm width x 210 mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fig. 1

Fig. 2

Fig. 3

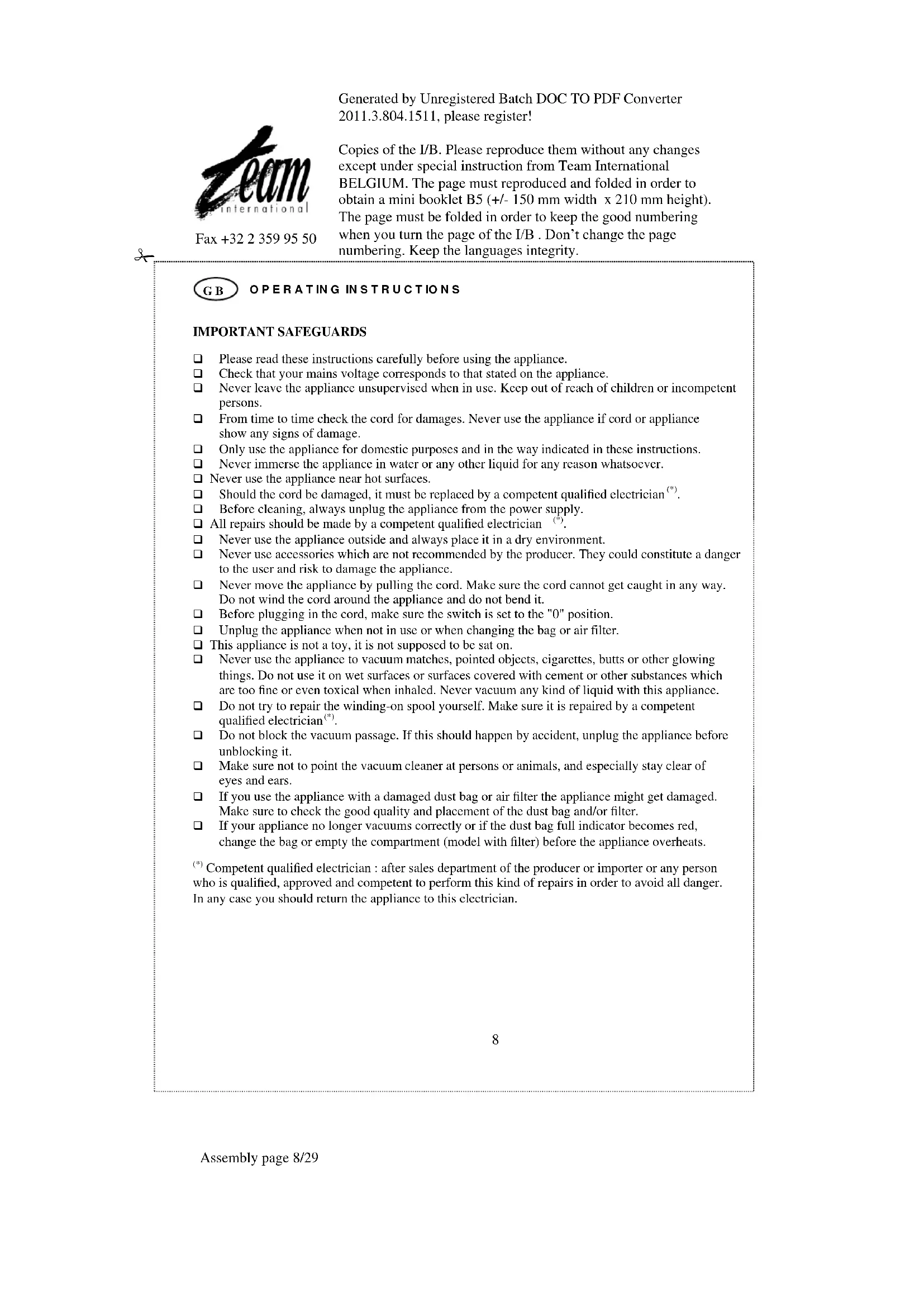

GEBRAUCHSANLEITUNG

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever.
- Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician ^(9)
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician (^9)
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the switch is set to the "0" position.
Unplug the appliance when not in use or when changing the bag or air filter.
This appliance is not a toy, it is not supposed to be sat on.
Never use the appliance to vacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces covered with cement or other substances which are too fine or even toxic when inhaled. Never vacuum any kind of liquid with this appliance.
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician*
Do not block the vacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
Make sure not to point the vacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
If your appliance no longer vacuums correctly or if the dust bag full indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance overheats.

(^+) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

ASSEMBLING THE VACUUM CLEANER

Always remove the plug from the power socket before fitting or removing accessories!

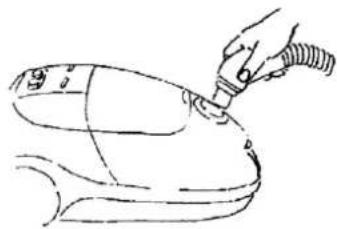

• Insert the connection wand into hose connection inlet until it locks (Fig. 1).

• Connect both parts of the tube.

• Fitting the tube to the handle (Fig. 2).

Fitting the tube to the desired brush (Fig. 3).

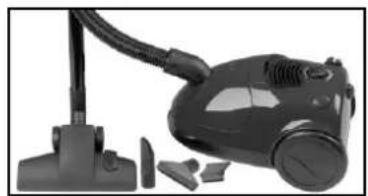

• The floor brush is ideal for the daily cleaning of carpets and hard floors. Press the lever (A) for cleaning hard floors.

Press the lever (B) for cleaning carpets.

• Dusting brush, Crevice tool and Upholstery brush

Dusting brush: For furniture, venetian blinds, books, lamp shades and shelves
Crevic tool: For radiators, crevices, corners, baseboards and between cushions.
Upholstery brush: For cushions and drapenes.

OPERATIONS

• Pull out a sufficient length of power cord and insert the plug into the power socket. A yellow mark on the power cable shows the ideal cable length. Do not extend the cable beyond the red mark.
  It is advisable to set the electronic power regulator to MIN before switching the appliance on. By turning the regulator button, the suction power can be adjusted.

WHEN CLEANING IS FINISHED

• Stop the vacuum cleaner by depressing on the switch button.
• Disconnect plug from electrical outlet.
  Simply press lightly with your foot on cable rewind button on top of cleaner.

Replacing the dust bag

• Always operate the cleaner with dust bag installed.
• Disconnect from electrical outlet before changing dust bag.
• Lift dust cover catch and raise dust cover.
• Remove bag collar from bag holder and pull out dust bag.
• Put in new dust bag and close the dust cover.

Motor Filter

Filter should be rinsed clean at least three times a year or when it becomes visibly solid.

Air Filter

Filter should be rinsed clean at least three times a year or when it becomes visibly solid.
Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- Disconnect from electrical outlet, before cleaning filter.
- Pull filter supporter, than remove filter.
- Rinse filter in lukewarm water.
- Do not use a washing machine for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it.

TIPS

• When cleaning stairs, we advise you to keep the unit in a vertical orientation.
• The vacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere.
  We advise that you ensure the power cord does not become tangled or knotted, as this will impair the performance of the machine. Always ensure the unit is OFF and unplugged when de-knotting or untangling the power cord.
  If you notice a loss of suction power, it is probably due to one or a combination of the following events:
  blocked filter: clean as described elsewhere
  full or punctured bag: replace as described elsewhere
  blockage in tubes: switch OFF before disassembling and removing the blockage
• Always switch OFF before attempting to clean or unblock the unit.

Spare dustbags

In order to get new dustbags, please contact first of all the shop where you bought your vacuum cleaner, or, the after sales service the address of which is mentioned on your guarantee card.

MODE D'EMPLOI

POUR VOTRE SECURITE

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

MONTAGE DE L'APPAREIL

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

MONTAGE VAN HET APPARAAT

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

MONTAJE DEL APARATO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

INSTALLAZIONE DELL'APPARECCHIO

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

Fax [phone]

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must reproduced and folded in order to obtain a mini booklet B5 (+ / - 150mm width x 210~mm height). The page must be folded in order to keep the good numbering when you turn the page of the I/B. Don't change the page numbering. Keep the languages integrity.

TEAM ST 33 E & 34 EC

Deutsch	5
English	8
Français	11
Nederlands	14
Espanol	17
Portugues	20
Italano	23
