USER MANUAL DAI 4 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register! Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Front cover page (first page) Assembly page 1/20

TEAM DAI 4 230 V ~ 1600 W Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

6. Variable steam/dry dial

8. Lid of the fill opening of the water

10. Max-level of the water tank

agua Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

und Deckel wieder schließen. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

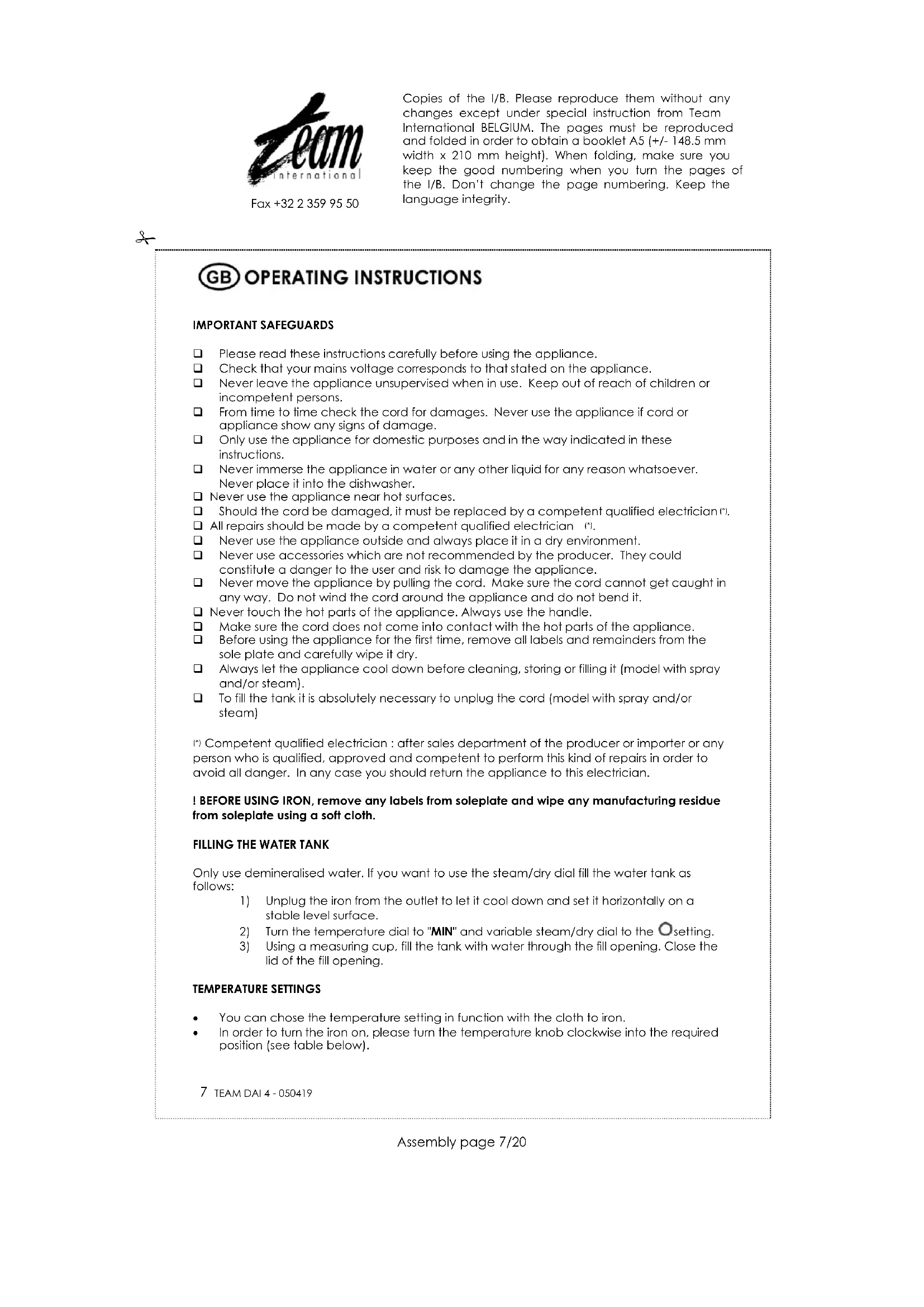

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons. From time to time check the cord for damages. Never use the appliance if cord or appliance show any signs of damage. Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Never use the appliance near hot surfaces. Should the cord be damaged, it must be replaced by a competent qualified electrician

All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment. Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Never touch the hot parts of the appliance. Always use the handle. Make sure the cord does not come into contact with the hot parts of the appliance. Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry. Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam). To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam)

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. ! BEFORE USING IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING THE WATER TANK

Only use demineralised water. If you want to use the steam/dry dial fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a

stable level surface.

2) Turn the temperature dial to "MIN" and variable steam/dry dial to the setting.

3) Using a measuring cup, fill the tank with water through the fill opening. Close the

lid of the fill opening. TEMPERATURE SETTINGS You can chose the temperature setting in function with the cloth to iron. In order to turn the iron on, please turn the temperature knob clockwise into the required position (see table below). Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

DRY PRESSING Turn on the iron. Set temperature dial for the desired fabric. Be sure to check the garment label for fibre content and set for the fabric requiring the lowest temperature. Turn the variable steam/dry dial on position . Set iron on heel rest and wait until temperature indicator light goes out. When the pilot light goes off, it means that the desired temperature is reached. STEAM PRESSING Put the variable steam/dry dial in position and fill the water tank. Plug in the iron. Turn the temperature dial clockwise into the required position according to the garment you want to iron. Turn variable steam dial to the position for minimum steam or to the position for a larger amount of steam. Set the iron on its heel and wait until the temperature indicator goes out. When the pilot light goes off, it means that the desired temperature is reached. CAUTION: Set the temperature dial within the steam range. If temperature setting is too low, water may drip from soleplate. CAUTION: Check the garment label before ironing because some clothes may be damaged when exposed to steam or water. Kind of textile Temperature dial Steam ironing Synthetic (e.g. acetate, acrylic, viscose, Polyamide, polyester, ….) MIN

MAX Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] SPRAY Produces a mist for removing stubborn creases. Spray can be used at any temperature setting and during either dry or steam pressing. Press down the spray button to spray. STEAMJET The steam jet feature provides additional steam for removing stubborn creases. CLEANING After using the iron for a long period of time and regularly (at least once every month) you can clean your iron by using the self-cleaning function as follows: Fill the water tank halfway and put the iron on its heel. Set the temperature dial to its highest position and let the iron heat up until the pilot lights goes out. Unplug the iron, turn the steam button to the self-clean position and shake the iron to the left and to the right above a sink. When doing so, press the steam jet button several times. Hot water and steam will come out of the soleplate. This way, dust particles can be eliminated. When the water tank is empty, turn the steam button to . Pour water in the water tank, let the iron heat again and pass the soleplate on an old but clean cotton cloth. The water remaining in the soleplate will evaporate, which will complete the cleaning process. To clean the plastic parts of the iron, use a humid cloth.

Turn temperature dial to "MIN" and unplug iron from electrical outlet. With soleplate facing away from you, turn iron upside down to empty water. Then store the hot iron on its heel rest so that any remaining moisture will evaporate. Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
