Product type	Travel steam iron
Brand	TEAM
Model	DAT 1
Usage	Travel, occasional home ironing
Power supply	220-240 V, 50/60 Hz
Power	1200 W
Tank capacity	120 ml
Soleplate	Non-stick soleplate (smooth coating)
Temperature setting	Yes, graduated according to fabric types (Mini, ●●, ●●● Max)
Steam function	Steam burst by pumping
Heating indicator	Yes, turns off when temperature is reached
Handle	Foldable with unlock button
Cord length	1.5 m
Weight	0.5 kg
Dimensions (L × W × H)	15 × 8 × 12 cm
Material	Plastic (body), metal (soleplate)
Maintenance	Regular descaling, clean soleplate with specific product
Environmental protection	Compliant with WEEE directive (2002/96/EC), do not dispose with household waste
Warranty	According to the retailer's conditions

Frequently Asked Questions - DAT 1 TEAM

How to fill the water tank?

Unplug the iron and let it cool. Set the temperature dial to MIN. Pour distilled or tap water through the filling opening, without exceeding the maximum level.

Why is my steam not working?

Make sure the tank has water. The thermostat must be set to ●● or ●●●. Pump the steam burst button several times (5 to 6 presses may be needed to prime the pump).

How to use the iron for the first time?

Remove all labels and residues from the soleplate. Wipe it with a soft cloth. Fill the tank, plug in the iron, set the temperature and wait for the heating indicator to turn off before ironing.

Which temperature setting for which fabric?

Use MIN for synthetics, ●● for silk and wool, ●●● (MAX) for cotton and linen. Check the garment label if in doubt.

The iron is leaking from the soleplate, what to do?

Check that the temperature is not too low (minimum ●●). Drain the tank and let it cool. If the leak persists, the iron may be damaged, contact the after-sales service.

How to clean the iron's soleplate?

Unplug the iron and let it cool. Use a slightly damp soft cloth and a special soleplate cleaner. Never use abrasive pads or harsh chemicals.

How to descale my Team DAT 1 iron?

Use a specific descaling product for irons, available in stores. Follow the product instructions. Generally, fill the tank with the descaling solution, heat the iron and activate the steam several times. Then rinse with clean water.

Can I iron continuously for more than one hour?

No, the iron is not designed for regular and prolonged use. Do not exceed a maximum of 1 hour of continuous use to avoid overheating.

How to store the iron after use?

Set the thermostat to MIN, unplug the iron and empty the tank. Place it vertically on its heel to cool completely. Once cold, store it in a dry place, away from humidity.

What to do if the power cord is damaged?

Do not use the iron. The cord must be replaced by a qualified service (manufacturer's after-sales service or a certified electrician) to avoid any danger.

USER MANUAL DAT 1 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

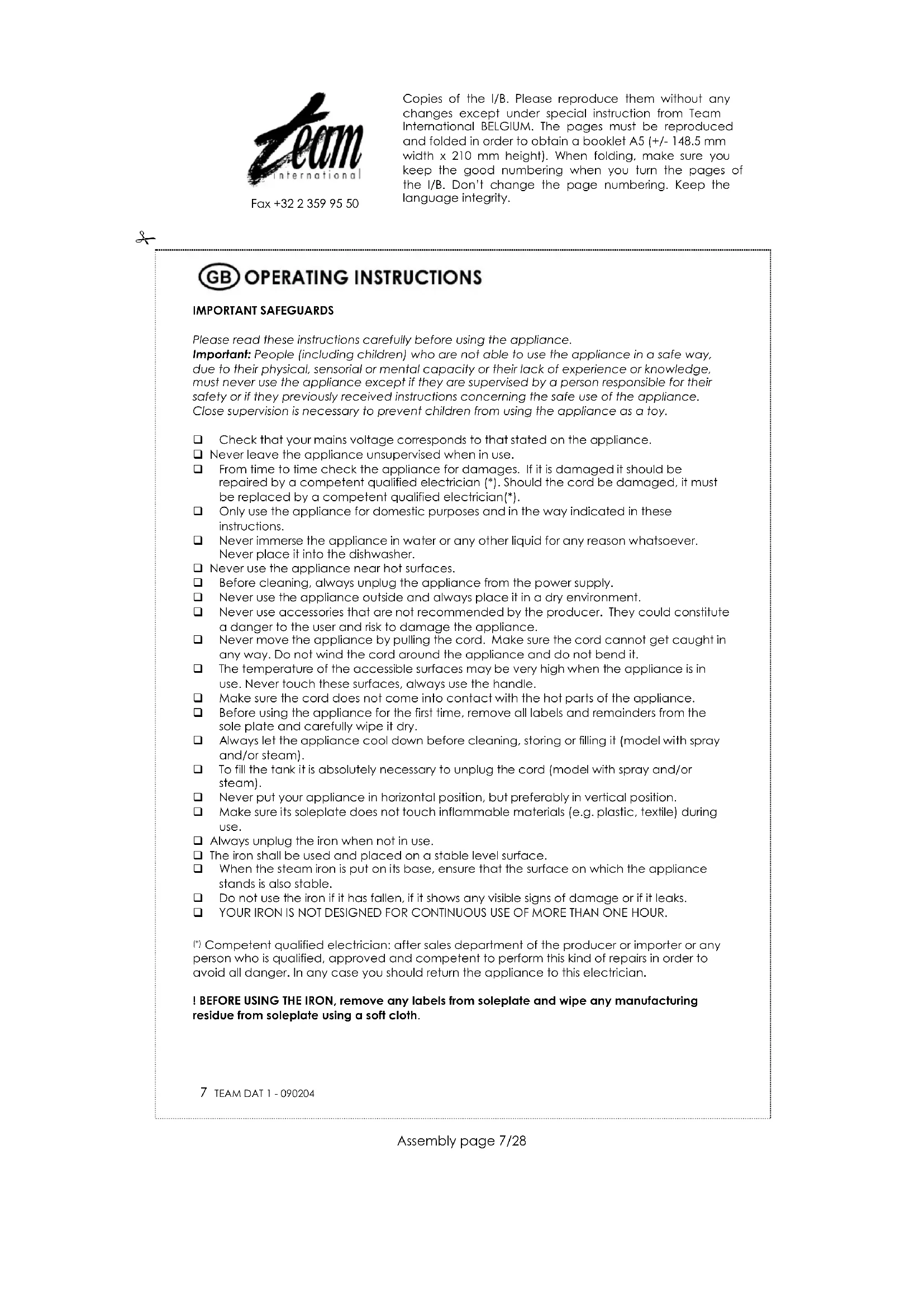

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

1. Fill opening
2. Steam jet button
3. Temperature dial
4. Temperature indicator
5. Soleplate
6. Water tank
7. Handle release button

F

Please read these instructions carefully before using the appliance.

Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy.

Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use.
From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician (^) . Should the cord be damaged, it must be replaced by a competent qualified electrician (^) .
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle.
Make sure the cord does not come into contact with the hot parts of the appliance.
Before using the appliance for the first time, remove all labels and remainders from the sole plate and carefully wipe it dry.
Always let the appliance cool down before cleaning, storing or filling it (model with spray and/or steam).
To fill the tank it is absolutely necessary to unplug the cord (model with spray and/or steam).
Never put your appliance in horizontal position, but preferably in vertical position.
Make sure its soleplate does not touch inflammable materials (e.g. plastic, textile) during use.
Always unplug the iron when not in use.
The iron shall be used and placed on a stable level surface.
When the steam iron is put on its base, ensure that the surface on which the appliance stands is also stable.
Do not use the iron if it has fallen, if it shows any visible signs of damage or if it leaks.
YOUR IRON IS NOT DESIGNED FOR CONTINUOUS USE OF MORE THAN ONE HOUR.

(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

! BEFORE USING THE IRON, remove any labels from soleplate and wipe any manufacturing residue from soleplate using a soft cloth.

FILLING THE WATER TANK

You can use demineralised water or tap water. If you use tap water, make sure you descale the appliance regularly according to the amount of scale the water contains. If you want to use the steam jet button, fill the water tank as follows:

1) Unplug the iron from the outlet to let it cool down and set it horizontally on a stable level surface.
2) Turn the temperature dial to "MIN".
3) To fill the water tank, pour water through the fill opening using a measuring cup. Do not overfill the water tank.
4) When ironing, unplug the appliance before refilling. Fill the water tank by holding the appliance in horizontal position without putting down the hot sole plate, unless you have a heat-resistant base.

TEMPERATURE SETTINGS

You can choose the temperature setting according to the cloth that needs to be ironed.
In order to turn the iron on, please turn the temperature knob clockwise into the required position (see table below). In case of doubt, take a look at the garment label.

IRONING

Kind of textile	Temperature dial
Synthetic (e.g. acetate, acrylic, viscose, polyamide, polyester, ...)	MIN
	●
	●
Silk	●
Wool	●
Cotton	●
Linen	MAX

• Fill the water tank.
• Plug in the appliance.
• Turn the temperature dial clockwise into the required position.
• Set the iron on its heel and wait until the temperature indicator goes out.

BURST OF STEAM

The burst of steam feature provides steam to remove stubborn creases.

To generate steam, you have to pump (press-release-press-release...) the steam jet button. No steam comes out during the first 5 to 6 presses because the water needs to get to the soleplate.

Caution: Set the temperature dial within the steam range ('' or ''. If the temperature setting is too low, water may drip from the soleplate.

Check the garment label before ironing because some cloths may be damaged when exposed to steam or water.

DESCALING

To descale your appliance, use products made especially for this purpose that you will find in the shops and follow their instruction manual carefully.

CARE AND CLEANING

Always unplug the appliance and let it cool down before cleaning.
To clean the plastic parts of the iron, use a damp cloth.
To clean the soleplate, make sure you use a product made especially for this purpose. Never use abrasive products.

WHEN YOU HAVE FINISHED IRONING

• Turn temperature dial to "MIN" and unplug the iron from electrical outlet.
• Empty the water tank.
• Then store the hot iron on its heel rest so that any remaining moisture will evaporate. When the soleplate has cooled down, you can store the iron.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
