SWM 1 CE - Croque monsieur clip TEAM - Free user manual and instructions

Product type	Panini press and waffle maker
Brand	TEAM
Model	SWM 1 CE
Power supply	220-240 V / 50-60 Hz
Power	800 W (estimated)
Plate material	Non-stick coating
Removable plates	Yes (for panini and waffles)
Indicator light	Red power and heating indicator
Dimensions (L x W x H)	30 x 20 x 10 cm (estimated)
Weight	1.5 kg (estimated)
Cord length	0.8 m (estimated)
Functions	Cooking panini and waffles
Cleaning	Wipe with damp cloth; plates washable with water (not dishwasher safe)
Safety	Do not immerse; use on stable surface; do not leave unattended
Included accessories	Plates for panini and waffles
Repairability	Repair by qualified service only

Frequently Asked Questions - SWM 1 CE TEAM

Why does my appliance produce smoke when first used?

During first use, the non-stick coating produces some smoke. It is not harmful and disappears quickly. It is recommended to run the appliance empty for 10 minutes before first use.

How do I install the cooking plates?

Place the desired plates into the appliance by pressing the button near the handle, then release. Make sure they are securely locked in place.

How long does it take to cook a panini?

Cooking time is about 2 to 3 minutes, depending on your preference. Open the appliance and remove the panini with a wooden or plastic spatula.

Can I use metal utensils on the plates?

No, never use metal utensils as they could damage the non-stick coating. Use a wooden or heat-resistant plastic spatula.

How do I clean the appliance after use?

Unplug the appliance and let it cool completely. Wipe the exterior with a damp cloth. The plates can be cleaned in the appliance with paper towels or removed and washed under running water. Never put them in the dishwasher.

Can the appliance be left plugged in unattended?

No, never leave the appliance unattended while in use. Unplug it after use, especially as it does not have an on/off switch.

What types of batter can I use for waffles?

You can use classic waffle batters. Recipes are provided in the manual, such as shortbread, yeast, traditional, crispy, or apple waffles.

What should I do if the power cord is damaged?

If the cord is damaged, it must be replaced by a qualified service (manufacturer's after-sales service or authorized person) to avoid any danger.

Can I use grease on the plates?

Since the plates are non-stick, using butter or margarine is optional. You can apply it if you wish, but it is not necessary.

Can the appliance be used outdoors?

No, the appliance must be used indoors, in a dry place, and placed on a stable surface away from moisture.

USER MANUAL SWM 1 CE TEAM

Combi sandwich / Waffle maker

Combi Gaufrier / Croque-monsieur

Sandwichera/goferera

1/2 Päckchen Backpulver

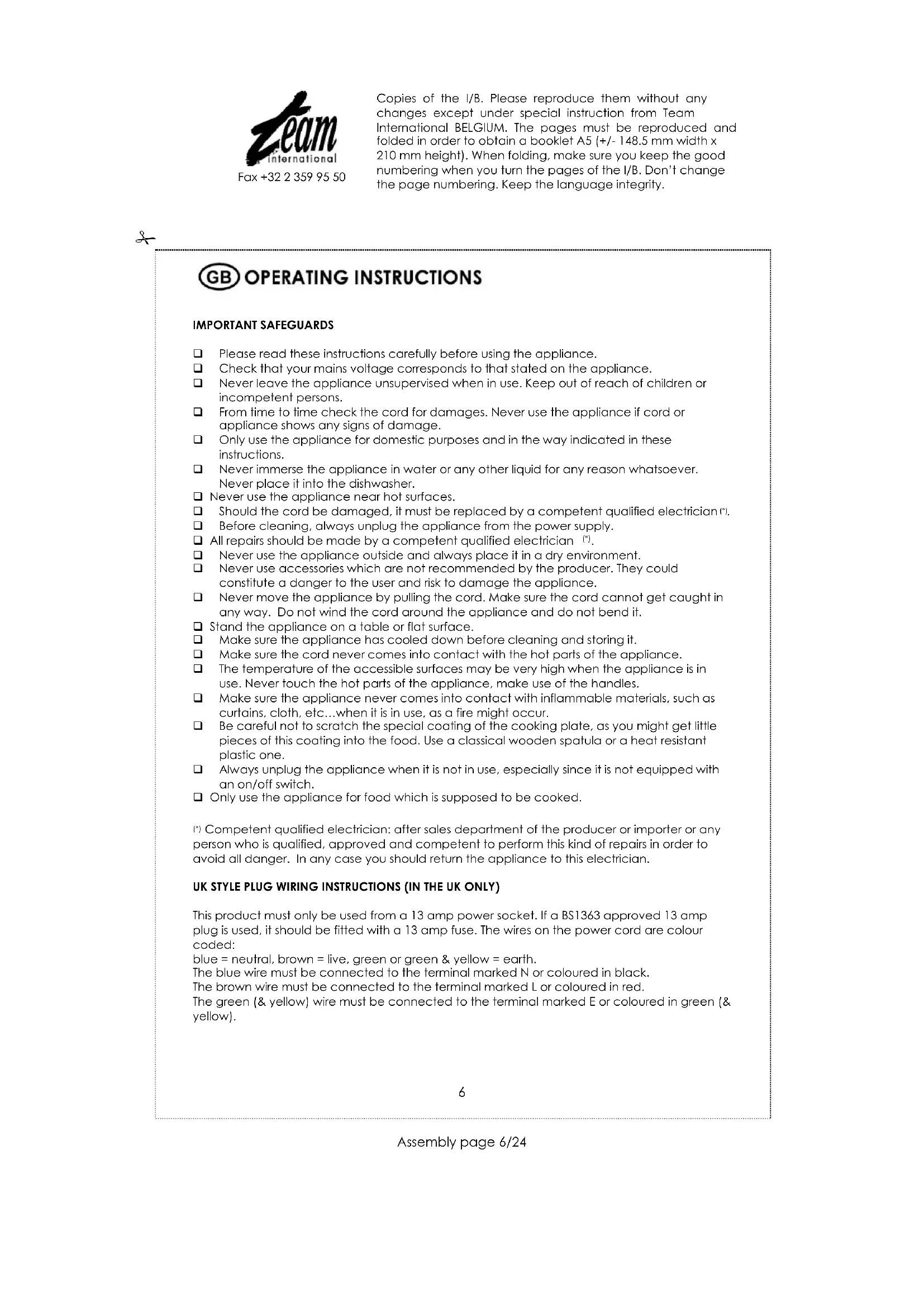

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Should the cord be damaged, it must be replaced by a competent qualified electrician (1).
Before cleaning, always unplug the appliance from the power supply.
All repairs should be made by a competent qualified electrician
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into contact with the hot parts of the appliance.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch the hot parts of the appliance, make use of the handles.
Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc...when it is in use, as a fire might occur.
Be careful not to scratch the special coating of the cooking plate, as you might get little pieces of this coating into the food. Use a classical wooden spatula or a heat resistant plastic one.
Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.
Only use the appliance for food which is supposed to be cooked.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded:

blue = neutral, brown = live, green or green & yellow = earth.

The blue wire must be connected to the terminal marked N or coloured in black.

The brown wire must be connected to the terminal marked L or coloured in red.

The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

USE

Protective coating burn off will cause smoking on first use. This is NOT harmful.
- When using for the first time, wipe the surface of the plates with a damp cloth, then dry. You may season the plates with butter, margarine or cooking fat. Since the appliance has a non-stick surface, the use of butter or oil is optional.
- Place the desired plates in the appliance by pressing on the button 1 near the handle (see picture on page 2).
- Close the appliance and let it heat.
- Plug into the electrical outlet. The red pilot light will come to indicate that the appliance is switched on.
The red pilot light will come out when the cooking temperature is reached.
- Attention: during the functioning, parts 2 (see picture on page 2) become hot. Pay attention not to get burned.

Ideas for sandwiches

Prepare your sandwich while the unit is heating.
Fully open the sandwich maker. Place a slice of bread in the bottom half with the buttered side against the plate.
- Fill the sandwich.
- Add the top slice with the buttered side up and carefully close the appliance. Do not force shut. Steam will be ejected from between the plates; make sure that fingers do not come into contact with it.
- Lock the two halves with the wire clip while toasting.
- Your sandwich will be toasted in 2 to 3 min or longer to suit your taste. Open the appliance and remove sandwich using a plastic or wooden spatula. Never use a metal knife as this may damage the non-stick coating.
- Close the lid to preserve the heat until you are ready to toast the next sandwiches.
Prepare additional sandwiches if desired while the others are cooking.
Unplug when finished.

Ideas for waffles

Lightly brush grids with butter, margarine or cooking oil.
Pour batter evenly onto the bottom grid but not all the way to the edges.
- Close the grids. Do not hold the handles during baking. Escaping steam can burn.
The cover will rise slightly as waffles begin to bake. Do not open the cover for the first minute
- Bake until golden brow, about 3 minutes.
- Remove the waffles with a fork. Close grids.
- When you have finished baking, unplug the cord from the outlet and leave the grids open to cool.
- When using for the first time, discard the first two waffles you bake on the new grids.

WAFFLE RECIPES

SHORTBREAD WAFFLES

200 g butter

200 g sugar

4 eggs

twist of lemon

200 g plain flour

YEAST WAFFLES

25 g yeast

1/1 milk

125 g butter

50 g sugar

6 eggs

twist of lemon

pinch of salt

375 g plain flour

TRADITIONAL WAFFLES

125 g butter

150 g sugar

twist of lemon

pinch of salt

3 eggs

1/1 milk

250 g plain flour

1 tsp baking powder

CRISP WAFFLES

200 g butter

150 g sugar

4 eggs

350 g plain flour

1 tsp rum

few drops vanilla essence

150-200 ml water (not milk)

APPLE WAFFLES

150 g butter

200 g sugar

4 eggs

1 tsp baking powder

250 g plain flour

pinch of salt

small pinch of ground cloves

1 tsp cinnamon

2 apples peeled and diced

CLEANING

Before cleaning, unplug and wait for the appliance and the plates to cool down.
- Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
To clean the plates you can let them in the appliance or remove them from the appliance (therefore press on the button I near the handle and remove them (see picture). If you let them in the appliance, wipe the plates with a damp cloth or towel. If you remove them from the appliance, you can wash them under running water. Dry them afterwards. Never place the plates into the dishwasher.
- Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.
- Do not immerse in water or any other liquid.
