USER MANUAL SWM 4 TEAM

1. Locking clip
2. Release button for the plates
3. Sandwich plate
4. Waffle plate
5. Plate locking tabs
6. Grill plate

P

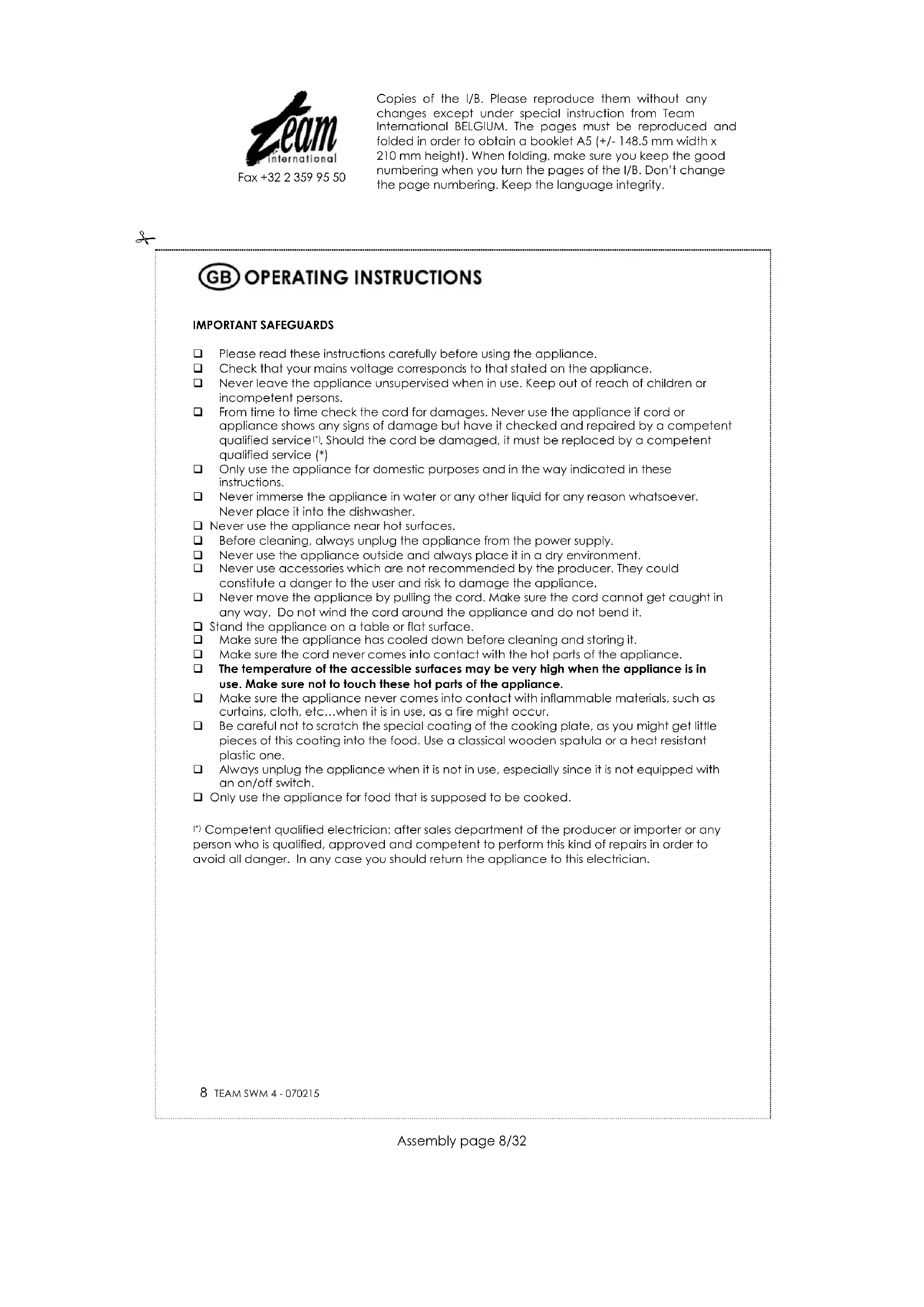

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service. Should the cord be damaged, it must be replaced by a competent qualified service (^*)
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
Never use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Never use the appliance outside and always place it in a dry environment.
Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Stand the appliance on a table or flat surface.
Make sure the appliance has cooled down before cleaning and storing it.
Make sure the cord never comes into contact with the hot parts of the appliance.
The temperature of the accessible surfaces may be very high when the appliance is in use. Make sure not to touch these hot parts of the appliance.
Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc...when it is in use, as a fire might occur.
Be careful not to scratch the special coating of the cooking plate, as you might get little pieces of this coating into the food. Use a classical wooden spatula or a heat resistant plastic one.
Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.
Only use the appliance for food that is supposed to be cooked.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

USE

Caution: in order to insert and remove the plates more easily, please always press the release button n° 2.

Protective coating burn off will cause smoking on first use. This is NOT harmful.
- When using for the first time, wipe the surface of the plates with a damp cloth, then dry.
To remove the baking plates, press the release buttons, and take out the baking plates.
- Place the desired plates in the appliance by inserting the plate locking tabs in the plate locking openings and press on the plates till you hear a click. You may season the plates with butter, margarine or cooking fat. Since the appliance has a non-stick coated surface, the use of butter or oil is optional.
- Close the appliance and let it heat.
- Plug into the electrical outlet. The red pilot light will come to indicate that the appliance is switched on.
The green ready light will come on when the cooking temperature is reached. During use, this ready light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature.
- Attention: during the functioning, the baking plates heat up. Pay attention not to get burned.

!! TO AVOID BURNS, WAIT UNTIL THE APPLIANCE HAS TOTALLY COOLED DOWN BEFORE CHANGING THE PLATES.

Sandwich function

Prepare your sandwich while the unit is heating.
- Fully open the sandwich maker. Place a slice of bread in the bottom half with the buttered side against the plate.
- Fill the sandwich.
- Add the top slice with the buttered side up and carefully close the appliance. Do not force shut. Steam will be ejected from between the plates; make sure that fingers do not come into contact with it.
- Lock the two halves with the wire clip while toasting.
- Your sandwich will be toasted in 2 to 3 min or longer to suit your taste. Open the appliance and remove sandwich using a plastic or wooden spatula. Never use a metal knife as this may damage the non-stick coating.
Close the lid to preserve the heat until you are ready to toast the next sandwiches.
Prepare additional sandwiches if desired while the others are cooking.
Unplug when finished.

Grill function

Lightly brush grids with butter, margarine or cooking oil to avoid that the foods stick to the plates.
- When the appliance has reached the desired temperature, open it and put the foods in on the grill plate. Make sure the foods are not too thick, so that you can close the appliance. The cooking time depends on the type of food you are grilling. To avoid burning the foods, check regularly during the cooking process.
- When grilling is finished, unplug the appliance and leave it open to allow it to cool down.

Waffle function

Lightly brush grids with butter, margarine or cooking oil.
Pour batter evenly onto the bottom grid but not all the way to the edges.
- Close the grids. Do not hold the handles during baking. Escaping steam can burn.
The cover will rise slightly as waffles begin to bake. Do not open the cover for the first minute
- Bake until golden brow, about 3 minutes.
- Remove the waffles with a plastic or wood spatula. Never use scratching objects, as these might damage the non-stick coating. Close grids.
- When you have finished baking, unplug the cord from the outlet and leave the grids open to cool.
- When using for the first time, discard the first two waffles you bake on the new grids.

WAFFLE RECIPIES

SHORTBREAD WAFFLES

200 g butter

200 g sugar

4 eggs

twist of lemon

200 g plain flour

YEAST WAFFLES

25 g yeast

1/4 milk

125 g butter

50 g sugar

6 eggs

twist of lemon

pinch of salt

375 g plain flour

TRADITIONAL WAFFLES

125 g butter

150 g sugar

twist of lemon

pinch of salt

3 eggs

1/4 milk

250 g plain flour

1 tsp baking powder

CLEANING

Before cleaning, unplug and wait for the appliance and the plates to cool down.
- Wipe the outside with only a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.
To clean the plates you can let them in the appliance or remove them from the appliance (therefore press on the button I near the handle and remove them (see picture). If you let them in the appliance, wipe the plates with a damp cloth or towel. If you remove them from the appliance, you can wash them under running water. Dry them afterwards. Never place the plates into the dishwasher.
- Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

• Do not immerse in water or any other liquid.

PROTECTION OF THE ENVIRONMENT- DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

FR MODE D'EMPLOI

POUR VOTRE SECURITE

GEWONE WAFELS MET BAKPOEDER

125 g boter

150 g suiker

1 geraspte citroenschil

zout

3 eieren

1/1 melk

250 g bloem

1 theelepeltebakpoeder

REINIGING
