GR 6 - Barbecue TEAM - Free user manual and instructions

Product type	Electric barbecue
Brand	Team
Model	GR 6
Power supply	Mains (220-240 V ~)
Thermostat	Adjustable with indicator light
Plate type	Removable, two sides (grooved and smooth)
Non-stick coating	Yes
Base capacity	Approximately 1 liter (for water cleaning)
Plate material	Metal with non-stick coating
Power cord	With specific plug and thermostat connector
Safety	Do not use without base, unplug after use, do not immerse
Cleaning	Base washable with water, plate wiped without immersion
Usage	Indoors, on stable surface, away from flammable materials
Included accessories	Thermostat, plate, base, power cord
Recommended preheating	10 minutes without food to eliminate odors

Frequently Asked Questions - GR 6 TEAM

How to assemble the grill?

Place the plate on the base (desired side up), then connect the thermostat plug. Make sure the thermostat is on the minimum position before plugging in.

How to preheat the grill?

Plug in the appliance, set the thermostat to the desired temperature and wait for the indicator light to turn off, indicating that the temperature has been reached.

How to clean the cooking plate?

Allow to cool, unplug and remove the thermostat plug. Never immerse the plate in water. Wipe it with a damp cloth. Use a wooden or plastic spatula to avoid scratching the non-stick coating.

Can I pour water into the base?

Yes, you can pour about 1 cm (1 liter) of water into the base to facilitate cleaning. Be careful not to move the base with water without removing the plate and unplugging the appliance.

What to do if the indicator light does not turn on?

Check that the appliance is plugged in and the thermostat is on a position other than minimum. If the light remains off, have the appliance checked by a qualified service.

Is the plate dishwasher safe?

No, the plate should not be put in the dishwasher. Clean it by hand with a soft sponge and mild detergent.

How to prevent food from sticking?

Use the non-stick coating properly by avoiding metal utensils. Preheat the grill and lightly oil the food if necessary.

Can I use metal utensils?

No, metal utensils can scratch the non-stick coating. Use wooden or heat-resistant plastic spatulas.

What is the required voltage?

The appliance operates on mains with a voltage of 220-240 V. Check the rating plate of your appliance to confirm.

How to store the appliance after use?

Unplug and allow to cool completely. Clean the plate and base. Store in a dry place, away from moisture. Do not wrap the cord around the appliance.

USER MANUAL GR 6 TEAM

Generated by Unregistered Batch DOC TO PDF Converter 2011.3.804.1511, please register!

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

Table grill

Gril de table

I/B Version 060301

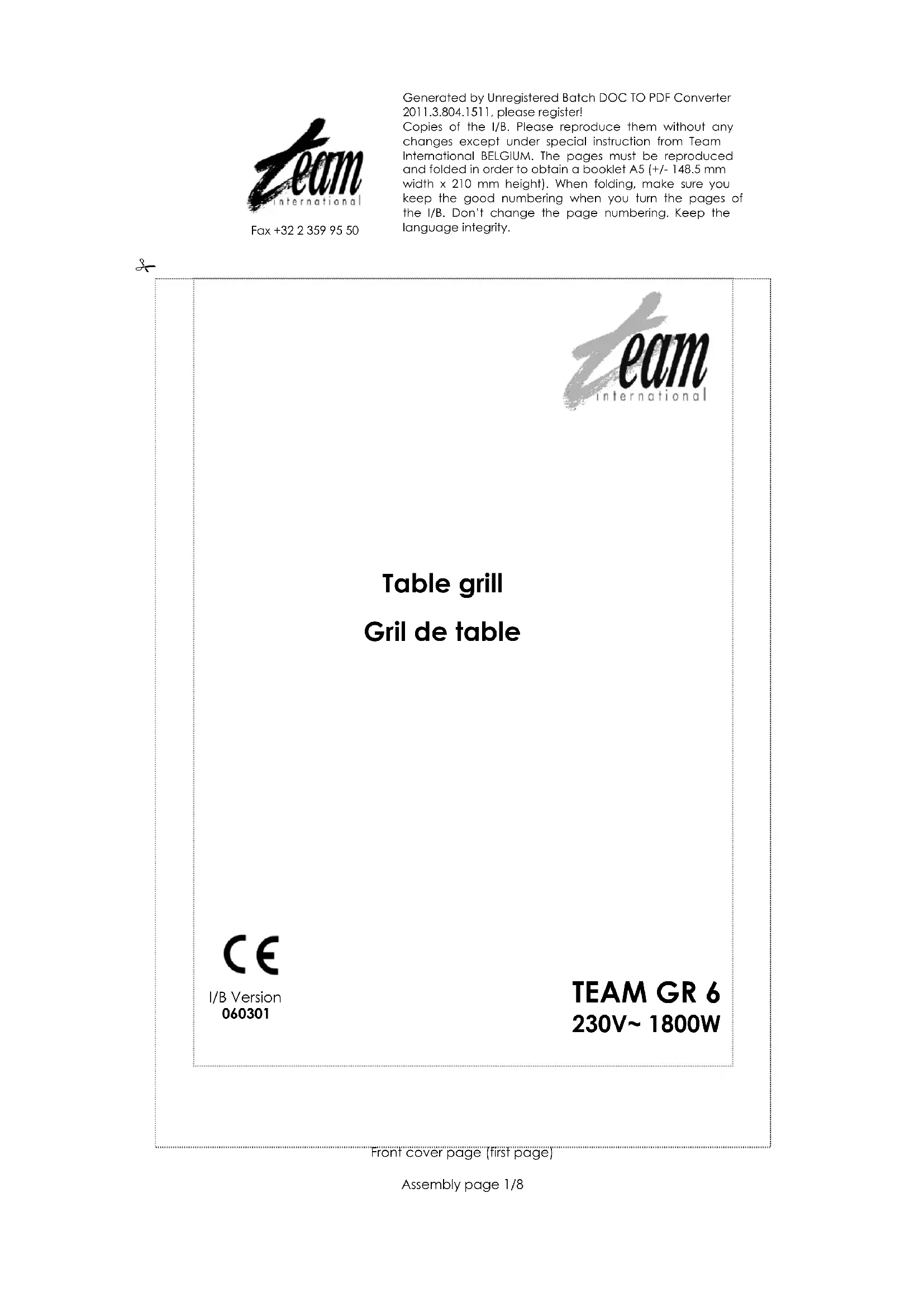

Front cover page (first page)

GB OPERATING INSTRUCTIONS

IMPORTANT SAFEGUARDS

Please read these instructions carefully before using the appliance.
Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using the appliance.
Never leave the appliance unsupervised when in use. Keep out of reach of children or incompetent persons.
From time to time check the appliance for damages. If it is damaged it should be repaired by a competent qualified electrician. If the power cord is damaged, it must be replaced by an identical power cord or a cord similar to the original one and showing the same characteristics. In case of doubt or if you do not find the identical power cord, please contact the nearest customer service.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Never immerse the appliance in water or any other liquid for any reason whatsoever even if you have removed the thermostat.
Never use the appliance near hot surfaces.
Before cleaning or storing the appliance, always unplug it and let it cool down.
Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Especially the power cord and its connector as the latter is equipped with a specific safety regulation.
Stand the appliance on a table or flat surface to prevent it from falling down.
Make sure the cord does not come into contact with the hot parts of the appliance.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces, always use the handle.
In order to avoid any risk of fire, never use the appliance without its base.
Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc...when it is in use, as a fire might occur.
Unplug the appliance when not in use, even if the thermostat is on its minimum position.
Only use the appliance for food that is supposed to be cooked.
Provide proper ventilation when using the appliance.
Do not cover the appliance with anything.
Be extremely cautious as oil and fat preparations might catch fire if overheated.

Competent qualified electrician : after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

BEFORE FIRST USE

Clean the grill and the accessories (Cf. "Cleaning and care"). It is recommended to heat up the grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the (new) smell.
- Ventilate the room during this period.

ASSEMBLY

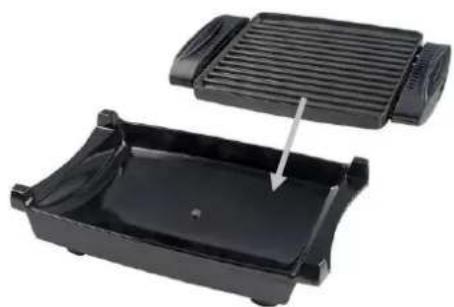

• Put the grill plate in the desired direction (ribbed or flat side) on the base of the appliance (step 1), and connect the plug of the thermostat to the appliance (step 2). Check that the thermostat knob is on its minimum position.

Step 1

Step 2

OPERATION

• Put the plug of the power cord in an earthed power socket.
• Select the cooking temperature using the thermostat knob. The pilot light will come on, indicating that the appliance is heating.
• Preheat the grill to reach the ideal cooking temperature. When the appliance reaches the desired temperature, the pilot light will go out.
• Now put the foodstuffs onto the grilling surface.
• Holes on the side of the plate will allow some grease flowing in the base.
  The grilling times vary according to the nature of the foodstuffs and to your personal taste.
• When grilling is finished switch off the grill and disconnect it.

PRACTICAL HINTS

• Frozen food should always be thawed before it is grilled.
  For a more homogeneous grilling result, it is advisable to put the food in the middle of the plate.

• You can poor about 1cm of water (approximately 1 litre) in the base of the appliance in order to facilitate the cleaning of the base. If you want to move the base full of water, first let the grilling plate cool down, unplug it and remove it, in order to move the base separately. This will prevent water from penetrating into the electric connections,
  To grill meat, put the thermostat in its maximum position and preheat the grill. For other ingredients, choose the temperature accordingly.

• Be careful not to scratch the special coating of the cooking plate, as it would lose its non-stick feature. Use a wooden spatula or a heat resistant plastic spatula.

CLEANING AND CARE

Before cleaning, put the thermostat in minimum position and make sure that the plug has been removed from the mains supply socket.
- Allow the grill to cool down thoroughly and unplug the thermostat from the appliance. To do so, just pull at the thermostat plug.
- Never immerse the grill plate or the plug in water or any other liquid. However, should there be water on the electric connection, wait until the appliance is completely dry before using it anew.
The base can be cleaned with water, adding some mild detergent if necessary. Never put it in the dishwasher.
- Do not use harsh abrasive cleaners as these might damage the non-stick coating.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
