USER MANUAL Select LP ION

Make sure that the items listed below are included in the box:

• Select LP
  Power Adapter
• Dust Cover
  USB cable
• Aux Input Cable
  Felt Slipmat
  45 RPM Adapter
• Software CD
• Quickstart Guide
• Safety & Warranty Manual

READ SAFETY INSTRUCTION BOOKLET BEFORE USING THE PRODUCT

Support

For the most up to date system requirements, compatibility information, and product registration, visit the ION website: ionaudio.com
For the latest information about this product, visit ionaudio.com/selectlp
For additional product support, visit ionaudio.com/support
For safety/warranty information, visit ionaudio.com/warranty

Connecting the Dust Cover to Select LP

To attach the included dust cover, follow these instructions:

1. Align the dust cover with the turntable's rear panel hinges.
2. Attach the dust cover to the hinges by pressing down to lock them into place.

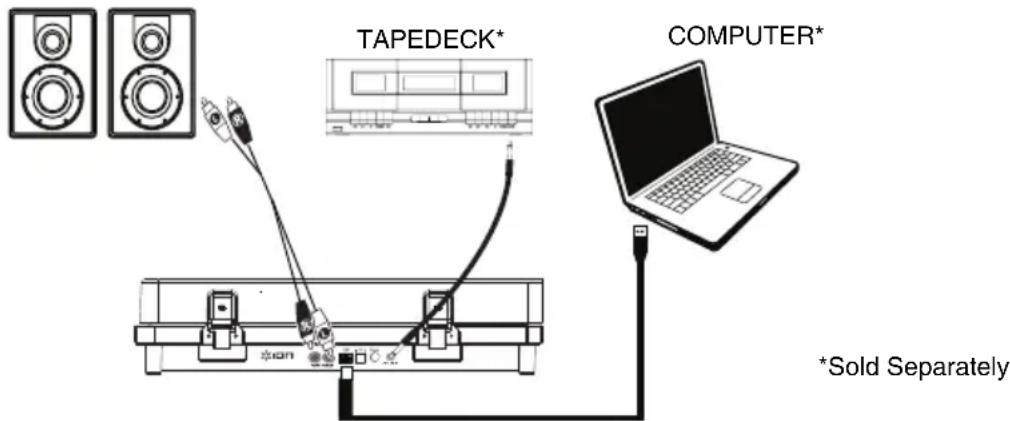

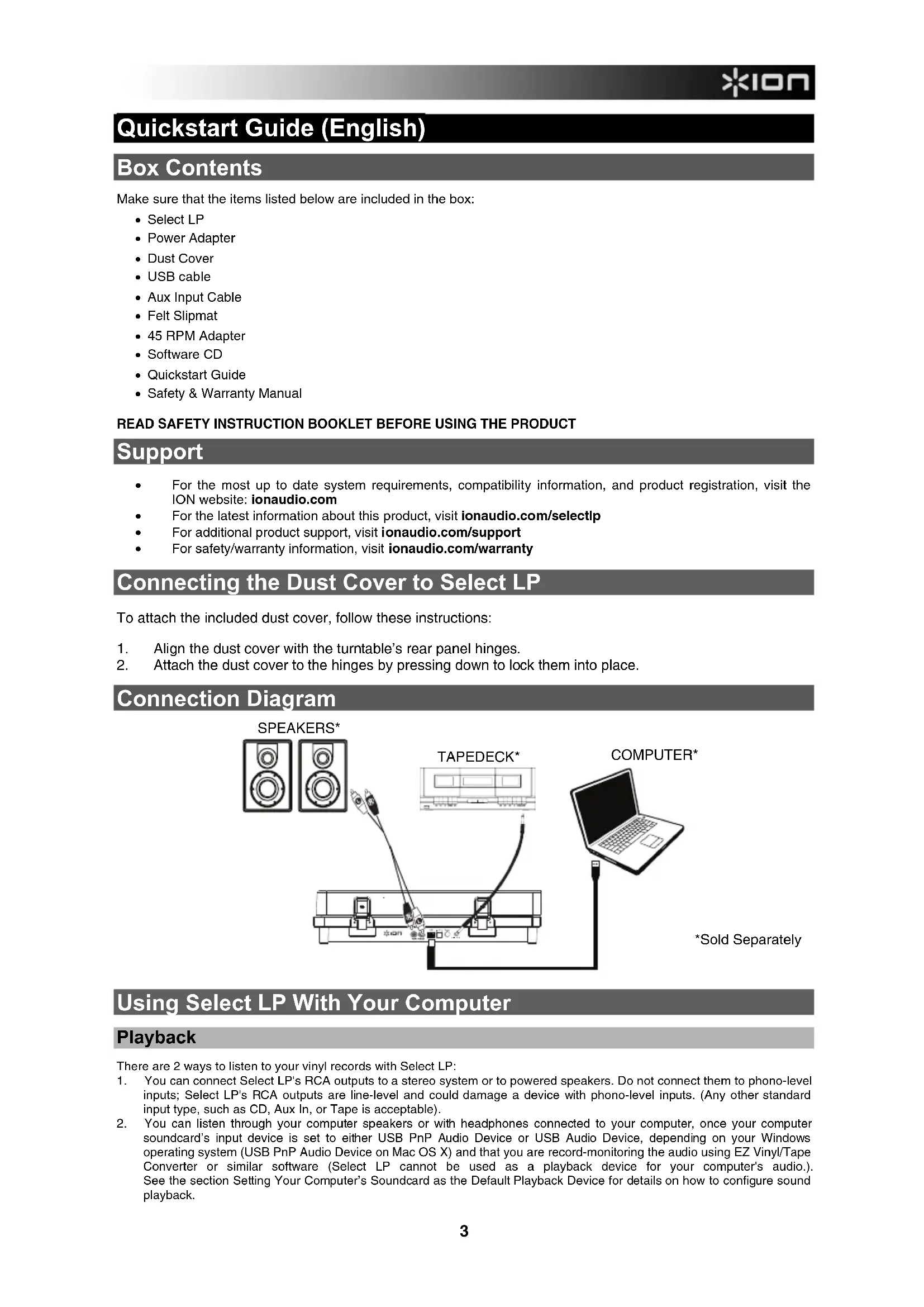

Connection Diagram

SPEAKERS*

Using Select LP With Your Computer

Playback

There are 2 ways to listen to your vinyl records with Select LP:

1. You can connect Select LP's RCA outputs to a stereo system or to powered speakers. Do not connect them to phono-level inputs; Select LP's RCA outputs are line-level and could damage a device with phono-level inputs. (Any other standard input type, such as CD, Aux In, or Tape is acceptable).
2. You can listen through your computer speakers or with headphones connected to your computer, once your computer soundcard's input device is set to either USB PnP Audio Device or USB Audio Device, depending on your Windows operating system (USB PnP Audio Device on Mac OS X) and that you are record-monitoring the audio using EZ Vinyl/Tape Converter or similar software (Select LP cannot be used as a playback device for your computer's audio.). See the section Setting Your Computer's Soundcard as the Default Playback Device for details on how to configure sound playback.

Recording

To record music to your computer, you can use ION EZ Vinyl/Tape Converter. EZ Vinyl/Tape Converter makes it easy to turn your music into digital files. After you finish converting your vinyl, you can then burn to CD or load onto portable media devices.

To install the software, insert the included CD into your computer, and follow the on-screen instructions.

Visit ionaudio.com/ezvc to download the latest version of EZ Vinyl/Tape Converter software or for helpful troubleshooting guide and additional support.

1. With EZ Vinyl/Tape Converter installed on your computer, use the included USB cable to connect Select LP's USB port to an available USB port on your computer.
2. On your computer, you can open EZ Vinyl/Tape Converter by going to Start Menu All Programs (Windows) or the Applications menu (Mac).
3. Follow the on-screen instructions to set up your recording. When prompted to play your music, move Select LP's tonearm over the record to start playback.

Note: To listen to a record while it's playing, listen through your computer's speakers, or connect Select LP's RCA outputs to a stereo system or powered speakers. Select LP must be connected to the computer in order for EZ Vinyl/Tape Converter to advance to the next step.

1. When you have finished recording, raise Select LP's tonearm from the record and return it to its arm clip.

Features

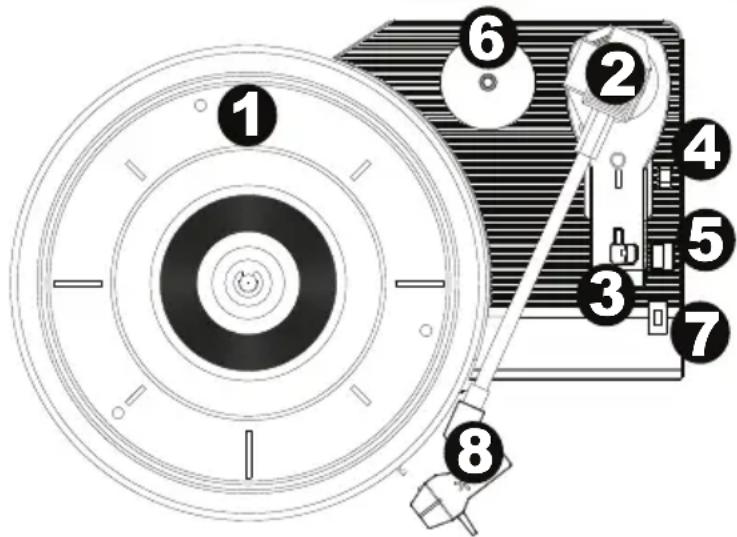

1. Platter - Place your record here.
2. Tonearm* - The tonearm can be raised and lowered by hand, or by pressing the raise / lower lever. Please note that the tonearm needs to be moved away from resting position (on the arm clip) for the turntable motor to activate. When the tonearm is placed back in its resting position, the turntable motor will deactivate if Autostop has been turned on.
3. Arm Clip - This specially designed arm clip secures the tonearm while at rest or when not in use. The arm clip has been designed to remain in the up position while unlocked.
4. Raise / Lower Lever - Raises and lowers the tonearm.
5. 33/45/78 Switch - This switch controls the RPM of the turntable platter. If the record is not playing at the correct speed, see the Troubleshooting section for details on how to resolve this.
6. 45 RPM Adapter Holder - Holds the included 45 RPM adapter. When not using the adapter, please place it in this holder.
7. Autostop Switch - This switch turns autostop on or off. When autostop is on, the platter will start spinning when the tonearm is placed over the record and stop spinning when the record has reached the end. (When autostop is off, the platter will always spin regardless of the position of the tonearm.)

Note: If your vinyl record stops before it reaches the end of the music, turn Autostop to the off position for this particular record. This is generally recommended for 45 RPM records.

IMPORTANT: Remove the plastic cartridge cover (needle cover) before operating the turntable.

• IMPORTANT: If the turntable's stylus becomes worn, purchase a replacement cartridge/stylus at ionaudio.com/products/accessories or by contacting the ION Parts Dept. at 401-658-3743 (U.S.) or [e-mail].

• Headshell - ION headshell with Audio-Technica AT3600L cartridge and Audio-Technica ATN3600L stylus. Remove the plastic cover off the stylus before playing a record.

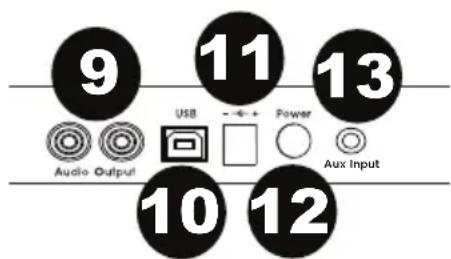

• RCA Output** - The audio from a playing vinyl record is sent to this line-level coaxial audio output. This must not be connected to phono level devices. (If you do not already have an RCA cable, this can be found at a local electronics retailer.)

**WARNING: The RCA outputs are LINE level. Please only connect these to LINE level inputs. You may damage your receiver if you plug in a LINE level device into a PHONO level input.

1. USB Audio Output - Use the included USB cable to connect your turntable to your computer. The USB connection will send audio from the turntable to your computer. Please see the Using Select LP With Your Computer section of this manual for information.

2. Power - Use the included adapter to connect to wall power.

3. Power Button - Press this button to turn Select LP on/off.
4. Aux Input - This stereo 1/8" (3.5 mm) input can be used to record audio from other connected sources such as a CD player, MP3 player, tapedeck, etc. Into your computer recording software.

Troubleshooting

If you experience any difficulties, please refer to the troubleshooting steps below as well as those in the EZ Vinyl/Tape Converter manual included with this product.

I'm not hearing any audio when recording music to a computer:

o Make sure that Select LP is powered on and that the needle is on the record.
o Make Select LP is selected as your computer's default recording device (see the instructions below).
o Disconnect then reconnect the USB cable connecting Select LP to your computer.

Make sure the computer speakers are turned up and the volume is not muted.

If you are listening through your computer's speakers, make sure those speakers are selected as your computer's default playback device (see the instructions below). Alternatively, you could connect Select LP's RCA outputs to a stereo system or powered speakers. Do not connect them to phono-level inputs; Select LP's RCA outputs are line-level and could damage a device with phono-level inputs.

(Note: The RCA outputs monitor the signal coming out of the turntable, not the signal coming from your computer.)

I'm not hearing any audio when playing music:

If you are playing music from vinyl:

o Make sure that Select LP is powered on and that the needle is on the record.
Connect Select LP's RCA outputs to a stereo system or powered speakers.

(Do not connect them to phono-level inputs; Select LP's RCA outputs are line-level and could damage a device with phono-level inputs.)

If you are playing music from your computer:

o Make sure your software music player's volume is turned up.
o Make sure your computer's volume is turned up.
o Make sure your computer's speakers are selected as your computer's default playback device (see the instructions below). (Select LP cannot be used as a playback device for your computer's audio.)

I am hearing a hum through my speaker or laptop when using the turntable:

If you are recording to a laptop:
Please connect the laptop to a grounded power supply (3 prong).

If you are playing through a speaker:

Ensure you are using the 12V 1A power adapter that was included with your product.
If your volume is on max, try turning it down until the hum stops.

My turntable is not making any sound, or music is muffled:

Take the cover off the stylus.

The turntable belt fell off:

o Please re-attach the belt to the turntable. For details on how to do this, see the guide located at ionaudio.com/turntablebelt.

My turntable is not spinning:

• Ensure the turntable is powered on (power switch in the back).
• Ensure autostop is turned on and the tonearm is placed over record (if auto stop is off it should always be spinning when power is on).
  If the above steps do not help, you may need to re-attach your turntable belt.

For details on how to do this, see the guide located at ionaudio.com/turntablebelt.

My record is not playing at the correct speed; its pitch is too high or too low:

○ Ensure the 33/45/78 switch is set to the correct speed for your record.
If the 33 / 45 / 78 switch is set correctly and the speed it still slightly off, do the following:

1. On the underside of Select LP, find the rubber pad with the RPM speed you want to adjust, and gently lift up the rubber pad to remove it.
2. For the 45 and 33 RPM setting, push through the rubber seal, and tighten/loosen the screw using a Phillips-head screwdriver to fine-tune the RPM speed.
3. For the 78 RPM setting, tighten/loosen the screw using a flat-head screwdriver.

Setting Your Computer's Soundcard as the Default Playback Device

• Windows XP: Click Start Menu Control Panel (or Settings Control Panel in Classic View) Sound and Audio Devices. Click the Audio tab and under Sound playback, select your computer's soundcard as the default device.
• Windows Vista: Click Start Menu Control Panel (or Settings Control Panel in Classic View) Hardware and Sound Sound. Click the Playback tab and select your computer's soundcard as the default device.
• Windows 7: Click Start Menu Control Panel Sound. Click the Playback tab and select your computer's soundcard as the default device.
• Windows 8: From the Start menu, click the lower-left corner of the screen to bring yourself to the Desktop. In the bottom-right corner of the Taskbar, locate the Volume Control "Speaker" icon. Right-click the speaker and select Playback Devices. The Windows Sound control panel should appear set on the Playback tab. If your computer's soundcard does not have a green "check mark" symbol next to it, right-click it and select "Set as Default Device".
• Mac: Click the upper-left "apple" icon then click System Preferences Sound. Click the Output tab. From the menu, select Internal Speakers if you are using the computer's internal speakers or select Headphones if you are using speakers or headphones attached to the computer's 1/8" headphone output.

Setting Select LP as the Default Recording Device

• Windows XP: Click Start Menu Control Panel (or Settings Control Panel in Classic View) Sound and Audio Devices. Click the Audio tab and under Sound recording, select USB PnP Audio Device as the default device.
• Windows Vista: Click Start Menu Control Panel (or Settings Control Panel in Classic View) Hardware and Sound Sound. Click the Recording tab and select USB Audio Device as the default device.
• Windows 7: Click Start Menu Control Panel Sound. Click the Recording tab and select USB Audio Device as the default device.
• Windows 8: From the Start menu, click the lower-left corner of the screen to bring yourself to the Desktop. In the bottom-right corner of the Taskbar, locate the Volume Control "Speaker" icon. Right-click the speaker and select Playback Devices. In the Windows Sound control panel select the Recording tab. If USB PnP Audio Device does not have a green "check mark" symbol next to it, right-click it and select "Set as Default Device".
• Mac: Click the upper-left "apple" icon then click System Preferences Sound. Click the Input tab. From the menu, select USB PnP Audio Device as the device.

BEFORE RETURNING THE PRODUCT, please contact ION Audio for technical at ionaudio.com/support.

Assistance technique

Power: 12V DC, 1A, center-positive

Dimensions (Length x Width x Height): 14.21" x 16.06" x 4.01"; 361 mm x 408 mm x 102 mm

Weight: 7.05 lbs.; 3.2 kg

Cartridge type: Magnetic

Cartridge Model: Audio-Technica AT3600L

Stylus: conical, diamond-tipped included

Stylus model: Audio-Technica ATN3600L stylus

A replacement cartridge/stylus can be purchased by contacting the ION Audio Parts Dept. at 401-658-3473 (U.S.) or emailing [e-mail] or by visiting ionaudio.com/products/accessories.
