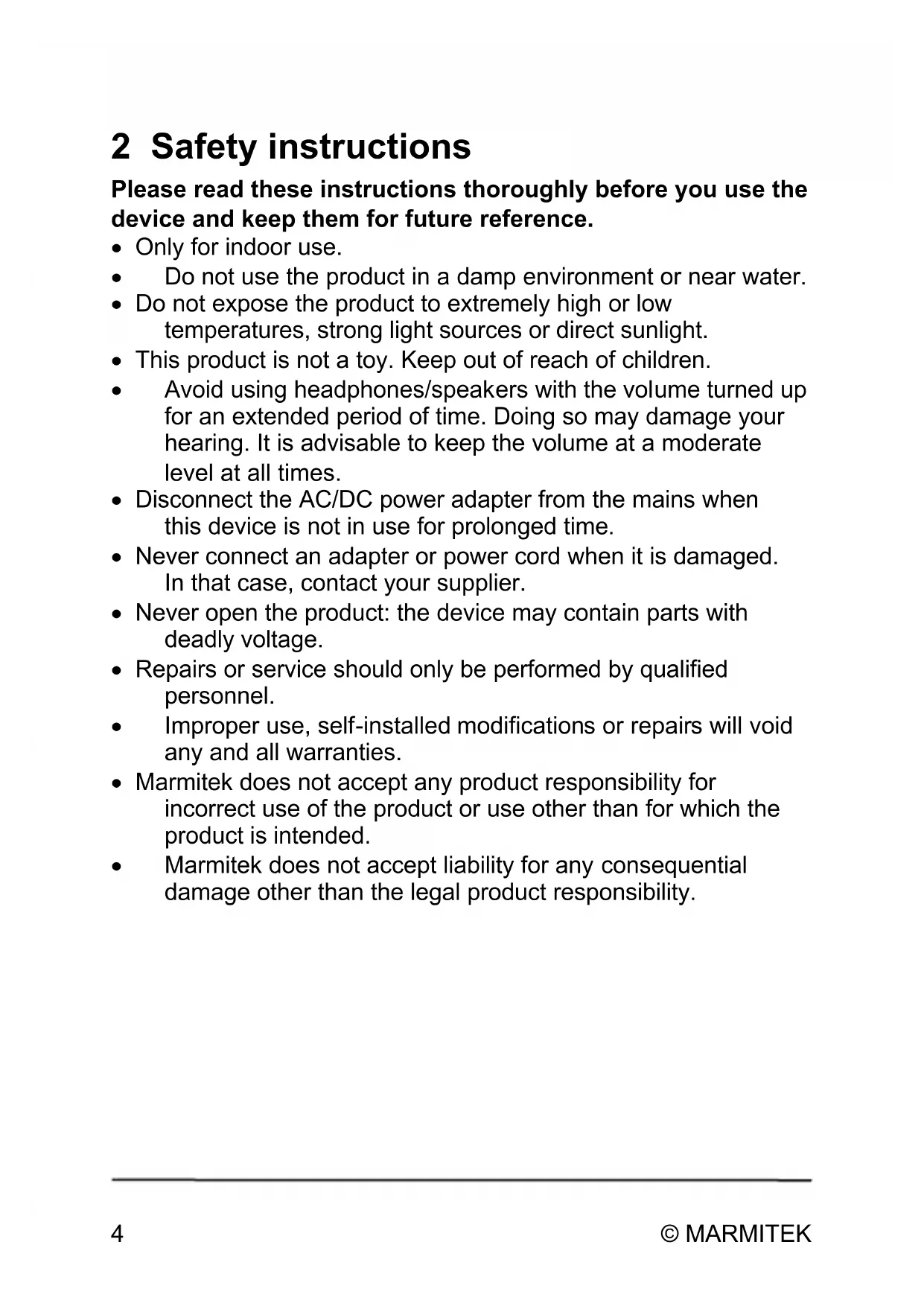

2 Safety instructions Please read these instructions thoroughly before you use the device and keep them for future reference. Only for indoor use. Do not use the product in a damp environment or near water. Do not expose the product to extremely high or low temperatures, strong light sources or direct sunlight. This product is not a toy. Keep out of reach of children. Avoid using headphones/speakers with the volume turned up for an extended period of time. Doing so may damage your hearing. It is advisable to keep the volume at a moderate level at all times. Disconnect the AC/DC power adapter from the mains when this device is not in use for prolonged time. Never connect an adapter or power cord when it is damaged. In that case, contact your supplier. Never open the product: the device may contain parts with deadly voltage. Repairs or service should only be performed by qualified personnel. Improper use, self-installed modifications or repairs will void any and all warranties. Marmitek does not accept any product responsibility for incorrect use of the product or use other than for which the product is intended. Marmitek does not accept liability for any consequential damage other than the legal product responsibility.Subwoofer Anywhere 635

ENGLISH 3 Your product

Congratulations on your purchase of the Marmitek Subwoofer Anywhere 635. The Subwoofer Anywhere 635 comprises of a transmitter and a receiver. The signal is transmitted on 2.4 GHz and can thus pass through walls and ceilings. This transmitter/receiver allows audio signals to be transmitted wirelessly.

• Digital Wireless Subwoofer Sender

• Position your subwoofer anywhere you like.

• Connect your subwoofer wirelessly to your surround amplifier or TV.

• Select the best position for your subwoofer, without any cabling lying around your living room.

• Works with any brand of active subwoofer.

• Digital wireless technology provides interference-free transmission while maintaining quality.

• Easy to install and intuitive to use thanks to automatic on/off function; even your subwoofer's standby feature will continue to work. You can connect your surround set's subwoofer output, via the Subwoofer Anywhere 635, to your active subwoofer's LFE connection, without your subwoofer having to be near your surround set. The Subwoofer Anywhere 635 has a range of approx. 10 metres, so you can enjoy your audio in the same or adjoining room without limitations.

3.2 Package contents

1 x Subwoofer Anywhere 635 transmitter 1 x Subwoofer Anywhere 635 receiver 2 x Mini USB cable 2 x USB power adapter 2 x Mini Jack female to coaxial converter cable, mono 2 x Mini Jack female to coaxial converter cable, stereo 1 x Set of instructions© MARMITEK

2. Mini USB port for power supply

4. Connection LED. Lights up green if a connection is made.

Blinks if there is no connection. Off if the transmitter/receiver is off.

5. Power LED. Lights up red if the transmitter/receiver is

ENGLISH 4 Getting started

4.1 Installing the transmitter

You connect the subwoofer output of your surround set or TV to the transmitter.

1. Use the supplied adapter cable to connect the

adapter into the electrical socket. The red LED will now light up.

3. The Subwoofer Anywhere 635 transmitter will now

automatically switch on and the green LED will begin to flash.

4. Now the sound of your audio source will be reproduced.

4.2 Installing the receiver

1. Use the converter cable supplied to connect the

Subwoofer Anywhere 635 receiver to the LFE/LINEX IN coaxial (Cinch/RCA) connection on your Active Subwoofer.

2. Connect the adapter to the mini USB port and insert the

adapter into the electrical socket. The red LED will now light up.

3. The Subwoofer Anywhere 635 receiver will now

automatically switch on and the green LED will begin to flash. The transmitter and receiver will now establish a connection, after which you will hear your subwoofer sound coming from the active subwoofer that is connected to the receiver. The green LED will stop flashing and then stay illuminated.© MARMITEK

Extra receiver for your Subwoofer Anywhere 635. With an extra receiver, you can receive the sender’s signal at more places in your house. 5 Frequently asked questions (FAQs) I can’t connect my Subwoofer Anywhere 635. Check the following:

1. Ensure that the power adapter is connected and the power

LED (5) is on (red).

2. Ensure that the distance between the transmitter and

receiver is not greater than 10 metres and that there are no large obstacles in the way.

3. Check that the connection LED (4) is on (not blinking). If it is

not on, press the ON/OFF switch (3). No sound comes out of the Active Subwoofer. Ensure that the audio cable is correctly connected (LFE/LINE IN), that the correct output has been selected on your audio installation and that your audio system’s volume is set to the desired level. Check that neither the transmitter nor receiver is muted. Make sure your audio system actually reproduces surround sound and not, for example, just stereo sound on your front speakers. Can I connect my passive subwoofer directly to the receiver? In order to hear sound or music, connect the receiver to an Active Subwoofer (with built-in amplifier). You cannot connect a passive subwoofer directly to the receiver. My amplifier doesn't have an LFE output A stereo RCA adapter cable is also supplied, which enables you to use the PRE OUT L+R output of your amplifier.Subwoofer Anywhere 635

ENGLISH Can I connect multiple subwoofers? Yes, you can pair multiple receivers to the transmitter, allowing you to position multiple subwoofers anywhere you like. Why choose a wireless solution? If you were to use a long RCA cable for the connection between the amplifier and subwoofer, there is a strong possibility of a humming sound. A wireless solution won’t encounter this problem. Can I connect the USB cable from my transmitter/receiver to a USB connection on my amplifier or TV, for example? Yes, you can. But the connection is only used for powering your Subwoofer Anywhere 635. The transmitter/receiver then switches on and off automatically in line with the amplifier or TV (auto power on). Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com© MARMITEK

6 Technical specifications Supply voltage 5V 500mA by Mini USB Power Consumption < 2W LEDs Power, Link AV RF transmission Digital Pairing Automatically RF data rate Up to 2 Mbps, GFSK modulation Audio frequency range 20Hz ~ 48KHz Audio in/output RCA, mono and stereo Transmission Range Up to 40m free field, up to 10m through walls and ceilings RF frequency 2.4 GHz Ambient temperature 0 ~ +50°C (Operation) -20°C tot +70°C (storage) Weight 20 grams Dimensions 61 x 51 x 12 mm Power Adapter Input voltage 100-240 VAC Input AC frequency 50-60 Hz Output voltage 5.0 V Output current 0.5 A Output power 2.5 W Average active efficiency 73.76% Efficiency at low load (10 %) 61.9% No-load power consumption 0.05 W Efficiency marking VI Specifications may be modified without prior notice.Subwoofer Anywhere 635

7.1 Declaration of Conformity

Hereby, Marmitek BV, declares that this Subwoofer Anywhere 635 is in compliance with the essential requirements and other relevant provisions of the following Directives: Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonisation of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC. Directive (EU) 2017/2102 of the European Parliament and of the Council of 15 November 2017 amending Directive 2011/65/EU on the restriction of the use of certain hazardous substances in electrical and electronic equipment. Commission Regulation (EU) 2019/1782 of 1 October 2019 laying down eco-design requirements for external power supplies pursuant to Directive 2009/125/EC of the European Parliament and of the Council and repealing Commission Regulation (EC) No 278/2009. You can read the Declaration of Conformity at http://www.marmitek.com© MARMITEK

Environmental Information for Customers in the European Union and other European countries with separate collection systems. This symbol on the product or on its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product.

Marmitek is a trademark of Germatron B.V. Subwoofer Anywhere 635™ is a trademark of Marmitek B.V. All rights reserved. Every effort has been made to ensure that the information in this manual is accurate. Marmitek is not responsible for printing or clerical errors. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. Other company and product names mentioned herein may be trademarks of their respective companies. Mention of third-party products is for informational purposes only and constitutes neither an endorsement nor a recommendation. Marmitek assumes no responsibility with regard to the performance or use of these products. Marmitek BV - PO Box 4257 - 5604 EG Eindhoven The NetherlandsSubwoofer Anywhere 635
