USER MANUAL BoomBoom 540 MARMITEK

ENGLISH SAFETY WARNINGS x Do not expose the components of your system to extremely high temperatures or bright light sources. x In case of improper usage or if you have altered and repaired the product yourself, all guarantees expire. Marmitek does not accept responsibility in the case of improper usage of the product or when the product is used for purposes other than specified. Marmitek does not accept responsibility for additional damage other than that covered by the legal product responsibility. x This product is not a toy. Keep out of reach of children. x Avoid using headphones with the volume turned up for an extended period of time. Doing so may damage your hearing. It is advisable to keep the volume at a moderate level at all times. x The built-in rechargeable battery is not replaceable. Do not remove or replace battery. Dispose of unit properly. Do not dispose unit in trash or fire.

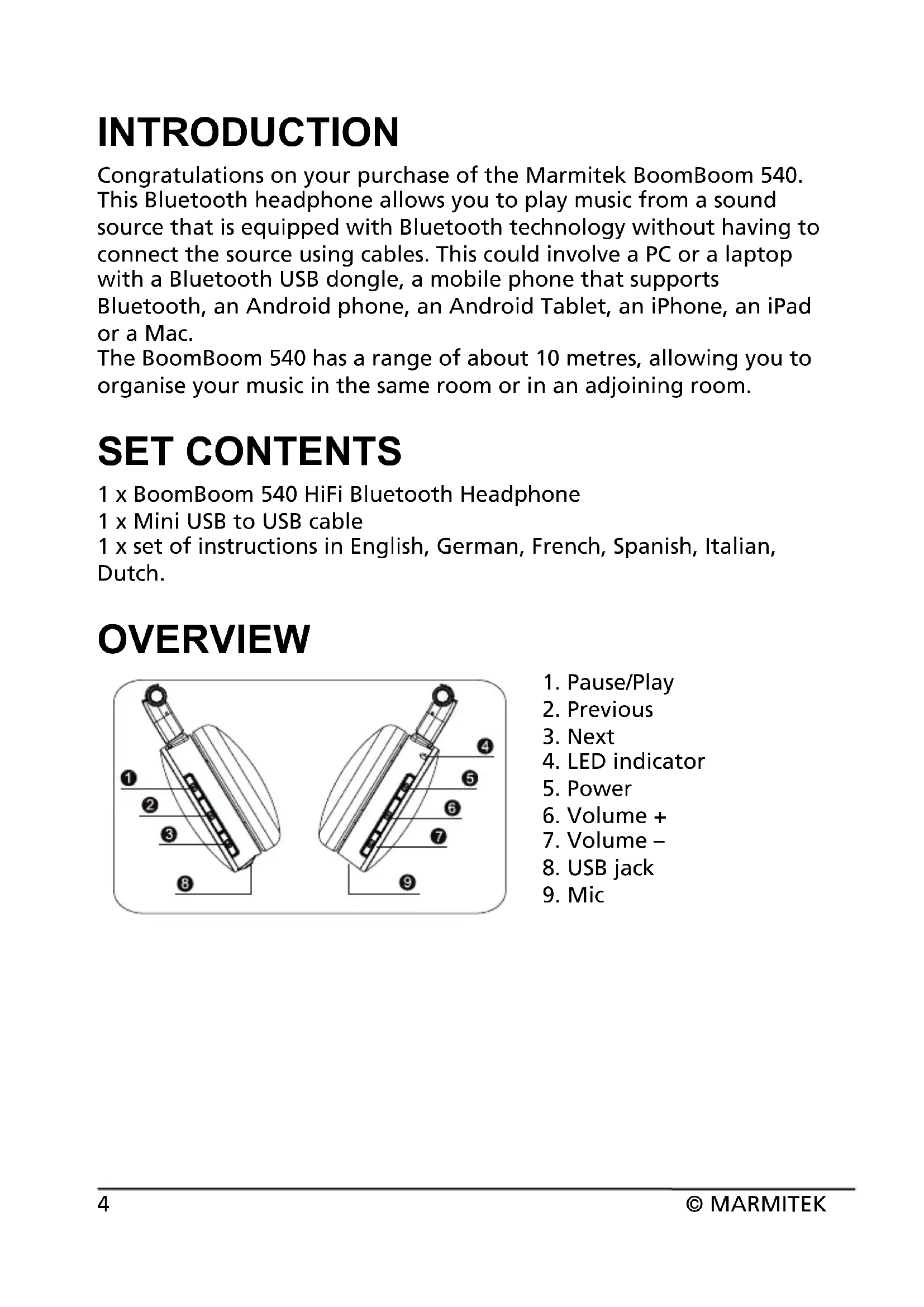

Congratulations on your purchase of the Marmitek BoomBoom 540. This Bluetooth headphone allows you to play music from a sound source that is equipped with Bluetooth technology without having to connect the source using cables. This could involve a PC or a laptop with a Bluetooth USB dongle, a mobile phone that supports Bluetooth, an Android phone, an Android Tablet, an iPhone, an iPad or a Mac. The BoomBoom 540 has a range of about 10 metres, allowing you to organise your music in the same room or in an adjoining room. SET CONTENTS 1 x BoomBoom 540 HiFi Bluetooth Headphone 1 x Mini USB to USB cable 1 x set of instructions in English, German, French, Spanish, Italian, Dutch. OVERVIEW

© MARMITEK 4ENGLISH LED Indicator Instructions Operation/State LED indicator status operating method/result Power on blue light glittering press the power key for 5s Linking mode red and blue light glittering in turn hold the power key for 7s Turning off red light on and extinguish press the power key for 4s Charging indicator red light on red light on Charged red light extinguish red light extinguish Connection red light glittering glittering every 5s No connection 5s glittering glittering every 0.5s Call blue light glittering press the power key to receive Busy blue light glittering glittering every 5s FIRST USE The BoomBoom 540 has a built-in rechargeable battery. We recommend completely charging the battery before using the device for the first time. Connect the supplied USB cable to the BoomBoom 540 and a PC, Mac or USB power adapter. The red LED will light up. The device may take up to 4 hours to charge for the first time. Once the BoomBoom 540 battery is completely charged, the red LED will switch off. WEARING STYLE Watch the left and right indications on the outside of the headband. When wearing the BoomBoom 540, please make sure the Power button is always on the right hand side. BOOMBOOM 540 5Adjust the fit of the BoomBoom 540 by changing the length of the headband near the ear pads. The ear pads may be rotated 90 degrees and can be folded inwards, allowing you to easily carry and store the BoomBoom 540.

OFF) The BoomBoom 540 is able to remember up to 8 paired devices. As a result it is not necessary to pair a device every time you connect it. If a

device is paired with the BoomBoom 540, the device which has been originally paired with the BoomBoom 540 will be deleted from its memory.

1. Make sure the BoomBoom 540 is turned off.

2. Press and hold the POWER [5] button for 7 seconds to put the

BoomBoom 540 in pairing mode. Release the POWER button as soon as you hear two short ‘beep’ tones. The red and blue LED will flash alternately.

3. Turn on a device that supports Bluetooth, such as an iPod,

iPhone, Android or mp3 player and go to: Settings > General > Bluetooth. Click ON ‘Bluetooth’ and the BoomBoom 540 will appear on the device. Click ON ‘BoomBoom 540’. The device is now connected and paired with the headphone. If the device prompts for a pairing code, enter:”0000”. VOLUME CONTROL

1. Tap VOLUME+ [6] to increase the volume. When maximum

volume has been reached, a tone indicator will sound.

2. Tap VOLUME- [7] to decrease the volume. When minimal volume

has been reached, a tone indicator will sound.

3. Press Next [3] or Previous [2] to listen to the next/previous track.

© MARMITEK 6BOOMBOOM 540

ENGLISH TURNING OFF Press and hold the power button for 4 seconds to turn off the BoomBoom 540. The headphones will turn off automatically after 10 minutes when no device is connected to it. The red LED will turn on and then slowly switch off. TURNING ON Press the POWER button for 5 seconds. The BoomBoom 540 will produce a “beep” tone. The blue LED lights will start flashing rapidly. The BoomBoom 540 will then automatically link to the last device it was connected to. When connected, the blue LED lights will start to flash at a slow rate. Only one device can be connected at the same time to the BoomBoom 540. If your device does not connect automatically, go to the device's Bluetooth settings and select the BoomBoom 540. A connection will then be made. CALL FEATURE

When making a call from your mobile phone, the call will (depending on the phone settings) be transferred to your headphone automatically once a connection has been made.

Press the power button [5] briefly to accept the call. The music will be paused and the call will be transferred.

Press the power button [5] briefly or end the call on your phone. The music will continue to play automatically.BATTERY RUNNING LOW When the battery of the BoomBoom 540 is running low, you will hear an audio warning. After 3 to 5 minutes the BoomBoom 540 will automatically switch off. Follow the steps as described earlier to recharge the battery.

1. Ensure that the battery is fully charged.

2. Ensure that the Bluetooth function on your mobile telephone is

on (check your phone's manual for reference).

3. Ensure that the distance between your mobile phone and the

BoomBoom 540 is no greater than 10 metres and that there are no large obstacles in the way. Can I link numerous devices to my BoomBoom 540? You can link up to 8 devices to your BoomBoom 540. If the BoomBoom 540 is switched on, it will automatically connect to the last connected device. Do you have other questions that have not been resolved by the above information? Please go to www.marmitek.com Environmental Information for Customers in the European Union European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. It is your responsibility to dispose of this and other electric and electronic equipment via designated collection facilities appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. For more detailed information about the disposal of your old equipment, please contact your local authorities, waste disposal service, or the shop where you purchased the product. © MARMITEK 8BOOMBOOM 540

ENGLISH TECHNICAL DATA General Bluetooth Frequency 2.402-2.480GHz Bluetooth version V2.1+EDR Supported Bluetooth profiles A2DP, AVRCP, HSP, HFP Supported Codec SBC (subband codec) Support multiple pair up to 8 devices Range Up to 10 metres open field Battery Li-ion 3.7 V - Battery Capacity 600mAh - Battery Charging Voltage 5V - Charger Time 3-4 hours max - Battery Life 8-10 hours Operation on headphones and audio source Phone functions answer call, end call Audio functions Volume+, Volume-, Next song, previous song, power Headband fully adjustable and foldable Weight 135 grams Operation temperature -10°C ~ +55°C Storage temperature -20°C ~ +60°C Microphone Microphone unit 4 x 1.5 mm Sensitivity -52+/-3dB Directional sensitivity omni-directional Impedance ≤ 2.2 kOhm Frequency response 30Hz-16,000Hz Drivers Driver diameter 40 mm Impedance 32 Ohm Sensitivity 114±3dB S.P.L. at 1 KHz Output power (RMS) 20mW Output power (PMPO) 50mW Signal To Noise Ratio ≥ 82dB Frequency response 20Hz-20,000Hz Specifications may be modified without prior notice.© MARMITEK 10BOOMBOOM 540

0 DECLARATION OF CONFORMITY

5604 EG EINDHOVEN THE NETHERLANDS Copyrights Marmitek is a trademark of Pattitude B.V. BoomBoom 540 is a trademark of Marmitek B.V. Copyright and all other proprietary rights in the content (including but not limited to model numbers, software, audio, video, text and photographs) rests with Marmitek B.V. Any use of the Content, but without limitation, distribution, reproduction, modification, display or transmission without the prior written consent of Marmitek is strictly prohibited. All copyright and other proprietary notices shall be retained on all reproductions. MARMITEK www.marmitek.com © MARMITEK
