Digital TV with integrated Multi Tuner for reception of satellite television, cable television and DVB-T

Contents

Safety Precautions 26

Positioning the TV set. 26

Power cable and plug. 26

Introduction 27

Intended use 27

Preparation 27

Important Instructions 27

Safety instructions 27

Decommissioning and Storing. 29

Environmental Information. 29

Standard accessories 29

TV - characteristics 29

Viewing the TV 30

TV Control Switch & Operation 30

Remote control 31

Connections 32

Remote control - changing the batteries 33

Connections 33

Basic handling of the TV set 33

Power-on/-off 33

Initial Installation 33

MediaPlayback via USB Input 36

Changing Image Size: Picture Formats 36

Using the Channel List 36

Menu Features and Functions. 37

Menu Features and Functions 38

Menu Features and Functions 39

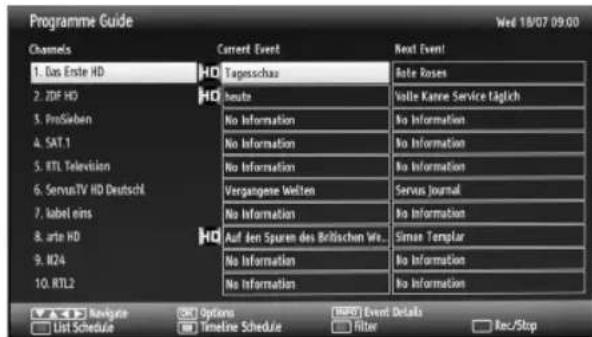

ElectronicProgramme Guide (EPG) 40

Recording a Programme 40

Timeshift Recording 41

Instant Recording 41

Watching Recorded Programmes 41

Recording Configuration. 41

Teletext 41

Software Upgrade 42

Troubleshooting & Tips 42

Image persistence - ghosting. 42

No power 42

Poor picture 42

No picture 42

No sound 43

Remote control - does not operate 43

Input sources - can not be selected. 43

Recording Unavailable 43

USB Is too slow 43

PC Typical Display Modes 43

Specifications 44

Remarks concerning conformity 45

Definition of terms 45

Supported File Formats for USB Mode 45

Legal Information & Service Information 46

Safety Precautions

Power source

• Warning: Do not leave your TV in standby or operating mode in your absence.

Positioning the TV Set

• Do not place the TV on a narrow shelf or in small cabinets; ensure a minimum ventilation gap of 10cm around the unit.
• Do not block the ventilation openings.
• Do not place the TV on sloping or unstable surfaces.
  In order to prevent damages, do not place any objects on the TV set.
• Only operate the device in a temperate climate.

Power cable and plug

• The plug of the power cable should be easily accessible.
• In thundery weather and when the set is not to be used for an extended period or during absence you should remove the mains and antenna plugs from the set. Overvoltage can damage the TV.
• Do not place any objects (TV sets, furniture etc...) on the power cord or pinch the cord.
• Handle the power cord by the plug, do not unplug the TV by pulling the power cord.
• Never touch the power cord/plug with wet hands as this could cause a short circuit or electric shock.
• Make sure that the power cables do not become knotted or kinked.
• Power cords should be placed in such a way that they are not likely to be stepped on or driven over.
• A damaged power cord/plug can cause fire or give you an electric shock. When damaged it must be replaced, this should only be done by qualified personnel.
• Do not expose the set to dripping or sprayed water. If water gets into the unit, immediately remove the mains plug and advise the service department.
• If there is damage to the power cable or to the casing and if liquids penetrate the set, pull the mains plug out immediately and contact qualified personnel to check the device before putting it again into operation.

Introduction

We thank you for purchasing this product. These operating instructions help to understand the unit and - when used for the designated purposes - to profit its application. Please, read the corresponding information in this manual before using the device even if you are already familiar with handling electronic devices. Pay particular attention to the safety notes chapter. Keep the manual for further use. Pass the manual on if you sell the device or hand it down to somebody.

Intended use

The TV set is intended only for the reception and playback of picture and sound signals. The different connection possibilities guarantee an extension of reception and display sources of different external devices. Use is permitted in dry rooms. Use is permitted only in private situations and is expressly forbidden in commercial situations. The manufacturer accepts no liability for damage caused by inappropriate handling, by non-permitted changes or by non-compliance with the safety precautions. Operating the LED TV under extreme environmental conditions could damage the device.

Preparation

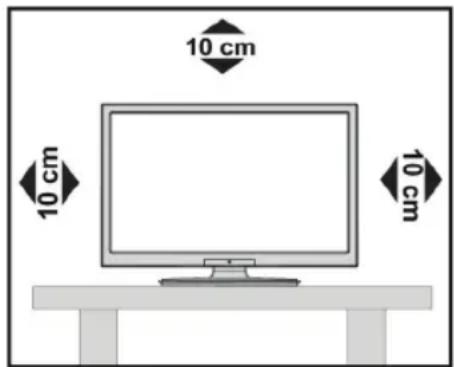

Ensure a minimum ventilation gap of 10cm around the unit. The set has ventilation slits to allow heat to escape from the inside of the set. Do not cover the ventilation slits with objects such as newspapers, tablecloths etc. Do not place objects over the ventilation slits. Only operate the receiver in a temperate climate.

Important Instructions

Following symbols as restrictions, precautions, and safety are used in the operating procedures. Please note such information for security reasons.

Warning

Please note warnings to avoid serious injuries and to ensure a safe operation.

Danger of electrical shock

This is the warning sign alerting the user of "dangerous voltage" inside the unit. Otherwise danger of an electrical shock exists!

Attention

For insure the safe operation and to avoid injuries to persons and damage, please note the warnings, cautions and notes used in this manual.

Important

For your own protection you should read the safety notes carefully before using your new TV and to avoid any possible damage.

Indication/Info The info symbol refers and practical tire on

various units and the system in order to optimize the use of features.

Safety instructions

Please read carefully the following safety instructions for your own safety. Keep electrical devices away from babies and children.

Warning

• Do not let unsupervised people (including children) with reduced physical, sensory or mental skills, or a lack of experience and knowledge to use this electrical unit.
  Children cannot always correctly perceive possible dangers.
• Batteries can be harmful if swallowed. Always store batteries out of the reach of young children. If a battery is swallowed, seek medical assistance immediately
• Keep packaging film always from small children and pets.

Repair information

• Any necessary repairs to the receiver should only be carried out by qualified personnel. Do not open the TV housing under any circumstances because this can electrical shock!

Headphone volume level

• Please note, if you use the headphones continuously with high volume sound, it may cause hearing damaged.

Batteries

ATTENTION! Please insert the batteries always while respecting the correct polarity. Do not try to recharge the batteries yourself and do not throw them into fire. DANGER OF EXPLOSION!

Wall mounting (optional)

To prevent injury, this TV must be securely attached to the wall in accordance with the installation instructions (if the option is available).

Spare parts

If your unit needs a replacement part, make sure the repairer uses only specified by the manufacturer devices. Not approved spare parts or devices with the same specification can cause, fire, electrical shock or other hazards.

Power Source

Connection to mains power 220-240V/50 Install the system in accordance with the installation examples, in order to avoid damages.

Cleaning

Before cleaning, unplug the TV from the wall socket. Do not use liquid or aerosol cleaners. Only use a soft, dry cloth.

Thunderstorms

In thundery weather and when the set is not to be used for an extended period

or during absence you should remove the mains and antenna plugs from the set. Overvoltage can damage the TV.

Heat sources and flames

• Do not expose the TV and batteries to open flames and sources of intense heat such as an electric heater.
• Do not place candles and other open flame sources near the TV in order to avoid the spreading of fire.

Ventilation

The slots and openings on the TV set are intended for ventilation and to ensure reliable operation.
- To prevent overheating, these openings must not be blocked or covered in anyway.

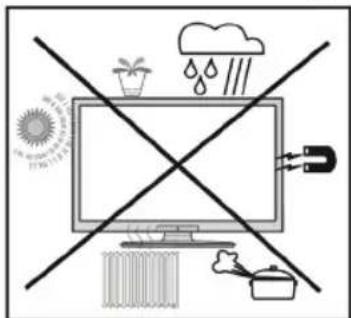

Power consumption in Standby and during operation

ATTENTION: During long absences the TV should be switched off. This extends the lifetime of the screen and saves energy.

Keeping away electrical devices from children.

In order to separate the device completely from the electricity network, the mains plug has to be pulled from the power socket. Therefore the device has to be set up in a manner that unhindered access to the socket is guaranteed, so that in an emergency case the plug can be pulled immediately. To exclude fire danger, the power cable should be pulled from the power socket if the device is not used for a longer period, e.g. when you're on vacation.

LCD Screen

The LCD panel is a high technology product with several million thin layer transistor which solve even subtle image details.
Occasionally, a few non-active pixels may appear on the screen as a fixed blue, green or red point. Please note that this does not affect the performance of your product.
- Do not scratch the screen with fingernails or other hard objects.

Information regarding disposal

Packaging is recyclable and should be recycled. Packaging material, such as for example plastic bags, should be kept away from children. Batteries, even those without heavy metal, are not to be sent to your regular household refuse site but in an environmentally sound manner. Please make enquiries concerning the legal regulations in your area. The symbol on the packaging indicates that the electric or electronic device has to be disposed separated from regular consumer waste. Within the EU there are separate disposal systems. Please contact your local authority or local dealer at whom you purchased the product for further information.

Connection to a TV distribution system (cable TV etc.) using a tuner

The connection of devices, which are already connected via a network connection or other devices to the safety earthing of a building, via coaxial cable

to a TV distribution system can present a possible fire danger.

Decommissioning and Storing

Pull the mains plug from the power socket and pack the device in suitable cardboard boxes. Remove the batteries from the remote control and pack the remote control to the TV set.

NOTE: The TV set should be stored in a dry and t-free room.

Environmental Information

This television is designed to consume less energy to save environment. You not only help to save the environment but also you can save money by reducing electricity bills thanks to the energy efficiency feature of this TV. To reduce energy consumption, you should take the following steps:

You can use Power Save Mode setting, located in the Picture Settings menu. If you set Power Save Mode on Eco, the TV will switch to energy-saving mode and the luminance level of TV set will be decreased to optimum level. Note that some picture settings will be unavailable to be changed when the TV is in Power Save Mode.

If you set power save mode on Picture off, a message will appear on the screen and backlight will be off within three seconds. Press any button on the remote control to activate the picture again.

When the TV is not in use, please switch off or disconnect the TV from the mains plug. This will also reduce energy consumption.

Disconnect power when going away for longer time. It is highly recommended to activate Power Save Mode setting to reduce your annual power consumption. Please helps us to save environment by following these steps.

Repair Information

Please refer all servicing to qualified personnel. Only qualified personnel must repair the TV. Please contact your local dealer, where you have purchased this TV for further information.

Standard accessories

Remote control Tareo 0000/3752

Batteries:2x AAA

Operating instructions manual

Connection cable AV site

Connection cable for YPbPr

TV - characteristics

Fully integrated digital/cable/satellite TV (DVB-T/C/S-S2).
- HDMI connectors for digital video and audio.
USB input.
Programme recording.
Programme timeshifting.
10000 programmes.
- OSD menu system.
- Scart socket for external devices.
- Stereo sound system.
- Teletext, fastext, TOP text.
- Headphone connection.
Automatic programming system.
Forward or backward manual tuning.
Automatic power down after up to six hours.
- Sleep timer.
Child lock.
Automatic sound mute if no transmission takes place.
- NTSC playback.
AVL (Automatic Volume Limiting).
PLL (Frequency Search).
PC input.
Plug&Play for Windows 98, ME, 2000, XP, Vista, Windows 7.
Game Mode.
Picture off function.

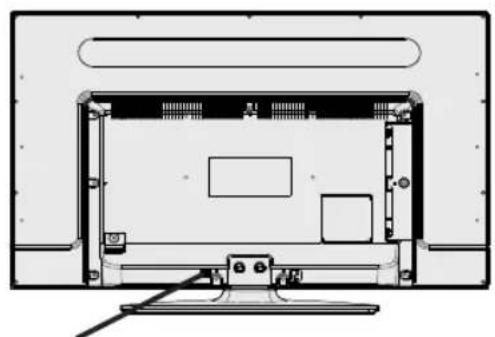

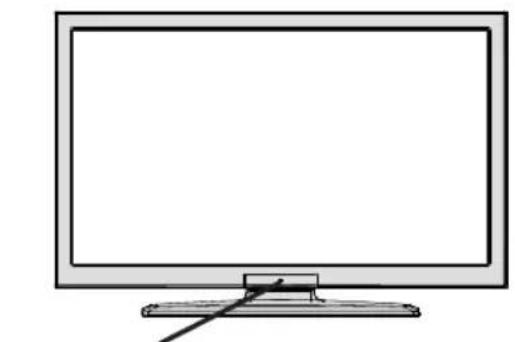

Viewing the TV

Standby LED

Power cable

TV Control Switch & Operation

1.Up direction
2. Down direction
3. Programme/Volume / AV/ Standby-On selection switch

In order to change the volume of your TV set, please move the switch upwards or downwards. If you want to change channels, press the middle of the switch once (Position 3) and then move upward or downward. If you press the middle of the switch once more, source OSD will be displayed. To select desired source, move the switch upward or downward and release. If you press the middle of the switch and hold about a few seconds, the TV will switch to standby mode. Main menu OSD cannot be displayed via the control button.

(Standby Switch)

I, switch is used for turning the TV on or off.

Operation with the Remote Control

Press " 一 button on your remote control to display main menu screen. Use Left or Right button to select a menu tab and press OK to enter. Use Left / Right

/Up/Down to select or set an item. Press

"MINI" button to quit a menu screen.

Input Selection

Once you have connected external systems to your TV, you can switch to different input sources. Press "AV" button on your remote control consecutively to select the different sources.

Changing Channels and Volume

You can change the channel and adjust the volume by using the +/- and P + / - buttons on the remote.

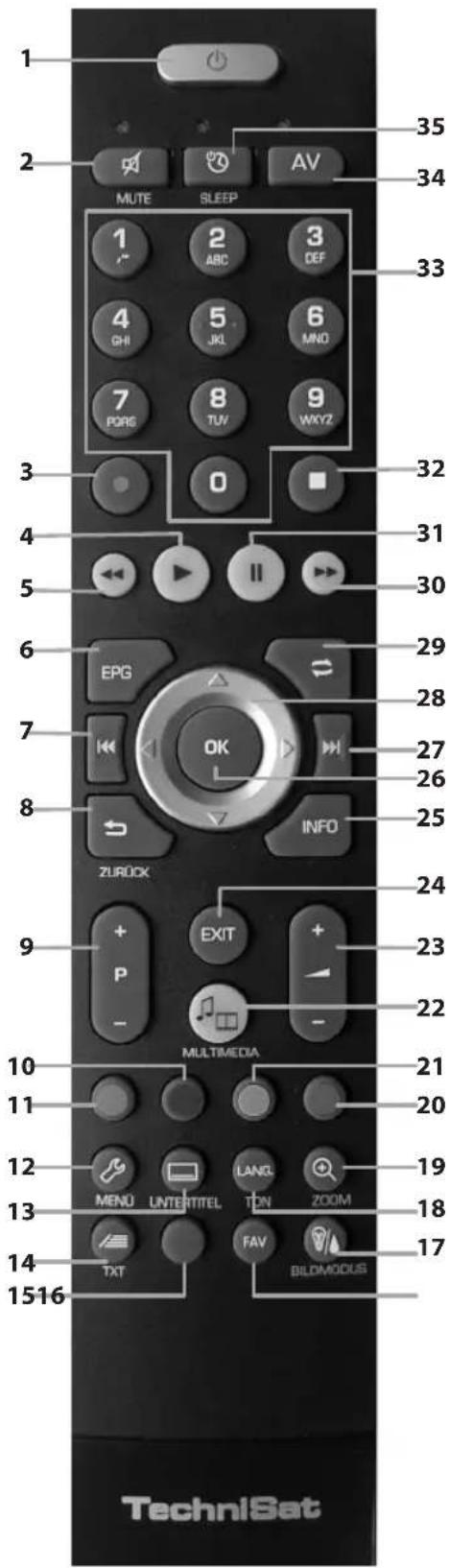

Remote control

1. on/standby
2. Sound on/off
3. Recording
4. Play (in Media Browser mode)
5. rewind (in Media Browser mode)
6. Electronic Programme Guide
7. Page on
8. Return/Back
9. Programme +/-
10. Green button
11. Red button
12. Menu on/off
13. Subtitle
14. Teletext / Mix
15. No function
16. Favourite Mode
17. Picture mode selection
18. Language
19. Zoom/Format
20. Blue button
21. Yellow button
22. Media Browser
23. Volume +/-
24. Exit
25. Info / display (in TXT mode)
26. OK / Hold (in TXT mode)
27. Page on
28. Arrow keys
29. Previous programme
30. Fast forward (in Media Browser mode)
31. Pause / Timeshift recording
32. Stop
33. Numeric keys
34. Source selection
35. Sleep Timer

NOTE: The Remote Control range is approximately 23ft.

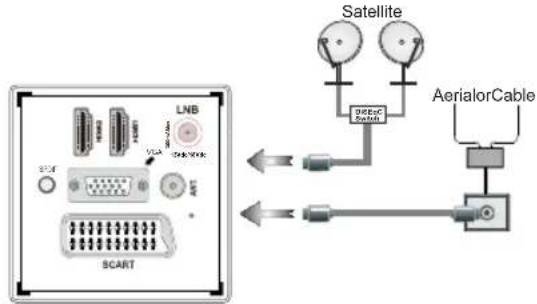

Cable connections

ConnectorTypeCablesDevice
Scart socket (back)	(Notsupplied)
VGA Connection (back)	(Notsupplied)
Audio output digital (S/P D/F electrical) (side)	Side AudioVideo Connection Cable (Supplied)	PC Audio Cable (Not supplied)
HDMI Input (back)	(Notsupplied)
SPDIFF Connection (back)	(Notsupplied)
SIDE AV Side AV Connection (side)	(Notsupplied) AV Connection Cable (supplied)
Headphone output (side)	(Notsupplied)
YPbPr YPbPr Video Connection (side)	YPbPrConnection Cable(supplied)	(Notsupplied)
USB port (side)	<3.5	<3.5
Common Interface (side)	<3.5	<3.5	CAM module

NOTE: When connecting a device via the Side AV input, you have to use the supplied connection cables to enable connection. See the illustrations above. | To enable PC audio, you will need to use the supplied SIDE AV CONNECTION cable's WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV mode. | When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. You can use the VGA input for connecting a YPbPr device. To do this, you need a YPbPr to PC cable (Not supplied).

Remote control - Changing the batteries

1. Open the cover on the battery compartment at the rear of the remote control by pushing it in the direction of the arrow and then lifting it.

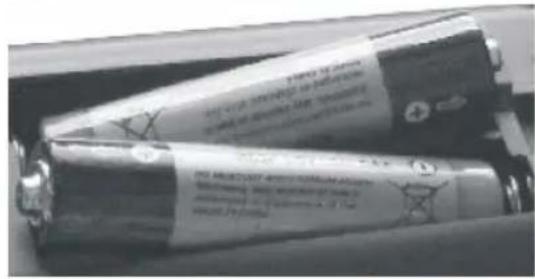

2. Insert the supplied AAA batteries, ensuring that the poles are in the right direction (indicator visible in battery compartment).
3. Close the battery compartment again.

Connection

IMPORTANT: The TV set is designed to operate on 220-240V AC, 50Hz socket. After unpacking, allow the TV set to reach the ambient room temperature before you connect the set to the mains power cable to the mains socket outlet.

Basic handling of the TV set

Power On/Off

To Switch the TV On

• Switch the " button on the rear left hand side to position "I" so the TV will switch to standby mode. Then the standby LED lights up.

To switch on the TV from standby mode either:

a. Press the On/Standby button, program +/- or a numeric button on the remote control.
b. Press the middle of the " l button on the TV. By either method the TV will switch on.

Switching the TV Off into Standby mode

• Press the On/Standby button on the remote control or press the "D" button, so the TV will switch to standby mode.

Switching the TV Off using the power switch

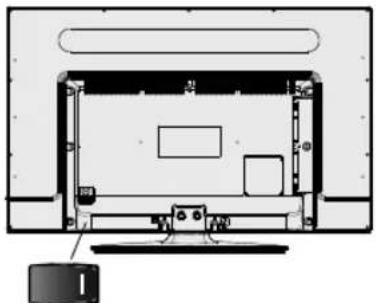

• Switch the "Button to position 2 as illustrated,

so the TV will switch OFF.

To turn off the TV completely, remove the power cord plug from the mains power socket.

NOTE: The mode is shown thanks to an LED. When the TV is switched to standby mode, standby LED can blink to indicate that features such as Standby Search, Over Air Download or Timer is active. The LED can also blink when you switch on the TV from standby mode.

Initial Installation

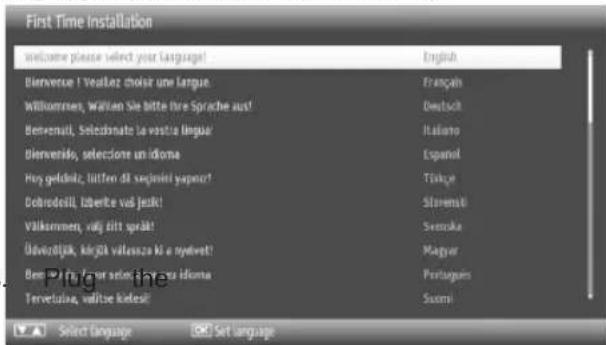

When turned on for the first time, the "language selection" menu appears. The message "Welcome please select your language!" is displayed in all language options listed alphabetically.

Press the up/down arrow keys to highlight the required language, press OK button to select. "First Time Installation" appears. Use the right or left arrow keys to set the required country, and press the down arrow key to select Search Type (optional).

Use the right or left arrow keys to set the desired search type. Available search types are Digital and analog, digital only and analog only.

Next, select Scan Encrypted and set as Yes if you want to scan coded stations.

Press OK button on the remote control to continue and the following message will be displayed on the screen.

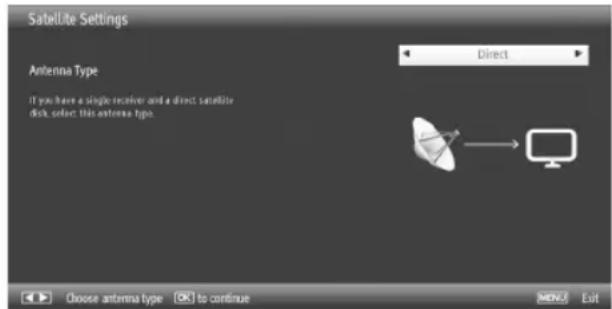

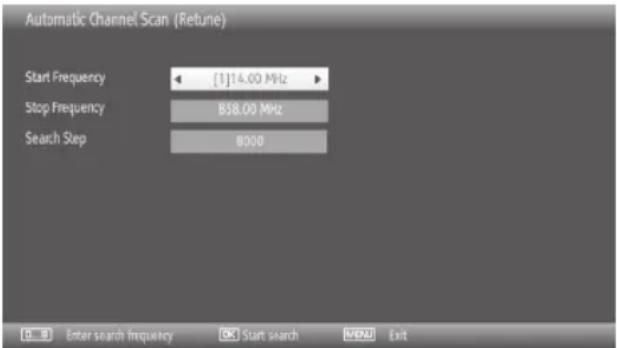

You must select a search type to search and store broadcasts from the desired source.

Aerial Installation

If you select AERIAL option from the Search Type screen, the television will search for digital terrestrial TV broadcasts.

NOTE: Press the menu button to cancel.

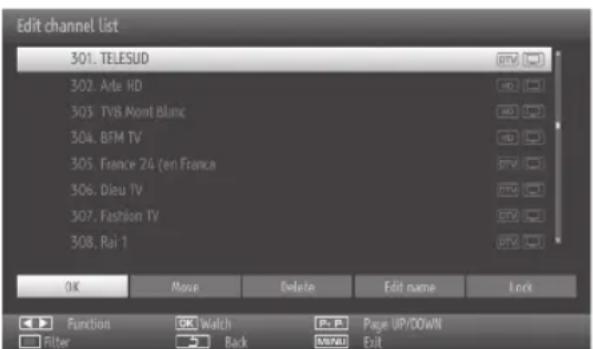

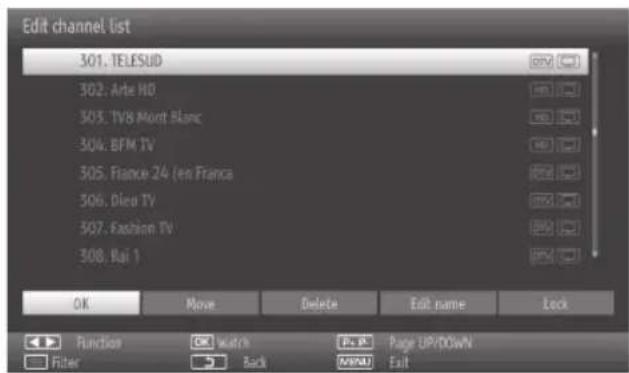

After all the available stations are stored, the Channel List will be displayed on the screen. If you like the sort channels, according to the LCN() please select "Yes" and then press OK.

Press OK button to quit channel list and watch TV.

(*) LCN is the Logical Channel Number system that organizes available broadcasts in accordance with a recognizable channel sequence.

Cable Installation

If you select CABLE option and press OK button on the remote control to continue, the following message will be displayed on the screen:

To continue please select YES and press OK. To cancel the automatic channel scan, select NO and press OK.

You can select frequency ranges from this screen. Use the up/down arrow keys.

You can enter the frequency range manually by using the numeric buttons on the remote control.

Set Start and Stop Frequency as desired by using numeric buttons on the remote control.

After this operation, you can set Search Step as 8000 KHz or 1000 KHz.

If you select 1000 KHz, the TV will perform the search process in a detailed way. Searching duration will the search process thus increase accordingly. When finished, press OK button to start automatic search. The TV will search and store available broadcasts.

Satellite Installation

If you select the SATELLITE option, you can set a satellite and watch individual satellite programmes. When selecting satellite installation, the antenna type menu will be displayed. You can choose between three types of antennas. By using the Left/Right keys you can select the antenna type (Direct, Unicable or DiSEqC).

Direct: If you have a single receiver with a direct connection to the satellite dishes, select the antenna type Direct. Afterwards choose an available satellite and press OK to scan for services.

Unicable: If you have multiple receivers and an unicable system, select the antenna type Unicable. Press OK to continue. Follow the instructions for config the settings. Press the OK button afterwards to scan for services.

DiSEqC switch: If you have multiple satellite dishes, select the antenna type DiSEqC switch. You can four DiSEqC options (if available). Press the GREEN key on the remote control to scan all satellites. To scan only the highlighted satellite, press the YELLOW key.

Media Playback via USB Input

You can connect a USB hard disk drive or USB memory stick to your TV by using the USB inputs of the TV. This feature allows you to play files stored in a USB drive. 2.5" and 3.5" inch (hdd with external power supply) external hard disk drives are supported.

IMPORTANT! You should back up your files before making any connections to the TV set in order to avoid any possible data loss. Manufacturer will not be responsible for any file damage or data loss. It is possible that certain types of USB devices (e.g. MP3 Players) or USB hard disk drives/memory sticks may not be compatible with this TV. The TV supports FAT32. NTFS ist not supported.

Quickly plugging and unplugging USB devices, is a very hazardous operation. Do not repeatedly quickly plug and unplug the drive. This may cause physical damage to the USB player and USB device itself. Do not pull out USB module while playing a file.

Media Browser Menu

You can play photo, music, and movie files stored on a USB disk by connecting it to your TV and using the Media Browser screen. To do this, perform the following: Connect a USB disk to one of inputs located on the side of the TV.

You can connect two USB devices to your TV. If both USB devices include music, picture or video files, USB selection OSD will be displayed on the screen. The first USB device connected to the TV will be named as USB Drive1. Select a device by using up/down arrow keys and press OK.

Press menu button and select Media Browser tab by using Left/Right and OK buttons. Main media browser screen will be displayed. You can display the related content by selecting the Video, Music or Picture tab. Follow the button indications under each on screen menu for media playback features.

You can set your Media Browser preferences by using the Settings dialog.

Change of format/Zoom

Changing Image Size: Picture Formats

Programmes can be watched in different picture formats, depending on the transmission received. You can change the aspect ratio (image size) of the TV for viewing the picture in different zoom modes. Press

"ZOOM" button repeatedly to change the image size.

You can shift the screen up or down by using up/ down arrow keys while in 14:9 Zoom, Cinema or Subtitle.

Using the Channel List

The TV sorts all stored stations in the Channel List. You can edit this channel list, set favourites or set active stations to be listed by using the List options. Press menu button to view main menu.

Select Channel List item by using right keys. Press OK to view menu contents. Select Edit Channel List to manage all stored channels. Use Up or Down and OK to select Edit Channel List. Press Up or Down arrow keys to select the channel that will be processed. Press Left or Right button to select a function on Channel List menu. Use P+/P- buttons to move page up or down. Press menu button to exit.

Sorting Channel List

You can select broadcasts to be listed in the channel list. To display specific types of broadcast, you should use Active channel list setting. Select Active channel list from the Channel list menu by using up/down arrow keys. Press OK button to continue. You can select a network type option from the list by using right/left arrow keys and OK.

Menu Features and Functions

Picture Menu Settings
Mode	For your viewing requirements, you can set the related mode option. Picture mode can be set to one of these options: Cinema, Game, Dynamic and Natural.
Contrast Sets the brightness and darkness values of the screen.
Brightness Sets the brightness value for the screen.
Sharpness Sets the sharpness value for the objects displayed on the screen.
Colour Sets the colour value, adjusting the colors.
Power Save Mode	To set Power Save Mode as Eco, Picture Off and Disabled. See the section, "Environmental Information" in this manual for further information on Power Save Mode.
Backlight (optional)	This setting controls the backlight level and it can be set to Auto, Maximum, Minimum and Eco Mode. Backlight function will be inactive if Power Save Mode is set to On. Backlight cannot be activated in VGA, Media Browser mode or while the picture mode is set to Game.
Noise Reduction	If the broadcast signal is weak and the picture is noisy, use Noise Reduction setting to reduce the noise amount. Noise Reduction can be set to one of these options: Low, Medium, High or Off.
Advanced Settings
Dynamic Contrast	You can change contrast rate by using dynamic contrast function. Dynamic contrast can be set to one of these options: Low, Medium, High or Off.
Colour Temp Sets	the desired colour tone.
Picture Zoom Sets	the picture size to Auto,16:9, Subtitle,14:9, 14:9 Zoom, 4:3 or Cinema.
HDMI True Black(optional)	While watching from HDMI source, this featurewill be visible in thePicture Settings menu. You can use this feature to enhance blackness in the picture.
Film Mode (optional)	Films are recorded at a different number of frames per second to normal television programmes. Turn this feature on when you are watching films to see the fast motion scenes clearly.
Skin Tone Adjust	the desired skin tone.
Colour Shift Adjust	the desired colour tone.
RGB Gain	Press OK button to edit RGB gain. You can configure the colour temperature values using the RGB Gain feature.
Reset Resets the	picture settings to factory default settings.
Autoposition (in PC mode)	Automatically optimizes the display. Press OK to optimize.
H Position (in PC mode)	This item shifts the image horizontally to right hand side or left hand side of the screen.
V Position (in PC mode)	This item shifts the image vertically towards the top or bottom of the screen.
Dot Clock (in PC mode)	Dot Clock adjustments correct the interference that appear as vertical banding in dot intensive presentations like spreadsheets or paragraphs or text in smaller fonts.
Phase (in PC mode)	Depending on the resolution and scan frequency that you input to the TV set, you may see a hazy or noisy picture on the screen. In such a case you can use this item to get a clear picture by trial and error method.
While in VGA (PC) mode, some items in Picture menu will be unavailable. Instead, VGA mode settings will be added to the Picture Settings while in PC mode.

Menu Features and Functions

Sound Menu Settings
Volume Adjusts volume	level.
Equalizer:	In equalizer menu, the preset can be changed to Music, Movie, Speech, Flat, Classic and User. Press the menu button to return to the previous menu. Equalizer menu settings can be changed manually only when the Equalizer Mode is in User.
Balance This setting is	used for emphasizing left or right speaker balance.
Headphone Sets head	phone volume.
Sound Mode	You can select Stereo, Dual I or Dual II mode, only if the selected channel supports that mode.
AVL	Automatic Volume Limiting (AVL) function sets the sound to obtain fixed output level between programmes (For instance, volume level of advertisements tend to be louder than programmes).
Dynamic Bass (optional)	Enables or disables the Dynamic Bass.
Surround Sound Activates or deactivates the Surround Sound.
Digital Out Sets digital	out audio type.
Settings Menu Contents
Conditional Access	Controls conditional access modules when available.
Language Configures	language settings.
Parental Configures	parental settings.
Timers Sets timers for	selected programmes.
Recording Configuration	Displays recording configuration menu.
Date/Time Sets date and time.
Sources Enables or disables selected source options.
Satellite Settings Displays satellite settings.
Other Settings: Displays other setting options of the TV set:
Menu Timeout	Changes timeout duration for menu screens.
Scan Encrypted	When this setting is on, search process will locate the encrypted channels as well. If it is set as Off, encrypted channels will not be located in automatic search or manual search.
Blue Background	Activates or deactivates blue background system when the signal is weak or absent.
Software Upgrade	To ensure that your TV always has the most update information, you can use this setting. In order for the proper operation, please ensure that the TV is set to standby mode.
Application Version	Displays application version.
Hard of Hearing	If the broadcaster enables any special signal concerning the audio, you can set this setting as On to receive such signals.
Audio Description	Audio description refers to an additional narration track for blind and visually impaired viewers of visual media, including television and movies. You can use this feature, only if the broadcaster supports that additional narration track.

Menu Features and Functions

Auto TV Off	You can set the timeout value of auto off feature. After the timeout value is reached and the Tv is not operated for selected time, the TV will go off.
Biss Key	Biss is a satellite signal scrambling system that is used for some broadcasts. If you need to enter BISS key on a broadcast, you can use Biss Key setting located in the Other Settings menu. Highlight Biss Key and press OK to enter keys on the desired broadcast.
Standby Search (optional)	If you change Standby Search to Off, this function will be unavailable. To use Standby search please make sure that you select Standby Search as On. If the Standby Search is set to On, when the TV is in standby mode, available broadcasts will be searched. If the TV locates any new or missing broadcasts, a menu screen will be displayed, asking you whether or not to execute these changes. Channel list will be updated and changed after this process. Please activate Standby Search setting in order to enable your TV for automatically updating the broadcast frequency of the broadcaster, broadcast def and similar changes.

Install and Retune Menu Contents
Automatic Channel Scan (Retune)	Displays automatic tuning options. Digital Aerial: Searches and stores aerial DVB stations. Digital Cable: Searches and stores cable DVB stations. Analogue: Searches and stores analogue stations. Digital Aerial & Analogue: Searches and stores aerial DVB and analogue stations. Digital Cable & Analogue: Searches and stores cable DVB and analogue stations. Satellite: Searches and stores satellite stations.
Manual Channel Scan	This feature can be used for direct broadcast entry.
Network Channel Scan	Searches for the linked channels in the broadcast system.
Analogue Fine Tune	You can use this setting for fine tuning analogue channels. This feature is not available if no analogue channels are stored.
First Time Installation	Deletes all stored channels and settings, resets TV to factory settings and starts first time installation. You can follow the instructions Installation section for more information on this process.

Electronic Programme Guide (EPG)

Some, but not all channels send information about the current and next programmes. Press the EPG button to view the EPG menu.

Info bar commands:

RED button: Previous day.

GREEN button: Next day.

YELLOW button: Zooms to the selected programme.

Next day: displays filtering options.

BLUE button: displays filtering options.

(RECORD): the TV will start to record the selected programme. You can press again to stop the recording.

IMPORTANT: To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, recording feature will not be available.

NOTE: Switching to a different broadcast or source is available during the recording.

Programme Options

In EPG menu, press the OK button to enter the Event Options menu.

Select Channel

In EPG menu, using this option, you can switch to the selected channel.

Record/Delete Record Timer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Record" option and press the OK button. After this operation, a recording becomes set to the selected programme.

To cancel an already set recording, highlight that programme and press the OK button and select the option "Delete Rec. Timer". The recording will be cancelled.

Set Timer/DeleteTimer

After you have selected a programme in EPG menu, press the OK button and and Options screen will be displayed. Select "Set Timer on Event" option and press OK button. You can set a timer for future programmes. To cancel an already set timer, highlight

that programme and press the OK button. Then select "Delete Timer" option. The timer will be cancelled.

NOTE: It is not possible to record or set timer for two or more individual events at the same time interval.

Recording a Programme

IMPORTANT: When using a new USB hard disk drive, it is recommended that you first format the disk using your TV's "Format Disk" option.

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature.

For using recording function, you should connect a USB disk or an external hard disk drive to the TV and the connected USB disk should have at least 1 GB capacity and should have 2.0 speed compatibility. If the connected USB device does not support 2.0 speed, an error message will be displayed.

NOTE: Recorded programmes are saved into the connected USB disk. If desired, you can store/copy recordings on a computer; however, these files will not be available to be played on a computer. You can play the recordings only on your TV.

NOTE: Lip Sync delay may occur during the timeshifting.

Timeshifting and recording features will not function in radio channels. The TV can record programmes up to ten hours.

Recorded programmes are split into 4GB partitions.

If the writing speed of the connected USB disk is not sufficient, recording may fail and timeshifting feature may not be available.

Recordings of HD programmes can occupy bigger size on the USB disk depending on the broadcast's resolution. For this reason it is recommended to use USB hard disk drives for recording HD programmes.

Do not plug out the USB/HDD during the recording. This may harm the connected USB/HDD.

Multipariton support is available. Maximum two different partitions are supported. If the disk has more than two partitions, a crash may occur. The first partition of the USB disk is used for PVR ready features. It also must be formatted as primary partition to be used for PVR ready features.

Some stream packets may not be recorded because of signal problems, so sometimes the video may freeze during playback.

Record, Play, Pause, Display (for PlayDialog) keys cannot be used when teletext is ON. If a recording starts from timer when teletext is ON, teletext is automatically turned off. Also the teletext usage is disabled when there is ongoing recording or playback.

Timeshift Recording

Press (PAUSE) button while watching a broadcast for switching to timeshifting mode. In timeshifting mode, the programme is paused and simultaneously recorded to the connected USB disk. Press (PLAY) button again to watch the paused programme from the stopped moment. You will see the timeshift gap between the real and the timeshifted programme in the info bar.

Instant Recording

Press (RECORD) button to start recording an event instantly while watching a programme. You can press (RECORD) button on the remote control again to record the next event on the EPG. In this case, OSD will display the programmed events for recording. Press (STOP) button to cancel instant recording. Switching to a different broadcast or source; and viewing Media Browser are not available during the recording.

Watching Recorded Programmes

In the main menu, use Left or Right arrow keys to select Media Browser. Highlight Recordings Library item by using Left or Right button and press OK button to enter. Recordings Library will then be displayed. Select a recorded item from the list (if previously recorded) by using the Up/Down arrow keys. Press OK button to view Play Options. Select an option by using Up/Down arrow keys or OK buttons.

Available playback options:

• Play from start: Plays the recording from the beginning.
• Resume: Recommences the recordings.
• Play from offset: Specify a playing point.

NOTE: Viewing main menu and menu items will not be available during the playback.

Press (STOP) button to stop a playback and return to return to Recordings Library.

Slow Forward

If you press (PAUSE) button while w recorded programmes, slow forward feature will be available. You can use button to slow forward.

Pressing button consecutively will change slow forwarding speed.

Recordings Library

To view the list of recordings, select "Recordings Library" and press the OK button. Recordings Library will then be displayed with available recordings. All the recordings are kept in a list in the recordings library.

(Resume): Recommences the recordings.

RED button (Delete): Erases the selected recording.

GREEN button (Edit): Editing the selected recording.

BLUE button (Sort): Changes the order recordings. You can select from a wide range of sorting options.

OK button: Activates play options menu.

INFO (Details): Displays the short extended programmes in detail.

Recording Configuration

Select Recording Confi guration item in the Settings menu to confi gure recording settings.

Format Disk: You can use the Format Disk feature for formatting the connected USB disk. IMPORTANT: Note that ALL the data stored on the USB disk will be lost and then the disk format will be converted to FAT32 if you activate this feature. If your USB disk malfunctions, you can try formatting the USB disk. In most cases formatting the USB disk will restore normal operation; however, ALL the data stored on the USB disk will be lost in such a case.

NOTE: If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB card does not meet the speed requirements. Try connecting to another USB disk.

Teletext

teletext / Mix: Activates teletext mode when used once. Press again to place the teletext screen in the programme (mix). Pressing again will quit teletext mode.

' Index: Selects the teletext index page.

"INFO"Reveal: Shows hidden information (e.g. solutions of games).

"OK" Hold: Holds a text page when convenient. Press again to resume.

Subcode Pages: Selects subroutine pages if able when the teletext is activated.

P + / P and numbers (0-9): Press to select a page.

NOTE: Most TV stations use code 100 for their index.

Your TV supports both FASTEXT and TOP text systems. When these systems are available, the

pages are divided into groups or topics. When the FASTEXT system is available, sections in a teletext page will become colour-coded and can be selected by pressing the coloured buttons. Press a coloured button that corresponds to with your needs. The coloured writings will appear, showing you which coloured buttons to use when TOP text transmission is present. Pressing Up or Down buttons commands will request the next or previous page respec tively.

Digital Teletext (If available)

• Press the " button. The digital teletext information appears. Operate it with the coloured buttons, cursor buttons and OK button.

The operation method may differ depending on the contents of the digital teletext. Follow the instructions displayed on digital teletext screen.

When the "TNT" button is pressed again, the TV returns to television broadcasting.

Software Upgrade

Your TV is capable of finding and updating new software upgrades over broadcast channels. For broadcast channels search, TV looks for the available channels stored in your settings. So before a software upgrade search, it is advised to auto search and update all available channels.

1) Software upgrade search via user interface

It is possible manually to check if there is a software upgrade for your TV set.

• Simply navigate on your main menu Settings and select Other Settings menu. In Other Settings menu navigate on to the Software Upgrade item and press OK button to open Upgrade Options menu.

• In Upgrade Options menu select Scan for upgrade and press OK button.

• If a new upgrade is found, it starts to the upgrade. A progress bar indicates the remaining download progress. When the download completes with success a message is displayed for reboot to activate new software. Press OK to continue with the reboot operation.

2) Background search and upgrade mode

• While TV is connected to the Internet, it searches in the background for the critical software upgrades. If a critical software upgrade is found it downloads the upgrade silently. When the download completes with success a message is displayed for reboot operation to activate new software. Press OK to continue with the reboot operation.

3) 3.AM search and upgrade mode

• If Automatic scanning in Upgrade Options menu is enabled, the TV wakes up at 03:00 and searches

broadcast channels for new software upgrade. If new software is found and downloaded successfully, the TV opens with the new software version at the next power up.

Note on reboot operation: Reboot is the last step in the software upgrade operation if download of the new software is finished successfully. During the reboot the TV makes a final initialization. In the reboot sequence the panel power is closed and front led indicates the activity with a blinking. Around 5 minutes later the TV restarts with the new software activated.

• If your TV fails to restart in 10 minutes, unplug the power for 10 minutes and re Plug again. The TV should open with the new software safely. If you still can not get the TV working, please kindly repeat unplug and plug sequence a few times more. If your set still can not operate, please call the service personnel to fix the problem for you.

Caution: While led is blinking during reboot do not unplug your TV's power. Doing this may cause your TV not to re-open again and can only be fixed by service personnel.

Troubleshooting & Tips

Image persistence - ghosting

Please note that ghosting may occur while displaying a persistent image (still or paused image). LED TVs' image persistence may disappear after a short time. Try turning off the TV for a while. To avoid this, do not leave the screen in still picture mode for extended periods.

No power

If your TV has no power, please check the power cord plugged in to the mains power socket.

Poor picture

1. Have you selected the correct TV system?
2. Is your TV or house aerial located too close to a non-earthy audio equipment or neon lights, etc.?
3. Mountains or high buildings can cause double pictures or ghost images. Sometimes you can improve the picture quality by changing the direction of the aerial. Is the picture or teletext unrecognisable?.
4. Check if you have entered the correct frequency.
5. Please retune the channels.
6. The picture quality may degrade when two devices are connected to the TV at the same time. In such a case, disconnect one of the devices.

No picture

1. No Picture means that your TV is not receiving a transmission. Have you selected the correct button on the remote control? Try once more. Also make sure the correct input source has been selected.
2. Is the aerial connected properly?

3. Are the plugs connected tightly to the aerial socket?

4. Is the aerial cable damaged?

5. Are suitable plugs used to connect the aerial?
6. If you are in doubt, consult your dealer.

No sound

1. Has the TV been set to mute? To cancel mute, press the " l button, or increase the volume level.
2. Sound is coming from only one speaker. Is the balance set to one extreme? See Sound Menu section.

Remote control - does not operate

Your TV no longer responds to the remote control. The batteries may be exhausted, if so you can still use the control buttons on the TV. (* Is only possible if they are not blocked by parental control.)

Input sources - can not be selected

1. If you cannot select an input source, it is possible that no device is connected.
2. Check the AV cables and connections if you have tried to connect a device.

Recording Unavailable

To record a programme, you should first connect a USB disk to your TV while the TV is switched off. You should then switch on the TV to enable recording feature. Otherwise, the recording feature will not be available. If you cannot perform the recording, try switching off the TV and then re-inserting the USB

device while the TV is switched off.

USB Is too Slow

If "USB is too slow" message is displayed on the screen while starting a recording, try restarting the recording. If you still get the same error, it is possible that your USB disk does not meet the speed requirements. Try connecting another USB disk.

Manufactured under license from Dolby Laboratories.

TRADEMARK ACKNOWLEDGMENT

"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.

DIGITAL PLUS

Information for Users on Disposal of Old Equipment and Batteries

[European Union only]

These symbols indicate that equipment with these symbols should not be disposed of as general household waste. If you want to dispose of the product

or battery, please consider the collection systems or facilities for appropriate recycling.

Notice: The sign Pb below the symbol for batteries indicates that this battery contains lead.

Products

Battery

PC Typical Display Modes

The following table is an illustration of some of the typical video display modes. Your TV may not support all resolutions. Your TV supports up to 1920x1080.

Index Resolution Freq		Frequency
1 640x350p 60 Hz
2 640x400p 60 Hz
3 1024x768 60 Hz
4 1280x768 60 Hz
5 1360x768 60 Hz
6 720x400 60 Hz
7 800x600 56 Hz
8 800x600 60 Hz
9 1024x768 60 Hz
10 1024x768 66 Hz
11 1280x768 60 Hz
12 1360x768 60 Hz
13 1280x1024 60 Hz
14 1280x960 60 Hz
15 1280x1024 60 Hz
16 1400x1050 60 Hz
17 1920x1080 60 Hz
18 1600x1200 60 Hz

Specifications

TV BROADCASTING

PAL/SECAM B/G D/K K' I/I' L/L

DIGITAL RECEPTION

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S/S2MPEG2

DVB-S/S2 MPEG4 HD

RECEIVING CHANNELS

VHF (BAND I/III)

UHF (BAND U)

HYPERBAND

NUMBER OF PRESET CHANNELS

10000

CHANNEL INDICATOR

On Screen Display

RF AERIAL INPUT

75 Ohm (unbalanced)

OPERATING VOLTAGE

220-240V AC, 50 Hz.

AUDIO

German + Nicam Stereo

AUDIO OUTPUT POWER (W_RMS) (10% THD)

2 × 6

POWER CONSUMPTION (W)

65 W (max)

PANEL

16:9 display, 32" Screen Size

DIMENSIONS (mm)

DxLxH (With foot): 203 x 753 x 496

Weight (Kg):7,35

DxLxH (Without foot): 38 x 753 x 454

Weight (Kg): 6,90

Supported File Formats for USB Mode

Media File	Extension	Format Remarks
		Video Audio (Maximum resolution/Bit rate etc.)
Movie	.mpg .mpeg MPEG1,2 MPEG Layer 1/2/3			MAX 1920x1080 @ 30P 20Mbit/sec
	.dat MPEG1,2	MPEG2
	.vob MPEG62
	.mkv H.264, MPEG1,2,4 EAC3/ AC3
	.mp4	MPEG4 Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM/MP3
	.avi	MPEG2, MPEG4
		Xvid 1.00, Xvid 1.01, Xvid 1.02, Xvid 1.03, Xvid 1.10-beta1/2 H.264	PCM
Music.mp3	3 -		MPEG 1 Layer 1 / 2 (MP3)	32Kbps ~ 320Kbps(Bit rate) 32KHz ~ 48KHz(Sampling rate)
Photo	.jpg .jpeg Baseline JPEG - max WxH = 15360x8640 4147200bytes
	. Progressive JPEG - max WxH = 9600x6400 3840000bytes
	.bmp -	- max WxH = 9600x6400 3840000bytes
Subtitle	.sub .srt	-	-	-

Remarks concerning conformity

The TV set corresponds to the following norms:

Regarding the conformity with the fundamental requirements and the relevant laws this TV set corresponds with the EMC directive 2004/108/EC and with the 2006/95/EC directive for low voltage devices.

Requirements for the environmentally compatible design of energy consumption relevant products (directive 2009/125/EC according to the implementing regulation No 642/2009):

EN 55013:2001 + A1:2003 + A2:2006

EN 55020: 2007

EN 61000-3-2:2006

EN 61000-3-3: 1995 + A1:2001 + A2:2005

EN 60065:2002 + A1:2006 + A11:2008

EN 55022:2006 (device class A)

EN 55024:1998 + A1:2001 + A2:2003

Imported by: VESTEL GERMANY GmbH,

Parkring 6

D-85748 Garching b. München

Deutschland

WARNING

This is a product of device class A. In domestic use this product can cause radio interferences. In this case the user may have to take appropriate measures.

Definition of terms

Aspect ratio

This term refers to the ratio of image height and image width.

AVL

Automatic Volume Limiting

Brightness

This control defines the general brightness level of the image.

Contrast

Sets the optical density and the sound of the tone of the image

Component audio inputs

Are used for the normal analogue audio connection between devices.

HDMI

High Defi nition Multimedia Interface. This connection enables a high quality uncompressed digital video and audio signal. Audio and video signals are generated via a single connection.

HIGH-DEFINITION MULTIMEDIA INTERFERENCE

NTSC

NTSC is a video television standard used throughout North America and several other countries.

OSD

On Screen Display - information about the channel number and volume are shown on the TV set.

PAL

PAL is a video television standard encoding system used in Europe.

SECAM

Is a video format similar to PAL used in France and some other countries.

Scart

Audio-/Video-connection with21 pins, used mainly for TV sets in Europe

Sharpness

A control which generates the effect of a bigger resolution thanks to dark/bright transitions.

System

Defi nes the mode of transmission of a TV image, due to the fact that the mode of transmission is not the same in all countries.

VGA

VGA is a common standard for graphics display on PCs.

LPCM

Short for Pulse Code Modulation, a digital audio signal.

MPEG

Short for Moving Picture Experts Group. International standard for the compression of moving pictures. On some DVDs the digital audio signals are compressed and recorded in this format.

Legal information Service information

• Your TV device bears the CE symbol and complies with all requisite EU standards.
• Subject to change for amendments and printing errors Version 08/12
• Duplication and reproduction only with the publisher's approval

Tareo 22/ 26/ 32/ 40 and TechniSat are registered trademarks of

D-54541 Daun - Germany

www.technisat.com

Technical Hotline

[phone]

Mon.-Fri.8am-6pm

*(0.14 euros/min on the German line, telephone call charges from abroad and from mobile phones will differ).

TechniSat

PAL/SECAM B/G D/K K' I/I L/L'

RECEPTION NUMERIQUE

DVB-T MPEG2

DVB-T MPEG4 HD

DVB-C MPEG2

DVB-C MPEG4 HD

DVB-S/S2MPEG2

DVB-S/S2MPEG4HD

RéCEPTION DE CANAUX

VHF (BANDE I/III)

UHF (BANDE U)

HYPERBANDE

NOMBRE DE CANAUX PRÉRÉGLÉS

10000

INDICATEUR DE CHÂINE

Affichage à l'écran

ENTREE D'ANTENNE RF
