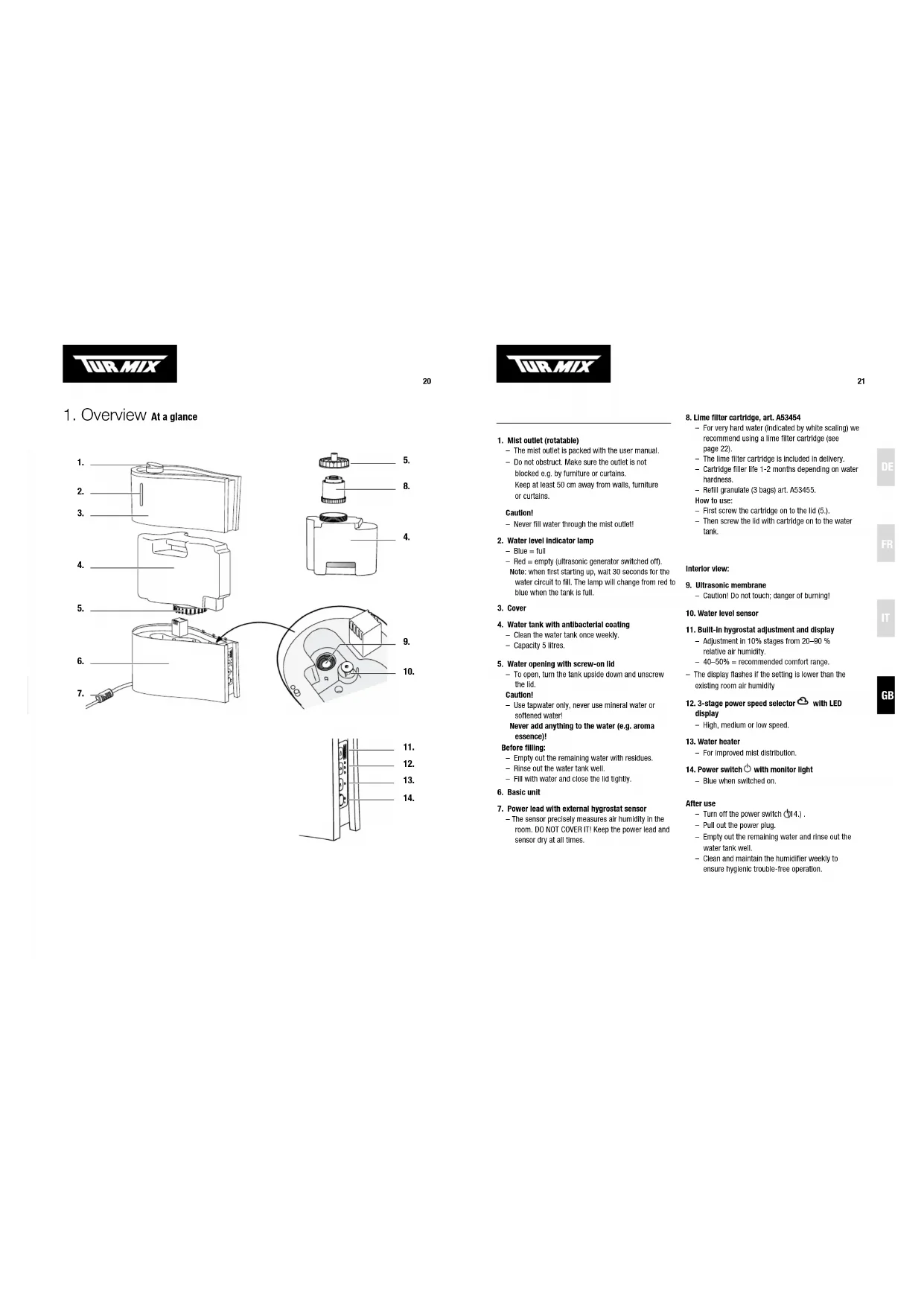

1. Mist outlet (rotatable)

• The mist outlet is packed with the user manual.
• Do not obstruct. Make sure the outlet is not blocked e.g. by furniture or curtains.
  Keep at least 50 cm away from walls, furniture or curtains.

Caution!

- Never fill water through the mist outlet!

2. Water level indicator lamp

• Blue = full
• Red = empty (ultrasonic generator switched off). Note: when first starting up, wait 30 seconds for the water circuit to fill. The lamp will change from red to blue when the tank is full.

3. Cover

4. Water tank with antibacterial coating

– Clean the water tank once weekly.

- Capacity 5 litres.

5. Water opening with screw-on lid

- To open, turn the tank upside down and unscrew the lid.

Caution!

- Use tapwater only, never use mineral water or softened water!

Never add anything to the water (e.g. aroma essence)!

Before filling:

- Empty out the remaining water with residues.

- Rinse out the water tank well.

- Fill with water and close the lid tightly.

6. Basic unit

7. Power lead with external hygrostat sensor

- The sensor precisely measures air humidity in the room. DO NOT COVER IT! Keep the power lead and sensor dry at all times.

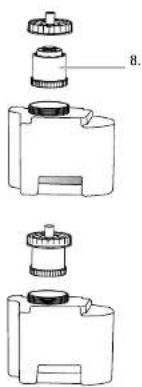

8. Lime filter cartridge, art. A53454

• For very hard water (indicated by white scaling) we recommend using a lime filter cartridge (see page 22).
• The lime filter cartridge is included in delivery.
• Cartridge filler life 1-2 months depending on water hardness.
• Refill granulate (3 bags) art. A53455.
• First screw the cartridge on to the lid (5.).
• Then screw the lid with cartridge on to the water tank.

How to use:

Interior view:

9. Ultrasonic membrane

- Caution! Do not touch; danger of burning!

10. Water level sensor

11. Built-in hygrostat adjustment and display

- Adjustment in 10% stages from 20–90 % relative air humidity.

- 40–50% = recommended comfort range.

- The display flashes if the setting is lower than the existing room air humidity

12. 3-stage power speed selector 📊 with LED display

– High, medium or low speed.

13. Water heater

- For improved mist distribution.

14. Power switch ⏻ with monitor light

- Blue when switched on.

After use

• Turn off the power switch (M4.)
• Pull out the power plug.
• Empty out the remaining water and rinse out the water tank well.
• Clean and maintain the humidifier weekly to ensure hygienic trouble-free operation.

22

2. Operating the appliance

Operation

Setting up

• The mist outlet is packed with the user manual and must be fitted to the cover before use. It can be swivelled.
• Place on a flat, stable and waterproof surface.
• Never place directly under the power socket.
• Make sure the machine stands safely and the airflow is not blocked by e.g. furniture or curtains. Never place near curtains, furniture or walls (risk of damage by moisture).
• Never place near radiators or other heat sources. Make sure that nobody can trip over the power cable and that the machine is out of reach of children. Never let children play with the appliance.

Important:

• Only use the humidifier in dry rooms up to 50m^2 /125m^3 in size and without extension cable.
• To prevent vapour sinking to the floor, install the humidifier at a height of at least 50 cm.

8.

Filling/refilling the water tank

• Turn off the power switch ⏻(14).
  — Pull out the power plug.
• Take off the cover (3.) and remove the water tank (4.).
• Tum the water tank upside down and unscrew the lid.
• Empty out residual water and rinse the tank well.
• Fill with water and close the lid tightly.

Never add anything to the water (e.g. aroma essence)!

Tip:

• For very hard water we recommend using the filter cartridge (8.) to
  prevent white scaling. Lime filter cartridge art. A53454.
• Cartridge filler life 1-2 months depending on water hardness.
• Refill granulate (3 bags): art. A53455.

How to use:

• First screw the cartridge (8.) on to the lid (5.).
• Then screw the lid with cartridge on to the water tank.

23

Caution!

• Use tapwater only. Never use mineral water or softened water! Never add salt or anything else to the water!
• Never add water through the mist outlet!

Water level indicator lamp

- Blue = full. Red = empty. When the tank is empty the ultrasonic membrane switches off automatically. The ultrasonic membrane switches on again as soon as the tank is full and after switching on.

Note:

- When starting up or after a long period of disuse, wait 30 seconds for the water circuit to fill. The lamp goes blue when the tank is full. (Shortly activate the power switch ⏻ (14.) for switching on the humidifier.)

Information on ultrasonic air humidifiers:

• In this type of humidifier an ultrasonic membrane (9.) vibrates the water so that ultrafine droplets are emitted from the surface. These droplets are mixed with air in the circular nebulizing chamber and blown into the room as a visible mist.
• Air humidity is monitored by the integrated hygrostat.
• For very hard water (indicated by white scaling) we recommend using a lime filter cartridge (see page 21).
• Air circulation strongly interferes with humidification (e.g. due to open or loose windows in high rooms).
• Please note that moisture rises with warm air and may cause undesirable condensation.
• Recommended room air humidities:

50% humidity at 18 °C room temperature

45% humidity at 20 °C room temperature

40% humidity at 22 °C room temperature

Starting up

• Insert the power plug.
• Turn on the power switch ⏻ (14.). The LED goes blue.

Built-in hygrostat adjustment and display

• Adjustment in 10% stages from 20–90 % relative air humidity.
• 40–50% = recommended comfort range.
• The display flashes if the setting is lower than the existing room air humidity.

25

25

3-stage power speed selector with LED display

– High, medium or low speed setting according to need.

Water heater

- For improved mist distribution. Walt about 3 to 5 minutes for the water heater to take full effect after switching on.

After use

• Turn off the power switch ⏻ (14.).
• Pull out the power plug.
  – Empty out the residual water and rinse out the water tank well.
• Regularly clean and maintain the humidifier to ensure hygienic and trouble-free operation:
• Weekly: clean the housing parts.
• Every 1–2 months: change lime filter cartridge if used (change it earlier in case of bad odours, dirt or lime deposits and noticeably lower humidification performance).
• Annually: clean the humidifier when the heating season is over.
  Let the humidifier dry out completely before storage.

Cleaning and maintenance

Caution!

• Pull out the power plug before cleaning, maintenance, decalcification or rinsing.
• Never immerse the main unit (Including cable) in water or any other liquids.
• Empty out residual water and rinse the water tank well.
• Wipe down the housing with a damp cloth and dry off.

Note:

• Regularly clean and maintain the humidifier and water tank to ensure hygienic and trouble-free operation.
• In case of lime deposits on the ultrasonic membrane (9.) descale with TURMIX household decalcifier A51455

(mixing ratio decalcifier: water = 2 : 1).

Correct utilization

This humidifier is intended for household use and not for commercial purposes.

Please keep these instructions in a safe place and pass them on to the next user.

Disposal

Equipment that has reached the end of its service life can be handed over at a sales outlet and will be professionally disposed of free of charge.

Equipment that has hazardous defects should be disposed of immediately. Please ensure that it will not be used again. Do not dispose of equipment with household rubbish (for environmental reasons!).

Dispose of old used filter cartridges with household rubbish.

Safety instructions

Risk of electric shock!

Connect and operate the appliance only in accordance with the specifications on the rating plate.

Do not use the appliance if the power cord and/or appliance are damaged. Keep children away from the appliance.

Always pull out the power plug after use, also before filling the water tank, before cleaning, before assembling, or in case of a defect.

Do not lay the power cord near sharp edges or hot surfaces. To prevent injury, repairs to the appliance, such as replacing a damaged power cord, should be carried out by our customer service only. Only use the humidifier with untreated tapwater. Never operate the humidifier without water in the tank. Operate the appliance with original accessories only.

Do not immerse the appliance in liquid. If there is a power failure, the appliance remains switched on.

Persons, Including children, who in view of the level of their physical, sensory or mental capacities, or their lack of experience or knowledge, are not in a position to use the equipment with safety, may not use the equipment without supervision or instruction from a responsible person.

Garantie/Garantie/Garanzia/Warranty

Gadentle

Our TURIMX electrical household appliances carry a warranty of 2 years from the date of purchase. We undertake to replace, free of cost, any parts of the appliance that get damaged as a consequence of material or manufacturing defects during the warranty period. Return shipments should be packed in the original packing or something equivalent. In case of improper handling or in case repairs are attempted by third parties, the warranty is rendered null and void. Damage from hydro-chemical influences (e.g. owing to calcification) as well as parts that are subjected to normal wear, do not fall under the warranty. Moreover, damage or function faults that are a consequence of water from softening plants are excluded from the warranty.

Please preserve your receipt carefully, it serves as the warranty certificate as well.

DKB Household Switzerland AG, Eggbühlstrasse 28, Postfach, CH-8052 Zürich Tel. [phone] / Fax [phone]

DKB Household Switzerland AG, Service Center, Grindelstrasse 3-5, CH-8303 Bassersdorf Tel. [phone] / Fax [phone]

DKB Household Austria GmbH, Dückegasse 15/Top 2, A-1220 Wien Tel. [phone] / Fax [phone]

Service Center SZOT, Haushaltsgeräte-Service, Erlaer Strasse 171, A-1230 Wien Tel. [phone], Fax [phone]

D0470.00030 / 03/2010

Änderungen vorbehalten / Sous réserve de modifications / Con riserva di modifiche / Alterations reserved
