USER MANUAL EXC CV 1 KALORIK

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/36

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance, and always follow the safety and operating instructions. Important: People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance except if they are supervised by a person responsible for their safety or if they previously received instructions concerning the safe use of the appliance. Close supervision is necessary to prevent children from using the appliance as a toy. Check that your mains voltage corresponds to that stated on the appliance. Never leave the appliance unsupervised when in use. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage but have it checked and repaired by a competent qualified service

. Should the cord be damaged, it must be replaced by a competent qualified service

Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. When cleaning the appliance, refer to the instructions in the paragraph “Cleaning and care” because water penetration through the openings can be very dangerous for your appliance. Never use the appliance near hot surfaces. Before cleaning and when you do not use the appliance, always unplug the appliance from the power supply. Do not attempt to remove the plug from the wall socket with wet hands. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Stand the appliance on a stable surface so that it cannot fall. Unplug the appliance when it is not in use. Do not place the appliance under a power socket. The power socket must not be in the hot airflow of the appliance in order to avoid overheating. Always position the heater in such a way that inflammable materials (such as curtains) cannot be ignited. Ensure at all times that the unit is placed solidly on its base. Make sure that the air inlet and outlet openings are not blocked. To avoid any risk of fire, do not cover the heater (e.g. with clothes). The heater should only be operated at a minimum distance of 50cm from any wall or other object and of 1 meter from combustibles.

Warning: Do not operate the heater near baths, showers, washbasins, swimming pools or

any other water container. It must be impossible to reach the commands of your appliance when you are in contact with water. Do not allow the power cord to touch any hot part of the appliance. The temperature of the grids may be very high when the appliance is in use. Avoid contact with the skin. Never use the appliance near inflammable or explosive materials. Do not insert any objects through the grille or into the interior of the appliance.

Competent qualified service: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this service.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Caution: We cannot be held responsible for any damage due to the wrong use or the non- observance of this instruction manual. The convection heater should only be connected to an earthed socket installed in accordance with the regulations. Make sure that the supply voltage corresponds with the voltage marked on the rating label. This product complies with the CE-directives.

BEFORE THE FIRST USE

Before using the convection heater for the first time, you must either attach the feet to the base of the unit or mount the appliance on the wall. Floor-standing (see page 3) Attach each foot underneath the appliance by tightening two screws provided in the holes foreseen to this effect as indicated on page 3. Make sure to install the appliance at a minimum distance of 50 cm to other objects or walls. Do not use the appliance on the floor if the feet have not been assembled correctly. Wall-mounting (see pictures on page 3) Caution: - there should be a distance of at least 40 cm between the lower part of the appliance and the floor. - the feet must be removed before mounting the appliance on the wall.

1. Measure the distance between the two slots situated at the back of the appliance (see

2. Drill two holes at the same distance in the wall and insert a plug in each hole you just

drilled. Place the brackets facing the holes as indicated on picture B and attach them in this position with the screws supplied.

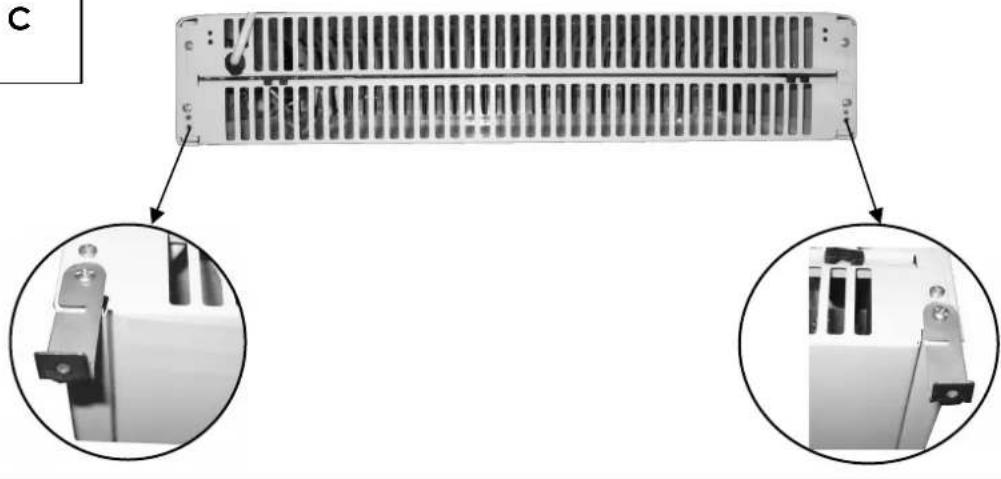

3. Before attaching the appliance on the brackets, attach the two other brackets

underneath the appliance as indicated on picture C.

4. Attach the appliance on the wall. To do so, hold it in such a way that the slots are facing

the brackets, insert the appliance halfway onto the brackets until the appliance can go down into the grooves of the brackets.

5. As soon as the appliance is positioned correctly, take a pencil and mark a dot in the hole

of each bracket situated underneath the appliance.

6. Then take off the appliance by proceeding the other way around compared to point 4

7. Drill a hole in the wall on each dot you just marked and insert a plug in each hole.

8. Attach the appliance back on the wall as indicated in point 4, insert screws through the

brackets underneath the appliance and tighten without forcing. OPERATION When the appliance is switched on for the first time, a slight smell may be emitted. Please ensure sufficient ventilation. This smell will disappear very quickly. With the power switches you can regulate the heating intensity. The thermostat allows you to keep a constant room temperature.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax +32 2 359 95 50 Power switches Lower power switch = reduced power Upper power switch = medium power Both power switches = full power = Turbo switch (fan) To increase the hot air circulation, the fan may be used in addition to the heating function, regardless of the heating level selected. For easy recognition of the heating level selected at any time, the switches are equipped with an indicator lamp. You can also use the turbo function without heating. In this case, fresh air will be blown. Once a switch has been pressed to start operation, the integral thermostat will switch the unit on and off automatically to keep the temperature at a constant level. Thermostat Using the infinitely adjustable thermostat control, the unit can be preset to a specific temperature. When the intended temperature is reached, the unit will automatically switch off. Once the temperature has fallen below the pre-set level, the heater will switch on again. Note: the metallic parts of this appliance become hot during use so if you need to move the appliance during use, use the side handles. OVERHEATING PROTECTION This heater is protected with an overheating protection that switches off the appliance automatically in case of overheating, e.g. due to the total or partial obstruction of the grids. In this case, unplug the appliance, wait about 10 minutes for it to cool and remove the object that is obstructing the grids. Then switch it back on. The appliance should operate normally. Should the problem persist, please contact the nearest customer service.

• Before cleaning the appliance, ensure it is disconnected from the power supply and has cooled down completely.

• To avoid the risk of electric shock, do not clean the heater with water and do not immerse it in water or any other liquid. Clean the housing with a damp cloth.

• If necessary, dust particles accumulated in the air outlet openings may be removed with a vacuum cleaner. This maintenance should be done regularly to assure the good operation of the appliance.

PROTECTION OF THE ENVIRONMENT – DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
