Product type	Mixed gas/electric cooker
Brand	M-System
Model	BPRNF960ANC
Dimensions (W x H x D)	90 x 85 x 60 cm (estimation)
Weight	60 kg (estimation)
Power supply	Gas (G20/G25/G30/G31) and electric 230 V ~ 50 Hz
Gas burners	4 burners: auxiliary (1.00 kW), semi-rapid (1.75 kW), rapid (3.00 kW), triple crown (3.50 kW)
Total gas power	9.25 kW
Multifunction oven	7 functions: natural, forced, semi-forced convection, radiation, grill, defrosting, keep warm
Oven power	Heating elements: bottom 1725 W, top 1725 W, grill 2500 W, circular 2500 W, fan 25 W, lamp 15 W
Oven temperature range	50 °C to 225 °C
Electronic programmer	24h clock, timer (up to 23h59), automatic and semi-automatic cooking
Ignition	Electronic integrated in knobs
Oven accessories	Grid, drip tray, side grids, special WOK grid
Oven door	Removable, removable inner glass
Interior lighting	15 W lamp (E14, 300°C)
Safety	Automatic shutdown, safety taps, audible signal, hot door
Cleaning	Enamel and stainless steel surfaces with soapy water, removable burners, removable glass
Spare parts	Injectors, lamps, gaskets, taps
Installation class	Class 2/1 (freestanding)
Manual languages	FR, EN, NL (112 pages)

Frequently Asked Questions - BPRNF960ANC M-SYSTEM

How to light the burners?

Press the knob and turn it to the maximum flow position (large flame). Keep pressed until the ignition spark produces the flame. In case of a power cut, bring a flame (lighter, match) close.

What to do if a burner does not light?

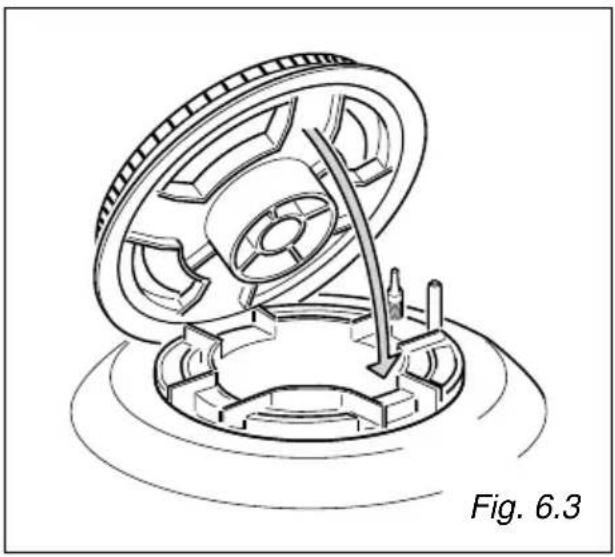

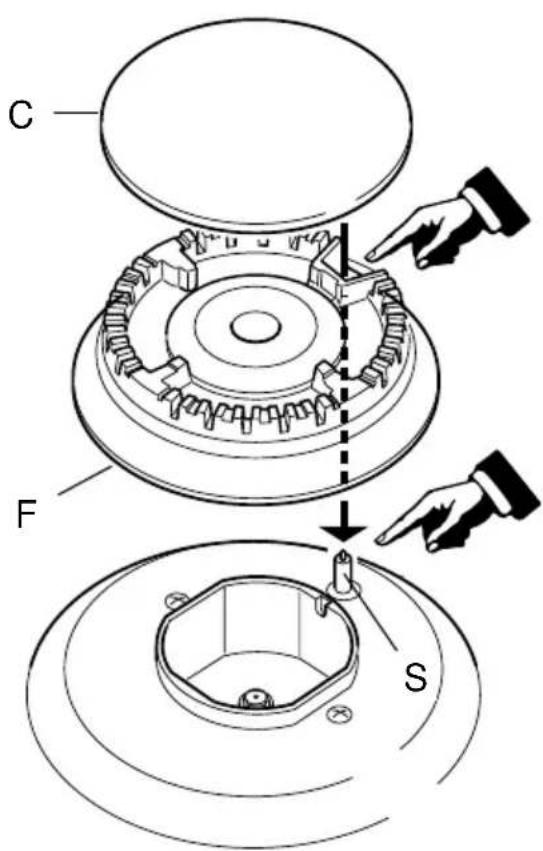

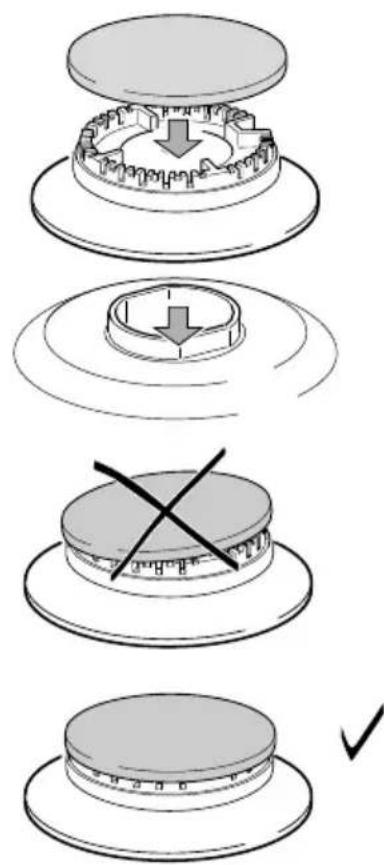

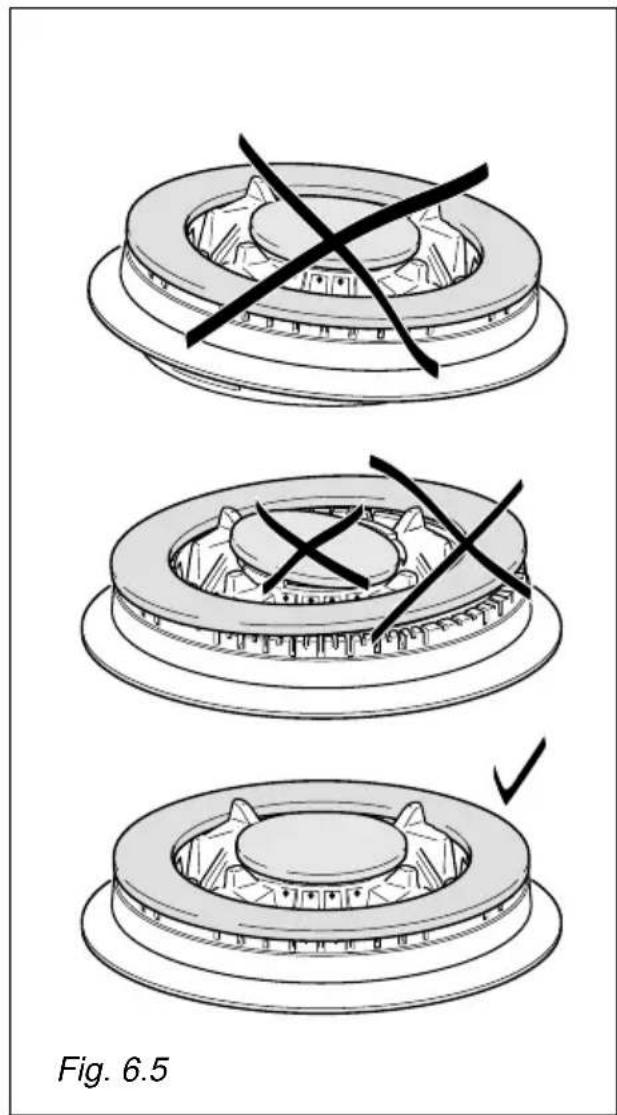

Check that the cap and flame spreader are correctly positioned (see fig. 6.1-6.5). Clean the S electrode (fig. 6.1) with a dry cloth. If the problem persists, contact after-sales service.

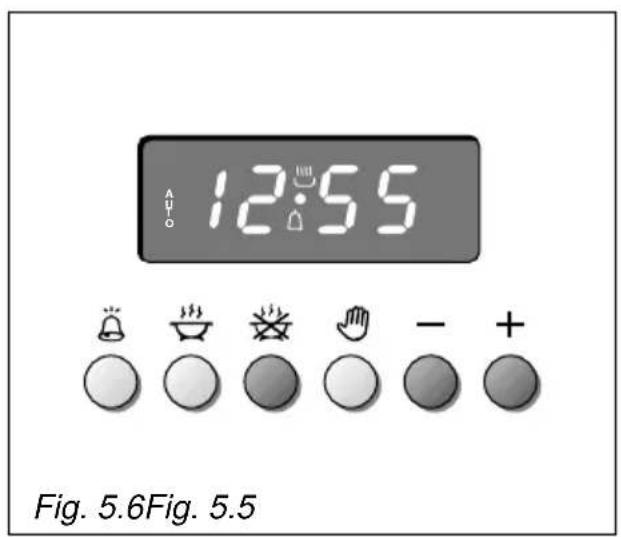

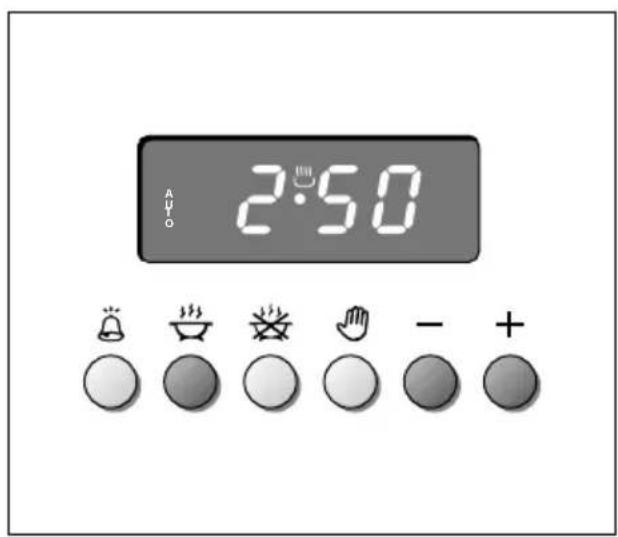

How to use the programmer for automatic cooking?

1. Press the cooking time button and set the duration with +/-. 2. Press the end time button and set the desired time. 3. Select the oven function and temperature. The oven will turn on and off automatically.

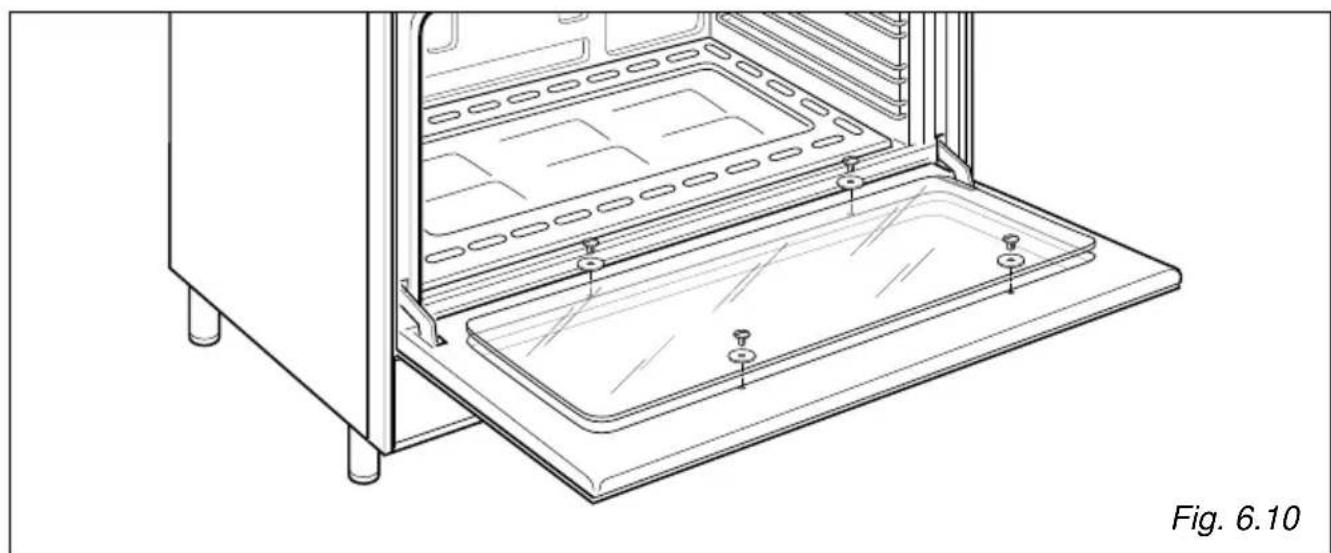

How to clean the inner oven glass?

Unscrew the 4 fixing screws (fig. 6.10), remove the inner glass, wash it with soapy water and a soft cloth, then put it back. Do not use abrasive products.

What type of gas to use with this cooker?

The appliance can operate on natural gas (G20/G25) or liquefied gas (G30 butane, G31 propane). Check the label and, if necessary, replace the injectors according to the provided table.

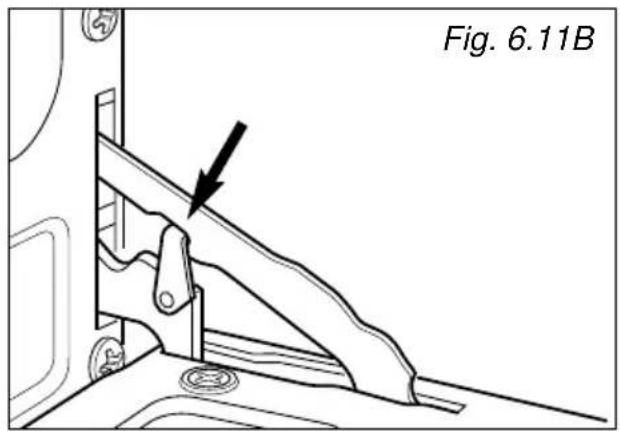

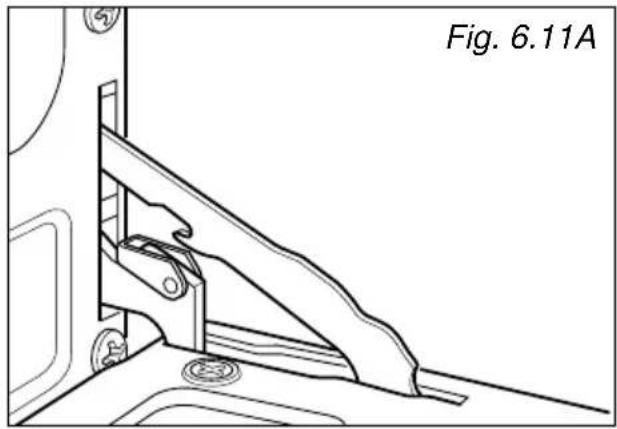

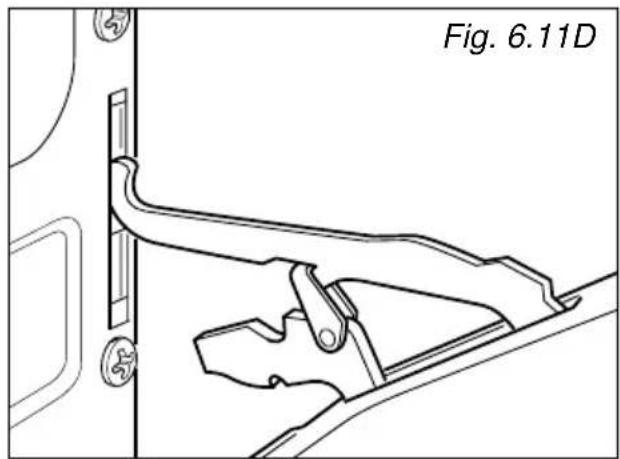

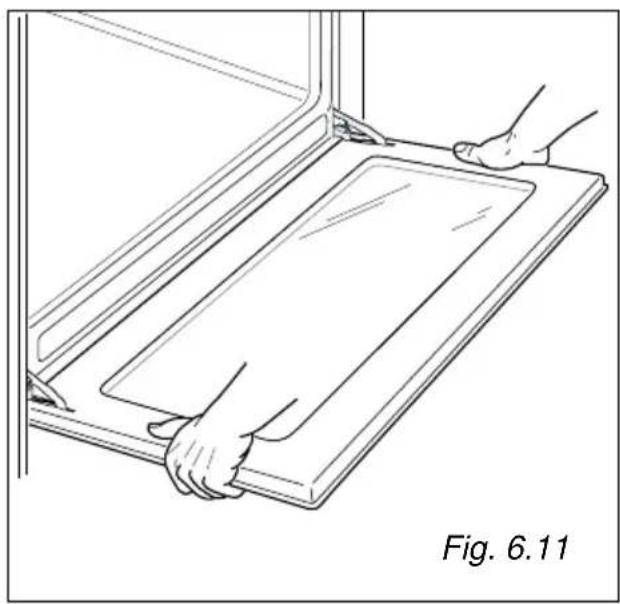

How to disassemble the oven door?

Open the door fully, hang the retaining ring on the hinges (fig. 6.11B), remove the lower pin then the upper bayonet (fig. 6.11C-6.11D). Place the door on a soft surface. Reassemble in reverse order.

Can I use a WOK pot without the special grid?

No. The triple crown burner requires the special WOK grid (fig. 3.5a-3.5b). Using it without this grid can cause serious damage to the burner.

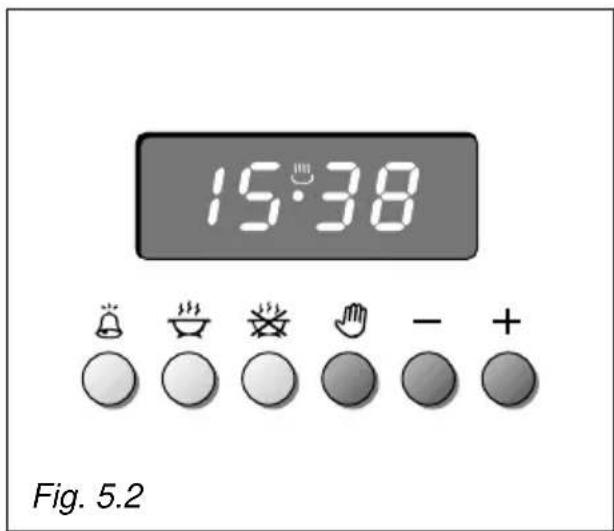

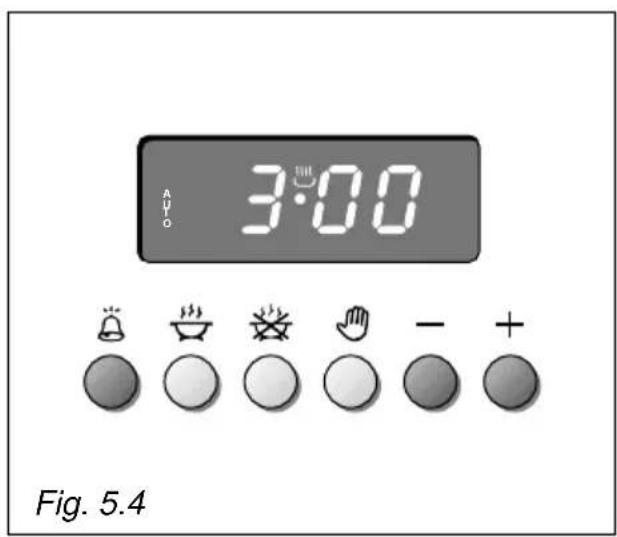

How to set the time on the programmer?

Press the + button (fig. 5.2) then +/- to adjust. Another method: press + and - simultaneously until the time flashes, then set.

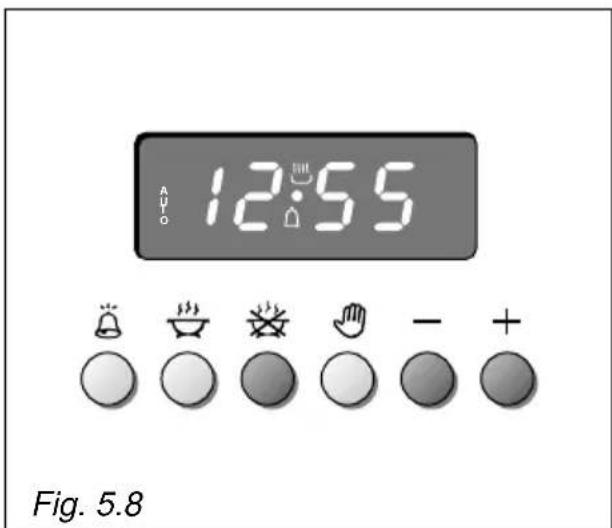

What to do if a programming error appears?

If the AUTO and flash symbols appear with an audible signal, it means an error (cooking time longer than end time). Press the switch to manual button to cancel and start over.

How to replace the oven lamp?

Unplug the appliance. Unscrew the lamp and replace it with a replacement lamp of 15 W, 230 V, E14, resistant to 300 °C. Replacement is not covered by the warranty.

USER MANUAL BPRNF960ANC M-SYSTEM

MAXI OVEN COOKER Instruction for the use Installation advice

BPRF 960

BPRNF 960 ANC

BPRNF 960 ANM

François Page

Instruction for the use - Installation advice

Page 76

Deutsch

Tomates farcies 200^

Pizza 200^

Daurade oignons 200^

Truites amandes 200^

Canard 200^

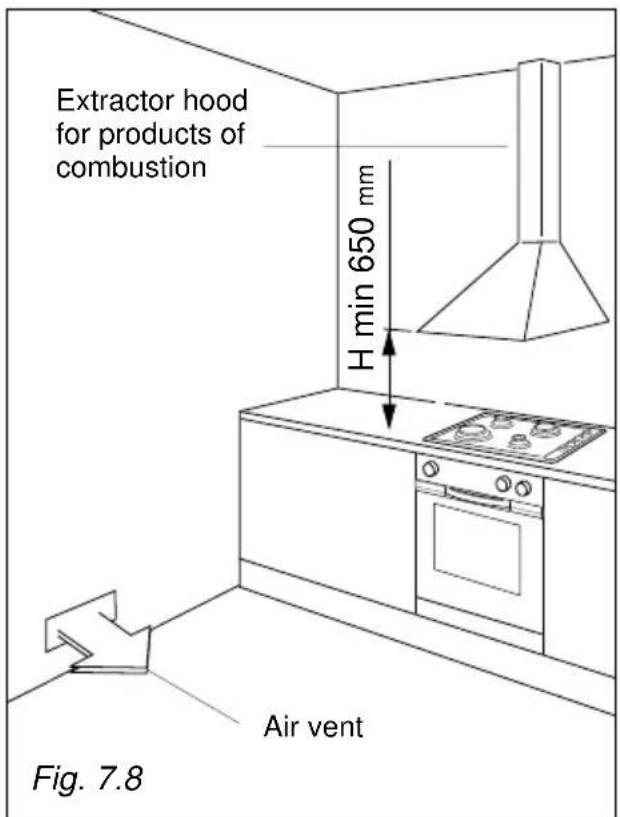

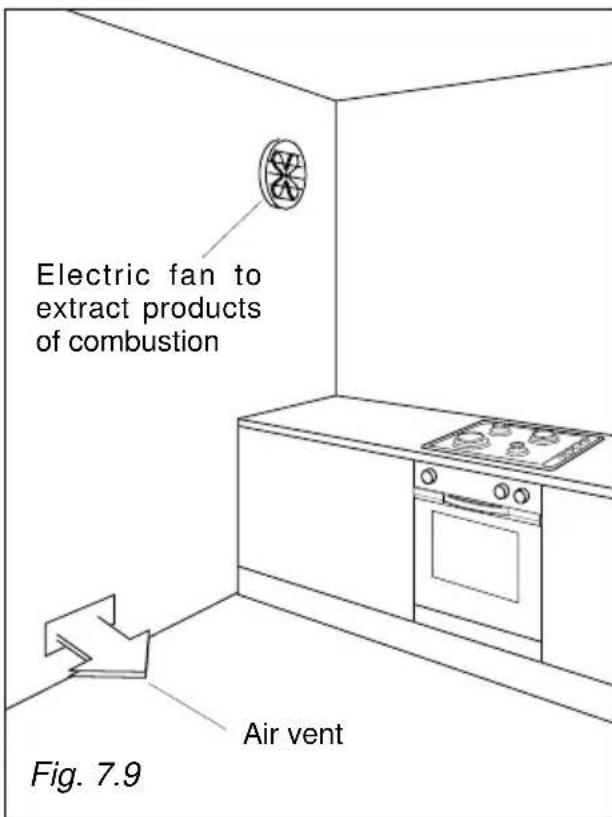

EVACUATION DES PRODUITS DE LA COMBUSTION

Chocoladecake 150^

Rijst in de oven 150^

Konijnepastei 175^

Kaassouffle 175^

5 - ELEKTRONISCHE DIGITALE PROGRAMMING

Thank you for having purchased and given your preference to our product.

The safety precautions and recommendations reported below are for your own safety and that of others. They will also provide a means by which to make full use of the features offered by your appliance.

Please preserve this booklet carefully. It may be useful in future, either to yourself or to others in the event that doubts should arise relating to its operation.

This appliance must be used only for the task it has explicitly been designed for, that is for cooking foodstuffs. Any other form of usage is to be considered as inappropriate and therefore dangerous.

The manufacturer declines all responsibility in the event of damage caused by improper, incorrect or illogical use of the appliance.

IMPORTANT INSTRUCTIONS AND ADVICE FOR THE USE OF ELECTRICAL APPLIANCES

The use of any electrical appliance requires the compliance with some basic rules, namely:

• do not touch the appliance with wet or damp hands (or feet)
• do not use the appliance whilst in bare feet
• do not allow the appliance to be operated by children or unqualified persons without supervision.

The manufacturer cannot be deemed responsible for damages caused by wrong or incorrect use.

Read the instructions carefully before installing and using the appliance.

CAUTION: this apparatus must only be installed in a permanently ventilated room in compliance with the applicable regulations.

IMPORTANT PRECAUTIONS AND RECOMMENDATIONS

After having unpacked the appliance, check to ensure that it is not damaged and that the oven door closes correctly. In case of doubt, do not use it and consult your supplier or a professionally qualified technician.

Packing elements (i.e. plastic bags, polystyrene foam, nails, packing straps, etc.) should not be left around within easy reach of children, as these may cause serious injuries.

• Do not attempt to modify the technical characteristics of the appliance as this may cause danger to users.
• Do not carry out cleaning or maintenance operations on the appliance without having previously disconnected it from the electric power supply.
• If you should decide not to use this appliance any longer (or decide to substitute an older model), before disposing of it, it is recommended that it be made inoperative in an appropriate manner in accordance to health and environmental protection regulations, ensuring in particular that all potentially hazardous parts be made harmless, especially in relation to children who could play with unused appliances.
• After use, ensure that the knobs are in off position.
• Do not allow children or other unqualified people to use the appliance without your supervision.
• During and after use of the cooker, certain parts will become very hot. Do not touch hot parts.
• Keep children away from the cooker when it is in use.

• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the appliance.

• Fire risk! Do not store flammable material in the oven or in the storage compartment.

• Make sure that electrical cables connecting other appliances in the proximity of the cooker cannot come into contact with the hob or become entrapped in the oven door.
• Do not line the oven walls with aluminium foil. Do not place baking trays or the drip tray on the base of the oven chamber.
• The manufacturer declines all liability for injury to persons or damage to property caused by incorrect or improper use of the appliance.
• The various components of the appliance are recyclable. Dispose of them in accordance with the regulations in force in your country. If the appliance is to be scrapped, remove the power cord.

FIRST USE THE OVEN

It is advised to follow these instructions:

• Furnish the interior of the oven by placing the wire racks as described at chapter "Cleaning and maintenance".
• Insert shelves and tray.
• Switch on the empty oven on max to eliminate grease from the heating elements.
• Clean the interior of the oven with cloth soaked in water and detergent (neutral) then dry carefully.

Fig. 1.1

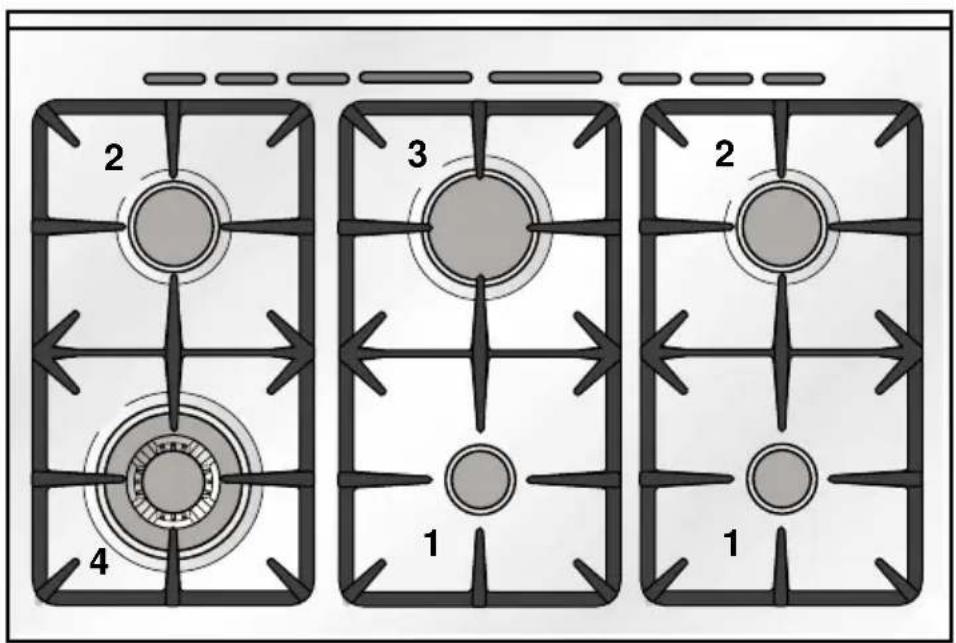

COOKING HOB

1. Auxiliary burner (A) 1,00 kW
2. Semi-rapid burner (SR) 1,75 kW
3. Rapid burner (R) 3,00 kW
4. Triple-ring burner (TC) 3,50 kW

Important Note:

• The electric ignition is incorporated in the knobs.

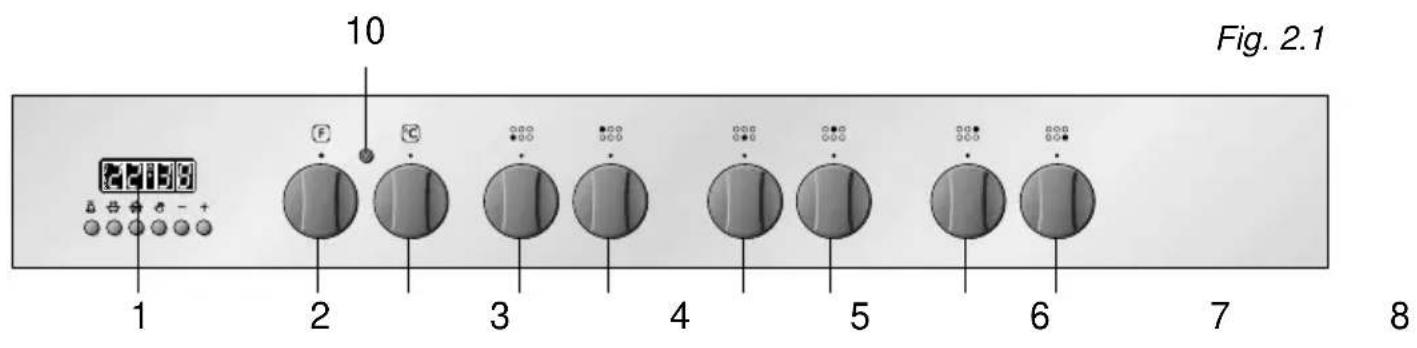

2 - CONTROL PANEL

CONTROLS DESCRIPTION

1. Electronic programmer
2. Multifunction oven switch knob
3. Multifunction oven thermostat knob
4. Front left burner control knob
5. Rear left burner control knob
6. Front central burner control knob
7. Rear central burner control knob
8. Rear right burner control knob
9. Front right burner control knob

Pilot lamp:

1. Oven temperature indicator light

3 - USE OF COOKING HOB

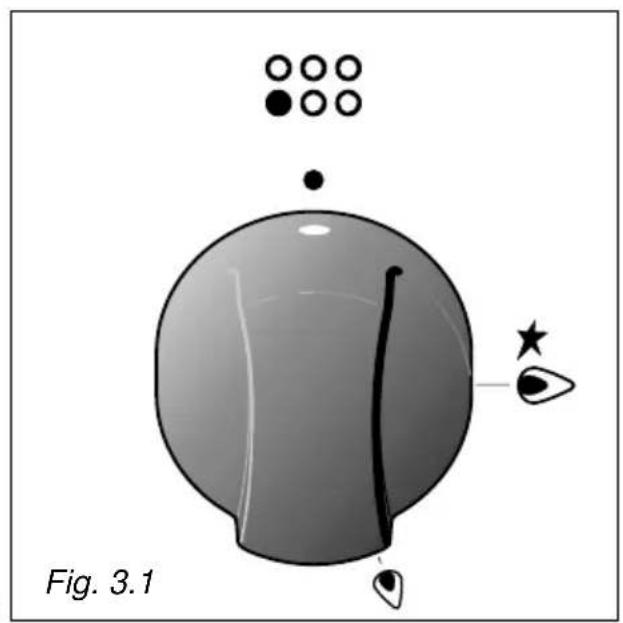

GAS BURNERS

Each burner is controlled by a gas tap assuring the opening and the closing of the gas supply.

Make the lever of the knob match with the indicator on the control panel to obtain:

symbol

(nominal rate)

symbol reduced rate

To reduce the gas flow to minimum, rotate the knob anti-clockwise to point the lever towards the small flame symbol.

The maximum aperture position permits rapid boiling of liquids, whereas the minimum aperture position allows slower warming of food or maintaining boiling conditions of liquids (simmering).

Other intermediate operating adjust

ments can be achieved by positioning the lever between the maximum and minimum aperture positions, and never between the maximum aperture and off positions.

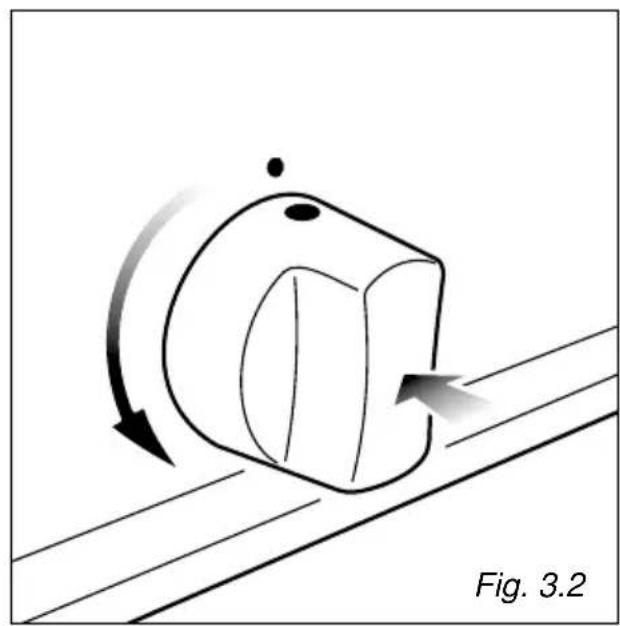

To ignite the burner, the following instructions are to be followed:

1) Lightly press and turn the knob anticlockwise, and position the knob indicator to the symbol printed on the control panel (fig. 3.2).

2) Press the knob to operate the electric ignition; or, in the case of a mains failure light the burner with a match or lighted taper.

3) Adjust the burner according to the setting required.

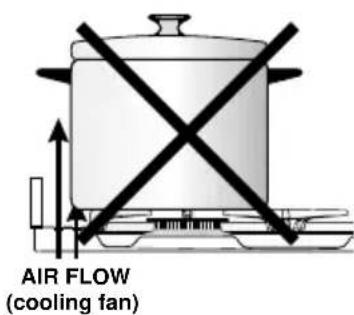

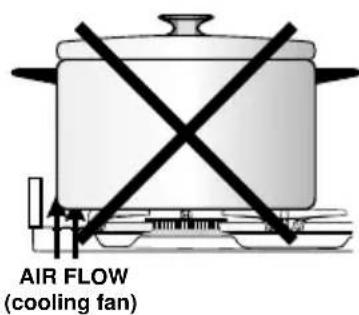

CHOICE OF THE BURNER

On the control panel, near every knob, there is a diagram that indicates which burner is controlled by that knob.

The suitable burner must be chosen according to the diameter and the capacity used.

As an indication, the burners and the pots must be used in the following way:

It is important that the diameter of the pot be suitable to the potentiality of the burner so as not to compromise the high output of the burners and therefore energy waste.

A small pot on a large burner does not give you a boiling point in a shorter amount of time since the capacity of heat absorption of a liquid mass depends on the volume and the surface of the pot.

BURNERS POT DIAMETER

Auxiliary 12 - 14 cm

Semi-rapid 16 - 24 cm

Rapid 24 - 24 cm

Triple-ring 26 - 28 cm

do not use pans with concave or convex bases

Fig. 3.3

CORRECT USE OF RAPID BURNER
Fig. 3.4

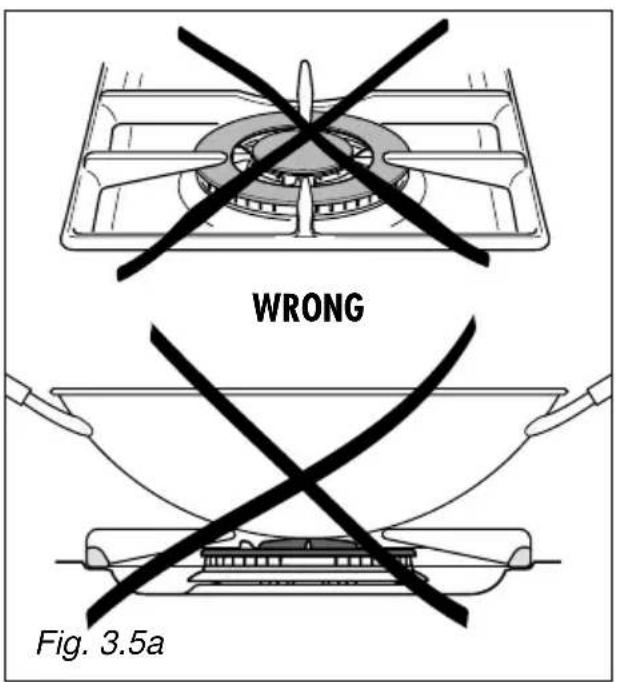

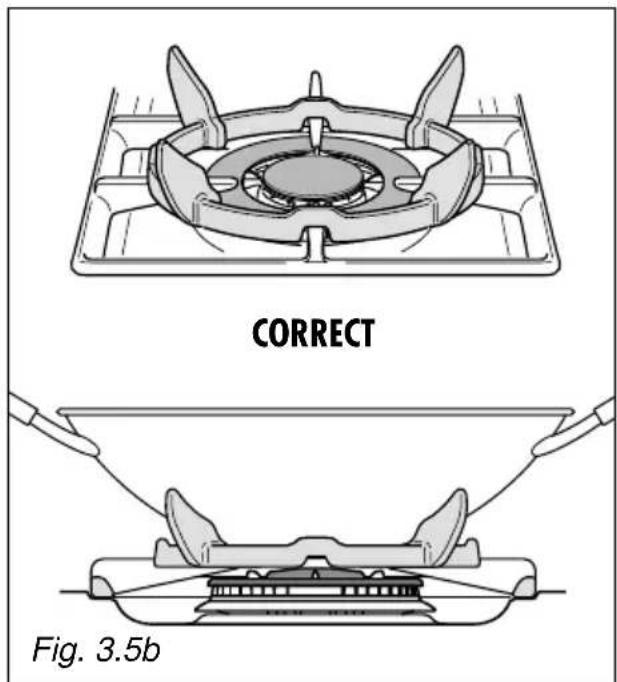

CORRECT USE OF TRIPLE-RING BURNER (Fig. 3.5a - 3.5b)

The flat-bottomed pans are to be placed directly onto the pan-support.

When using a WOK you need to place the supplied stand in the burner to avoid any faulty operation of the double-ring burner (Fig. 3.5a - 3.5b).

Attention: the oven door becomes very hot during operation. Keep children away.

GENERAL FEATURES

As its name indicates, this is an oven that presents particular features from an operational point of view.

In fact, it is possible to insert 7 different programs to satisfy every cooking need. The 7 positions, thermostatically controlled, are obtained by 4 heating elements which are:

• Bottom element 1725 W
  Top element 1725 W
• Grill element 2500 W
• Circular element 2500 W
  Fan motor 25 W
  Oven lamp 15 W

NOTE:

Upon first use, it is advisable to operate the oven for 30 minutes in the position and for another 30 minutes at the maximum temperature (thermostat knob on position 225) in the positions and to eliminate possible traces of grease on the heating elements.

Clean the oven and accessories with warm water and washing-up liquid.

WARNING:

The door is hot, use the handle.

OPERATING PRINCIPLES

Heating and cooking in the MULTIFUNCTION oven are obtained in the following ways:

a. by normal convection

The heat is produced by the upper and lower heating elements.

b. by forced convection

A fan sucks in the air contained in the oven muffle, which sends it through the circular heating element and then sends it back through the muffle. Before the hot air is sucked back again by the fan to repeat the described cycle, it envelops the food in the oven, provoking a complete and rapid cooking.

It is possible to cook several dishes simultaneously.

c. by semi-forced convection

The heat produced by the upper and lower heating elements is distributed throughout the oven by the fan.

d. by radiation

The heat is irradiated by the infra red grill element.

e. by radiation and ventilation

The irradiated heat from the infra red grill element is distributed throughout the oven by the fan.

f. by ventilation

The food is defrosted by using the fan only function without heat.

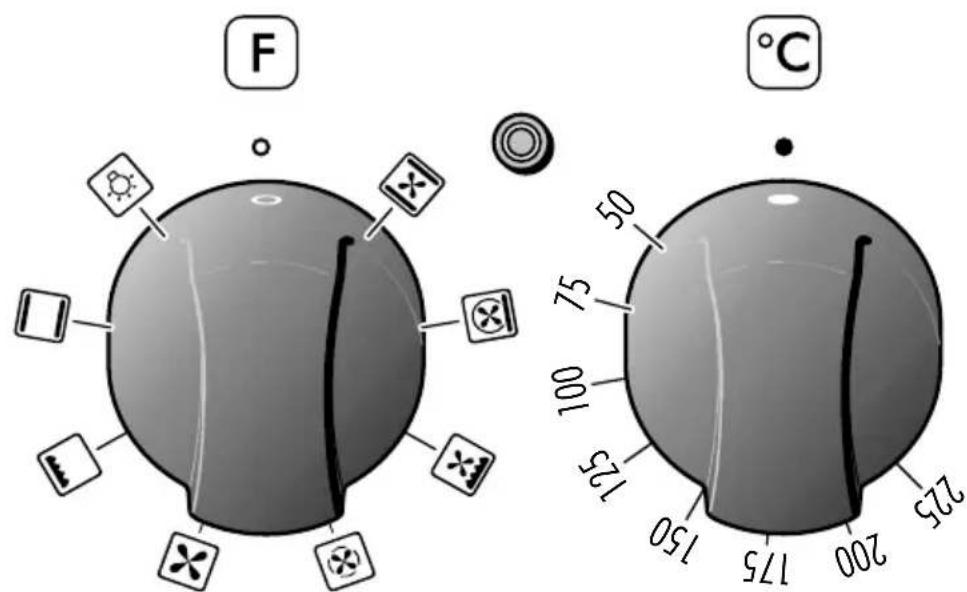

Fig. 4.1 Fig. 4.2

THERMOSTAT KNOB (fig. 4.2)

To turn on the heating elements of the oven, set the switch knob on the desired program and the thermostat knob onto the desired temperature.

To set the temperature, it is necessary to make the knob indicator meet the chosen number.

The elements will turn ON or OFF automatically according to the energy need which is determined by the thermostat.

FUNCTION SELECTOR KNOB (fig. 4.1)

Rotate the knob clockwise to set the oven for one of the following functions:

OVEN LIGHT

By turning the knob onto this setting we light the oven cavity (15 W). The oven remains alight while any of the functions is on.

TRADITIONAL CONVECTION COOKING

The upper and lower heating elements are switched on. The heat is diffused by natural convection and the temperature must be regulated between 50^ C and 225^ C with the thermostat knob.

It is necessary to preheat the oven before introducing the foods to be cooked.

Recommended for:

For foods which require the same cooking temperature both internally and externally, i. 84 e. roasts, spare ribs, meringue, etc.

GRILLING

The infra-red heating element is switched on. The heat is diffused by radiation.

Use with the oven door closed and the thermostat knob to between 50^ and 225^ for max 15 minutes, then to position 175^ .

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

Attention: the oven door becomes very hot during operation. Keep children away.

For correct use see chapter "USE OF THE GRILL"

Recommended for:

Intense grilling action for cooking with a broiler; browning, crisping, "au gratin", toasting, etc.

DEFROSTING FROZEN FOODS

Only the oven fan is on. To be used with the thermostat knob on "●" because the other positions have no effect. The defrosting is done by simple ventilation without heat.

Recommended for:

To rapidly defrost frozen foods; 1 kilogram requires about one hour.

The defrosting times vary according to the quantity and type of foods to be defrosted.

HOT AIR COOKING

The circular element and the fan are on. The heat is diffused by forced convection and the temperature must be regulated between 50^ and 225^ with the thermostat knob. It is not necessary to preheat the oven.

Recommended for:

For foods that must be well done on the outside and tender or rare on the inside, i. e. lasagna, lamb, roast beef, whole fish, etc.

VENTILATED GRILL COOKING

The infra-red ray grill and the fan are on. The heat is mainly diffused by radiation and the fan then distributes it throughout the oven. The temperature must be regulated between 50^ and 175^ for max 30 minutes, with the thermostat knob. It is necessary to preheat the oven for about 5 minutes.

Use with the oven door closed.

Attention: the oven door becomes very hot during operation. Keep children away.

For correct use see chapter "GRILLING AND "AU GRATIN".

Recommended for:

For grill cooking when a fast outside browning is necessary to keep the juices in, i. e. veal steak, steak, hamburger, etc.

THAWING AND WARMING UP

The upper element and the circular element connected in series, are switched on; also the fan is on. The heat is diffused by forced convection with the most heat being produced by the upper element.

The temperature must be regulated between 50^ and 140^ with the thermostat knob.

Recommended for:

To keep foods hot after cooking. To slowly heat already cooked foods.

CONVECTION COOKING WITH VENTILATION

The upper and lower heating elements and the fan turn on.

The heat coming from the top and bottom is diffused by forced convection.

The temperature must be regulated between 50^ and 225^ with the thermostat knob.

Recommended for:

For foods of large volume and quantity which require the same internal and external degree of cooking; for ie: rolled roasts, turkey, legs, cakes, etc.

COOKING ADVICE

STERILIZATION

Sterilization of foods to be conserved, in full and hermetically sealed jars, is done in the following way:

a. Set the switch to position
b. Set the thermostat knob to position 185^ and preheat the oven.
c. Fill the dripping pan with hot water.
d. Set the jars onto the dripping pan making sure they do not touch each other and the door and set the thermostat knob to position 135^ .

When sterilization has begun, that is, when the contents of the jars start to bubble, turn off the oven and let cool.

REGeneration

Set the switch to position and the thermostat knob to position 150^ C.

Bread becomes fragrant again if wet with a few drops of water and put into the oven for about 10 minutes at the highest temperature.

ROASTING

To obtain classical roasting, it is necessary to remember:

• that it is advisable to maintain a temperature between 180 and 200^ .
• that the cooking time depends on the quantity and the type of foods.

SIMULTANEOUS COOKING OF DIFFERENT FOODS

The MULTI-FUNCTION oven set on position 串 and × gives simultaneous heterogeneous cooking of different foods. Different foods such as fish, cake and meat can be cooked together without mixing the smells and flavours.

This is possible since the fats and vapours are oxidized while passing through the electrical element and therefore are not deposited onto the foods.

The only precautions to follow are:

• The cooking temperatures of the different foods must be as close to as possible, with a maximum difference of 20^ - 25^ .
• The introduction of the different dishes in the oven must be done at different times in relation to the cooking times of each one.

The time and energy saved with this type of cooking is obvious.

OVEN COOKING

Before introducing the food, preheat the oven to the desired temperature.

For a correct preheating operation, it is advisable to remove the tray from the oven and introduce it together with the food, when the oven has reached the desired temperature.

Check the cooking time and turn off the oven 5 minutes before the theoretical time to recuperate the stored heat.

COOKING EXAMPLES

Temperatures and times are approximate as they vary depending on the quality and amount of food.

Remember to use ovenproof dishes and to adjust the oven temperature during cooking if necessary.

DISHES TEMPERATURE

Cakes 180^

Doughnuts 180^

Cheese souffle 200^

Potatoes souffle 200^

Roast veal 200^

Spinach crepes 200^

Potatoes in milk 200^

Chicken breasts in tomato 200^

Sole fish filet 200^

Whiting 200^

Cream puffs 200^

Plum pie 200^

Meat balls 200^

Veal meatloaf 200^

Grilled chicken - roast chicken 220^

Baked lasagna 220^

Roast beef 220^

Oven cooked pasta 220°

Lemon cake 220^

Rice creol 225°

Baked onions 225°

Stuffed potatoes 225°

Grilled veal joint 225°

Marmalade pie 225^

Pound cake 225°

Turkish shishkebab 250°

Pizza with anchovies 250°

GRILLING AND "AU GRATIN"

Set the switch to position

Set the thermostat to position 175^ and after having preheated the oven, simply place the food on the shelf.

Close the door and let the oven operate with the thermostat on, until grilling is complete.

Adding a few dabs of butter before the end of the cooking time gives the golden "au gratin" effect.

Note: It is recommended that you do not grill for longer than 30 minutes at any one time.

ATTENTION: the oven door becomes very hot during operation.

Keep children away.

USE OF THE GRILL

Preheat the oven for about 5 minutes.

Introduce the food to be cooked, positioning the rack as close to the grill as possible.

The dripping pan should be placed under the rack to catch the cooking juices and fats.

Grilling with the oven door closed.

Do not grill for longer than 30 minutes at any one time.

CAUTION: the oven door becomes very hot during operation. Keep children well out of reach.

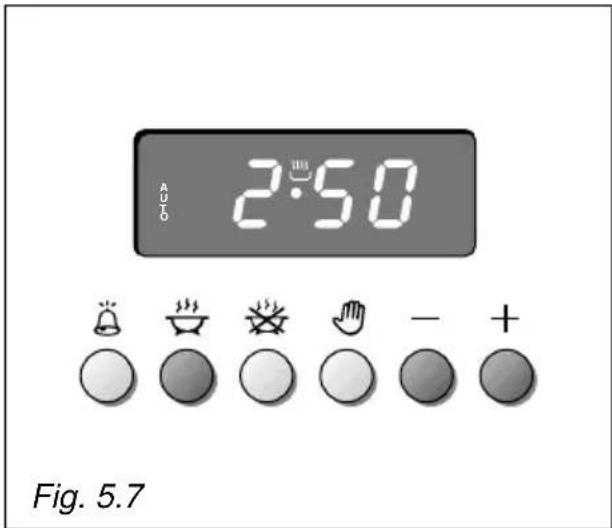

5 - ELECTRONIC PROGRAMMER

If you use the oven for none automatic or semi-automatic cooking, ensure programmer is set to manual position by pushing button.

The electronic programmer performs the following functions:

• 24 hours clock with illuminated display
  -Timer (up to 23 hours and 59 minutes)
• Program for automatic oven cooking
• Program for semi-automatic oven cooking.

Description of the buttons:

Timer
Cooking time
End of cooking time
Manual position and cancellation of the set cooking program
Advance the time for of all programs
Decrease the program time and changing the frequency of the audible signal.

Fig. 5.1

Description of the illuminated symbols:

AUTO - flashing - Programmer in automatic position but not programmed

AUTO - always lit - Programmer in automatic position with program set.

Automatic cooking taking place

Timer in operation

and AUTO - flashing - Program error.

(The time of day lies between the calculated cooking start and end time).

Note:

Select a function by the respective button and, in 5 seconds, set the required time with the +buttons ("one-hand" operation).

A power cut makes the clock go to zero and cancels the set programs.

ELECTRONIC CLOCK(fig. 5.2)

The programmer is equipped with an electronic clock with an illuminated display which indicates hours and minutes. Upon immediate connection of the oven or after a powercut, three zeros will flash on the programmer panel.

To set the hour it is necessary to push the button and then the or+ button until you have set the exact hour (fig. 5.2).

Another way is to simultaneously push the two buttons and at the same time push the er button.

Note: The hour setting deletes any program.

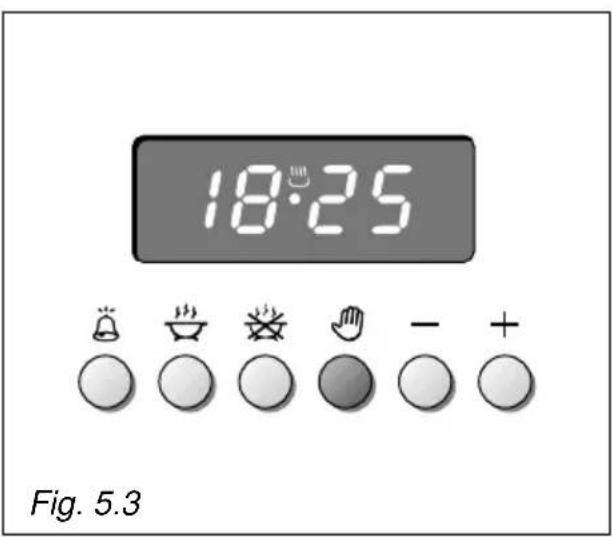

NORMAL COOKING WITHOUT THE USE OF THE PROGRAMMER

To manually use the oven, that is, without the aid of the programmer, it is necessary to cancel the flashing AUTO by pushing the button AUTO will be switched off and the symbol will go on - Fig. 5.3).

Attention: If the AUTO is steadily lit (which means a cooking program has already been set), the program can be cancelled and switched to manual by pushing the button.

If the oven is switched on, you must switch off manually.

ELECTRONIC TIMER

The timer program consists only of a buzzer which may be set for a maximum period of 23 hours and 59 minutes. If the AUTO is flashing push the button.

To set the time, push the button and the or until you obtain the desired time in the panel (fig. 5.4).

Having finished the setting, the clock hour will appear on the panel and the symbol will be lit.

The countdown will start immediately and may be seen at any moment on the panel by simply pressing the button

At the end of the time, the symbol will be switched off and an intermittent buzzer will go off; this can be stopped by pressing any of the buttons.

SETTING THE FREQUENCY OF THE AUDIBLE SIGNAL

3 possible sounds can be selected by pressing the button.

To cook food automatically in the oven, it is necessary to:

1. Set the length of the cooking time
2. Set the end of the cooking time
3. Set the temperature and the oven cooking program.

These operations are done in the following way:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or

to go back if you have passed the desired time (fig. 5.5). The AUTO and the symbol will be on.

1. Set the time you need the food to stop cooking by pushing the button (the cooking time already added to the clock time will appear), and the + button (fig. 5.6); if you pass the desired time you can go back by pushing the button.

After this setting, the symbol will go off. If after this setting, the AUTO flashes on the panel and a buzzer goes off, it means there was an error in the programming, that is the the cooking cycle has been superimposed on the clock. In this case, change the end of cooking time or the cooking time itself by following the instructions above.

1. Set the temperature and the cooking program (see the relevant sections).

Once the oven is programmed it will switch on automatically at the right time to stop the cooking at the desired end time.

During cooking, the symbol remains on.

By pushing the button you can see the time that remains until the end of cooking.

The cooking program may be cancelled at any time by pushing

At the end of the cooking time the oven will turn off automatically, the symbol will turn off, AUTO will flash and the buzzer will sound, which can be turned off by pushing any of the buttons.

Turn the switch and temperature knobsto "OFF" and put the programmer onto "manual" by pressing the button.

Attention: A powercut will make the clock go to zero and will cancel the set programs.

After a powercut, three zeros will flash on the panel.

SEMI - AUTOMATIC COOKING

This is used to switch the oven off automatically after the desired cooking time has elapsed.

There are two ways to set the semiautomatic cooking function:

1. Set the length of time you need to cook the food by pushing the button and the button to advance, or to go backwards (Fig. 5.7). This sets the desired "stop" time.

or

1. Set the time you need the food to stop cooking by pushing the button and the button to advance, or to go backwards if you have passed the desired time (Fig. 5.8).

AUTO and the symbol will be on.

Then set the temperature and the cooking program (see the relevant sections). The oven is switched on and it will switch off automatically at the end of the desired time.

During cooking, the symbol remains on and by pressing the button you can see the time that remains until the end of the cooking.

The cooking program can be cancelled at any moment by pushing the button.

At the end of the cooking, the oven and the symbol will turn off, the AUTO will flash and a buzzer will go off which can be stopped by pushing any of the buttons.

Turn the switch and temperature knobs to "OFF" and put the programmer onto "manual" by pressing the button.

GENERAL ADVICE

• When the appliance is not being used, it is advisable to keep the gas tap closed.
• Every now and then check to make sure that the flexible tube that connects the gas line or the gas cylinder to the appliance is in perfect condition and eventually substitute it if it shows signs of wearing or damage.
• The periodical lubrication of the gas taps must be done only by specialized personnel.

• If a tap becomes stiff, do not force; contact your local Service Centre.

• Important: Before any operation of cleaning and maintenance disconnect the appliance from the electrical network.

Attention

The appliance gets very hot, mainly around the cooking areas. It is very important that children are not left alone in the kitchen when you are cooking.

Do not use a steam cleaner because the moisture can get into the appliance thus make it unsafe.

ENAMELLED SURFACES

All the enamelled parts must be cleaned with a sponge and soapy water or other non-abrasive products.

Dry preferably with a soft cloth.

Acidic substances like lemon juice, tomato sauce, vinegar etc. can damage the enamel if left too long.

STAINLESS STEEL SURFACES

mod.BPRF960

The stainless steel front panels on this cooker (facia, oven door, bottom panel) are protected by a finger-print proof lacquer.

To avoid damaging this lacquer, do not clean the stainless steel with abrasive cleaners or abrasive cloths or scouring pads.

ONLY SOAP/WARM WATER MUST BE USED TO CLEAN THE STAINLESS STEEL SURFACES.

STAINLESS STEEL, ALUMINIUM PARTS AND SILK-SCREEN PRINTED SURFACES

Clean using an appropriate product. Always dry thoroughly.

IMPORTANT: these parts must be cleaned very carefully to avoid scratching and abrasion. You are advised to use a soft cloth and neutral soap.

CAUTION: Do not use abrasive substances or non-neutral detergents as these will irreparably damage the protective surface.

GASTAPS

In the event of operating faults in the gastaps, call the Service Department.

BURNERS

They can be removed and washed with soapy water only.

They will remain always perfect if cleaned with products used for silverware.

After cleaning or wash, check that burner-caps and burner-heads are dry before placing them in the respective housings.

Note: To avoid damage to the electric ignition do not use it when the burners are not in place.

Fig. 6.1

CORRECT REPLACEMENT OF THE BURNERS

It is very important to check that the burner flame distributor F and the cap C has been correctly positioned (see fig. 6.1-6.2) - failure to do so can cause serious problems.

Check that the electrode "S" (fig. 6.1) is always clean to ensure trouble-free sparking.

Fig. 6.2

TRIPLE RING BURNER

The triple ring burner must be correctly positioned (see fig. 6.3); the burner rib must be enter in their lodgement as shown by the arrow.

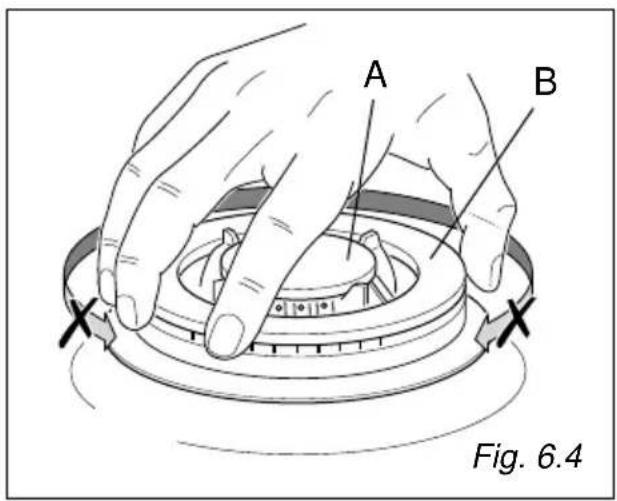

Then position the cap A and the ring B (fig. 6.4 - 6.5). The burner correctly positioned must not rotate (fig. 6.4).

INSIDE OF OVEN

This must be cleaned regularly.

Remove and refit the side runner frames as described on the next chapter.

With the oven warm, wipe the inside walls with a cloth soaked in very hot soapy water or another suitable product. The bottom of the oven, side runner frames, tray and rack can be removed and washed.

OVEN FITTING OUT

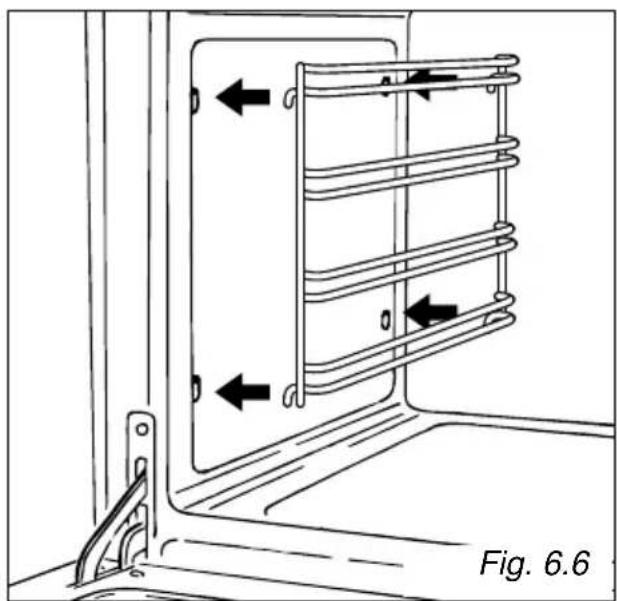

Hang up the wire racks on the oven walls (fig. 6.6)

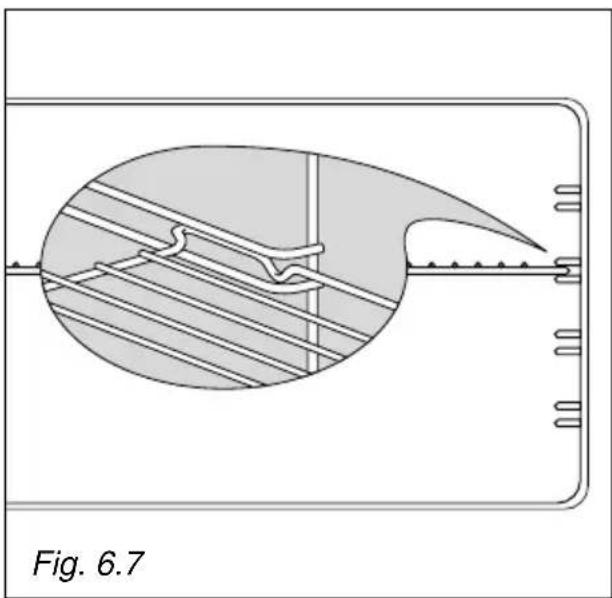

• Slide in, on the guides, the shelves (fig. 6.7).

The rack must be fitted so that the safety catch, which stops it sliding out, faces the inside of the oven (fig. 6.7).

• To dismantle, operate in reverse order.

REPLACING THE OVEN LIGHT BULB

Switch the cooker off at the mains.

When the oven is cool unscrew and replace the bulb with another one resistant to high temperatures (300^) voltage 230V 50 Hz),15 W,E14.

Note: Oven bulb replacement is not covered by your guarantee.

OVEN TRAY

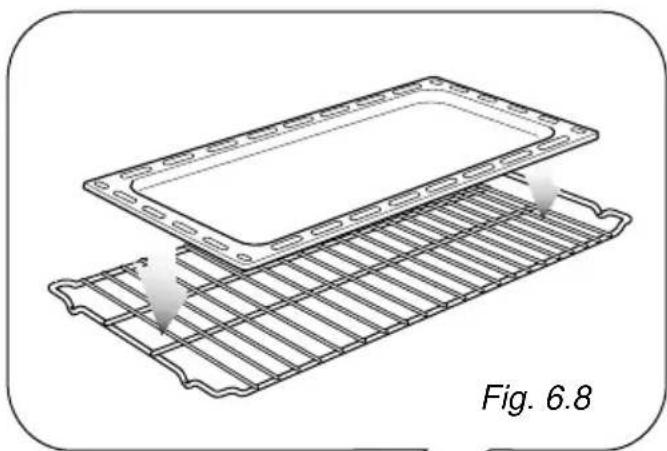

The oven tray must be correctly placed on the wire shelf (fig. 6.8) then inserted into the side runners (fig. 6.9).

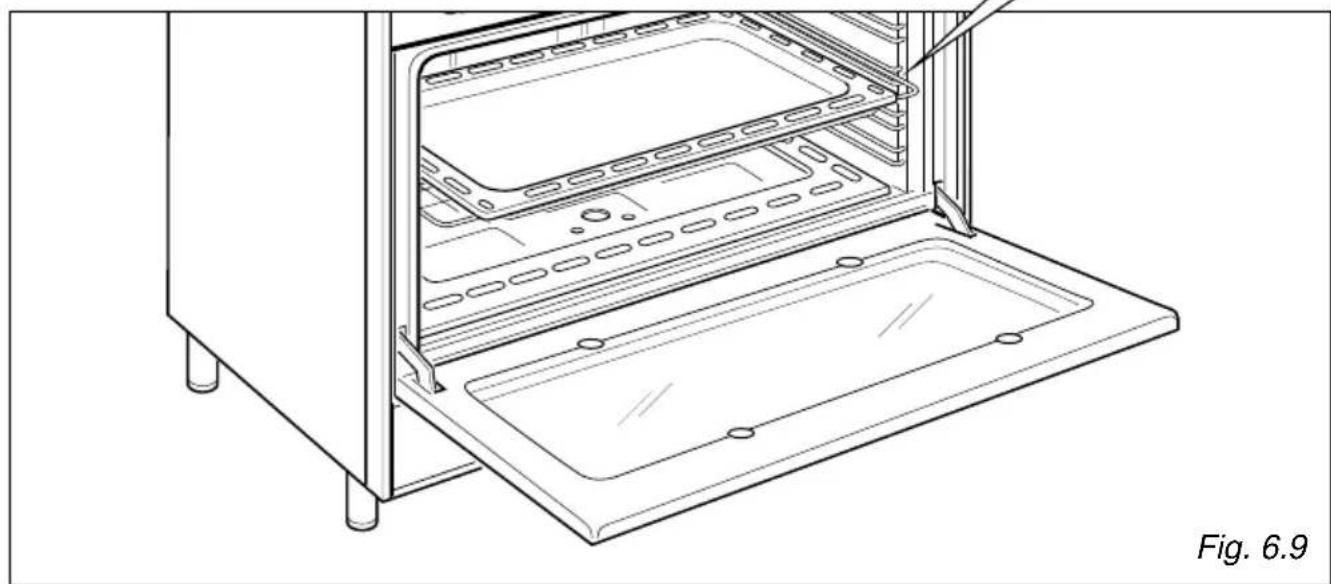

OVENDOOR

The internal glass panel can be easily removed for cleaning by unscrewing the 4 retaining screws (Fig. 6.10)

REMOVING THE OVEN DOOR

The oven door can easily be removed as follows:

• Open the door to the full extent (fig. 6.11A).
• Attach the retaining rings to the hooks on the left and right hinges (fig. 6.11B).
  -Hold the door as shown in fig. 6.11.
  Gently close the door and withdraw the lower hinge pins from their location (fig. 6.11C).
• Withdraw the upper hinge pins from their location (fig. 6.11D).
• Rest the door on a soft surface.
• To replace the door, repeat the above steps in reverse order.

Advice for the Installer

IMPORTANT

• Cooker installation and regulation must only be carried out by QUALIFIED TECHNI-CIANS and in compliance with the local safety standards. Failure to observe this rule will invalidate the warranty.
• The electrical mains outlet, if located behind the cooker, must not be higher than 18 cm above the floor level.
• Some appliances are supplied with a protective film on steel and aluminium parts. This film must be removed before using the cooker.

7 - INSTALLATION

INSTALLATION

This cookers has class "2/1" overheating protection so that it can be installed in a cabinet.

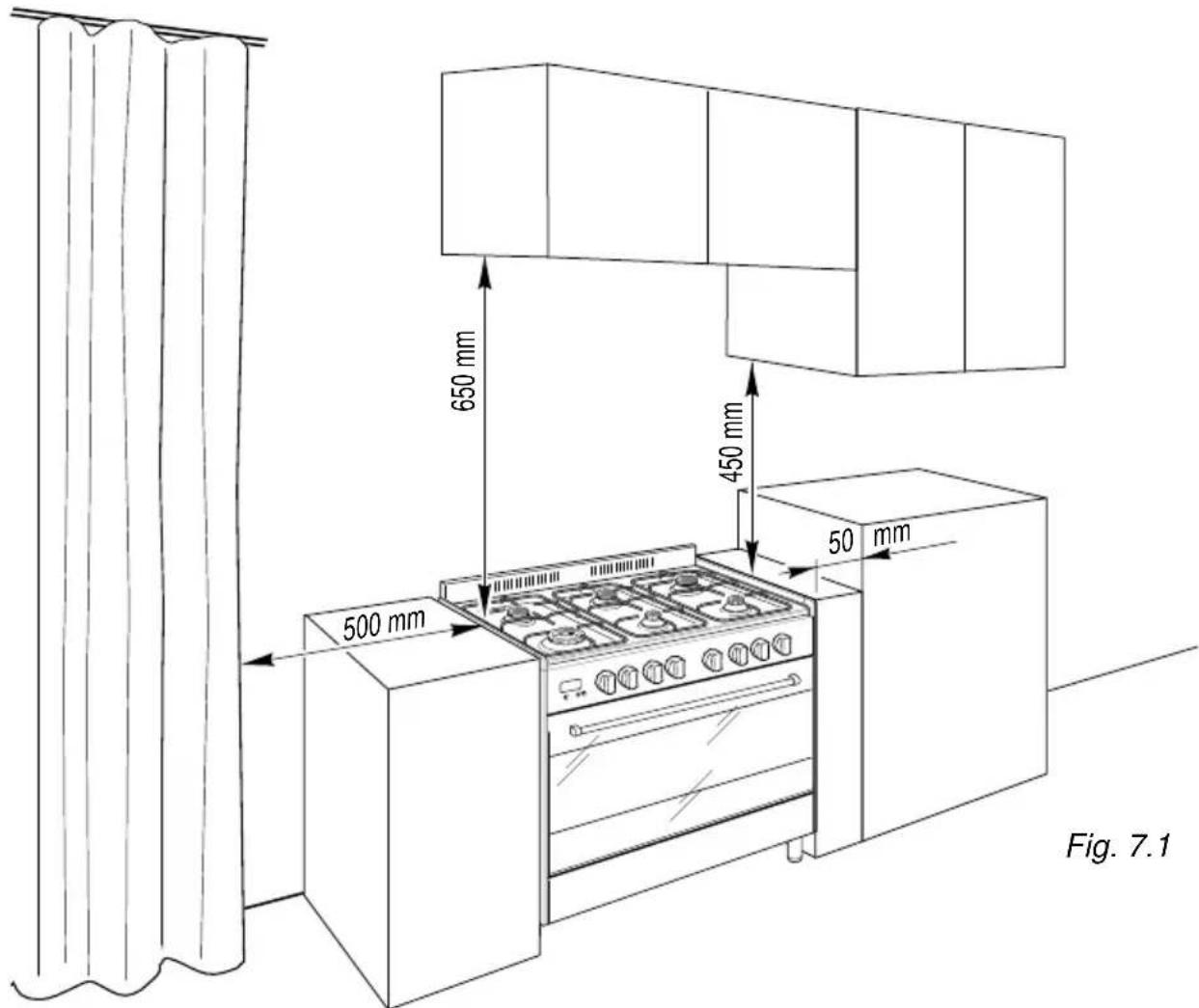

The appliance must be kept no less than 50~mm away from any side wall which exceeds the height of the hob surface (fig. 7.1).

The furniture walls adjacent to the cooker must be made of material resistant to heat.

The veneered synthetical material and the glue used must be resistant to a temperature of 90^ in order to avoid ungluing or deformations.

The cooker may be located in a kitchen, a kitchen/diner or bed-sitting room but not in a room containing a bath or shower.

Curtains must not be fitted immediately behind appliance or within 500~mm of the sides.

If the cooker is located on a pedestal it is necessary to provide safety measures to prevent falling out.

It is essential that the cooker is positioned as stated below.

The cooker must be installed by a qualified technician and in compliance with a local safety standards.

BACKGUARD

Before installing the cooker, assemble the backguard "C" (fig. 7.2).

• The backguard "C" can be found packed at the rear of the cooker.
• Before assembling remove any protective film/adhesive tape.
• Remove the two spacers "A" and the screw "B" from the rear of the cooktop.
• Assemble the guard as shown in figure 7.2 and fix it by screwing the central screw "B" and the spacers "A".

Fig. 7.2

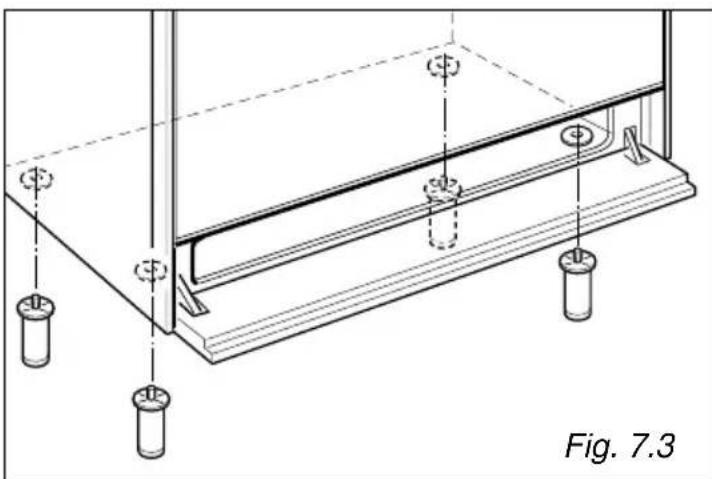

FITTING THE ADJUSTABLE FEET

The adjustable feet must be fitted to the base of the cooker before use.

Rest the rear of the cooker an a piece of the polystyrene packaging exposing the base for the fitting of the feet.

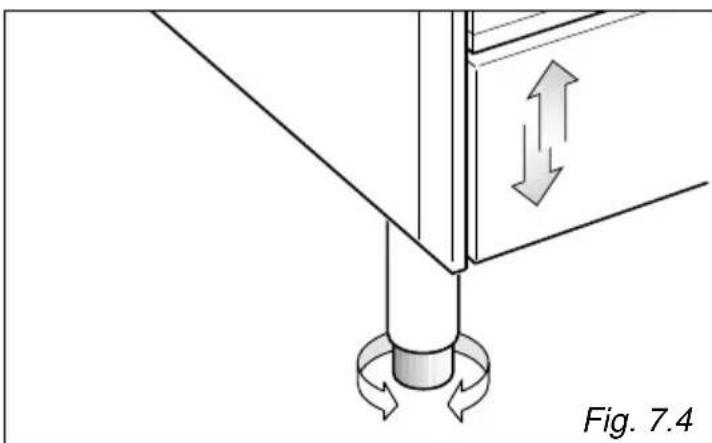

LEVELING THE COOKER

The cooker may be levelled by screwing the lower ends of the feet IN or OUT (fig. 7.4)

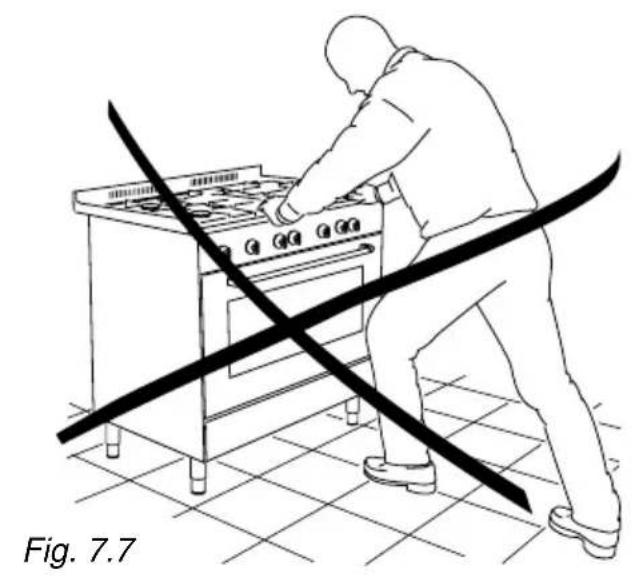

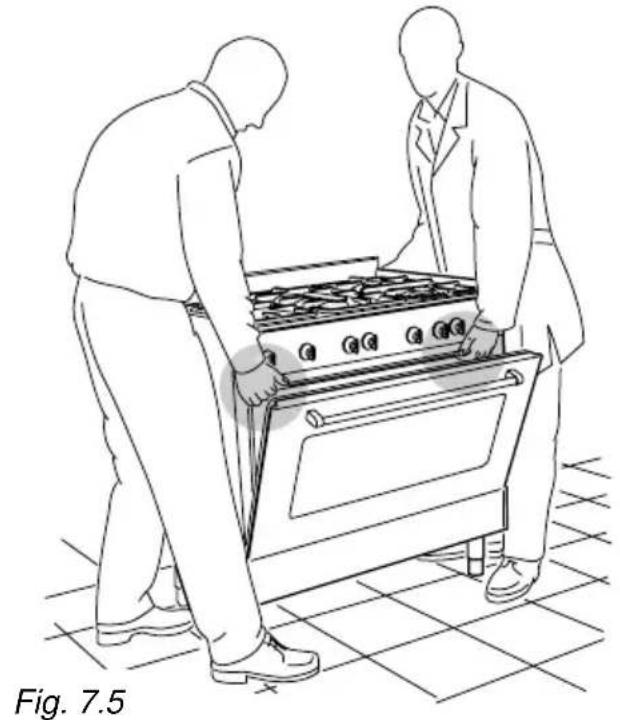

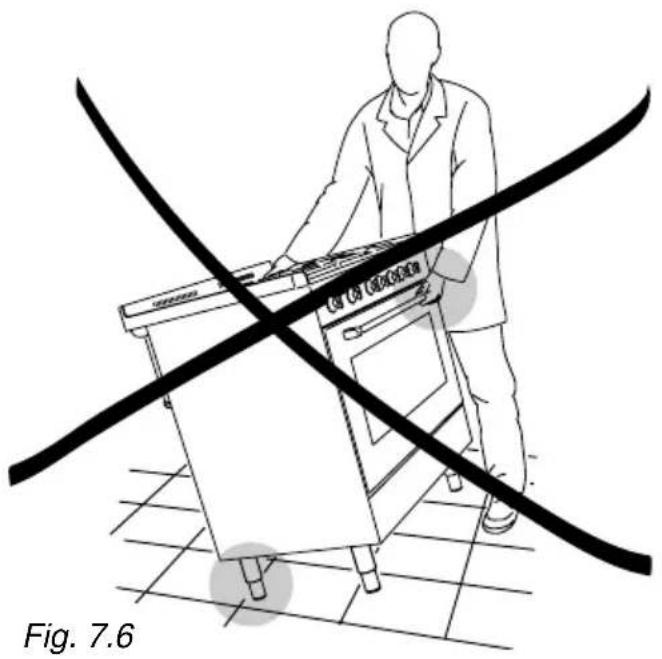

WARNING

When raising cooker to upright position always ensure two people carry out this manoeuvre to prevent damage to the adjustable feet (fig. 7.5).

WARNING

Be careful: DO NOT LIFT the cooker by the door handle when raising to the upright position (fig. 7.6).

WARNING

When moving cooker to its final position DONOT DRAG (fig. 7.7).

Lift feet clear of floor (fig. 7.5).

This appliance is not connected to a device to evacuate the combustion products. This must be installed and connected in conformity with the installation rules in force. Pay special care to room ventilation as well.

DISCHARGING PRODUCTS OF COMBUSTION

Extractor hoods connected directly to the outside must be provided, to allow the products of combustion of the gas appliance to be discharged (fig. 7.8).

If this is not possible, an electric fan may be used, attached to the external wall or the window; the fan should have a capacity to circulate air at an hourly rate of 3-5 times the total volume of the kitchen (fig. 7.9).

The fan can only be installed if the room has suitable vents to allow air to enter, as described under the heading "Choosing suitable surroundings".

In the room chosen to accommodate the gas appliance, there must be an adequate natural draft to allow combustion of the gas.

The natural draft must be produced directly by one or more vents made in the external walls and providing a total opening of at least 200~cm^2

The vents must be positioned close to the floor, preferably on the opposite side to the combustion discharge outlet and must be designed in such a way that they cannot be obstructed either from the inside or the outside.

When it is not possible to provide the necessary vents, the draft may be supplied from an adjacent room, ventilated in the required manner, provided it is not a bedroom or an area at risk.

In this event, the door of the kitchen must be opened to allow the draft to enter the room.

The walls adjacent to the cooker must be of material resistant to heat.

INSTALLATION

The appliance is predisposed and calibrated to operate with the gas indicated on the specifications plate.

If the appliance must be alimented with a gas different than that indicated on the plate, it is necessary to execute the following operations:

1) Gas connection
2) Replacement of burner injectors
3) Adjustment of the minimum of the top burners

1a) GAS CONNECTION

Cat: II 2E+3+

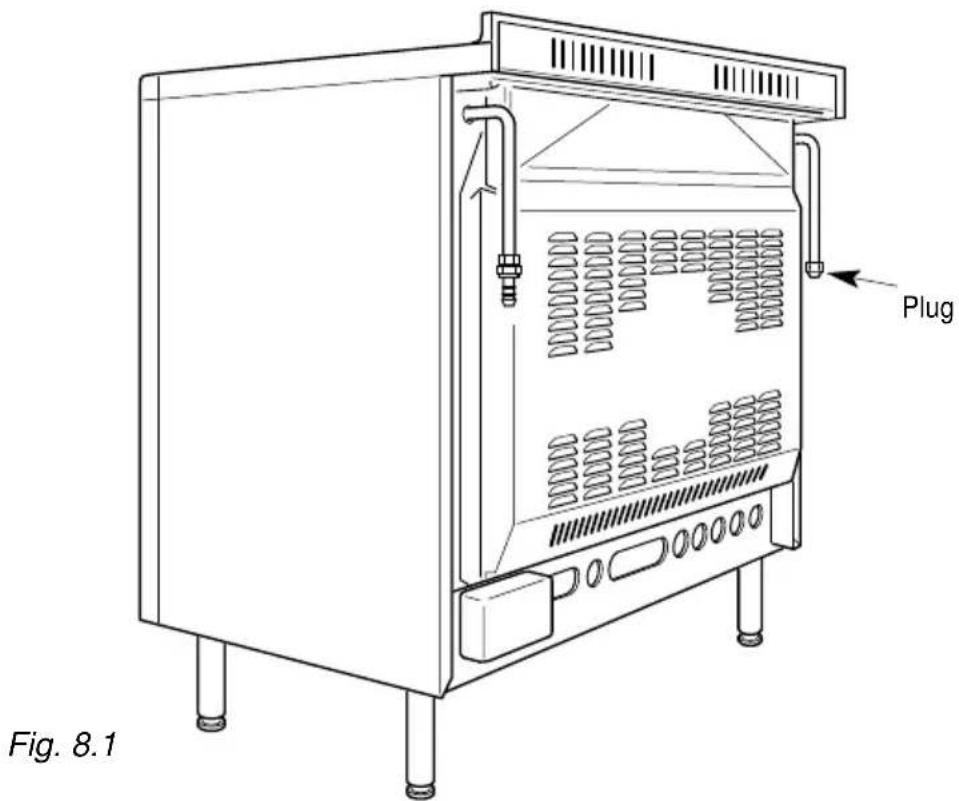

The connection must be executed to the rear of appliance (left or right) (fig. 8.1); the pipe do not cross the cooker.

The unused end inlet pipe of the cooker (left or right) must be closed with the plug interposing the gasket.

• The connection must be executed by a qualified technician according to the relevant standard.

GAST TYPES

The gases used for the operation of cooking appliances may be grouped by their characteristics into two types:

• Liquefied gases: Butane Gas (G30) and Propane Gas (G31)
• Natural Gas (G20/G25)

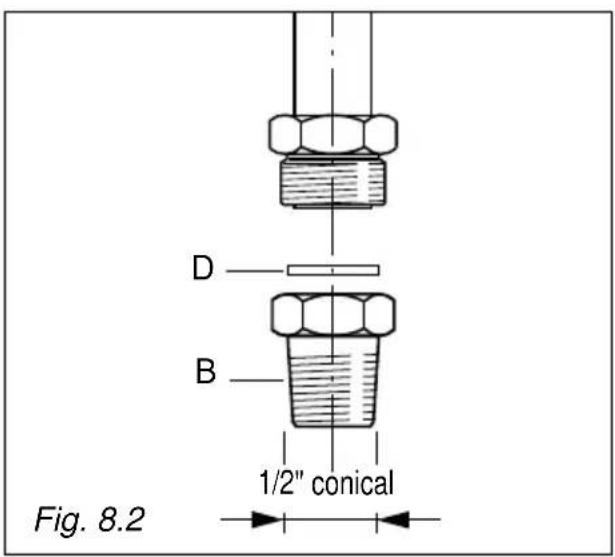

The fitting (fig. 8.2) is made up of:

-1 Conical connector "B"
Gasket "D"

Make sure that the appliance is adjusted for the type of gas with which it will be supplied (see label).

The gas supply circuit must conform to the local standards in force.

Connection to the gas supply

The connection must be made according to standard NBN D 51-003 with rigid pipe or according to specifications A.R.G.B./03 with flexible hose.

The appliance must be fitted with an approved AGB stopcock.

Caution: If using a stainless steel flexible hose, install it so that it does not come into contact with any movable part of the unit.

Lead it to a place with easy access so that you can check its full length.

IMPORTANT:

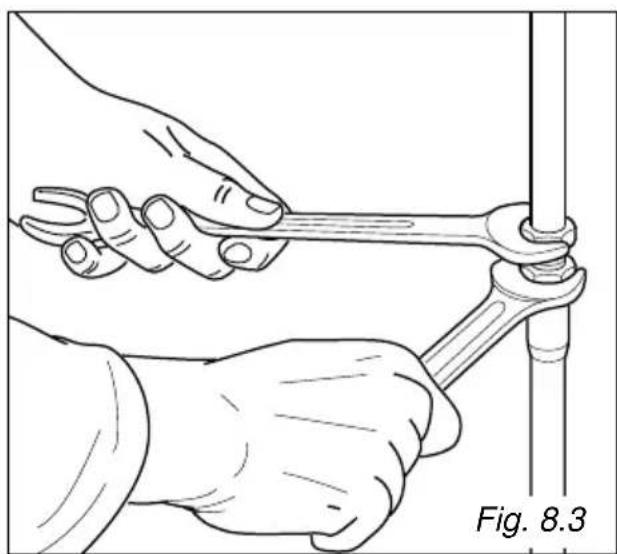

To replace the elbow it is necessary to operate with 2 spanners (fig. 8.3).

After connecting to the mains, check that the couplings are correctly sealed, using soapy solution, but never a naked flame.

1b) GAS CONNECTION

Cat: II 2E+3+

The connection must be executed by a qualified technician according to the relevant standard.

The connection must be executed to the rear of appliance (left or right) (fig. 8.1); the pipe do not cross the cooker.

Before the connection removes the conical connection B (fig. 8.4).

The unused end inlet pipe of the cooker (left or right) must be closed with the plug interposing the gasket.

GAST TYPES

The gases used for the operation of cooking appliances may be grouped by their characteristics into two types:

• Liquefied gases: Butane Gas (G30) and Propane Gas (G31)
  Lacq Natural Gas (G20) and Groningen Natural Gas (G25)

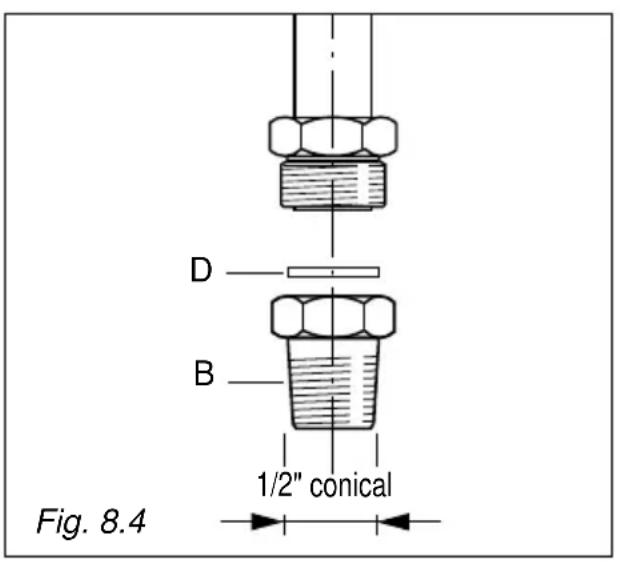

The fitting (fig. 8.4) is made up of:

• 1 Conical connector "B"
  -Gasket "D"

Appliances which can be built in (class 2/1)

For gases supplied by a pipe, the connection can be made using one of the following:

• a rigid pipe with screw-nut;

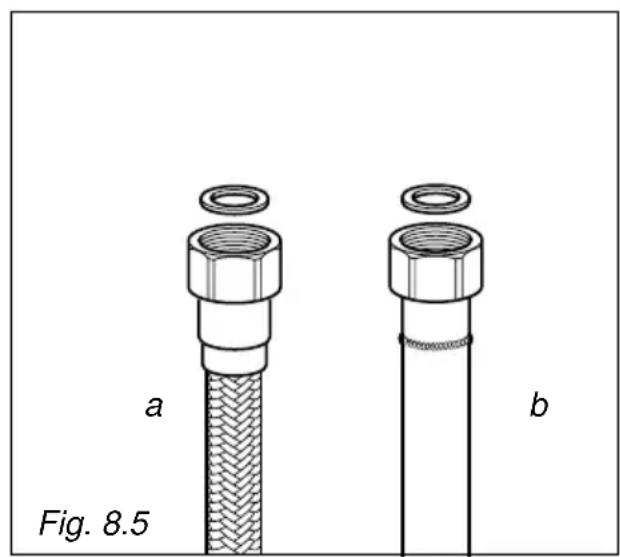

  a metal corrugated flexible hose according to NF D 36-121 (fig. 8.5a);
• a flexible hose with mechanical ferrule according to NF D 36-103 or D 36-100 (fig. 8.5b);

For butane-propane distributed by cylinder or tank, the connection is made using one of the following:

• a rigid pipe with screw-nut;
• a metal corrugated flexible hose according to NF D 36-125 (fig. 8.5a);
• a flexible hose with mechanical ferrule according to XP D 36-112 (fig. 8.5b);

Access must be possible to the full length of flexible tubes. They must be replaced before their final date of use (marked on the hose) and must be a maximum of 2m long.

Note: In France, use a tube bearing the mark NF GAZ.

IMPORTANT:

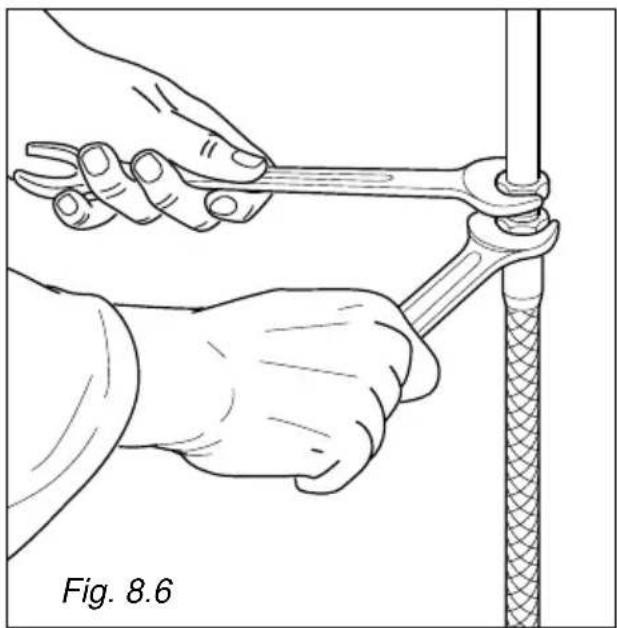

To replace the elbow it is necessary to operate with 2 spanners (fig. 8.6).

After connecting to the mains, check that the couplings are correctly sealed, using soapy solution, but never a naked flame.

Gas maintenance

2) REPLACEMENT OF BURNER INJECTORS

Select the injectors to be replaced according to the "Table for the choice of the injectors".

To replace the injectors proceed as follows:

• Remove pan supports and burners from the cooktop.

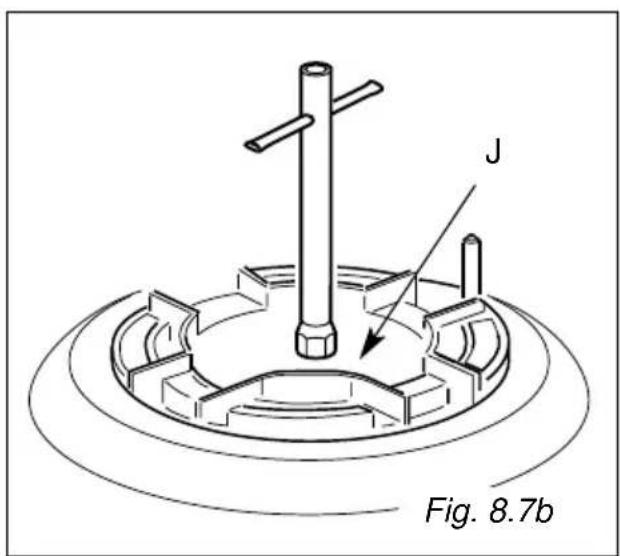

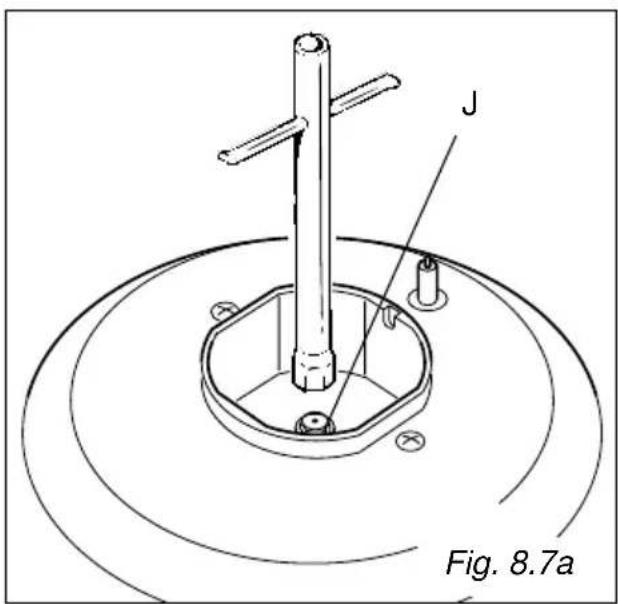

• Using a wrench, substitute the nozzle injectors "J" (fig. 8.7a, 8.7b) with those most suitable for the kind of gas for which it is to be used.

3) ADJUSTING OF THE MINIMUM OF THE TOP BURNERS

In the minimum position the flame must have a length of about 4mm and must remain lit even with a quick turn from the maximum position to that of minimum.

The flame adjustment is done in the following way:

• Turn on the burner
• Turn the tap to the MINIMUM position
  Take off the knob

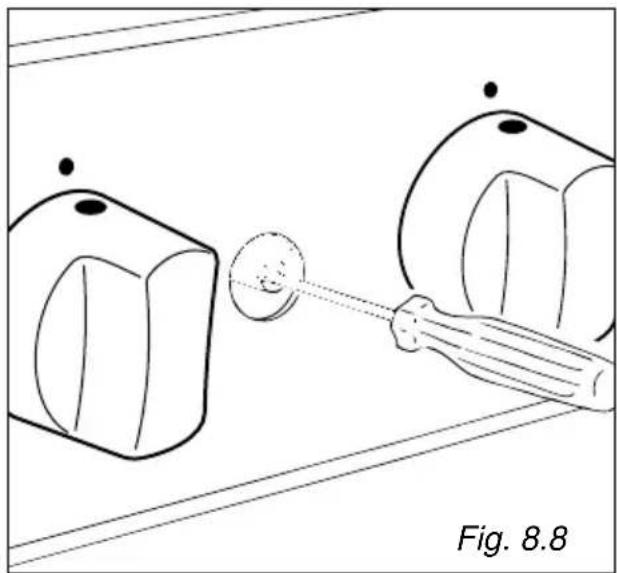

• With a small flat screwdriver turn the screw inside the tap rod to the correct regulation (fig. 8.8).

Normally for G30/G31, tighten up the regulation screw.

The burners are conceived in such a way so as not to require the regulation of the primary air.

Cat: II 2E+ 3+

BURNERS 28-30/37	Nominal Power [kW]	Reduced Power [kW]	G30/G31 G 20/G		25
			By-pass [1/100 mm]	Ø injector [1/100 mm]	By-pass [1/100 mm]	Ø injector [1/100 mm]
Auxiliary (A) 1,00 0,30	27 50 72 (X)				adjustable
Semi-rapid (SR) 1,75	0,45 32 65	97 (Z)
Rapid (R)	3,00 0,75	42 85		115 (Y)
Triple-ring (TC)	3,50 1,50	65 95		135 (T)

AIR VENT NECESSARY FOR GAS COMBUSTION = (2 m3/h x kW)
BURNERS Air vent necessary [m3]
Auxiliary (A) 2,00
Semirapid (SR) 3,50
Rapid (R) 6,00
Triple-ring (TC) 7,00

LUBRICATION OF THE GAS TAPS

• In case of difficulty in the gas taps operation, call Service.

IMPORTANT

All intervention regarding installation maintenance of the appliance must be fulfilled with original factory parts.

The manufacturer declines any liability resulting from the non-compliance of this obligation.

9 - ELECTRICAL SECTION

IMPORTANT: The cooker must be installed in accordance with the manufacturer's instructions. Incorrect installation, for which the manufacturer accepts no responsibility, may cause injury to persons or animals etc.

GENERAL

• Connection to the mains must be carried out by qualified personnel in accordance with current regulations.
• The appliance must be connected to the mains checking that the voltage corresponds to the value given in the rating plate and that the electrical cable sections can withstand the load specified on the plate.
• The plug must be connected to an earthed socket in compliance with safety standards.
• The appliance can be connected directly to the mains placing an omnipolar switch with minimum opening between the contacts of 3mm between the appliance and the mains.
• The power supply cable must not touch the hot parts and must be positioned so that it does not exceed 75^ at any point.
• Once the appliance has been installed, the switch or socket must always be accessible.

N.B. For connection to the mains, do not use adapters, reducers or branching devices as they can cause overheating and burning.

If the installation requires alterations to the domestic electrical system or if the socket and appliance plug are incompatible, call an expert.

He should also check that the socket cable section is suitable for the power absorbed by the appliance.

WARNING!

This appliance must be earthed.

Before effecting any intervention on the electrical parts of the appliance, the connection to the network must be interrupted.

The connection of the appliance to earth is mandatory.

The manufacturer declines all responsibility for any inconvenience resulting from the inobservance of this condition.

CONNECTING THE FEEDER CABLE

To connect the feeder cable to the cooker it is necessary to:

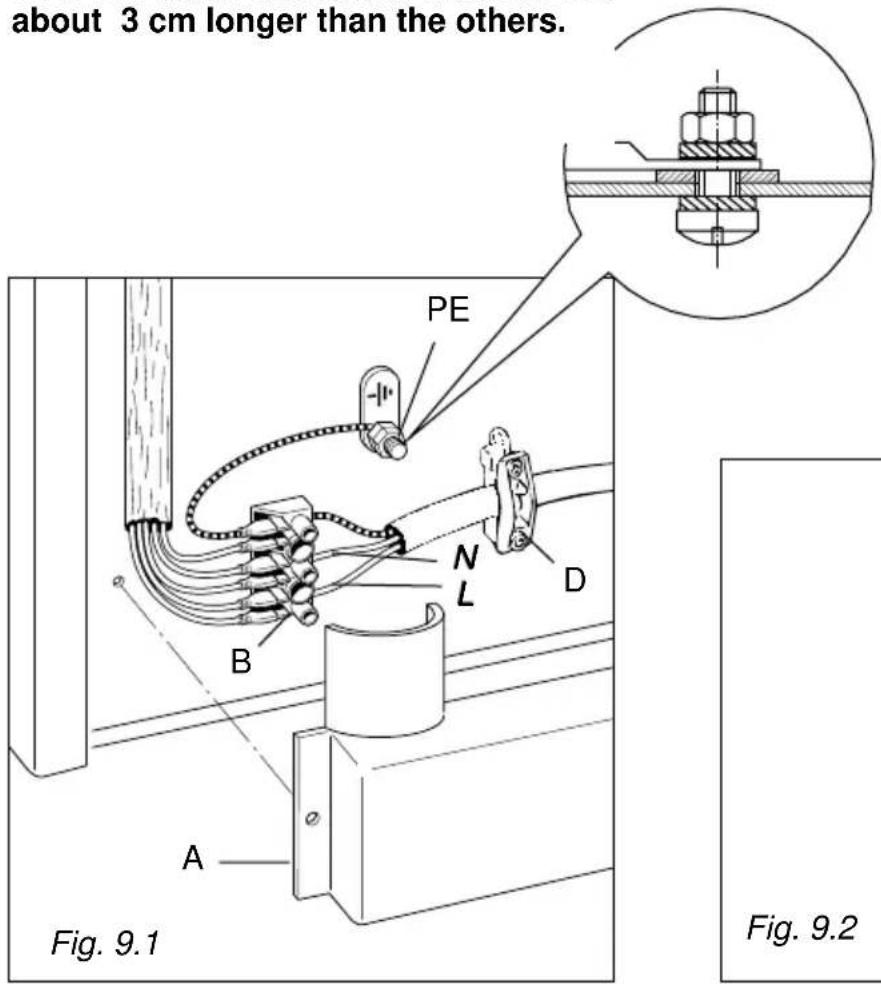

• Remove the screws securing the cover "A" on the rear of the cooker (fig. 9.1).
• Feed the supply cable through the cable clamp "D". The supply cable must be of a suitable size for the current requirements of the appliance; see the section "Feeder cable section".
• Connect the wires to the terminal block "B" as shown in the diagram in figure 9.2; or connect the phase wires to the terminal block "B" and the earth wire to the terminal PE as shown in figure 9.1.
• Pull the feeder cable and block it with the cable clamp D.
• Re-mount shield A.

FEEDER CABLE SECTION Type "H05RR-F"

230V8x1.5mm 2

N.B. The earth conductor must be left about 3cm longer than the others.
Fig. 9.2

The manufacturer cannot be held responsible for possible inaccuracies due to printing or transcription errors in the present booklet.

The manufacturer reserves the right to make all modifications to its products deemed necessary for manufacture or commercial reasons at any moment and without prior notice, without jeopardising the essential functional and safety characteristics of the appliances.
