USER MANUAL AE 3053 CLATRONIC

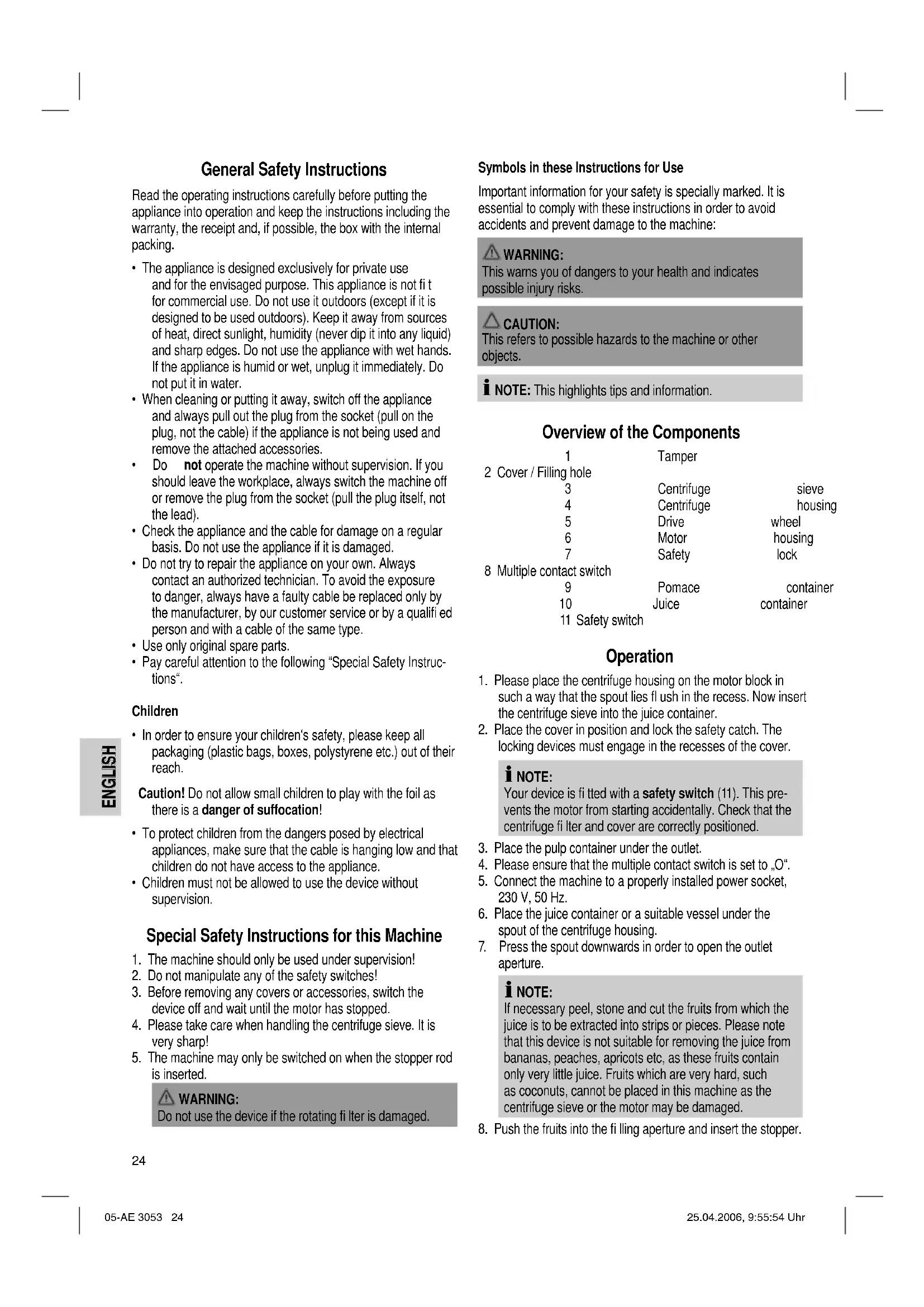

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc- tions“. Children

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

• Children must not be allowed to use the device without supervision. Special Safety Instructions for this Machine

1. The machine should only be used under supervision!

2. Do not manipulate any of the safety switches!

3. Before removing any covers or accessories, switch the

device off and wait until the motor has stopped.

4. Please take care when handling the centrifuge sieve. It is

5. The machine may only be switched on when the stopper rod

Do not use the device if the rotating fi lter is damaged. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Overview of the Components 1 Tamper 2 Cover / Filling hole 3 Centrifuge sieve 4 Centrifuge housing 5 Drive wheel 6 Motor housing 7 Safety lock 8 Multiple contact switch 9 Pomace container 10 Juice container 11 Safety switch Operation

1. Please place the centrifuge housing on the motor block in

such a way that the spout lies fl ush in the recess. Now insert the centrifuge sieve into the juice container.

2. Place the cover in position and lock the safety catch. The

locking devices must engage in the recesses of the cover. NOTE: Your device is fi tted with a safety switch (11). This pre- vents the motor from starting accidentally. Check that the centrifuge fi lter and cover are correctly positioned.

3. Place the pulp container under the outlet.

4. Please ensure that the multiple contact switch is set to „O“.

5. Connect the machine to a properly installed power socket,

6. Place the juice container or a suitable vessel under the

spout of the centrifuge housing.

7. Press the spout downwards in order to open the outlet

aperture. NOTE: If necessary peel, stone and cut the fruits from which the juice is to be extracted into strips or pieces. Please note that this device is not suitable for removing the juice from bananas, peaches, apricots etc, as these fruits contain only very little juice. Fruits which are very hard, such as coconuts, cannot be placed in this machine as the centrifuge sieve or the motor may be damaged.

Never press the food with your hands into the fi lling aperture. Always use the tamper supplied.

9. Switch on the device. Press the fruits lightly with the stopper.

10. There are 2 speeds available.

11. For removing the juice at an even speed (continuous opera-

tion): During operation on levels 1 and 2 the switch locks in the respective position. Level 1 = low speed Level 2 = high speed For pulse mode: shift the switch to „0“ position. The switch snaps into place. The appliance is off now. Turn the switch now to position „P“. The switch must be kept in this position for the desired interval. When the switch is released, it returns automatically to „0“ position. In order to switch off the device, turn the switch back to „O“. CAUTION: Do not use the device for more than one minute without interruption!

12. The juice now fl ows into the vessel. The fl esh of the fruit is

collected in the pomace container. CAUTION: In order to avoid malfunctions please do not overfi ll the juice container.

13. Before removing the vessel, press the spout upwards in

order to close the outlet of the juice container and avoid drips.

14. In order to release the attachment, press the two safety

catches at the same time and then lift the attachment off. Cleaning and storage

• Before cleaning remove the mains lead from the socket.

• Never immerse the housing with motor in water!

• Do not use any sharp or abrasive detergents. Motor Housing Only a damp rinsing cloth should be used to clean the outside of the housing. Tamper, cover, centrifuge fi lter, centrifuge housing, pulp container, juice container CAUTION: The plastic components are not suitable for cleaning in the dishwasher. When subjected to heat and caustic detergents they might become deformed or discoloured.

• Components that have come into contact with food can be cleaned in soapy water.

• Please use a rinsing brush to clean the centrifuge fi lter.

the centrifuge sieve is very sharp! Danger of injury!

• Allow the parts to dry thoroughly before reassembling the device. Troubleshooting Device is not working. Remedy: Check the mains connection. Check the position of the switch. Other possible causes: The device is fi tted with a safety switch (11). This prevents the motor from starting up unintentionally. Remedy: Check that the centrifuge fi lter and cover are correctly positio- ned. Technical Data Model: ..............................................................................AE 3053 Power supply:................................................220-240 V, 50/60 Hz Power consumption:............................................................ 800 W Protection class:........................................................................... Ι Short operation time:............................................................1 Min. This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Guarantee The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt). During the life of the guarantee any fault of the device or its accessories ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee! Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out. If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt. Defects to consumables or parts subject to wearing as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid! The guarantee lapses in case of unauthorized tampering. 05-AE 3053 25 25.04.2006, 9:55:59 UhrENGLISH ENGLISH

After the expiry of the guarantee After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs. Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisati- on of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-AE 3053 26 25.04.2006, 9:56:03 UhrENGLISH
