Product type	Juicer
Brand	Clatronic
Model	ZP 2819
Supply voltage	230 V ~ 50 Hz
Number of pressing cones	2 (large and small)
Integrated filter	Yes
Pouring jug with lid	Yes
Automatic reversal of rotation direction	Yes, by pressing
Cable winding	Integrated
Cleaning of removable parts	Wash with soapy water
Cleaning of the motor unit	Dry or slightly damp cloth
Warranty	24 months
Usage	Private only
Included accessories	2 cones, filter, pouring jug, lid
Safety	Operation by pressing; stops when released
Housing material	Plastic

Frequently Asked Questions - ZP 2819 CLATRONIC

How to use the ZP 2819 juicer?

Cut the citrus fruit in half, choose the appropriate cone (large or small), place the fruit half on the cone and press. The appliance starts rotating automatically. Release the pressure to change the rotation direction and optimize extraction. The juice flows into the pouring jug.

Which pressing cones to use?

The large cone is for large fruits (grapefruits, oranges), the small cone for smaller fruits (lemons, limes). The small cone fits onto the shaft, the large cone is placed over the small one.

How to clean the juicer?

Always unplug the appliance. Wash removable parts (cones, filter, jug, lid) with soapy water. Wipe the motor unit with a dry or slightly damp cloth. Never immerse the motor unit in water.

What to do if the sieve (filter) is damaged?

Do not use the appliance if the sieve is damaged. Contact after-sales service for replacement. Using with a damaged sieve can be dangerous.

How to wind the power cord?

The appliance has an integrated cord winder under the base. Unwind the cable as needed, and after use, wind it up by turning in the indicated direction.

Can I store the juice in the pouring jug?

Yes, the pouring jug comes with a lid. You can store the juice in the refrigerator. Do not store the juice in a metal container.

What to do in case of a malfunction?

First check the power supply and cable. If the problem persists, contact a qualified technician. Do not repair the appliance yourself. During the 24-month warranty, contact your retailer.

What is the required voltage for this appliance?

The appliance operates on a 230 V ~ 50 Hz mains socket. Check that your installation matches before use.

What is the warranty period?

The warranty is 24 months from the date of purchase against any defects in material or workmanship. Keep the receipt as proof.

How to assemble the pouring jug?

Place the pouring jug on the base at the OPEN mark, then turn it clockwise to the CLOSE mark. To remove, turn counterclockwise to OPEN and lift.

USER MANUAL ZP 2819 CLATRONIC

White ceramic coffee maker with glass lid and control knob, no visible text or symbols on body

ZP 2819

Inhalt

Inhoud • Sommaire • Indice • Índice • Indice • Innhold

Contents • Spis treści • Obsah • Tartalom • Содержание

D Übersicht Bedienelemente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bedienungsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NL Overzicht bedieningselementen....Pagina 3

Illustration of a hand placing a piece into a cup with a knife, no text or symbols present

Illustration of hands holding two circular objects with arrows indicating movement (no text or symbols)

Illustration of a hand using a tool to clean or wash a small container (no text or symbols visible)

D

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).
• To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions

- Please do not use the device if the circumferential sieve is damaged.

The Parts of the Citrus Press

1 Cover

6 Collector bowl

2 Pressing

cone, large

7 Motor section

3 Pressing

cone, small

8 Mains cable

4, 5 Filters

Initial Operation

- Before using for the first time please clean the machine as described under "Cleaning" below. Please see also the illustrations under "Parts of the Citrus Press".

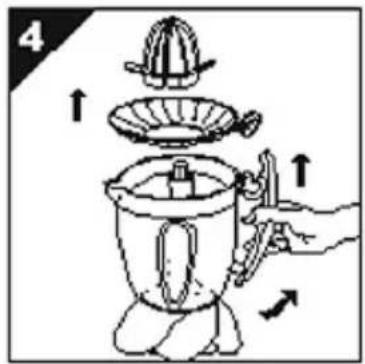

Removing and replacing the container

GB

• Release the pot by turning it through approximately 90° in an anticlockwise direction as far as the OPEN mark. Then lift the pot off the stand.
• Remount the pot by positioning the mark on the pot over the OPEN mark. Then turn the pot in a clockwise direction until the mark on the pot is located over the CLOSE mark.

Replacing and removing the conical press

• The small press is placed directly on the drive axle until it is flush with the filter.

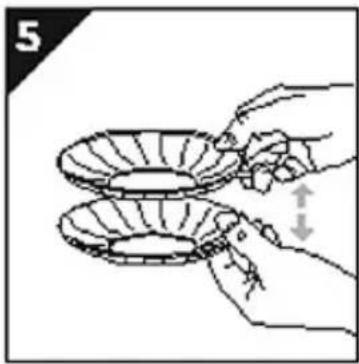

- The large press is placed on the small press, which acts as an adapter. The two presses can be separated by pulling.
- Unwind the mains lead on the base and assemble the machine according to the depiction of the individual parts.

Using the Machine

1. Select the appropriate conical press according to the size of the fruit.
2. Insert the plug in a duly installed 230V/50Hz socket.
3. Halve the citrus fruit in the middle.
4. Press the fleshy side of one half of the fruit on to the conical press and keep pressed. The machine starts turning automatically. Results can be improved by releasing the pressure and then pressing again. This changes the direction of rotation.
5. The juice now flows into the container. The flesh of the fruit and the pips remain in the filter.
6. Now take out the jug to pour the juice. You can also place the jug in the refrigerator with the lid closed in order to store the juice.

Mains lead take-up

The mains lead can be wound up on the base.

Important:

The citrus juices should be consumed as soon as possible. Never store such juices in metal containers.

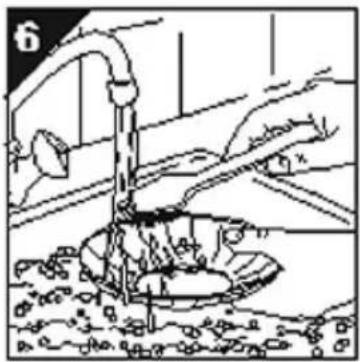

Cleaning

Please see also the illustrations under "Parts of the Citrus Press".

• Please remove the mains plug before the device is cleaned.
• The housing with motor (7) should only be cleaned with a dry or slightly damp cloth. Never immerse the housing with motor in water!
• The lid and removable parts that have been in contact with juice can be cleaned in soapy water.
• Allow the parts to dry thoroughly before reassembling the device.

GB

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
