USER MANUAL BS 1275 CLATRONIC

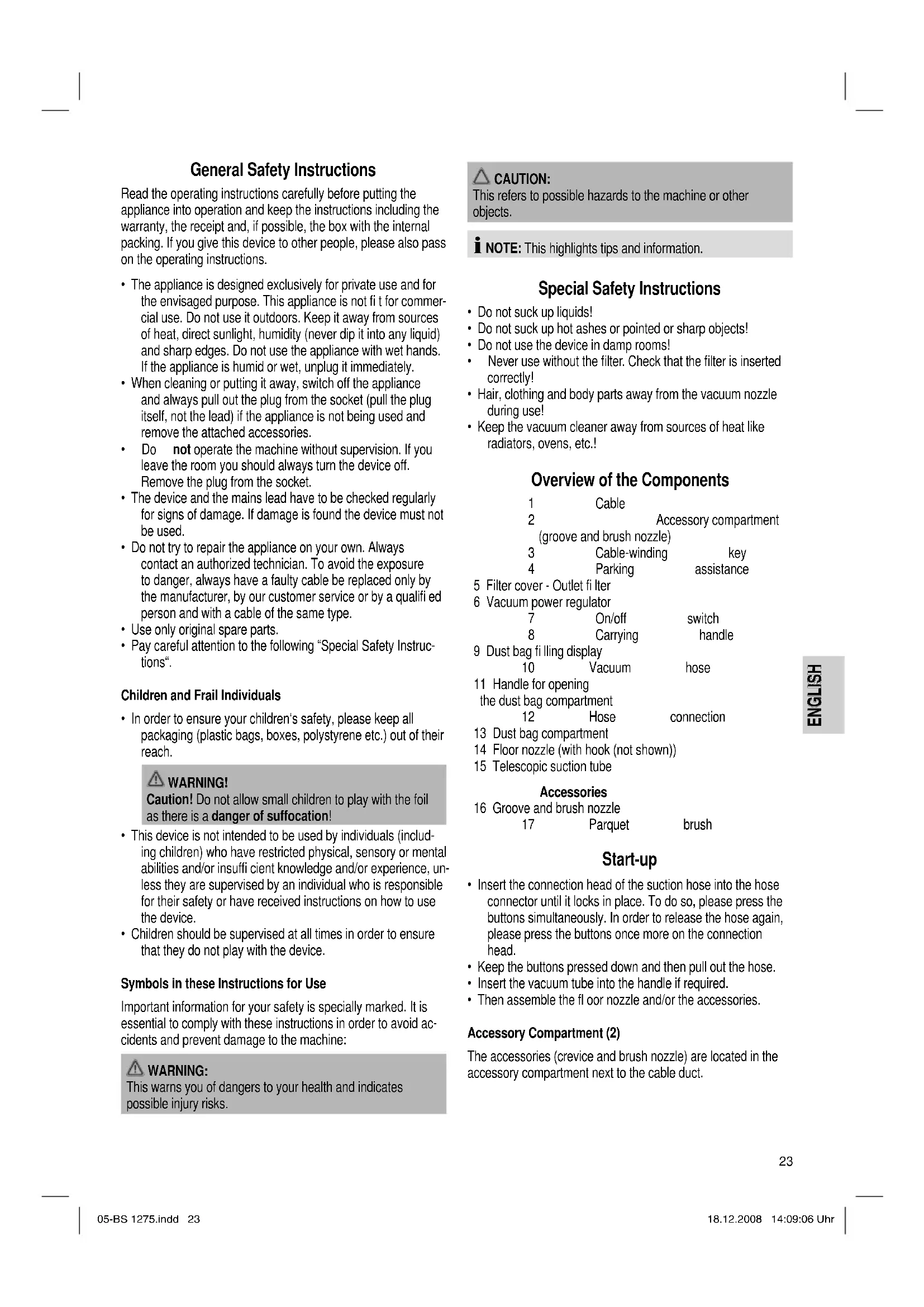

General Safety Instructions Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fi t for commer- cial use. Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.

• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.

• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.

• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.

• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualifi ed person and with a cable of the same type.

• Use only original spare parts.

• Pay careful attention to the following “Special Safety Instruc- tions“. Children and Frail Individuals

• In order to ensure your children‘s safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach. WARNING! Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (includ- ing children) who have restricted physical, sensory or mental abilities and/or insuffi cient knowledge and/or experience, un- less they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.

• Children should be supervised at all times in order to ensure that they do not play with the device. Symbols in these Instructions for Use Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid ac- cidents and prevent damage to the machine:

This warns you of dangers to your health and indicates possible injury risks. CAUTION: This refers to possible hazards to the machine or other objects. NOTE: This highlights tips and information. Special Safety Instructions

• Do not suck up liquids!

• Do not suck up hot ashes or pointed or sharp objects!

• Do not use the device in damp rooms!

• Never use without the fi lter. Check that the fi lter is inserted correctly!

• Hair, clothing and body parts away from the vacuum nozzle during use!

• Keep the vacuum cleaner away from sources of heat like radiators, ovens, etc.! Overview of the Components 1 Cable 2 Accessory compartment (groove and brush nozzle) 3 Cable-winding key 4 Parking assistance 5 Filter cover - Outlet fi lter 6 Vacuum power regulator 7 On/off switch 8 Carrying handle 9 Dust bag fi lling display 10 Vacuum hose 11 Handle for opening the dust bag compartment 12 Hose connection 13 Dust bag compartment 14 Floor nozzle (with hook (not shown)) 15 Telescopic suction tube Accessories 16 Groove and brush nozzle 17 Parquet brush Start-up

• Insert the connection head of the suction hose into the hose connector until it locks in place. To do so, please press the buttons simultaneously. In order to release the hose again, please press the buttons once more on the connection head.

• Keep the buttons pressed down and then pull out the hose.

• Insert the vacuum tube into the handle if required.

• Then assemble the fl oor nozzle and/or the accessories. Accessory Compartment (2) The accessories (crevice and brush nozzle) are located in the accessory compartment next to the cable duct. 05-BS 1275.indd 2305-BS 1275.indd 23 18.12.2008 14:09:06 Uhr18.12.2008 14:09:06 UhrENGLISH ENGLISH

Telescope Vacuum Pipe The height-adjustable vacuum pipe enables individual alignment to your height. Unlock the coupling by pressing the key in the direction of the arrow. Slide the vacuum pipe to the desired length. To lock the device, release the key until you hear it lock in place. Using the Appliance

• Pull out the cable up to the maximum length indicated with the yellow mark.

• Never pull the cable out up to the red mark as the cable winding can be damaged. NOTE: If the red mark is visible, pull in the cable with the help of the cable winding button back to the yellow mark.

2. Insert the mains plug into a correctly installed 230 V, 50 Hz

power socket. Turn the vacuum cleaner on by pressing the on/off switch down with your foot.

4. Set the vacuum power with the vacuum power regulator

5. Vacuum at a steady speed. There is no need to exert pres-

sure. NOTE: Pay attention to the range that can be covered with the cable length! Vacuum power regulator Low vacuum power: For curtains and delicate fabrics. Medium vacuum power: For long-pile velour carpets and textile fl ooring. High vacuum power: For sturdy rugs and fl oors. Air Slide Open the air slide on the hose handle in order to regulate the airfl ow or to clear any particles sticking to the nozzle. Switching off and Winding up the Mains Lead

1. Turn the vacuum cleaner off by the on/off switch and remove

the plug from the socket.

2. Keep the plug in your hand.

3. Press the cable winding button and guide the cable. Hold

the cable to avoid wrapping. Nozzle Attachment Crevice and jointed nozzle: For vacuuming upholstery, curtains and in corners and crevices etc. NOTE: „2-in-1“ nozzle: When this is folded together it can be used as a groove nozzle. If you would like to use the brush nozzle, pull the brush section in the direction of the arrow until it locks in place. Floor nozzle: To clean carpets or smooth surfaces. Smooth fl oors: Press down the lever with the brush symbol with your foot. The brush is now vis- ible. Carpets: Press the lever In the oppo- site direction. The brushes are now retracted. Parquet brush: The fl oor nozzle is fi tted with rollers for improved manoeuvrability. For large areas such as parquet, laminate or tiles etc. Releasing the nozzles: Pull these off while turning slightly. Maintenance Dust bag replacement display (6) Hold the hose up into air. If the dust bag change display lights up, the bag is full. Please change it. Changing the dust bag

• Pull the plug out of the socket.

• Open the lid of the dust bag compartment by the handle (11).

• Remove the bag by pulling the retainer carefully upwards so that you have easier access to the bag. Then remove the dust bag by pulling it upwards.

• Insert a new bag. Please ensure that the bag is located correctly in the guide mechanism. Then reinsert the retainer. Close the cover so that it snaps into place. Filter Your appliance has two fi lters. Motor protection fi lter (inlet fi lter): The inlet fi lter is located in the dust bag compartment. The fi lter is located vertically in the rear section of the dust housing. Remove the fi lter by pulling upwards. Cleaning the Filter Element Clean the engine protection fi lter after 10 dust bag changes. If necessary, the fi lter can also be washed in warm water without any additives. Place it back into place only once it is completely dry! 05-BS 1275.indd 2405-BS 1275.indd 24 18.12.2008 14:09:06 Uhr18.12.2008 14:09:06 UhrENGLISH ENGLISH

Outlet fi lter: The appliance is also equipped with an outlet fi lter. This fi lter is to be found under the fi lter cover (5).

• Open the ventilation grille by pressing together the lever on the side of the ventilation grille.

• Then pull the grille out towards the front. Remove the fi lter and clean as described above. Please re-insert the fi lter cor- rectly and close the ventilation grille (until it clicks in place). Cleaning and storage Cleaning

• Pull the plug out of the socket before cleaning!

• Clean the casing with a dry cloth. Storage

• Let the iron cool down completely.

• Wind the cable completely.

• If you position the device horizontally: Please insert the hook of the fl oor nozzle into the parking assistant on the rear of the device.

• If you place the vacuum cleaner in a vertical position: Please hang the hook of the fl oor nozzle in the parking aid on the underside of the vacuum. Troubleshooting

• The Device Does Not Work. Remedy: Check the connection to the mains. Check the position of the switch.

• The device does not suck up anything. Possible Cause: The suction power is set too low. Remedy: Check the position of the control switch. Possible Cause: The dust bag is full. Remedy: Renew the dust bag.

Possible Cause: The fi lters are dirty. Remedy: Clean the components. Possible Cause: There is a foreign body in the suction tube or the nozzle. Remedy: Check the accessories for foreign bodies. Noise development The sound pressure level in the ear of an operator (LpA) was measured according to DIN EN ISO 3744. Sound pressure level detected: 76.0 dB(A) (no limit) Technical Data Model: ...............................................................................BS 1275 Power supply: ..................................................... Power consumption:

max. : ............................................................................ 1600 W Dust fi lter bag: ............................................................. Swirl Y 298 Protection class: .......................................................................... ΙΙ Net weight: ........................................................................4,30 kg This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations. Subject to technical changes without prior notice! Meaning of the “Dustbin” Symbol Protect our environment: do not dispose of electrical equipment in the domestic waste. Please return any electrical equipment that you will no longer use to the collection points provided for their disposal. This helps avoid the potential effects of incorrect disposal on the environment and human health. This will contribute to the recycling and other forms of reutilisa- tion of electrical and electronic equipment. Information concerning where the equipment can be disposed of can be obtained from your local authority. 05-BS 1275.indd 2505-BS 1275.indd 25 18.12.2008 14:09:07 Uhr18.12.2008 14:09:07 Uhr 220-240 V, 50 Hz26
