USER MANUAL HL 3377 CLATRONIC

White commercial electric heater with visible grille and control knobs (no text or symbols)

Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.
NL Dit product is alleen geschikt voor goed geïsoleerde ruimtes of voor incidenteel gebruik.
Ce produit est seulement adapté à une utilisation dans les pièces correctement isolées, ou pour les utilisations occasionnelles.
Este producto solo es adecuado para utilizarlo en habitaciones bien aisladas o para un uso ocasional.
Este produto só se adequa a divisões bem isoladas ou para uso ocasional.
① Questo prodotto è adatto solo per ambienti ben isolati o per l'uso occasionale.
GB This product is only suitable for well isolated rooms or for occasional use.
PL Ten produkt nadaje się tylko do dobrze izolowanych pomieszczeń lub do sporadycznego użytku.
H Ez a termék kizárólag jól szigetelt helyiségekben vagy alkalmanként használható.
UA Цей виріб призначений тільки для приміщень із якісною теплоізоляцією чи для нерегулярного використання.

CE

Heizlüfter

Hetluchtkacheltje • Ventilateur chauffant • Calefactor ventilador

I = Air chaud (1000 W)

II = Air chaud (2000 W)

NOTE :

Simple curved line with scattered dots above and below, no text or symbols present

Escalón máximo

Simple curved line with evenly spaced dots above and below, no text or symbols present

Livello massimo

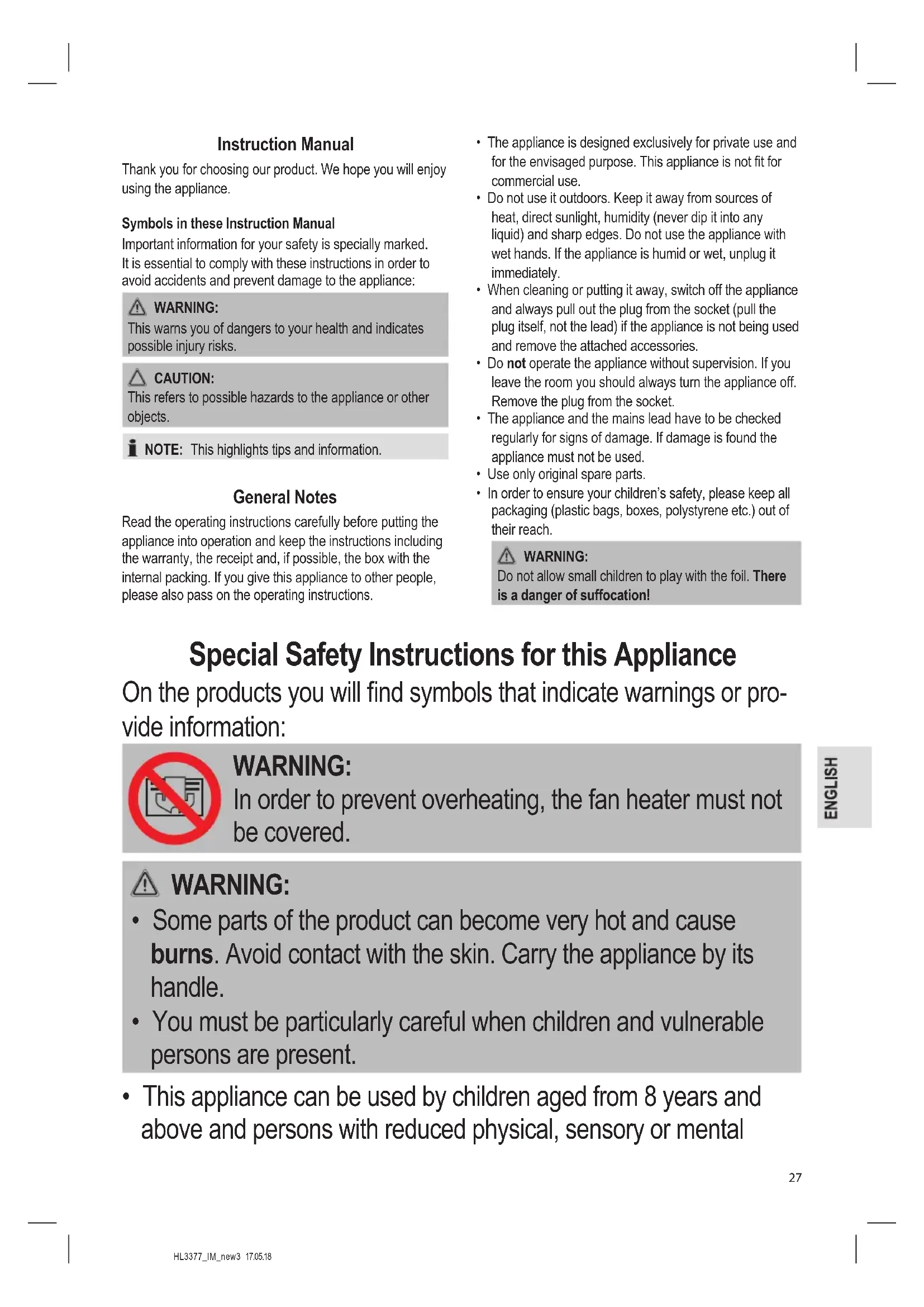

Thank you for choosing our product. We hope you will enjoy using the appliance.

Symbols in these Instruction Manual

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the appliance:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the appliance or other objects.

NOTE: This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this appliance to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the appliance without supervision. If you leave the room you should always turn the appliance off. Remove the plug from the socket.
• The appliance and the mains lead have to be checked regularly for signs of damage. If damage is found the appliance must not be used.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

On the products you will find symbols that indicate warnings or provide information:

WARNING:

In order to prevent overheating, the fan heater must not be covered.

WARNING:

• Some parts of the product can become very hot and cause burns. Avoid contact with the skin. Carry the appliance by its handle.
• You must be particularly careful when children and vulnerable persons are present.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
- Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
- Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not clean the appliance and / or may not perform the maintenance by the user.
- Please keep a safety distance of at least 90 cm between all sides of the appliance and furniture and other objects.
- Under no circumstances may the fan heater be used in rooms with explosive gas (e. g. petrol) or while work is being carried out with inflammable adhesives or solvents (e. g. when gluing or painting parquet, PVC etc.).
- Do not insert any objects into the fan heater.
- Ensure that a safety distance is maintained between the power cord and the housing.
- Do not use the fan heater in the open air.
- Do not use the fan heater in close proximity to bathtubs, showers or swimming pools.
- The fan heater should not be placed directly below a mains power socket.

- Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Notes for Use

Unpacking

1. Remove all packaging materials like foils, filling materials, cable holders, and carton packaging.
2. Please unwind the lead completely.

Electrical Connection

1. Make sure that the iron voltage (see name plate) and the line voltage match.
2. Turn the switches to and the lowest level.
3. The mains plug should only be inserted into a correctly installed socket with earthing contact.

Connected Wattage

The station has a total maximum wattage of 2000 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION: Overload

• If you use extension leads, these should have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use any multiple sockets, as this appliance is too powerful.

Safety Switch

Your fan heater has a safety switch on the underside of the appliance. This switches the appliance off as soon as it is no longer stable and could fall over.

NOTE:

The appliance switches on again automatically as soon as it is placed in an upright position.

CAUTION:

Place the appliance on a smooth horizontal surface. Avoid carpets in order to prevent the safety switch from malfunctioning.

Function Switch

Off

=Cold air

I = Hot air (1000 W)

II = Hot air (2000 W)

NOTE:

Select low power, for example, for a small room. If this is not enough, please switch to the high level.

Levels/Heating Power

By regularly switching the fan heater on and off, the thermostat ensures that the desired temperature is maintained.

Lowest level — Highest level

In order to find the ideal thermostat setting, please proceed as follows:

1. Turn the thermostat control to the highest level.
2. As soon as the desired temperature has been reached, turn the thermostat control slowly down until the fan heater turns itself off. The control lamp on the switch goes off.

The fan heater will now automatically stay at the desired temperature.

CAUTION:

When the appliance is no longer being used you should always remove the mains plug.

Oscillation

In order to achieve uniform heating and ventilation the appliance is also equipped with an oscillation function. This function is available in all three modes of operation.

- Press the switch on the bottom of the appliance in order to switch oscillation mode on and off.

CAUTION:

• Never move the swivel mechanism by hand, as otherwise the mechanism might be damaged.
• Only the switch should be used to change the direction of ventilation.

NOTE:

The oscillation function continues to work even if the ventilator switches off.

Cold Air Operation

If you would like to use the appliance as a ventilator please move the function switch to the ventilator symbol and turn the temperature control to the highest position.

Turning Off

If you would like to switch the appliance off, turn the switch to the lowest level or and then remove the plug from the socket. The control lamp goes off.

Overheating Protection

• The appliance is equipped with an overheating protection that switches the appliance automatically off in case of overheating. Shift the function switch to position and pull out plug out of the socket. Let the appliance cool down for about 10 minutes before using it again.
• Should the overheating protection shut the appliance off again shortly after, there is probably a defect. Switch off the appliance again and pull out the plug.
• Have the appliance checked by the dealer or by our service.

Cleaning

WARNING:

• Always remove the mains lead before cleaning!
- Wait until the appliance has cooled down completely.
- Under no circumstances should you immerse the appliance in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.
• Do not use any acidic or abrasive detergents.
• Wipe off the fan heater with a dry cloth in order to remove dust.
• A damp cloth (not wet) can be used to remove stains.

Technical Data

Model: HL 3377

Power supply: 220-240V\~, 50Hz

Power consumption: 1800-2000 W

Protection class: II

Net weight: .... approx. 1.45 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This appliance has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of re-utilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
