DBC 3388 - Iron CLATRONIC - Free user manual and instructions

Product type	Cordless iron
Brand	Clatronic
Model	DBC 3388
Power supply	220-240 V ~ 50/60 Hz
Power	2000 W
Net weight	1.45 kg
Water tank capacity	220 ml
Soleplate	Ceramic
Functions	Corded or cordless ironing, adjustable steam, steam jet, spray, vertical steam function, anti-drip, self-cleaning
Temperature adjustment	Progressive thermostat (synthetic to cotton/linen)
Safety	Anti-drip protection, unplug before filling, do not immerse in water, hot soleplate
Cleaning	Soleplate with damp cloth, self-cleaning, use distilled water
Accessories	Rest base with function selector (corded/cordless)
Steam volume	Progressively adjustable
Recommended water type	Distilled water only

Frequently Asked Questions - DBC 3388 CLATRONIC

How to use the steam function?

To use steam, set the thermostat to a high temperature (at least wool/silk). Use the steam volume regulator (3) to adjust the flow. The iron produces steam in horizontal position. You can also use the steam jet button (5) for an extra burst of steam.

Can I use tap water?

No, use only distilled water. Tap water or other liquids (battery water, perfumes, etc.) can damage the appliance and leave deposits on the laundry.

How to fill the water tank?

Always unplug the appliance before filling. Set the steam regulator to position 'C' (no steam). Place the iron flat or on the base, open the filling cover (2) and gently pour distilled water up to the MAX mark (14). Do not exceed this level.

What does the indicator light mean?

The indicator (10) lights up when the iron is heating. It turns off when the operating temperature is reached. You can then start ironing.

How to use the vertical steam function?

Hang the garment on a hanger. Hold the iron about 3-5 cm from the fabric and press the steam jet button (5) intermittently. Never direct steam towards a person.

Why is water leaking from the soleplate?

This can happen if the temperature is too low for steam. The anti-drip function automatically cuts off steam below a certain temperature. Increase the temperature or reduce the steam volume.

How to clean the iron?

Unplug and let it cool completely. Clean the soleplate with a slightly damp cloth. Use the self-cleaning function: fill the tank halfway with distilled water, heat to maximum, unplug, then swing the iron over a sink while pressing the steam button until the tank is empty. Then iron a clean cloth.

How to store the iron after use?

Turn the thermostat to MIN, unplug the cord. Empty the water tank to prevent leaks. Let it cool completely before storing. Place the iron in an upright position or on its base.

What are the important safety precautions?

Never leave the iron plugged in unattended. Do not touch the hot soleplate. Do not immerse the appliance in water. Use only on a stable, heat-resistant surface. Unplug before filling the tank.

How to adjust temperature for different fabrics?

Use the thermostat (12): MIN to turn off, low temperature for synthetic/nylon, medium for wool/silk, high for cotton/linen. Always start with the most delicate fabrics.

USER MANUAL DBC 3388 CLATRONIC

Overview of the Components . Page 3

Instruction Manual . Page 29

Technical Data Page 31

Disposal - Meaning of the "Dustbin" Symbol Page 32

JEZYK POLSKI

Spis tresci

Consommation: 2000 W

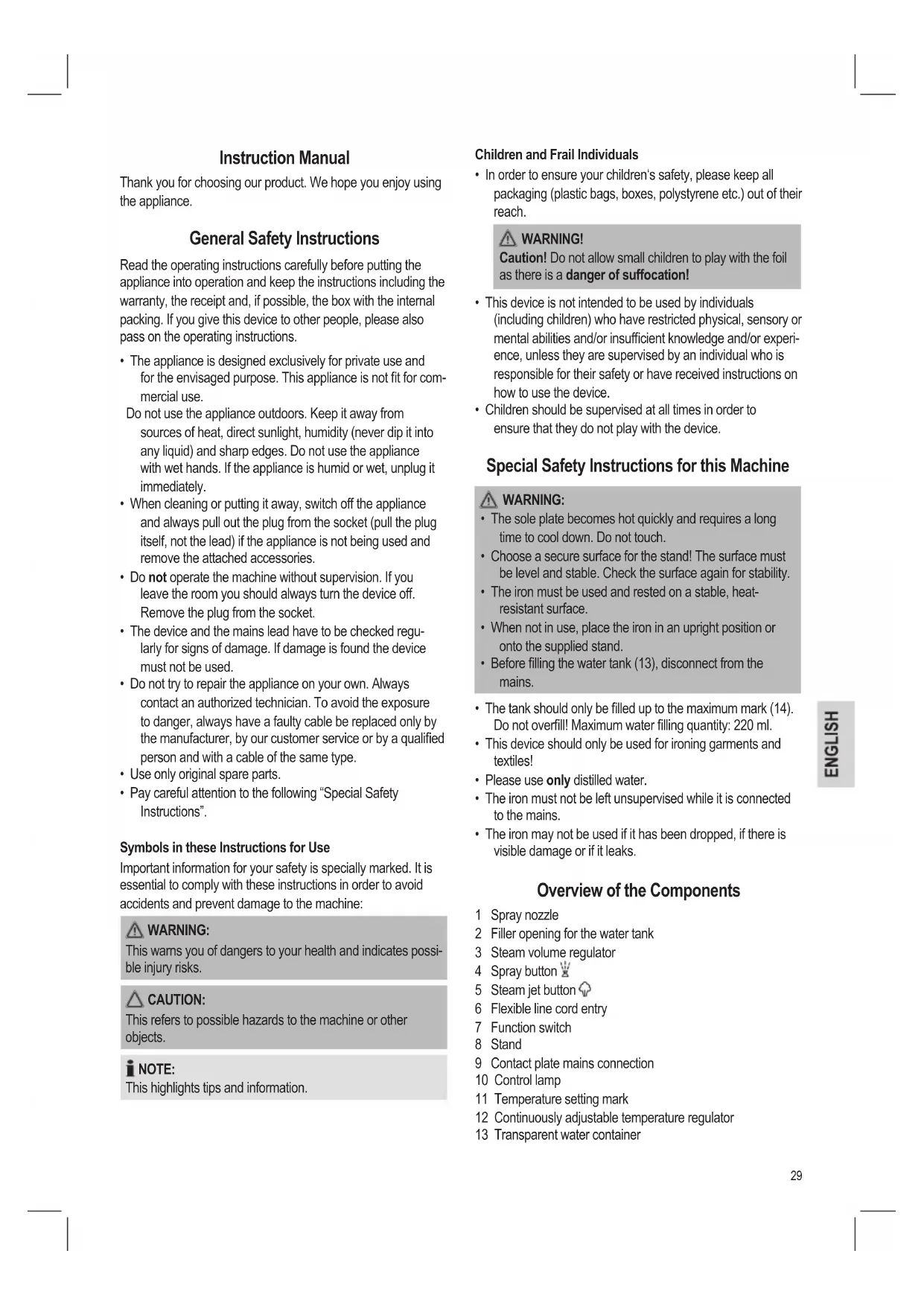

Thank you for choosing our product. We hope you enjoy using the appliance.

General Safety Instructions

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
  Do not use the appliance outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• The device and the mains lead have to be checked regularly for signs of damage. If damage is found the device must not be used.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

OTE:

This highlights tips and information.

Children and Frail Individuals

• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING!

Caution! Do not allow small children to play with the foil as there is a danger of suffocation!

• This device is not intended to be used by individuals (including children) who have restricted physical, sensory or mental abilities and/or insufficient knowledge and/or experience, unless they are supervised by an individual who is responsible for their safety or have received instructions on how to use the device.
• Children should be supervised at all times in order to ensure that they do not play with the device.

Special Safety Instructions for this Machine

WARNING:

• The sole plate becomes hot quickly and requires a long time to cool down. Do not touch.
• Choose a secure surface for the stand! The surface must be level and stable. Check the surface again for stability.
• The iron must be used and rested on a stable, heat-resistant surface.
• When not in use, place the iron in an upright position or onto the supplied stand.

• Before filling the water tank (13), disconnect from the mains.

• The tank should only be filled up to the maximum mark (14).
  Do not overfill! Maximum water filling quantity: 220 ml.

• This device should only be used for ironing garments and textiles!
• Please use only distilled water.
• The iron must not be left unsupervised while it is connected to the mains.
• The iron may not be used if it has been dropped, if there is visible damage or if it leaks.

Overview of the Components

1 Spray nozzle
2 Filler opening for the water tank
3 Steam volume regulator
4 Spray button
5 Steam jet button
6 Flexible line cord entry
7 Function switch
8 Stand
9 Contact plate mains connection
10 Control lamp
11 Temperature setting mark
12 Continuously adjustable temperature regulator
13 Transparent water container

14 MAX mark for water level
15 Ceramic sole plate

Instructions

Unpacking

1. Remove any protective foils and stickers from the soleplate.
2. Please unwind the lead completely.

Set up / assemble the stand (8)

Use the supplied stand for resting the iron securely on it.

A screw clamp is integrated onto the underside of the stand. Use this to secure the stand to your ironing board or to a table.

1. Pull the screw clamp out of the clamp socket and fold out through 180^ . Push the screw clamp firmly into the other clamp socket until it clicks into place.
2. Set the stand onto your work surface. Turn the screw clockwise.
3. To disassemble the stand, loosen the screw by turning anticlockwise. Stow the screw clamp back into the recess on the bottom of the stand. Push it into the clamp socket until it clicks into place.

Function switch (7) on the stand

Switch setting	Symbol Function
TopIroning	without cord
Middle Lock	the iron to the stand
Bottom Ironing with cord

Electrical connection

• Make sure that the iron voltage (see name plate) and the line voltage match.
• The mains plug should only be inserted into a correctly installed 230V 50Hz socket with earthing contact.

Connected Wattage

The station has a total maximum wattage of 2000 W. With this connected load a separate supply line protected by a 16 A household circuit breaker is recommended.

CAUTION:OVERLOAD!

• If you use extension leads, these should have a cable cross-section of at least 1.5mm^2
• Do not use any multiple sockets, as this device is too powerful.

Temperature Control on the Iron (12)

The symbols on the control correspond to the following settings:

MIN off

Synthetics, nylon, acrylic, low temperature rayon

• Wool, silk medium temperature
  Cotton, linen high temperature

MAX

maximum temperature

Water

Please use only distilled water.

Do not fill battery water, water from the clothes dryer and water containing additives (such as starch, perfume, softener or other chemicals) into the water reservoir.

This could damage the iron due to residues forming in the steam chamber. These residues may cause impurities to the fabric when dropping out of the holes in the soleplate.

Water Tank (13)

The tank volume is 220ml

1. Set the steam volume regulator (3) to the " position (no steam).
2. Set the iron onto the stand or hold it horizontally.
3. Check the MAX mark (14).
4. Fill the water reservoir at the refill opening (2). Close the lid of the tank.

Operation

iNOTE:

Always set the temperature control to "MIN" before connecting the appliance to a power point, or before disconnecting it.

Before Initial Use

• Clean the ironing base with a slightly damp cloth.
• In order to remove all residues before initial use, please pass the iron a few times over an old clean cloth.

Ironing without cord

You can iron without the cord with or without steam.

The preset temperature is maintained for around 50 seconds when ironing without the cord. If you want to continue ironing at this temperature, the iron must be heated up again. To do so, place it back onto the stand.

Ironing without steam

NOTE:

Sort out the garments according to their ironing temperatures.

1. Set the steam volume regulator (3) to the "position (no steam).
2. Rest the appliance on the stand or stand upright.

3. Only connect the machine to a properly installed safety socket, 230V 50Hz

4. Set the temperature on the temperature control (12). If you have sensitive items to iron, please begin with the lowest temperature.

NOTE:

The control lamp (10) on the iron shows that it is heating up. As soon as the control lamp goes off the operating temperature has been reached. Now you can start ironing.
5. Always turn the temperature control to "MIN" after use and remove the mains plug (The control lamp goes off).

Steam Ironing

WARNING:

The steam is hot. Danger of scalding!

NOTE:

• For this a high temperature is needed. Turn the temperature control (12) at least to the "symbol.
• When ironing at low temperatures, reduce the volume of steam or iron without steam. Use the steam volume regulator (3) to regulate the volume of steam.
• If the temperature is too low water may leak from the soleplate. The appliance is however equipped with an "anti-drip function". Thus the steam function is switched off if the selected temperature is too low.

• Steam escapes as soon as the iron is in a horizontal position.

• Extra steam can be added with the steam jet function. Press the steam jet button (5) intermittently.

Spray Function

• In order to moisten a section of a garment to be ironed, press the spray button (4) intermittently.

Vertical Steam function

This can be used to produce a jet of steam in a vertical direction.

WARNING:

Never direct the steam jet at people. Risk of burning!

• Hang your laundry on a clothes hanger and move the iron to approximately 3-5 cm away.
• Press the steam jet button (5) intermittently.

Refilling the water tank

CAUTION:

Always disconnect the mains plug before refilling water.

1. Set the steam volume regulator (3) to the "position (no steam).

2. Set the iron onto the stand or hold it horizontally.

3. Open the lid of the refill inlet and carefully pour in the water.

4. Do not exceed the maximum line (14) as marked on the water reservoir.
5. Close the lid of the tank.

Self-Cleaning

1. Half fill the water tank with water.
2. Heat the machine up to its maximum temperature. After the control lamp goes off remove the machine from the mains supply.
3. Now hold the iron horizontally over a sink. Set the steam volume regulator to the " position. Rock the iron back and forth until the tank is empty.
4. Set the appliance onto the stand or set it vertically. Heat the appliance up again. To clean the base now iron over a clean cotton cloth.

When you have finished

1. Always turn the temperature control to "MIN" after use and remove the mains plug (The control lamp goes off).
2. Empty the water tank in order to prevent the contents of the tank leaking.
3. Allow the device to cool down before you put it away.

Cleaning

WARNING:

Always remove the mains lead before cleaning!
- Wait until the machine has cooled down completely!
- Under no circumstances should you immerse the device in water for cleaning purposes. Otherwise this might result in an electric shock or fire.

CAUTION:

• Do not use a wire brush or any abrasive items.

• Do not use any acidic or abrasive detergents.

• Clean the casing with a slightly damp cloth.

• Clean the sole plate and the rest with a slightly damp cloth.

Technical Data

Model: DBC 3388

Power supply: 220-240 V, 50/60 Hz

Power consumption: 2000 W

Protection class:

Net weight: 1.45 kg

Subject to technical changes without prior notice!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal - Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.

Instrukcja obslugi

MAX MaKcMmaJIbHa TemIepaTypa

Boda

BnKOpNCTOByIe TINbKn DnCTnIbOBAHy BDOy 36atapei, i3 cyuapkn a6o BDOy 3doaHnM ximikatib (Taknx Jk KPOxMaJIb, napfymn, doabKn dIy 3m'JKeHHa BOni a60hApEbCz 3aIMBaTN B EMHCtB npacKn. PnpIaD moKe 6Ty n ONUKOJKeHn, ockInbKn B napoiB Kanepi MoKyTB CTBOPOBATNCr OcAn. Li ocAn MoKyTB 3aIIuATn CInDi Ha TKAHNHi, KOIN BNXODITIMMyTb Yepe3 OTBOPN DnI napn.

EMHictbIIN BOIO (13)

EMHICTb BMiuue 220 M.

1. BctaHOBiB peyIaTOp nap (3) y noLoXeHHra " 6e3 nap).
2. BctaHObit npacky Ha nIDCTaBky YI TpIMaIte II rOpN3OH TaJIbHO.
   3.Перевирет,чп рibeь boин He nepeBNuус no3nauchky MAX (14).
3. 3aONBHITb 6aOK BOIOU Ypee3 OTBip (2). 3aKpNIte KpNIJKy 6aHKy IIN BODI.

06cnyroByBaHHa

IIPMIMTKA.

PeryIaTOp TEmpepaTyPi CnI3abXKn CTaBHTn Ha MIN" nepei TmM Jk BCTaBHTn UTeKeB B po3eTKn a6o BNTaHyn Ioro 3 po3eTKn.

Peped nepwim 3actocyBaHHaM

OchntbHnIe npackn BONrOIO TKAHHIO.
- ⅢbBnDAnITn nepei nepuM 3actocyBaHnM BcI 3a6pydHeHH, cnipacyBatn cNoaTky CTay YNCTy TKAHNy.

IpaCyBaHHa6e3 uHypa (

IpaCyBaTu 6e3 uHpya MoKHa k i3 3acTocyBaHHm npu, TaK i 6e3 3actocybaHHn npu.

Y pa3i npacyBaHHa 6e3 shHya BCTaHOBJIeHa TEmpeHa pIITpIMyEbCa 6JIm3bKo 50 cekHyd. Ioo npOobJHn npacyBaH

Hn i3 1eIO TEMnepaIpyo, npacky cnIe pa3 harpiT. nIa Ib0rO BCTaHOBIT bHa3ad Ha niCTaBky.

PpacyBaHn86e3napn

IPMIMTKA.

BicopTyTe 6iH3Hy 3a TnAmn TKAHNH dIpy pi3Hx Tempeatyp npacyBaHH.

1. BctaHOBiB peyIaTOp npu (3) y noJoxeHHra " 6e3 npu).
2. NocTabTe npicptiHa niCTabky a6o BcTaHObit y BOrOy BEPTnKaJIbHOMy NOJoxeHHI.
   3.BKIOHOTb BUNKy B PO3eTKy, IIO NiIKHOueHa HaneXHHM YHOM i BiINObiae TexHiHM BMORM 230B\~,50T.
3. YctahOBiB TempeaTpy peryIaTOpom (12). JaKIo Bn npacByatmTe 6iIN3Hy, 0u QytInBa DO BVCOKoi TempeaTpyn, noHnaIte 3 MihImalbHOI TempeaTpyn.

IPMIMITKA.

KoHTpoJIbHa lamnoUka (10) Ha npacci ciHani3ye, zo
pOboa TempepaIyape He doCraIIA BCTAHOBHeHO
peryIaTOpOM pIBHO. KOn poBocA TempepaIya DoCraHyta, lamnoKh noraca. Bn moKeTe noHnat npacyBatn.

1. Picra 3aikHHe npacyBaHH 3abKnnepeKnIOaIte peryIaTOp TemepaTyHa "MIN" i BntaryIe BNIky 3 po3EKN (KoHTpoJIbHa IamNoUka rache).

IpacyBaHHa 3 npao

NONIEPEDXEHH

Papa dujeke rapa. He6e3neka onikib!

IPMIMTKA.

Дяцьоги Heo6xHa Bucoka TempepaTypa.пeревдітberулготempepaTyprn (12)цонмнв Впожжнг3 CmBbONOM
- Y paizi npacybahan i3 Hn3bkoio Temnepatypoio 3MeHunite notyXhictb napu a6o npacyiTe 6e3 napu. 3a donomoropo peryJrTopa napu (3) BCTaHObitb notpiHy notyXhictb napu.
JaKIO TemnepaTypa 3HaADTo Hn3bKa,TO B0a JI npabNIO BVtikaE i3 OTBopIB Ha niooBi npacKn. Ondak npicTpii o5naHAnHO fYHKcIe IOptNI pOtiKaHHa. Tomy JaKIO TemnepaTypa HAdTo Hn3bKa, fYHKcIO napn 6ynde BIMKHeHO.
- Napa noJaBaTaMEmTbCra, Ra TInBKn npacky 6yde BCTaHOBHeNoYo rOpN3OHTaNHe NoIIOKeHH.

-ДоаТкови IMnyIbCSI napu Bn moKTe OTpIMaTI HaTnCKyBaHHaM KHOJIkHaTnCKyIe KHOJIky IMnyIbCHOI nOaHi napu (5) 3 nepepbAM.

IpaHnXnBHeHHa: 220-240 B,50/60

CnoxmbHHnnotyKHOCTI: 2000BT

Ipyna eJektpo63neuHocTi:

Bara HeTTo: 1,45 Kr

3aImaeMo 3a co6oH npaBO HaTexHiH3MiH!

Lepnad 6yno nepeBipeno 3riDNo Bcix BiNobiHnx, AkyaIbHnx DnpeKTHCB, HnprKnad 1oDo eNeKTpomarHthoi cyMICHOCTa Hn3bKOBObTHOJ DnpeKTHBN, Ta 36ydoBaHO 3 a HOBITIM NIOJOXeHHMn TEXHk6e3neKn.

PykoBoCTBO no 3Kcnnyatau

Cnacn6o 3a Bb6op Haewero npOykTa. Hadeemc, Bam noHpaBntc3KcnIpyaTnpoBaTb yCTpoiCTBO.

06une yka3aHnno TeXnke 6e3onacHOCTn

Ipeed nauanom 3Kcnnyataun npnbopa BHIMatelbno npo-ntaTe npnnaeraemyIO NHCTpykUIO NO 3Kcnnyataunu COxpaHInTe ee B HadeXHom MeCTe, BMeCTe C rapaHTnHBIM TaHOHOM, KACCOBbIM YekOM I, PO BO3MOXHOCTN, KAPToHHO KoP6koC yNAKOBOHbIM MaTepuaNoM. Ecn daete KOMy-ni6o NonoJIb3OBaTbCn pnp6opom, O8a3aTeNbHO daIte BnpuJaCy daHHyo INHCTpykUIO NO 3KcnNyataunu.

Пльзутесь пибором только чстlbimобраими пон ha3haeHHIO. Пибор не ппдha3haeH дя кOMмерчecKOTO ИСПЛьЗOBAHЯ.
He nCIOIb3yIte yIor BHe NOMEueHn. IpeOxpaHnTe np6op OT Xapbl, pIaMbIX COJIHeuHbIX LyHei, BlaXHoCTN (HnB Koem Cnyae He NoPrykaIte ero B BoDy) uYdApOB 06 octpIe yIbl. He npKacaiTeCb K np6OpBy BlaXHbIMn pykam. Ecn np6op BylaXKnncr nn HAMok, Tyt Je BbIHbTE BNIKy IV3 PO3ETKN.
-Поссе КСКПУATAUМ,MOТАжЕ ПИНаднжHOCTe，ЧИСТКИ ПОЛOMКЕ РИБОРа BCERДA BBINHMaIte BUNKу 3З рOSTETК（TAHHTe 3a BUNK，a He 3a Ka6eJIb).
He octabTnIe BkIOUeHbIe 3NEKToPnp6OpbI 6ez npncMoTa. BbIXOJa N3 NOMeUeHna BCerDa BblKnIOuayTe np6Op. BbIHbTe WTeKepeN3 po3ETKn.
-ПибориКабьсTeBOrOпNTaHnI Heo6xOДmOpeRyIЯрнообследовытHaHaJIuYHeCteIOB nobpeKdEHHI.ПиOBHApUKeHnIOBpeKdEHHI pIb3ObAtbcra ПибopOM3anpeSaeTcR.
HnB KOem cnyae He pemOHnpyIe np6op camOCToTeNbHO, a obaaTecb B TAKOM cnyae 3a NOMOuHo K CneuaNtCy, IMeUeMy COOTBeTCTByUOuN Donyck. N3 coobpaKeHn Be3OpacHocTn, 3aMeHa CeTeBOrO UHypa Ha paBHO3NaHbN DOynCKaEoTcT OJbKO Yepe3 3aBOIN3ROTOBNTeNB, NaSy CEpBNCHyO MaCTepCKyIO INIooCOTBeTCTByUO- Ieero KBaIIINuPPOBaHHO CNEuaNtTa.
- IcnoJb3yIte TOJbKO OpiuHaJIbHbIe 3aIyactn.
- PtoKanyIcTa, coBIOJDAaTe HmKeCneIyUOJIe "CneuaIbHbIe yka3aHnI NO TexHke 6e3oNaChOCTn".

CnMBONJI npIMHeMbIe B DaHHOM pyKOBOcCTBe NOJIb-3OBaTeJr

BaXhIe peKOMeHdaUIN dIn o6ecneueHnBaWei 63oNac-HocTn 603HaueHb IIO Oco6EHHomy. O6aTeJIbHO cIeMyTe 3TNM peKOMeHdaUIN, YTO6bl IpeOTBpaTITb HeCHACTHbI CNyau NIN NIOJOMky N3dEINr:

IPEyIpyEKeXDEHNE:

IpeDynpexJaet 6o nachocTn IJn 3doOpBbN BO3MOxHOM pncke npUyehn TpaBMbl.

BHIMAHINE:

Yka3bIbaeHa BO3MOXHyIO ONaCHOCTb IINI IN3JeNnI IN dpynx OKpyKaHOUx INpeDMETOB.

I PIMMEYAHNE:

JaetcoBtBuHnHOpMaunIO.

TeHn nIuca HuykdaHouneC8 B npncmOTpe

• I3 coo6paXeHm 6eONaCHOCTn DnI dTei He ocTbNtte JexKaTb yNaKOBky (PiNactIKOBbie MeuKN, KaTOH, NHOIIpACT n T.D.) 6e3 npNCMOTpa.

PDEyPExkHNEI

He n03B0JIte TeIETM INpTaB C NOIN3TNNEHOBOI NIIeHKO. Onachoctb ydu7b!

3TOT np6bOp He npEHa3HaueH IINI NOIb3OBAHnIuCaAMN (BKNIOaJ DeTei) C ORpAHueHHbIMN fN3UeCKIMN, CEHCOPHBIMN INI yMCTBEHHbIMN cNOcO6HOCTaMn INI NluaAMN, HE IMeEOUIMN ONbITa N/INI NEo6XoDnMbIX 3HaHN. NcKNIQUHeH CoCTABJrOT CnyAan, KOrDa OHN HAXOJrTc NOI npNCMOTPOM IIna, OTBeTCTBeHHoro 3a INx 6e3OnaCHOCTb, INI KOrDa OT 3TOrO IIna IOnyueHbI Yka3aHnR No NOnb3OBAHnIO np6bOpM.
Heo6xoJIMO npncMaTpNbTa 3a DeTbM, YTo6bI y6eHITbCBA TOM, YTO OHN He INPpaOT C pnp6Opom.

CneuHaBHeIyka3aHnI NO 6e3oNaChocTn DnA 3TOrO np6opa

A PEPDyPENPEKDEHNE:

I OdoBa yTora HArpeBaetc 6bICTpo,a octlbBaet MeJenHo. He npKacaiTebc K Hei.
Длгпндстбнужн Вьбрт haedxhyno nobepxhoctb! NopebxhoctbdoJTKha 6bIb poBHOu n CTaunbHoi.Εuple pa3 y6eDntecb,yTO nobepxhoctb CTaunbHa.
YTOI DOKKEH NCIIOJIb3OBAtBcraN CTORb HA POBHOn, TENIOCTOIKoN IOBepxHOCTN.
- EcnIyTnH He IcNtOb3yETcR, NoCTaBte erO BepTnKaIbHO INI HnIOCTaBky, IMeHOUyOcB B KOMIIKeTc.
- Papei HanoHHeHem BODaHoro 6aKa (13), OTKIOuAte yTIOr OT cETN 3JKeKTPoNITAHIN.

HANOJIHnIe EMKocTB ToJIbKO Do MAKcIMaJIbHOJ OTMeTKN (14). He nepenonHnIte EMKocTB! MAKcIMaJIbHOe KOINHeCTBO BOdBi: 220 MN.
- TnaBte yTIOrO TOJIbKO OeKdy N TeKTcNtNbHbIe n3dEIna!
-ПименяпToЛькДиCTINЛINpoBaHHyO Bovy.
HeIb3aOCTabJIaTb yTHor 6e3 npNCMOtpa,ecn OH BKnIOUey H B3NeKTKPOCeTb.
- YTHG HEnb3r NcNOJIb3OBAbT,ecn erO yPOHmI,ecn eCTb BUNMbIe NOBpeKdEHH,INN ECn OH nPoTeKaET.

O63op detae np6opa

1 Conno pacnbinten
2 OTBepCTne Inna HanoHHeHH BODaHO 6aUka
3 Pnda npa
4 Khonka-Aa0p03oJIb
5 KhoNka dIa DOnONHnTeJIbHoI noJaU npa
6 I#6kni noBdoC eTeBOro UHpya
7 PepeKIOUaTeIb yHKUIN
8 POnctabka
9 KOHTaKTHaIJIaCTnHa
10 KoHTpOJIbHaI NaMIOUka
11 OTMeTka yCTaHOBKn TEMnepaTypbI
12 Be3cyIeHauTbI peryIaTOp TempeaTypbl
13Празчный Воряно 6aok
14 OTMeTka MAX dIy ypoBn BObl
15 Kepamuecka nooosBa

Yka3aHnK npImeHeHHIO

PacnaKOBka

1. YdaJIte 3aunTHyIO FOJbIg N HAKJIeIKN, ECNI TAKOBbie IMeHOTcR, C paOObey NOBepxHOCTN yTOrA.
2. Pa3MOTaIte, noKaanyIcTa, noJIHOCTbIO Ka6eIb.

YctaHOBKa / c6opka noCTaBKN (8)

NcnoB3yIte NmEoUyOcB KOMnIeKTe NOCTabKy, YTObbl OCTaJIaTb Ha HeYyTOr B 6e3OnaChom NoIOKeHN.

CHN3y NOCTaBkN BCTPOeH BNHTOBo 3axMM. IcNoIb3yIteero, YTO6bI 3aФNKCupOBaTb NOCTaBky Ha rnaIINbHOJ DOCKe HJN HA CTONE.

1. BbIePHTe BnHTOBO 3aXIM n3 rHe3da n pa3BepHNTe ero Ha 180^ . IpoToJIKHNTe BnHTOBO 3aXIM B dpyroE rHe3do TAK, YTO6bI OH 3aUeJIKNHJcNc HA CBOEM MecTe.

2. UCTaHOBInTe IIOCTaBky Ha pa6Ouyu NOBepxHocTb. IO-BePHInTe BnHT NQacBOB CTpeJIke.

3. YTO6bI pa3o6paTb NOCTaBky, Ocna6bTe BnHT, NOBepHyB erO npOTiB YacBOB CTpeJIKN.CIOXHITe BnHTOBO 3axIM o6paTHo B yITy6JIeHne B HIXKHeu CACTN NOCTaBKn. IpoTOJIKHtE BnHTOBO 3axIM B rHe3do TaK, YTO6bI OH 3aUeJIKNHJcRa H CBOEM MeCTe.

IpeeknoateJIb cyHKu7 (7) Ha nOCTabKe

Osbem EMKoCTN COCTABnEe 200 M.

1. YctaHOBInTe peRyIaTOp o6bema npa (3) B noJoxKeHne “O” (HeT npa).
2. NocTaBbTe yTnHa nOCTaBky nIN depKInTe ero B BeptN KaJIbHOM NOJoxEHHN.
   3.Поверп Te OTMeTky MAX(14).
3. HanonHnTe BOJHOB 6aOc BOJOn Ype3 HAnONHnTeIbHoe OTBepTne (2). 3akpoTne KpbuKy 6aKa.

06cnyxmbHne

IPYIMEUAHNE:

KaJdbi pa3, nepeBkIIOHcHEm mNn BbIKIOHcHEm yTHora n3 cTeN, nepeBOaNTe peyIaTOp TemnpaTpybI B NOIOXeHne "MIN".

IpeepipimmeHnemBnepBbIe

• Pnpotpnte nooowBy yIora cnerka BnaJxHn TprAnKo.
• UTo6bI ydaNITb c Hrero octaBuniece 3aRpa3HeHn npoTgnaDbTe npay pa3 KaKoe-Hn6ydb Ctapoe, NcToe noloteHne.

TnaxKeHne 6e3 shypa

BbMOKTe rIaNTb 63 uHpya kac c napom taK n 6e3 npa. YcTaHOBHeHHa Tempepatya 6ydt depKaTbC npIMepHo 50 cekHy,ecn rIaNTb 63 uHpa.Ecn HxKnO npoJXaTb rIaNTb npu yctaHOBHeHHo Tempepatye,ytOr cneNy et HarpeTB CHObA. TTo6bl CdeNaTb 3TO,CHOBA NOCTabTe erO HA NODCTABKY.

TlaXeHne 6e3 npa

IPIMMEUAHNE:

PaccopTpnyTe 6eIbe nTo Tempepaty rnaKeHnA.

1. UctahOBHTe peryIaTOp oIbema napa (3) B noIooKeHne " (Het napa).
2. NocTaBbTe yCtpoIcTBo Ha noCTaBky nIn noCTaBbTe erO BBePTnKaJIbHoe nNoJKeHne.
3. BCTaBbTe BnIky B 3a3eMJIeHHyIO po3ETky C HAnpRJaKeHNEM cTn 230 B\~, 50 T, yCTaHOBJIeHHyIO B COOTBeTCTBm C npEaNcAHJIMN.
4. BbIcTaBbTe TemnepaTyHa TepMoperyJrTope (12).Ecnn Bam Hano nOrJaNTb OeXky N3 yCbCTBntEnbHON TkaHN, NaHnHaTe C Camo HN3KoTemnepaTypbl.

IPIMMEUAHNE:

KoHTpoJIbHaI lamna (10) yTOra yKa3bIbaeHa cTeenH b npOecca HarpeBaHHa. KaTToIbKO OHa NotyXHeT, pa6Ouay TEMnepaTypa DoCTnHyTa. TeNepb MoXHO HaHHaTb TlaNDtB.

1. По Okончани pa6obtCyIorom BceIa yctaHabINbaIte peryIaTOp TempepaTypbI Ha MIN" N BbITACKnBaTe ITeNceIb n3 po3ETKn CETn (KoHTpOJIbHaJ lamMOnOHKa notyXhet).

TnaxKeHne cnapom

PENyPENXDEHNE:

Togny nap! Onachoctb noIyueHn oXorOB!

IPIMMEUAHNE:

-ДялTORO Heo6xOIMa 60onee BbICOKaTeMnepaTypa.ПocTAbTe peYIaTOp TeMnpaTypb1 (12)camoe MehB-uee B NOIOXeHne C CmBONOM

ПРIMEЧАНЕ:

• EcnI rnaKeHne npOcxOoNT npn Hn3Knx TemnepaTypaX, yMeHbWnte obem npa nnrTaBte 6e3 npa. NcNoJIb3yIte peryIyTOp obem npa (3),HTo6bl KOHTpoJInpOBaTb obem BbIeJIeMOrO npa.
• 06bIHyO, ecIn yTHOr HeIOCTaTOHr OropHn, BO3MOxHO BbITEKaHHe BObl N3 NIOoUbbl. Ondako YcTpoiCTBO IMe-et cyHKuHNo "3aunbl OT IpoteKaHn". To ectb cyHKuHa napoo6pa3ObaHn OTKlHuAcTcR, ecIn Bbl6paHHa TEmnepaTypa CINUKOM HN3Ka.
• Nap haunhaet bixoindt n3 OTBepctm KAK TOnbko yTIOI npHnMaet rnp30HTaNbHO NOJIOKeHne.

Hikorda He HanpabnIte ctpyI npa Ha IIOeI. OnacHOCTb Oxora!

• PndBeCbTe dIg 3Toro Baue 6eJIbe Ha IneuNKn I nOdBeDHTe yTOH ha pacCToHHe np6bn. 3-5 cm.
  Hakimai Te KhoiKy noaun npap (5) npepbivcsto.

HanoJIHeHne BOJHoro 6aYka

BHIMAHHE:

PpeHnHHeHm BoaHOro 6aKa BbIbTe BnKy n3 pO3eTKn.

1. UctahOBIne pepyIaTOp o6bema napa (3) B noJoxKeHne "CHTnapa).
2. NocTaBbTe yTnH Na nOCTaBky Hn DepKnte ero B BepTNKaJIbHOM NOJIOXeHIN.
3. OtkpoTe HanoJIHnTeIbHOe OTBepCTne B KpbIliKe I OCToPoxKHO 3aneTe BOy.
4. He HanoHnIe BoJHOH 6aOH BbIe MeTkn "MAX" (14).
5. 3akpoIte KpbIuKy 6aKa.

Pekim camooqCTkn

1. HanonHnTe BOJAnOH 6aOK Ha NIOBInHy BOJOn.
2. PaoorpeTe np6op Do MaKcImaJIbHOI TemnepaTpybI. NocTe TOrO, KAK KOHTpONbHa JAmNOnuKa NoraChET, OTKnIOHnTe erO, NOKanyiCTa, OTeCN.

3. Bo3bMnte yTOr b pyKu n depXnTe erO rOp3oHTaIbHo nAd yMbIBaIbHnKOM. YcTaHOBnTe peryIaTOp obbema npa B NOLOXeHne "CToPrcnTe yTHor NOKa EMKOCTb NOHOCtBu HO He ONyCTOUsITcR.

4. NocTAbTe yCTpoiCTBO Ha NOCTabKy INI NOCTaBte erOB BBePTnKaJIbHOe NIOJOKeHne.Eue pa3 HappeTe yCTpoiCTBO.DIyOCHKINoDOUWBByyTHORA npOrnAdbTe KaKoeHN6yDbXIONHaTObMyMaxHoeNIOToHce.

OKOHuaHne pa6oTbI

1. ПО OKOHанп pa6Otblc yTHorOM BcERda yCTaHabnBaIte peYIЯTOp TemNepaTypbI Ha MIN" n BbITACKnBaIte WTeNceIb n3 po3ETKn CETn (KoHTpOJIbHaJ lamMIOUka NotyXHET).
2. BbIINBaIte coDepKIMMOe EMKOCTN Ia BOIbI, YTO6blIpeIDOTBpaTnB ee HENPON3BOJbHOE BbITEKAHne.
   3.ДаиTe npi6bopyIcTBtB,прждчem ybupaTb eroHa MecTo.

UncTka

IPEyIpyEKeJDEHNE:

-Перед чисков Всегда ВьИнмайтей Вилку n3 розтkn!
JaTe 3JnKtpnpBOpy nonHocbIO octbIb!
HnB KOem Cnyae He OkyHaIte IJyIcTKn np6Op B BOy. 3To MoKet 6bItb npuHoi 3JeKtpueeCKoro ydapa nn noXapa.

BHIMAHINE:

He nCIOJIb3yIte npoBOUHbIe IETKn INI dpyrme capa- naIOUIne ppeIMTebl.
He nCnoB3yTe CnIbHbIe IIN capaNaIOuIe YnCTaUe CpeDCTBa.

• Pnpotpnte kopnyc cyxoi Tprnkoi.
• PpOtpnTe NIOoBBy yTHOra NIOBepxHocTb NIOCTaBKn CnerKa BnAkhHO TpIaNKO.

TexHnueckne daHHbIe

MoeB: DBC 3388

3JIeKtpoITaHHe: 220-240B,50/60T

Pntpe6IeMaMoUHocb: 2000 BaTT

Klacc 3aunTbI:

Bec HETTO: 1,45 K

Mbl octabJrEm 3a cobn npaBo Ha TexHmueckme HmEHeHnI!

3To n3deneHne npoIIO BCE Heo6xOIMbIe N aKtYaIbHbIe npOBepKn, npEiNcAHbIe dIpeKTHBOI CE, K npim. Ha 3NeKTPOMaHNTHyIO COBmecTUMOCTb N COOTBeTCTBnE Tpe6OBAHnM K H3KOBoIbTHoI TexHnke, OHO 6blIO TaKke CkOHCTpyIpOBAHO I NOCTpoEOH c yUeTOM IocJeDHHx Tpe6OBAHn I IO TexHnke 6e3onacHOCTn.

CLATRONIC

INTERNATIONAL GMBH

D-47906 Kempen/Germany - Industriering Ost 40

Internet: http://www.clatronic.de·email: [e-mail]
