LFG 2762 - Fondue, raclette and wok appliance CLATRONIC - Free user manual and instructions

Product type	Multifunction fondue, raclette and wok appliance
Brand	Clatronic
Model	LFG 2762
Power supply	230 V / 50 Hz
Power	Approx. 1400 W
Capacity	For 4 to 6 people
Surface type	Non-stick coating
Temperature control	Thermostat with positions L (low), M (medium), H (high)
Indicator lights	Red light (on) and green light (temperature reached)
Safety	Do not immerse in water, hot surfaces, only touch handles
Cleaning	Damp cloth, no detergents, do not immerse
Included accessories	Fat collector
Warranty	24 months
Use	Indoor only
Dimensions (approx.)	40 x 30 x 15 cm
Weight (approx.)	2.5 kg

Frequently Asked Questions - LFG 2762 CLATRONIC

How to use the appliance for the first time?

Before first use, lightly grease the non-stick surface and heat the appliance empty for about 10 minutes with the surfaces closed. Let it cool, then clean with a damp cloth.

What is the power of the appliance?

The power is not indicated in the manual, but for this type of appliance, it is generally about 1400 W.

How to adjust the temperature?

Use the thermostat: position L for low temperature, M for medium, H for high. The green light turns off when the temperature is reached.

Can I use metal utensils?

No, to avoid damaging the non-stick coating, use only wooden or heat-resistant plastic utensils.

How to clean the appliance?

Unplug and let cool. Remove crumbs with a brush, empty the fat collector and clean the appliance with a slightly damp cloth. Never use detergents and never immerse the appliance in water.

Is the appliance suitable for professional use?

No, this appliance is designed for private and domestic use only. It is not suitable for professional use.

What to do if the appliance does not heat up?

Check that the appliance is plugged into a 230 V / 50 Hz socket and that the thermostat is not set to OFF. If the problem persists, contact customer service.

Can I leave the appliance unattended?

No, never leave the appliance running unattended. Unplug it if you leave.

How to store the appliance?

After cleaning and drying, store the appliance in a dry, dust-free place. Wind the cable without bending it.

What is the warranty period?

The warranty is 24 months from the date of purchase, upon presentation of receipt. It covers material or manufacturing defects.

USER MANUAL LFG 2762 CLATRONIC

Exterior view of a modern stainless steel grater with a black lid and control knob (no visible text or symbols)

LFG 2762

CE

D

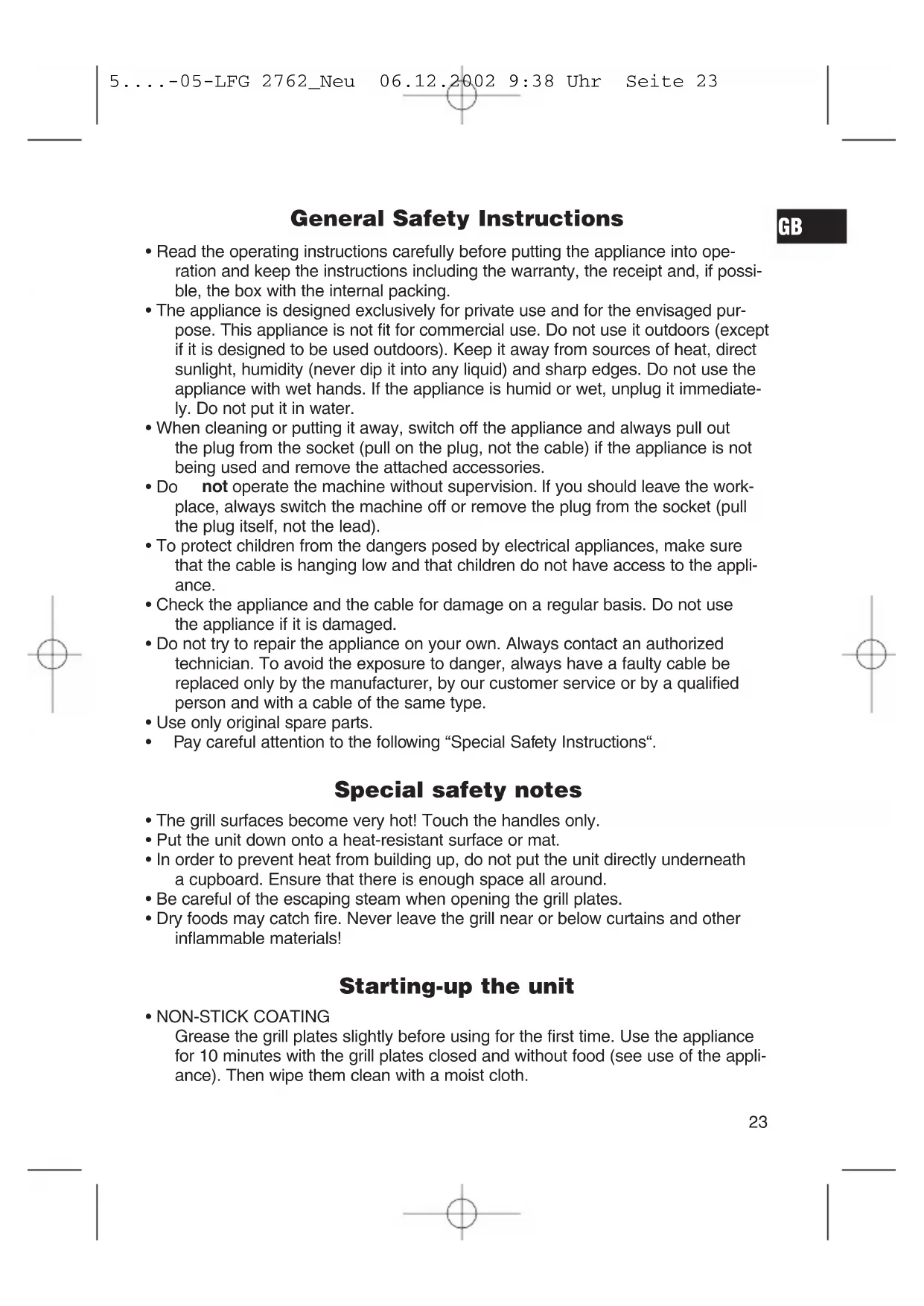

General Safety Instructions

GB

- Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.

- The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.

- When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.

- Do not operate the machine without supervision. If you should leave the workplace, always switch the machine off or remove the plug from the socket (pull the plug itself, not the lead).

- To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.

- Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.

- Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.

- Use only original spare parts.

- Pay careful attention to the following "Special Safety Instructions".

Special safety notes

- The grill surfaces become very hot! Touch the handles only.

- Put the unit down onto a heat-resistant surface or mat.

- In order to prevent heat from building up, do not put the unit directly underneath a cupboard. Ensure that there is enough space all around.

- Be careful of the escaping steam when opening the grill plates.

- Dry foods may catch fire. Never leave the grill near or below curtains and other inflammable materials!

Starting-up the unit

• NON-STICK COATING

Grease the grill plates slightly before using for the first time. Use the appliance for 10 minutes with the grill plates closed and without food (see use of the appliance). Then wipe them clean with a moist cloth.

GB

Using the unit

1. Insert the fat collection tray in the front opening. If necessary, turn the thermostat regulator to the "OFF" position.
2. Put the plug into an earthed 230 V, 50 Hz mains socket. The red and green control lamps light up.
3. Select the desired grill temperature on the thermostat regulator.

Settings: L = LOW for a low temperature

M = MEDIUM for a medium temperature

H = HIGH for a high temperature

1. While the grill is heating up please keep the grill surfaces closed. When the green control lamp goes off the grilling temperature has been reached.
2. Open the cover and place the food to be grilled. Then close the lid gently.
3. Grilling is finished after 8 to 10 minutes (depending on the thickness of the food being grilled).
4. Open the cover and remove the cooked food with a wooden fork or similar kitchen utensil. Do not use any sharp or cutting objects as they may damage the coating of the grill plates.
5. When food is not being grilled the grill surfaces should always be kept closed.
6. If you would like to stop the cooking process, turn the thermostat regulator to "OFF" and remove the mains plug.

Cleaning & maintenance

• Pull out the mains plug and allow the unit to cool down.
• Brush off crumbs or food remains from the grill plates.
• Pull out the fat collection tray. Empty the contents and clean the tray in a sink.
• Clean the grill plates and the appliance with moist towel.
  • The machine must never be immersed in water!
• Do not use abrasive detergents.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an

extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
