DO9061J - Juicer DOMO - Free user manual and instructions

Product type	Juice extractor
Brand	DOMO
Model	DO9061J
Power source	Mains (grounded outlet)
Measuring cup capacity	1000 ml
Switch positions	On (ON), Off (O), Reverse (rev)
Reverse function	Yes, to unclog the press screw
Max. continuous running time	30 minutes
Safety	Auto shut-off if lid comes off
Strainer material	Stainless steel (sharp)
Maintenance	Clean removable parts with running water; do not put in dishwasher; do not immerse motor unit
Warranty	2 years
Recommended use	Domestic and similar (personal kitchen, farm, hotel, etc.)
Included accessories	Pusher, lid, strainer, press screw, bowl, pouring spouts, measuring cup, cleaning brush
Food restrictions	Do not use for coconut, sugar cane, very hard foods; remove pits and citrus peels

Frequently Asked Questions - DO9061J DOMO

How to assemble the DO9061J juice extractor?

Place the bowl on the motor unit, fix it by turning. Insert the press screw, then the strainer. Finally, place the lid and turn until it clicks. Make sure the appliance is off before assembly.

Can I put the parts in the dishwasher?

No, all removable parts must be washed by hand with running water. The dishwasher could damage them. Use the provided brush to clean the strainer.

What to do if the appliance jams during use?

Set the switch to 'rev' (reverse) to unclog the press screw. Hold for 2-3 seconds, then release. If that doesn't work, turn off, unplug, and disassemble to remove the obstruction.

How long can I use the appliance continuously?

The appliance should not run for more than 30 consecutive minutes to avoid motor overheating. After that, let it cool down before reuse.

Is the appliance safe for children?

The appliance can be used by children aged 8 and above under supervision. Children should not play with it. Cleaning should not be done by children unless they are over 8 and supervised.

How to clean the strainer properly?

The strainer is sharp, handle with care. Use the provided cleaning brush under running water. Never use a metallic sponge which would scratch the surface.

Can I juice coconut or sugar cane?

No, these foods are too hard and may damage the motor or press screw. Also avoid fruits rich in starch or hard fibers.

What should I do if the lid comes off suddenly during operation?

The motor will stop automatically for safety. Turn off the appliance (position O), unplug it, then replace the lid correctly before continuing.

What is the maximum capacity of the measuring cup?

The measuring cup has a maximum capacity of 1000 ml. Do not exceed this volume to avoid overflow.

Does the appliance have a warranty and how to use it?

Yes, it comes with a 2-year warranty from the date of purchase. In case of defect, return the appliance with the receipt to the store of purchase. Damage due to misuse is not covered.

USER MANUAL DO9061J DOMO

Modern white and black Domo brand blender with a clear glass interior (no visible text or symbols)

DO9061J

PRODUCT OF LINEA 2000

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

RECYCLING INFORMATIONEN

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat package ecologically.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

Simple black line drawing of a plug with a curved wire (no text or symbols)

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Exploded view diagram of a DOKO blender with numbered parts and measurement scales for cleaning and packaging.

Technical diagram of a manual grimmer with labeled parts and directional arrows indicating motion or movement.

GEBRUIK

Close-up of a mechanical component with a numbered label (2) pointing to a feature on the base (no text or symbols beyond the number)

11 1211 5 6 7 9 10 8 DONO

AVANT LA PREMIÈRE UTILISATION

Line drawing of a manual manual shaver with handle and spout, no text or symbols present

UTILISATION

Exploded view diagram of a food blender with numbered parts and labeled graphics

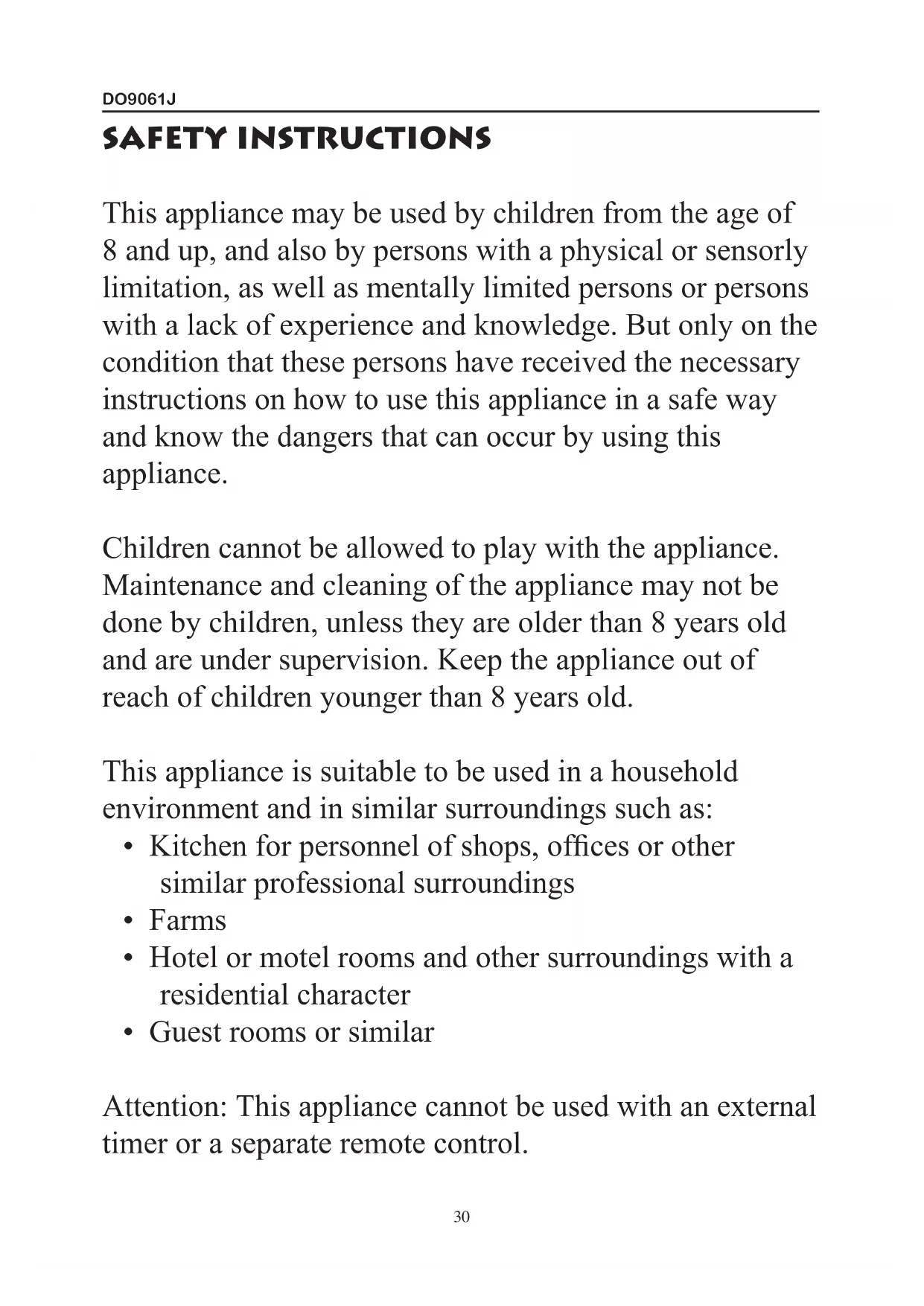

This appliance may be used by children from the age of 8 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance. Maintenance and cleaning of the appliance may not be done by children, unless they are older than 8 years old and are under supervision. Keep the appliance out of reach of children younger than 8 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

• Kitchen for personnel of shops, offices or other similar professional surroundings
• Farms
• Hotel or motel rooms and other surroundings with a residential character
• Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use check if the voltage indicated on the appliance corresponds with the voltage of your power net.
• Do not let the cord hang on a hot surface or over the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used by or near children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Remove the plug from the power outlet by pulling the plug itself. Never pull the cord to remove the plug from the outlet.
• Never leave an operating appliance unattended.
• Never place this appliance on or near a gas stove or electrical stove, in a hot oven or in a place where it may come into contact with a hot appliance.
• Do not use the appliance outdoors.
• Only use the appliance for the purpose for which it is made.
• Always place the appliance on a steady, firm, dry and level surface.
• Never immerse the appliance, the cord or plug in water or other liquids to avoid fire, electrical shock or

injuries.

• Never use the plug or the appliance with wet hands.
• Make sure that the plug is properly connected to the power outlet.
• Connect the appliance to an earthed socket.
• This appliance does not contain any parts that you can repair yourself. Always contact a qualified technician for check-up and repair of your appliance.
• Never fill the appliance with unknown foods.
• Make sure that the base of the appliance does not get wet.
• Do not remove the plug from the socket in case the appliance is exposed to gas. Instead you should open all near windows for airflow.
• Do not move the appliance when it is operating.
• If the screw press should get obstructed, put the juicer in ‘rev’ mode for about 2 to 3 seconds to let it turn in the opposite direction. After this, try to let the screw turn in the right direction again.
• Only use the food pusher to guide food into the juicer.
• Do not use the appliance for longer than 30 minutes continuously. The motor could overheat.
• If during use you notice a burnt smell or smoke, immediately stop using the juicer. Take the appliance to a service center for check-up and repair.
  • Always use both hands to move the appliance.
• Do not use water that is warmer than 65^ C to rinse the appliance.

PARTS

1. Food pusher
2. Lid
3. Sieve
4. Screw press
5. Bowl
6. Pulp spout
7. Juice spout
8. Motor block
9. On/off switch
10. Handle
11. Measuring cup
12. Cleaning brush for sieve

Simple diagram showing a numbered point '1' connected to a vertical black object (no text or symbols on the object itself)

Close-up of a black mechanical component with a numbered label pointing to a feature (no readable text or symbols)

11 1211 5 6 7 9 10 8 DONO

BEFORE THE FIRST USE

1. Remove all parts from the packaging.
2. Wash all detachable and washable parts in warm soapy water, rinse them and let them dry thoroughly.

Caution: Never immerse the motor block in water!

Tip: The sieve can be cleaned with the cleaning brush.

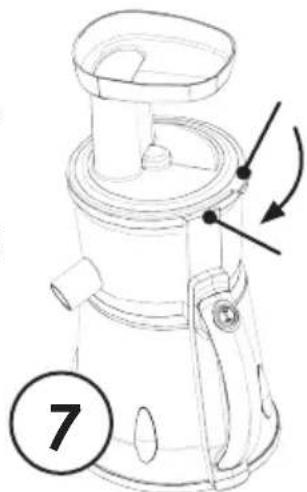

1. Make sure that the plug is removed from the socket and that the on/off switch is turned off before assembling the juicer.
2. Place the bowl on top of the motor block. Make sure that the bowl is well positioned around the axis of the motor block and turn the bowl to lock it.
3. Push the screw press onto the middle of the bowl.
4. Place the sieve into the bowl.
5. Place the lid on top of the bowl and turn the lid until it clicks into place.

Line drawing of a manual blender with handle and spout, labeled with number 7 (no text or symbols on the device itself)

1. Place a measuring cup underneath the pulp spout and place a measuring cup underneath the juice spout. The appliance is now ready for use.

Repeat these steps in reversed order when you disassemble the juicer.

USE

1. The on/off switch has 3 positions:

2. On: ON

3. Off: O

4. Reversed direction: REV

5. Make sure that the juicer is switched off (O) and plug in the juicer.

6. Place the 2 measuring cups underneath the 2 spouts.

7. Wash the fruit and vegetables and cut them into pieces.

Caution:

• Remove hard seeds and stones before extracting juice, otherwise the screw press could get damaged.
• It is not recommended to use coconuts or other hard foods in this appliance. These could damage the motor.
• It is not recommended to use hard fruits or hard vegetables rich in fibres and starch in this appliance. (for example sugar cane)

• The peel and seeds should be removed from oranges, lemons, grapefruit and melons before use.

• Turn on the on/off switch.

• Put the vegetables and/or fruit pieces into the opening at the top of the lid. Push the food further down, into the bowl, with the food pusher.

Caution:

• Do not put any fingers or other strange objects into the opening of the lid while the appliance is switched on. Only use the food pusher, do not use spoons, forks, sticks,...
• Never operate the appliance with an empty bowl.

Tip: Start with the harder fruits and pieces, only then extract from the soft fruits.

1. If the appliance gets obstructed during use, press the on/off switch into the 'rev' position and hold down to let the juicer turn in the opposite direction. This could remove the obstruction. Release the switch to stop the reversed turning of the screw press. If this does not work, then switch off the appliance, unplug and reassemble the juicer according to the instructions. Then try to switch on the

juicer again.

1. When the measuring cup is full (max. 1000 ml) or if all the juice has been extracted, switch off the juicer and empty the measuring cups.

Caution:

• Never operate the appliance for more than 30 minutes continuously.
• Never touch the on/off switch with wet hands.
• If during use the lid should get detached from the bowl, the motor will automatically stop functioning to prevent danger.
• Juice that is not consumed immediately should always be stored in the refrigerator.

CLEANING AND MAINTENANCE

• Unplug the juicer and let the appliance cool down before cleaning it.
• Turn the lid to detach it from the bowl and disassemble the rest of the parts in reversed order of the assembly.
• Empty the measuring cups and clean the lid, the food pusher, the sieve, the bowl, the screw press and the measuring cups under running water. Use the cleaning brush to clean the sieve.

Caution:

• Do not use metal sponges, this will damage the appliance. Do not clean the parts in the dishwasher.
• Be careful when cleaning the sieve. The sieve is sharp.
• Wipe the outside of the motor block clean with a damp cloth. Never immerse the motor block in water!
• Dry all parts thoroughly, reassemble the appliance and store it in a dry place.

Tip: Rinse all parts immediately after use.
