DO9141J - Juicer DOMO - Free user manual and instructions

Product type	Juicer
Brand	Domo
Model	DO9141J
Housing material	Stainless steel
Delivery contents	Lid, orange juicing cone, lemon juicing cone, strainer, collecting cup, motor housing with spout
Anti-drip function	Yes, spout with anti-drip system
Activation mechanism	Manual pressing of fruit onto cone
Safety	Do not immerse the housing; damaged cord must be replaced by a professional; use by children from 16 years old under supervision
Cleaning	Removable parts (lid, strainer, collecting cup) washable in warm soapy water; wipe the housing with a dry cloth; do not immerse the housing
Usage	Domestic and in staff kitchens, farms, hotels, bed and breakfasts
Warranty	2 years from purchase date, upon presentation of the receipt
Spare parts	Available online at webshop.domo-elektro.be or at the point of sale
Recycling	Do not dispose of with household waste; deposit at a collection point for electrical and electronic equipment
Usage advice	Press for about 15 seconds, then let rest for 15 seconds before repeating
Troubleshooting	If the appliance does not work: check the connection, voltage, and correct assembly; contact customer service if necessary

Frequently Asked Questions - DO9141J DOMO

How to clean the DO9141J juicer?

Unplug the appliance. Remove the lid, strainer and collecting cup. Rinse the strainer under running water. Wash the lid, strainer and collecting cup in warm water with a mild detergent. Wipe the housing with a dry cloth. Never immerse the housing in water.

The appliance does not work when I press on the cone, what should I do?

First check that the cord is properly plugged in and that the voltage of the appliance matches that of your home. Make sure the appliance is correctly assembled. If the problem persists, contact your distributor or their after-sales service.

What fruits can I juice with this appliance?

The appliance is designed to juice citrus fruits like oranges and lemons. It comes with two juicing cones (orange and lemon) to fit different fruit sizes.

Can I wash the parts in the dishwasher?

The instructions do not specify if the parts are dishwasher safe. To preserve the appliance, we recommend hand washing in warm soapy water.

How long should I press a fruit?

Press the fruit for about 15 seconds, then let the appliance rest for 15 seconds before pressing again if necessary.

The juice does not flow from the spout, why?

Make sure the spout is pushed down to open the anti-drip system. If the spout is in the up position, the juice cannot flow.

Where can I find spare parts for the DO9141J?

You can order spare parts and accessories online at Domo's webshop at webshop.domo-elektro.be or from the store where you purchased the appliance.

Is the warranty valid if I repair the appliance myself?

No, the warranty becomes void if repairs are carried out by unauthorized persons. For any repairs, contact the manufacturer or their after-sales service.

Can I use the appliance continuously?

It is recommended not to press continuously: after 15 seconds of pressing, let the appliance rest for 15 seconds. This prevents overheating and extends the lifespan.

Is this appliance safe for children?

The appliance can be used by children aged 16 and over under supervision. Keep the appliance and cord out of reach of children under 16. Never leave the appliance unattended.

USER MANUAL DO9141J DOMO

Close-up of a modern glass and silver juice brush with a small lid, no visible text or symbols.

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

CONDICIONES DE GARANTÍA

RECYCLAGE-INFORMATIE

Symbol of a trash bin crossed with no text or numbers, representing environmental protection (no text present)

INFORMATION DE RECYCLAGE

Recycling symbol composed of three chasing arrows forming a triangle (no text or labels)

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed with diagonal lines, representing waste sorting or disposal (no text or labels)

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

INFORMACE O RECYKLACI ODPADU

From now on, accessories and parts of Domo appliances can also be ordered online from the Domo webshop*:

http://webshop.domo-elektro.be

You can reach the webshop through the Domo website as well: www.domo-elektro.be. The accessories and parts can also still be obtained at the store where you bought the appliance.

CZ

If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazard.

Exploded view diagram of a coffee maker with numbered parts for identification

GEBRUIK

Exploded view diagram of a coffee maker with numbered parts for identification

UTILISATION

Diagram showing six labeled parts of a hairdryer with corresponding exploded view, likely for product identification.

VERWENDUNG

Exterior view of a stainless steel coffee maker (no text or symbols visible)

REINIGUNG

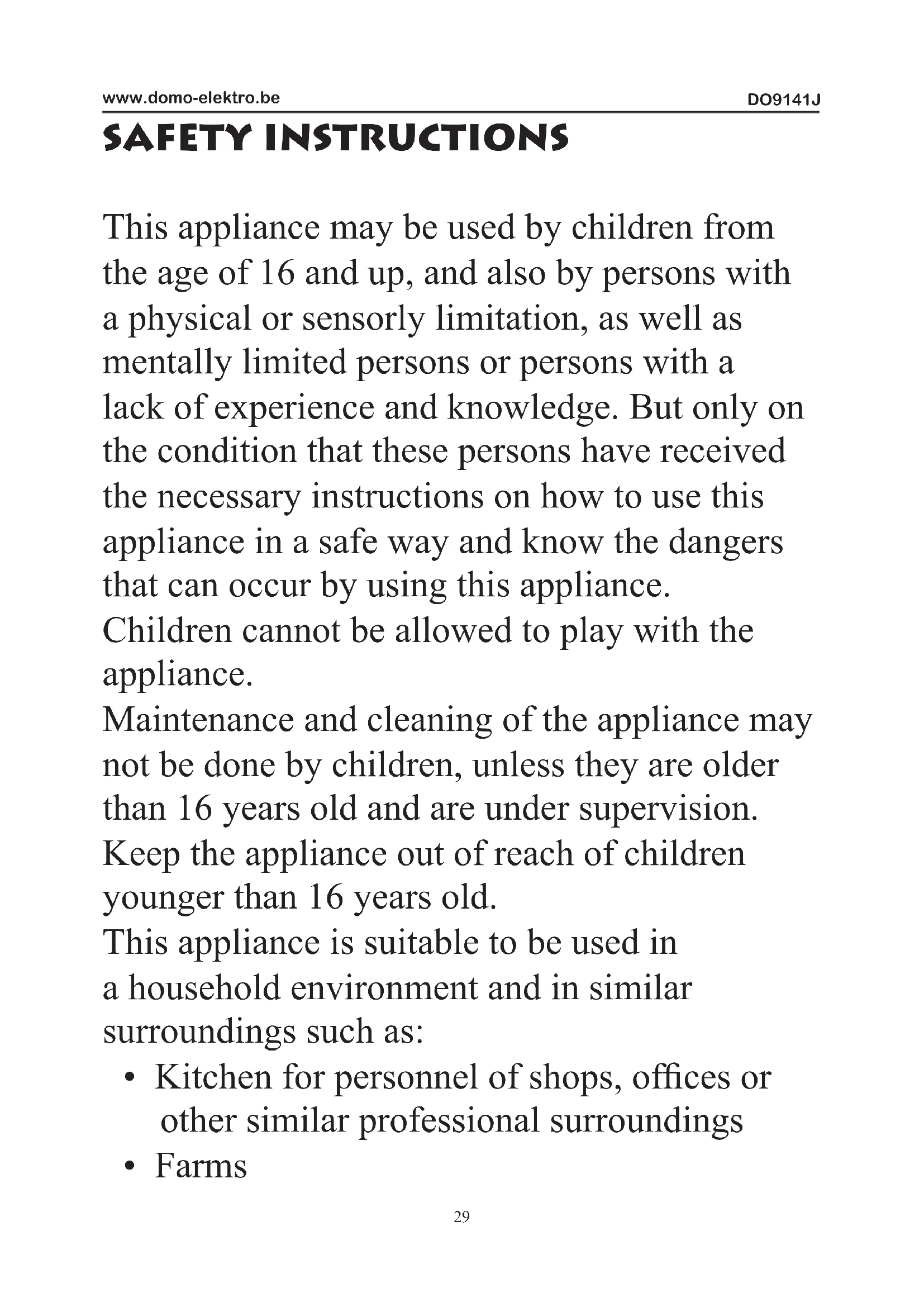

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.

Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

- Kitchen for personnel of shops, offices or other similar professional surroundings

- Farms

• Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts

and before cleaning the appliance. Put all buttons and knobs into the ‘off’ position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.

• Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
• Always use the appliance on a steady, dry and level surface.
• Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Never immerse the appliance, the cord or the plug in water or any other liquid.
• Make sure that children do not touch the cord or appliance.
• Keep the cord away from sharp edges and

hot parts or other heat sources.

- Before use, remove all packaging materials and any promotional stickers.

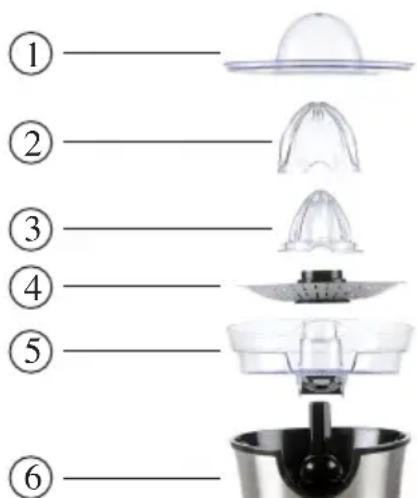

COMPONENTS

1. Lid
2. Head orange
3. Head lemon
4. Sieve
5. Dish
6. Stainless steel body
7. Juice outlet with anti-drip system

⑦

①

②

③

4

5

6

Close-up of a stainless steel electric water heater with a black handle (no visible text or symbols)

USE

1. Unwind the electrical cord and plug in the unit.
2. Place a glass or bowl under the juice outlet for the juice.
3. Cut the fruit in two halves.
4. Press down the juice outlet for opening and the juice can flow out.
5. Remove the lid.
6. Place the fruit on the head and press it down.
7. Press for 15 sec. than let the unit rest for 15 sec.
8. Click the juice outlet up before removing the glass. Now the drips can't flow out anymore.

CLEANING

• When the operation has finished, unplug the unit.
• Remove the lid and the sieve.
• Clean the sieve under running water.
• Remove the dish.
• Clean the lid, the sieve and the dish in warm water with a mild detergent.
• Clean the outside of the unit with a soft dry cloth.
• Never immerse the unit in water.

PROBLEM SHOOTING

When problems occur with the unit check below problems and their solutions. If the problem isn't solved, get in contact with the distributor or his after sales service.

PROBLEM :

The unit doesn't operate when pressing the head.

PROBABLE CAUSES:

1. The plug isn't properly plugged in.
2. The voltage of the unit doesn't correspond with the voltage at your home.
3. The unit isn't correctly assembled.

SOLUTIONS

1. Plug in the plug.
2. Check the voltage.
3. Disassemble and reassemble the unit.

Get in contact with the distributor or his after sales service.

PRECAUCIONES IMPORTANTES

Close-up of a mechanical device with a handle and internal components, labeled with number 7 (no text or symbols on the device itself)

Exploded view diagram of a coffee maker with numbered parts for identification

Uso

Close-up of a kitchen appliance with a handle and blade, labeled with number ⑦ (no text or symbols on the device itself)

Exploded view diagram of a coffee maker with numbered parts for identification

POUŽITÍ

Close-up of a kitchen appliance with a handle and spool, labeled with number 7 (no text or symbols on the appliance itself)

⑥ kat' von.

POUŽITIE

Two cylindrical milk glasses on a plain white surface (no text or symbols visible)

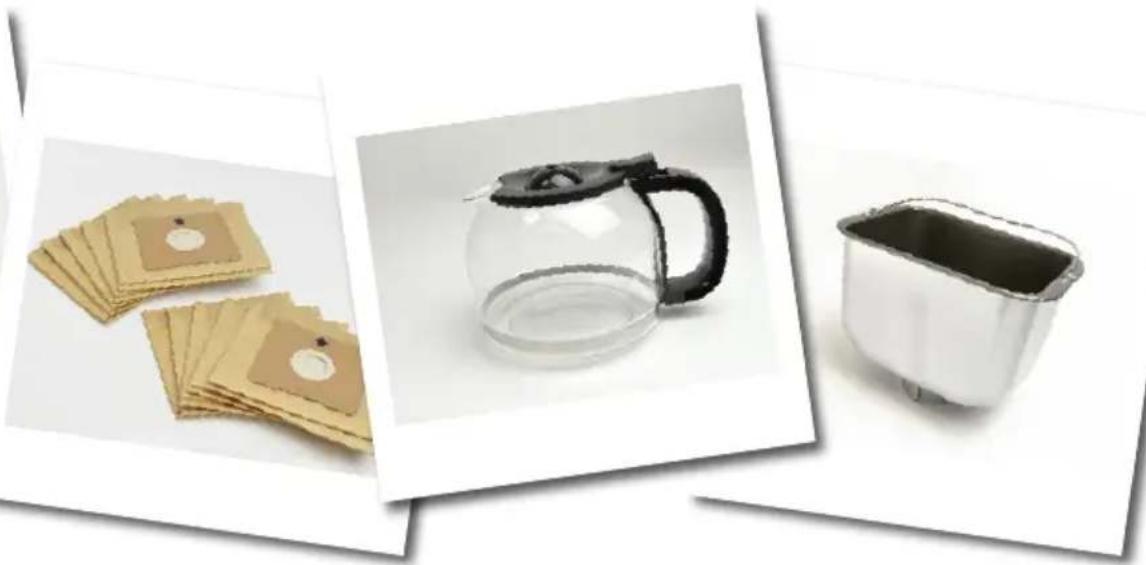

Three product photos: cardboard sheets, a clear glass coffee maker, and a white bowl (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
