TAC 1500 - Air purifier TROTEC - Free user manual and instructions

Product type	Air purifier
Brand	Trotec
Model	TAC 1500
Dimensions (L x W x H)	705 x 362 x 377 mm
Weight	20 kg
Power supply	230 V / 50-60 Hz, 1.3 A
Motor power	175 W
Max. airflow (without filter)	Up to 1,400 m³/h
Recommended airflow (category H)	500 m³/h
Sound level at 1 m	61 dB(A)
Air hose connection	DN 200 mm
Dust category (DIN 60335-2-69)	H (transmission rate ≤ 0.005 %)
Compatible filters	G4, F7-F9, HEPA H13, M5-F9 bag filter, activated carbon (optional)
Vario-Shift function	Flexible filter configuration (negative pressure or positive pressure)
Operating modes	Recirculation, negative pressure, positive pressure, ventilation
Filter replacement indicator	LEDs and audible alarm for pre-filter and main filter
Maintenance	Clean housing with damp cloth; replace filters according to indicators
Safety	Overvoltage protection, emergency stop, minimum distance to walls
Included accessories	Unit, instruction manual
Available spare parts	Yes (filters, casters, frame, fan, etc.) – see manual
Standards and certifications	CE, EN 60335-2-69, TRGS 519 asbestos removal, class H
Intended use	Indoor air purification in commercial premises and construction sites

Frequently Asked Questions - TAC 1500 TROTEC

Which filters can I use with the TAC 1500?

The TAC 1500 accepts a wide range of filters: G4 pre-filter, fine filter F7 to F9, HEPA H13 filter (category H), M5-F9 bag filter, and activated carbon filter. Filters are not included with the delivery and must be selected according to the application.

How do I install filters in the device?

Remove the side panels by pushing them upwards, open the lever fasteners, then insert the filters into the designated housings (housing 1 for pre-filter, housing 2 for main filter). Observe the direction of airflow (from back to front). Close the fasteners and replace the panels.

How do I know when to replace a filter?

The device is equipped with two indicators: a LED and an audible alarm for the pre-filter (19) and another for the main filter (18). When they light up and the alarm sounds, replace the corresponding filter.

Can I use the device without a filter?

No, it is imperative to always use the device with a filter installed on the air intake. Without a filter, the interior quickly becomes dirty, reducing performance and risking damage to the device.

What is the Vario-Shift function?

The Vario-Shift function allows you to configure the filter chain according to the application. You can arrange the filter housings in negative pressure (fan after the filter) or positive pressure (fan before the filter) as needed.

How do I adjust the airflow?

Use the rotary knob (20) on the control panel. Turn clockwise to increase the airflow, counterclockwise to decrease it. The regulation is continuous.

The device is noisy or vibrating, what should I do?

Check that the device is placed on a stable, horizontal surface and is well vertical. Make sure the casters are in good condition and that nothing blocks the air inlets/outlets.

Can I use the TAC 1500 for asbestos removal?

Yes, the device is approved for asbestos removal according to the TRGS 519 standard with a HEPA H13 filter and appropriate configuration (dust category H).

What is the minimum distance to maintain around the device?

Refer to the technical appendix for exact distances. In general, provide enough space so that the air inlet and outlet are free, and maintain a gap of at least 1 m between air openings in hose mode.

How do I clean the housing of the device?

Use a soft, damp, lint-free cloth. Do not use harsh detergents, solvents, or abrasive products. Ensure no moisture enters the interior, especially near electrical components.

USER MANUAL TAC 1500 TROTEC

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Sicherheit

Technical line drawing of a large industrial machine with ventilation grilles and control panels (no text or symbols)

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

Technical diagram of a grid-patterned industrial enclosure with an inset close-up showing a component (no text or symbols)

Version II - alternativ:

3 2 1 III II I 9 10

Diagram showing a mechanical component with directional arrows, including a magnified inset of a cylindrical component (no text or symbols)

Inbetriebnahme

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile with a flashlight and a device, showing correct and incorrect eye movements.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

Technical diagram of an oven with numbered components for identification

Technical diagram of an air conditioning unit with numbered components and exploded view

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

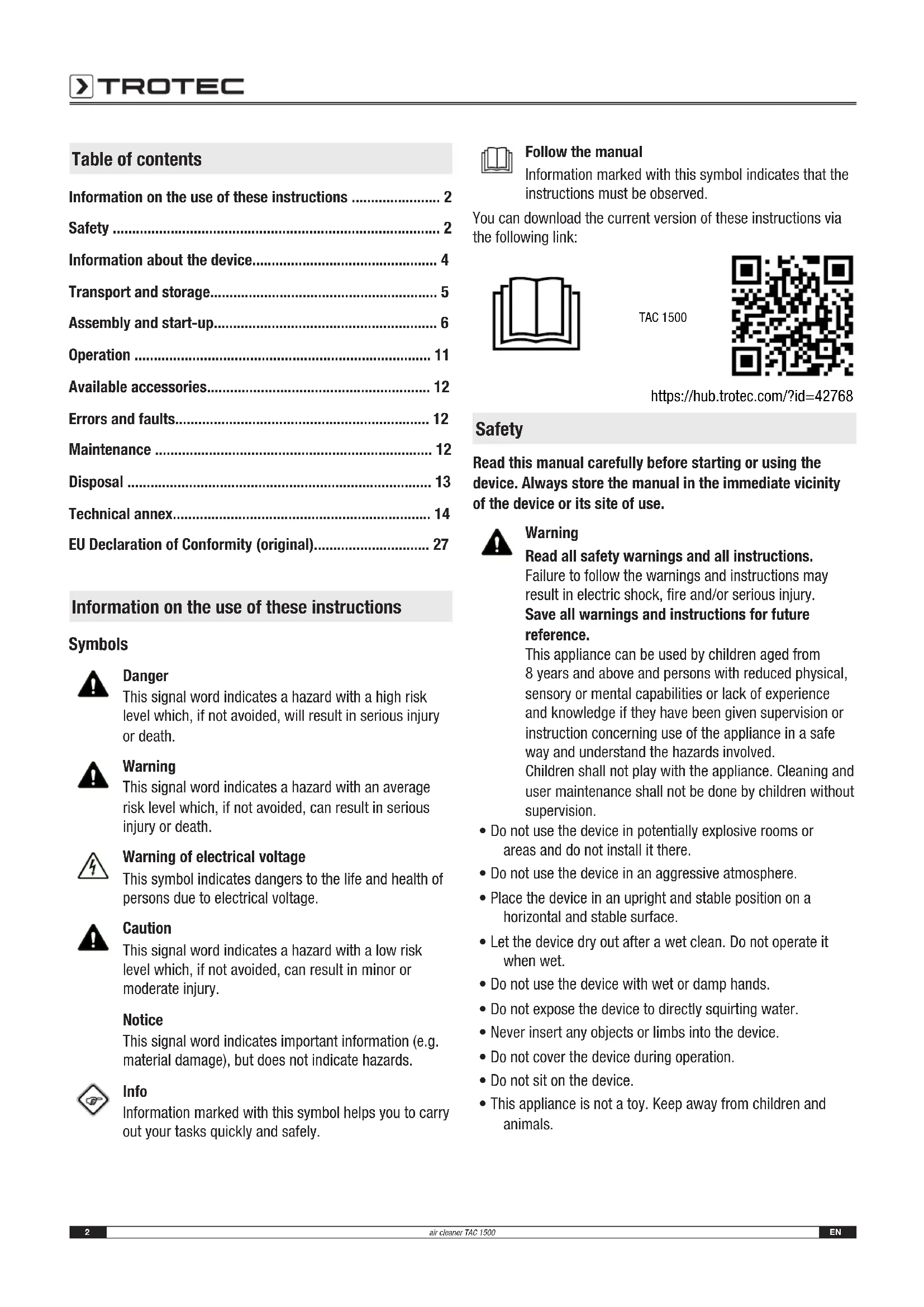

Information on the use of these instructions .... 2

Safety 2

Information about the device....4

Transport and storage.... 5

Assembly and start-up....6

Operation 11

Available accessories.... 12

Errors and faults.... 12

Maintenance 12

Disposal 13

Technical annex....14

EU Declaration of Conformity (original)...... 27

Information on the use of these instructions

Symbols

Danger

This signal word indicates a hazard with a high risk level which, if not avoided, will result in serious injury or death.

Warning

This signal word indicates a hazard with an average risk level which, if not avoided, can result in serious injury or death.

Warning of electrical voltage

This symbol indicates dangers to the life and health of persons due to electrical voltage.

Caution

This signal word indicates a hazard with a low risk level which, if not avoided, can result in minor or moderate injury.

Notice

This signal word indicates important information (e.g. material damage), but does not indicate hazards.

Info

Information marked with this symbol helps you to carry out your tasks quickly and safely.

Follow the manual

Information marked with this symbol indicates that the instructions must be observed.

You can download the current version of these instructions via the following link:

TAC 1500

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Safety

Read this manual carefully before starting or using the device. Always store the manual in the immediate vicinity of the device or its site of use.

Warning

Read all safety warnings and all instructions.

Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision.

• Do not use the device in potentially explosive rooms or areas and do not install it there.
• Do not use the device in an aggressive atmosphere.
• Place the device in an upright and stable position on a horizontal and stable surface.
• Let the device dry out after a wet clean. Do not operate it when wet.
• Do not use the device with wet or damp hands.
• Do not expose the device to directly squirting water.
• Never insert any objects or limbs into the device.
• Do not cover the device during operation.
• Do not sit on the device.

• This appliance is not a toy. Keep away from children and animals.

• Check accessories and connection parts for possible damage prior to every use of the device. Do not use any defective devices or device parts.

• Ensure that all electric cables outside of the device are protected from damage (e.g. caused by animals). Never use the device if electric cables or the power connection are damaged!
• The mains connection must correspond to the specifications in the Technical annex.
• Insert the mains plug into a properly fused mains socket.
• Observe the technical data when selecting extensions to the power cable. Completely unroll the extension cable. Avoid electrical overload.
• Before carrying out maintenance, care or repair work on the device, remove the mains plug from the mains socket. Hold onto the mains plug while doing so.
• Switch the device off and disconnect the power cable from the mains socket when the device is not in use.
• Do not under any circumstances use the device if you detect damages on the mains plug or power cable. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent. Defective power cables pose a serious health risk!
• When positioning the device, observe the minimum distances from walls and other objects as well as the storage and operating conditions specified in the Technical annex.
• Make sure that the air inlet and outlet are not obstructed.
• Make sure that there are no loose items or dirt located in the immediate surroundings of air inlet and air outlet.
• Do not remove any safety signs, stickers or labels from the device. Keep all safety signs, stickers and labels in legible condition.
• Make sure that the suction side is kept free of dirt and loose objects.
• Dispose of replaced filters properly, especially after filtering substances hazardous to health.
• Never use the device as storage place or footstep.

Intended use

Only use the device to clean atmospheric air from non-conducting and non-combustible dusts, fogs or suspended matter whilst using the appropriate filter classes and adhering to the technical data.

The device is intended to be used in commercial areas.

Any use other than the intended use is regarded as misuse.

Reasonably foreseeable misuse

• Do not place the device on wet or flooded ground.
• Do not place any objects, e.g. clothing, on the device.
• Do not use outdoors.
• Do not use the device to siphon off vapours or fluids.
• Do not make any unauthorised modifications, alterations or structural changes to the device.

Personnel qualification

People who use this device must:

• have basic knowledge of how to safely handle electrical equipment.
• have read and understood the instructions, especially the Safety chapter.

Electrically skilled person

Electrically skilled personnel must be able to read and understand electric circuit diagrams, to put electrical systems into service and to maintain them, to wire control cabinets, to ensure the functionality of electrical components and to identify possible hazards from electrical and electronic systems.

Instructed person

Instructed persons have been informed of the tasks they were entrusted with as well as of potential hazards resulting from inappropriate behaviour. They are allowed to operate and transport the device and perform simple maintenance activities (cleaning the housing, cleaning the fan).

The device is to be maintained and looked after by instructed personnel.

Residual risks

Warning of electrical voltage

Work on the electrical components must only be carried out by an authorised specialist company!

Warning of electrical voltage

Before any work on the device, remove the mains plug from the mains socket!

Do not touch the mains plug with wet or damp hands. Hold onto the mains plug while pulling the power cable out of the mains socket.

Caution

Risk of injury from parts being whirled up!

Before switching the device on, make sure that there are no loose parts (clothing, hair ...) located near the air inlet or outlet!

Notice

Observe the overvoltage protection.

The device comes equipped with an overvoltage protection. When checking for electrical safety, please bear in mind that the test voltage has to be reduced to 250 V.

Notice

Do not operate the device without an air filter inserted into the air inlet!

Without the air filter, the inside of the device will be heavily contaminated. This can reduce the performance and result in damage to the device.

Notice

Do not use abrasive cleaners or solvents to clean the device.

Behaviour in the event of an emergency

1. Switch the device off.
2. Disconnect the device from the mains by removing the mains plug from the socket. When doing so, be sure to hold the plug, not the cable.
3. Do not reconnect a defective device to the mains.

Information about the device

Device description

Air cleaners are used to filter the room air. On building sites and renovation areas high concentrations of dust can arise, for instance when using angle grinders or during blasting, chiselling or demolition operations as well as when mixing dry mortar or tile cement.

Depending on the inserted filter, the air cleaners of the TAC series serve to eliminate various dusts, e.g. from asbestos, building rubble, quartz, flour, wood, etc., but also mould spores, paint particles and mineral fibres in the air, possibly arising during the above-mentioned operations.

This dust is to be vacuumed off as close as possible to the point of origin in order to reduce the pollution of the breathing air to a minimum. Depending on the used filter quality it is permissible to employ the device for the separation of quartziferous mineral dusts, wood dust, lead-containing dusts, artificial mineral fibres or high-temperature fibres.

Application as vacuum generator for mould remediation and asbestos abatement is also a possibility. In case of other hazardous substances there are additional requirements; hence observe the corresponding Technical Rules for Hazardous Substances (TRGS) or the country-specific regulations.

The device is suited for:

• producing a vacuum in a room, e.g. in heavily contaminated spaces;
- air purification in workspaces via air circulation, e.g. indoor building sites, workshops etc.;
• producing overpressure in a room, e.g. cleanroom;
• supplying filtered fresh air.

The device is structured as follows:

• housing with stacking aid
• adjustable fan for air transport
• filter monitoring for air volume flow

The device may be equipped with various filters. It provides the user with the possibility of configuring both the filter quality and the filter chain arrangement for the respective field of application. The filters must be selected according to the area of application.

The device is approvable for asbestos abatement as per TRGS 519, dust class H.

Info

The filters are not included in the scope of delivery! Choose the filters according to the area of application from our filter range. Insert the selected filters prior to initial start-up.

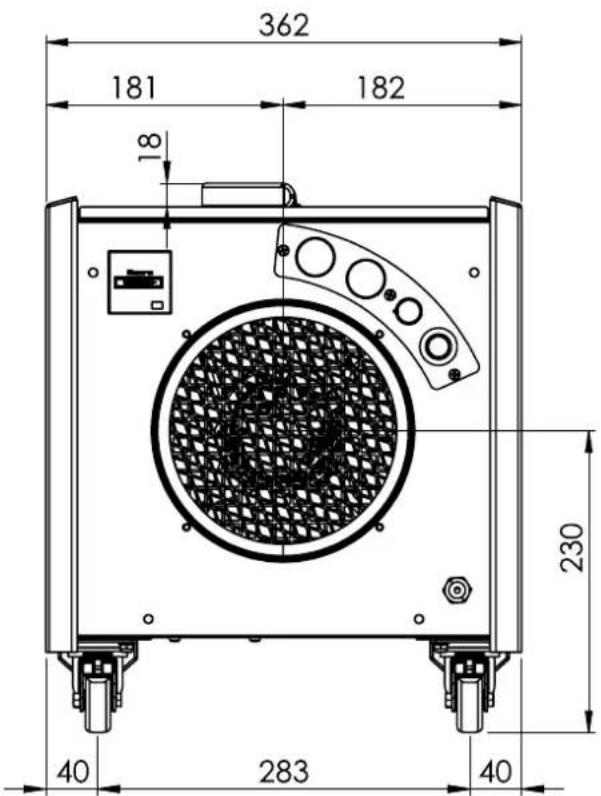

Device depiction

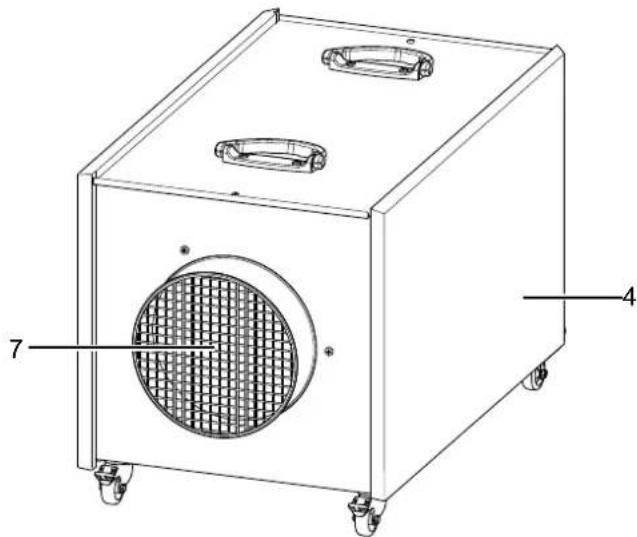

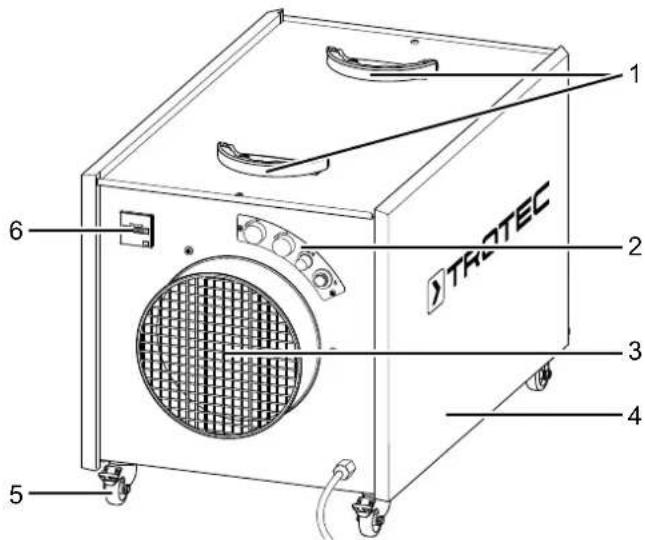

1 2 3 4 5 6 TROTEC

Technical line drawing of a rectangular industrial machine with internal fan and labeled parts (no text or symbols beyond labels)

No. Designation

1 transport handles

2 control panel

3 air outlet opening

4 side panel (service flap)

5 wheel

6 operating hours counter

7 air inlet opening

Transport and storage

Notice

If you store or transport the device improperly, the device may be damaged.

Note the information regarding transport and storage of the device.

Transport

Before transporting the device, observe the following:

• The device is switched off.
- The device is disconnected from the mains and the mains plug has been disconnected.

After transporting the device, proceed as follows:

- The device has been set up in an upright and stable position.

Storage

When the device is not being used, observe the following storage conditions:

• Store the device in a dry location and protected from frost and heat.
• Store the device in an upright position where it is protected from dust and direct sunlight.
• If required, use a cover to protect the device from invasive dust.

Assembly and start-up

Scope of delivery

- 1 x Device

- 1 x Manual

Unpacking the device

Warning

There is a danger of suffocation for children due to packaging material! Keep packaging films and parts away from children. There is a risk of death due to suffocation.

1. Open the cardboard box and take the device out.

2. Completely remove the packaging.

3. Fully unwind the power cable. Make sure that the power cable is not damaged and that you do not damage it during unwinding.

Assembly

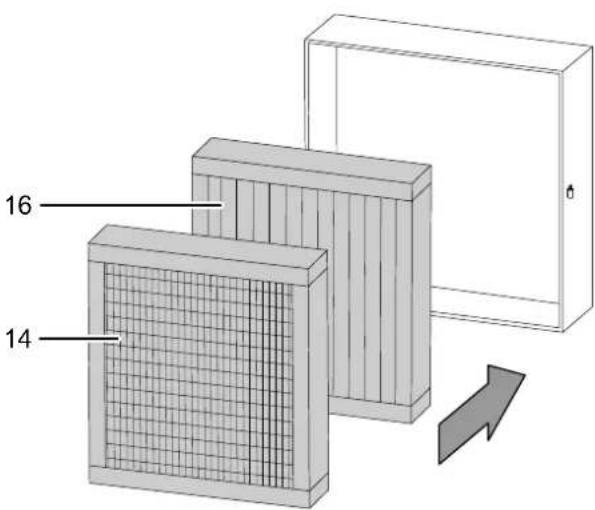

Inserting the filters

Info

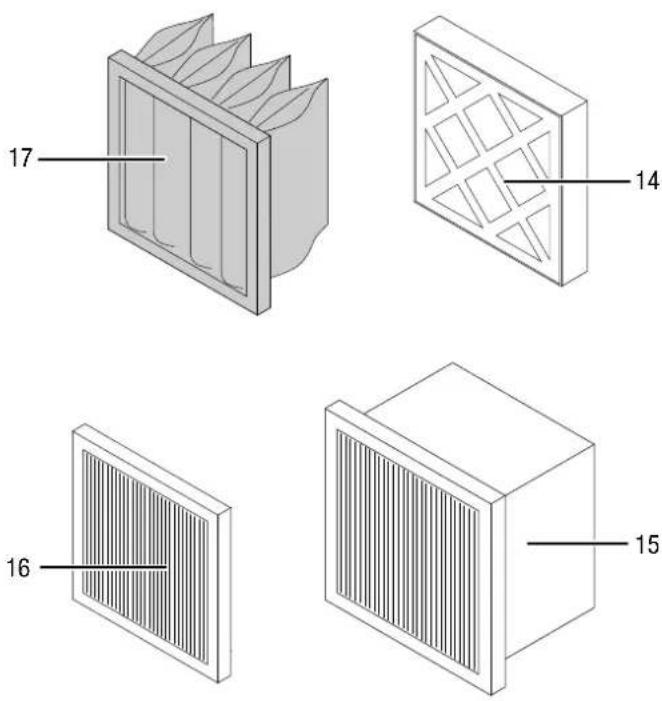

The filters are not included in the scope of delivery! Choose the filters according to the area of application from our filter range. Insert the selected filters prior to initial start-up.

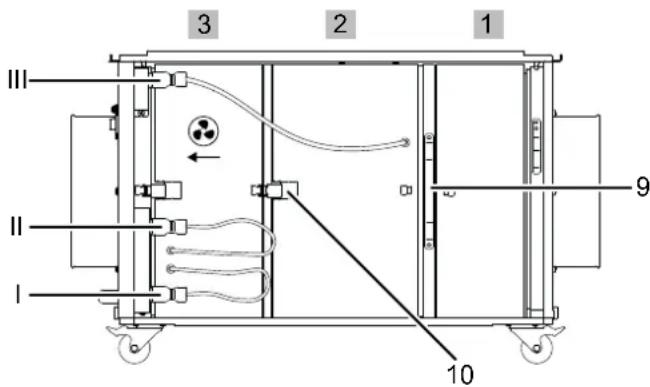

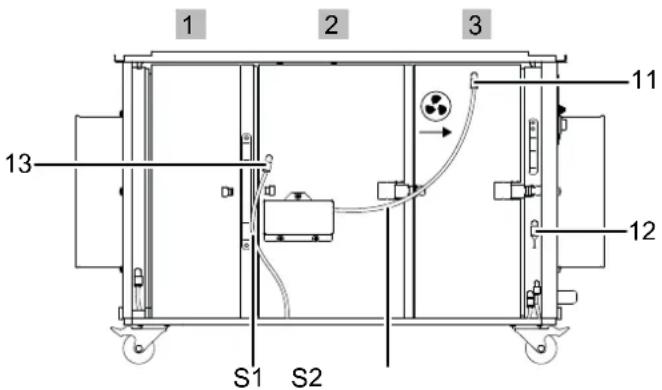

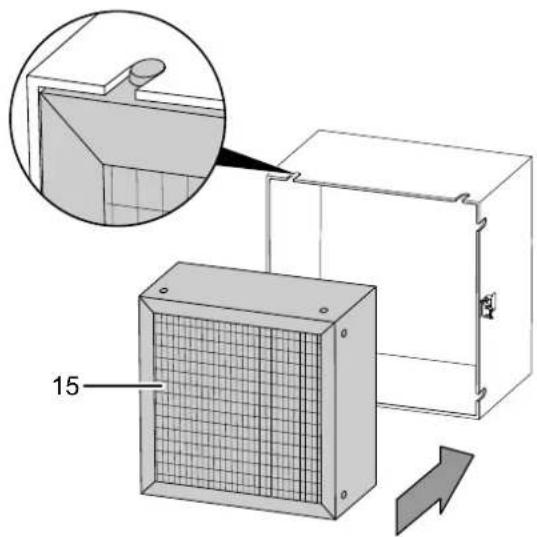

Prior to start-up the filter chain of the device must be configured according to the desired field of application. For this, two filter boxes are available.

The filter boxes are located behind the lateral service flaps (4).

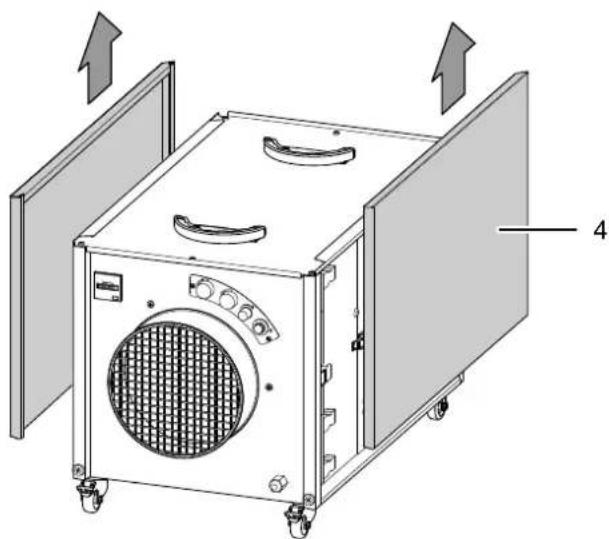

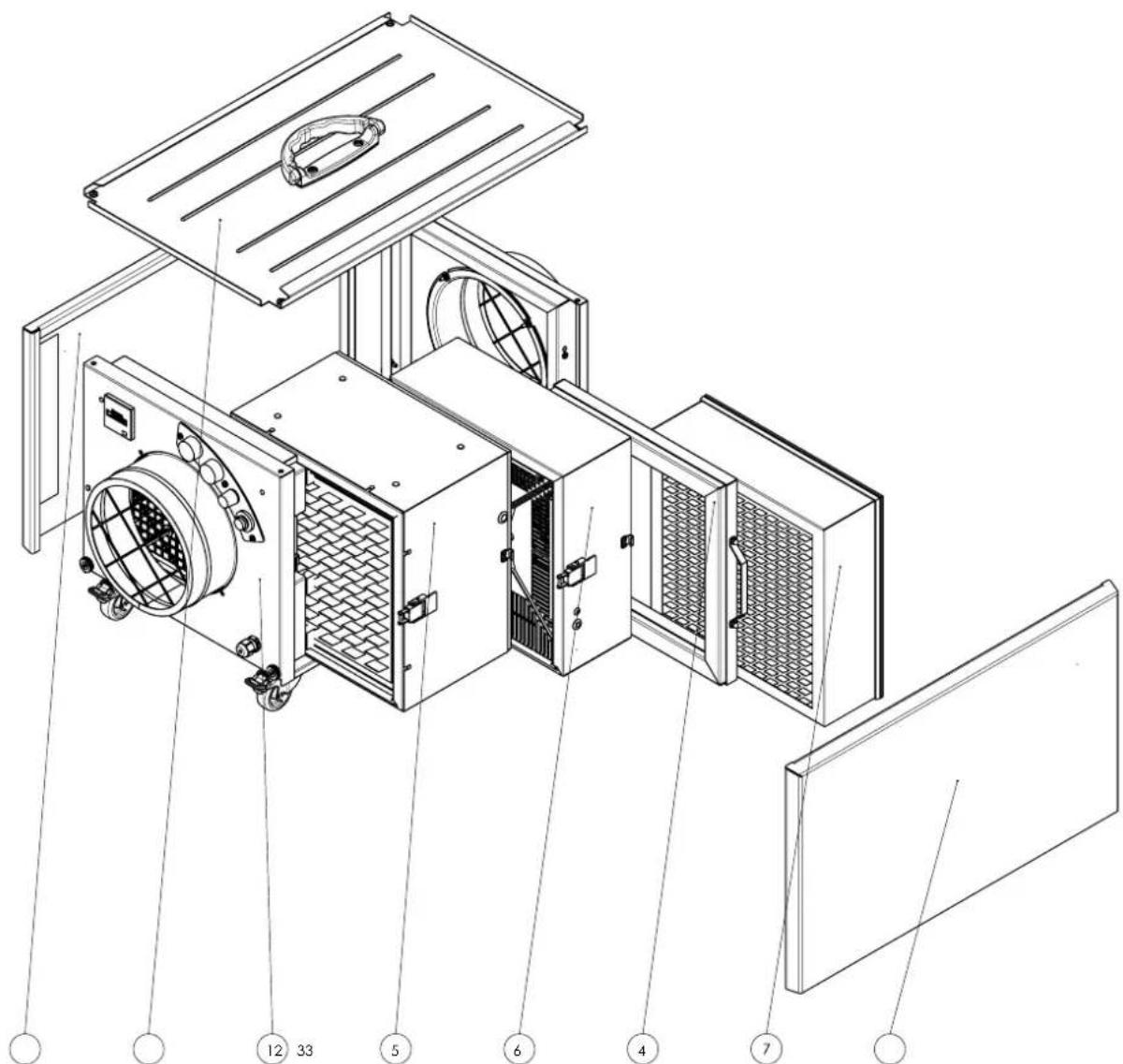

1. For filter mounting remove the two side panels (4) towards the top.

Technical line drawing of a large industrial machine with fan and control panel (no text or symbols)

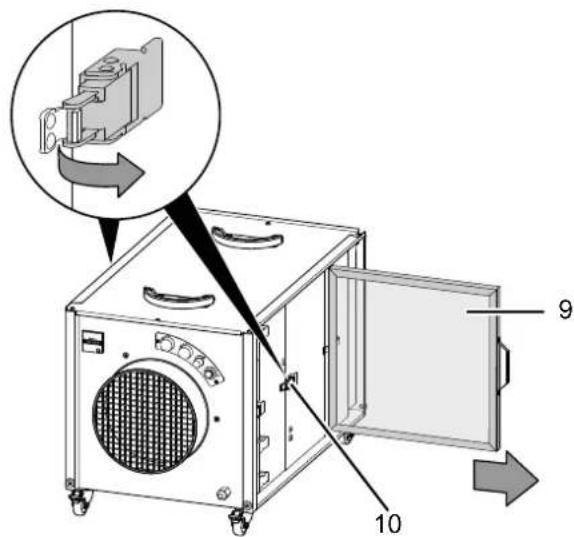

1. Open the tension locks (10) on both sides of the device.

2. First pull out the tensioning frame (9).

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

1. Remove further boxes from the device as required.

Notice

For all filter installations always observe the correct flow direction according to the direction of the air current (air flow direction: from back to front)!

BOX 1: PRE-FILTER BOX

The pre-filter box can be equipped with a coarse filter G and/or a fine filter F.

We recommend using at least one coarse filter for pre-cleaning, so as to maximize the service life of the subsequent filter.

• coarse filter G: Z-line filter G4 (14)
- fine filter F: pleated M5 to F9 (16)

The coarse filter is to be assembled in a way that it is the first in the air stream.

16 14

BOX 2: FILTER BOX

One of the following main filter types is inserted in the FILTER BOX.

Version I:

High-efficiency particulate air filter: E10 to H14 or dust class M to H (15)

The high-efficiency particulate air filter is inserted in the filter box with its clip-on frame as follows:

1. Pull the clip-on frame out of the guiding grooves.
2. Attach the clip-on frame to the air outlet side of the HEPA filter.
3. Push HEPA filter and clip-on frame into filter box 2.

Make sure that the clip-on frame again fits into the guiding grooves. If applicable, place the HEPA filter with the clip-on frame on a table and fit filter box 2 to the clip-on frame from above.

15

Version II – alternative:

Bag filter: M5 to F9

When a bag filter is used, the fine filter in pre-filter box 1 may be omitted.

The bag filter is simply inserted in the filter box without further assembly. The clip-on frame does not need to be removed for this.

Notice

When the device warns of a spent pre-filter (box 1) or main filter (box 2), still a flow rate of 500m^3/h (TAC 1500) or 1000m^3/h (TAC 3500) is ensured. For an effective filtration of pollutants the scheduled directives of the (German) employer's liability insurance association recommend to exchange the filter.

Filter types (not included in the scope of delivery)

The designated air filters are especially geared to these devices and come with the largest possible filter surface based on the geometric dimensions. This ensures maximum air flow rate and service life for safe operation.

17 14 16 15

No. Designation

14 Z-line filter G4

15 HEPA filter E10 to H14 / dust class M + H

16 pleated filter M5 to F9

17 bag filter M5 to F9

The Vario-shift function provides the user with the possibility of selecting the filter quality and the filter ladder according to the case of application and the applicable rules and regulations.

Filter ladder and configuration depend on the pollutant particle size, filtration efficiency and the field of application. The filter technology is monitored by sensors. For proper monitoring of the filter function sensor hose lines are connected to both filter boxes.

Configuration A

General configuration for the air filtration of coarse dusts and fine particulates or the separation of suspended matter according to EN 60335-2-69 up to dust class H. Here the filtration of dust particles and other suspended material harmful and hazardous to health has priority. The filter ladder must be operated in a vacuum, i.e. with terminal fan: the fan is to be arranged downstream of the main filter FILTER BOX 2.

Configuration B

Here air is usually lead from a contaminated area into a clean area, e.g. as filtered fresh air supply. Suspended matter as per EN 1822-1:1998 up to filter class H14 can be filtered, a higher filtration efficiency is possible with a reduced air volume. The filter ladder is operated at excess pressure, i.e. with terminal fine filter: the fan is to be arranged upstream of the main filter FILTER BOX 2.

The TAC series is equipped with Vario-shift function. This means that the filter elements can be variably arranged for all application scenarios and in line with the regulations.

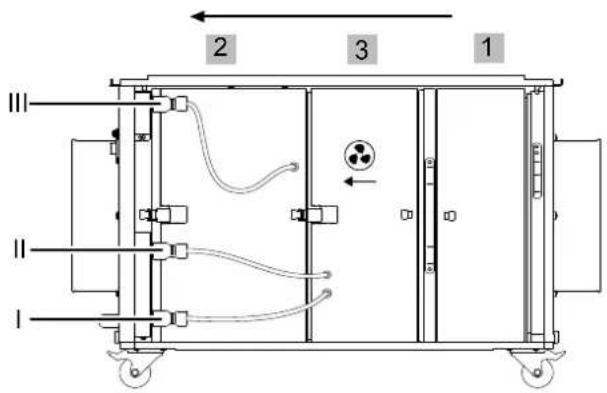

Side view electrics:

3 2 1 III II I 9 10

No. Designation
1	PRE-FILTER BOX: COARSE FILTER G and/or FINE FILTER F
2	FILTER BOX: HEPA filter or bag filter
3	FAN BOX
I	connection for filter box 2
II connection for fan control
III	connection for fan box 3
9 tensioning frame
10 tension lock

Side view sensor hose side:

1 2 3 11 12 13 S1 S2

No. Designation
S1 sensor hose S1
S2 sensor hose S2
11	measuring position for fan box 3
12 measuring position for frame (here with dummy plug)
13	measuring position for filter box 2

Arranging and connecting filter boxes

For maximum efficiency bag and Z-line filters are to be assembled vertically.

1. Place PRE-FILTER BOX 1 with inserted filter to the first position behind the air inlet opening.
2. Insert FILTER BOX 2 and FAN BOX 3 according to the desired configuration.
3. Insert the tensioning frame behind PRE-FILTER BOX 1.
4. Close all tension locks, both on the side of the electrics and on the sensor hose side.

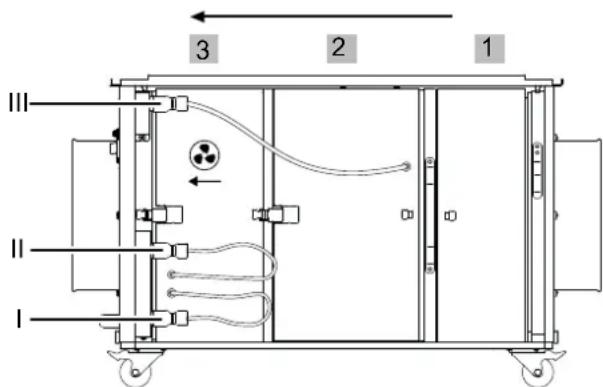

5. Connect the cable connections on the side of the electrics to the corresponding plugs:

	Plug Cable Connection
CABLE 1	black grey III
CABLE 2	white black II
CABLE 3	black black I

Configuration A:

3 2 1 Ⅲ Ⅱ Ⅰ

Configuration B:

2 3 1 Ⅲ Ⅱ Ⅰ

Then connect the two sensor hoses on the sensor hose side in accordance with the selected configuration:

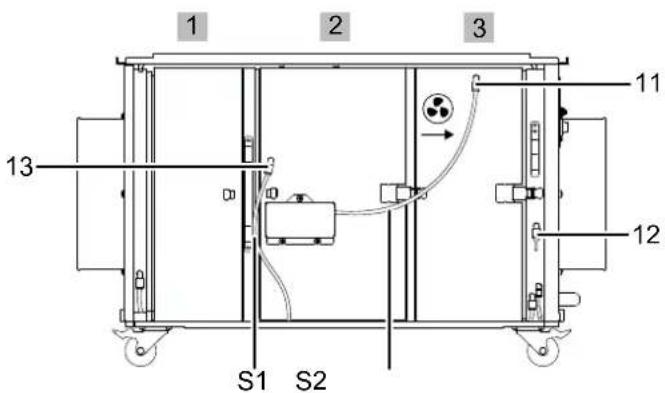

Configuration A

(11): sensor hose S2 => fan box 3
(12): dummy plug B => frame
(13): sensor hose S1 => filter box 2

1 2 3 11 13 S1 S2 12

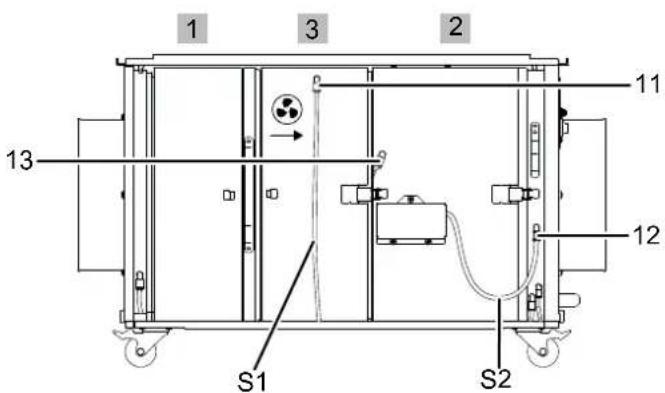

Configuration B

(11): sensor hose S1 => fan box 3
(12): sensor hose S2 => frame
(13): dummy plug B => filter box 2

1 3 2 11 13 S1 S2 12

Notice

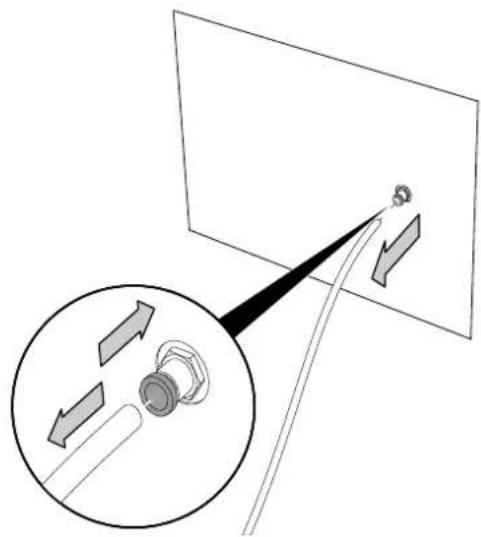

Push the sensor hoses firmly into the corresponding sensor socket until the hose securely clicks into place. The dummy plug has to be relocated depending on the configuration – for proper functioning the sensor sockets must not remain open.

In order to remove hose or dummy plug, press the outer ring of the measuring point and pull hose or dummy plug at the same time.

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

Start-up

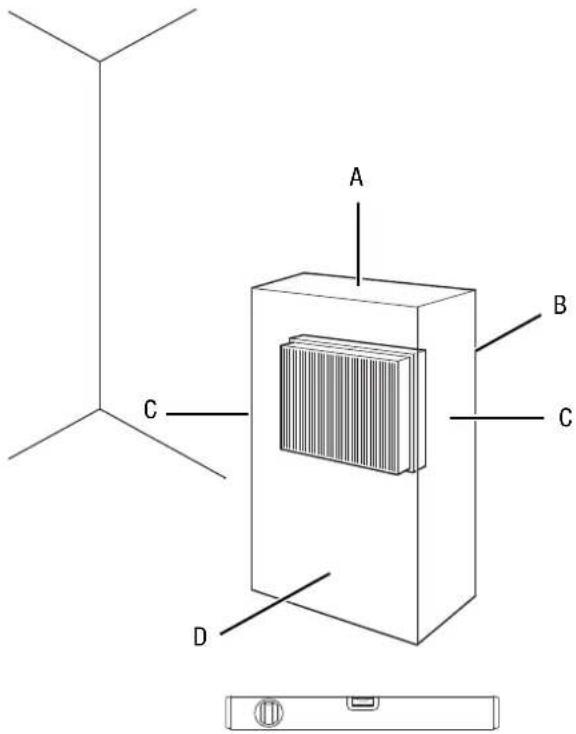

When positioning the device, observe the minimum distance from walls or other objects as described in the chapter Technical annex.

A B C C D

- Before restarting the device, check the condition of the power cable. If there are doubts as to the sound condition, contact the customer service.

- Place the device in an upright and stable position on a horizontal and stable surface.

- Do not create tripping hazards when laying the power cable or other electric cables, especially when positioning the device in the middle of the room. Use cable bridges.

- Ensure that the extension cables are completely unrolled.

- Position the device near the source of air contamination.

- When positioning the device, keep a sufficient distance to heat sources.

- Make sure that no curtains or other objects interfere with the air flow.

- Make sure that the air inlet and outlet are not obstructed.

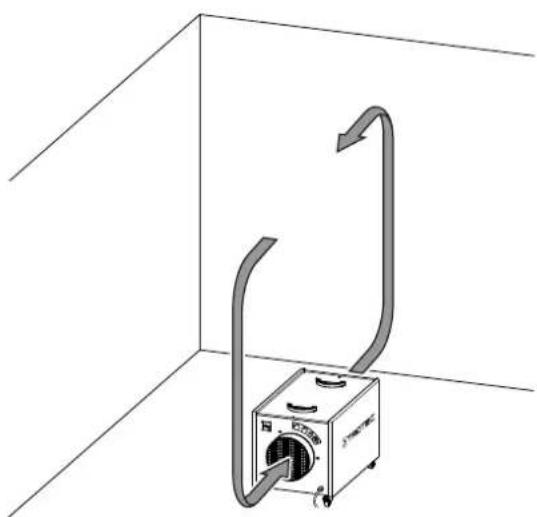

Installation of the device in the room, the air of which is to be purified

- When positioning the device, make sure it is located in the centre of the room the air of which is to be cleaned.

Alternatively, you can also position the device near the source of air contamination.

- Prior to operation you have to ensure that the filters have been installed in the device as desired.

- Also check, whether the pressure sensors are connected correctly. If the device, during operation, emits a warning of a filter being spent, the respective filter has to be replaced.

If the device issues a warning, although a new filter has only just been inserted, check whether all sensor hoses are firmly attached.

- The device works in recirculation mode, this means that the contaminated air enters the air cleaner via the air inlet opening and is blown out through the air outlet opening in purified state.

Air purification in sealed off area via air circulation:

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

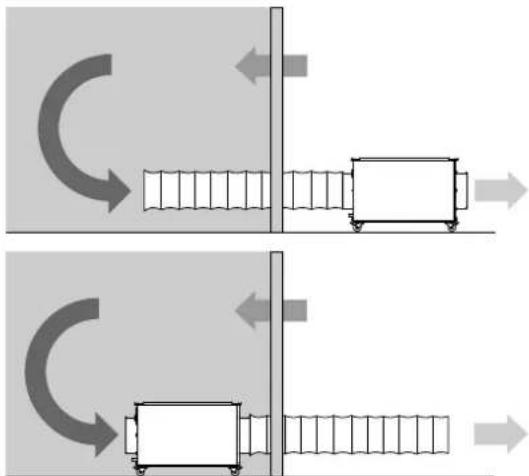

Installation of the device outside of the room, the air of which is to be purified

The device can be connected in either recirculation or ventilation mode.

- In recirculation mode, the air to be cleaned is led via a hose from the room into the air inlet opening of the device. The purified air is fed through another hose from the air outlet opening and back into the room.

- In ventilation mode, the air to be cleaned is led via a hose from the room into the air inlet opening of the device. This creates a slight negative pressure in the room. Clean, fresh air flows in from outside.

Installation variants for maintaining the pressure:

Two identical diagrams showing a train moving on a vertical post with curved arrows indicating motion, no text or symbols present.

When connecting hoses, the following must be observed:

- The used pipes and hoses must be designed for the available static compression of the fans. They should preferably be laid in a straight line and at full length. 7.6 m of air hose each can be connected to the air inlet and air outlet openings of the device.

- There ought to be a minimum distance of 1 m between air inlet and air outlet opening.

Connecting the power cable

- Connect the mains plug to a properly secured socket.

Operation

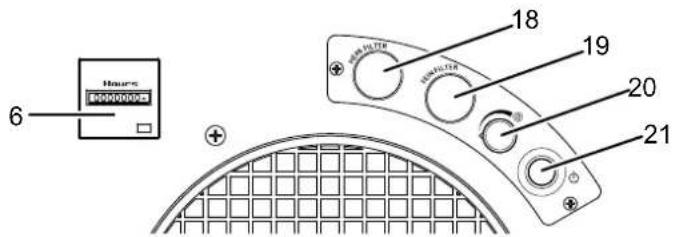

Operating elements

6 Hours 18 19 20 21

No.	Designation Meaning
6	Operating hours counter Indication of operating hours
18	Visual and acoustic filter change indicator FILTER BOX 2	Indication of required HEPA or bag filter change
19	Visual and acoustic filter change indicator PRE-FILTER BOX 1	Indication of required coarse or fine filter change
20	Air volume control dial For setting the desired air volume
21	Power button For switching the device on or off

Switching the device on

1. Ensure that air inlet and outlet are not covered.

2. Turn the air volume control dial (20) counter-clockwise to the lowest air volume.

3. Press the Power button (21). → The Power button (21) lights up.

Adjusting the air volume

By use of the infinitely variable air flow regulation you can adjust the fan speed and thus regulate the air flow rate of the device.

With the filter arrangement G4, F7 and H13 to meet the requirements of dust class H, the device with connected exhaust air hose (7.6 m, laid in 2 90° arcs) reaches an air flow rate of 600 m³/h.

If the filter change indicator (18) or (19) warns that a filter change will soon be required, a min. air flow rate of 500 m^3/h will still be ensured:

Exchange the corresponding filters in a timely manner.

1. To increase the air volume, turn the air volume control dial (20) clockwise.

2. To decrease the air volume, turn the air volume control dial (20) counter-clockwise.

Shutdown

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

- Switch off the device.

- Disconnect the device from the mains by removing the mains plug from the socket. When doing so, be sure to hold the plug, not the cable.

Available accessories

Warning

Only use accessories and additional equipment specified in the instructions. Using insertion tools or accessories other than those specified in the instructions may cause a risk of injury.

Designation Article number
G4 Z-line filter / ISO coarse 75 %	7.160.000.404
F7 pleated filter cartridge / ISO ePM10 75 %	7.160.000.409
F7 bag filter ISO ePM10 75 % 7	7.160.000.414
H13 HEPA filter approved for dust class H	7.160.000.424
G3 spray paint filter / ISO coarse 30 %	7.160.000.416
Activated carbon filter 7.165.001	1.500
Air transport hose Tronect SP-T, length 7.6 m	6.100.001.200

Errors and faults

The device has been checked for proper functioning several times during production. If malfunctions occur nonetheless, check the device according to the following list.

The device does not start:

• Check the power connection.
• Check the power cable and mains plug for damage.
• Check the on-site fusing.
• Wait for 10 minutes before restarting the device. If the device is not starting, have the electrics checked by a specialist company or by Trotec.

The device is loud or vibrates:

- Check whether the device is set up in a stable and upright position.

The device gets very warm, is loud or is losing power:

- Check the air inlet and air filter for dirt. Remove external dirt.

The device gives off an unpleasant odour:

- Smoke, e.g. dense tobacco smoke, odours and contaminations may be in the air. Ventilate the room.

The device still does not operate correctly after these checks:

Contact the manufacturer's customer service. If necessary, take the device to an authorised specialist electrical company or to the manufacturer for repair.

Maintenance

Activities required before starting maintenance

Warning of electrical voltage

Do not touch the mains plug with wet or damp hands.

• Switch the device off.
• Disconnect the device from the mains by removing the mains plug from the socket. When doing so, be sure to hold the plug, not the cable.

Warning of electrical voltage

Tasks which require the device to be opened must only be carried out by authorised specialist companies or by the manufacturer.

Notice

Observe the overvoltage protection.

The device comes equipped with an overvoltage protection. When checking for electrical safety, please bear in mind that the test voltage has to be reduced to 250 V.

Cleaning the housing

Clean the housing with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.

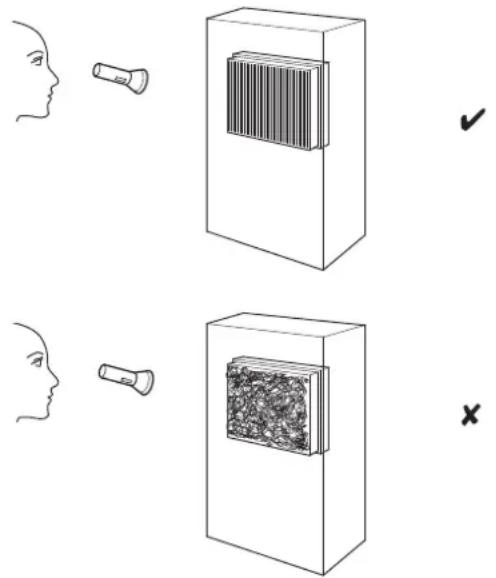

Visual inspection of the inside of the device for dirt

1. Remove the air filters.
2. Use a torch to illuminate the openings of the device.
3. Check the inside of the device for dirt.
4. If you see a thick layer of dust, clean the inside of the device with a vacuum cleaner.
5. Reinsert the air filters.

Diagram illustrating human eye vision and detection of a device, showing light path and screen capture with checkmark and cross symbols

Cleaning the inside of the device

1. First remove the filters and the filter frame as described in the Assembly and start-up chapter.
2. Clean the inside of the device and the filter frame with a soft, damp and lint-free cloth. Make sure that no moisture enters the housing. Protect electrical components from moisture. Do not use any aggressive cleaning agents such as cleaning sprays, solvents, alcohol-based or abrasive cleaners to dampen the cloth.
3. Reinsert the filters and the filter frame into the device.

Changing the filter(s)

The filters must be changed if the filter change indicator for FILTER BOX 2 (18) or PRE-FILTER BOX 1 (19) lights up during operation and an acoustic signal is emitted.

If a filter needs to be replaced, please proceed as described in the Inserting the filters section in the Assembly and start-up chapter.

Disposal

Always dispose of packing materials in an environmentally friendly manner and in accordance with the applicable local disposal regulations.

The icon with the crossed-out wheeled bin indicates that this device and any associated components must not be disposed of with household waste at the end of their life, in accordance with the Waste Electrical and Electronic Equipment Directive (2012/19/EU) and national laws.

You will find collection points for free return of waste electrical and electronic equipment in your vicinity. The addresses can be obtained from your municipality or local administration. You can also find out about other return options that apply for many EU countries on the website https://hub.trotec.com/?id=45090. Otherwise, please contact an official recycling centre for electronic and electrical equipment authorised for your country.

The separate collection of waste electrical and electronic equipment aims to enable the re-use, recycling and other forms of recovery of waste equipment as well as to prevent negative effects for the environment and human health caused by the disposal of hazardous substances potentially contained in the equipment.

Only for United Kingdom

According to Waste Electrical and Electronic Equipment Regulations 2013 (SI 2013/3113) (as amended) devices that are no longer usable must be collected separately and disposed of in an environmentally friendly manner.

Technical annex
Technical data

Parameter Value
Model TAC 1500
Article number 1.580.000.105

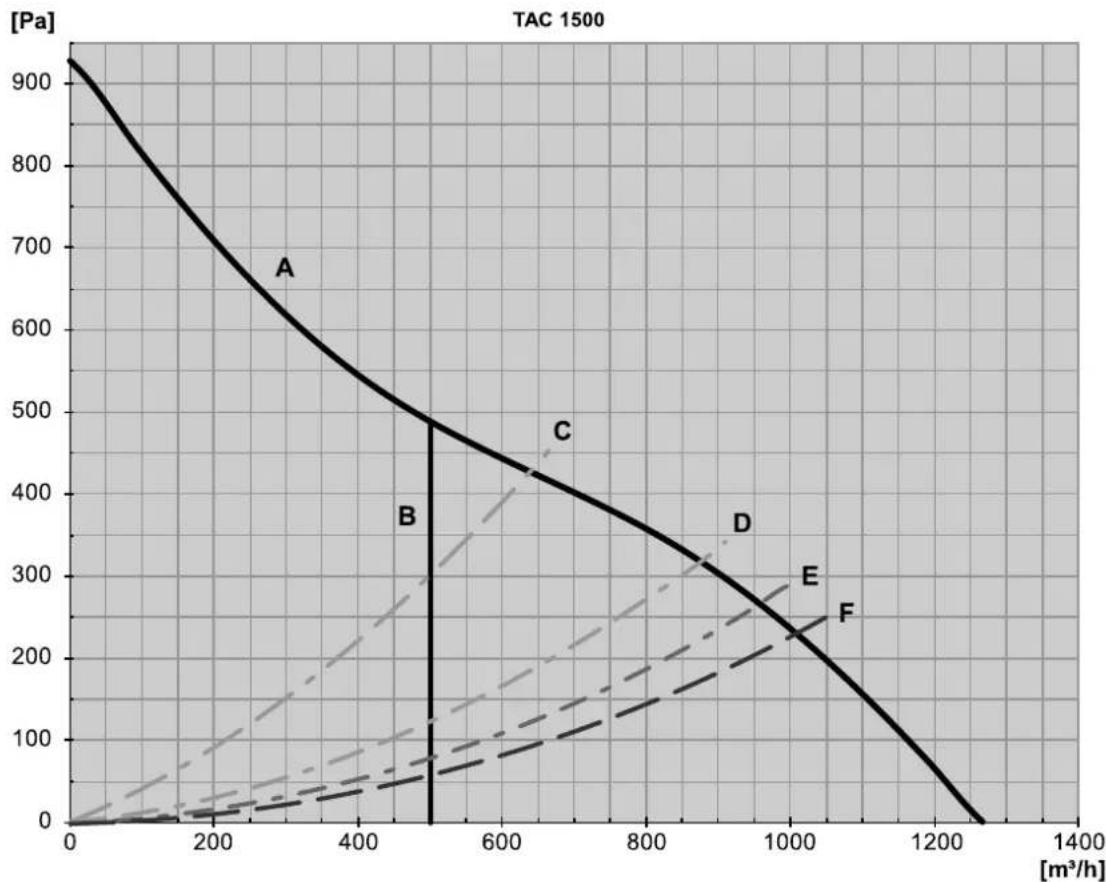

Recommended amount of air for dust class H	500 m3/h
Dust class (as per DIN 60335-2-69)	dust class H (transmittance ≤ 0.005 %) for substances with a max. allowable concentration of ≤ 0.1 mg/m3, carcinogenic hazardous substances as per GefStoffV § 11 (Ordinance on Hazardous Substances), TRGS 905 or 906 (Technical Rules for Hazardous Substances), approvable for asbestos abatement as per TRGS 519
Motor power 175 W
Power supply 1/N/PE ~ 230 V / 50–60 Hz
Nominal current 1.3 A
Connection cable CEE 7/7, cable	length 3 m rubber conduit (H05RR-F3G1) length = 3.5 m
Air transport hose connector inlet/outlet side	200 mm
Sound level (at a distance of 1 m)	61 dB(A)
Dimensions (length x width x height)	705 x 362 x 377 mm
Weight 20 kg

Recommendation for filter combinations specific to the application and corresponding room size suitability

		suitable for rooms sized up to 1)
Fields of application Filter combination m		3	m2
Coarse dust 2) (≤ 3 ACH6) G4 220 75
Fine particulates 3) (≤ 3 ACH6) G4 + F7 to F9 1	0 37
Suspended matter 4) (≤ 3 ACH6)	G4 + H13 50	17
Hygienic areas 5) (≤ 3 ACH6)	G4 + H13 35	12
1) With an assumed room height of 3 m; 2) Typical coarse dust tasks: sawing, filing; 3) Typical fine dust tasks: restoration works with materials containing minerals or glass wool; 4) Typical suspended matter tasks: grinding, asbestos abatement or mould remediation, mineral dusts etc.; 5) H13 downstream; 6) Air exchange per hour

Optional equipment (upon request)

Guiding wheels with pneumatic tyres, traceless

Trestle rollers (instead of guiding wheels)

Fork pockets for fork lifts

Performance charts

A Fan
B Recommended amount of air for dust class H
C With G4+H13 filter	combination (approval for dust class H) and air transport hose*
D With G4+F7 filter	combination and air transport hose*
E With G4 filter and air transport hose*
F Without filter, with air transport hose*
* Connected to the pressure side, standard length 7.6 m, laid with one 90° arc. When the air hose is laid stretched and arc-free, an increase of air volume by up to 25 % is possible!

Overview Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

Technical diagram of an industrial air conditioning unit with numbered components for identification

No. Designation Article number No. Designation Article number
1 Basic housing ZAT0003224 5 HEPA ZAT0003307
2 Cover ZAT0003243 6 Fan ZAT0003329
3 Panel P10002145 7 Paper filter ZAT0003337
4 Tension element ZAT0003289

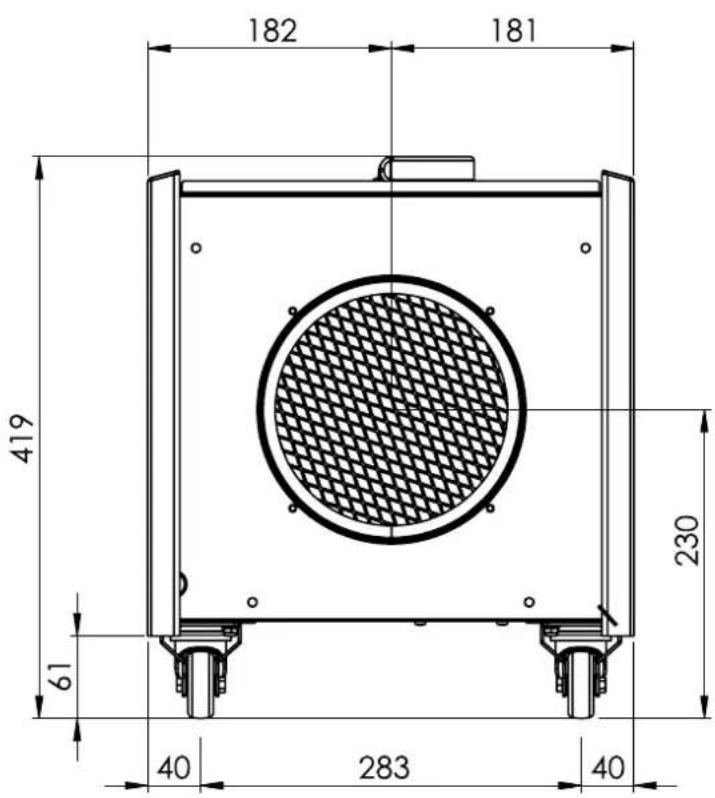

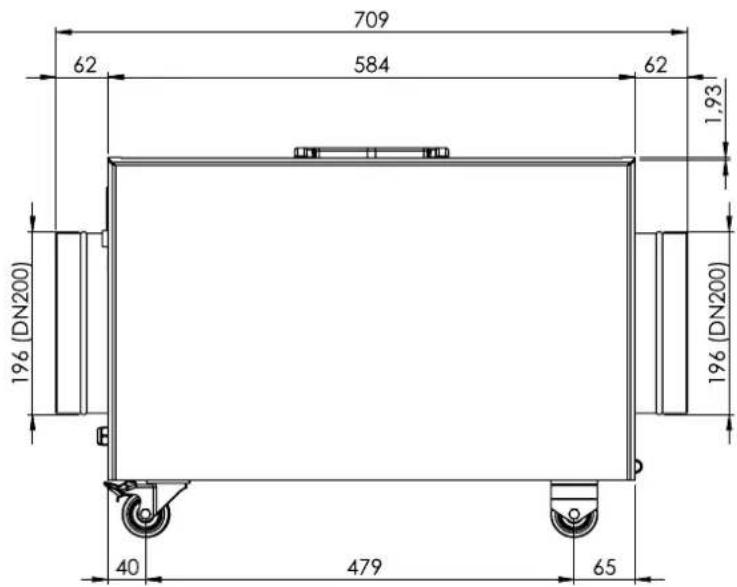

Dimensions Info

The dimensions are given in millimetres.

182 181 419 61 40 283 40 230

709 62 584 62 1.93 196 (DN200) 196 (DN200) 40 479 65

362 181 182 18 230 40 283 40

Basic housing Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 21 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

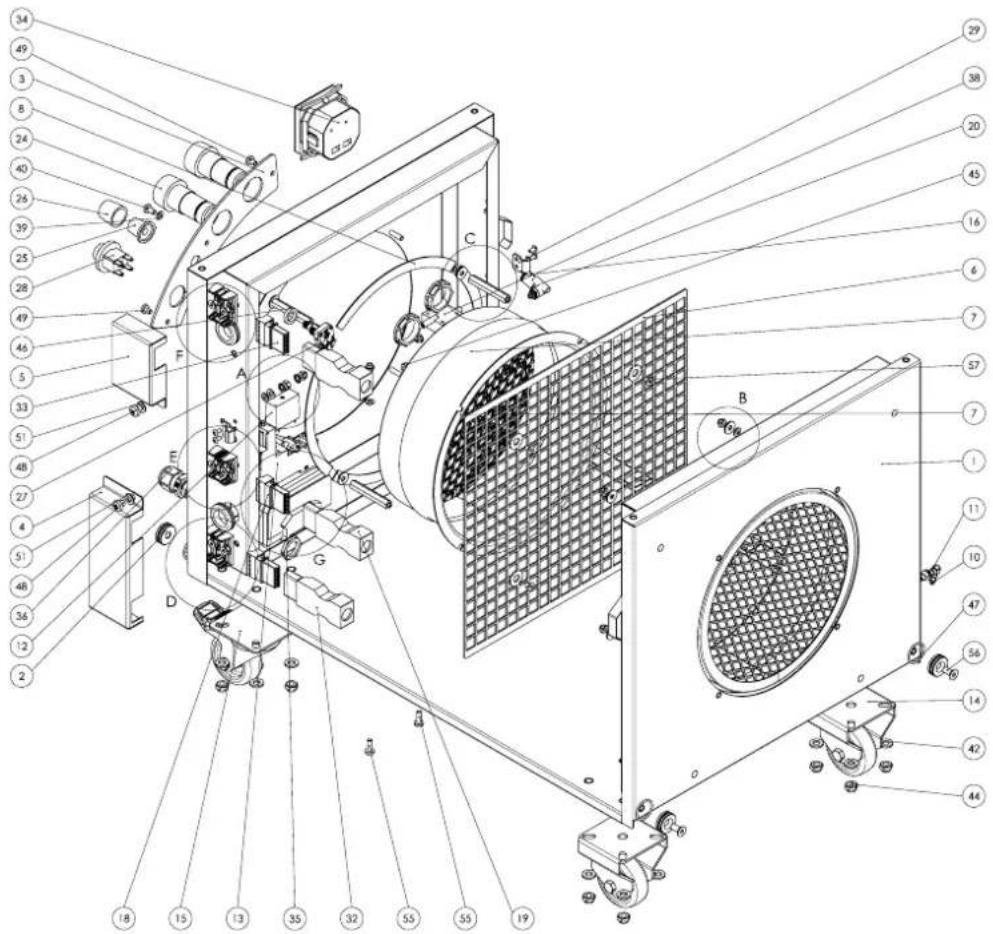

Technical diagram of an industrial machine with numbered components and labeled parts

No.	Designation Article number	No.	Designation Article number
1	Basic housing SBG P10002152 30 Sealing plug P10000651
2	Guide bushing P10001409 31 Mounting plate P10000646
3	Operating element P10008202 32 Plug P10000644
4	Mounting bracket P10002155 33 Socket P10000645
5	Mounting bracket P10002156 34 Operating hours counter P10001137
6	Touch protection	P10002159 35 Nut		P10003618
7	Flanged collar	P10000653 36 Cable gland		P10007561
8	Gasket strip	P10000357 37 End stop		P10001031
9	Spacer sleeve	P10001596 38 Diff. pressure switch		P10001733
10	Angle piece	P10000562 39 Washer		P10001310
11	Pass-through sleeve	P10001418 40 Screw		P10000322
12	Relay	P10000042 41 Nut		P10000013
13	Mounting clip	P10000043 42 Washer		P10000019
14	Trestle roller	P10003601 43 Washer		P10000449
15	swivel castor	P10003600 44 Nut		P10000500
16	Sealing plug P10001646 45 Nut	P10000006
17	Mounting plate P10000649 46 Spacer sleeve			P10000364
18	Socket P10000648 47 O-ring	P10001421
19	Plug P10000647 48 Screw	P10001179
20	Angle fitting	P10001306	49	Screw	P10001010
21	Feed-through terminal	P10001026 50 Rivet		P10001108
22	Feed-through terminal	P10001028 51 Washer		P10001134
23	End plate	P10001029 52 Washer		P10000038
24	Signal lamp	P10002353 53 Washer		P10001112
25	Rotary button	P10001250 54 Nut		P10000208
26	Cap	P10001249 55 Screw		P10000443
27	Potentiometer	P10001751 56 Screw		P10000336
28	Switch P10001376 57 Screw	P10003856
29	Locking hook	P10000616

Cover Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

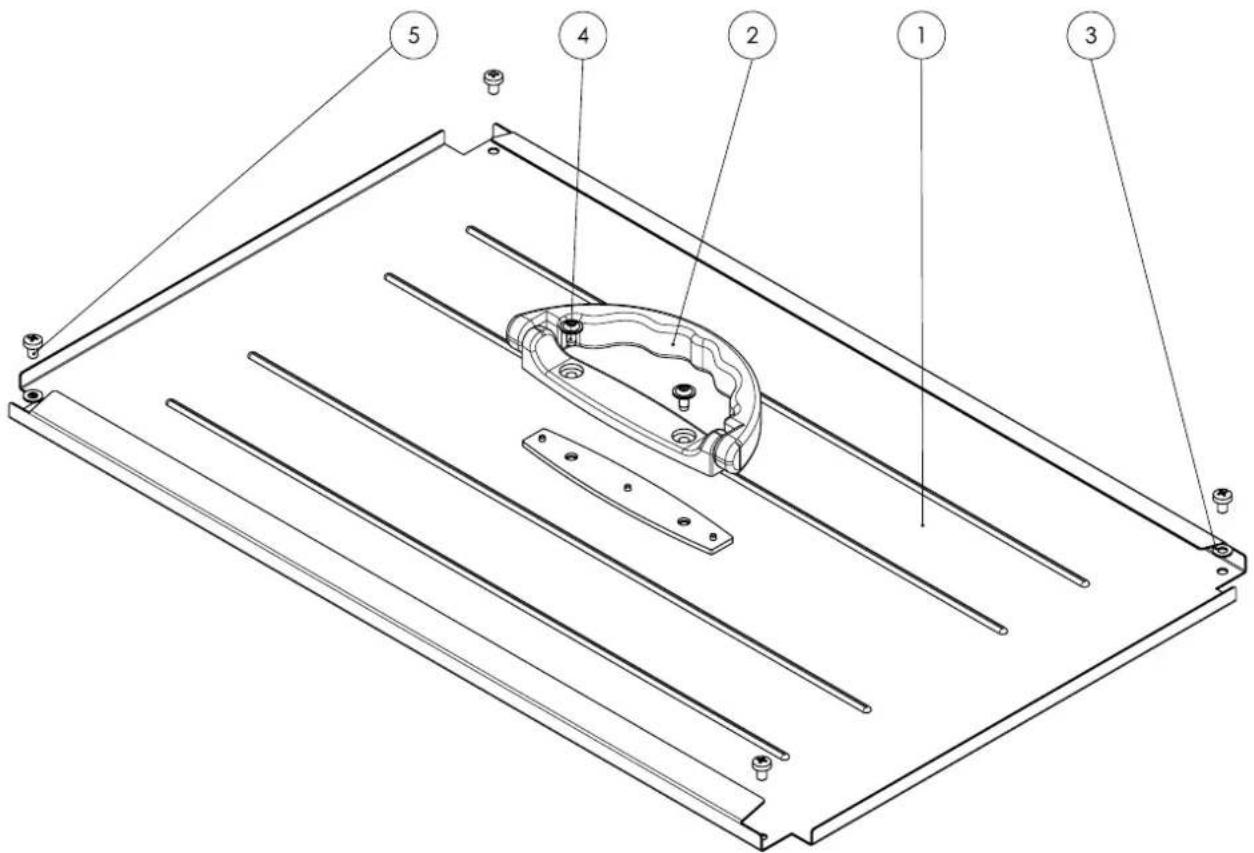

Technical diagram of a mechanical assembly with numbered components for identification

No. Designation Article number	No. Designation Article number
1 Cover SBG P10002153 4 Screw	P10000568
2 Handle P10001246 5 Screw P10001265
3 Washer P10001134

Tension element Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

No. Designation Article number	No. Designation Article number
1 Tensioning frame P10002146 4	Seal P10001422
2 Tensioning frame P10002147 5	Nut P1000768
3 Handle P10002158

HEPA filter Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

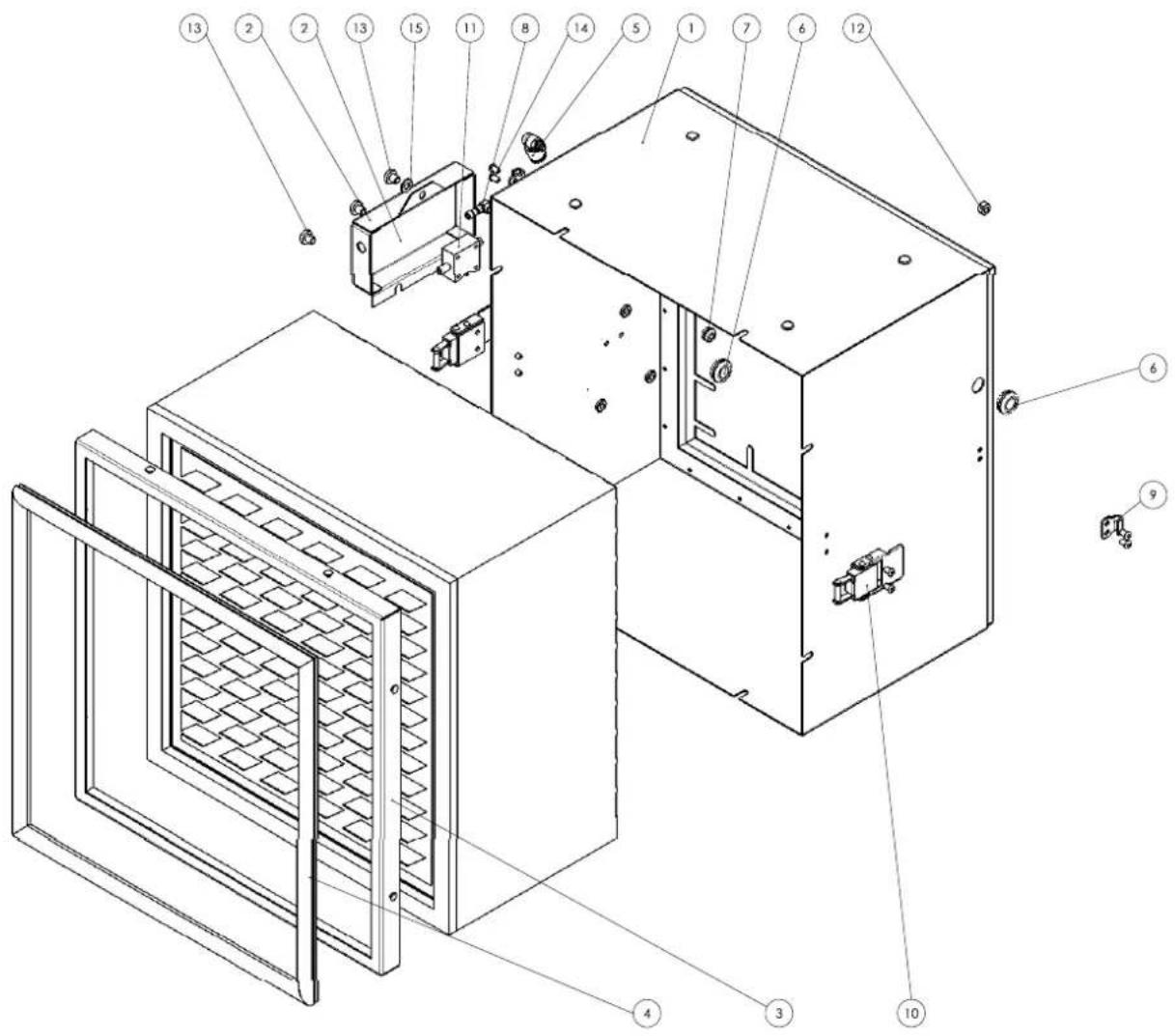

Technical diagram of an oven with numbered components for identification

No.	Designation Article number	No. Designation Article number
1	Housing frame Hepa P10002148	9 Locking hook P10000616
2	Supply box P10002149 10 Spring	tension element P10000615
3	HEPA frame P10002157 11 Diff.	pressure switch P10001733
4	Seal P10001855 12 Nut P10000006
5	Angle fitting P10001306 13 Screw			P10001179
6	Pass-through sleeve P10002306	14 Rivet	P10001108
7	Pass-through sleeve P10001418	15 Washer	P10001134
8	Angle piece P10000562

Fan Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

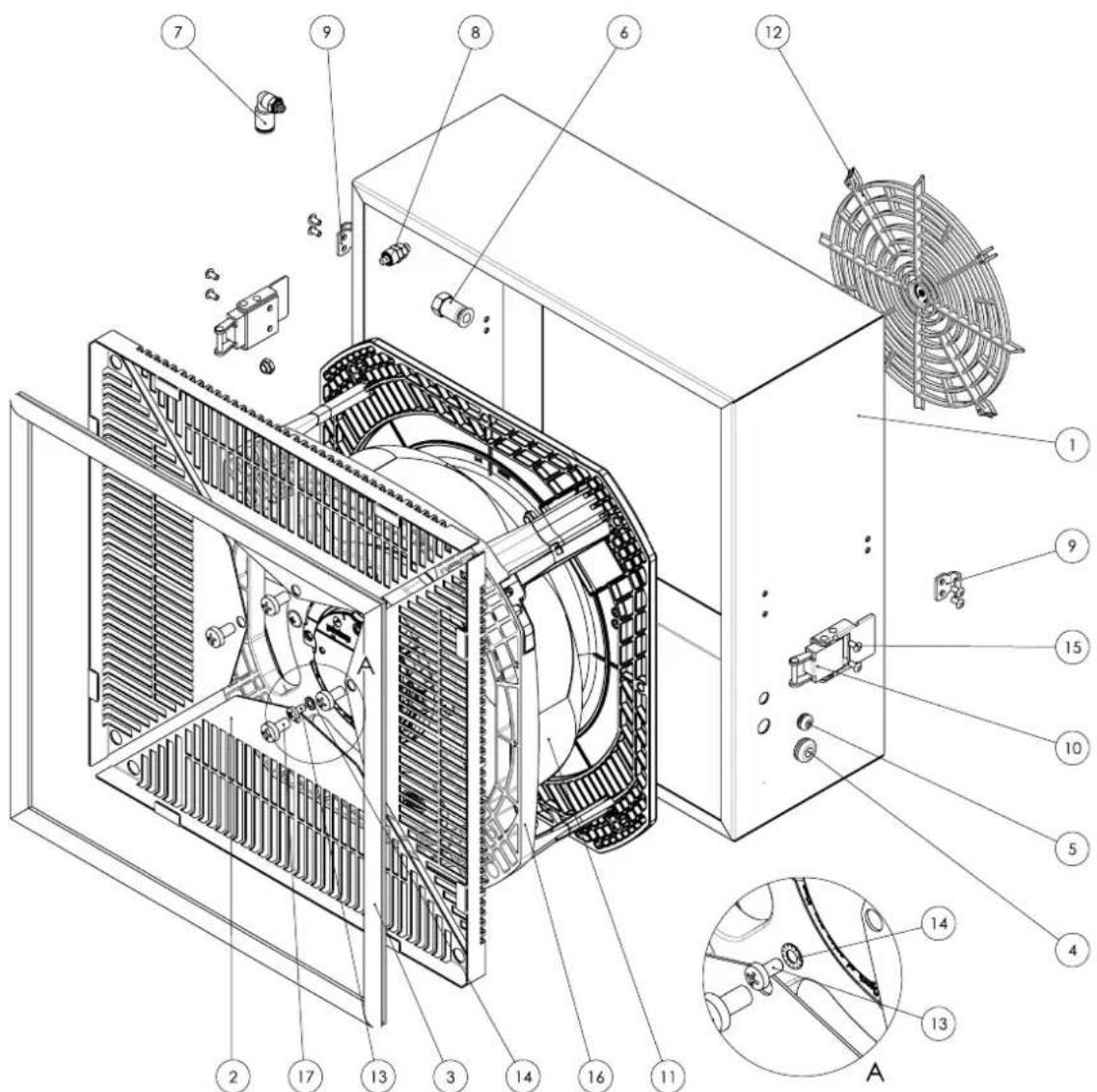

Technical diagram of an air conditioning unit with numbered components and exploded view

No.	Designation Article number	No. Designation Article number
1	Fan frame P10002150 10 Spring	tension element P10000615
2	Finger protection P10008203 11	Fan P10000535
3	Seal P10001855 12 Protective gr	rid P10007573
4	Feed -through P10001417 13 Screw P10000322
5	Pass- through sleeve	P10001418 14 Washer		P10001112
6	Straight plug connector	P10001307 15 Rivet		P10001108
7	Angle fitting	P10001306 16 Nut		P10000210
8	Screw connection	P10000563 17 Screw P10007260
9	Locking hook	P10000616

Paper filter Info

The position numbers of the spare parts differ from those describing the positions of the components mentioned in these instructions.

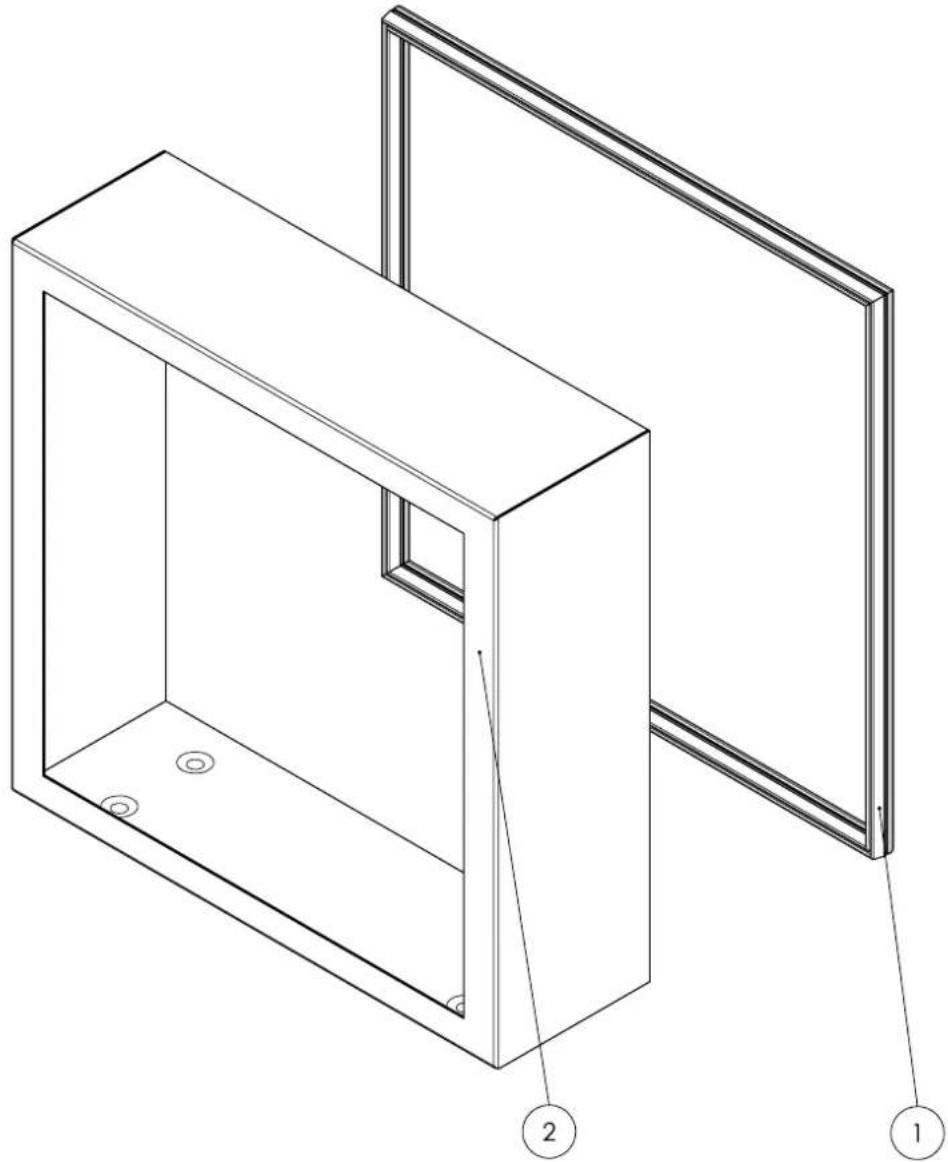

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

No.	Designation Article number	No. Designation Article number
1 Seal	P10000290 2 Paper filter frame P10002151

Circuit diagram

-X1 3.2 2.4 1.5/BK 2 1.5/BK 32 1.5GNYE -S1 -P1 L N Betriebsstundenzahler hour meter -PE1 -PE2 -M1 L1/BK -XB1 1 PE N -XS1 1 PE N W02 LIYY GNYE BU 3x1.5mm² -R1 A 10K S E -PE1 -Drehzahlregler speed control -Ventilator fan -PE2 -Vorfilter prefilter -B2 220Pa -K1 A1 220Pa -H1 X1 X2 -H2 X1 X2 -Vorfilter prefilter -B1 500Pa -PE3 -Differenzdruckschalter HEPA Filter differential pressure switch HEPA filter Meldeleuchte Betrieb ON/OFF pilot light operation ON/OFF Drehzahlregler speed control

EU Declaration of Conformity (original)

Declaration of conformity in accordance with the EC Machinery Directive 2006/42/EC, Annex II, Part 1, Section A

We – Trotec GmbH – declare in sole responsibility that the product designated below was developed, constructed and produced in compliance with all relevant provisions of the EC Machinery Directive in the version 2006/42/EC.

Product model / Product: TAC 1500

Product type: air cleaner

Year of manufacture as of: 2024

The product also complies with all relevant provisions of the following directives/regulations:

• 2011/65/EU
• 2014/30/EU

Applied harmonised standards:

• EN ISO 12100:2010
• EN ISO 13849-1:2015
• EN ISO 13857:2019
• EN ISO 14118:2018
• EN 55011:2016
• EN 55011:2016/A1:2017
• EN 55011:2016/A11:2020
• EN 60204-1:2018
• EN 60335-1:2012
• EN 60335-1:2012/AC:2014
• EN 60335-1:2012/A11:2014
• EN 60335-1:2012/A13:2017
• EN 60335-1:2012/A15:2021
• EN 60335-2-65:2003
• EN 60335-2-65:2003/A11:2012

Applied national standards and technical specifications:

• EN 55011:2016/A2:2012
• EN 60335-1:2012/A16:2023
• EN 60335-2-65:2003/A1:2008
• EN 60335-2-65:2003/A12:2022
• EN 60335-2-65:2003/A2:2022
• EN 60335-2-65:2003/C1:2004
• EN 62233:2008

Manufacturer and name of the authorised representative of the technical documentation:

Trotec GmbH

Glebbener Straße 7, D-52525 Heinsberg

Phone: [phone]

E-mail: [e-mail]

Place and date of issue:

Heinsberg, 17.11.2024

Joachim Ludwig, Managing Director

Trotec GmbH

Grebener Str. 7

52525 Heinsberg

Germany

][phone]

[phone]

[e-mail]

www.trotec.com

FR

TRADUCTION DE LA NOTICE ORIGINALE

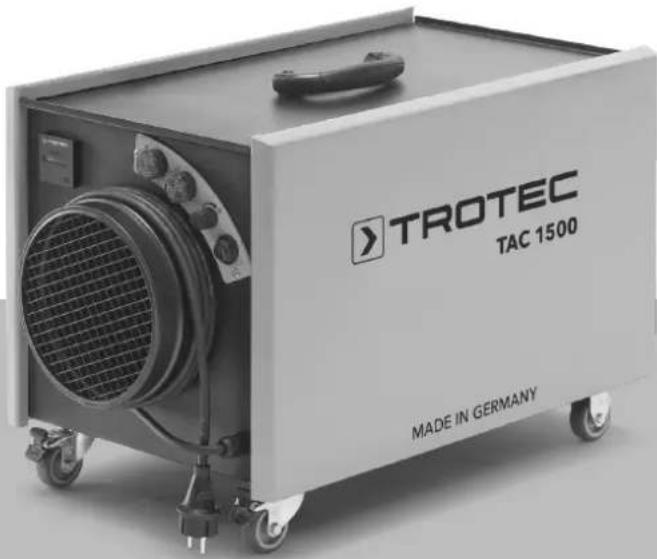

PURIFICATEUR D'AIR

TROTEC TAC 1500 MADE IN GERMANY

Sommaire

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Sécurité

Technical line drawing of a mechanical device with labeled components and directional arrows (no text or symbols beyond labels)

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

Technical diagram of a mechanical housing assembly with a grid-patterned panel and an inset close-up view (no text or symbols)

Version II - alternative :

3 2 1 III II I 9 10

N° Désignation

Diagram showing a device with directional arrows and a magnified inset of a mechanical component (no text or symbols)

Mise en service

Diagram of a washing machine inside a room with directional arrows indicating airflow or movement (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile using a flashlight and a device, with checkmark and cross symbols indicating detection or confirmation.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a modular device with numbered components, likely a door or panel assembly.

Technical diagram of an industrial oven with numbered components for identification

Technical diagram of an air conditioning unit with numbered components and exploded view

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Sikkerhed

Technical line drawing of a rectangular industrial machine with internal fan and labeled parts (no text or symbols beyond labels)

Technical line drawing of a mechanical device with labeled components and directional arrows (no text or symbols beyond labels)

Technical diagram of a device with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a mechanical housing with a grid-patterned panel and an inset showing a component detail (no text or symbols)

Version II - alternativ:

Lommefilter: M5 til F9

Hvis der anvendes et lommefilter, kan filfiltret i forfilterboks 1 bortfalde.

3 2 1 III II I 9 10

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

Ibrugtagning

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving on a vertical post with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile with a flashlight and a device, showing correct and incorrect eye movements.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Nr. Betegnelse Varenummer Nr.	Betegnelse Varenummer
1 Kabinet ZAT0003224 5 HEPA ZAT0003307
2 Dæksel ZAT0003243 6 Ventilator	ZAT0003329
3 Paneler P10002145 7 Papirfilter	ZAT0003337
4 Spændeelement	ZAT0003289

Mål Info

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts

Nr.	Betegnelse Varenummer Nr.	Betegnelse Varenummer
1	Kabinet SBG P10002152 30 Lukkeprop P10000651
2	Føringsbøsning P10001409 31 Monteringsplade P10000646
3	Betjeningselement P10008202 32 Stik P10000644
4	Montering holder P10002155 33 Bøsning P10000645
5	Montering holder P10002156 34 Driftstimetæller P10001137
6	Berøringsbeskyttelse P10002159 35 Møtrik			P10003618
7	Bundkrave P10000653 36 Kabelforskruning			P10007561
8	Tætningsbånd P10000357 37 Endeunderstøtning			P10001031
9	Afstandsbøsning P10001596 38 Differenstrykkontakt			P10001733
10	Vinkelstykke P10000562 39 Skive			P10001310
11	Kabeltylle P10001418 40 Skrue			P10000322
12	Relæ P10000042 41 Møtrik			P10000013
13	Monteringsclips P10000043 42 Skive			P10000019
14	Fast hjul P10003601 43 Skive			P10000449
15	Drejehjul P10003600 44 Møtrik			P10000500
16	Lukkeprop P10001646 45 Møtrik P10000006
17	Monteringsplade P10000649 46 Afstandsbøsning		P10000364
18	Bøsning P10000648 47 O-ring P10001421
19	Stik P10000647 48 Skrue P10001179
20	Vinkelforskruning P10001306 49 Skrue			P10001010
21	Gennemgangsklemme P10001026 50 Nitter			P10001108
22	Gennemgangsklemme P10001028 51 Skive			P10001134
23	Endeplade P10001029 52 Skive			P10000038
24	Signallampe P10002353 53 Skive P10001112
25	Drejeknap P10001250 54 Møtrik			P10000208
26	Kappe P10001249 55 Skrue			P10000443
27	Potentiometer P10001751 56 Skrue			P10000336
28	Afbryder P10001376 57 Skrue			P10003856
29	Låsekrog P10000616

Dæksel Info

Technical diagram of a mechanical assembly with numbered components for identification

Nr. Betegnelse Varenummer Nr. Betegnelse Varenummer
1 Afdækning SBG P10002153 4 Skrue P10000568
2 Greb P10001246 5 Skrue P10001265
3 Skive P10001134

Spændeelement Info

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

Technical diagram of an oven with numbered components for identification

Nr. Betegnelse Varenummer Nr. Betegnelse Varenummer
1 Hus til Hepa-ramme P10002148 9 Låsekrog P10000616
2 Forsyningsboks P10002149 10 Fjederspændeelement P10000615
3 Ramme HEPA P10002157 11 Differenstrykkontakt P10001733
4 Tætningsliste P10001855 12 Møtrik P10000006
5 Vinkelforskruning P10001306 13 Skrue			P10001179
6 Kabeltylle P10002306 14 Nitter			P10001108
7 Kabeltylle P10001418 15 Skive			P10001134
8 Vinkelstykke P10000562

Ventilator Info

Technical diagram of an air conditioning unit with numbered components and exploded view

Nr.	Betegnelse Varenummer Nr.	Betegnelse Varenummer
1	Ramme ventilator P10002150 10	Fjederspændeelement P1000615
2	Håndværn P10008203 11	Ventilator P10000535
3	Tætningsliste P10001855 12	Beskyttelsesgitter P10007573
4	Gennemføring P10001417 13	Skrue P10000322
5	Kabeltylle	P10001418 14 Skive		P10001112
6	Lige forbindelsesstykke P10001307 15 Nitter			P10001108
7	Vinkelforskruning	P10001306 16 Møtrik		P10000210
8	Forskruning P10000563 17	Skrue P10007260
9	Låsekrog	P10000616

Papirfilter Info

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Turvallisuus

Technical line drawing of a portable air conditioner unit with labeled components and directional arrows (no text or symbols beyond labels)

Technical diagram of an air conditioning unit with labeled components and directional arrows indicating assembly or movement.

LAATIKKO 1: ESISUODATINLAATIKKO

LAATIKKO 2: SUODATINLAATIKKO

Technical diagram of a mechanical housing with a grid-patterned panel and an inset magnified view (no text or symbols)

3 2 1 III II I 9 10

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

Käyttöönotto

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile with a flashlight and a barcode, showing correct and incorrect eye movements.

Technical diagram of an air conditioning unit with numbered components for identification

Nro	Nimike Tuotenumero Nro	Nimike Tuotenumero
1	Peruskotelo ZAT0003224 5 HEPA	ZAT0003307
2	Kansi ZAT0003243 6 Puhallin ZAT0003329
3	Paneelit P10002145 7 Paperisuodatin ZAT0003337
4	Kiinnityselementti ZAT0003289

Mitat Tietoa

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts

Nro	Nimike Tuotenumero Nro	Nimike Tuotenumero
1	Peruskotelo SBG P10002152 30	Sulkutulppa P10000651
2	Ohjausholkki P10001409 31	Asennuslevy P10000646
3	Hallintaelementti P10008202 32	Pistoke P10000644
4	Asennuspidike P10002155 33	Liitin P10000645
5	Asennuspidike P10002156 34	Käyttötuntilaskuri P10001137
6	Kosketussuoja	P10002159 35 Mutteri		P10003618
7	Putkimuhvi	P10000653 36 Kaapeliholkki		P10007561
8	Tiivistenauha	P10000357 37 Päätytuki		P10001031
9	Väliholkki	P10001596 38 Paine-erokytkin		P10001733
10	Kulmakappale P10000562 39	Aluslevy	P10001310
11	Läpivientikappale P10001418 40	Ruuvi	P10000322
12	Rele	P10000042 41 Mutteri		P10000013
13	Asennusklipsi	P10000043 42 Aluslevy		P10000019
14	Kiintopyörä	P10003601 43 Aluslevy		P10000449
15	Kääntöpyörä P10003600 44	Mutteri	P10000500
16	Sulkutulppa P10001646 45	Mutteri	P10000006
17	Asennuslevy P10000649 46	Väliholkki	P10000364
18	Liitin P10000648 47	O-rengas	P10001421
19	Pistoke P10000647 48	Ruuvi	P10001179
20	Kulmaliitin	P10001306 49	Ruuvi		P10001010
21	Läpivientiliitin	P10001026 50	Niitti		P10001108
22	Läpivientiliitin	P10001028 51	Aluslevy		P10001134
23	Päästylevy	P10001029 52	Aluslevy		P10000038
24	Merkkivalo	P10002353 53	Aluslevy		P10001112
25	Kiertonuppi	P10001250 54	Mutteri		P10000208
26	Suojus	P10001249 55	Ruuvi		P10000443
27	Potentiometri	P10001751 56	Ruuvi		P10000336
28	Kytkin	P10001376 57	Ruuvi		P10003856
29	Sulkuhaka	P10000616

Kansi Tietoa

Technical diagram of a mechanical assembly with numbered components for identification

Nro Nimike Tuotenumero Nro	Nimike Tuotenumero
1 Kansi SBG P10002153 4 Ruuvi P10000568
2 Kahva P10001246 5 Ruuvi P10001265
3 Aluslevy P10001134

Technical diagram of a modular device with numbered components, showing internal structure and mounting bracket.

Nro	Nimike Tuotenumero Nro	Nimike Tuotenumero
1	Kiinnityskehys P10002146 4 Tiivistse P10001422
2	Kiinnityskehys P10002147 5 Mutteri P1000768
3	Kahva P10002158

Technical diagram of an industrial oven with numbered components for identification

Nro	Nimike Tuotenumero Nro	Nimike Tuotenumero
1	Kotelon kehys, Hepa P10002148	9 Sulkuhaka P10000616
2	Huoltokotelo P10002149 10 Jousikiristyselementti P10000615
3	HEPA-kehys P10002157 11 Paine-erokytkin P10001733
4	Tiiviste P10001855 12 Mutteri P10000006
5	Kulmaliitin P10001306 13 Ruuvi	P10001179
6	Läpivientikappale P10002306 14 Niitti			P10001108
7	Läpivientikappale P10001418 15 Aluslevy			P10001134
8	Kulmakappale P10000562

Puhallin Tietoa

Technical diagram of an air conditioning unit with numbered components and exploded view

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1 and 2 (no text or symbols on the diagram itself)

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Sicurezza

Technical line drawing of a large industrial machine with fan and control panel (no text or symbols)

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

3 2 1 III II I 9 10

Diagram showing a mechanical assembly with an inset close-up of a component being inserted (no text or symbols present)

Messa in funzione

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving on a vertical post with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile, a flashlight, and a device with a grid, showing correct and incorrect states.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts for identification.

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

Technical diagram of an industrial oven with numbered components for identification

Technical diagram of an air conditioning unit with numbered components and exploded view

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Veiligheid

Technical line drawing of a large industrial machine with fan and control panel (no text or symbols)

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

3 2 1 III II I 9 10

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

In gebruik nemen

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a human face with a flashlight and a device, showing correct and incorrect eye movements.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Nr. Aanduiding Artikelnummer	Nr. Aanduiding Artikelnummer
1 Basisbehuizing ZAT0003224 5 HEPA ZAT0003307
2 Deksel ZAT0003243 6 Ventilator ZAT0003329
3 Panelen P10002145 7 Papierfilter ZAT0003337
4 Spanelement ZAT0003289

Afmetingen Info

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts for identification.

Nr.	Aanduiding Artikelnummer	Nr. Aanduiding Artikelnummer
1	Basisbehuizing SBG P10002152	30 Sluitstop P10000651
2	Geledebus P10001409 31 Montageplaat P10000646
3	Bedieningselement P10008202 32 Stekker P10000644
4	Montagehouder P10002155 33 Stekkerbus P10000645
5	Montagehouder P10002156 34 Bedrijfsurenteller P10001137
6	Aanraakbescherming P10002159 35 Moer		P10003618
7	Kraagbus P10000653 36 Kabelwartel		P10007561
8	Afdichtband P10000357 37 Eindsteun		P10001031
9	Afstandsbus P10001596	38 Verschildrukschakelaar	P10001733
10	Hoekstuk P10000562 39 Ring		P10001310
11	Doorvoertule P10001418 40 Bout		P10000322
12	Relais P10000042 41 Moer		P10000013
13	Montageclip P10000043 42 Ring	P10000019
14	Bokrol P10003601 43 Ring		P10000449
15	Zwenkwiel P10003600 44 Moer		P10000500
16	Sluitstop P10001646 45 Moer	P10000006
17	Montageplaat P10000649 46 Afstandsbus P10000364
18	Stekkerbus P10000648 47 0-ring	P10001421
19	Stekker P10000647 48 Bout	P10001179
20	Haakse schroefkoppeling P10001306 49 Bout		P10001010
21	Doorgaande klem P10001026 50 Klinknagel		P10001108
22	Doorgaande klem P10001028 51 Ring		P10001134
23	Sluitplaat P10001029 52 Ring		P10000038
24	Signaallamp P10002353 53 Ring		P10001112
25	Draaiknop P10001250 54 Moer		P10000208
26	Dop P10001249 55 Bout		P10000443
27	Potentiometer P10001751 56 Bout		P10000336
28	Schakelaar P10001376 57 Bout		P10003856
29	Sluithaak P10000616

Deksel Info

Technical diagram of a mechanical assembly with numbered components for identification

Nr. Aanduiding Artikelnummer	Nr. Aanduiding Artikelnummer
1 Deksel SBG P10002153 4 Bout P10000568
2 Greep P10001246 5 Bout P10001265
3 Ring P10001134

Spanelement Info

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

Technical diagram of an industrial oven with numbered components for identification

Technical diagram of an air conditioning unit with numbered components and exploded view

Nr. Aanduiding Artikelnummer		Nr. Aanduiding Artikelnummer
1 Frame ventilator P10002150 10		Veerspanelement P10000615
2 Ingrijpbescherming P10008203		11 Ventilator P10000535
3 Afdichting P10001855 12 Beschermrooster P10007573
4 Doorvoer P10001417 13 Bout P10000322
5 Doorvoertule	P10001418 14 Ring		P10001112
6 Rechte opzetkoppeling	P10001307 15 Klinknagel		P10001108
7 Haakse schroefkoppeling	P10001306 16 Moer		P10000210
8 Wartel	P10000563 17 Bout P10007260
9 Sluithaak	P10000616

Papierfilter Info

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Sikkerhet

Technical line drawing of a large industrial machine with fan and control panel (no text or symbols)

Technical diagram of an air conditioning unit with labeled components and directional arrows indicating assembly or movement.

Technical diagram of a modular air duct box with mesh structure and labeled component (15), showing internal components and directional arrow (no text or symbols beyond labels)

3 2 1 III II I 9 10

Nr. Betegnelse
1	FORFILTERBOKS: GROVFILTER G og/eller FINFILTER F
2	FILTERBOKS: HEPA- eller lommefilter
3	VIFTEBOKS
I	Tilkobling for filterboks 2
II	Tilkobling for viftestyring
III	Tillkobling for vifteboks 3
9	Spennramme
10	Spennlås

Sidevisning sensorslangesiden:

1 2 3 11 12 13 S1 S2

Nr. Betegnelse
S1 Sensorslange S1
S2 Sensorslange S2
11	Målested for vifteboks 3
12 Målepunkt for ramme (her med blindplugg)
13	Målepunkt for filterboks 2

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

Igangsetting

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating human eye vision and detection of a device, showing a flashlight and a barcode with a magnified view.

Technical diagram of an air conditioning unit with numbered components for identification

Nr. Betegnelse Artikkelnummer	Nr. Betegnelse Artikkelnummer
1 Basishus ZAT0003224 5 HEPA ZAT0003307
2 Lokk ZAT0003243 6 Vifte ZAT0003329
3 Paneler P10002145 7 Papirfilter	ZAT0003337
4 Spennelement ZAT0003289

Mål Info

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts

Nr. Betegnelse Artikkelnummer		Nr. Betegnelse Artikkelnummer
1 Basishus SBG P10002152 30 Stopplugg P10000651
2 Føringshylse P10001409 31 Monteringsplate P10000646
3 Kontrollelement P10008202 32 Stikkontakt P10000644
4 Monteringsholder P10002155 33 Kontakt P10000645
5 Monteringsholder P10002156 34 Driftstimeteller P10001137
6 Berøringsbeskyttelse P10002159 35 Mutter		P10003618
7 Krage	P10000653 36 Kabelgjennomføring		P10007561
8 Tetningsbånd	P10000357 37 Endestøtte		P10001031
9 Avstandshylse	P10001596 38 Diff.-bryter		P10001733
10 Vinkelstykke P10000562 39 Skive		P10001310
11 Gjennomføringshette	P10001418 40 Skrue		P10000322
12 Relé	P10000042 41 Mutter		P10000013
13 Monteringsklips	P10000043 42 Skive		P10000019
14 Fast trinse	P10003601 43 Skive		P10000449
15 Styrehjul	P10003600 44 Mutter		P10000500
16 Stopplugg P10001646 45 Mutter		P10000006
17 Monteringsplate P10000649 46 Avstandshylse		P10000364
18 Kontakt P10000648 47 O-ring		P10001421
19 Stikkontakt P10000647 48 Skrue		P10001179
20 Vinkelskrue	P10001306 49 Skrue		P10001010
21 Gjennomføringsklemme	P10001026 50 Nagle		P10001108
22 Gjennomføringsklemme	P10001028 51 Skive		P10001134
23 Endeplate	P10001029 52 Skive		P10000038
24 Signallys	P10002353 53 Skive		P10001112
25 Dreieknapp	P10001250 54 Mutter		P10000208
26 Hette	P10001249 55 Skrue		P10000443
27 Potensiometer	P10001751 56 Skrue		P10000336
28 Bryter	P10001376 57 Skrue		P10003856
29 Låsehake	P10000616

Lokk Info

Technical diagram of a mechanical assembly with numbered components for identification

Nr. Betegnelse Artikkelnummer	Nr. Betegnelse Artikkelnummer
1 Deksel SBG P10002153 4 Skrue	P10000568
2 Håndtak P10001246 5 Skrue P10001265
3 Skive P10001134

Spennelement Info

Technical diagram of a modular device with numbered components, showing internal structure and mounting bracket.

Nr. Betegnelse Artikkelnummer	Nr. Betegnelse Artikkelnummer
1 Spennramme P10002146 4 Tetning P10001422
2 Spennramme P10002147 5 Mutter P1000768
3 Håndtak P10002158

HEPA-filter Info

Technical diagram of an industrial oven with numbered components for identification

Nr. Betegnelse Artikkelnummer		Nr. Betegnelse Artikkelnummer
1 Hus Ramme HEPA P10002148 9		Låsehake P10000616
2 Forsyningsboks P10002149 10 Fjærspenningselement P10000615
3 Ramme HEPA P10002157 11 Diff.-bryter P10001733
4 Tetning P10001855 12 Mutter P10000006
5 Vinkelskrue P10001306 13 Skrue				P10001179
6 Gjennomföringshette P10002306 14 Nagle				P10001108
7 Gjennomföringshette P10001418 15 Skive				P10001134
8 Vinkelstykke P10000562

Vifte Info

Technical diagram of an air conditioning unit with numbered components and exploded view

Nr. Betegnelse Artikkelnummer		Nr. Betegnelse Artikkelnummer
1 Ramme vifte P10002150 10 Fjærspenningselement P10000615
2 Inngrepssikring P10008203 11 Vifte P10000535
3 Tetning P10001855 12 Beskyttesesgitter P10007573
4 Gjennomføring P10001417 13 Skrue P10000322
5 Gjennomføringshette	P10001418 14 Skive		P10001112
6 Rett stikkontakt	P10001307 15 Nagle		P10001108
7 Vinkelskrue	P10001306 16 Mutter		P10000210
8 Skruforbindelse	P10000563 17 Skrue P10007260
9 Låsehake	P10000616

Papirfilter Info

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1 and 2 (no text or symbols on the diagram itself)

Nr. Betegnelse Artikelnummer	Nr. Betegnelse Artikelnummer
1 Tetning P10000290 2 Ramme papirfilter P10002151

Koblingsskjema

-X1 3.2 2.4 1.5/BK 2 1.5/BK 32 1.5GNYE -S1 -P1 L N Betriebsstundenzahler hour meter -PE1 -PE2 -M1 L1/BK -XB1 1 PE N -XS1 1 PE N W02 LIYY GNYE BU 3x1.5mm² -R1 A 10K S E -PE1 -Drehzahlregler speed control -Ventilator fan -PE2 -Vorfilter prefilter -B2 220Pa -K1 A1 220Pa -H1 X1 X2 -H2 X1 X2 -Vorfilter prefilter -B1 500Pa -PE3 -Differenzdruckschalter HEPA Filter differential pressure switch HEPA filter Meldeleuchte Betrieb ON/OFF pilot light operation ON/OFF Drehzahlregler speed control

QR code image containing encoded data, no visible human-readable text

https://hub.trotec.com/?id=42768

Technical line drawing of a large industrial machine with fan and control panel (no text or symbols)

Technical diagram of a device with labeled parts and directional arrows indicating assembly or movement

Technical diagram of a grid-patterned industrial enclosure with an inset close-up showing a component (no text or symbols)

Diagram showing a device with directional arrows pointing to a screen, and a magnified inset illustrating the internal components (no text or symbols present)

Diagram of a washing machine inside a room with airflow arrows indicating direction (no text or symbols)

Two identical diagrams showing a train moving through a channel with curved arrows indicating motion, no text or symbols present.

Diagram illustrating a person's profile, exposure to a barcode, and exposure to a textured material, with checkmark and cross symbols indicating correct and incorrect matches.

Technical diagram of an industrial air conditioning unit with numbered components for identification

Technical diagram of a mechanical component with numbered parts labeled 39 to 54

A

F

Technical diagram of a mechanical assembly with numbered components labeled 22 to 35

G

B

C

Technical diagram of a mechanical device with numbered components labeled 30, 31, 57, and 57.

D

50 29 50 17 57 57

E

Technical diagram of a mechanical device with numbered components and labeled parts in Chinese

No.	Tanım Ürün numarası No.	Tanım Ürün numarası
1	Ana gövde SBG P10002152 30 Sızdırmaz tapa P10000651
2	Kılavuz kovan P10001409 31 Montaj plakası P10000646
3	Kumanda elemanı P10008202 32 Fış P10000644
4	Montaj braketi P10002155 33 Yuva P10000645
5	Montaj braketi P10002156 34 Çalışma saati sayacı P10001137
6	Temas koruması P10002159 35 Somun			P10003618
7	Faturalı çerçeve P10000653 36 Vidalı kablo bağlantısı			P10007561
8	Şerit conta P10000357 37 Uç desteği			P10001031
9	Mesafe kovanı P10001596 38 Fark basıncı şalteri P10001733
10	Açılı parça P10000562 39 Pul			P10001310
11	Lastik rondela P10001418 40 Civata			P10000322
12	Röle P10000042 41 Somun			P10000013
13	Montaj klipsi P10000043 42 Pul			P10000019
14	Sehpa tekerleği P10003601 43 Pul			P10000449
15	Manevra tekerleği P10003600 44 Somun		P10000500
16	Sızdırmaz tapa P10001646 45 Somun		P10000006
17	Montaj plakası P10000649 46 Mesafe kovanı P10000364
18	Yuva P10000648 47 O-ring P10001421
19	Fiş P10000647 48 Civata P10001179
20	Açılı vidalı bağlantı P10001306 49 Civata			P10001010
21	Geçiş klemensi P10001026 50 Perçin			P10001108
22	Geçiş klemensi P10001028 51 Pul			P10001134
23	Uç plakası P10001029 52 Pul			P10000038
24	Sinyal lambası P10002353 53 Pul P10001112
25	Döner düğme P10001250 54 Somun			P10000208
26	Başlık P10001249 55 Civata			P10000443
27	Potansiyometre P10001751 56 Civata			P10000336
28	Şalter P10001376 57 Civata			P10003856
29	Kapatma kancası P10000616

Kapak Bilgi

Technical diagram of a mechanical assembly with numbered components for identification

Technical diagram of a modular device with numbered components, likely for assembly or manufacturing documentation.

Technical diagram of an oven with numbered components for identification

Technical diagram of an air conditioning unit with numbered components and exploded view

Isometric line drawing of a two-story rectangular box with internal compartments and a side panel, labeled with numbers 1, 2, and 3 (no text or symbols on the diagram itself)
