TM1304 - Waffle Maker Tomado - Free user manual and instructions

Product type	Waffle iron / Wafer iron
Brand	Tomado
Model	TM1304
Power supply	230 V / 50 Hz
Power	1000 W
Adjustable temperature	From room temperature to 230 °C
Net weight	2.1 kg
Plate coating	Non-stick
Number of plates	2 (lower and upper)
Included accessories	Cone mold, roll mold, spatula
Functions	Wafer baking, temperature adjustment, heating indicator light
Safety	Lid lock, manual shut-off by unplugging
Maintenance	Clean with a soft cloth; do not immerse; do not use metal utensils
Warranty	2 years
Use	Household only

Frequently Asked Questions - TM1304 Tomado

How to use the Tomado TM1304 waffle iron for the first time?

Before first use, clean the appliance with a damp cloth, then heat it empty for 10 minutes at maximum temperature (right position) to remove manufacturing residues. Let it cool, clean again, and it's ready.

What is the recommended wafer batter recipe?

Mix 200 g flour, 150 g white sugar, 150 g melted butter, 2 eggs, vanilla sugar or cinnamon, and a pinch of salt. Add a little warm water if necessary to obtain a malleable dough.

How to adjust the temperature on the waffle iron?

Use the temperature adjustment knob: turn clockwise to increase heat, counterclockwise to decrease. The red indicator light turns off when the set temperature is reached.

What to do if the wafers cook too fast or too slowly?

Adjust the temperature with the knob. If they cook too fast, lower the temperature; if too slowly, increase it. You can also adjust the cooking time.

How to clean the waffle iron after use?

Unplug the appliance and let it cool completely. Clean the plates with a soft cloth or non-abrasive dish brush. Never use metal utensils or harsh detergents. Dry well before storing.

Can I use metal utensils on the plates?

No, never use metal utensils as they may damage the non-stick coating. Use wooden or silicone spatulas.

How to shape wafers into cones or rolls?

As soon as they come out of the waffle iron, while the wafers are still hot and pliable, roll them around the provided cone or roll mold. Let cool on a rack to keep their shape.

Does the waffle iron get very hot on the outside?

Yes, the appliance becomes very hot during operation. Do not touch it and place it on a heat-resistant surface. Keep children and pets away.

What is the electrical power of the Tomado TM1304?

The power is 1000 W, with a voltage of 230 V and a frequency of 50 Hz.

How to store the waffle iron after use?

Store the appliance in a dry place, after cleaning and cooling. Make sure the cord is properly wound and the appliance is unplugged.

USER MANUAL TM1304 Tomado

Exterior view of a gray electronic device with a black TOMADO printer attached (no visible text or symbols on the device itself)

Gebruiksaanwijzing

Mode d'emploi

Instruction manual

Bedienungsanleitung

Wafer maker

TOMADO®

Gebruiksaanwijzing / Mode d'emploi / Instruction manual/ Bedienungsanleitung TM-1304

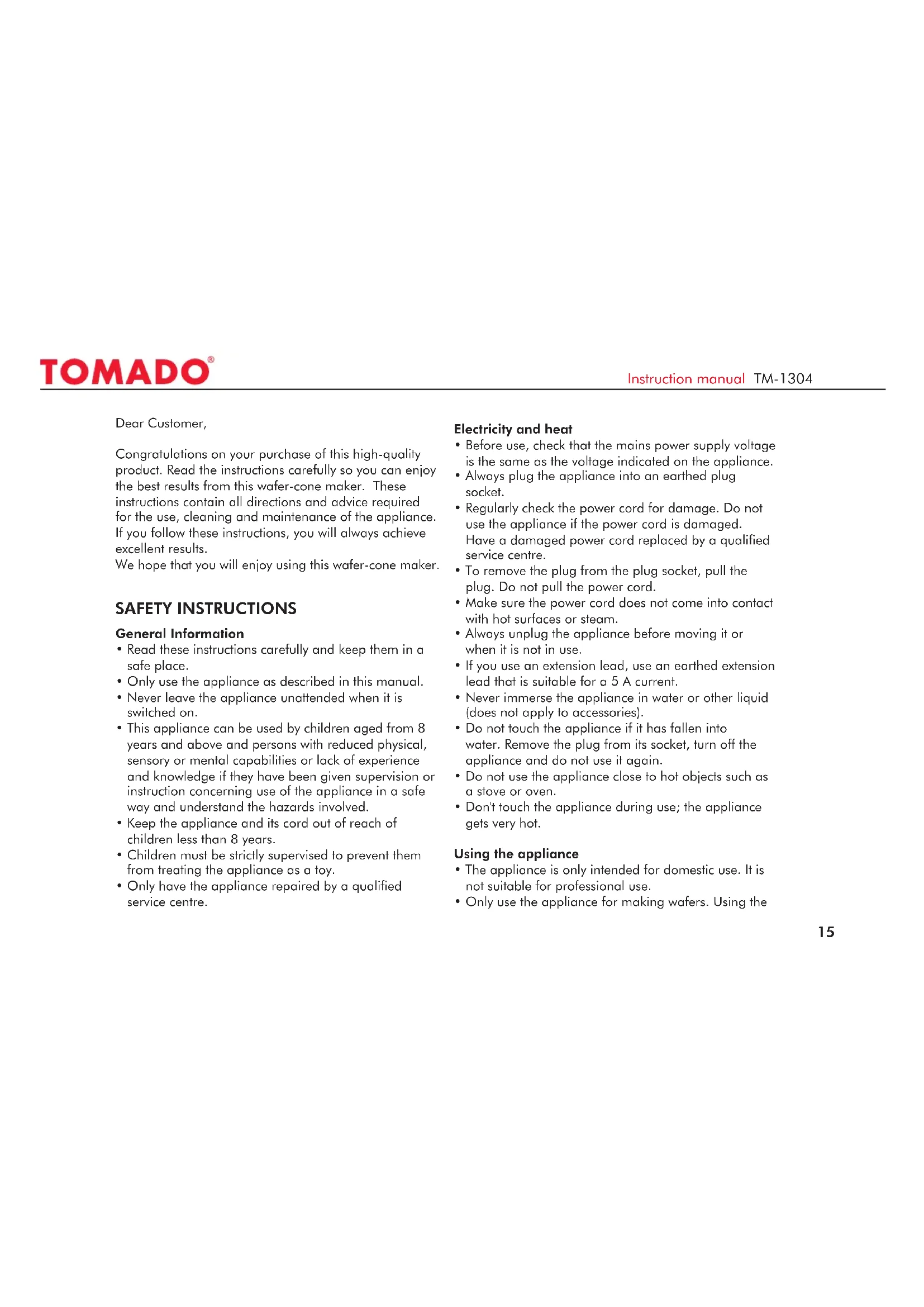

Geachte klant,

Congratulations on your purchase of this high-quality product. Read the instructions carefully so you can enjoy the best results from this wafer-cone maker. These instructions contain all directions and advice required for the use, cleaning and maintenance of the appliance. If you follow these instructions, you will always achieve excellent results.

We hope that you will enjoy using this wafer-cone maker.

SAFETY INSTRUCTIONS

General Information

• Read these instructions carefully and keep them in a safe place.
• Only use the appliance as described in this manual.
• Never leave the appliance unattended when it is switched on.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children less than 8 years.
• Children must be strictly supervised to prevent them from treating the appliance as a toy.
• Only have the appliance repaired by a qualified service centre.

Electricity and heat

• Before use, check that the mains power supply voltage is the same as the voltage indicated on the appliance.
  • Always plug the appliance into an earthed plug socket.
• Regularly check the power cord for damage. Do not use the appliance if the power cord is damaged. Have a damaged power cord replaced by a qualified service centre.
• To remove the plug from the plug socket, pull the plug. Do not pull the power cord.
• Make sure the power cord does not come into contact with hot surfaces or steam.
• Always unplug the appliance before moving it or when it is not in use.
• If you use an extension lead, use an earthed extension lead that is suitable for a 5 A current.
• Never immerse the appliance in water or other liquid (does not apply to accessories).
• Do not touch the appliance if it has fallen into water. Remove the plug from its socket, turn off the appliance and do not use it again.
• Do not use the appliance close to hot objects such as a stove or oven.
• Don't touch the appliance during use; the appliance gets very hot.

Using the appliance

• The appliance is only intended for domestic use. It is not suitable for professional use.
• Only use the appliance for making wafers. Using the

appliance for other purposes may cause damage.

• Only use this appliance indoors, in dry areas away from water.
• Make sure there is sufficient ventilation around the appliance. If possible, use an extractor fan.
• Do not place the appliance directly under a plug socket.
• Place the appliance on a stable, level surface where it cannot fall to the floor.
• Place the appliance on a heat-resistant surface and not, for example, on varnished furniture.
• Place the appliance at least 50 cm from a wall or combustible materials (such as curtains, paper or cloths).
• Position the power cord so that nobody can trip over it or pull it.
• Do not leave products in the appliance too long. Otherwise, they may burn and produce smoke.
• Never use sharp utensils in the appliance, as you may permanently damage the non-stick coating.
• Remove the plug from the socket when you have finished using the appliance.

DESCRIPTION OF PARTS

1. Cover clasp
2. Cooking plates
3. Temperature-control dial
4. Mould for cones
5. Mould for wafer rolls
6. Spatula
7. Red status lamp
8. Power cord with plug

OPERATION

General Information

This appliance is designed to bake wafers.

BEFORE USING FOR THE FIRST TIME

Remove the appliance from the packaging material. Clean the appliance. See 'Cleaning and maintenance'. Place the appliance on a level, stable surface. Insert the plug into the mains power socket. The red status lamp will glow to indicate that the appliance is switched on. Set the thermostat to the highest setting (to the right) and allow the appliance to heat up for five minutes. This will burn away any dust and possible manufacturing residues. The appliance may emit a little smoke while heating up. This is normal and does not indicate a problem with the appliance. Make sure the area is well-ventilated. The status lamp goes out when the appliance is ready for use (once the desired temperature has been reached). Remove the plug

from the plug socket. Clean the appliance when it has cooled down. See 'Cleaning and maintenance'. Continue with the procedure in 'Using the appliance'.

USING THE APPLIANCE

Prepare the wafer batter using the recipe in the 'Recipes' section. Place the appliance on a flat, stable, heat-resistant surface. Insert the plug into the mains power socket. Set the thermostat to the desired temperature. You can raise or lower the baking temperature for your wafers at any time by adjusting the thermostat. Allow the appliance to heat up. This will take a couple of minutes. The green status lamp will dim once the reset temperature has been reached. Open the appliance by pressing in the handle on the lower side. Grease the upper and lower cooking plates with a little liquid butter or oil. Use a pastry brush, oil sprayer, or similar. Spread some batter evenly from the centre across the lower cooking plate. Close the appliance. Check regularly whether the wafer is sufficiently brown by opening the appliance. Remove the wafer from the appliance when it is finished. Do not use any sharp utensils for this purpose, as you may permanently damage the non-stick coating. Roll the wafers into the desired form while they are still hot. Allow the wafer to cool on a cooling rack. Bon appétit!

PLEASE NOTE

• If your wafers brown too quickly or too slowly, adjust the thermostat.
• Do not leave products in the appliance too long. Otherwise, they may burn and produce smoke.
• Do not touch the appliance while it is in use. The appliance gets very hot.

After use, always place the temperature-control dial in the lowest setting (to the left) and remove the plug from the plug socket. Allow the appliance to cool down completely before cleaning or storing. Clean the appliance as described in 'Cleaning and maintenance'.

CLEANING AND MAINTENANCE

PLEASE NOTE

• Before cleaning the appliance, always unplug it from the mains power and allow it to cool down.
• Never immerse the appliance or power cord in water, or in any other liquid. This may cause an electric shock.
• Do not clean the appliance with an aggressive or abrasive cleaner or with a sharp object, such as a hard brush or a knife.
• Never insert hard or sharp objects into the appliance. This may damage the appliance.
• Always clean the appliance after use so that any food remains do not become encrusted.

Clean the appliance as follows:

Clean the cooking plates with a moist cloth or a soft

dishwashing brush. Dry the cooking plates thoroughly with a tea towel. Use only a damp cloth to clean the appliance body. Dry it with a cloth.

STORAGE

Store the appliance in a dry place.

TECHNICAL INFORMATION

TM-1304

Power: 1000 W

Voltage: 230 V / 50 Hz

Min/max temp.: room temperature / 230 °C

Net weight: 2.1 kg

RECIPE

Wafer batter

200 g all-purpose flour – 150 g white sugar – 150 g butter – 2 eggs – vanilla essence or cinnamon to taste – 1 pinch of salt. Melt butter very slowly and then add the remaining ingredients – mix everything thoroughly. Add a few tablespoons of lukewarm water if necessary to make the batter workable.

We would like to congratulate you on buying an appliance from the TOMADO product range.

Warranty regulations

• TOMADO provides a 2-year warranty for all defects caused by hidden deficiencies which render the appliance useless for normal operation.
• The warranty runs from the date of purchase; we advise you to carefully save your receipt.
• Within the warranty period any defects in production or material will be resolved free of charge, by means of reparation, replacement of parts or replacement of the appliance as a whole.
• The warranty certificate has to be filled in by the sales person at the moment of purchase.
• Repairs will only be made under warranty in case it can proven (by means of a filled in warranty card and the receipt) that the day the complaint is filed falls into the warranty period.
• The warranty does not apply when defects or damages result from an accident, misuse, negligence (e.g. incorrect cleansing), or when repairs of alterations have been executed outside the authorized TOMADO service centre (excl. disassembling, as stated in the instruction manual).
• The warranty does not cover any defects arising when the appliance is connected to the wrong outlet voltage, not following the guidelines in the instruction manual and usual wear and tear.
• The warranty does not cover any defects arising from the lack of frequent descaling of appliances, whatever type of water has been used (especially for steam irons, coffee machines and water boilers).
  • TOMADO cannot be held responsible for any material damage or personal accident resulting from connecting

the appliance in breach of the locally applicable safety regulations and technical standards (for instance an inferior AC outlet). The warranty under no circumstances grants the right for any compensation.

• All other claims, including damages, are excluded unless the Law states otherwise.
• Other warranty regulations than the warranty regulations stated above are not applicable.

Service

For more information you can write to the following address (postage paid):

TOMADO Consumentenservice

Antwoordnummer 19016

NL - 1000 VC Amsterdam

The Netherlands

What do you do in case your appliance does not work?

When your appliance shows defects, you can refer to your salesperson. Your salesperson will make sure any defect will be repaired as soon as possible.

Repairs outside the warranty period

You can always hand in your appliance to have it repaired outside the warranty period. This will of course not be free of charge.

Guidelines for protection of the environment

This appliance should not be put into the domestic garbage at the end of its useful life, but must be disposed of at a central point for recycling of electric and electronic domestic appliances. This symbol on appliance, instruction manual and packaging puts your attention to this important issue. The materials used in this appliance can be recycled. By recycling used domestic appliances you contribute an important push to the protection of our environment. Ask your local authorities for information regarding the point of recollection..
