Package Contents

Check your product box for the following items:

-ARCHOS 50c Neon
-Battery
-Headset
-USB cable
-Charger
-Quick start guide
-Warranty Legal & Safety notices

The items supplied with your device and available accessories may vary depending on your region or service provider.

The supplied items are designed only for your device and may not be compatible with other devices.

Unapproved accessories may cause your device to malfunction.

2

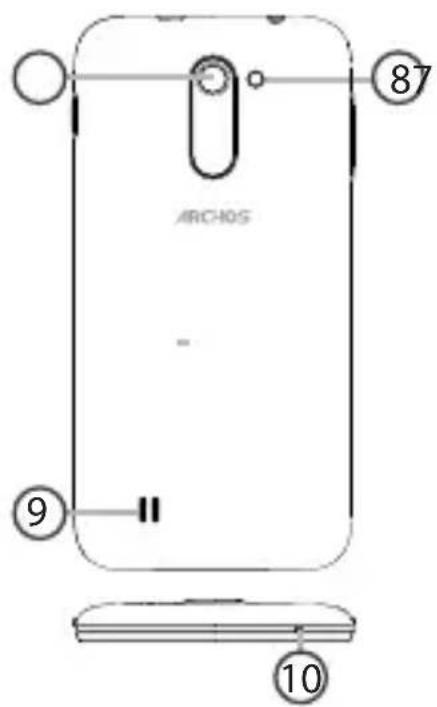

Description of the phone

7Camera
⑧ Flash light
9Loudspeaker
10 Microphone

4

ARCHOS_50c_Neon_book.indd 4 02/04/2015 14:42:46

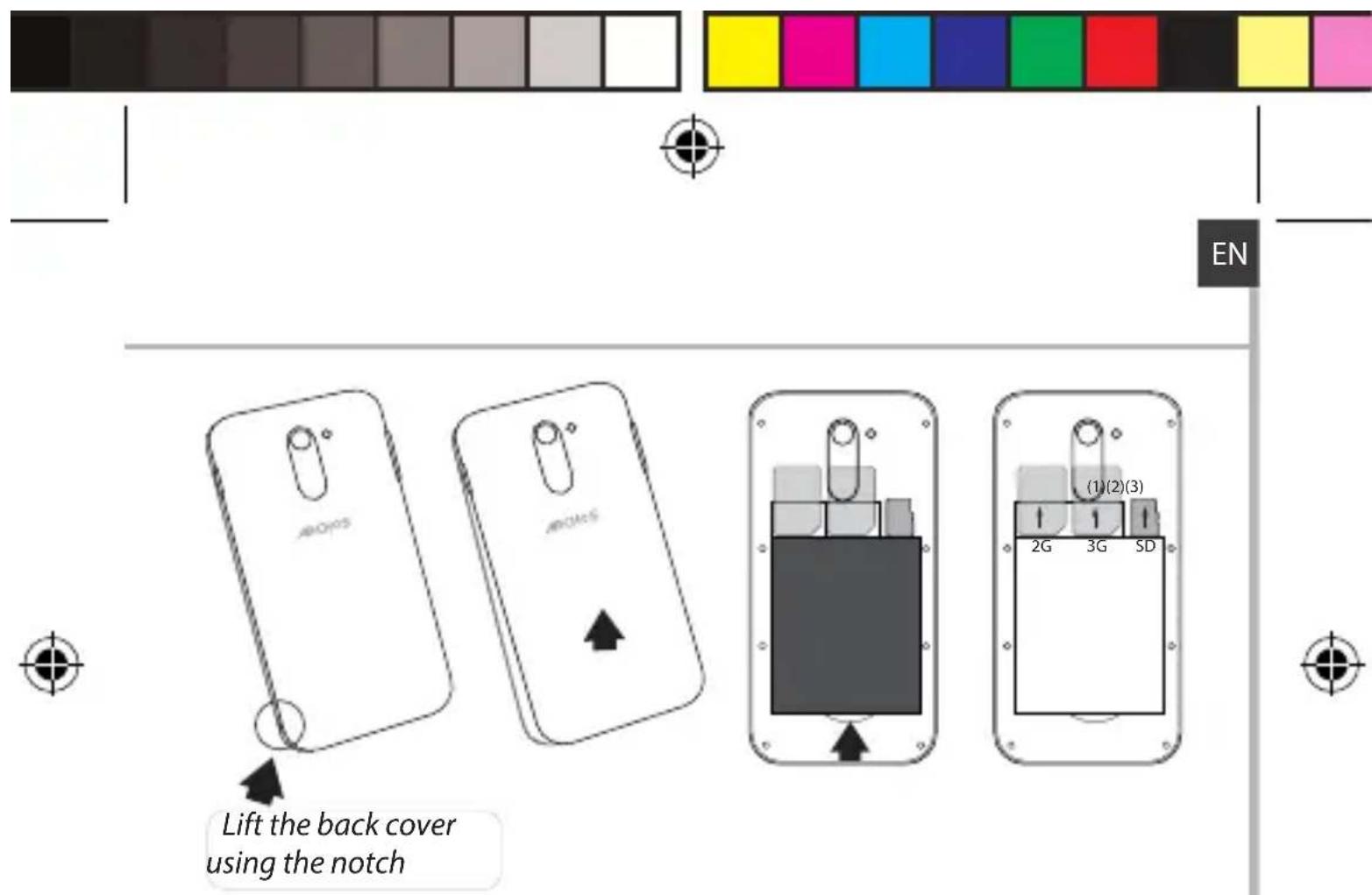

Assembling

Opening

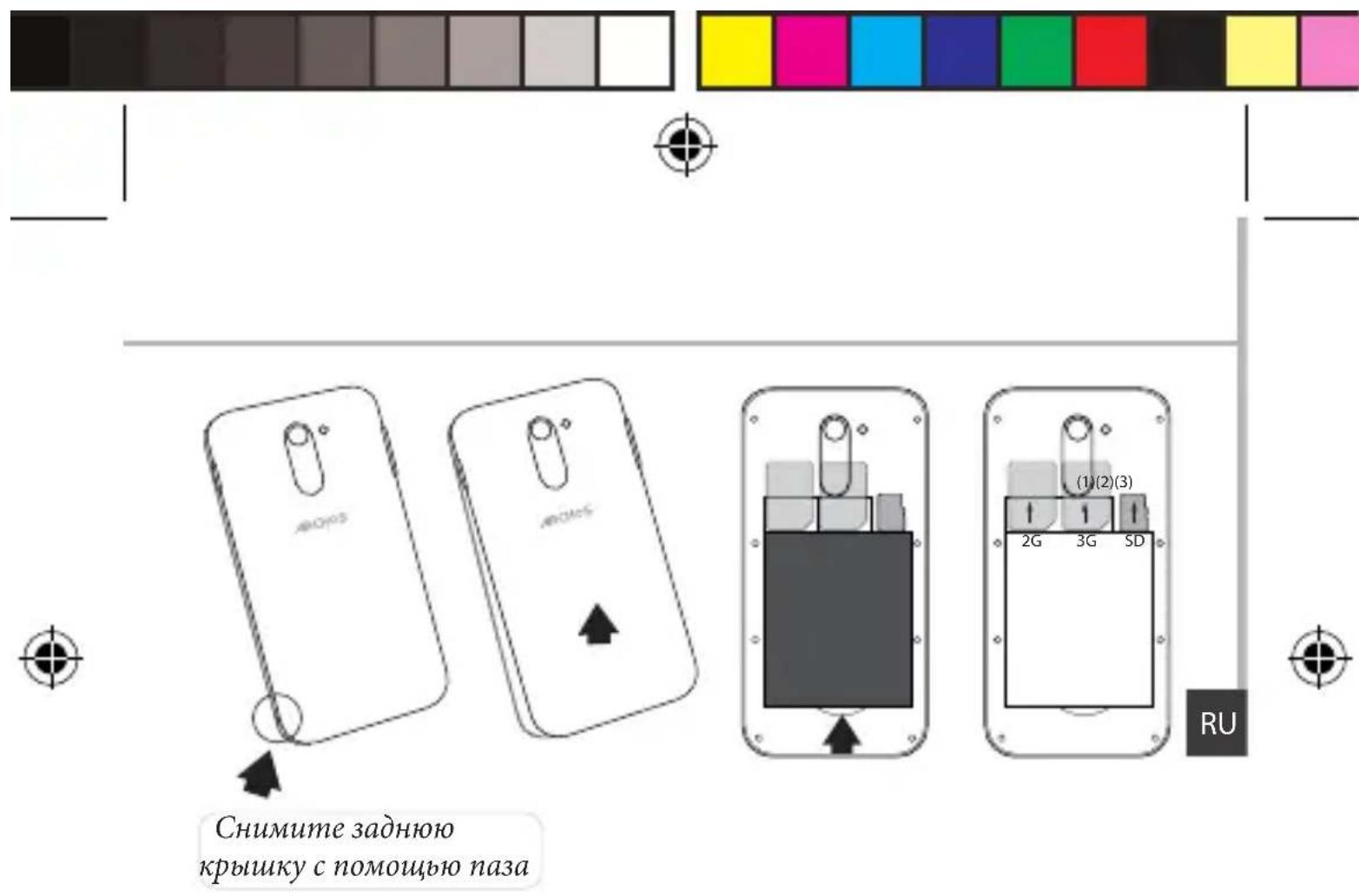

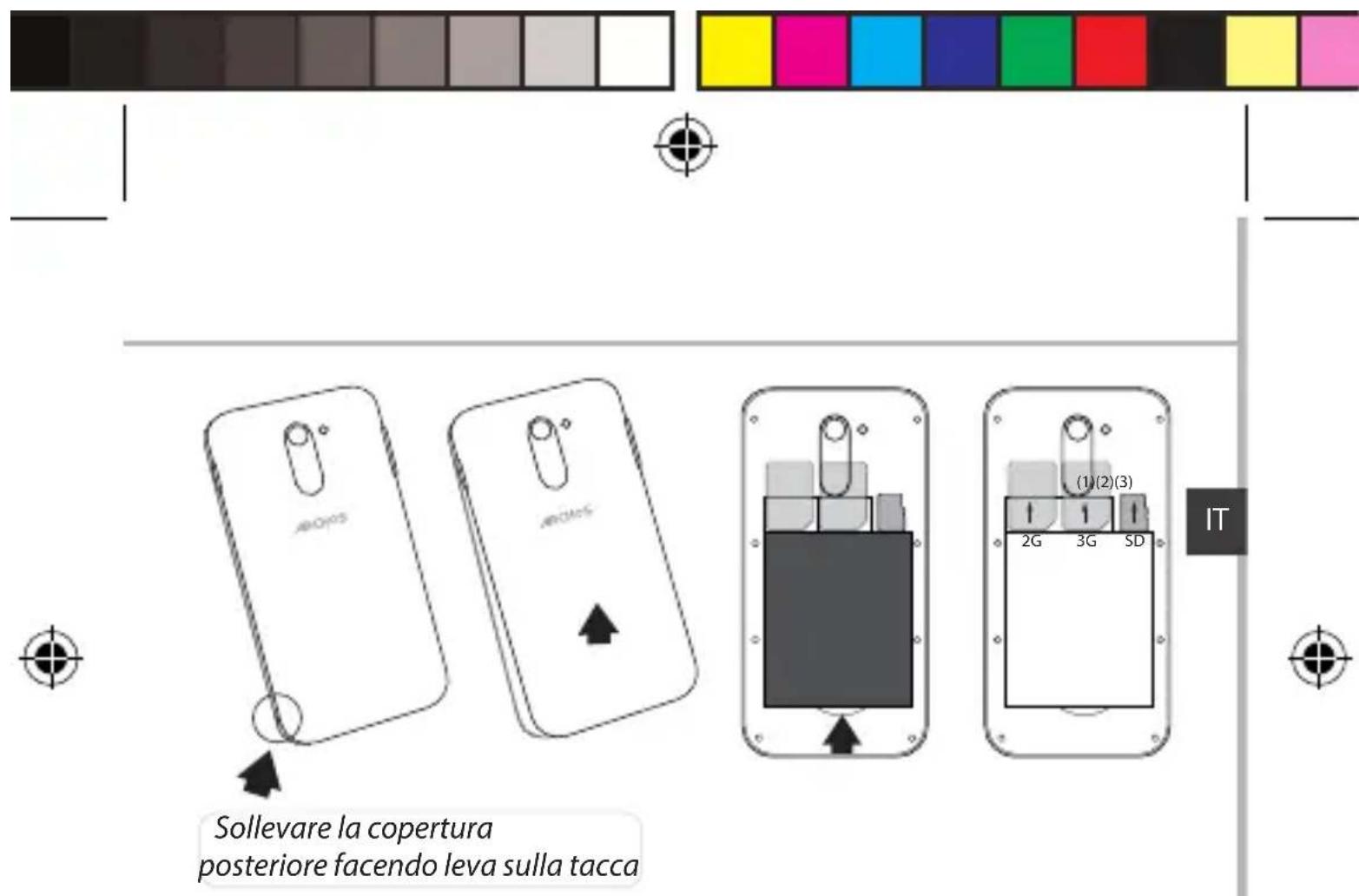

Use the notch to remove the back cover.

Do not bend or twist the back cover excessively.

Doing so may damage the cover.

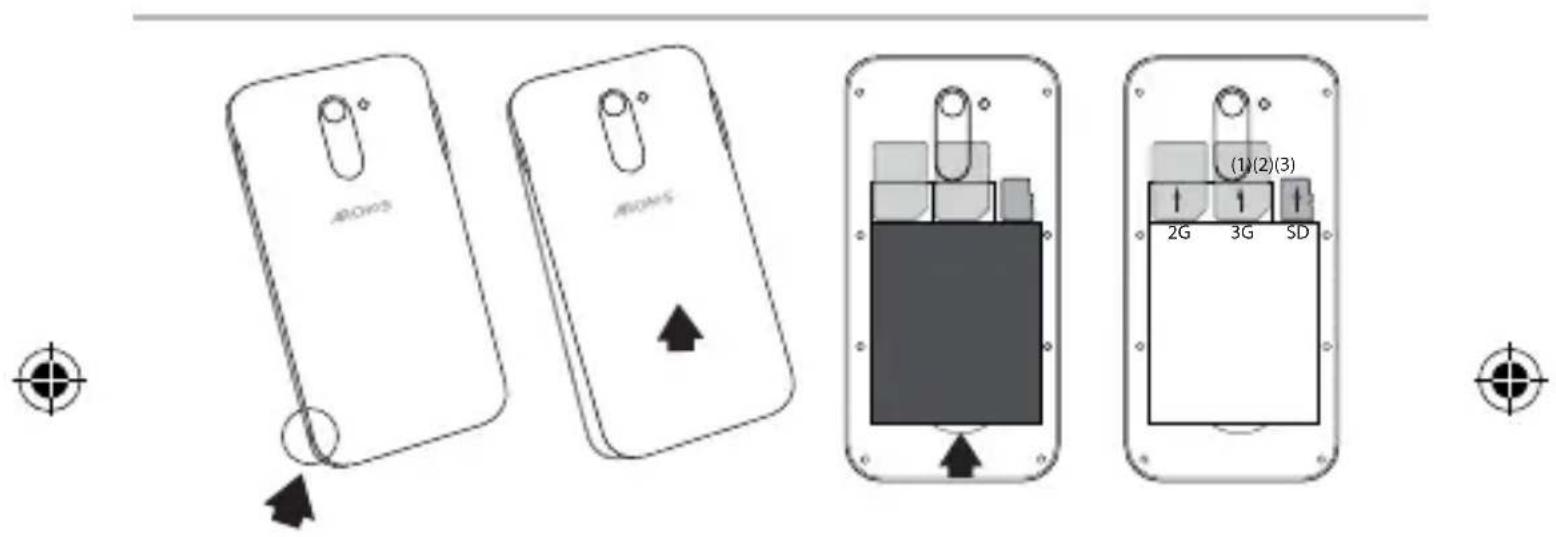

Inserting a SIM card

For your 3G SIM card, slide it facing downwards in the 3G slot(1).

For your standard SIM card, slide it facing downwards in the 2G slot(2).

Inserting a Memory card

For your Memory card, slide it facing downwards in the slot mSD(3).

Closing

Replace the back cover clicking it back into position.

Tip:

Before using your device for the first time, charge completely its battery.

6

ARCHOS_50c_Neon_book.indd 602/04/2015 14:42:47

7

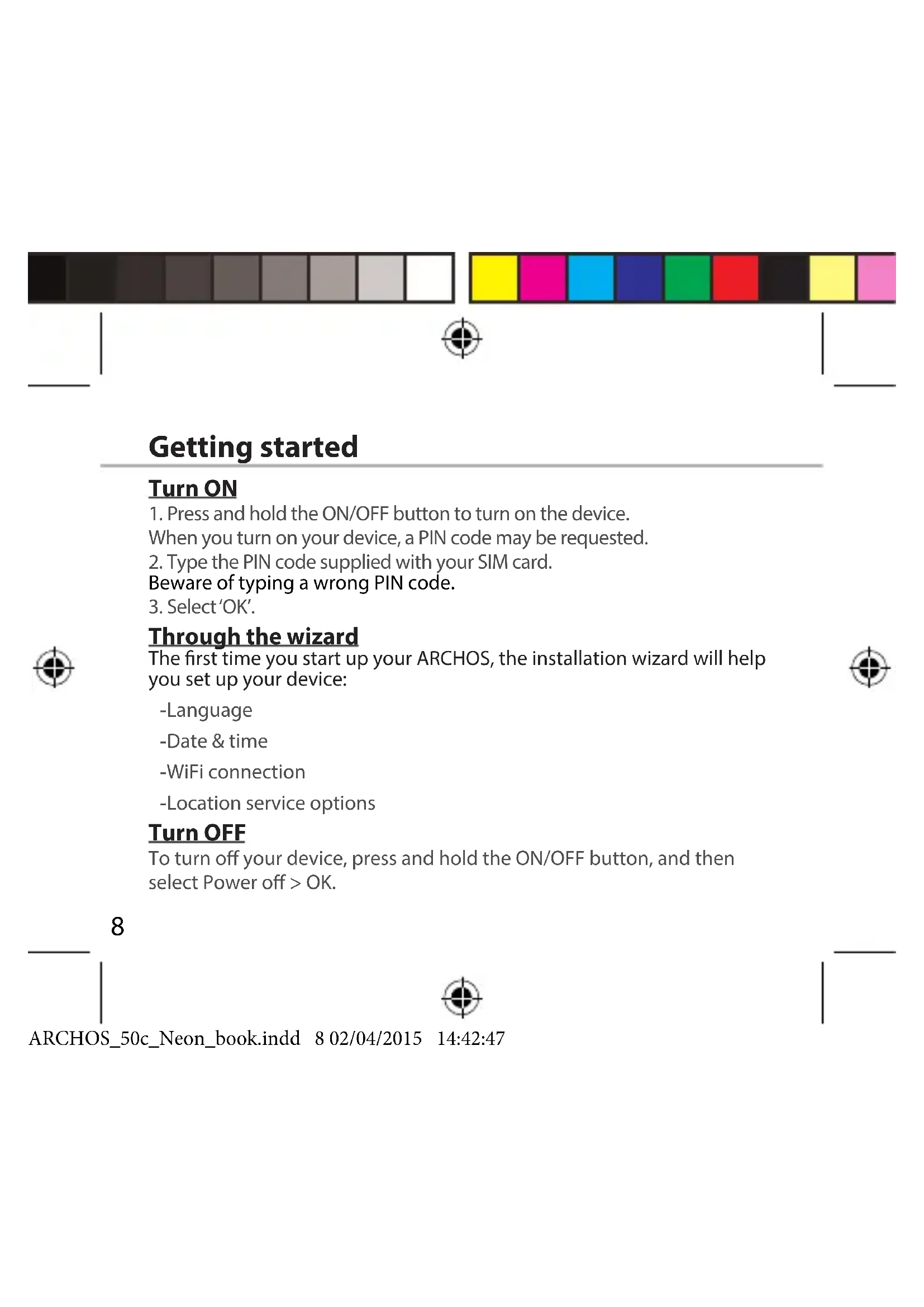

Getting started

Turn ON

1. Press and hold the ON/OFF button to turn on the device.
   When you turn on your device, a PIN code may be requested.
2. Type the PIN code supplied with your SIM card.
   Beware of typing a wrong PIN code.
3. Select 'OK'.

Through the wizard

The first time you start up your ARCHOS, the installation wizard will help you set up your device:

-Language
-Date & time
-WiFi connection
-Location service options

Turn OFF

To turn off your device, press and hold the ON/OFF button, and then select Power off > OK.

8

ARCHOS_50c_Neon_book.indd 802/04/2015 14:42:47

14:42:47

ARCHOS_50c_Neon_book.indd 9 02/04/2015 14:42:47

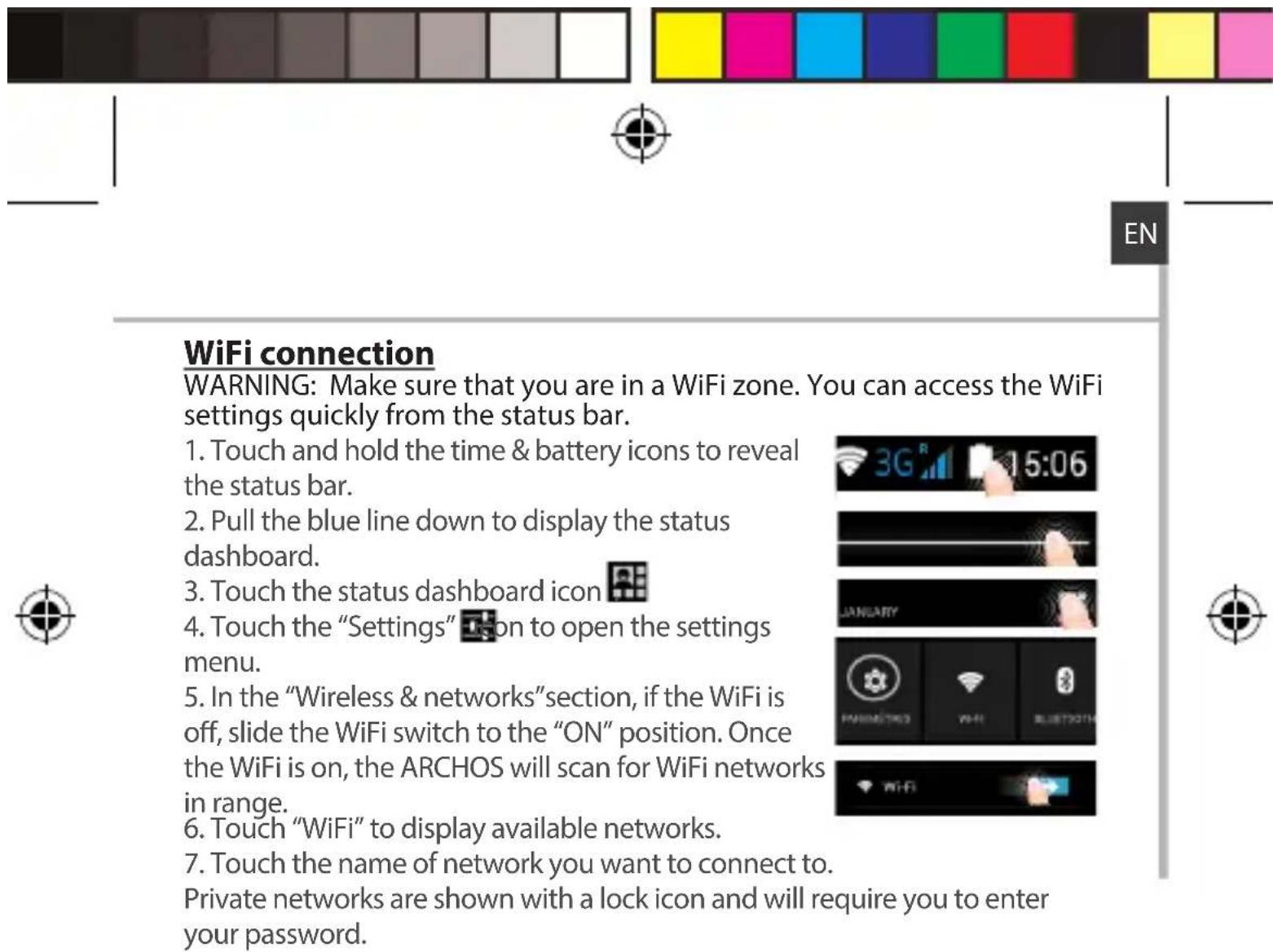

3G & WiFi connection

3G connection

With your SIM card, you should be connected to the Internet without any further setup. The ARCHOS will only have signal if you are in an area covered by your provider's 3G network. When connected to the 3G network, the 3G icon is displayed in the status bar.

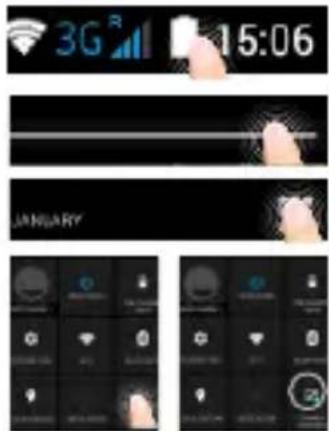

Activating the mobile data

To be able to access Internet, the mobile data icon must be activated.

1. Touch and hold the time & battery icons to reveal the status bar.
   2.Pull the blue line down to display the status dashboard.
2. Touch the status dashboard icon
3. Touch the mobile data icon to activate it.

Tip:

When you encounter connection problem's, see the FAQs on www.archos.com or contact your 3G network connection provider.

Google & Contacts

Adding a Google account

A Google account lets you take full advantage of any Google apps and services that you may want to use.

1. Go to "Settings" > "Accounts" > "Add account".
2. Select the account type "Google" to add.
3. Follow the onscreen instructions to enter information about the account. Once the account is created, you can access Play Store, Gmail, Hangouts, Maps and many other apps.

Synchronizing info

Information must be sync to be saved. Your data is backed up on Google servers.

1. Go to "Settings" > "Accounts" > "Google".
2. Select your account.

The list of information that can be sync are displayed.

Automatic sync should be activated. To launch the sync, press the Menu button, then Sync now. You can get them back in case of loss of your device or SIM card. When your Google account is added to a new device, all your saved information is transferred.

12

Hints & tips for Android™

The extended home screen:

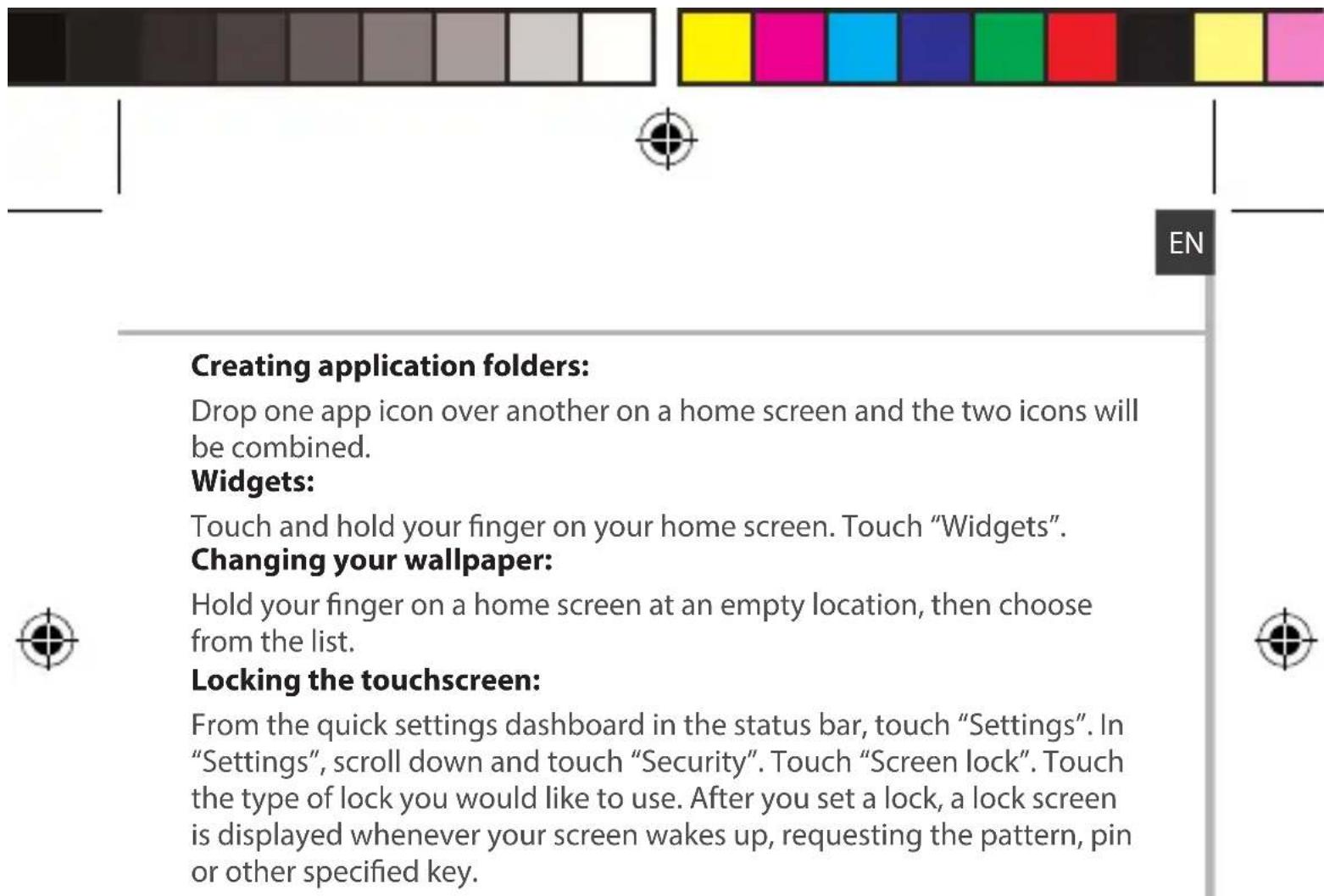

You have by default one home screen. You can create as many home screens you want. Select an app icon and slide it right. A new home screen will be created. Select another app icon and slide it right to create a third home screen.

Moving a home screen item:

Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item:

Touch and hold it, slide your finger towards the top of the screen and drop it over the "Remove" icon.

Uninstalling an item:

From the "All apps" screens, touch and hold it, slide your finger towards the top of the screen and drop it over "Uninstall" bin.

14

ARCHOS_50c_Neon_book.indd 14 02/04/2015 14:42:49

Troubleshooting

My phone is frozen or cannot switch on

1. Charge your device.
2. Press the ON/OFF button for 10 seconds or use the Hardware reset.

To use the Hardware reset, press the "pinhole reset" button by using a sharp object such as a toothpick.

My phone cannot connect to a network or "No service" is displayed

Try connecting in another location. Verify the network coverage with your operator.

Unable to make outgoing calls

Make sure your phone is connected to a network, and the network is not overloaded or unavailable.

Unable to receive incoming calls

Make sure your phone is switched on and connected to a network (check for overloaded or unavailable network).

SIM card PIN locked

Contact your network operator to obtain the PUK code (Personal Unblocking Key).

To configure a new 3G network:

On your device, tap Settings.

Select Wireless & networks > More... > Mobile networks.

Select Network settings. In Network operators, select your operator. In

Access Point Names, select the correct access point name and enter the exact connection parameters provided by your 3G provider.

Table des matieres

Impossible de receivevoir des appeals

completely la batteria.
