USER MANUAL 50F Helium Lite ARCHOS

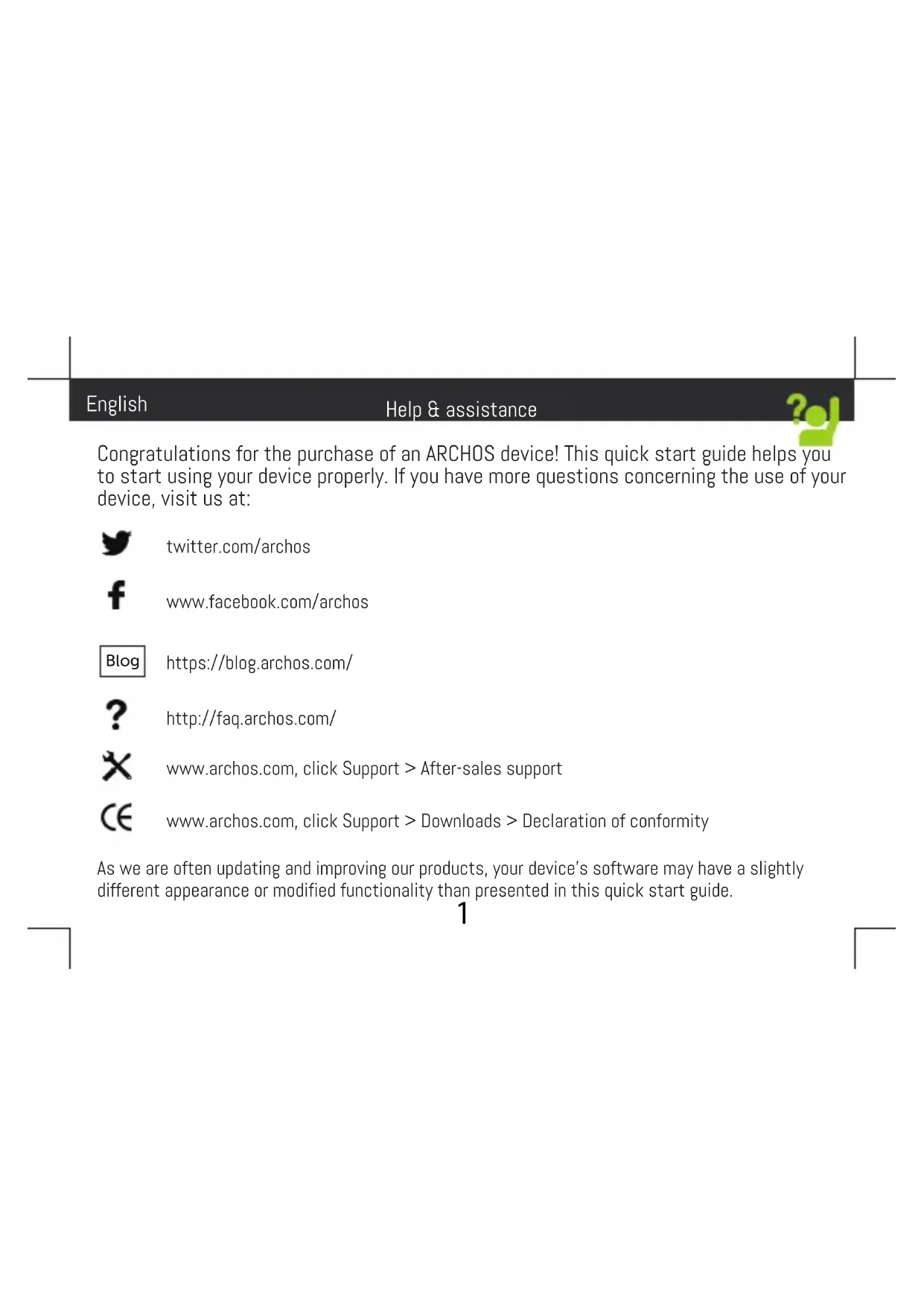

Help & assistance Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at: twitter.com/archos www.facebook.com/archos Blog https://blog.archos.com/ http://faq.archos.com/ www.archos.com, click Support > After-sales support www.archos.com, click Support > Downloads > Declaration of conformity As we are often updating and improving our products, your device’s software may have a slightly different appearance or modified functionality than presented in this quick start guide. English2 Warranty Unboxing ARCHOS 50F Helium Lite Quick start guide Warranty, legal and safety notice Charging cable Charger adapter3 Describing your device Front camera Phone speaker Headphone jack Rear camera Flash light ON/OFF Volume Micro-USB port Light sensor Fingerprint reader Loudspeaker Microphone4 After you have unpacked your mobile phone box:

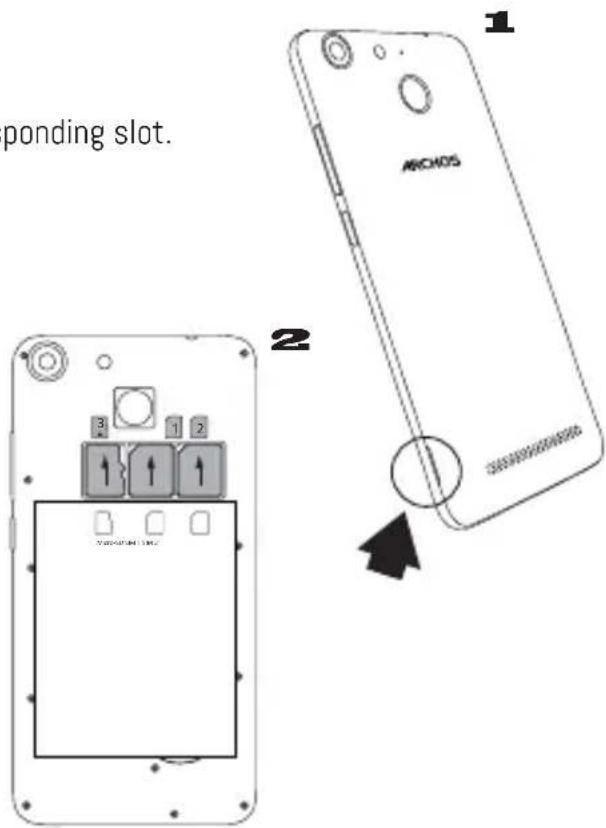

1. Remove the device’s back cover using the notch.

2. Insert your SIM card or Memory card in the corresponding slot.

Card type Slot Format 4G slot 1 Micro-SIM 4G slot 2 Micro-SIM Memory card slot 3 Micro-SD When inserting your SIM card or micro-SD card, make sure to follow the illustration, otherwise you may damage the slot or the card. Assembling

Starting up Charging your battery completely Plug the charging cable in the micro USB port and the adapter in a power outlet. Leave the device until the battery is fully charged. Turning ON

1. Press and hold the ON/OFF button to turn on

2. Follow the instructions to set up your device.

Activating mobile date connection (4G)

1. Touch and pull down the status bar to display it.

2. Touch again the bar to reveal the quick

4. In Wireless & networks, select Data usage,

then the SIM card tab.

5. Slide the Mobile data switch to turn on/off.

Activating WiFi connection

1. Touch and pull down the status bar to display it.

2. Touch again the bar to reveal the quick

to activate the WiFi connection .

4. Select “WiFi” below the WiFi icon.

5. Touch the name of network you want to

connect to. Private networks are shown with a lock icon and will require you to enter your password. Fingerprint reader Use the fingerprint option to secure your device.

3. Select a pattern as an alternative in case of

being not able to use the fingerprint option.

4. Follow the onscreen instructions.

5. Record your finger in different positions for a

6. You can add up to 5 fingerprints.6

Activating mobile date connection (4G)
