USER MANUAL kMix BL380 KENWOOD

KENWOOD 120 150.4 150.3 150.2 150.1 1 KENWOOD

BL370series

BL380series

English 2 - 6

Nederlands 7 - 12

Français 13 - 18

Deutsch 19 - 24

Italiano 25 - 30

Português 31 - 37

Español 38 - 43

Dansk 44 - 48

Svenska 49 - 53

Norsk 54 - 58

Suomi 59 - 63

Türkçe 64 - 69

Česky70 - 75

Magyar76 - 81

Polski82 - 87

Русский88 - 94

Ελληνικά 95 - 101

Slovenčina 102 - 107

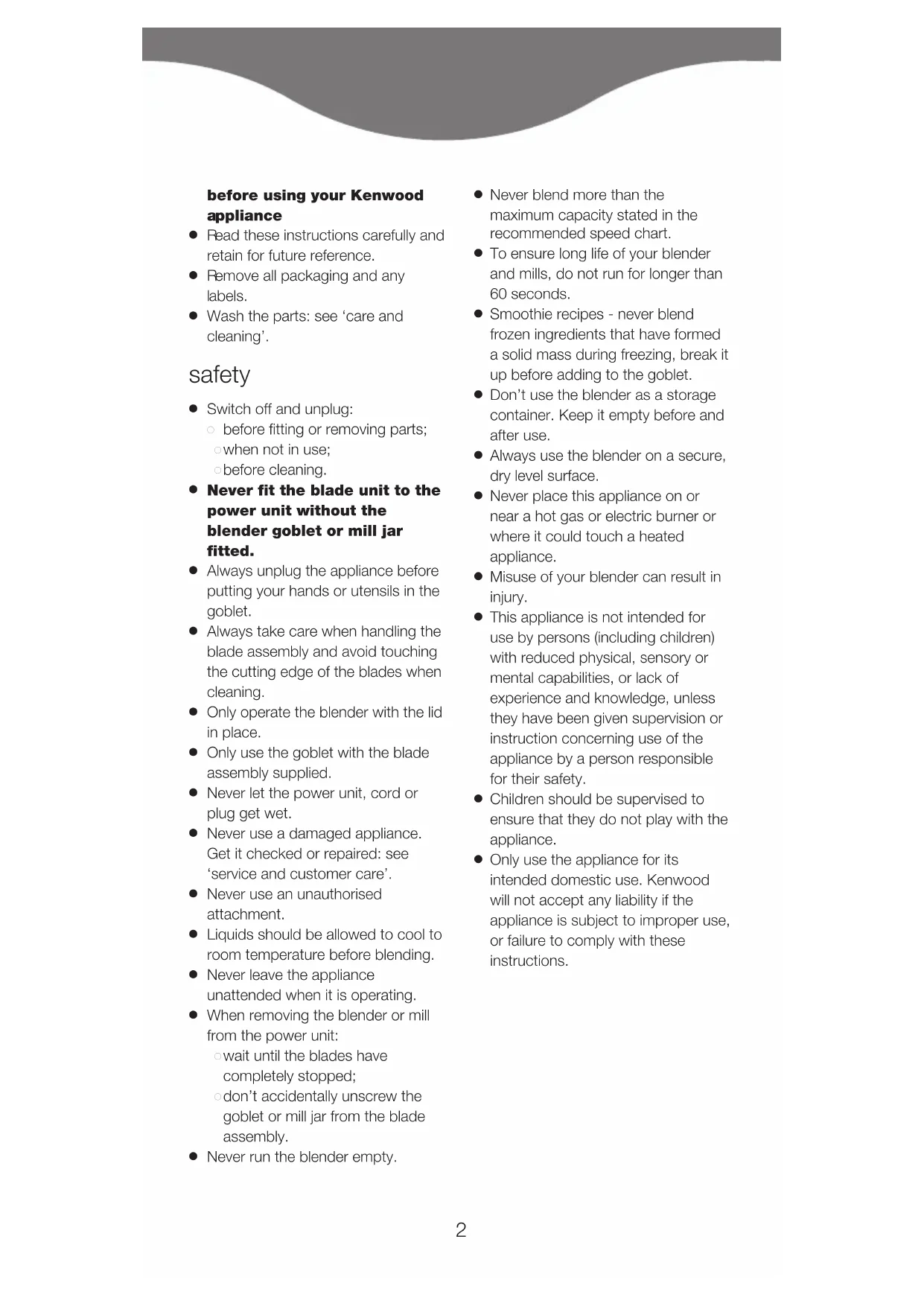

before using your Kenwood appliance

• Read these instructions carefully and retain for future reference.
• Remove all packaging and any labels.
• Wash the parts: see 'care and cleaning'.

safety

• Switch off and unplug:
• before fitting or removing parts;
• when not in use;
• before cleaning.

- Never fit the blade unit to the power unit without the blender goblet or mill jar fitted.

● Always unplug the appliance before putting your hands or utensils in the goblet.
● Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.
- Only operate the blender with the lid in place.

- Only use the goblet with the blade assembly supplied.

- Never let the power unit, cord or plug get wet.

- Never use a damaged appliance. Get it checked or repaired: see 'service and customer care'.

- Never use an unauthorised attachment.

- Liquids should be allowed to cool to room temperature before blending.

- Never leave the appliance unattended when it is operating.

- When removing the blender or mill from the power unit:

- wait until the blades have completely stopped; - don't accidentally unscrew the goblet or mill jar from the blade assembly.

- Never run the blender empty.

• Never blend more than the maximum capacity stated in the recommended speed chart.
• To ensure long life of your blender and mills, do not run for longer than 60 seconds.
• Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.
• Don't use the blender as a storage container. Keep it empty before and after use.
  ● Always use the blender on a secure, dry level surface.
• Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.
• Misuse of your blender can result in injury.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  ● Children should be supervised to ensure that they do not play with the appliance.
• Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

before plugging in

● Make sure your electricity supply is the same as the one shown on the underside of the appliance.
- This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food.

key

blender

① filler cap
② locking lid
③ goblet
④ blender sealing ring
⑤ blender blade unit
⑥ power unit
⑦ speed + pulse control
⑧ cord storage

multi mill (if supplied)

④ blender sealing ring
⑤ blender blade assembly
⑨ multi mill jar

grinding mill (if supplied)

⑩ mill jar
⑪ grinding mill blade assembly

grating mill (if supplied)

⑫ mill jar
⑬ grating mill blade assembly

to use your blender

Use your blender for soups, drinks, pâtés, mayonnaise, breadcrumbs, biscuit crumbs, chopping nuts and crushing ice.

1 Fit the blender sealing ring ④ into the blender blade unit ⑤ - ensuring the seal is located correctly in the grooved area.
- Leaking will occur if the seal is damaged or incorrectly fitted.

2 Screw the blade assembly onto the goblet – ensuring the blade assembly is fully tightened ①. Refer to the graphics on the underside of the blade unit as follows:

- unlocked position

- locked position

3 Put your ingredients into the goblet.
4 Put the filler cap in the lid.
5 Fit the lid to the goblet and turn clockwise to lock.
6 Place the blender onto the power unit with the handle situated to the right hand side and lock by turning clockwise until you hear a "click" ②.

- The appliance won't work if the blender is incorrectly fitted.

7 Select a speed (refer to the recommended speed chart).

blender hints

• To blend dry ingredients - cut into pieces, remove the filler cap, then with the machine running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.
• The processing of spices is not recommended as they may damage the plastic parts.
• When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.
• Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid.

to use your multi mill

(if supplied)

Use your multi mill for milling herbs, nuts, coffee beans and purees.

1 Put your ingredients into the jar ⑨. Fill it no more than half full.

2 Fit the blender sealing ring ④ into the blender blade unit ⑤ - ensuring the seal is located correctly in the grooved area.

- Ensure that the seal is fitted correctly.

3 Turn the blade unit ⑤ upside down. Lower it into the jar, blades down ③. Turn anti-clockwise to lock.

4 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" ④.

5 Select a speed or use the pulse control.

blender recommended speed chart
speed usage/food items max. quantity
1 Frothing milk 800 ml
2 Soups & drinks 1.2 litresThicker mixes e.g. pâtés
(P) The pulse	Operates the motor in a start/stop action.pulse will operate for as long as it is held in - position.
	Ice crushing - operate in short bursts until crushed to the desired consistency.	6 cubes

to use your grinding mill

(if supplied)

Suitable for grinding spices, coffee beans and processing ginger, garlic and chillies.

1 Place your ingredients into the blade assembly ⑪.
2 Fit the jar ⑩ and turn anti-clockwise to lock ⑤.
3 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" 6.
4 Select a speed or use the pulse (P) control.

to use your grating mill

(if supplied)

Suitable for grating parmesan cheese, nutmeg, coconut and dried fruit.

1 Place your ingredients into the blade assembly ⑬.
2 Fit the jar ⑫ and turn anti-clockwise to lock ⑦.
3 Place the mill onto the power unit and lock by turning clockwise until you hear a "click" ⑥.
4 Select a speed or use the pulse (P) control.

mill recommended speed chart
ingredients mill max qty speed operating				time
Herbs - best chopped Multi 15g 2 5 – 10 secs when clean and dry
Nuts Multi or Grinding 50g 2 10 – 15 secs
Coffee Beans Multi or Grinding 50g 2 30 secs
Baby Foods & Purees Multi 50g 2 30 secs
Spices – such as black Grinding peppercorns, cardamom seeds, cumin seeds, coriander seeds, fennel seeds, whole cloves etc.		50g 2 30 – 60 secs
Chillies	Grinding	30g 2 10 secs
Fresh Root Ginger	Grinding	30g 2 10 secs
Garlic	Grinding	4 cloves	2 10 secs
Parmesan Cheese – cut into 1cm cubes	Grating 60g 2 10 secs
Dried Fruit	Grating 50g 2 10 secs
Coconut	Grating 50g 2 20 secs
Nutmeg	Grating	2	2	40 secs

hints

• For optimum performance when processing spices we recommend that you do not process more than 50g at a time in the mill.
  ● Whole spices retain their flavour for a much longer time than ground spices so it is best to grind a small quantity fresh at a time to retain the flavour.
• To release the maximum flavour and essential oils whole spices are best roasted prior to milling.

care and cleaning

• Always switch off, unplug and dismantle before cleaning.
- Empty the goblet before unscrewing it from the blade unit.
- Don't immerse the blade unit in water.
- Do not place any parts in the dishwasher.

power unit

● Wipe with a damp cloth, then dry.
- Don't immerse the power unit in water.
- Store excess cord in the storage area at the back of the power unit ⑧.

blade assemblies

blender and multi mill

- Remove the blade unit from the goblet or mill by turning to the unlock position 🔔 to release.

grinding and grating mills

- Remove the blade unit from the jar by turning in a clockwise direction.

1 blender/multi mill: remove and wash the sealing ring.

2 Don't touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Don't immerse the blade unit in water.

3 Leave to dry upside down.

other parts

Wash by hand, then dry.

service and customer care

• If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer.
  If you need help with:
  • using your appliance or
  • servicing or repairs Contact the shop where you bought your appliance.
• Designed and engineered by Kenwood in the UK.
• Made in China.

IMPORTANT INFORMATION FOR CORRECT DISPOSAL OF THE PRODUCT IN ACCORDANCE WITH EC DIRECTIVE 2002/96/EC.

At the end of its working life, the product must not be disposed of as urban waste.

It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service.

Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

Head Office Address:

Kenwood Limited, New Lane, Havant, Hampshire PO9 2NH, UK

www.kenwoodworld.com

Designed and engineered by Kenwood in the UK

Made in China

40429/1
