USER MANUAL PLM61 KENWOOD

Read these instructions carefully and retain for future reference.

Remove all packaging and any labels.

Switch off and unplug:

before fitting or removing parts;

Always unplug the appliance before putting your hands or utensils in the goblet.

Always take care when handling the blade assembly and avoid touching the cutting edge of the blades when cleaning.

Only operate the blender with the lid in place.

Only use the goblet with the blade assembly supplied.

Never let the power unit, cord or plug get wet.

Never use a damaged appliance. Get it checked or repaired: see ‘service and cus- tomer care’.

Never use an unauthorised attachment.

SCALD RISK: Hot ingredients should be al- lowed to cool to room temperature before blending.

Never leave the appliance unattended when it is operating.

When removing the blender or mill from the power unit:

wait until the blades have completely stopped;

don’t accidentally unscrew the goblet or mill jar/lid from the blade assembly.

Never blend more than the maximum capacity stated in the recommended usage chart.

To ensure long life of your blender or mill, do not run it continuously for longer than 60 seconds.

Smoothie recipes - never blend frozen ingredients that have formed a solid mass during freezing, break it up before adding to the goblet.

Do not process hard spices such as Nutmeg or Turmeric root as they may damage the blade.

Do not use the blender as a storage container. Keep it empty before and after use.

Always use the blender on a secure, dry level surface.

Never place this appliance on or near a hot gas or electric burner or where it could touch a heated appliance.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Misuse of your blender can result in injury.

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

Only use the appliance for its intended domestic use. Kenwood will not accept any liability if the appliance is subject to improper use, or failure to comply with these instructions.

The maximum rating is based on the attachment that draws the greatest load. Other attachments may draw less power.

INSTRUCTIONS To minimise the possibility of scalding when blending hot ingredients keep hands and other exposed skin away from the lid to prevent possible burns. The following precautions must be observed:

CAUTION: Blending very hot ingredients may result in hot liquid and steam being forced suddenly past the lid or filler cap

We recommend that hot ingredients are allowed to cool before blending.

NEVER exceed 1200ml / 5 cups capacity if processing hot liquids, such as soups (refer to the markings on the goblet).

ALWAYS commence blending at a low speed and gradually increase the speed. NEVER blend hot liquids by using the pulse setting.G Liquids which tend to foam such as milk, should be limited to a maximum capacity of 1000ml/4 cups.

Take care when handling the blender as the goblet and its contents will be very hot.

Take particular care when removing the lid. The lid is designed to be a tight fit to prevent leakage. If necessary protect your hands with a cloth or oven gloves when handling.

Ensure the goblet is securely attached to the base and when removing from the appliance, guide the base and ensure it is removed together with the goblet.

Ensure that the lid and filler cap are securely in place before every blending operation.

Always ensure that the vents in the filler cap are clear before every blending operation

When fitting the lid to the goblet always ensure that the lid and goblet rim are clean and dry to ensure a good seal and prevent spillage.

Make sure your electricity supply is the same as the one shown on the underside of the appliance.

This appliance conforms to EC directive 2004/108/EC on Electromagnetic Compatibility and EC regulation no. 1935/2004 of 27/10/2004 on materials intended for contact with food. Use your blender for soups, drinks, pâtés, mayonnaise, breadcrumbs, biscuit crumbs, chopping nuts and crushing ice. Use your multi mill (if supplied) for milling herbs, nuts, coffee beans and purées.key filler cap lid

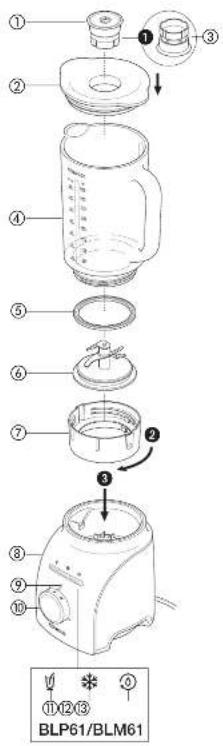

blade unit blade base power unit Power On indicator speed + pulse control TYPE BLM61 & BLP61 only Programme buttons drinks ice crush rinse Multi mill (if supplied) multi mill jar grinding mill (if supplied) mill lid grinding mill blade assembly grating mill (if supplied) mill lid grating mill blade assembly to use your blender 1 Fit the sealing ring into the blade unit - ensuring the seal is located correctly in the grooved area.

Leaking will occur if the seal is damaged or incorrectly fitted. 2 Clip the blade unit into the base

3 Screw the blade assembly onto the goblet – ensuring the blade assembly is fully tightened . Refer to the graphics on the underside of the blade unit as follows: - unlocked position - locked position 4 Put your ingredients into the goblet. 5 Fit the filler cap to the lid and push down to secure. 6 Fit the lid by pushing down until secure.

Place the blender onto the power unit .

he appliance will not work

f the blender is incorrectly fitted.

Plug in and the indicator light will

emain unlit whilst in the “O” OFF position.

he speed control to select a speed (refer to the recommended usage chart).

Select a speed between ‘Min’ to ‘Max’ by turning the speed control. At the end of blending return the speed control to “O” OFF before removing the blender.

Do not remove the goblet until the blades have stopped rotating and the speed control is in the “O” OFF position.

(P) Pulse – operates the motor in a start/stop action. The pulse will operate for as long as it is held in position. Note: If the blender is removed from the power unit whilst a speed is selected the Indicator light will go out and the blender will stop. The blender willl restart immediately if refitted. TYPE BLM61 & BLP61 only - Turn to the “on” position and the Power On indicator and the 3 pre-programmed buttons will light up. Note: In the “on” position the Power On indicator will flash if the goblet is not fitted to the power unit. In the “O” OFF position all the indicator lights will remain off. 9 Select a speed (refer to the recommended usage chart). Choose one of the following options:

elect one of the 3 pre- programmed buttons. When the

equired programme button is

ressed the light on the other button will go out. The blender will

f the pre-set time. If you wish to stop before the pre-set time, press

he selected programme button

Select a speed between ‘Min’ to ‘Max’ by turning the speed control. At the end of blending return the speed control to “O” OFF before removing the blender.

Do not remove the goblet until the blades have stopped rotating and the speed control is in the “O” OFF position.

(P) Pulse – operates the motor in a start/stop action. The pulse will operate for as long as it is held in position. Refer to the troubleshooting section if you experience any problems with the operation of the blender. hints

To blend dry ingredients - cut into pieces, remove the filler cap, then with the machine running, drop the pieces down one by one. Keep your hand over the opening. For best results empty regularly.

The processing of spices is not recommended as they may damage the plastic parts.

When making mayonnaise, put all the ingredients, except the oil, into the blender. Remove the filler cap. Then, with the appliance running, add the oil slowly through the hole in the lid.

Thick mixtures, e.g. pâtés and dips, may need scraping down. If the mixture is difficult to process, add more liquid. 7Recommended Usage Chart (Programme buttons)

ilkshakes and milk Max 1.2 litres based drinks

moothies 1 litre Liquid Drinks Place the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices). Then add ice or frozen ingredients (includes frozen fruit, ice or ice cream) Ice crushing- Automatic 10 ice cubes 45 secs Pulsing action (200g) Ice A change in speed will be crush noted - this is normal. Freeze fruit juice in ice trays for Slushie type drinks A change in speed will be Max 500 mls 30 secs noted - this is normal. warm water Use to rinse the goblet before taking apart Rinse for cleaning. For best results always take the blender apart for cleaning and dry thoroughly before re-assembling.

Processing times stated are for guidance only and will vary depending on the exact recipe used, ingredients being processed and personal preference. Stop the processing when the desired result has been achieved.9 to use your multi mill (if supplied) Use your multi mill for milling herbs, nuts, coffee beans and purees. 1 Put your ingredients into the jar . Fill it no more than half full. 2 Fit the blender sealing ring into the blender blade unit - ensuring the seal is located correctly in the grooved area.

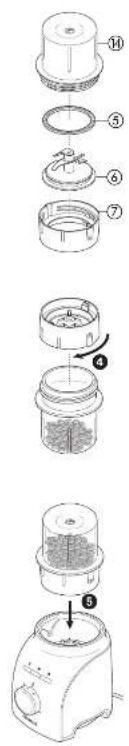

Ensure that the seal is fitted correctly. 3 Clip the blade unit into the base

4 Turn the blade unit upside down. Lower it into the jar, blades down and turn to lock - ensuring the blade assembly is fully tightened . Refer to the graphics on the underside of the blade unit as follows: - unlocked position - locked position 5 Place the mill onto the power unit

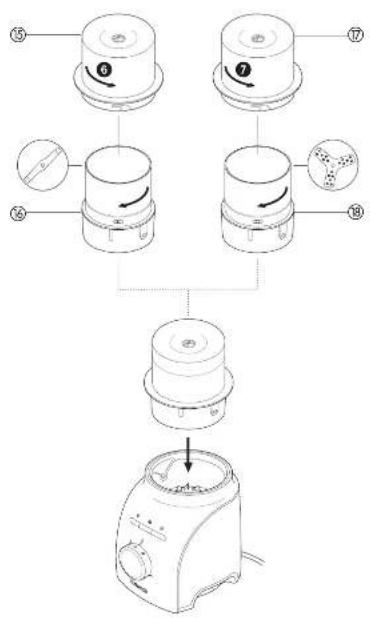

6 Select a speed or use the pulse control. to use your grinding mill (if supplied) Suitable for grinding spices, coffee beans and processing ginger, garlic and chillies. 1 Place your ingredients into the blade assembly

2 Fit the lid and turn to lock . 3 Place the mill onto the power unit. 4 Select a speed or use the pulse (P) control. Recommended Usage Chart (Manual control)

sage/Food Recommened Speed Time Items Quantity Soups Stock based soups 1.2 litres Min - Max 30 secs Soups using milk 1 litre

e recommend that hot ingredients are allowed to cool before blending. However should you wish to process

ot ingredients please read the Hot Blending Safety instructions. Drinks Cold Liquids Max 1.6 litres Max 15 - 30 secs Drinks & Cocktails Milkshakes and milk Max 1.2 litres Max 15 - 30 secs based drinks Smoothies 1 litre Liquid Max 30 - 60 secs Place the fresh fruit and liquid ingredients in first (includes yoghurt, milk and fruit juices). Then add ice or frozen ingredients (includes frozen fruit, ice or ice cream) Ice Ice crushing - operate in 10 ice cubes Pulse 15 - 20 secs short bursts until (200g) crushed to the desired consistency Mayonnaise Max 3 egg mix Max 60 secs Batter Mix Max 1 litre Mid - Max 15 secs Vegetable Purees/Baby food 300g Min - Mid 30 - 60 secs Fruit Purees 200 - 500g Max 30 secsto use your grating mill (if supplied) Suitable for grating parmesan cheese, nutmeg, coconut and

ried fruit. 1 Place your ingredients into the blade assembly

3 Place the mill onto the power unit. 4 Select a speed or use the pulse (P) control.

mill recommended speed chart ingredients mill max qty speed operating time Herbs - best chopped Multi 15g MAX 5 – 10 secs when clean and dry Nuts Multi or Grinding 50g MAX 10 – 15 secs Coffee Beans Multi or Grinding 50g MAX 30 secs Baby Foods & Purees Multi 50g MAX 30 secs Lean beef, cut into Multi 70g MAX 5 secs

Spices – such as black Grinding 50g MAX 30 – 60 secs peppercorns, cardamom seeds, cumin seeds, coriander seeds, fennel seeds, whole cloves etc. Chillies Grinding 30g MAX 10 secs Fresh Root Ginger Grinding 30g MAX 10 secs Garlic Grinding 4 cloves MAX 10 secs Parmesan Cheese – cut Grating 60g MAX 10 secs into 1cm cubes Dried Fruit Grating 50g MAX 10 secs Coconut Grating 50g MAX 20 secs Nutmeg Grating 2 MAX 40 secs hints

For optimum performance when processing spices we recommend that you do not process more than 50g at a time in the mill.

Whole spices retain their flavour for a much longer time than ground spices so it is best to grind a small quantity fresh at a time to retain the flavour.

To release the maximum flavour and essential oils whole spices are best roasted prior to milling.

Baby food/purees - allow cooked food to cool to room temperature before processing in the mill. care and cleaning

Always switch off, unplug and dismantle before cleaning.

Empty the goblet before unscrewing it from the blade unit.

Do not immerse the blade unit in water.

The goblet can be washed in your dishwasher. power unit

Wipe with a damp cloth, then dry.

Do not immerse the power unit in water.b lade assemblies blender and multi mill

emove the blade unit from the

oblet or mill by turning to the unlock position to release. grinding and grating mills

emove the lid from the blade

ssembly. 1 blender/multi mill: remove and wash the sealing ring. 2 Don’t touch the sharp blades – brush them clean using hot soapy water, then rinse thoroughly under the tap. Don’t immerse the blade unit in water. 3 Leave to dry upside down. other parts Wash by hand, then dry. service and customer care

If the cord is damaged it must, for safety reasons, be replaced by KENWOOD or an authorised KENWOOD repairer. If you experience any problems with the operation of the blender, before calling for assistance refer to the troubleshooting guide. If you need help with:

servicing or repairs

Contact the shop where you bought your appliance.

Designed and engineered by Kenwood in the UK.

DIRECTIVE 2002/96/EC. At the end of its working life, the product must not be disposed of as urban waste. It must be taken to a special local authority differentiated waste collection centre or to a dealer providing this service. Disposing of a household appliance separately avoids possible negative consequences for the environment and health deriving from inappropriate disposal and enables the constituent materials to be recovered to obtain significant savings in energy and resources. As a reminder of the need to dispose of household appliances separately, the product is marked with a crossed-out wheeled dustbin.

troubleshooting guide Problem Cause Solution The Blender will not No Power/Power On Check blender operate. Light not illuminated. plugged in. Blender not assembled Check blade unit is

orrectly. fully tightened to the goblet. Power On Light flashing The blender has Turn the speed slowly. been left plugged in and control to the (BLP61/BLM61 only) in the ‘on’ position for “O” OFF position, more than 15 minutes wait 5 seconds and and has gone into then turn to “on” to standby mode. reset. BLP61/BLM61 Blender not Goblet fitted and speed Either select a speed operating but Power On control turned to “on” but manually or press and programme button speed or programme one of the lights on. not selected. programme buttons. Power on light flashing The goblet is removed Turn the speed rapidly (BLP61/BLM61 only) from the power unit control to “O” OFF without turning the speed and reselect a control to “O” OFF. speed. Programme buttons not Programme buttons will Turn the speed operating not operate unless the control to “on” and speed control is turned to select the required the “on” position first. programme. Blender leaking from blade Seal missing. Check seal is fitted assembly. Seal incorrectly fitted. correctly and not Seal damaged. damaged. To obtain a replacement seal see “service & customer care”. Blender seal missing from The seal is packed Unscrew goblet and blade unit when removed pre-fitted to the blade check that seal is from packaging. unit. fitted to blade unit. To obtain a replacement seal see “service & customer care”. If none of the above solve the problem see “Service & Customer Care”.veiligheid
