USER MANUAL AS 210 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity. Front cover page (first page) Assembly page 1/1

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

3. Safety and off switch

5. Slice thickness regulation

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Back cover page (last page) Assembly page 4/4

MOUNTING OF THE PLATFORM

1. Put the platform (7) in a vertical position in order to mount it correctly on the table (8).

2. Put edge (B) under edge (A).

3. Lift it up so that edge (B) is next to edge (A).

4. Turn the platform down (horizontally) so that it is located on the table and can be moved

easily. The platform should be secured in the table groove (C).

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Back cover page (last page) Assembly page 7/7

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

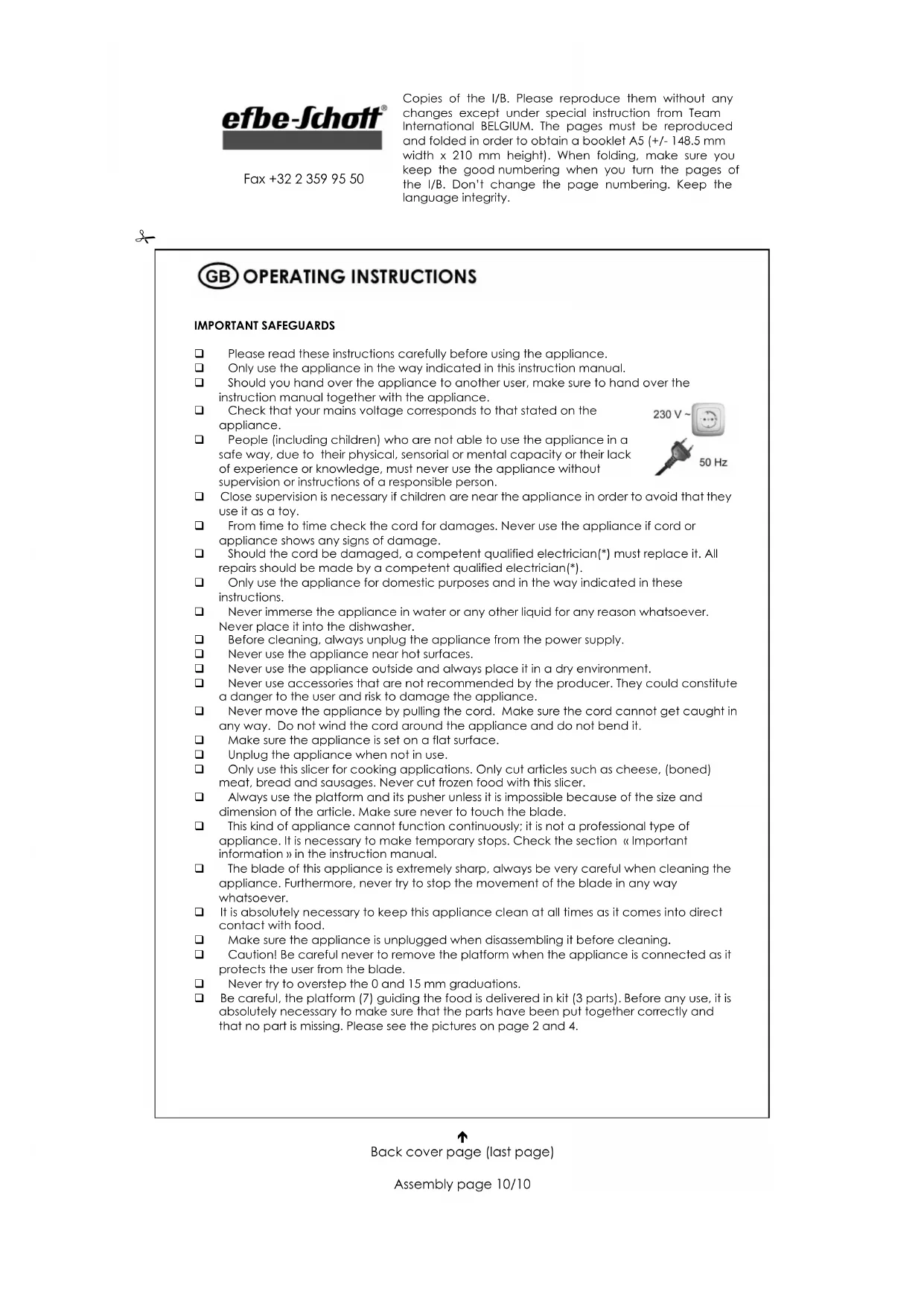

IMPORTANT SAFEGUARDS Please read these instructions carefully before using the appliance. Only use the appliance in the way indicated in this instruction manual. Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance. Check that your mains voltage corresponds to that stated on the appliance. People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person. Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy. From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, a competent qualified electrician(*) must replace it. All repairs should be made by a competent qualified electrician(*). Only use the appliance for domestic purposes and in the way indicated in these instructions. Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher. Before cleaning, always unplug the appliance from the power supply. Never use the appliance near hot surfaces. Never use the appliance outside and always place it in a dry environment. Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Make sure the appliance is set on a flat surface. Unplug the appliance when not in use. Only use this slicer for cooking applications. Only cut articles such as cheese, (boned) meat, bread and sausages. Never cut frozen food with this slicer. Always use the platform and its pusher unless it is impossible because of the size and dimension of the article. Make sure never to touch the blade. This kind of appliance cannot function continuously; it is not a professional type of appliance. It is necessary to make temporary stops. Check the section « Important information » in the instruction manual. The blade of this appliance is extremely sharp, always be very careful when cleaning the appliance. Furthermore, never try to stop the movement of the blade in any way whatsoever. It is absolutely necessary to keep this appliance clean at all times as it comes into direct contact with food. Make sure the appliance is unplugged when disassembling it before cleaning. Caution! Be careful never to remove the platform when the appliance is connected as it protects the user from the blade. Never try to overstep the 0 and 15 mm graduations. Be careful, the platform (7) guiding the food is delivered in kit (3 parts). Before any use, it is absolutely necessary to make sure that the parts have been put together correctly and that no part is missing. Please see the pictures on page 2 and 4.

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] (*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician. IMPORTANT INFORMATION This appliance is not suitable for a prolonged use. This food slicer is suitable for a use of maximum 5 minutes. Never exceed this period of time. Failure to follow this instruction carefully may result in damage to the motor. Please insert breaks of at least 10 minutes. USING THE SLICER (see Page 4)

• Clean all exterior parts of the appliance before the first use.

• Make sure the appliance is on a steady surface and open the table (8).

• Put the platform (7) on top of the table. The platform should be secured in the table groove. Now add the pusher (6) and the thumb guard (9) as described on the picture.

• Select the slicing thickness by turning the adjusting knob (5). You can control millimetres on the side of the appliance.

• Plug in the appliance. The slicer is now ready for use.

• Lay the food to be sliced between the blade (2) and the pusher.

• First press the safety and off switch (3), then the on switch (4). The blade will start rotating. If you release the on switch first, the blade will stop rotating. On the contrary, if you release the safety and off switch first and afterwards the on switch, the appliance will operate continuously. You can deactivate the continuous operation by pressing the safety switch briefly. Please note that for safety reasons the appliance will only operate if both switches are pressed (child safety).

• Push the platform with the other hand to bring the food to the blade. As a safety measure, the platform cannot be moved easily. This means that the pressure has to be sufficiently strong in order to obtain regular slices.

• To avoid food sticking to the appliance, you can moisten the blade with a wet towel beforehand. This also allows you to slice more easily.

• Always use the pusher when slicing small parts and leftovers.

• Do not slice meat with bones, food with large seeds, rolled roast without removing the string, wrappers (i.e. aluminium foil), frozen food or any hard, inedible food parts. CLEANING

• Before cleaning, always unplug the appliance.

• Wipe the inside and outside of the appliance with a paper towel or a soft and damp cloth. It should not be washed in a dishwasher.

• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

• Do not immerse in water or any other liquid.

• The blade can be taken off by turning the blade-locking knob (1) clockwise (e.g. with a coin of the suitable size). Caution: the blade is very sharp. Clean the blade with soapy water and give it a rinse. Then turn the knob anticlockwise to fasten it.

Dry all parts well before storage.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Fax [phone] implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
