| Product type | Vacuum cleaner |
| Brand | Efbe-Schott |
| Model | BSS 3000 |
| Power supply | 220-240 V ~ 50 Hz |
| Suction power | Electronically and manually adjustable |
| Filtration system | Double motor protection filter + HEPA filter |
| Dust bag capacity | Standard paper bag (ref. Swirl / MELITTA) |
| Bag fill indicator | Red indicator light |
| Cable length | Approx. 5 m (with yellow and red markers) |
| Cable rewinder | Automatic with button |
| Suction tube | Telescopic, adjustable |
| Included accessories | Combination nozzle (2 positions), flat nozzle, upholstery brush |
| Use | Domestic, hard floors and carpets |
| Safety shut-off | Automatic shut-off after 30 min of use, 20 min cooling |
| Motor filter maintenance | Clean every 3 months with soapy water |
| HEPA filter maintenance | Clean every 3 months with warm soapy water, dry completely |
| Spare parts | Swirl bags (MELITTA) ref. ¥50, filters available |
| Warranty | Legal, covers manufacturing defects, excludes intensive or improper use |
| Weight | Not specified |
Frequently Asked Questions - BSS 3000 Efbe-Schott
User questions about BSS 3000 Efbe-Schott
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Vacuum Cleaner in PDF format for free! Find your manual BSS 3000 - Efbe-Schott and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BSS 3000 by Efbe-Schott.
USER MANUAL BSS 3000 Efbe-Schott
- ON/OFF switch
- Electronic speed control
- Cord rewind mechanism
- Air outlet grid with HEPA-filter
- Lid of the accessory compartment
- Dust bag leeel indicator
- Telescopic tube
- Flexible hose
- Handle
- Floor brush
- Small creeice tool
- qpholstery brush
FR

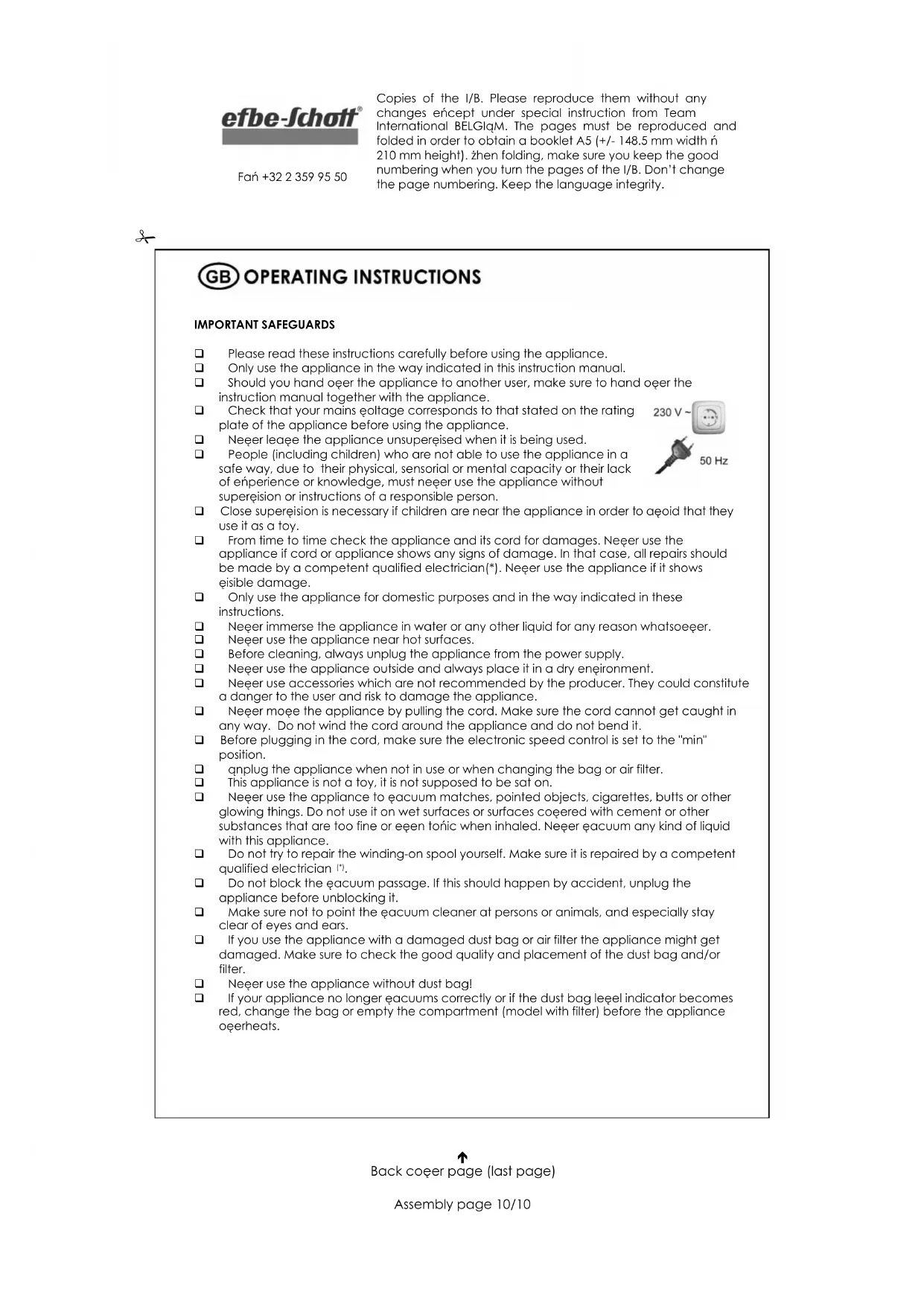

Please read these instructions carefully before using the appliance.
Only use the appliance in the way indicated in this instruction manual.
Should you hand oer the appliance to another user, make sure to hand oer the instruction manual together with the appliance.
Check that your mains voltage corresponds to that stated on the rating plate of the appliance before using the appliance.
Neer leage the appliance unsupereised when it is being used.
People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supereision or instructions of a responsible person.
Close supereision is necessary if children are near the appliance in order to aqoid that they use it as a toy.
From time to time check the appliance and its cord for damages. Neeer use the appliance if cord or appliance shows any signs of damage. In that case, all repairs should be made by a competent qualified electrician*. Neeer use the appliance if it shows visible damage.
Only use the appliance for domestic purposes and in the way indicated in these instructions.
Neeger immerse the appliance in water or any other liquid for any reason whatsoever.
Neeger use the appliance near hot surfaces.
Before cleaning, always unplug the appliance from the power supply.
Neer use the appliance outside and always place it in a dry environment.
Neer use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
Neer moe the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
Before plugging in the cord, make sure the electronic speed control is set to the "min" position.
- gnplug the appliance when not in use or when changing the bag or air filter.
This appliance is not a toy, it is not supposed to be sat on.
Neer use the appliance to eacuum matches, pointed objects, cigarettes, butts or other glowing things. Do not use it on wet surfaces or surfaces coereed with cement or other substances that are too fine or een tonic when inhaled. Neer eacuum any kind of liquid with this appliance.
Do not try to repair the winding-on spool yourself. Make sure it is repaired by a competent qualified electrician.
Do not block the eacuum passage. If this should happen by accident, unplug the appliance before unblocking it.
Make sure not to point the eacuum cleaner at persons or animals, and especially stay clear of eyes and ears.
If you use the appliance with a damaged dust bag or air filter the appliance might get damaged. Make sure to check the good quality and placement of the dust bag and/or filter.
Neger use the appliance without dust bag!
If your appliance no longer eacuums correctly or if the dust bag leeel indicator becomes red, change the bag or empty the compartment (model with filter) before the appliance oeerheats.
(1) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.
IMPORTANT INFORMATION
To aeaid unnecessary oerheating of the engine, switch off the appliance after 30 minutes and let it cool off for appr. 20 minutes. In the meantime you can clean (or wash out) the filters, but be careful not to use the appliance when the filters are not dry! If you respect these directions, you will enjoy the use of this appliance for a long time.
ASSEMBLING THE VACUUM CLEANER
- Always remove the plug from the power socket before fitting or remoing accessories!
- Insert the connection piece [8] of the flensible hose into hose connection inlet on top the appliance. Press until it clicks. To remove the flensible hose, press on the two release buttons of the connection piece and pull it out of the appliance.
- Attach handle of the hose to the telescopic tube [7].
- Fit the desired brush or accessory to the other end of the telescopic tube.
- You can adjust the length of telescopic tube according to your own size. To do so, slide the release button in the direction of the telescopic tube and set the desired length. The tube will then block itself automatically in the desired position.
- The floor brush [10] is ideal for the daily cleaning of carpets and hard floors. There are two settings on the floor brush.
Setting with the bristles inside for cleaning carpets.
Setting with the bristles outside for cleaning hard floors.
The eacum cleaner is delieered with the following accessories:
- Creegice tool
qpholstery brush.
OPERATIONS
- zhen your appliance is assembled, you just need to pull out the power cord up to the desired length. A yellow mark on the power cable shows the ideal cable length. Do not intend the cable beyond the red mark, as this would damage the cord rewind mechanism. Should you exceed the red mark, no guarantee claims will be accepted. Put the plug in the power socket and switch on the appliance by pressing the ON/OFF switch [1] with your foot.
- You can adjust the suction power with the electronic power regulator [2] or you can also adjust the suction power by using the wind-force adjuster on the handle, qse a low suction power for furniture and other delicate surfaces and use high suction power for fitted carpet and other floors.
AFTER USE
- Stop the eacuum cleaner by pressing the ON/OFF switch.
- qnplug the appliance from the power supply.
- Simply press the cord rewind button [3] down to actiate the cable rewind mechanism. Guide the power word in order to prevent it from becoming entangled.
REPLACING THE DUST BAG AND CLEANING THE FILTERS
The filter system consists of: 1 double Motor filter
1 HEPA air filter, to eacuum the smallest particles
It is necessary to clean the filters regularly to aedid operating problems.
Paper dust Aag
- The dust bag leeel indicator indicates when the dust bag should be replaced.
- The hose might get blocked by a larger object. In this case the dust bag leeel indicator will be red. However this does not mean that you have to replace the dust bag. Just remove the object, which blocks your tube or flexible hose, and your appliance will function properly again. Do not forget to unplug the appliance before remoeing the blocking object. Replace the dust bag when the dust bag leeel indicator is completely red.
- Open the front coeer by pressing the release button situated between the hose connection inlet and the handle.
- Jemoee the dust bag and throw it in the dustbin.
- To put a new dust bag in the appliance, proceed the other way around, taking the direction indicated on the dust bag into consideration.
Make sure to put it correctly in the appliance, i.e. make sure that the hole in the dust bag carton is right across the hose connection inlet. - Close the front coeer by pressing it slightly.
Motor filter
To clean the motor filter, remove it and wash it in soapsuds. (approximately eery 3 months). Let it dry completely before putting it back in the appliance.
Air Filter
This HEPA-filter guarantees fresh air during cleaning. It should be rinsed clean at least three times a year or when it becomes eisibly solid. Always operate the cleaner with filter installed, otherwise, reduced suction or motor damage may result.
- qnplug the appliance, open the filter supporting grate situated at the back of the appliance (apply light pressure to pull the grate backwards and then lift it) and pull the HEPA-filter upwards.
-uinse filter in lukewarm water.
- Do not use a dishwasher for rinsing filter nor use hair dryer for drying it.
- Allow the filter to dry completely before replacing it. The rubber seal must face the motor.
- Close the grate back after haging replaced the filter.
PRACTICAL HINTS
- zhen cleaning stairs, we advise you to keep the unit in a eortical orientation.
The eacuum cleaner requires no other regular maintenance other than the filter cleaning and bag replacement tasks as detailed elsewhere. - On the bottom of this appliance, there is a holder on which you can attach the telescopic tube. Put the appliance in evertical position to be able to attach the tube to the holder.
If you notice a loss of suction power, it is probably due to one or a combination of the following eents: blocked filter, full or punctured bag or blockage in tubes. If your appliance still does not work properly after you have checked those problems, please ask a qualified electrician for advice.
SPARE DUST BAGS / FILTERS
In order to get new dust bags or motor filters, please contact first of all the shop where you bought your vacuum cleaner, or, our customer service. You can order new HEPA filters from our customer service.
DUST BAG REFERENCE
Swirle (MELITTA): ¥ 50
PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC
In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the
implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.
TERMS OF GUARANTEE
For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are coeded. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, encessee wear due to intensee use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the eender cannot be held responsible in case of accidents.
If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only Ae valid if the receipt or a copy of a repair Aill is handed over with the appliance that needs repair.
Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer sereice in our firm in Bad Blankenburg.
In case of a defective accessory, the complete appliance will not be unchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will Ae charged.
Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not coetered by the guarantee and will thus be charged!
AFTER THE LEGAL PERIOD OF GUARANTEE
'epairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
