USER MANUAL GR 610 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

2

SC GR 610-080118

D

Please read these instructions carefully before using the appliance.
q Only use the appliance in the way indicated in this instruction manual.
q Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
q Check that your mains voltage corresponds to that stated on the appliance.
q People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
q Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
q Never leave the appliance unsupervised when in use.
q From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. All repairs should be made by a competent qualified electrician (^*)
q Make sure the cord never comes into contact with the hot parts of the appliance.
q Only use the appliance for domestic purposes and in the way indicated in these instructions.
q Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
q Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
q Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.
q Make sure the appliance is set on a flat and stable surface
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch these surfaces and make use of the handles. Always use gauntlets when handling the appliance. Make sure nothing comes into contact with the heating element of the appliance.
q Before cleaning, always unplug the appliance from the power supply. Make sure the appliance has cooled down before cleaning or storing it.
q Unplug the appliance when not in use.
q Make sure the hot parts of the appliance never come into contact with inflammable materials, such as curtains, cloth, etc... when it is in use, as a fire might occur. Do not put the appliance on hot surfaces or near open gas flames as the casing might melt.
q Only grill consumable food.
It is absolutely necessary to always keep this appliance clean as it comes into contact with food.
q Before using the appliance always check the water level in the grill tub. This water is indispensable as it is used for the cooling of the appliance. Before filling the grill tub, always unplug the appliance. Never spill water on the heating element and do not exceed the maximum water level indicated in the grill tub.
q Never use fuels such as charcoal, combustibles, stimulating liquids for regular barbecues... to increase or speed up the temperature. The only source of heat of this appliance is its heating resistor. Do not add anything else.
q Do not cover the appliance with anything
Be extremely cautious as oil and fat preparations might catch fire if overheated.

q Your appliance must never be switched on through an external timer or any kind of separate remote control system.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this customer service.

UK STYLE PLUG WIRING INSTRUCTIONS (IN THE UK ONLY)

This product must only be used from a 13 amp power socket. If a BS1363 approved 13 amp plug is used, it should be fitted with a 13 amp fuse. The wires on the power cord are colour coded: blue = neutral, brown = live, green or green & yellow = earth. The blue wire must be connected to the terminal marked N or coloured in black. The brown wire must be connected to the terminal marked L or coloured in red. The green (& yellow) wire must be connected to the terminal marked E or coloured in green (& yellow).

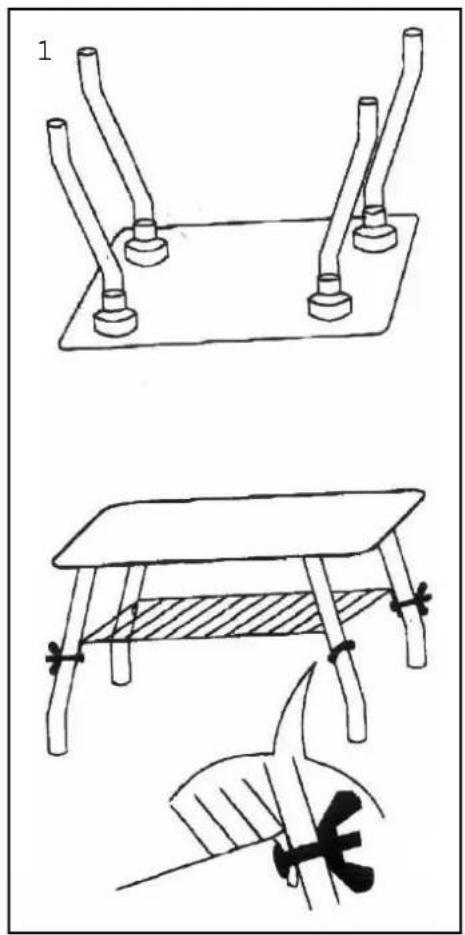

MOUNTING (see page 2, picture 1)

1. Turn the grill casing upside down on a steady surface and install the feet into the rubber tips. The feet have to be directed as described on picture 1.
2. Install the shelf using the screws supplied. Pay attention to position the nuts on the external part of the feet.
3. Turn the grill on its feet.
4. Install the upper parts according to picture 2 (see also chapter "Operation").

BEFORE FIRST USE

Clean the grill and the accessories (Cf. CARE AND CLEANING). It is recommended to heat up the barbecue grill for about 10 minutes without any foodstuff in order to eliminate the grease that may have adhered during manufacture and the 'new' smell.

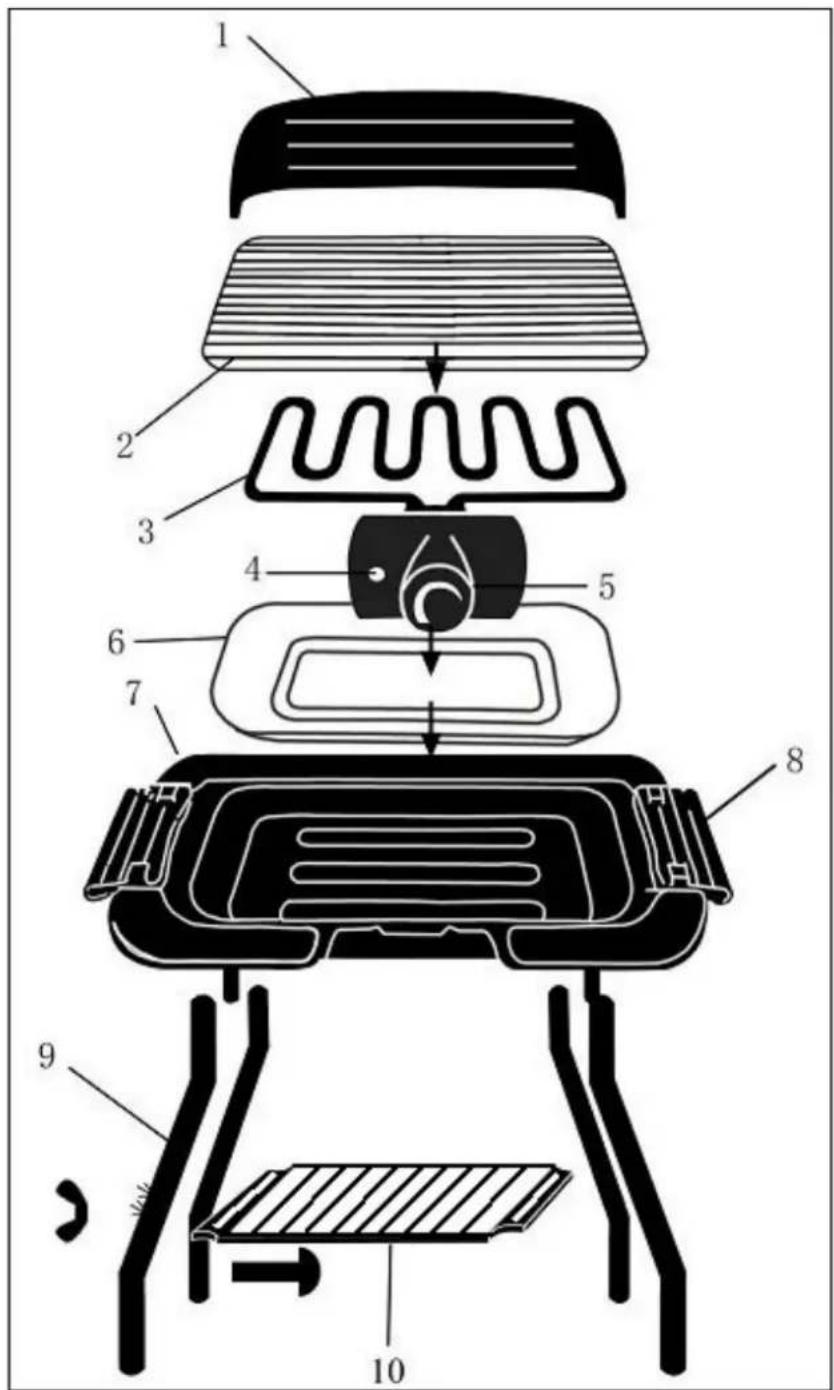

OPERATION(see page 3, picture 2)

• Place the aluminium reflector into the grill casing. Fill the grill tub with cold water (between the minimum and maximum marks).
• Insert the holder and regulator part of the heating element into the notch at the front of the grill tub and make sure the guide pins of the heating element lock in place in the foreseen holes of the grill tub.
• Put the grill rack (2) on the heating element.
  The water in the grill tub will evaporate during use. It is therefore necessary to refill water from time to time. Do not spill water on the heating element, as this could be dangerous.
• Connect the appliance and switch it on using the thermostat knob. The red pilot light will light up to indicate that the appliance has been switched on.
  -Preheat the grill for about 5 minutes with maximum power and then select the cooking temperature using the thermostat knob.
  During cooking, the red pilot light will come on and off regularly. This simply means that the thermostat is regulating the appliance's temperature.
• Now put the foodstuffs onto the grill rack.
  The grilling times vary according to the nature of the foodstuffs and to your personal taste.
• When grilling is finished, switch off the thermostat and disconnect the appliance.

PRACTICAL HINTS

-Frozen food should always be thawed before it is grilled.
From time to time check the water level in the grill tub.

CARE AND CLEANING

• Before cleaning any domestic electrical appliance, always make sure that the plug has been removed from the mains supply socket.
  -Allow the grill to cool down thoroughly before cleaning.
  Take off the holder and regulator part with the heating element.
  Take off the grill casing, the reflector tray, the windbreak and the grill rack, wash them by hand (not in a dishwasher) and dry them afterwards with a cloth.
  Wipe the outer surfaces of the grill with a damp cloth and dry afterwards.
• Do not use harsh abrasive cleaners.

GUARANTEE

Our products are covered by a guarantee of 2 years from date of purchase.

This guarantee covers all material and manufacturing defects. No guarantee claims will be accepted for broken accessories, defects resulting from inappropriate use, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or failure to descale where appropriate or otherwise clean/maintain your item in line with the instructions and good practise. No guarantee claims will be accepted if the appliance has been modified or if some attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

In the event of claim, in the first instance, please contact your vendor and return him your complete appliance in its original packaging together with the receipt/guarantee card. The guarantee will only be valid if the date of purchase and signature of the vendor is clearly indicated on the guarantee card or if a copy of the receipt is sent with the appliance that needs repair.

Or send the appliance well packed and freight prepaid to our customer service with a short description of the default in capital letters with the mention "Repair under guarantee" together with the guarantee card or receipt.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged.

Pieces undergoing wear and tear (e.g. Motor brushes, dough hooks, driving belts, spare remote controls, spare toothbrushes, lighting, etc.) as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

After the guarantee period

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

Should you have any question, please contact our customer service.
