USER MANUAL KG 700 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The page must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). The pages must be folded in order to keep the good numbering when you turn the pages of the I/B. Don't change the page numbering. Keep the language integrity.

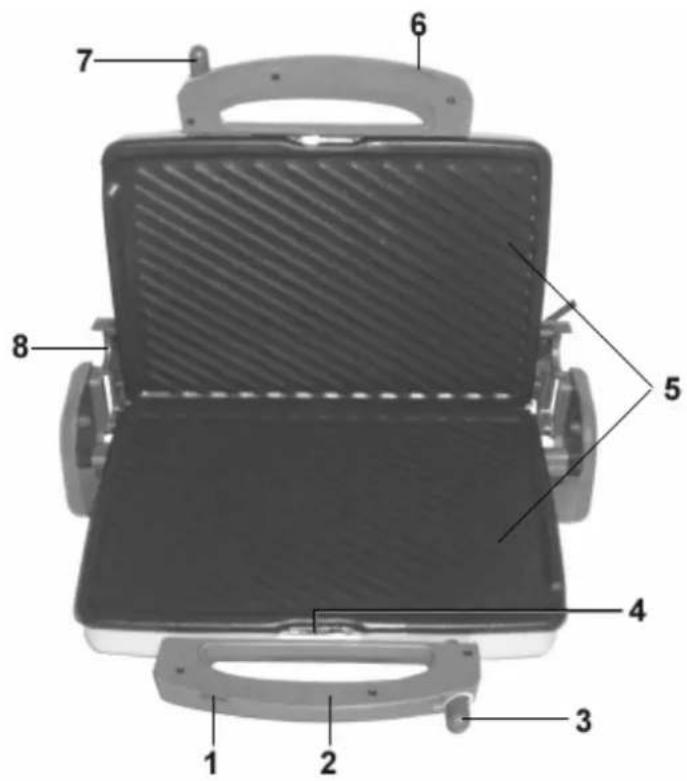

D

1. Indicator lamp (lower grill plate)
2. Handle
3. Thermostat (lower grill plate)
4. Unlocking clip of grill plate
5. Removable grill plates
6. Indicator lamp (upper grill plate)
7. Thermostat (upper grill plate)
8. Support hook for the upper grill plate

FR

Please read these instructions carefully before using the appliance.
q Only use the appliance in the way indicated in this instruction manual.
q Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.
q Check that your mains voltage corresponds to that stated on the appliance.
q Never leave the appliance unsupervised when in use.
q People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.
q Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.
q From time to time check the cord and plug for damages. Never use the appliance if cord, plug or appliance shows any signs of damage.
q Only use the appliance for domestic purposes and in the way indicated in these instructions.
q Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.
q Never use the appliance near hot surfaces.
q Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc...when it is in use, as a fire might occur.
q All repairs should be made by a competent qualified electrician (^*)
q Never use the appliance outside and always place it in a dry environment.
Never use accessories that are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance.
q Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it. Make sure it does not come in contact with the hot surfaces of the appliance.
q Stand the appliance on a table or flat surface.
The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch the grill plates when the appliance is in use. Use the handles.
q Before cleaning, always unplug the appliance from the power supply.
q Make sure the appliance has cooled down before cleaning and storing it.
Clean the non-stick coated grill plates with a damp cloth. Never use metal utensils to clean them, as this might damage the non-stick coating. To clean the housing, you can use a damp cloth as well, if necessary with some washing-up liquid.

Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

SC KG 700-090305

Caution: Some smoke or odour might escape during the first use of your appliance. This does not represent any danger and will disappear very quickly.

OPERATION

Note

Your appliance is equipped with two separately adjustable grilling surfaces.

This allows you to prepare a large variety of foodstuffs.

Before the first use, we advise you to clean the grill plates with a damp cloth and to dry them carefully.
- Open the grill to make sure there is nothing on the grilling surface. Close the grill and insert the plug into the power socket.
- Turn both thermostats until the pilot lights come on. When the pilot lights go out, it means that the appliance has been preheated sufficiently.
- If you want to raise or lower the temperature, you can do so using the thermostat. The pilot lights will come on and out according to the heating cycle. This will allow the grill to have a constant temperature as long as the appliance is in use.
The non-stick coating allows you not to make use of grease or oil for most foods. For low-fat foods such as fish or vegetables, you can grease the grill plates, but if the fish or vegetables are marinated, it is not necessary.
- When the grill has reached the right temperature, open it by lifting the upper plate. Put the grease trays under the drip slots of the grill plates. You can now use the appliance in 3 different positions:
Position 1 (See picture 1, page 4): Put the foods on the lower grill plate and close the lid. This position is best suitable for meat and vegetables.
Position 2 (See picture 2, page 4): Put the foods on the lower grill plate and close the lid in such a way that both grill plates do not touch each other but stay parallel to each other. To do so, raise the lid vertically and then pull it in the direction of the thermostat so that the pegs on both sides of the upper part of the appliance fit in the support hooks situated on both sides of the lower part of the appliance. This position is best suitable for fish and pizza.
- Position 3 (See picture 3, page 4): Open the appliance totally so that both grill plates are lying next to each other. To do so, first raise the lid vertically and then rotate it away from the lower grill plate so that the appliance is fully stretched. This position is best suitable for all kinds of food except pizza. (You can select a different temperature for both grill plates with the upper and lower thermostat).
- Let the foods grill. As all foodstuffs have a different baking time, it is impossible to predict their exact baking time. In order to avoid overcooking, check the foods regularly during the grilling process.
- When the foods are ready, remove them from the grill and put them in the appropriate dish. Do not use any sharp metal utensils to remove them from the grill, as this might damage the non-stick coating. Use a wooden or plastic spatula or tongs. Regularly check the grease trays so that they do not overfill.
- If you want to end the cooking process, pull the plug from the power socket and let the appliance cool down.

CLEANING

• Pull the plug from the power socket and let the appliance cool down before cleaning it.
  Clean the grill plates with a damp cloth, sponge or paper towel. For easy cleaning you can remove the grill plates. To do so, press the locking clips (4) away from the grill plates until the latter are released.
• Do not use hard, sharp utensils. If the grill plates are very dirty, use mild washing-up product. Rinse with hot water and dry the plates carefully. The cleaning succeeds best when the grill plates are still slightly hot. Make sure the slots are cleaned thoroughly so that grease can be drained properly during the next use.
  To clean the housing, use a damp cloth, if necessary with some mild washing-up product.
  Make sure no water or other liquid penetrates into the appliance.
• Never clean the appliance under running water. Never immerse the appliance in water or any other liquid.

PROTECTION OF THE ENVIRONMENT-DIRECTIVE 2002/96/EC

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the

implication of both suppliers and users. For this reason, as indicated by the symbol the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

TERMS OF GUARANTEE

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents.

If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair.

Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg.

In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.
