USER MANUAL ZN 800 Efbe-Schott

Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Art.-Nr. ZN 800 230V~ 1400W# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

SC ZN 800 - 101129 Assembly page 2/24 Fax [phone]# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

5. Upper release button

6. Lower release button

A. Wafelplaten B. Tovernootplaten C. Platen voor croque monsieurs# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

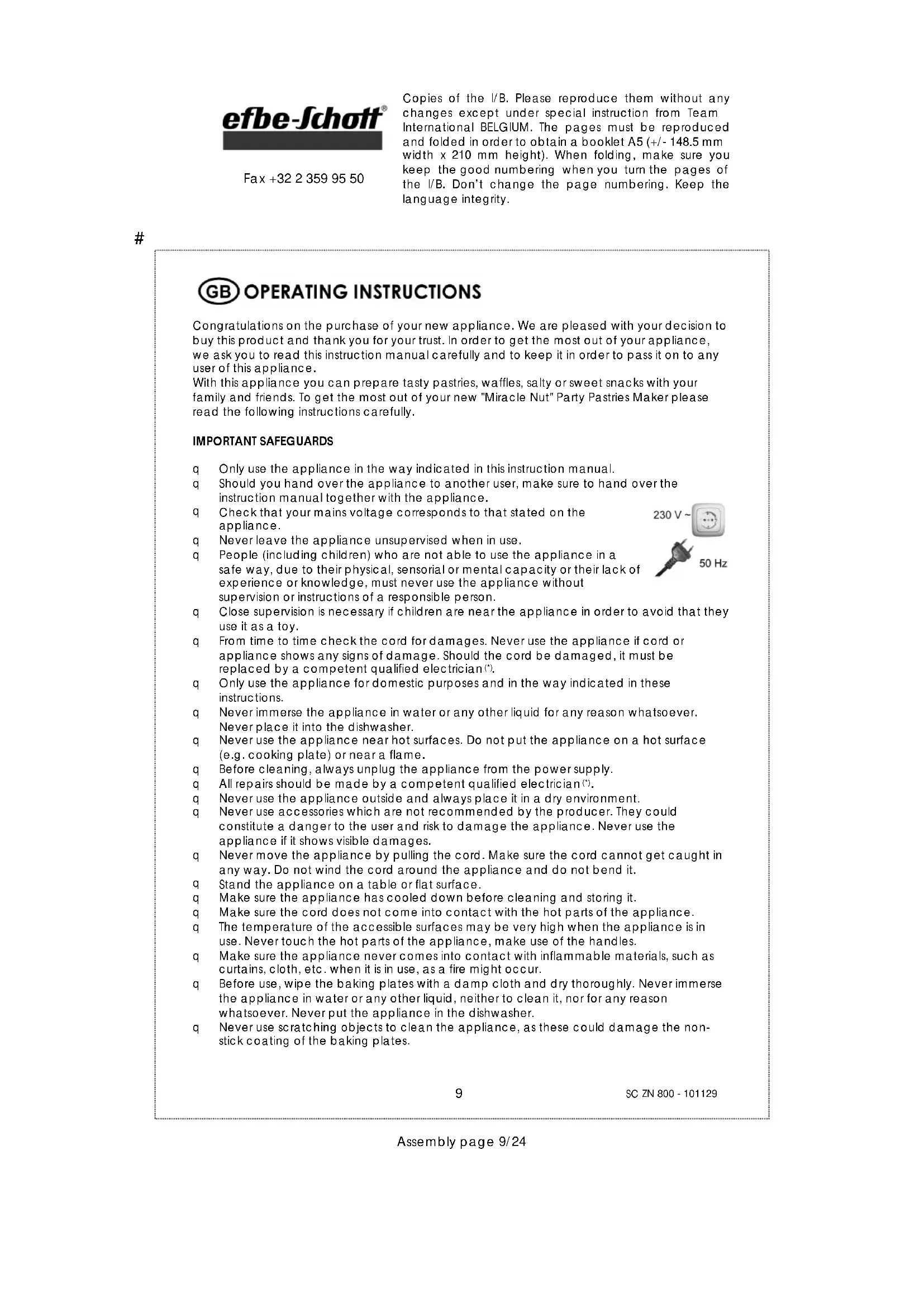

SC ZN 800 - 101129 Assembly page 9/24 Fax [phone] Congratulations on the purchase of your new appliance. We are pleased with your decision to buy this product and thank you for your trust. In order to get the most out of your appliance, we ask you to read this instruction manual carefully and to keep it in order to pass it on to any user of this appliance. With this appliance you can prepare tasty pastries, waffles, salty or sweet snacks with your family and friends. To get the most out of your new "Miracle Nut" Party Pastries Maker please read the following instructions carefully. IMPORTANT SAFEGUARDS

Only use the appliance in the way indicated in this instruction manual.

Should you hand over the appliance to another user, make sure to hand over the instruction manual together with the appliance.

Check that your mains voltage corresponds to that stated on the appliance.

Never leave the appliance unsupervised when in use.

People (including children) who are not able to use the appliance in a safe way, due to their physical, sensorial or mental capacity or their lack of experience or knowledge, must never use the appliance without supervision or instructions of a responsible person.

Close supervision is necessary if children are near the appliance in order to avoid that they use it as a toy.

From time to time check the cord for damages. Never use the appliance if cord or appliance shows any signs of damage. Should the cord be damaged, it must be replaced by a competent qualified electrician

Only use the appliance for domestic purposes and in the way indicated in these instructions.

Never immerse the appliance in water or any other liquid for any reason whatsoever. Never place it into the dishwasher.

Never use the appliance near hot surfaces. Do not put the appliance on a hot surface (e.g. cooking plate) or near a flame.

Before cleaning, always unplug the appliance from the power supply.

All repairs should be made by a competent qualified electrician

Never use the appliance outside and always place it in a dry environment.

Never use accessories which are not recommended by the producer. They could constitute a danger to the user and risk to damage the appliance. Never use the appliance if it shows visible damages.

Never move the appliance by pulling the cord. Make sure the cord cannot get caught in any way. Do not wind the cord around the appliance and do not bend it.

Stand the appliance on a table or flat surface.

Make sure the appliance has cooled down before cleaning and storing it.

Make sure the cord does not come into contact with the hot parts of the appliance.

The temperature of the accessible surfaces may be very high when the appliance is in use. Never touch the hot parts of the appliance, make use of the handles.

Make sure the appliance never comes into contact with inflammable materials, such as curtains, cloth, etc. when it is in use, as a fire might occur.

Before use, wipe the baking plates with a damp cloth and dry thoroughly. Never immerse the appliance in water or any other liquid, neither to clean it, nor for any reason whatsoever. Never put the appliance in the dishwasher.

Never use scratching objects to clean the appliance, as these could damage the non- stick coating of the baking plates.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

Use a wooden spatula or a heat-resistant plastic spatula to take the food out of the appliance.

Always unplug the appliance when it is not in use, especially since it is not equipped with an on/off switch.

Only use the appliance for food that is supposed to be cooked.

Repairs, such as changing a damaged mains cable, must be made by an authorized repair shop or the Efbe-Schott Service Center (tel. no. ++49 36741 70268).

Competent qualified electrician: after-sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In case of need you should return the appliance to this electrician. USE

• Protective coating burn off will cause smoking on first use. However, this does not indicate any defect of the appliance. After about 30 seconds the smoke will disappear and you will be able to use the appliance normally. This smoke is NOT harmful.

• When using for the first time, wipe the surface of the plates with a damp cloth, then dry. Season the plates with butter, margarine or cooking fat.

• Place the desired plates in the appliance. By pressing the release button (5 and 6) you can take the plates out or put them in.

• Close the appliance, you can hear the locking clip (3) snap shut, plug the appliance in and let it preheat.

• The green pilot light (2) will go on to indicate that the appliance is plugged in and that it is heating.

• The red pilot light will go on when the cooking temperature is reached. Now you can pour the dough or insert the sandwiches that you have prepared in the meantime.

• Caution: during operation, the appliance becomes hot. Be careful as you might get burned.

• Open the heated appliance (to do so, release the locking clip 3).

• Pour dough evenly onto the bottom grid, always in the middle of the waffle moulds, but not all the way to the edges. Then close the appliance. Press the lid down for a short moment so that the dough spreads evenly. Do not overfill as the dough might come out through the sides of the appliance.

• Bake until golden brown, about 8 to 10 minutes. When the waffles are ready, remove them with a wooden or heat-resistant plastic spatula. Never use sharp objects as these could damage the non-stick coating of the baking plates.

• When you have finished baking, unplug the cord from the outlet and leave the grids open to cool.

MAKING PARTY PASTRIES

• Open the heated appliance (to do so, release the locking clip 3).

• Pour dough evenly onto the lower party pastries plate (for recipes, see below). Do not overfill as the dough might come out through the sides of the appliance. For best results we advise you to roll the dough into small balls of hazelnut size and to put these in the notches of the plate.

• Close the lid and the locking clip (3).

• Slightly grease the baking surfaces (top and bottom). You can remove the pastries easier.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

• Plug in the appliance. The appliance starts heating. There are two lamps. Green: Mains voltage is fed/appliance is heating. Red: You can use the appliance. This means when the red lamp lights, you can fill dough.

• Open the appliance (release the grip lock).

• The appliance needs about 5 to 8 minutes to bake the dough. Open the cover and remove the baked snacks with a suitable tool (Caution! No metal tool).

• Carefully remove the dough around the rims with a knife.

• Allow the snacks to cool, then fill and put the halves together.

• The pastries are shaped like nuts. This explains why we named it "miracle nut".

• Fully open the sandwich maker. Place a slice of bread in the bottom half with the buttered side against the plate.

• Add the top slice with the buttered side up and carefully close the toaster. Close the locking clip.

• Steam will be ejected from between the plates; make sure that your fingers do not come into contact with it. Risk of burning!

• Your sandwich will be toasted in 4 to 6 min or longer to suit your taste. Open the toaster and remove the sandwich using a plastic or wooden spatula. Never use a metal knife as this may damage the non-stick coating.

• Close the lid to preserve the heat until you are ready to toast the next sandwiches.

• Prepare additional sandwiches if desired while the others are cooking.

• Always preheat before use. Plug cord into power outlet while preparing the fillings.

• Flavoured butter may also be used.

• For added flavour, use bacon dripping. Brush drippings on the outside of the bread. CLEANING

• Before cleaning, unplug and wait for the appliance and the plates to cool down.

• Wipe the outside only with a slightly moistened cloth ensuring that no moisture, oil or grease enters the cooling slots.

• For an easy cleaning of the plates you can completely fold out the appliance. First push the foldout foot (1) upwards, then open the locking clip and lift the top side in a vertical position. Now lift the top side even a little more upwards and completely fold out the appliance.

• To clean the plates you can let them in the appliance or remove them from the appliance (therefore press the release buttons 5 and 6 near the handle and remove them). If you let them in the appliance, wipe the plates with a damp cloth or towel. If you remove them from the appliance, you can wash them under running water. Dry them afterwards. Never place the plates into the dishwasher.

• Do not clean the inside or outside with any abrasive scouring pad or steel wool as this will damage the finish.

Do not immerse in water or any other liquid. REMARK: You can order spare baking plates from our customer service.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.

In order to preserve our environment and protect human health, the waste electrical and electronic equipment should be disposed of in accordance with specific rules with the implication of both suppliers and users. For this reason, as indicated by the symbol on the rating label or on the packaging, your appliance should not be disposed of as unsorted municipal waste. The user has the right to bring it free of charge to a municipal collection point performing waste recovery by means of reuse, recycling or use for other applications in accordance with the directive.

For our products, the legal terms concerning claims under guarantee are valid. During the legal period, all material and manufacturing defects are covered. No claims will be accepted for broken accessories, defects resulting from inappropriate use or care, excessive wear due to intensive use, wrong use due to the non-observance of the instruction manual, or normal wear and tear. No guarantee claims will be accepted if the appliance has been modified or if attempts have been made to repair the appliance. In such case, the vendor cannot be held responsible in case of accidents. If you detect a defect, please contact your vendor or shop and return your complete appliance in its original packaging together with the receipt. Claims under guarantee will only be valid if the receipt or a copy of a repair bill is handed over with the appliance that needs repair. Or send the appliance cleaned, well packed and with a short, easily readable description of the default as well as the receipt freight prepaid to our customer service in our firm in Bad Blankenburg. In case of a defective accessory, the complete appliance will not be exchanged, but only the accessory will be sent free of charge. In such case, do not return the complete appliance but only order the accessory! In case of glass damages, glass spare parts will be charged. Pieces undergoing wear and tear as well as cleaning and maintenance or the exchange of worn out pieces are not covered by the guarantee and will thus be charged!

AFTER THE LEGAL PERIOD OF GUARANTEE

Repairs after the guarantee period can be performed at a charge by a competent qualified technician or a repair service.# Copies of the I/B. Please reproduce them without any changes except under special instruction from Team International BELGIUM. The pages must be reproduced and folded in order to obtain a booklet A5 (+/- 148.5 mm width x 210 mm height). When folding, make sure you keep the good numbering when you turn the pages of the I/B. Don’t change the page numbering. Keep the language integrity.
