USER MANUAL Aquaspeed FV5332 TEFAL

• Read the instructions carefully before using your appliance for the first time and retain for future reference.

• This appliance complies with the technical rules and standards for safety currently in force (Electromagnetic Compatibility, Low Voltage, environment).

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

• Warning! The voltage of your electrical installation must correspond to that of the iron (220V-240V). Connecting to the wrong voltage may cause irreversible damage to the iron and will invalidate the guarantee.

• This iron must always be plugged into an earthed socket. If using a mains extension lead, ensure that it is correctly rated (16A), with an earth.

• If the electrical cord becomes damaged, it must be immediately replaced by an Approved Service Centre to avoid any danger.

• The appliance should not be used if it has fallen, if it has obvious damage, if it leaks or does not operate correctly. Never dismantle your appliance: have it inspected by an Approved Service Centre, so as to avoid any danger.

• Never immerse your iron in water!

• Do not unplug your appliance by pulling on the cord. Always unplug your appliance: before filling or rinsing the water tank, before cleaning it, after each use.

• Never leave the appliance unattended when it is connected to a power source; if it has not cooled down for approximately 1 hour.

• Your appliance gives off steam, which may cause burns, especially when you are ironing on a corner or edge of the ironing board. Never direct the steam towards people or animals.

• Your iron should be used and placed on a stable surface. When you put your iron onto its iron rest, make sure that the surface on which you put it is stable.

• This product has been designed for domestic use only. Any commercial use, inappropriate use or failure to comply with the instructions, the manufacturer accepts no responsibility and the guarantee will not apply. Environment protection first! ! Your appliance contains valuable materials which can be recovered or recycled. Leave it at a local civic waste collection point. Description

2. Anti-scale valve release button

5. Water tank filler flap

Before using your iron with the steam function for the first time, we recommend that you operate it in a horizontal position for a few moments, away from your linen. Operate the Power zone trigger several times under the same conditions.

• There may be a release of smoke, a harmless odour and a light spray of particles when you use your appliance for the first time. This has no effect on the use of the iron and will disappear quickly. Please read these instructions carefully. Remove any labels from the soleplate before heating up the iron. Preparation What water to use?

• Your appliance has been designed to operate using untreated tap water. However, it is necessary to operate the Self-Clean function regularly in order to eliminate hard water deposits from the steam chamber. 1800119869 FV53XX E0 FTN TE_110x154 14/12/10 11:29 Page21800119869 FV53XX E0 FTN TE_110x154 14/12/10 11:29 Page3EN

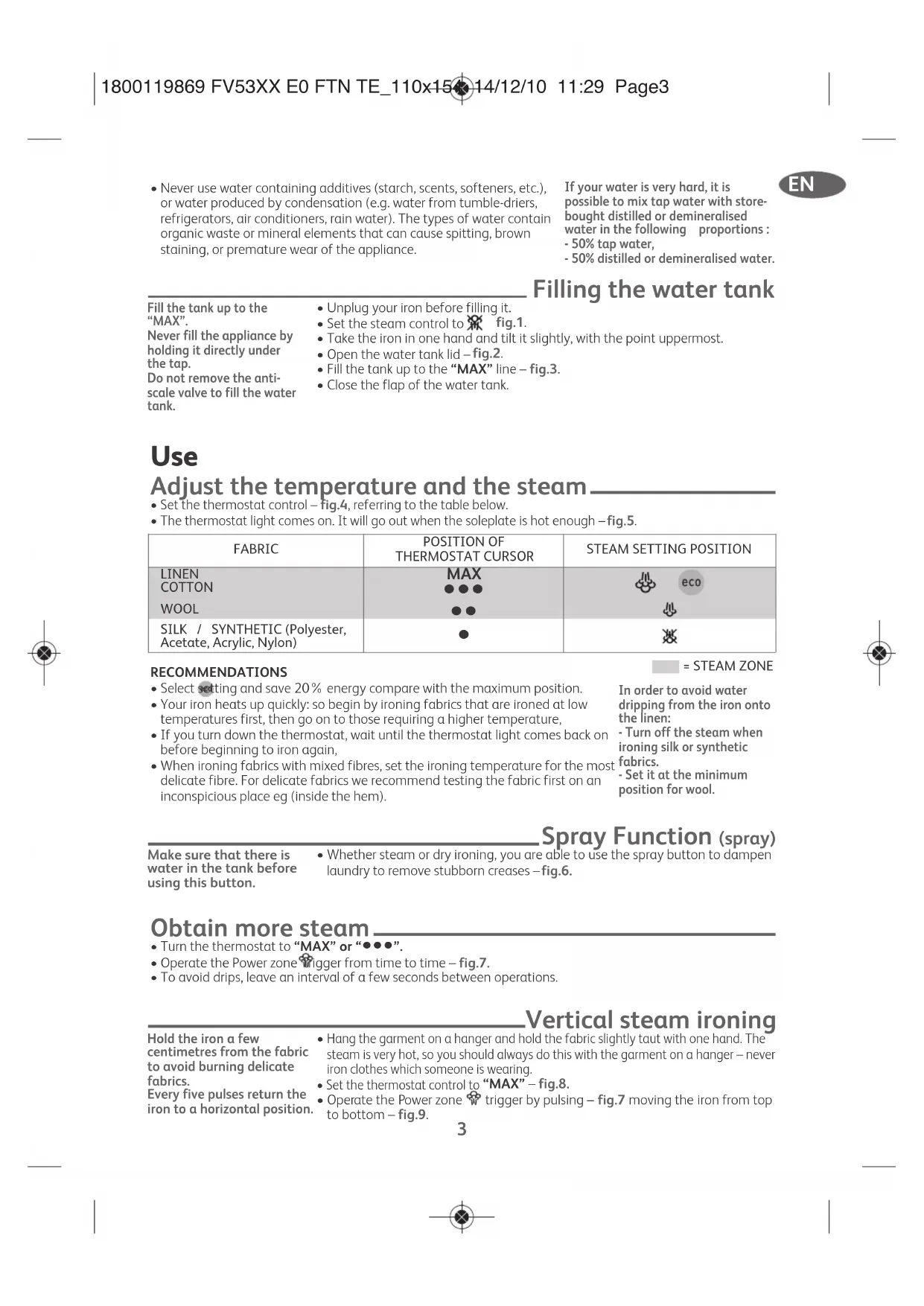

• Never use water containing additives (starch, scents, softeners, etc.),or water produced by condensation (e.g. water from tumble-driers,refrigerators, air conditioners, rain water). The types of water containorganic waste or mineral elements that can cause spitting, brownstaining, or premature wear of the appliance. Filling the water tank
• Unplug your iron before filling it.• Set the steam control to – fig.1.• Take the iron in one hand and tilt it slightly, with the point uppermost.• Open the water tank lid – fig.2.• Fill the tank up to the “MAX” line – fig.3.• Close the flap of the water tank. Use Adjust the temperature and the steam
• Set the thermostat control – fig.4, referring to the table below.• The thermostat light comes on. It will go out when the soleplate is hot enough – fig.5.RECOMMENDATIONS• Select setting and save 20% energy compare with the maximum position.• Your iron heats up quickly: so begin by ironing fabrics that are ironed at lowtemperatures first, then go on to those requiring a higher temperature,• If you turn down the thermostat, wait until the thermostat light comes back onbefore beginning to iron again,• When ironing fabrics with mixed fibres, set the ironing temperature for the mostdelicate fibre. For delicate fabrics we recommend testing the fabric first on aninconspicious place eg (inside the hem). Spray Function (spray)
• Whether steam or dry ironing, you are able to use the spray button to dampenlaundry to remove stubborn creases – fig.6. Obtain more steam
• Turn the thermostat to “MAX” or “•••”.• Operate the Power zone trigger from time to time – fig.7.• To avoid drips, leave an interval of a few seconds between operations. Vertical steam ironing

Hang the garment on a hanger and hold the fabric slightly taut with one hand. Thesteam is very hot, so you should always do this with the garment on a hanger – neveriron clothes which someone is wearing.• Set the thermostat control to“MAX” – fig.8.

• Operate the Power zone trigger by pulsing – fig.7 moving the iron from top to bottom – fig.9.Fill the tank up to the“MAX”.Never fill the appliance byholding it directly underthe tap.Do not remove the anti-scale valve to fill the watertank.If your water is very hard, it ispossible to mix tap water with store-bought distilled or demineralisedwater in the following proportions :- 50% tap water,- 50% distilled or demineralised water.= STEAM ZONEIn order to avoid waterdripping from the iron ontothe linen:- Turn off the steam whenironing silk or syntheticfabrics.- Set it at the minimumposition for wool.Make sure that there iswater in the tank beforeusing this button.Hold the iron a fewcentimetres from the fabricto avoid burning delicatefabrics.Every five pulses return theiron to a horizontal position.FABRICPOSITION OFTHERMOSTAT CURSORSTEAM SETTING POSITIONLINENCOTTON WOOL SILK / SYNTHETIC (Polyester,Acetate, Acrylic, Nylon) MAX

1800119869 FV53XX E0 FTN TE_110x154 14/12/10 11:29 Page34 The auto-stop light will be lit during normal use! Be careful! - Never touch the end of the valve – fig.13. - The iron will not function without the anti-scale valve. The self-cleaning function helps to slow down scaling in your iron. In order to extend the life of your iron, use the Self-Cleaning function once a month. Attention! The use of a scouring pad will cause damage to your soleplate's self-cleaning (depending on model) coating – fig.17. Dry ironing

• Set the temperature for the fabric to be ironed.

• Set the steam control to – fig.1.

• You may start ironing when the thermostat light goes out. Extra Functions Autoclean Catalys

• Your iron is equipped with a self-cleaning soleplate which works by catalysis.

• Its exclusive coating helps continuously eliminate all the impurities generated by normal use.

• It is recommended that you always stand your iron on his heel to preserve its self-cleaning coating. Integral anti-scale system Your iron is equipped with an integral anti-scale system. This system will help to provide:

• a better ironing quality with a constant flow of steam,

• lasting performance from your appliance. Auto-Stop safety feature (depending on model)

• The electronic system cuts off the electric power and the Auto-Stop warning light flashes if the iron is left vertically on its heel for more than 8 minutes, or in a horizontal position for more than 30 seconds – fig.10.

• To restart the iron, just move it gently until the warning light stops flashing. Anti-drip function (depending on model)

• When the iron is no longer hot enough to produce steam, the water feed will stop automatically to avoid dripping. Maintenance and cleaning Cleaning the anti-scale valve (once a month)

• Unplug your iron and empty the water tank.

• Adjust the steam setting to “Eco”.

• To remove the anti-scale valve, open the water tank lid and press the release button – fig.11 and then pull the valve upwards – fig.12.

• Soak the valve in a cup of white spirit vinegar or plain lemon juice for 4 hours – fig.14.

• Rinse the valve under running water.

• Replace the anti-scale valve; press until it clicks in to place – fig.15. Self-cleaning

• Fill the tank of your iron with untreated tap water. Stand the iron on it’s heel with the thermostat set to “Max” and heat it up.

• When the thermostat light goes out, unplug the iron and hold it in a horizontal position, over a sink. Remove the anti-scale valve – fig.11-12 (see previous chapter).

• Shake the iron gently, over the sink, until some of the water in the water tank (with the impurities) has flowed out through the soleplate – fig.16.

• At the end of the operation, replace the anti-scale valve; press it in until it clicks – fig.15.

• Plug the iron back in and leave it resting on its heel for two minutes to dry the soleplate.

• Clean the soleplate with a damp, non-metallic cloth while it is still warm. Cleaning the soleplate Your steam iron is fitted with a self-cleaning soleplate (depending on model):

• The exclusive active coating helps continuously eliminate all the impurities generated by the normal day-to-day use of the iron.

• However, if you iron using an unsuitable programme, some traces may be left which require manual cleaning. In this case, it is recommended that 1800119869 FV53XX E0 FTN TE_110x154 14/12/10 11:29 Page4PROBLEM POSSIBLE CAUSES SOLUTIONS Water drips from theholes in the soleplate.The chosen temperature is too low anddoes not allow for the formation of steam.Position the thermostat in the steamrange (from •• to MAX).You are using steam while the iron is nothot enough.Wait until the thermostat light goes out.You are using the Power zone triggertoo often.Wait a few seconds between each use ofthe Power zone button.There is too much steam. Reduce the steam.You have stored the iron horizontally, withoutemptying it and without setting it to . See the section "Storing your iron".The anti-scale valve is not fully inserted. Replace the anti-scale valve: press downuntil it clicks into place.Brown streaks comethrough the holes inthe soleplate andstain the linen.You are using chemical descaling agents. Do not add any descaling agents to thewater in the water tank.You are not using the right type of water. Perform a self-cleaning operation andconsult the section "What water to use?"Fabric fibres have accumulated in the holesof the soleplate and are burning.Perform the self-cleaning operation andclean the soleplate with a damp sponge.Vacuum the holes of the soleplate fromtime to time.The soleplate is dirtyor brown and canstain the linen.You are ironing with an inappropriatesetting (temperature too high).Clean the soleplate as indicated above. Select the appropriate setting.Your linen has not been rinsed sufficientlyor you are using starch.Clean the soleplate as indicated above.Always spray starch onto the reverse sideof the fabric to be ironed.There is little or nosteam.The water tank is empty. Fill the water tank.The anti-scale valve is dirty. Clean the anti-scale valve.Your iron has a build-up of scale. Clean the anti-scale valve and carry out aselfclean.Your iron has been used dry for too long. Carry out a self-clean.The soleplate isscratched or damaged.You have placed your iron flat on ametallic rest-plate or ironed over a zip.You have cleaned your soleplate with anabrasive or metal pad.Always set your iron on its heel. Try toavoid ironing over zips. Refer to thechapter “Clean the soleplate”.Your soleplate isreleasing particles.Scale is building up on the soleplate. Carry out a self-clean operation.Water is running outof the water tank flap.You have not closed the water tank flapproperly.Check that the water tank flap is lockedproperly.Steam or water leakfrom the iron as youfinish filling the tank.The steam control is not set to theposition. Check that the steam control is set tothe position. The spray does notspray.There is not enough water in the watertank.Fill up the water tank.

you use a soft damp cloth on the warm soleplate, in order not to damage the surface. Your steam iron is fitted with an Ultraglide soleplate (depending on model):

• Clean the soleplate with a damp, non-metallic cloth while it is still warm. Storing your iron

• Unplug the iron and wait for the soleplate to cool down – fig.18.

• Empty the water tank and set the steam control to . A little water may remain in the tank.
