USER MANUAL Steam Station 320190 NOVA

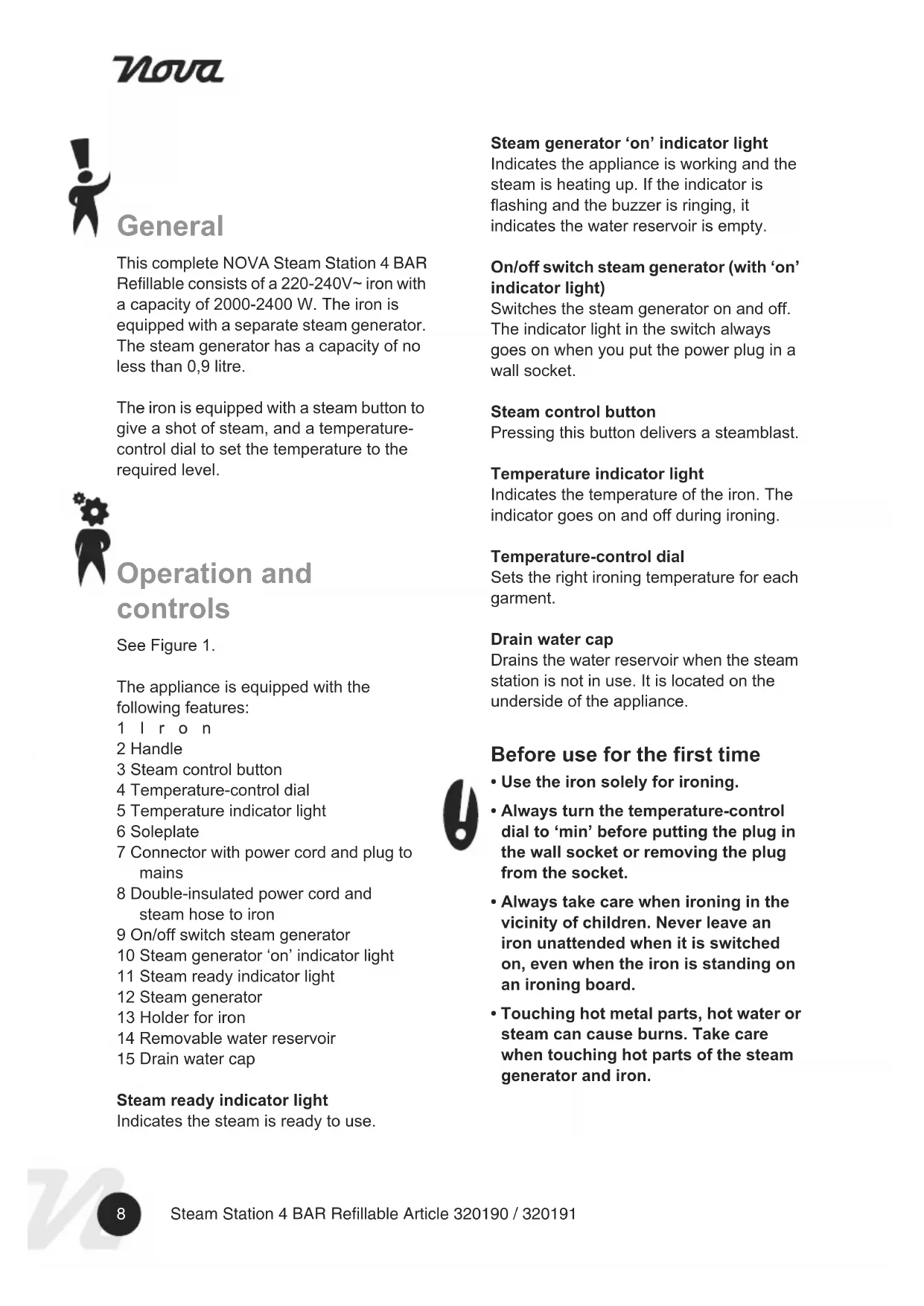

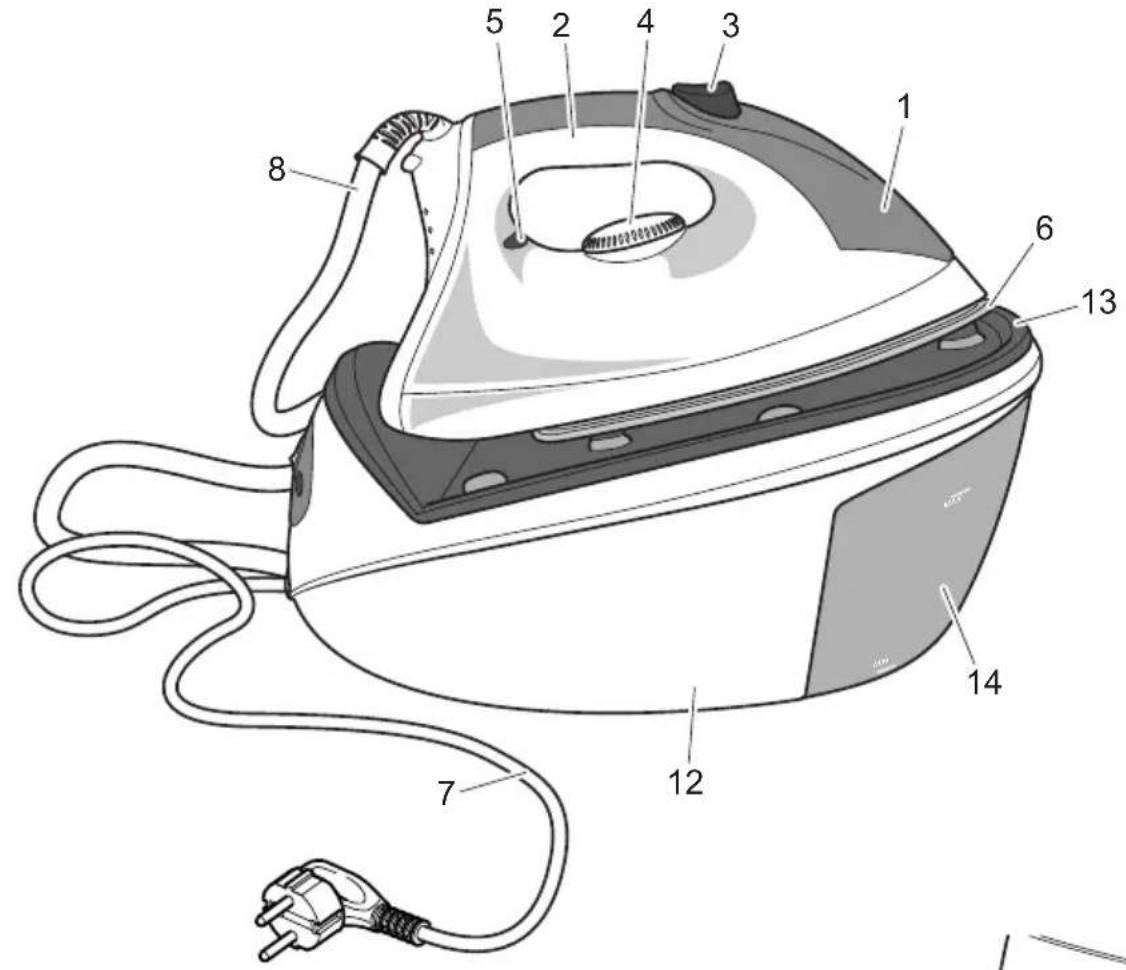

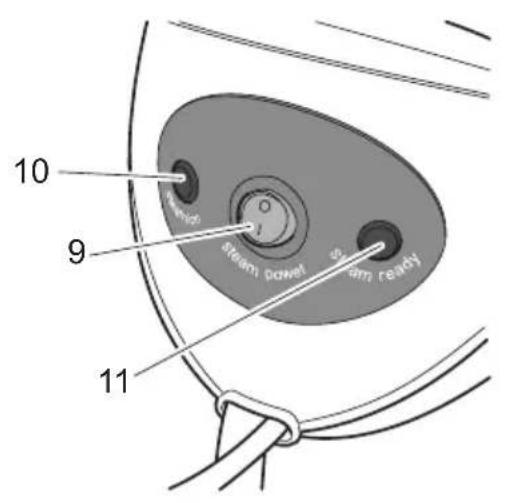

• 2002/96/EC8 Steam Station 4 BAR Refillable Article 320190 / 320191 General This complete NOVA Steam Station 4 BAR Refillable consists of a 220-240V~ iron with a capacity of 2000-2400 W. The iron is equipped with a separate steam generator. The steam generator has a capacity of no less than 0,9 litre. The iron is equipped with a steam button to give a shot of steam, and a temperature- control dial to set the temperature to the required level. Operation and controls See Figure 1. The appliance is equipped with the following features: 1Iron 2 Handle 3 Steam control button 4 Temperature-control dial 5 Temperature indicator light 6 Soleplate 7 Connector with power cord and plug to mains 8 Double-insulated power cord and steam hose to iron 9 On/off switch steam generator 10 Steam generator ‘on’ indicator light 11 Steam ready indicator light 12 Steam generator 13 Holder for iron 14 Removable water reservoir 15 Drain water cap Steam ready indicator light Indicates the steam is ready to use. Steam generator ‘on’ indicator light Indicates the appliance is working and the steam is heating up. If the indicator is flashing and the buzzer is ringing, it indicates the water reservoir is empty. On/off switch steam generator (with ‘on’ indicator light) Switches the steam generator on and off. The indicator light in the switch always goes on when you put the power plug in a wall socket. Steam control button Pressing this button delivers a steamblast. Temperature indicator light Indicates the temperature of the iron. The indicator goes on and off during ironing. Temperature-control dial Sets the right ironing temperature for each garment. Drain water cap Drains the water reservoir when the steam station is not in use. It is located on the underside of the appliance. Before use for the first time

• Use the iron solely for ironing.

• Always turn the temperature-control dial to ‘min’ before putting the plug in the wall socket or removing the plug from the socket.

• Always take care when ironing in the vicinity of children. Never leave an iron unattended when it is switched on, even when the iron is standing on an ironing board.

• Touching hot metal parts, hot water or steam can cause burns. Take care when touching hot parts of the steam generator and iron.9 Steam Station 4 BAR Refillable Article 320190 / 320191 1 Before using the iron for the first time verify that the mains voltage stated on the base of the steam generator is the same as your mains voltage. 2 Remove all labels and stickers that may be attached to the iron. Some parts of the iron are lightly greased, and it is possible that the iron will emit a little smoke when used for the first time. This smoke will stop after a short period of time, and is not indicative of a defect. 3 To remove residue from the soleplate, set the temperature control dial to ‘max’, and iron over a damp cloth. Filling the water reservoir

• It is recommended that you fill the water reservoir with a mixture of 50% tap water and 50% distilled water. This is particularly desirable in areas with hard water, since this will prevent the formation of excessive limescale.

• Make sure the water reservoir is always filled, even if you do not plan to use the steam function. 1 Make sure the appliance is not plugged in. 2 Press the water reservoir down and remove it from the steam generator. 3 Fill the water reservoir with the indicated quantity of water (no higher than the ‘max’ level, and above the ‘min’ level). 4 Install the reservoir in the steam generator and make sure it is positioned correctly. Ironing

• Never iron over zips, rivets in jeans, etc. These will damage the soleplate. Iron around any such objects.

• The steam generator’s holder for the iron will become hot. Do not touch it whilst you are ironing.

• Check whether ironing-instruction labels are attached to clothing. Always observe any such instructions.

• Do not touche the soleplate until it has cooled down completely. See Figure 1. Dry ironing 1 Fill the water reservoir (nr.14). 2 Put the iron on the steam generator’s holder (nr.13). 3 Put the plug in the wall socket and turn the iron’s temperature-control dial (nr.4) to adjust the temperature to the required setting. The iron starts heating. 4 Adjust the temperature in accordance with the directions given in table 1. 5 When the indicator light on the iron (nr.5) turns off, the temperature is reached. You now can start ironing. Steam ironing 1 Fill the water reservoir. 2 Put the iron on the steam generator’s holder. 3 Put the plug in the wall socket and turn the iron’s temperature-control dial to adjust the temperature to the required setting. The iron starts heating. 4 Make sure that there is enough water in the reservoir. 5 Set the steam generator switch (nr.9) to ‘1’. During first use or reuse after a longer period, after about 2 minutes, a sound of escaping air will be heared. This is normal behaviour. The steam generator will heat the water, and the ‘steam on’ light on the base’s control panel (nr.10) will light. Once the water has reached the required temperature the ‘steam ready’ light (nr.11) will be lit. 6 Adjust the temperature by turning the iron’s temperature-control dial to the required setting. Adjust the temperature in accordance with the directions given in table 1.10 Steam Station 4 BAR Refillable Article 320190 / 320191 7 The temperature indicator light on the iron is illuminated whilst the iron is heating up, and is extinguished once the iron has reached the set temperature. You can now start ironing. 8 Whilst you are ironing you can give a shot of steam by shortly pressing the iron's steam button (nr.3) with your index finger for 2 seconds at most. When you press the button more than 2 seconds, the steam generator will emit steam for 5 minutes. You can stop the generation of steam by pressing the steam button (nr.3) again. Note: A little water may drip from the soleplate when using the steam generator for the first time or reusing it after a long period. This is normal, and is caused by the condensation of steam. The steam/condensate is very hot. Never point the soleplate at persons. 9 When pausing during ironing, return the iron to the holder on the steam generator. When the steam button is not pressed for one hour the steam generator will emit a beep and switch off automatically. A beep will also be heard when the generator is switched on again. Note: The iron is not switched off automatically. Switch off the iron by removing the plug from the wall socket. 10 When you have finished ironing return the iron to the holder on the steam generator, switch the steam generator off and remove the plug from the wall socket. If you switch off the steam generator, the iron still continues to heat. To switch off the iron too, the plug must be removed from the wall socket. 11 Allow the appliance to cool. Refilling the water reservoir The steam station is protected with a warning system for your convenience: when the waterlevel in the reservoir is too low, a warning sounds. 1 When the warning sounds, press the water reservoir down and remove it from the steam generator. 2 Refill the reservoir, but be careful not to exceed the ‘max’ level. 3 Install the reservoir in the steam generator and make sure it is positioned correctly. Label Type of fabric Material Temp. The fabric may not be ironed. Synthetic Acryl Modacrylic Poly- propylene Poly- urethane Synthetic Acetate Triacetate Synthetic Metal Cupro Polyamide (nylon) Polyester Modal Viscose Silk Silk Wool Wool steam or dry Cotton Cotton steam or dry Linen Linen Table 111 Steam Station 4 BAR Refillable Article 320190 / 320191 Maintenance and cleaning

• Never move the steam generator whilst it is switched on or is still hot. Switch off the appliance, and wait until it has cooled down before you move it.

• Do not immerse the appliance in water, or in other liquids. If this happens do not use the appliance any more; dispose of the appliance.

• Never use corrosive or scouring cleaning agents.

• Never scrape over the soleplate with metal objects.

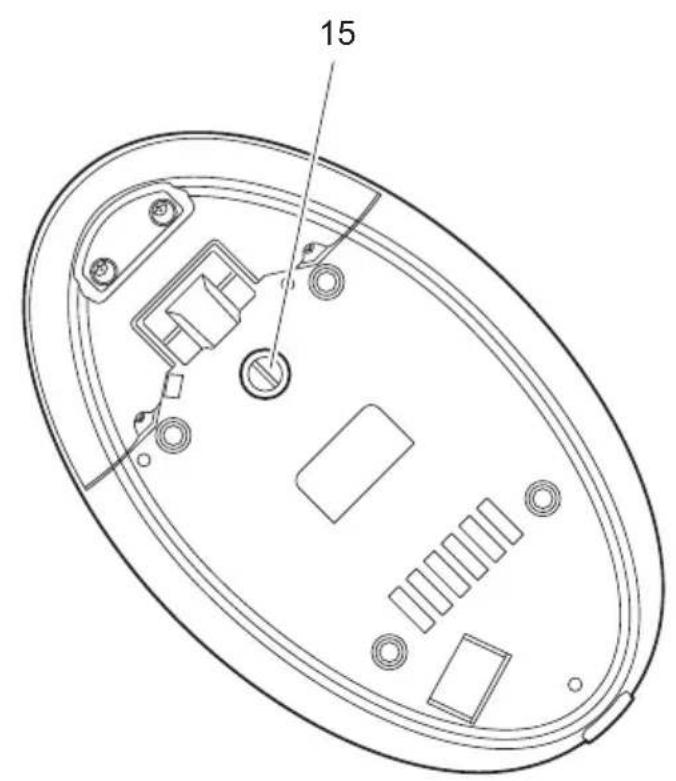

• Never add vinegar or other cleaning agents to the water reservoir when ironing. This could damage the clothing. Maintenance 1 Remove the plug from the wall socket and allow the appliance to cool down completely before cleaning it. 2 Open the draining cap on the underside of the steam generator with a coin or a screwdriver to drain the water. Do not open the drain cap before the pressure in the water reservoir has sufficiently lowered. 3 Install and tighten the cap after draining. 4 Wipe limescale and other fouling from the soleplate using a damp cloth and a non-abrasive cleaner. 5 Clean the iron’s housing with a soft damp cloth. Storage after use 1 Let the appliance cool down completely. 2 Clean the housing and drain the appliance. (see ‘Maintenance’). 3 Store the iron in a place where children can’t reach it. Store the iron vertically (upright), this will prevent damage to the soleplate. Descaling Note! The guarantee does not cover limescale complaints or problems. To prolong the useful life of your NOVA Steam Station 4 BAR Refillable and prevent limescale, it is recommended to rinse and/or descale the appliance after every 20 operations. Rinsing with water: 1 Half-fill the water reservoir and shake the reservoir. Drain the reservoir (see ’Maintenance’), and repeat. Descale the appliance with vinegar or with a special descaling agent, available from (hardware) stores. With descaling agent: Always verify that the descaling agent is suitable for use with irons! Follow the directions given on the package. 1 Drain the steam generator before descaling (see ’Maintenance’). 2 Fill the water reservoir with 600 ml of descaling agent. Allow the solution to rest in the system overnight. 3 Put the iron horizontally on a surface and shake the steam generator. 4 Drain the steam generator. 5 Rinse a couple of times with clean water until the odor is gone, and drain the appliance each time.12 Steam Station 4 BAR Refillable Article 320190 / 320191 With vinegar: 1 Drain the steam generator before descaling (see ’Maintenance’). 2 Pour 50 ml of normal vinegar and 500 ml water in the reservoir. The proportion vinegar : water should be 1 : 10. 3 Allow the mixture to rest in the system overnight. 4 Put the iron horizontally on a surface and shake the steam generator. 5 Drain the steam generator. 6 Rinse a couple of times with clean water until the odor is gone, and drain the appliance each time. Safety General

• Please read these instructions carefully and retain them for reference.

• Use this appliance only in accordance with the instructions.

• This appliance is intended solely for domestic use.

• The use of this appliance by children or persons with a physical, sensory, mental or motorial disability, or lack of experience and knowledge can give cause to hazards. Persons responsible for their safety should give explicit instructions or supervise the use of the appliance.

• Children should be supervised to ensure that they do not play with the appliance.

• Have the appliance repaired only by a qualified electrician. Never try to repair the appliance yourself.

• Use solely accessories recommended by the supplier. The use of other accessories may result in damage to the appliance, thereby creating hazards for the user.

• Never use the appliance if it has been dropped, if there are visible signs of damage or if it is leaking. Electricity and heat

• Verify that the mains voltage is the same as that indicated on the type plate on the appliance before use.

• Plug the appliance into an earthed wall socket.

• Always remove the plug from the socket when the appliance is not in use.

• Always remove the plug from the wall socket by pulling on the plug, not the power cord.

• Never pull on the power cord to move the appliance.

• Do not use the appliance if the power cord or steam cord is damaged. For your safety return the appliance to our service department. Damaged cords can be replaced solely by our service department, who have the special tools required for the repair.

• Make sure that the appliance and the cords do not come in contact with sources of heat, such as a hot hob or naked flame.

• Make sure that the cord and plug do not come in contact with water.

• The appliance needs space to allow heat to escape, thereby preventing the risk of fire. Make sure that the appliance has sufficient space around it, and does not come in contact with flammable material. The appliance must not be covered.13 Steam Station 4 BAR Refillable Article 320190 / 320191 During use

• Never use the appliance outdoors.

• Place the appliance on a flat, stable surface where it cannot fall.

• Never allow the power cord or the steam cord to hang over the edge of the draining board, worktop or table.

• Make sure that your hands are dry before touching the appliance, power cord, steam cord or plug.

• Never use the appliance in a humid room.

• Switch off the appliance and remove the plug from the wall socket in the event of a malfunction during use, and before cleaning the appliance, fitting or removing an accessory, or storing the appliance after use.

• Make sure that the appliance is outside the reach of children.

• Certain parts of the appliance can become hot. Do not touch the warm parts of the appliance; these could cause burns.

• Fill the water reservoir with water before switching on the steam generator. Fill only with cold water and use distilled water to prevent limescale.

• Never fill above the maximum-level indication (’max’).

• Never immerse the appliance, the plug or the power cord in water or other liquid.

• Do not pick up the appliance if it falls into water. Remove the plug from the wall socket immediately. Do not use the appliance any more.

• Clean the appliance thoroughly after use (see the ‘Maintenance and cleaning’ section).

• Allow the appliance to cool to room temperature before storage, maintenance and/or cleaning.

U.K. WIRING INSTRUCTIONS

The wires in the mains lead are coloured in accordance with the following code:

• GREEN/YELLOW EARTH As the colours of the wire in the mains lead of this appliance may not correspond with the colour markings identifying the terminals on your plug, proceed as follows:

• The wire which is coloured BLUE must be connected to the terminal which is marked with the letter N or coloured black.

• The wire which is coloured BROWN must be connected to the terminal which is marked with the letter L or coloured red.

• The wire which is coloured GREEN/ YELLOW must be connected to the terminal which is marked with the letter E or (earth symbol) and is coloured GREEN or GREEN/YELLOW.

WARNING: THIS APPLIANCE MUST BE

EARTHED!14 Steam Station 4 BAR Refillable Article 320190 / 320191 The Environment Dispose of packaging material, such as plastic and boxes, in the appropriate waste containers. You should ensure for the reuse of the appliance if you wish to dispose of it whilst it is still in good working order or needs only a minor repair. When the appliance reaches the end of its useful life it must be disposed of in a responsible manner, thereby ensuring for the reuse of (parts of) the appliance. Do not dispose of the appliance with unsorted refuse; hand it in at the store, or take it to a recognized collection point. Contact your municipality for information about the reception and collection systems in your area. Applicable European Directive:
