Thank you for purchasing the Powerboat X-Tide micro from XCiteRC. This manual contains important instructions for operating your new model. Therefore, please read all instructions in this manual thoroughly before using the model, so that you can operate your model safely.

All company and product names mentioned are trademarks of their respective owners. All rights reserved.

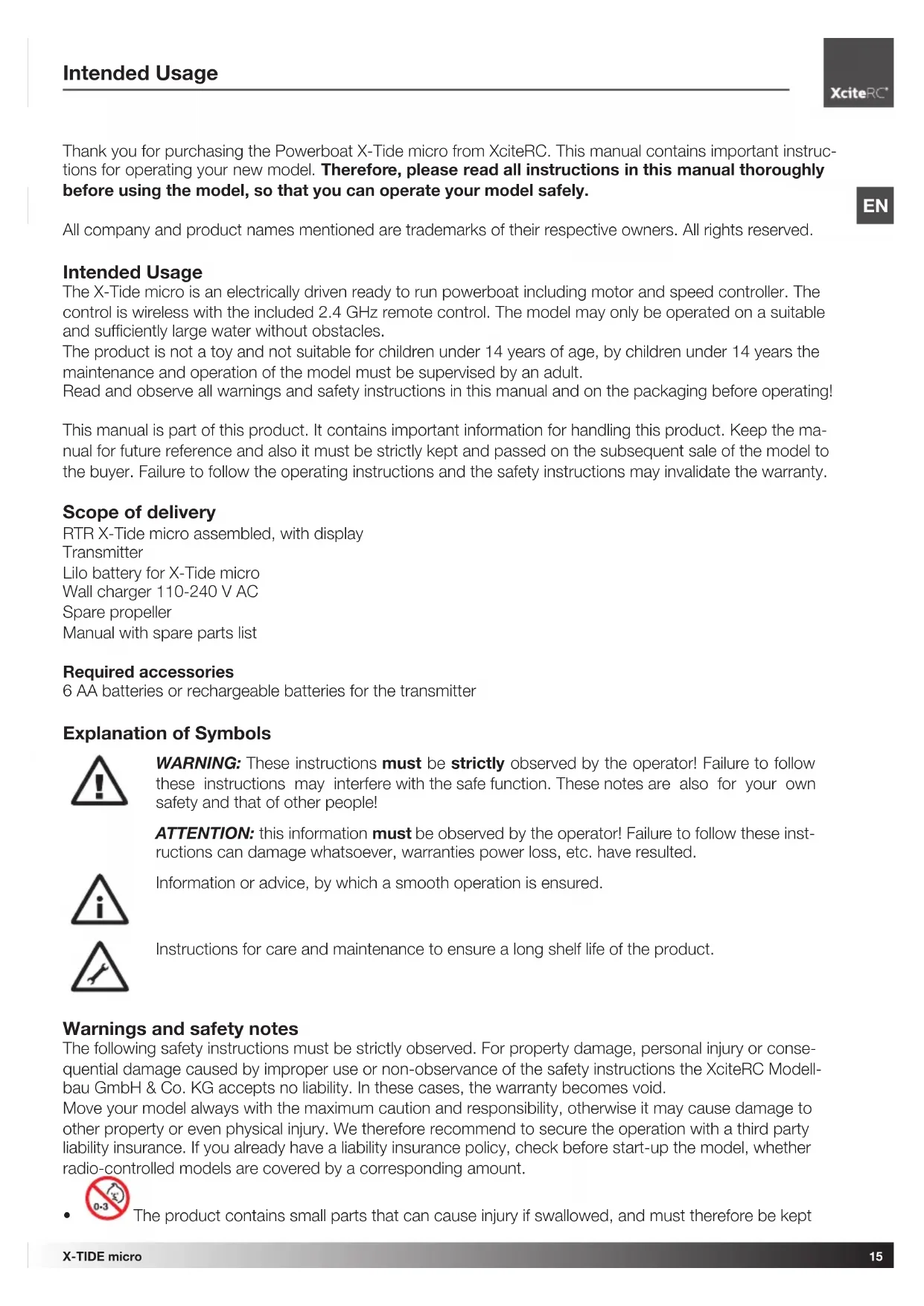

Intended Usage

The X-Tide micro is an electrically driven ready to run powerboat including motor and speed controller. The control is wireless with the included 2.4 GHz remote control. The model may only be operated on a suitable and sufficiently large water without obstacles.

The product is not a toy and not suitable for children under 14 years of age, by children under 14 years the maintenance and operation of the model must be supervised by an adult.

Read and observe all warnings and safety instructions in this manual and on the packaging before operating!

This manual is part of this product. It contains important information for handling this product. Keep the manual for future reference and also it must be strictly kept and passed on the subsequent sale of the model to the buyer. Failure to follow the operating instructions and the safety instructions may invalidate the warranty.

Scope of delivery

RTR X-Tide micro assembled, with display

Transmitter

Lilo battery for X-Tide micro

Wall charger 110-240 V AC

Spare propeller

Manual with spare parts list

Required accessories

6 AA batteries or rechargeable batteries for the transmitter

Explanation of Symbols

WARNING: These instructions must be strictly observed by the operator! Failure to follow these instructions may interfere with the safe function. These notes are also for your own safety and that of other people!

ATTENTION: this information must be observed by the operator! Failure to follow these instructions can damage whatsoever, warranties power loss, etc. have resulted.

Information or advice, by which a smooth operation is ensured.

Instructions for care and maintenance to ensure a long shelf life of the product.

Warnings and safety notes

The following safety instructions must be strictly observed. For property damage, personal injury or consequential damage caused by improper use or non-observance of the safety instructions the XciteRC Modellbau GmbH & Co. KG accepts no liability. In these cases, the warranty becomes void.

Move your model always with the maximum caution and responsibility, otherwise it may cause damage to other property or even physical injury. We therefore recommend to secure the operation with a third party liability insurance. If you already have a liability insurance policy, check before start-up the model, whether radio-controlled models are covered by a corresponding amount.

The product contains small parts that can cause injury if swallowed, and must therefore be kept

EN

away from children under 3 years.

• The product is not a toy and not suitable for children under 14 years.
• The operation of radio-controlled models requires practice. In the beginning, operate your new model therefore with extra caution and familiarize yourself with the response to your commands.

WARNING: The safe operation requires concentration and quick reaction. Do not operate your motor until if you are tired or under the influence of drugs or alcohol - risk of accident and injury!

WARNING: The control of this model is done via radio signals, which can be influenced by the environment. This may cause a suddenly loss of control of your model. The model may only be operated on able and sufficiently large water without obstacles. Operate your model therefore only with sufficient within line of sight, away from cars, traffic and people - risk of accident and injury!

• Do not operate your model during a thunder storm or near radio towers or power lines.

• Radio remote controlled models may not be operated at any public space by implication (streets, roads, squares or lakes). Before operation please ask where the operation is allowed. This also applies to private property, here the consent of the owner is required.

WARNING: drive only in waters where no people or animals swim - risk of injury!

WARNING: Keep your fingers or loose clothing or hair away from the rotating parts or the propeller unit - risk of injury!

• Always switch on the transmitter first, then the model. NOTE: during the operation of the transmitter must remain switched on!

• Never operate your model with low transmitter batteries, because this reduces the range of your model dramatically.

• If the drive battery is empty, the model first slows down until it no longer reacts properly to your commands. Stop the operation and change the drive battery or charge it again.

• Pay attention to the instructions and warnings for this and any other equipment used by you (chargers, rechargeable battery packs, etc.).

WARNING: Keep packaging material, small parts, chemicals and electrical components away from them - risk of accident and injury!

• The model and the transmitter may be neither get humid nor wet, especially the electronic components (receiver, speed controller, servo) and, if used, lithium batteries, are not waterproof! The model may not be used in the rain (or heavy fog), do not drive in wet grass or through puddles or snow.

WARNING: Fire or explosion due to moisture in lithium batteries!

• Plastic parts (eg. fuselage or main blades) is less flexible and can break more easily at cold temperatures (below 10^ ).

• The modification of the model is not permitted for safety and CE approval regulations, which applies in particular to the transmitter, receiver and speed controller. Maintenance or repairs using original replacement parts are excluded.

After use, first turn off the model and then the transmitter.

WARNING: remove the drive battery from the model and transmitter after use. Store the model with built-in battery. Fire hazard!

• Store batteries separately on a non-combustible surface.
• The drive components (motor and speed controller) or the car battery may become hot during operation.

WARNING: Risk of burns! Let these components cool down completely after the operation (and before each battery change)!

Operation of the model is performed solely at the risk of the operator. Only a careful and deliberate operation protects against physical injury and damage to property.

Handling precautions for batteries or rechargeable batteries

• Keep batteries away from children! Never let batteries unattended, as they can be swallowed by children or pets!

• Use only the recommended or equivalent type of batteries / rechargeable batteries.

WARNING: Do not expose batteries / rechargeable batteries to heat or throw into fire - fire or explosion hazard!

WARNING: Insert batteries / rechargeable batteries with the correct polarity, no short-circuiting - fire or explosion hazard!

• If possible, always replace all batteries at the same time, never use new and used batteries and batteries with different charge levels simultaneously.

WARNING: Do not use defective or damaged batteries or rechargeable batteries - fire hazard! Risk of chemical burns on contact with skin, use protective gloves!

WARNING: Do not attempt to recharge non-rechargeable batteries in a charger - fire or explosion hazard!

• Remove the rechargeable batteries from the device before charging.

WARNING: Charging may take place only with a suitable charger for the type of battery on a fireproof surface and under constant adult supervision - fire hazard!

• Immediately remove used batteries from the devices.

NOTE: NiMH batteries must be checked at least every 3 months and, if necessary, recharged, otherwise because of the typic self-discharge they may get deep discharged and damaged! Therefore, better use so-called RTU batteries with a very low self-discharge.

NOTE: note the specified storage voltage for lithium batteries. Is a completely full or empty lithium battery time stored for a longer time, it can be damaged.

The XciteRC Modellbau GmbH & Co. KG cannot monitor the proper use of the battery or batteries you use, therefore, the warranty is excluded due to incorrect charging or discharging.

The remote control system

Here you get an overview of the remote control system of your X-Tide micro and its various features and settings. Before the first flight, you should absolutely have read and understood all these functions and settings.

• Do make sure that the transmitter is turned off - ON / OFF switch in the lower position.

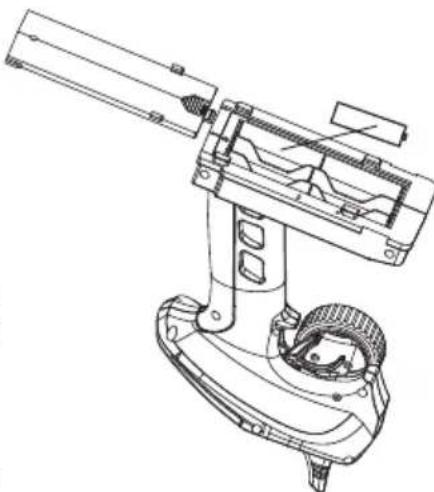

• Now open the battery compartment cover on the bottom of the transmitter (1) and insert six AA batteries (or rechargeable batteries) into the battery compartment of the transmitter (2). Pay attention to the correct polarity!

• Close the battery compartment cover, then turn on transmitter - push ON / OFF switch upwards.

• Both LED's must lit. WARNING: if the red POWER LED flashes or does not light at all, the model cannot be started - crash hazard! Change transmitter batteries immediately.

WARNING: check the POWER LED also during operation. If the POWER LED starts to flash, supported by a beep, stop operation, switch the model off and replace the transmitter batteries - crash hazard!

• IMPORTANT NOTE: The safety circuit of the X-Tide micro prevents starting the motor, as long as the boat is not in the water. Therefore, do not be surprised that the boat does not respond to the remote control „in the dry“! Once it is in the water, the remote control system is activated and the boat can be controlled as desired.

NOTE: The maximum range of the remote control system is about 100 meters, do not drive farther under any circumstances! If the X-Tide micro gets out of range, the fail-safe function is activated and turns

off the motor. If possible, try to meet it half-way on the shore, until you can control it again.

EN

Transmitter

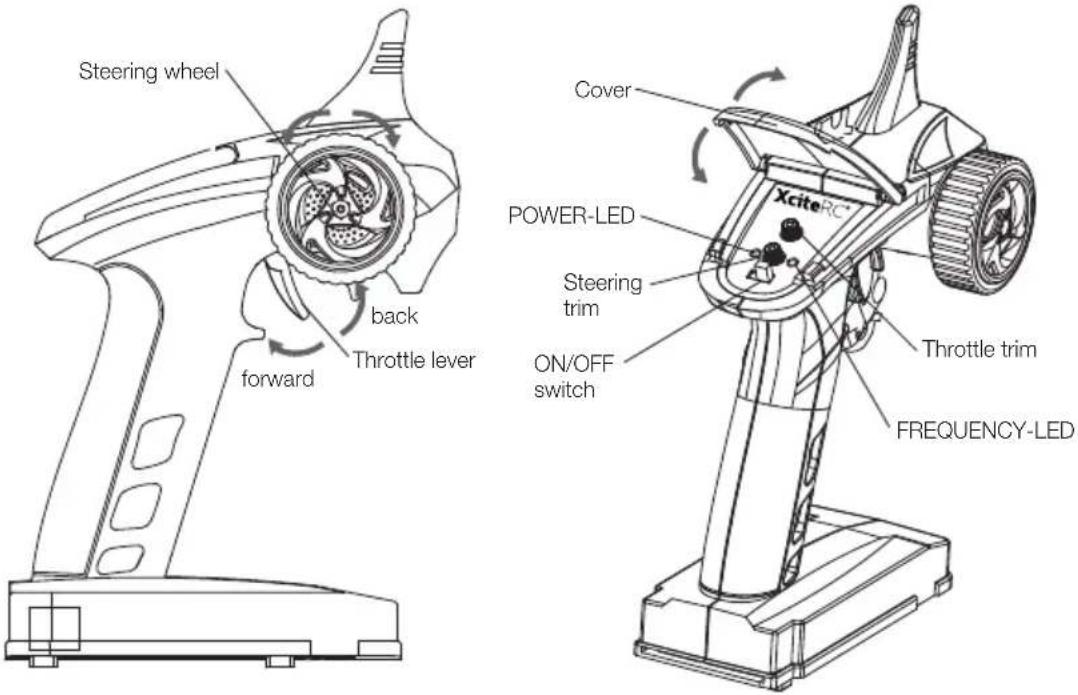

1. On/Off Switch: Turns the power of the transmitter ON/OFF
2. Steering wheel: direction right or left
3. Control trim: adjusts the straight-ahead driving
4. Throttle stick: Controls the speed of the model
5. Throttle Trim: adjust the neutral position of the controller (always left in the middle position!)
6. POWER LED: indicates the battery voltage
7. Antenna

Battery charging

WARNING: Be sure to read all safety instructions regarding the use of rechargeable batteries. Charging

may take place only with the supplied charger on a fireproof surface and under constant adult supervision - fire or explosion hazard!

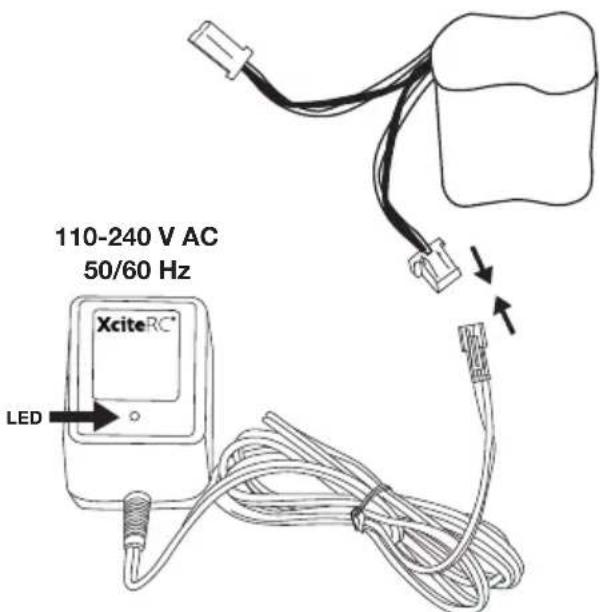

• Insert the charger into an AC outlet AC 110-240 V 50/60Hz. Both LEDs (red and green) are on.

• Connect the battery using the 3-pin balancer plug to the charger (see picture).

WARNING: the charging cable is polarized, attention to the two guide rails in the connector. The plug must snap into place relatively easy- not use force - fire or explosion hazard!

• During charging, the green LED on the charger goes out. A fully discharged battery takes about 3.5 hours until it is fully charged - green LED on.

• Unplug the battery from the charger.

• Unplug the charger from the socket when you no longer need it.

The run time of the X-Tide micro is about 7-10 minutes.

BINDING:

The 2.4 GHz receiver of X-TIDE MICRO must be once „connected“ with a suitable transmitter, the so-called „binding“ procedure. This ensures that the receiver establishes a connection only with this transmitter and the model can be operated without interference. This process can be repeated any time.

The transmitter and receiver of the X-TIDE MICRO are already bound so that you can start flying immediately. Should a rebind gets necessary (eq. after a transmitter change), proceed as follows:

• Make sure that no other 2.4 GHz network (eq. WLAN or other transmitter) sends nearby.
  The distance between transmitter - e.g. X-TIDE MICRO should be maximum one meter.
  Note: the X-Tide micro must be in the water so that the remote control system is activated!
• Switch on the transmitter. The green FREQUENCY LED flashes for about 5 seconds. During these 5 seconds, turn on the boat. When the LED lits permanently green, the transmitter is now bound to the X-Tide micro.
• If you still cannot control the boat, repeat the process.

Getting started

Before you begin please check:

• Insert the included soft rubber protection on the boot tip. Pay attention to the short pin, it must engage in the provided hole on the underside of the hull. This is especially useful if you operate with several boats at once, or eq, in a swimming pool in order not to damage it.
  NOTE: The X-Tide micro needs due to their small size a calm water surface. Do not drive in heavy seas!
  WARNING: Only start with a sufficiently full transmitter batteries (rechargeable batteries) and fully charged drive battery - crash hazard!
• Check all parts for damage and dirt. Replace any damaged parts and clean the model, because dirt increases the weight and therefore can degrade the flying qualities.
• Switch on the transmitter. The red POWER LED lits and the green FREQUENCY LED flashes. Wait a moment until the green FREQUENCY LED lits permanently, then connect the drive battery with the boat.

Release upper hull by turning the rear lock and lift the back end.

Place the Lilo battery in the battery holder.

WARNING: Operate your boat only with a fully charged battery - loss of control!

EN

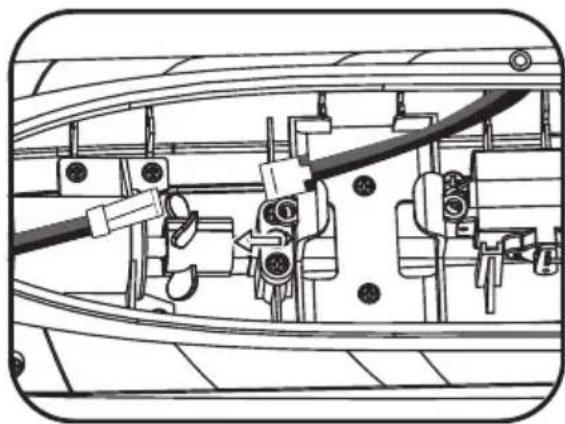

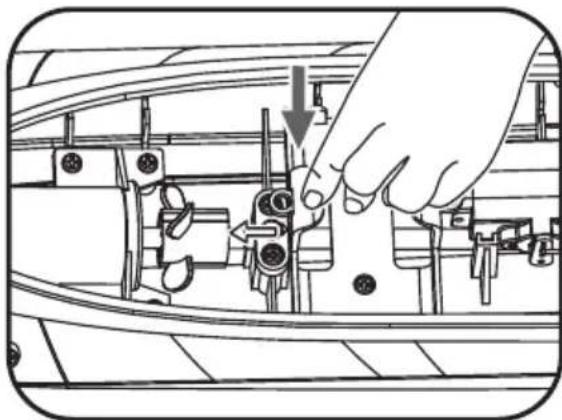

Connect the battery. The connecting system is polarized, do not use force.

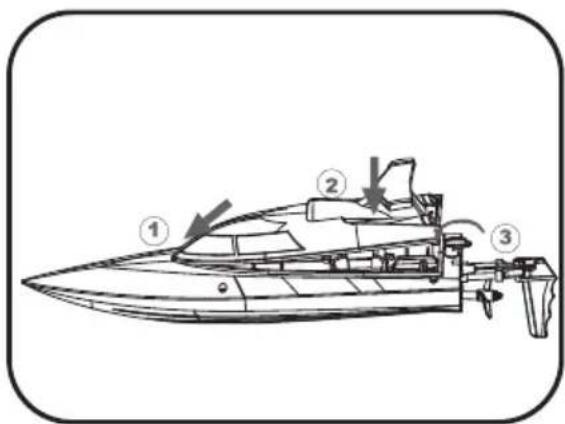

Place the upper hull with the nose on the front of the hull (1), then push back (2) and secure with the lock (3).

• iIMPORTANT NOTE: The safety circuit of the X-Tide micro prevents starting the motor, as long as the boat is not in the water. Therefore, do not be surprised that the boat does not respond to the remote control „in the dry“! Once it is in the water, the remote control system is activated and the boat can be controlled as desired.
• Check the motor and servo functions.
• If the drive battery runs low, the motor speed is reduced and the X-Tide micro starts slowing down. Navigate to the shore of the water immediately. Charge the drive battery again.

RC functions

Forward - reverse

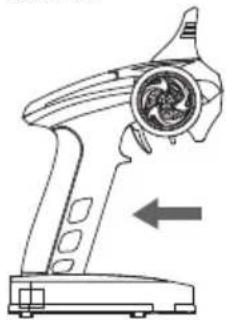

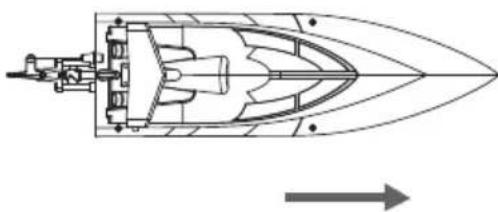

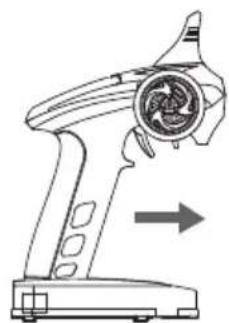

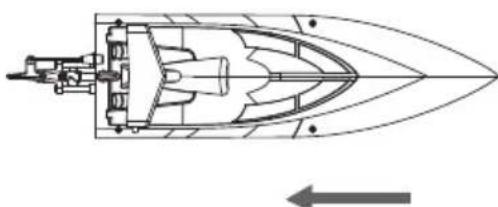

Move the throttle lever towards you, the X-Tide micro will move forward. Move the throttle stick back to reverse.

Left - Right

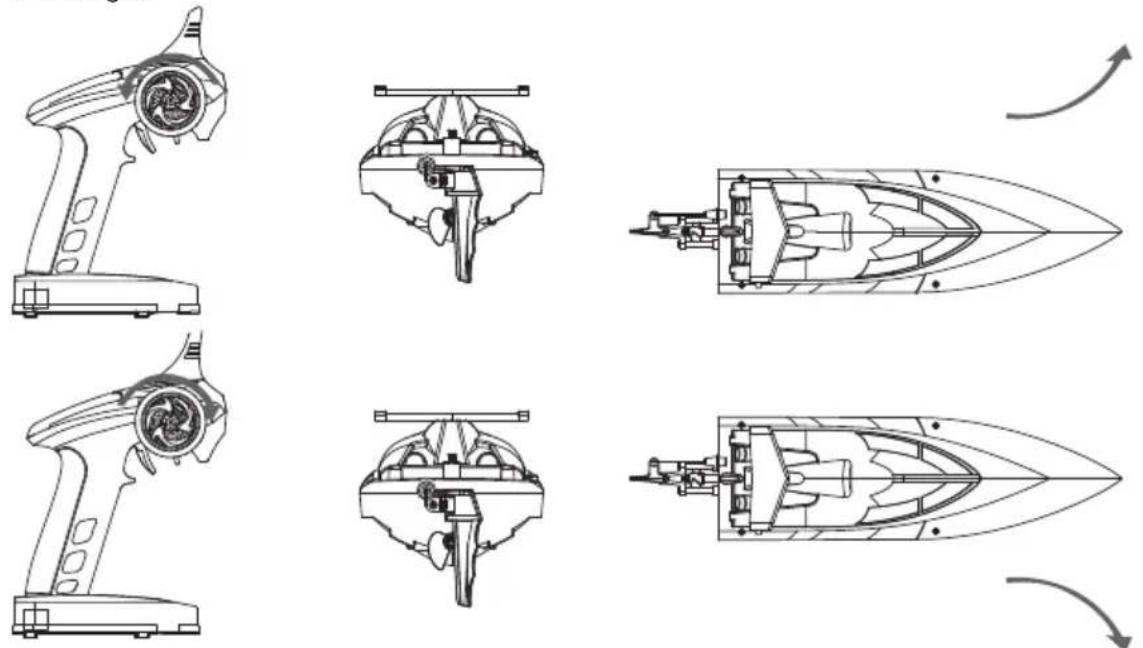

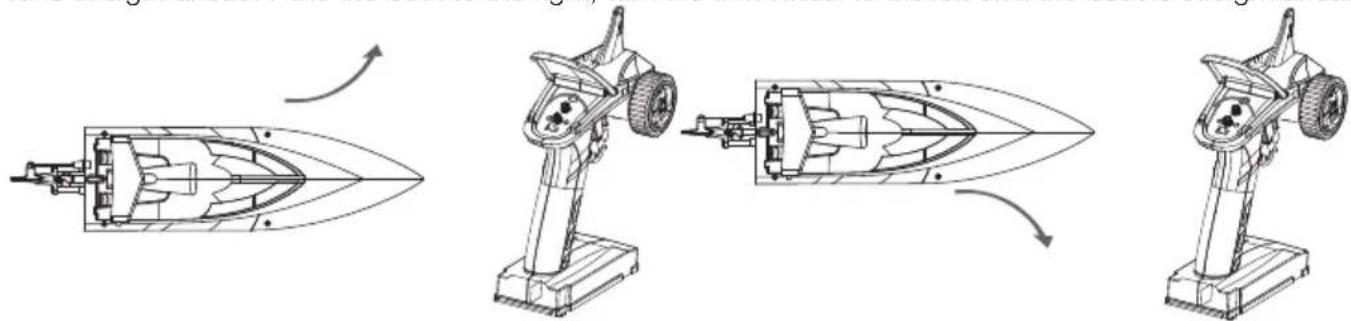

Rotate the steering wheel to the left, the boat turns to the left. Move the steering wheel to the right to turn to the right.

Trim

Steering

If the X-Tide micro will not run exactly straight - but pull in one direction - although the steering wheel remains in the center position, this can be compensated with the trim wheel TURN FINE TUNE above the ON / OFF switch under the transmitter cover. Pulls the boat to the left, turn the trim wheel to the right until the boat runs straight ahead. Pulls the boat to the right, turn the trim wheel to the left until the boat is straight ahead.

Motor

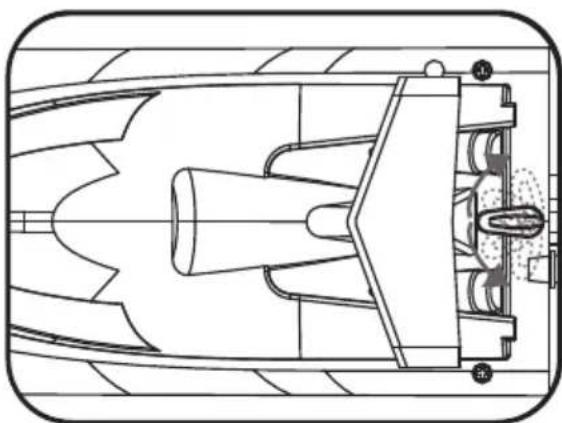

With the throttle lever in neutral position, the motor may not rotate. If yes, correct it with the THROTTLE TRIM wheel. Turn the trim wheel until the motor stops.

For larger waves it may happen that the boat capsizes and turns upside down. This is no reason to become hectic, the boat is water-proof and cannot sink. To recover, you can either wait until the boat drifts back because of the swell of its own. Or you hold the throttle, the propeller acts as an airplane propeller and moves the boat forward slowly. You may also control the direction with the rudder.

EN

WARNING: disconnect and remove the drive battery from the boat after each ride - fire and explosion hazard!

WARNING: the motor of the X-TIDE MICRO may get very hot during operation. Allow to cool down minimum 20 minutes before the next start to avoid damage. Fire hazard!

Maintenance

To have fun with your model over a long period, occasional service work is required to get your model in good condition and to minimize wear.

• The X-Tide micro is waterproof, yet it may happen that a few drops of water gets lost into the boat. Therefore check after every ride if water is inside in the hull and dry it with a cloth if necessary.
• Remove dirt or dust depending with compressed air or a soft brush after each use. For stubborn dirt, a harder brush or a toothbrush can be used.
• To clean the body/fuselage no chemical cleaners such as thinners may used, as this damage the plastic of the body/fuselage. Normally a piece of soft cloth is ok, stubborn dirt can be removed with washing-up liquid.
• Check the tightness of all screws and tighten if necessary.
• Also check all connections, cables and power battery / rechargeable battery for damage.
  WARNING: Damaged batteries or rechargeable batteries must not be used again and must be disposed of immediately - fire hazard! Please note the disposal notes at the end of this manual.
• Check the model for worn, broken or jammed parts and gears and repair if necessary.
  WARNING: remove the batteries / rechargeable batteries of the transmitter and model when not in use - fire hazard!

Troubleshooting

Problem Possible	Cause Corrective Action
Transmitter does not work	No batteries insertedPolarity of the batteries reversedON/OFF switch in position OFF	Place 6 x AA batteries into the transmitterCheck polarity of the inserted batteries, and correct if necessarySwitch transmitter ON
Transmitter POW-ER-LED flashes	weak batteries, almost empty Insert new	batteries
The X-Tide micro does not react on the transmitter	Transmitter does not workDrive battery is almost emptyMotor defectiveBoat is not in the waterTransmitter and receiver are not bound	See "Transmitter does not work"Recharge battery according to the instructionsCheck and replace the motorSafety function activated, place boat in the waterBind transmitter and receiver, see „BIN-DING"
The X-Tide micro gets out of control or stops suddenly	Transmitter signal shieldedBoat outside the maximum rangePropeller defective	Change location, without any obstructions between the transmitter and boatObserve the maximum range (100 m)Check, replace if necessary
Runtime very short	Weak battery, almost empty	Recharge battery according to the instructions
	Motor worn/defective	Check, replace if necessary
	Propeller blocked ie. with water plants	Clean the propeller
	Propeller worn/defective	Check, replace if necessary

Repairs, Spare Parts

Normal wear and defective parts that result from an accident, are excluded from the guarantee. These include in particular:

For car models: bald tires, worn parts and drive gears, or bent / broken suspension, chassis or bodywork

With ship models: damaged or broken propellers, torn superstructure.

With airplanes: damage due to improper transportation or crash

If you find a part that is defective in material or workmanship right after opening the package, return - before you used it - to your dealer or directly to us and we will send you a replacement.

For the EUROPTER some parts are available as spares. If a part is defective or worn, you can identify it with the help of the exploded view.

In case of problems or questions, please contact your dealer or:

XciteRC Modellbau GmbH & Co. KG - Service, Autenbachstrasse 12, D-73035 Göppingen, Phone [phone]

Email: [e-mail]

Spare parts for the X-TIDE MICRO you may order in your local hobby shop or online at http://www.XciteRC.de/ under Order No.: 40002000.

EN

Environmental Protection Notes

The symbol of the crossed out dust bin on the product or packaging indicates that this product must be disposed of separately from normal household waste. In order to avoid harmful effects on the environment and human health in the disposal of electrical and electronic equipment and the re-use or recycling are possible. You have the opportunity to submit electrical and electronic

equipment free of charge at an appropriate collecting point in your area. Please check with your city or town across the available depot. You also have the option to return old electrical and electronic equipment which has been purchased from us. We will then perform a proper recycling or reuse.

Possibly contained batteries must be removed from the product and disposed of at the appropriate collecting point.

Notes on battery law

According to the German Battery Act (BattG) the one who sells batteries (and accumulators etc.) or devices containing batteries, we are obliged to draw your attention to the following:

Batteries and rechargeable batteries should not be disposed of with household waste but you are legally obliged to return used batteries. Batteries can contain contaminants that could harm the environment or your health if improperly stored or disposed of. Batteries also contain important raw materials such as iron, zinc, manganese or nickel and can be recycled.

You can send us back the batteries after use either sufficient postage:

returned free of charge or in close proximity (eg in trade or municipal collection). The levy is limited to points of sale to end-users for the disposal of such waste batteries and customary amounts, which the distributor as new batteries in his range or has done.

Batteries containing pollutants are marked with a sign, a crossed-out rubbish bin, and the chemical symbol of the pollutant-heavy metal.

This crossed-out bin means that you must not dispose of batteries with household waste.

Among these characters, see also the following symbols have the following meanings:

Cd

1

Li-Po

• Cd = cadmium
• Pb = plumbium
• Hg = mercury
• Li = lithium

EN

FR

Sommaire

Driveshaft X-Tide micro

Arbre X-Tide micro

40002003

Stevenrohr X-Tide micro

Sterntube X-Tide micro

Tube d'étambot X-Tide micro

40002004

Hull Cover and small parts

Cache de Coque

40002006

Rumpf X-Tide micro

Hull X-Tide micro

Coque X-Tide micro

40002007

Regler/RX-einheit X-Tide micro

ESC/Receiver unit X-Tide micro

EN The XciteRC Modellbau GmbH & Co. KG declare that this product complies with the essential requirements and other relevant regulations of the directives R&TTE 1999/5/EC and RoHS 2011/65/EC.

The detailed Declaration of Conformity can be found at www.XciteRC.com at the respective product link Declaration of Conformity or via E-mail: [e-mail].
