USER MANUAL Balnea Silence SO6225 ROWENTA

Line drawing of a vertical cylindrical device with horizontal slats and a top handle, showing internal grid structure (no text or symbols)

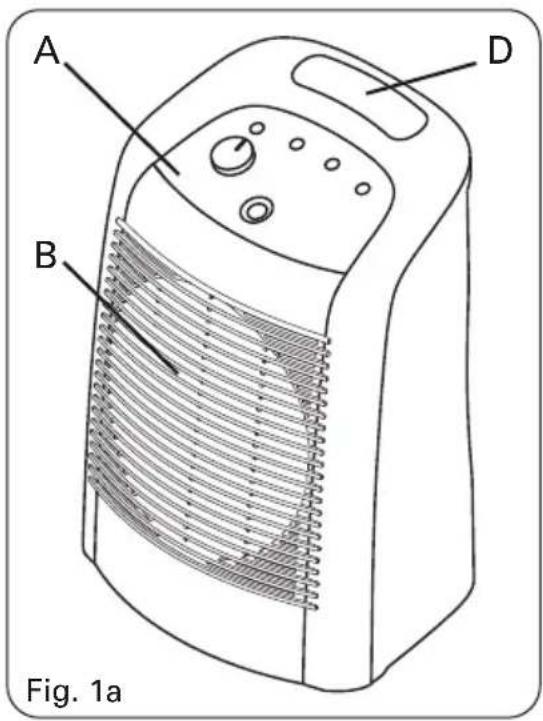

A B D Fig. 1a

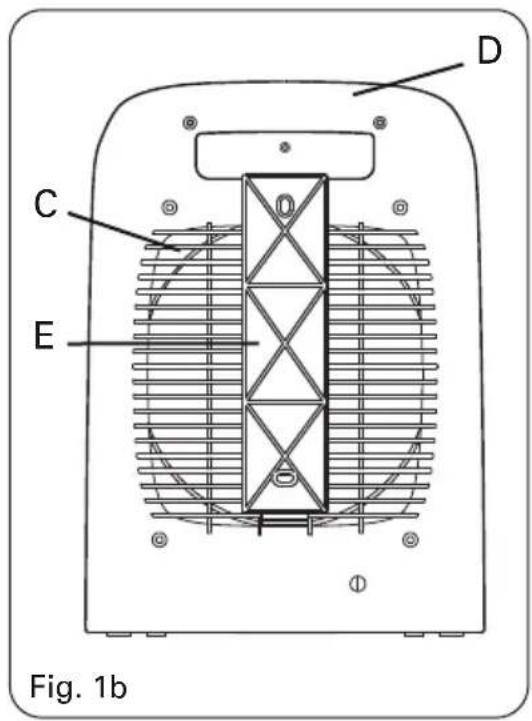

D C E Fig. 1b

Fig. 2 30 cm

Fig. 3 50 cm 30 cm 30 cm 20 cm

Fig. 4a 1 - CLIP 2 - CLIP

Fig. 4b 1 2 3

DESCRIPTIF TECHNIQUE

Fig 2. Position mobile

Fig 3. Position fixe

TECHNICAL DESCRIPTION

A. Control panel

B. Air outlet screen

C. Air intake screen

D. Transport handle

E. Wall bracket

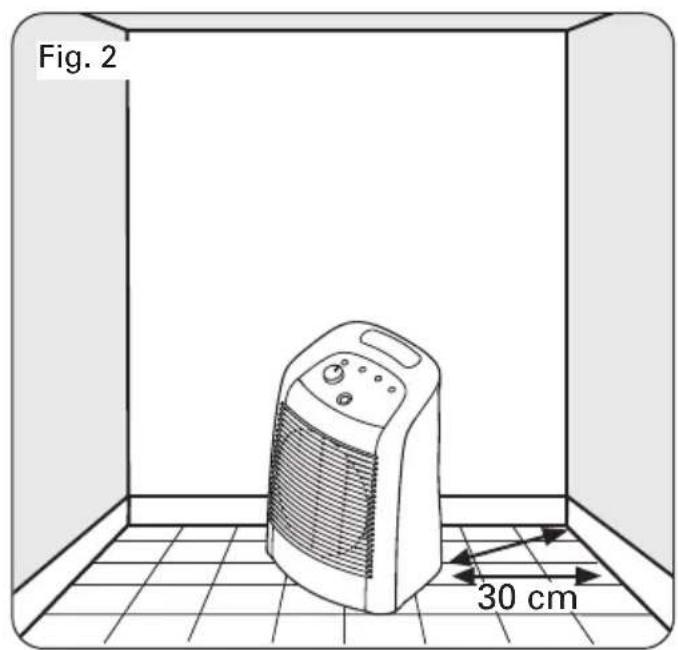

Fig 2. Mobile position

Fig 3. Stationary position

BESCHREIBUNG

A. Bedienfeld

B. Luftauslassgitter

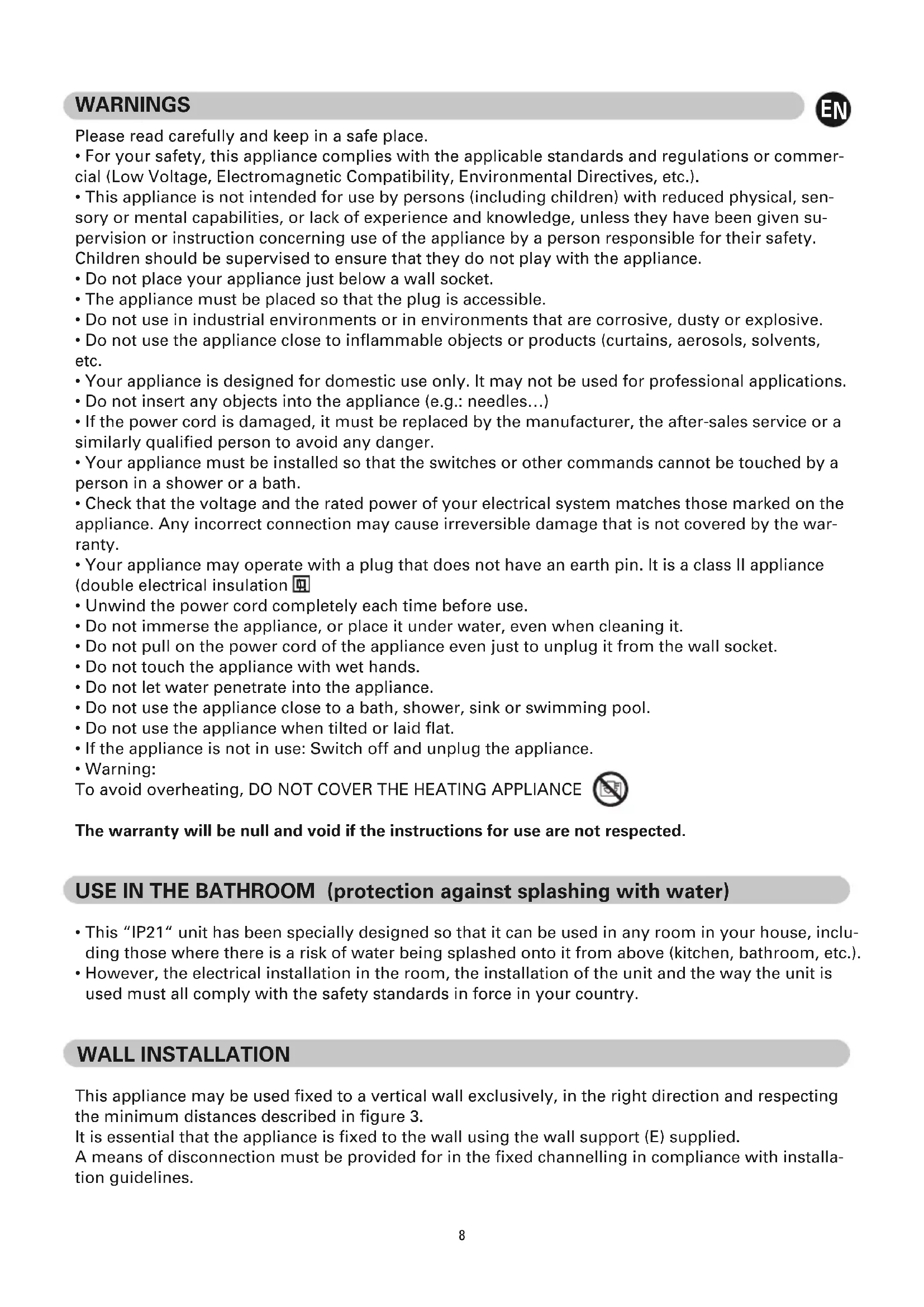

Please read carefully and keep in a safe place.

• For your safety, this appliance complies with the applicable standards and regulations or commercial (Low Voltage, Electromagnetic Compatibility, Environmental Directives, etc.).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Do not place your appliance just below a wall socket.
• The appliance must be placed so that the plug is accessible.
• Do not use in industrial environments or in environments that are corrosive, dusty or explosive.
• Do not use the appliance close to inflammable objects or products (curtains, aerosols, solvents, etc.
• Your appliance is designed for domestic use only. It may not be used for professional applications.
• Do not insert any objects into the appliance (e.g.: needles...)
• If the power cord is damaged, it must be replaced by the manufacturer, the after-sales service or a similarly qualified person to avoid any danger.
• Your appliance must be installed so that the switches or other commands cannot be touched by a person in a shower or a bath.
• Check that the voltage and the rated power of your electrical system matches those marked on the appliance. Any incorrect connection may cause irreversible damage that is not covered by the warranty.
• Your appliance may operate with a plug that does not have an earth pin. It is a class II appliance (double electrical insulation)
• Unwind the power cord completely each time before use.
• Do not immerse the appliance, or place it under water, even when cleaning it.
• Do not pull on the power cord of the appliance even just to unplug it from the wall socket.
• Do not touch the appliance with wet hands.
• Do not let water penetrate into the appliance.
• Do not use the appliance close to a bath, shower, sink or swimming pool.
• Do not use the appliance when tilted or laid flat.
• If the appliance is not in use: Switch off and unplug the appliance.
• Warning:

To avoid overheating, DO NOT COVER THE HEATING APPLIANCE

The warranty will be null and void if the instructions for use are not respected.

USE IN THE BATHROOM (protection against splashing with water)

• This "IP21" unit has been specially designed so that it can be used in any room in your house, including those where there is a risk of water being splashed onto it from above (kitchen, bathroom, etc.).
• However, the electrical installation in the room, the installation of the unit and the way the unit is used must all comply with the safety standards in force in your country.

WALL INSTALLATION

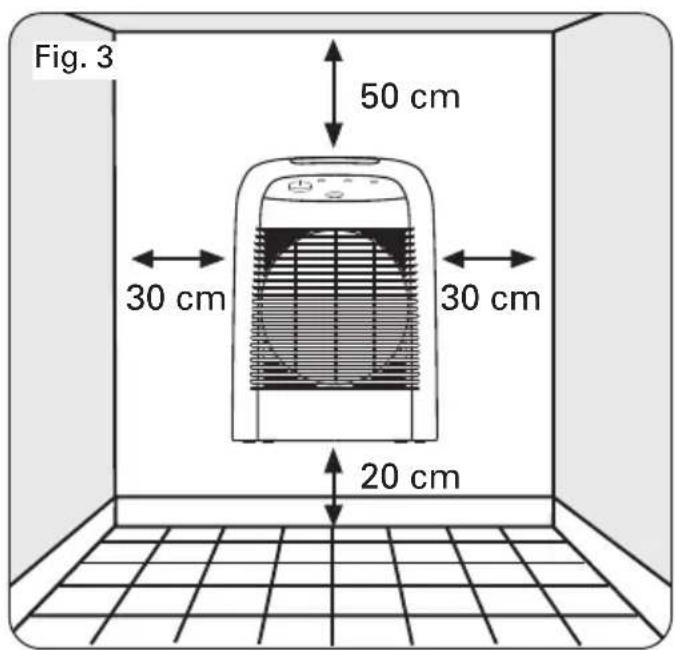

This appliance may be used fixed to a vertical wall exclusively, in the right direction and respecting the minimum distances described in figure 3.

It is essential that the appliance is fixed to the wall using the wall support (E) supplied.

A means of disconnection must be provided for in the fixed channelling in compliance with installation guidelines.

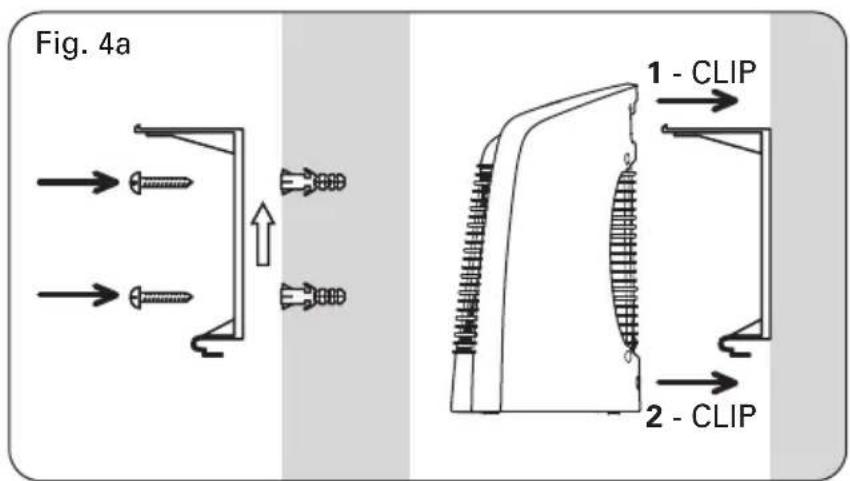

Wall Attachment: see fig. 4a.

• Attach the wall bracket with appropriate screws and plugs following the direction of the arrow.
• Insert the upper wall-bracket hook in the unit's transport handle, and clip the lower wall-bracket hook onto the unit.

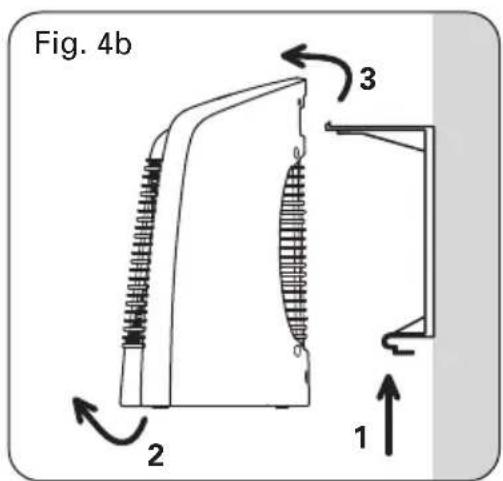

Taking Down the Unit: see fig. 4b.

• Maintain a solid grip on the unit and push down upon the lower tongue of the wall bracket.
• Pull the unit out from the bottom.
• Lift the unit up and remove it from the upper hook.

SAFETY

In the event of abnormal overheating, a safety device shuts down the appliance and then automatically restarts it once ithas cooled. If the fault persists or gets worse, a thermal fuse shuts the appliance down definitively and it must then be taken to an approved service centre.

OPERATION

Each time before use, check that the appliance is in good condition.

Especially check that:

• the position of the appliance described in these instructions is respected.
• the air inlet and outlet grids are in no way obstructed.
• the appliance is placed on a horizontal, stable surface.

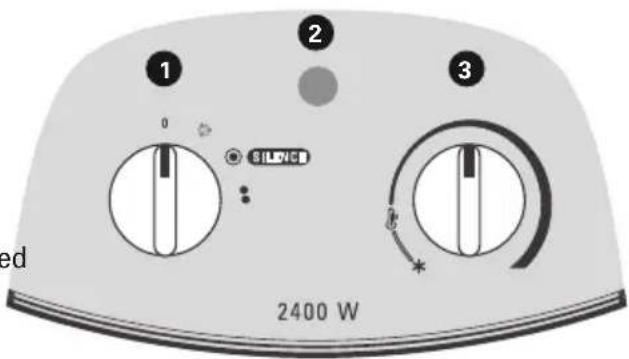

MODEL SO6215 :

Button 1 : Operating mode selector:

0 : OFF Position
: Cold ventilation position
● : "Silence" position, 1200W ventilated and regulated
●● : 2400W position, ventilated and regulated

1 2 3 0 SILVER 2400 W

Indicator light 2: The indicator light is lit when the appliance is operated with the knob 1.

Button 3 : Thermostat (knob 1 must be in the ● or ●● position).

• Adjust the temperature setting, according to your own comfort.
• Frost-free setting * : This setting enables you to automatically maintain the temperature above 0°C in a normally insulated room, whose volume corresponds to the power of your appliance.

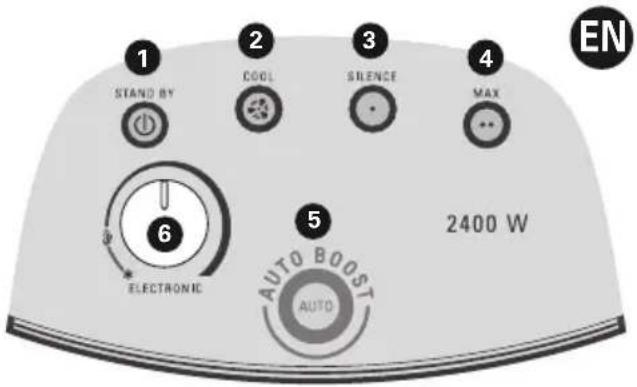

MODEL SO6225 :

When switching on the power to the appliance (appliance plugged into the mains), the appliance is in the "STOP" mode, and the knob 1 is lit.

The appliance makes a beep every time the control knobs are moved.

Button 1 "STAND-BY": Switching off the appliance (a cooling cycle of a few seconds is carried out automatically each time before it is switched off; during this cycle, the button flashes)

Button 2 "COOL": Cold ventilation position.

Button 3 "SILENCE": "Silence" position, 1200W ventilated and regulated.

Button 4 « MAX » : 2400W position ventilated and regulated.

1 STAND BY COOL SILENCE MAX 6 ELECTRONIC 5 AUTO BOOST AUTO 2400 W EN

Button 5 "AUTO BOOST" : Automatic operation mode

• 10 minutes: 2400W ventilated unregulated
• 20 minutes: 1200W ventilated and regulated (depending on the position of the button 6)
• Stops automatically after the 30 minutes of operation.

Button 6 : Thermostat (on the SILENCE, MAX and AUTO-BOOST functions).

• Adjust the temperature setting, according to your own comfort.
• Frost-free setting*: This setting enables you to automatically maintain the temperature above 0°C in a normally insulated room, whose volume corresponds to the power of your appliance.

TAKING CARE OF YOUR APPLIANCE

• The appliance must be unplugged and left to cool down before carrying out any work on it.
- Do not clean it with abrasive or corrosive products.
- Clean with a damp cloth.
- Clean the air inlet and outlet grids at least once a year (with a vacuum cleaner if necessary).

STORAGE

• It is extremely important that the unit be allowed to cool down before it is put away.
  • The power cord can be rewound for storage.
• When you are not using your appliance, store it in a dry place.

IN THE EVENT OF PROBLEMS

• Never dismantle your appliance yourself. A poorly repaired appliance may be dangerous for the user.
• Stop using your appliance and contact an Authorized Service Centre if :
• your appliance has fallen
• it does not work correctly
• Before contacting one of our Approved Service Centres (see enclosed list), ensure that:
  – the appliance is set to normal operating mode;
  – the air inlet and outlet grills are totally clear.

ENVIRONMENT PROTECTION FIRST!

① Your appliance contains valuable materials which can be recovered or recycled.

Leave it at a local civic waste collection point.
