USER MANUAL Bikini Perfect HP6376 PHILIPS

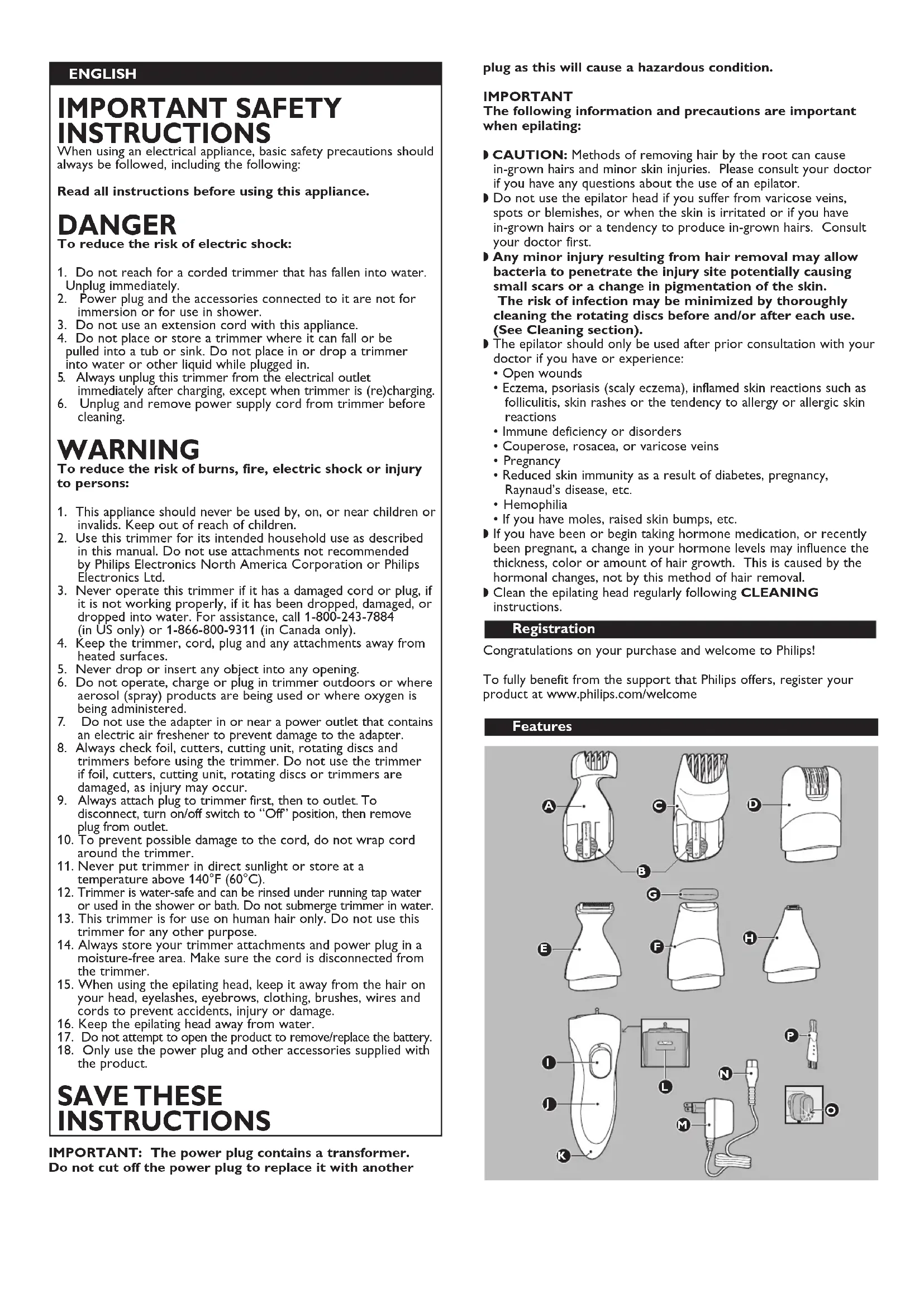

18 19 2017ENGLISH IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic safety precautions should always be followed, including the following: Read all instructions before using this appliance. DANGER To reduce the risk of electric shock:

1. Do not reach for a corded trimmer that has fallen into water.

2. Power plug and the accessories connected to it are not for

immersion or for use in shower.

3. Do not use an extension cord with this appliance.

4. Do not place or store a trimmer where it can fall or be

pulled into a tub or sink. Do not place in or drop a trimmer into water or other liquid while plugged in.

5. Always unplug this trimmer from the electrical outlet

immediately after charging, except when trimmer is (re)charging.

6. Unplug and remove power supply cord from trimmer before

cleaning. WARNING To reduce the risk of burns, fire, electric shock or injury to persons:

1. This appliance should never be used by, on, or near children or

invalids. Keep out of reach of children.

2. Use this trimmer for its intended household use as described

in this manual. Do not use attachments not recommended by Philips Electronics North America Corporation or Philips Electronics Ltd.

3. Never operate this trimmer if it has a damaged cord or plug, if

it is not working properly, if it has been dropped, damaged, or dropped into water. For assistance, call 1-800-243-7884 (in US only) or 1-866-800-9311 (in Canada only).

4. Keep the trimmer, cord, plug and any attachments away from

5. Never drop or insert any object into any opening.

6. Do not operate, charge or plug in trimmer outdoors or where

aerosol (spray) products are being used or where oxygen is being administered.

7. Do not use the adapter in or near a power outlet that contains

an electric air freshener to prevent damage to the adapter.

8. Always check foil, cutters, cutting unit, rotating discs and

trimmers before using the trimmer. Do not use the trimmer if foil, cutters, cutting unit, rotating discs or trimmers are damaged, as injury may occur.

9. Always attach plug to trimmer first, then to outlet. To

disconnect, turn on/off switch to “Off” position, then remove plug from outlet.

11. Never put trimmer in direct sunlight or store at a

Trimmer is water-safe and can be rinsed under running tap water or used in the shower or bath. Do not submerge trimmer in water.

13. This trimmer is for use on human hair only. Do not use this

trimmer for any other purpose.

14. Always store your trimmer attachments and power plug in a

moisture-free area. Make sure the cord is disconnected from the trimmer.

15. When using the epilating head, keep it away from the hair on

your head, eyelashes, eyebrows, clothing, brushes, wires and cords to prevent accidents, injury or damage.

16. Keep the epilating head away from water.

Do not attempt to open the product to remove/replace the battery.

18. Only use the power plug and other accessories supplied with

the product. SAVE THESE INSTRUCTIONS IMPORTANT: The power plug contains a transformer. Do not cut off the power plug to replace it with another plug as this will cause a hazardous condition. IMPORTANT The following information and precautions are important when epilating: w CAUTION: Methods of removing hair by the root can cause in-grown hairs and minor skin injuries. Please consult your doctor if you have any questions about the use of an epilator. w Do not use the epilator head if you suffer from varicose veins, spots or blemishes, or when the skin is irritated or if you have in-grown hairs or a tendency to produce in-grown hairs. Consult your doctor first. w Any minor injury resulting from hair removal may allow bacteria to penetrate the injury site potentially causing small scars or a change in pigmentation of the skin. The risk of infection may be minimized by thoroughly cleaning the rotating discs before and/or after each use. (See Cleaning section). w The epilator should only be used after prior consultation with your doctor if you have or experience:

• Eczema, psoriasis (scaly eczema), inflamed skin reactions such as folliculitis, skin rashes or the tendency to allergy or allergic skin reactions

• Immune deficiency or disorders

• Reduced skin immunity as a result of diabetes, pregnancy, Raynaud’s disease, etc.

• If you have moles, raised skin bumps, etc. w If you have been or begin taking hormone medication, or recently been pregnant, a change in your hormone levels may influence the thickness, color or amount of hair growth. This is caused by the hormonal changes, not by this method of hair removal. w Clean the epilating head regularly following CLEANING instructions. Registration Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome

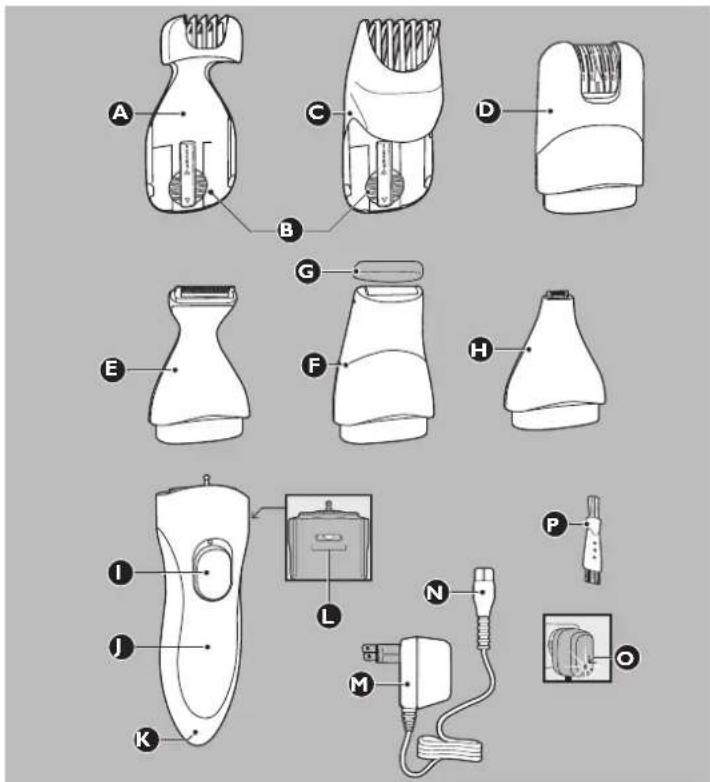

Features3 Press the hair length selector (1) and slide it up or down (2) to the desired hair length setting (fig. 5). The selected setting number will appear on the colored circle on the handle. See Table 1 for settings. w If you are trimming for the first time, start by using the comb at the maximum trimming length setting (#5). As you become familiar with the settings, adjust hair length selector to desired trimming length. Selector will “click” into position at each setting. 4 Switch the trimmer ON. 5 To trim in the most effective way, move the trimmer against the direction of hair growth (fig. 6). Make sure the surface of the comb always stays in contact with the skin. For easier trimming, stretch the skin with your free hand (fig. 7). NOTE: Since all hairs do not grow in the same direction, you may want to try different trimming directions (i.e., upwards, downwards, or across). Practice is best for optimum results. w If a lot of hair has accumulated in the comb, remove the comb and blow and/or shake the hair out of the comb. You can also use the cleaning brush provided to remove hair from the comb area. Table 1. Precision Comb Setting

Remaining hair length (in.) /(mm) .08 in/2mm .16 in/4mm .24 in/6mm .31 in/8mm .39 in/10mm w REMEMBER: You must reset the hair length selector back to your desired setting every time you replace the comb on the appliance. w The remaining hair length corresponds with the smallest distance between the cutting blade and the spot where the comb is in contact with the skin. Styling your bikini line without precision comb Use the precision trimmer without the precision comb to style your bikini line. w The precision trimmer trims hair to a length of approximately .24in/6mm. w Be creative when styling your bikini line. You can draw and cut out a template, such as a heart shape, to create your own personal style. 1 Be certain trimmer is in the OFF position. 2 Remove the precision comb attachment by pressing the hair length selector (1) and sliding the comb upwards (2) (fig. 8). 3 Make sure precision trimmer is on handle. 4 Switch trimmer ON. 5 The trimmer can be used with the precision trimmer teeth pointing toward the skin (fig. 9) or with the flat part of the precision trimmer pointing toward the skin (fig.10). 6 For best results, move the appliance against the direction of hair growth making sure the precision trimmer is in full contact with the skin (fig. 11). Be careful when using the precision trimmer without the comb attachment as it removes every hair it touches. 7 Make well-controlled movements. Touch the hair/skin lightly with the precision trimmer. NOTE: To achieve optimal trimming results, it is recommended to use the appliance on dry skin. A Eyebrow comb (HP6378 only) B Hair length selector C Precision comb D Epilating head (HP6378 only) E Precision trimmer F Micro shaver G Micro shaver protective cap H Micro trimmer (HP6378 only) I On/Off switch J Handle K Socket for appliance plug L Setting indicator M Adapter N Appliance plug O Charging light P Cleaning brush Full Two-Year Warranty 45-Day Money-Back Guarantee This symbol indicates that the trimmer can be used in the bath or shower. To Charge/Recharge w Fully charge trimmer before using for the first time or after non-use for a long period of time. w Battery performance is best if you recharge only when the battery is (almost) completely empty. wChargingorrechargingattemperaturesbelow40˚F(4,5°C)or higherthan95˚F(35°C)adverselyaffectslifespanofthebattery. w Continuously recharging trimmer will reduce lifespan of battery. 1 Be certain trimmer is OFF. 2 Insert the appliance plug directly into the trimmer (fig. 1). 3 Plug charging plug into any 120V AC outlet. Use only the cord provided. 4 The charging light on the adapter will light to indicate the trimmer is charging (fig. 2). w It will take approximately 10 hours to fully charge the trimmer for a cordless trimming time of up to 60 minutes. NOTE: After the trimmer is fully charged, the charging light will remain lit. 5 Disconnect the cord and unplug the power plug from electrical outlet. Optimize the working life of the battery w After the trimmer has been charged for the first time, do not recharge the trimmer between trimming sessions. Continue using it until the battery is completely empty. w Do not charge for more than 24 hours. w Do not keep cord permanently plugged in. w Discharge/run down the battery completely twice a year by letting the motor run until it stops. w If the trimmer hasn’t been used for a long period of time, it must be recharged for a full 10 hours. Cordless Trimming 1 Charge according to directions. Unplug trimmer from outlet. 2 Slide ON/OFF switch ON to begin trimming. Trimming w Use this trimmer for its intended household use as described in this manual. w Make sure that the trimmer is fully charged before you start trimming. This trimmer will not operate while cord is connected to electrical outlet. w Make sure hair is clean. Do not move the trimmer too fast. Make smooth and gentle movements. Trimming your bikini line with precision comb Use the precision trimmer with the precision comb to trim bikini line. 1 Put the precision trimmer on handle (fig. 3). You will hear a click. 2 Slide the precision comb into the guiding grooves on both sides of the precision trimmer and push until it ‘clicks’ into place (fig. 4) .Table 2. Eyebrow Comb Setting

Remaining hair length (in.) /(mm) .11 in/3mm .24 in/6mm .35 in/9mm 6 Move the eyebrow comb over the eyebrow from the outer tip of the eyebrow towards the base of the nose (fig. 18). 7 Turn off trimmer. Rinse eyebrow comb clean after each use. Contouring Eyebrows With Micro Trimmer (HP6378 only) Use the micro trimmer on eyebrows without a comb if you are: w Shaping eyebrows w Defining eyebrow contours w Removing single, unwanted hairs 1 Be certain trimmer is in the OFF position. 2 Put the micro trimmer on the handle. 3 Switch the trimmer ON. 4 For contouring eyebrows, stretch the skin of the eyelid (fig. 19). Be careful when you use the micro trimmer as it removes every hair it touches. 5 Make well-controlled movements making sure the micro trimmer is in full contact with the skin. Always move the micro trimmer against the direction of hair growth. Be careful not to use the micro trimmer too close to a mirror. IMPORTANT: Do not try to trim your eyelashes. Be careful not to get too close to your eyelashes and eyes! 6 Turn off trimmer. Rinse micro trimmer clean after each use. Cleaning w The trimmer should be cleaned after each use. w Always switch trimmer OFF, unplug and remove power supply cord from trimmer before cleaning. w Do not use abrasive cleaning agents, scourers or liquids such as alcohol, benzene, bleach or acetone to clean the trimmer and attachments. w Never clean, replace or remove attachments with motor ON. w Do not apply pressure to cutters. w Do not touch cutters with hard objects as this may damage them. During Use: w If cut hairs have accumulated in the attachments, remove hairs by shaking, blowing or using cleaning brush provided. Remember to adjust the hair length selector back to your selected setting when you replace the precision comb on trimmer. After Each Use: 1 Make sure the trimmer is switched OFF and disconnected from the electrical outlet. 2 Remove any attachment from trimmer. 3 Blow and/or shake out any hair that may have accumulated in the attachment. 4 To clean the micro shaver (HP6378 only), pull the foil in the direction of the arrow to remove from base of micro shaver (fig. 20). 5 Clean the cutter and the inside of the shaving foil carefully with the brush or under warm tap water. Do not use a towel to dry the micro shaver as damage to the shaving foil could occur. w The shaving foil is very delicate. Handle carefully. w If foil becomes damaged, replace immediately. Do not continue using the appliance. Do not apply pressure to shaving foil. w Do not clean the foil with the brush, as this may cause damage. Epilating (HP6378 only) Use the epilating head to epilate your bikini line. w Make sure your skin is clean, free from grease and creams. Do not apply any cream before using. Hairs are easier to remove after a bath or a shower, but your skin should be completely dry before using the epilating head. w If your hair is longer than .20in/5mm, first trim hair using the precision trimmer with the precision comb at setting #3. w With first time use you may feel some discomfort, irritation or experience reddening of the skin. This is because the hairs are actually being removed at the root. The discomfort you feel will tend to lessen with successive uses. However, if the irritation remains for more than three days, consult your doctor. w After epilation, regrowth of hairs tends to be softer both in appearance and in touch. 1 Be certain trimmer is in the OFF position. 2 Put the epilating head on the handle. 3 Switch trimmer ON. 4 To epilate the most effective way, move the epilating head against the direction of hair growth. Make sure the surface of the epilating head always stays in contact with the skin (fig. 15). For easier epilating, stretch the skin with your free hand. Do not exert any pressure when epilating. 5 Turn off trimmer. Rinse epilating head clean after each use. Shaving With Micro Shaver Use the micro shaver to shave along contoured edges to remove any stubble while creating a smooth, well-defined bikini line. w Before using the micro shaver, always check it for wear and damage. If the micro shaver shows signs of wear or damage, do not use it as injury may occur. Do not use the micro shaver until it has been replaced. 1 Pre-trim the contours desired with the precision trimmer without a comb. 2 Remove the precision trimmer from handle (fig. 12). 3 Put the micro shaver on the handle. 4 Remove the protective cap (fig. 13). 5 Switch the trimmer ON. 6 Gently press the micro shaver onto the skin and shave against the direction of hair growth along contoured edges to remove any stubble (fig. 14). Do not press too hard. Trimming Eyebrows With Eyebrow Comb (HP6378 only) Use the precision trimmer with the eyebrow comb to trim entire eyebrow to a uniform length. 1 Be certain trimmer is in the OFF position. 2 Put the precision trimmer on the handle (fig. 3). You will hear a click. 3 Slide the eyebrow comb into the guiding grooves on both sides of the precision trimmer and push until it “clicks” into place (fig. 16). 4 Press the hair length selector (1) and slide it up or down (2) to the desired hair length setting (fig. 17). The selected setting number will appear on the colored circle on the handle. See Table 2 for settings. 5 Comb the eyebrow in the direction of hair growth. w If you are trimming for the first time, start by using the comb at the maximum trimming length setting (#3) to prevent accidentally trimming hairs too short.45-DAY MONEY-BACK GUARANTEE If you are not fully satisfied with your Philips trimmer, send the product back and we’ll refund you the full purchase price.The trimmer must be shipped prepaid by insured mail, insurance prepaid, and have the original sales receipt, indicating purchase price and the date of purchase, enclosed. We cannot be responsible for lost mail. The trimmer must be postmarked no later than 45 days after the date of purchase. Philips reserves the right to verify the purchase price of the product and limit refunds not to exceed suggested retail price.To obtain money-back guarantee return authorization form, call 1-800-243-7884 (in US only) or 1-866-800-9311 (in Canada only) for assistance. Please allow 4-6 weeks for delivery of check. INSTRUCCIONES DE SEGURIDAD IMPORTANTES Al utilizar un aparato eléctrico, se deben tomar siempre unas medidas de seguridad básicas, incluidas las siguientes: Lea todas las instrucciones antes de utilizar el aparato. PELIGRO Para reducir el riesgo de una descarga eléctrica:

al enchufe. Para desconectar, dar vuelta al interruptor encendido apagado a la posición de “apagado”, entonces para quitar el enchufe del enchufe. 6 Rinse attachments thoroughly under warm tap water. 7 Shake excess water from attachment and allow to dry thoroughly. 8 Place the attachment back on the trimmer. This trimmer has no other user-serviceable parts. For assistance call 1-800-243-7884 (in US only) or 1-866-800-9311 (in Canada only). Storage w Be sure trimmer is turned OFF. Remove cord from outlet and trimmer before storing in a safe, dry location where it will not be crushed, banged, or subject to damage. w Do not wrap cord around trimmer when storing. w Store cord in a safe location where it will not be cut or damaged. w Do not place or store trimmer where it can fall or be pulled into a tub or sink, water or other liquid while plugged in. Assistance For assistance, visit our website: www.philips.com/support or call toll free 1-800-243-7884 (in US only) or 1-866-800-9311 (in Canada only). Online information is available 24 hours a day, 7 days a week. Disposal w This appliance contains a rechargeable nickel metal hydride battery which must be disposed of properly (Fig. 21). w The built-in battery should not be disposed of with normal household waste. w Contact your local town or city officials for battery disposal information. You can also call 1-800-822-8837 or visit www.call2recycle.org for battery drop-off locations. w For assistance, visit our website www.philips.com/support or call toll free 1-800-243-7884 (in US only) or 1-866-800-9311 (in Canada only). w Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities. Full Two-Year Warranty Philips Electronics North America Corporation (USA) and Philips Electronics Ltd. (Canada) warrant this new product (except foil, cutters and combs) against product defects for two years from the date of purchase, and agree to replace any defective product without charge. IMPORTANT: This warranty does not cover damage resulting from accident, misuse, lack of reasonable care. NO RESPONSIBILITY IS ASSUMED FOR ANY SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES. In US only manufactured for: Philips Consumer Lifestyle A division of Philips Electronics North America Corporation P.O. Box 10313, Stamford, CT 06904 Canada only manufactured for: Philips Electronics Ltd. 281 Hillmount Road Markham, ON L6C 2S3 This symbol on the product’s nameplate means it is listed by Underwriters’ Laboratories, Inc. PHILIPS is a registered trademark of Koninklijke Philips Electronics N.V. © 2016 Philips Electronics North America Corporation. All rights reserved. ESPAÑOLA Peine de la ceja (HP6378 sólo) B Selector de longitude de pelo C Peine de la precisión

Remaining hair length (in.) /(mm) .11 in/3mm .24 in/6mm .35 in/9mm
