Product type	Compact lifting station (sanitary grinder)
Applications	Horizontal outlet toilet, washbasin, shower, bidet (depending on model)
Power supply	220-240 V, 50 Hz, class I, 30 mA differential protection
Standards	EN 12050-3, electrical safety and electromagnetic compatibility
Installation	In the same room as the toilet and sanitary fixtures, on a flat floor, easy access
Inlets	Bowl inlet + side inlets for washbasin, shower, bidet
Discharge	Discharge piping with fixings every 1 m max.
Acoustics	Anti-vibration pads; tank not touching the walls
Vent	Vent hole present on the cover
Commissioning	Flush several times, check for leaks
Maintenance	Regular descaling with special SFA SANIBROYEUR descaler
Safety	High-sensitivity 30 mA differential circuit breaker, thermal safety cutout
Warranty	2 years from date of purchase, subject to proper installation and use
Care	Regular cleaning and descaling; in case of prolonged absence, cut off water supply and protect against frost
Spare parts	Non-return valve, seals, side inlet flaps (depending on model)
Repairability	Consult an approved repairer in case of problem; cable replacement by the manufacturer
Environment	Comply with standard NF C 15-100 in bathrooms (protection volumes)

Frequently Asked Questions - Sanibest Pro Sanibroyeur

How to install the Sanibest Pro?

Installation must be carried out by a qualified professional. Place the unit in the same room as the toilet, on a flat floor, near an earthed power outlet protected by a 30 mA circuit breaker. Ensure that the discharge is done with fixings every meter. See the manual for details.

Which sanitary appliances can be connected?

The Sanibest Pro can discharge wastewater from a horizontal outlet toilet, as well as a washbasin, a shower, and a bidet (depending on the model). Side inlets are provided for this purpose.

What to do if the motor does not start?

First check that the unit is plugged in and that the power supply is working. If the motor is blocked by a foreign object, remove it. If the problem persists, consult an approved repairer.

How to maintain the Sanibest Pro?

Perform regular descaling with the special SANIBROYEUR descaler from SFA. Clean the bowl and the grinder. In case of prolonged absence, cut off the water supply and protect the installation against frost.

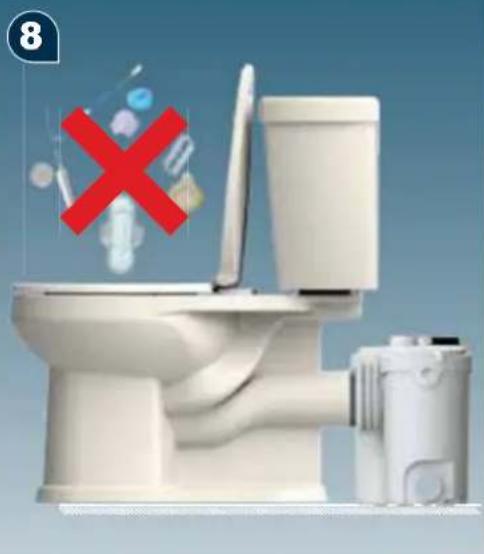

Which objects should not be ground?

Never grind cotton, tampons, sanitary napkins, wipes, food, condoms, hair, metallic, wooden or plastic objects, nor solvents or oils. These foreign objects damage the unit and void the warranty.

What is the maximum discharge head?

The discharge head is not specified in the manual, but it is generally about 5 meters for this type of unit. Consult an installer for your configuration.

The Sanibest Pro makes noise, is this normal?

To reduce noise, install the tank without touching the walls, on a flat floor so that the anti-vibration pads work properly, and fix the piping every meter maximum.

What to do in case of a leak at the connections?

Cut off the power supply and check the tightness of the connections. Clean or replace the non-return valve if necessary. If the leak persists, call an approved repairer.

What is the warranty period?

The unit is guaranteed for 2 years from the date of purchase, provided it has been installed and used in accordance with the manual. The warranty does not cover damage caused by grinding prohibited foreign objects.

How to replace the power cable?

Replacement of the power cable must be done by the manufacturer or its approved after-sales service. Do not attempt to do it yourself, as this requires qualified intervention.

USER MANUAL Sanibest Pro Sanibroyeur

White plastic water purifier with a central pipe and side ports, shown against a solid blue background (no text or symbols visible)

SANIBEST® PRO

FR NOTICE D'INSTALLATION
UK INSTALLATION INSTRUCTIONS
DE INSTALLATIONSHINWEISE
IT STRUZIONI PER L'INSTALLAZIONE
ES MANUAL DE INSTALACIÓN
PT MANUAL DE INSTALAÇÃO
NL INSTALLATIE VOORSCHRIFTEN

SE INSTALLATIONSANVISNING
DK INSTALLATIONSVEJLEDNING
NO INSTALLASJONSANVISING
FI ASENNUSOHJEET
HU FELSZERELÉSI ÉS KEZELÉSI ÚTMUTATÓ
PL INSTRUKCJA INSTALACJI
RU ИНСТРУКЦИЯ ПО МОНТАЖУ И ЭКСПЛУАТАЦИИ

RO MANUAL DE INSTALARE
CZ NÁVOD K INSTALACI A POUŽÍVÁNÍ
TR KURULUM KILAVUZU
EL OΔΗΓΙΕΣΕΓΚΑΤΑΣΤΑΣΗΣ
CN 用户应保留安装指南以备用
KR


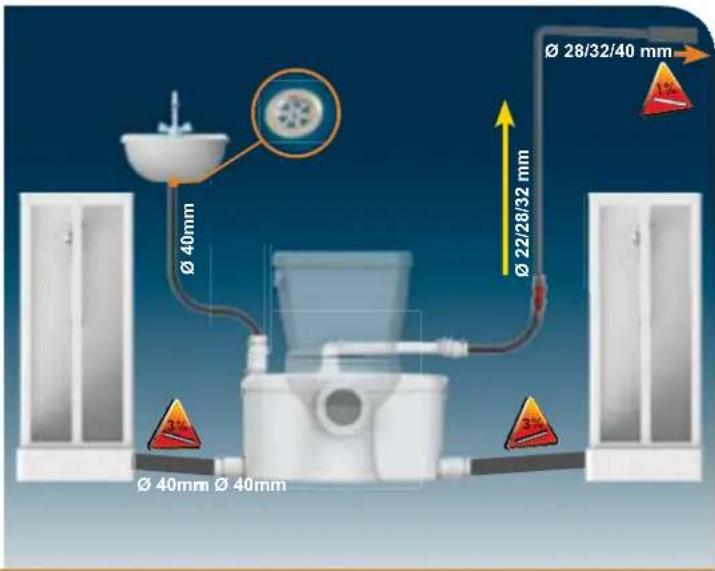

Ø 40mm Ø 28/32/40 mm Ø 22/28/32 mm Ø 40mm Ø 40mm

1 × ✓

2 ×

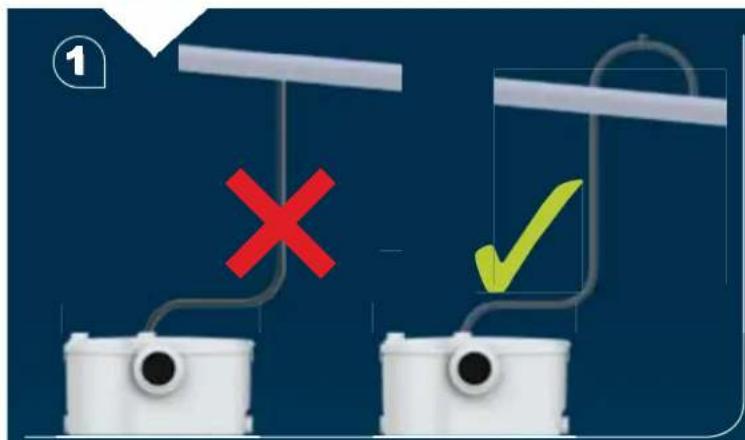

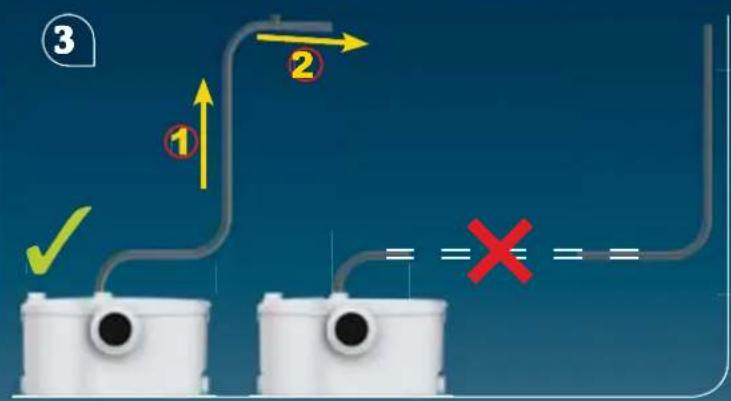


4

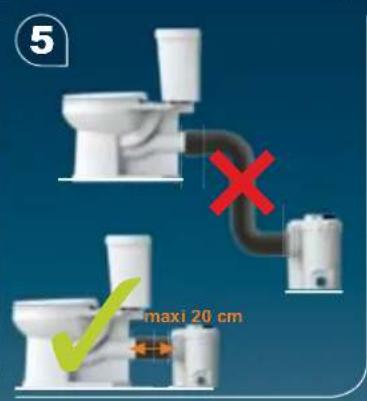

5 × maxi 20 cm

Illustration of a white industrial tank with a pipe and yellow directional arrows indicating flow or movement (no text or symbols)

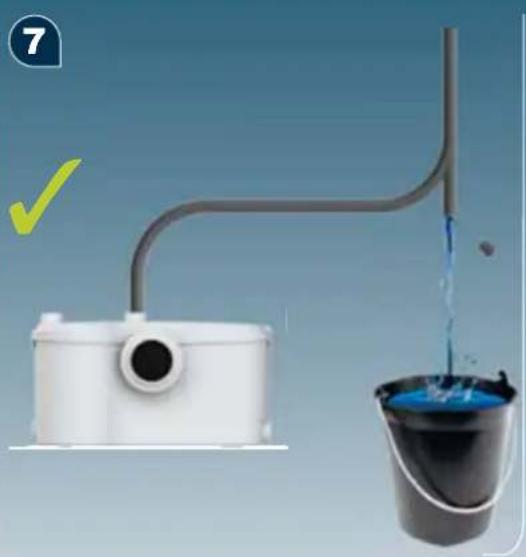

Illustration of a water tap with a bucket pouring liquid, no text or symbols present

3D model of a toilet with a red X symbol indicating no chemical symbols or text, shown against a blue background (no readable text or labels)

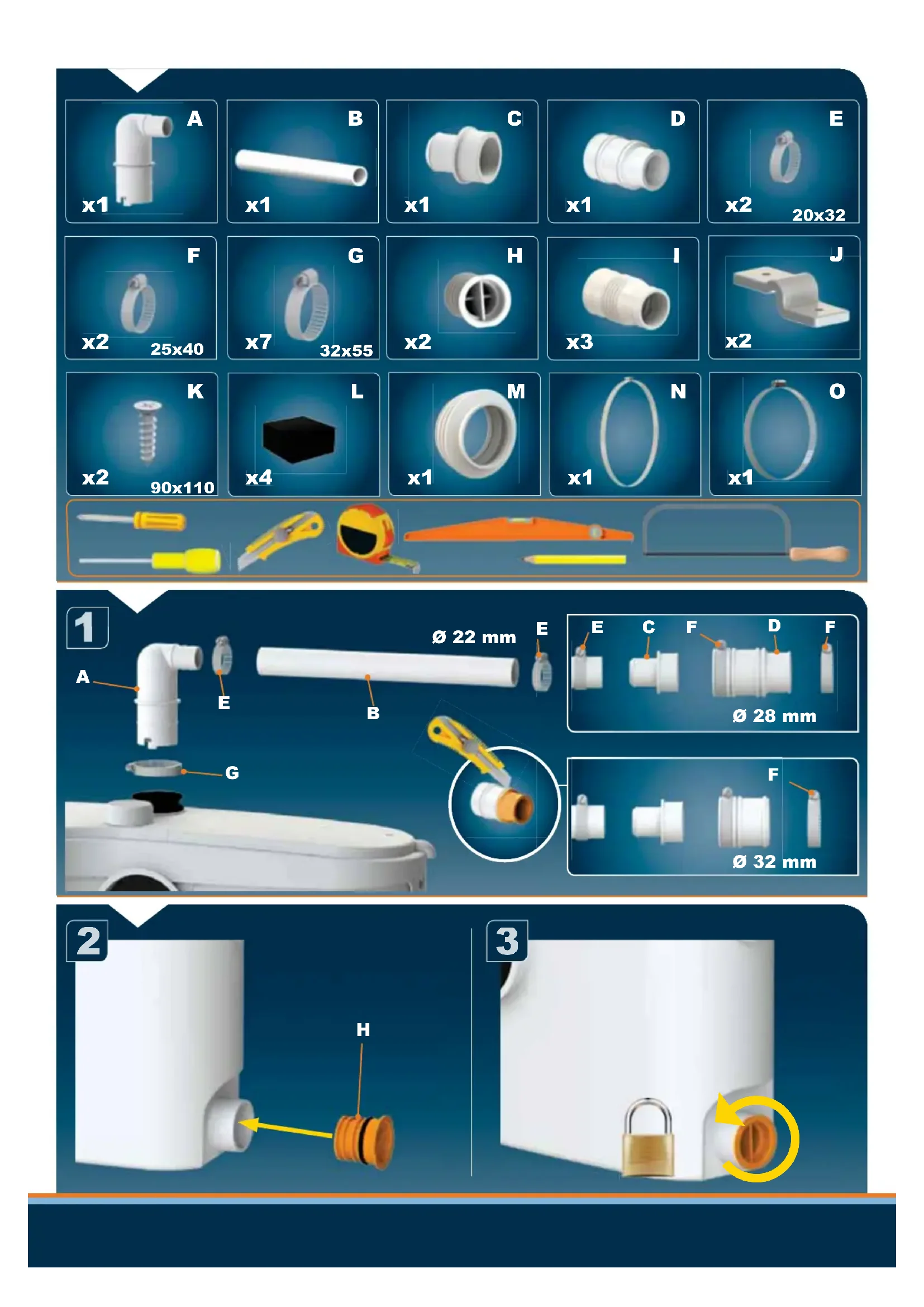

White pipe fitting with labeled section A (no text or symbols on the object itself)

White cylindrical object with a hole, labeled 'B' and 'x1' on a blue background (no other text or symbols)

White plastic pipe fitting with a cylindrical end, labeled 'x1' and 'C' (no text or symbols on the object itself)

White plastic pipe fitting with a labeled section 'D' and identifier 'x1' on a blue background (no other text or symbols)

Close-up of a metallic ring on a blue background, labeled 'E' and 'x2 20x32' (no other text or symbols)

Close-up of a ring-shaped object with blue background (no text or symbols)

Close-up of a white chainmail clamp with a blue background (no text or symbols visible)

Close-up of a circular mechanical component with cross-section, labeled 'H' and 'x2' (no other text or symbols)

White plastic pipe fitting with threaded end, labeled 'x3' at bottom left (no other text or symbols)

Metal bracket component with mounting holes, labeled 'x2' and 'J' (no other text or symbols)

Close-up of a metallic screw with a hole, shown against a solid blue background (no text or symbols on the screw itself)

Black 3D cube icon on blue background with 'L' and 'x4' labels (no text or symbols on the cube itself)

Close-up of a white plastic hose component with blue background (no text or symbols)

Simple diagram of an oval shape labeled 'N' with identifier 'x1' below, set against a solid blue background (no text or symbols within the shape)

Circular ring object with a small 'o' label and 'x1' annotation, set against a solid blue background (no other text or symbols)

Illustration of various tools including screwdriver, caliper, tape measure, and saw (no text or symbols)

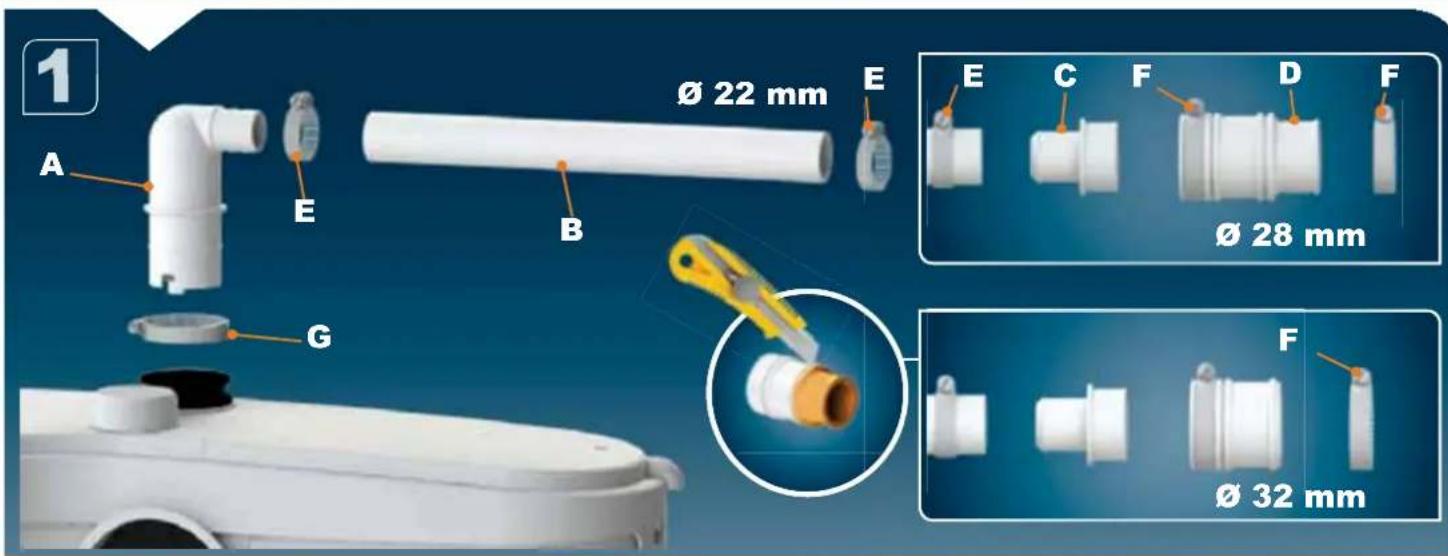

Ø 22 mm E A E B G E C F D F Ø 28 mm F Ø 32 mm

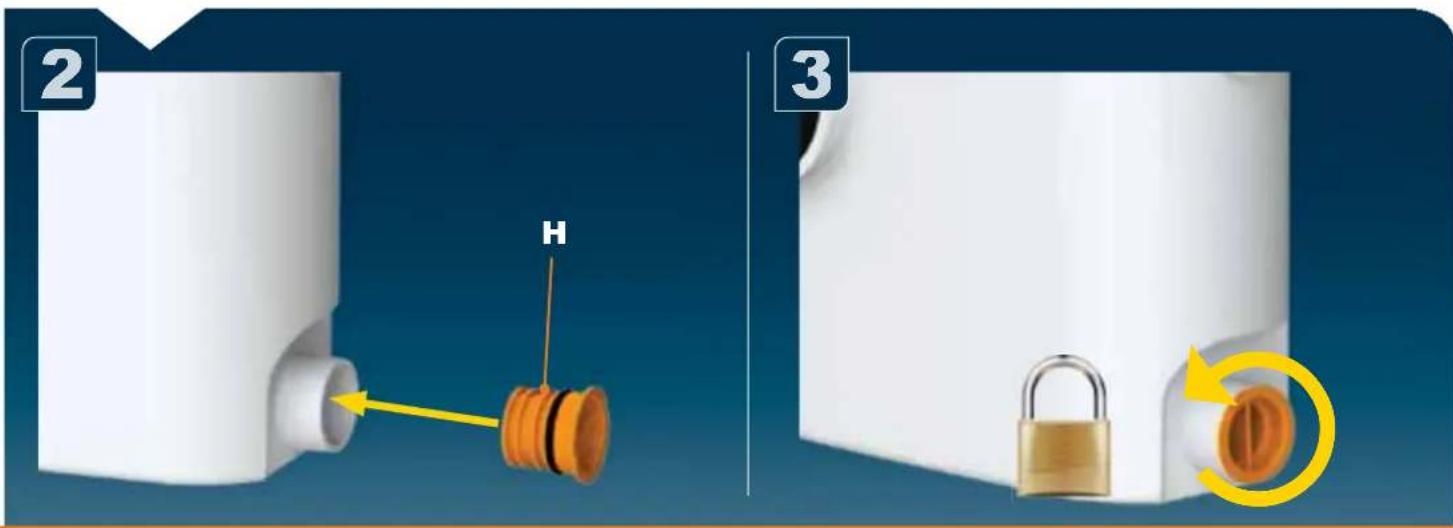

2 H 3

White plastic water heater with handle and control knob, no visible text or symbols

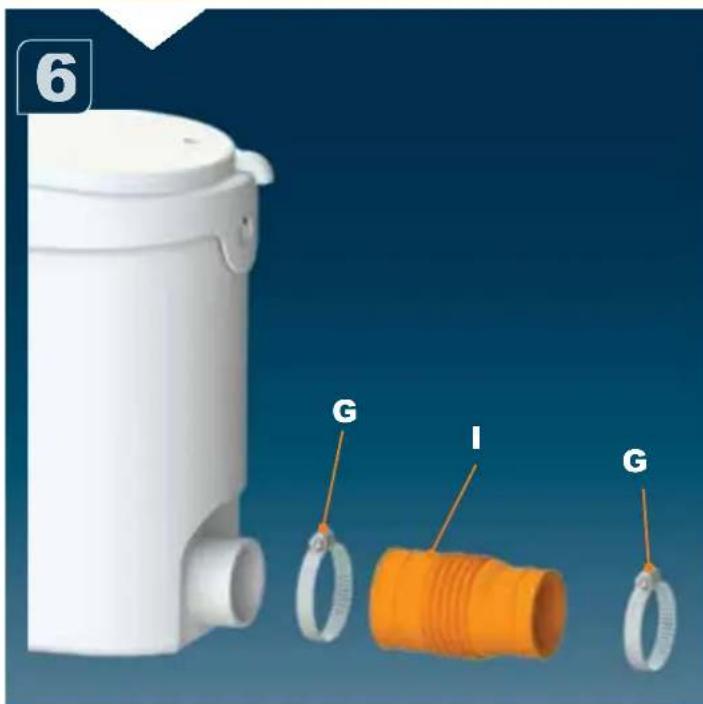

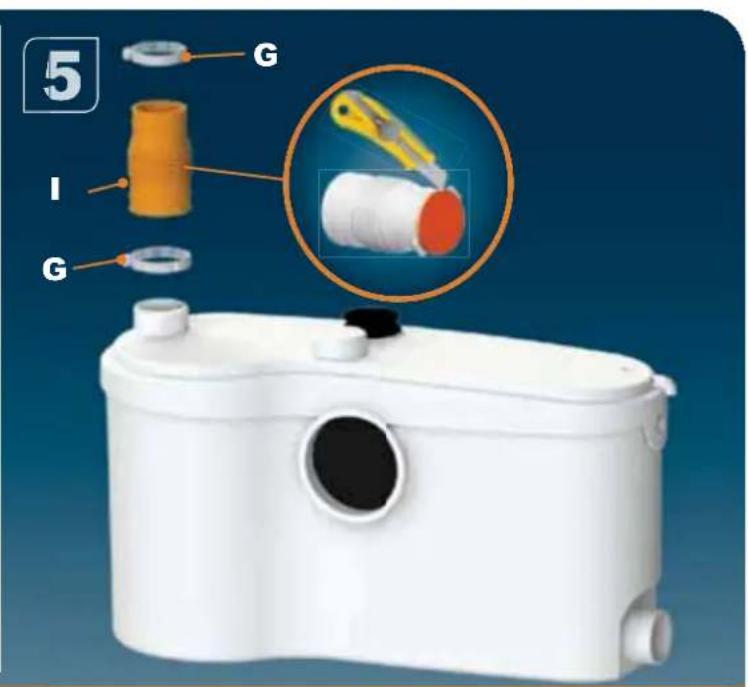

5 G I G

Product photo of a white plastic waste bin with three labeled parts (G, I, G) against a blue background, no text or symbols on the main objects.

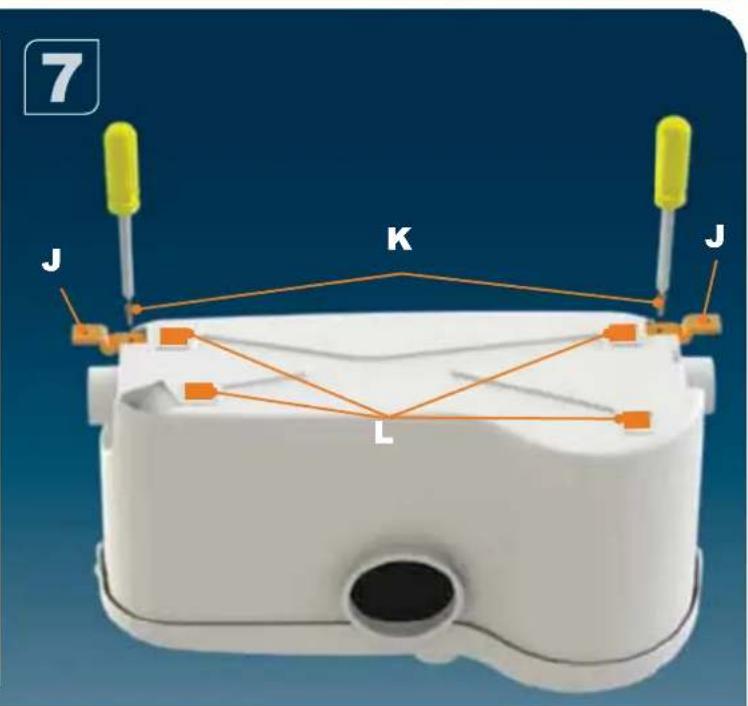

7 J K J L

White plastic water heater with orange pipe fitting and labeled component M (no text or symbols beyond label)

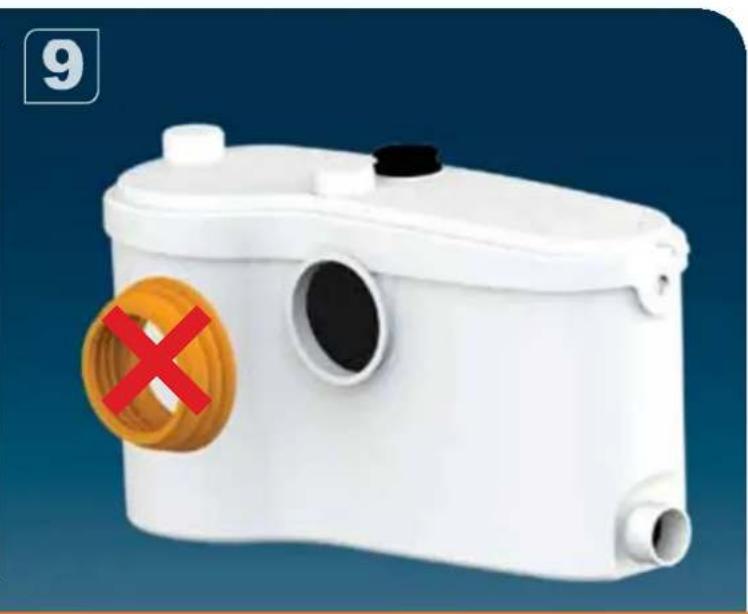

White plastic water heater with a yellow circular valve and red X mark, shown against a blue background (no text or symbols)

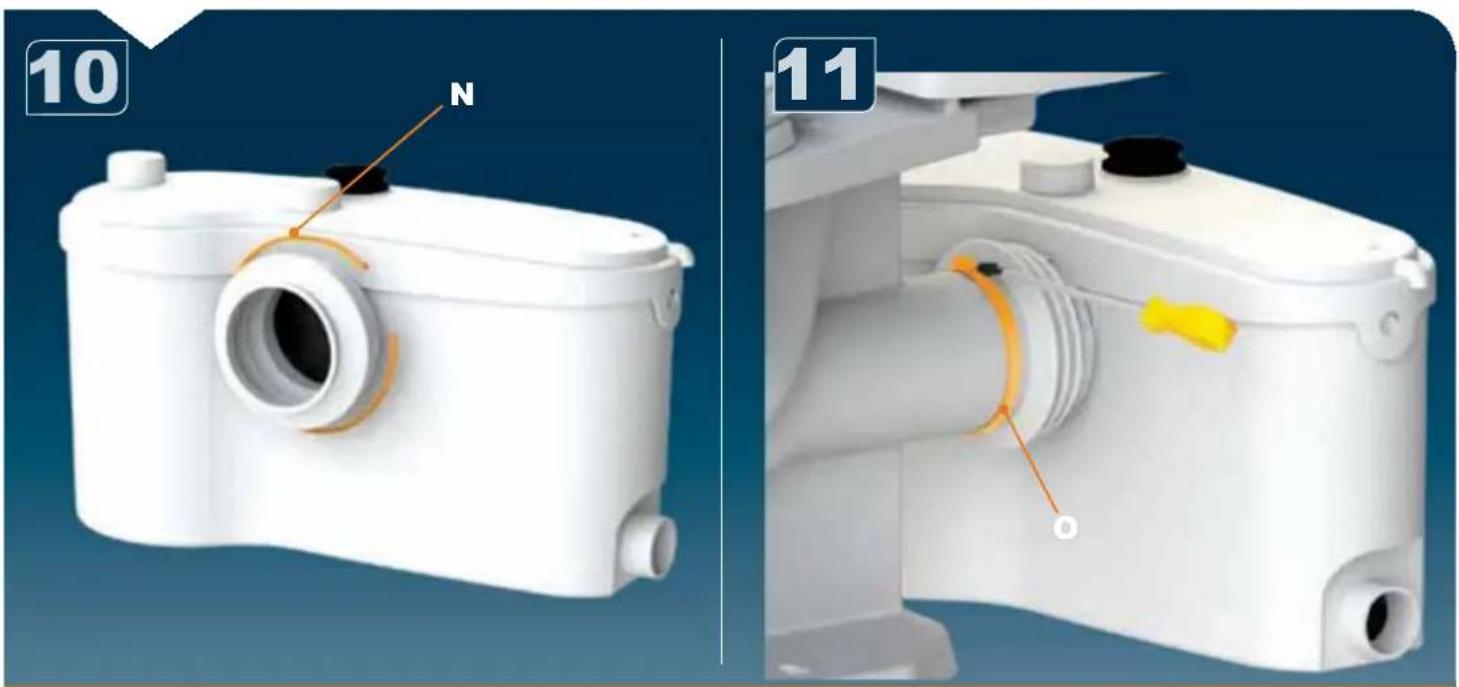

10 N 11 O

Diagram illustrating safety warning and component installation, showing a yellow warning sign and orange plastic bag with arrows indicating movement.

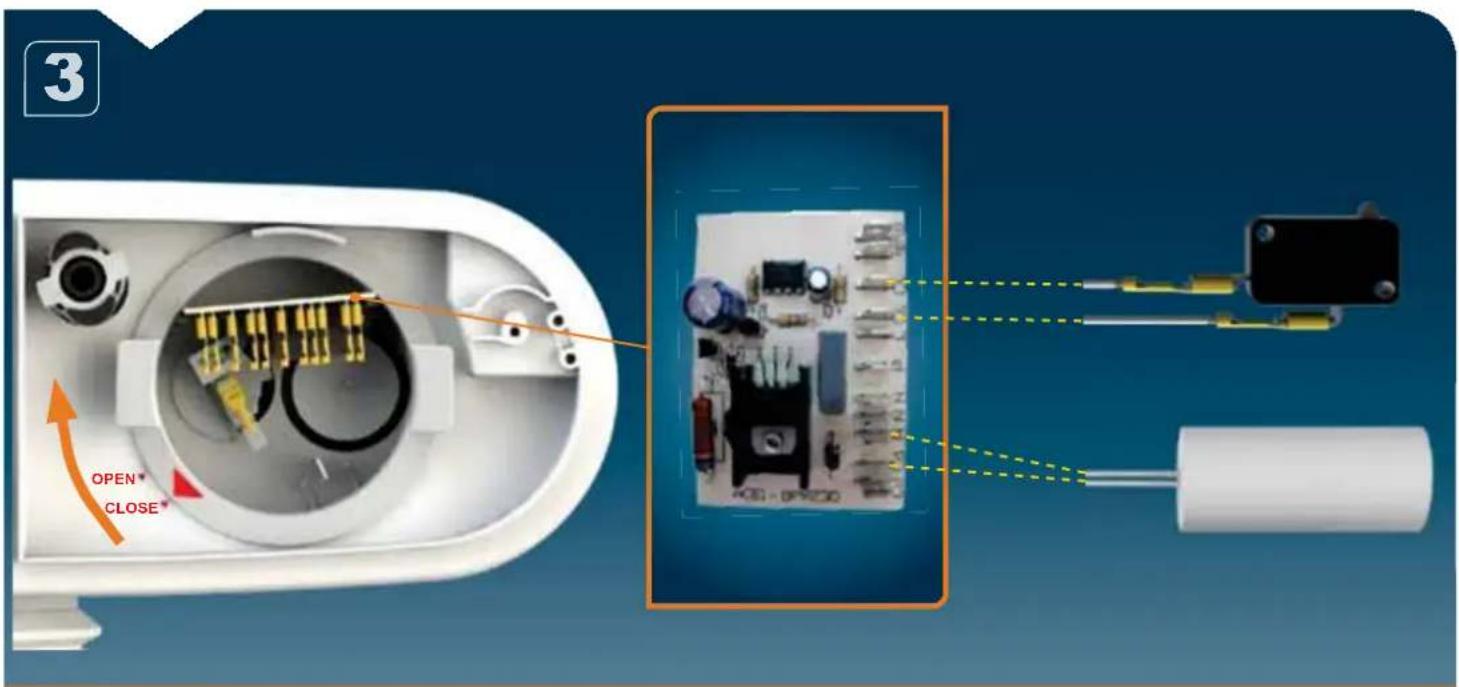

3 OPEN CLOSE

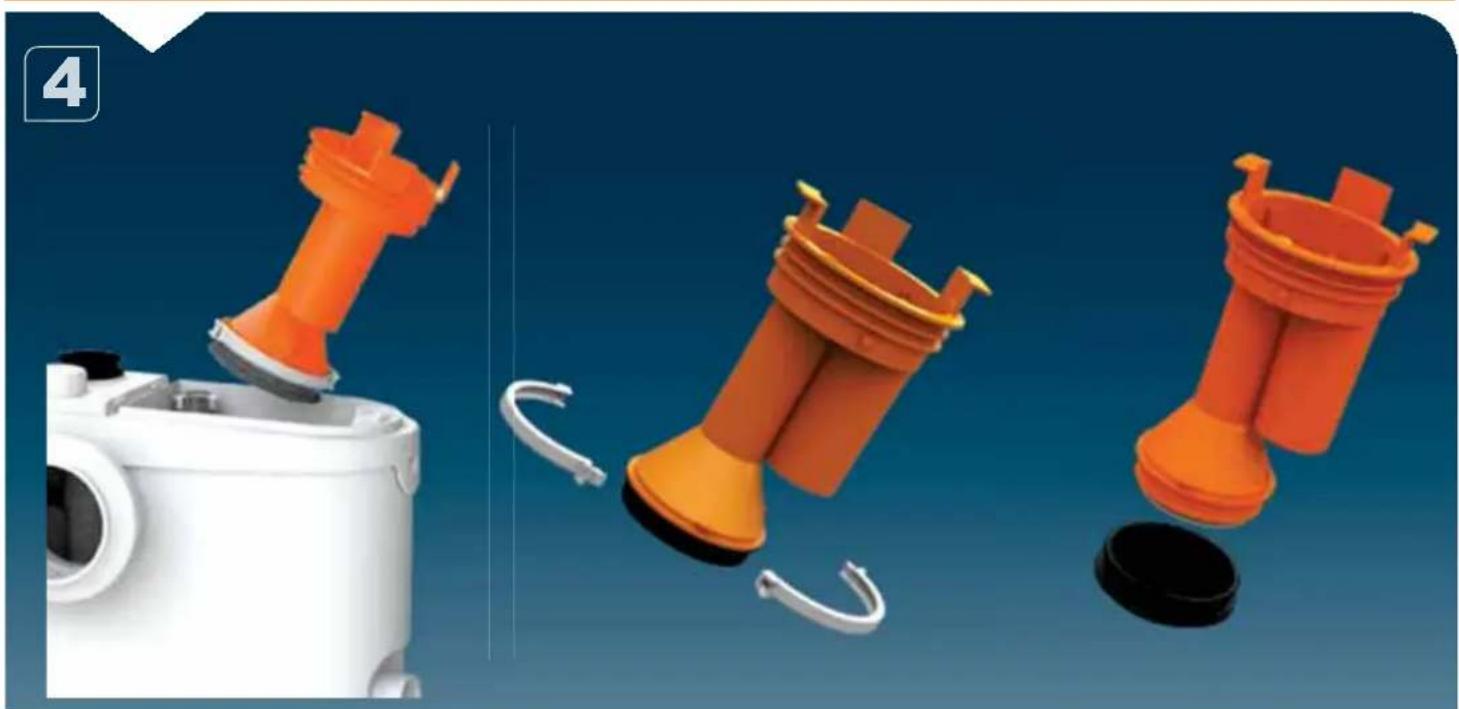

Illustration of three orange industrial components with white bases, shown against a blue gradient background (no text or symbols)

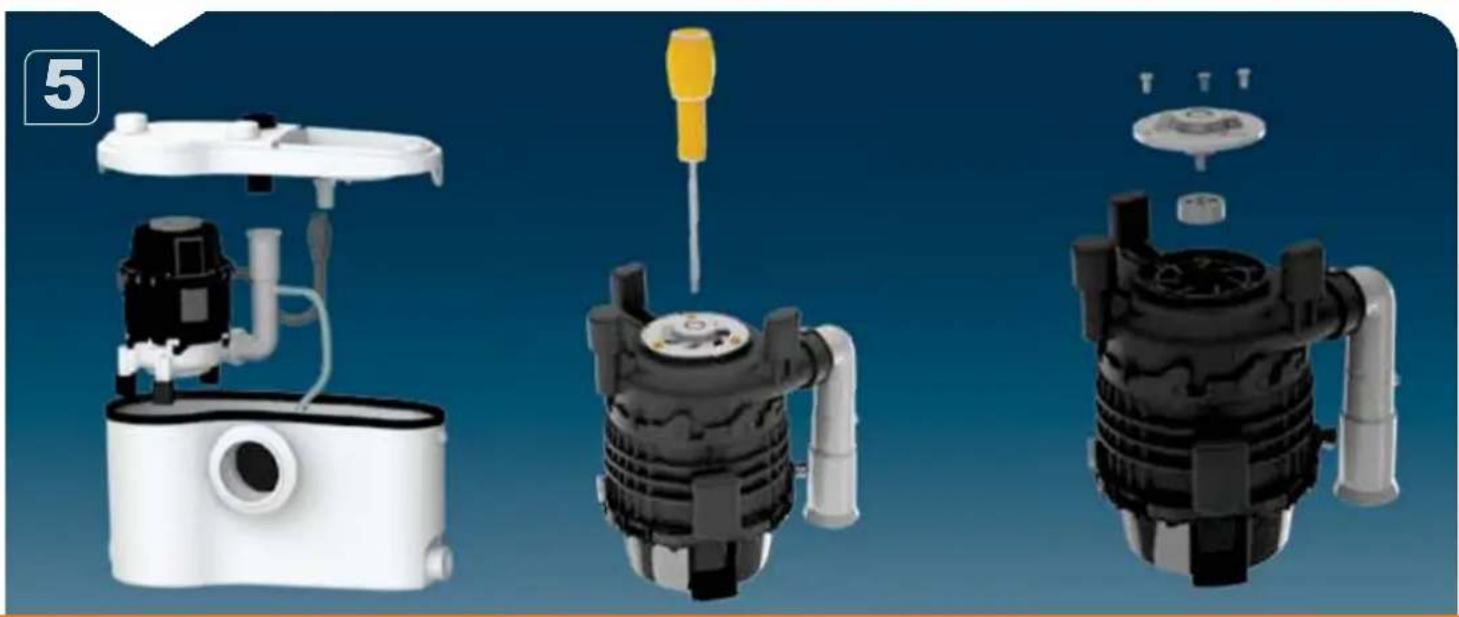

Three views of a white kitchen appliance with internal components and a yellow screwdriver inserted into the top part (no text or symbols visible)

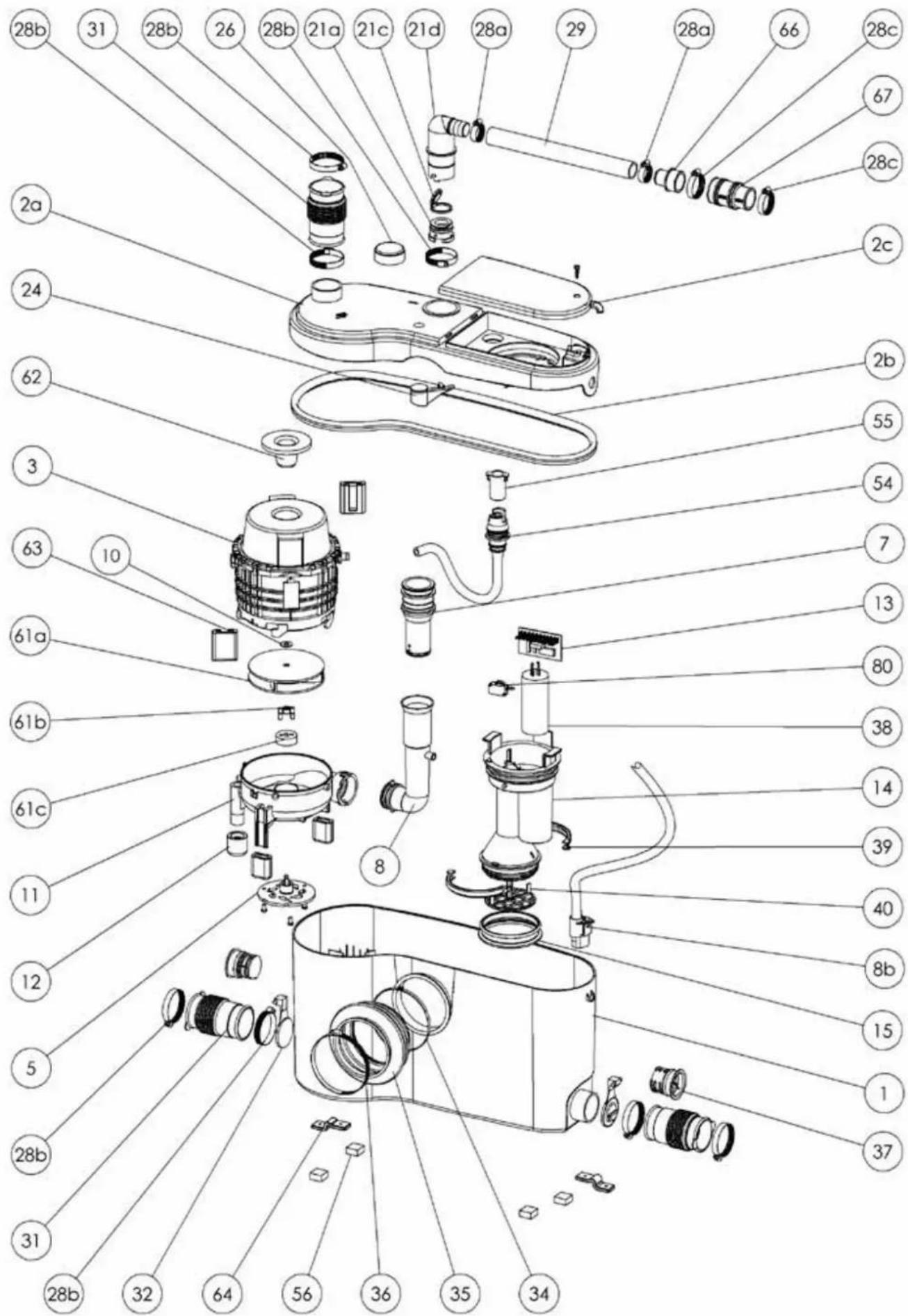

Exploded view diagram of a device with numbered parts for identification

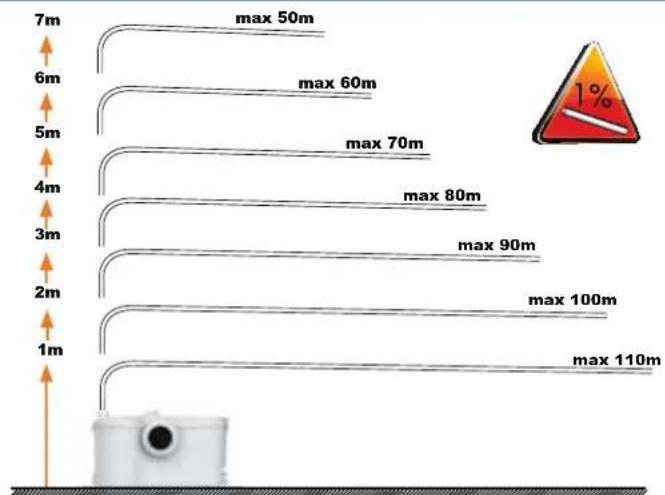

7m max 50m 6m max 60m 5m max 70m 4m max 80m 3m max 90m 2m max 100m 1m max 110m

204 154 46 267 285 40

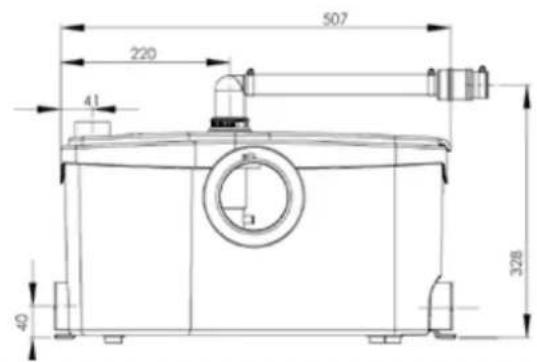

507 220 41 30 326 40

SANIBEST PRO

EN 12050-3

B85

220-240 V - 50 Hz

1100 W -IP44

(Class1)

FRANCE

SOCIÉTÉ FRANÇAISE

D'ASSAINISSEMENT

Howard House, The Runway

South Ruislip Middx.,

HA4 6 SE

Tel. [phone]/4040

Fax [phone]

IRELAND

SANIRISH Ltd

IDA Industrial Estate

Edendemy - County Offaly

Tel. + 353 46 9733 102

Fax + 353 46 97 33 093

AUSTRALIA

SANIFLO AUSTRALIA

Unit 9/10, 25 Gibbs Street Pty Ltd

Chatswood NSW 2067

Tel. [phone]

Fax [phone]

DEUTSCHLAND

SFA SANIBROY GmbH

Waldstr. 23 Geb. B5 - 63128

Dietzenbach CH-8954

Tel. [phone]

Fax [phone]

ITALIA

SFA ITALIA spa

Via del Benessere, 9

27010 Siziano (PV)

Tel. [phone]

Fax [phone]

ESPAÑA

GRUPO SFA

C/ Vinyalets,1 - P.I. Can Vinyalets

08130 Sta. - Perpètua de Mogoda -

Barcelona

Tel. [phone]

Fax [phone]

PORTUGAL

SFA, Lda.

Sintra Business Park, ed.01-1°P

2710-089 SINTRA

Tel. [phone]

Fax [phone]

РОССИЯ

SFA ROCCNЯ

Service information: www.sfa.biz

BROY 3 04.13

SFA

FR INFORMATIONS COMPLÉMENTAIRES IMPORTANTES
UK IMPORTANT ADDITIONAL INFORMATION
DE WICHTIGE ZUSÄTZLICHE INFORMATIONEN
IT INFORMAZIONI AGGIUNTIVE IMPORTANTI
ES INFORMACIÓN COMPLEMENTARIA IMPORTANTE
PT INFORMAÇÕES COMPLEMENTARES IMPORTANTES
NL BELANGRIJKE EXTRA INFORMATIE
SE ANNAN VIKTIG INFORMATION
DK VIGTIGE SUPPLERENDE OPLYSNINGER

NO VIKTIG TILLEGGSINFORMASJON
FI TÄRKEITÄ LISÄTIETOJA
HU FONTOS KIEGÉSZÍTŐ INFORMÁCIÓK
PL WAŻNE INFORMACJE DODATKOWE
RU ВАЖНАЯ ДОПОЛНИТЕЛЬНАЯ ИНФОРМАЦИЯ
RO INFORMATII SUPLIMENTARE IMPORTANTE
CZ DŮLEŽITÉ DOPLŇUJÍCÍ INFORMACE
TR ÖNEMLİ EK BİLGİLER
CN 重要补充信息
KR 한국

FR INFORMATIONS COMPLÉMENTAIRES IMPORTANTES ____ p. 3

UK IMPORTANT ADDITIONAL INFORMATION ____ p. 4

DE WICHTIGE ZUSÄTZLICHE INFORMATIONEN ____ p. 5

IT INFORMAZIONI AGGIUNTIVE IMPORTANTI ____ p. 6

CZ DÜLEŽITÉ DOPLŇUJÍCÍ INFORMACE p. 18

TR ÖNEMLİ EK BİLGİLER p. 19

CN 重要补充信息 p.20

KR 한국 p. 21

FR

1 AVERTISSEMENT

This macerator is (manufactured in a factory which is quality) certified to ISO 9001. Installed and used correctly, the unit will give consistent and reliable service.

This device is not designed for persons (including children) with limited physical, sensory or mental abilities, or those with minimal experience and knowledge, unless they are monitored and are given the necessary instructions for using the device, with the help of a person responsible for their safety. Monitor children and make sure they do not play with the device.

2 APPLICATIONS

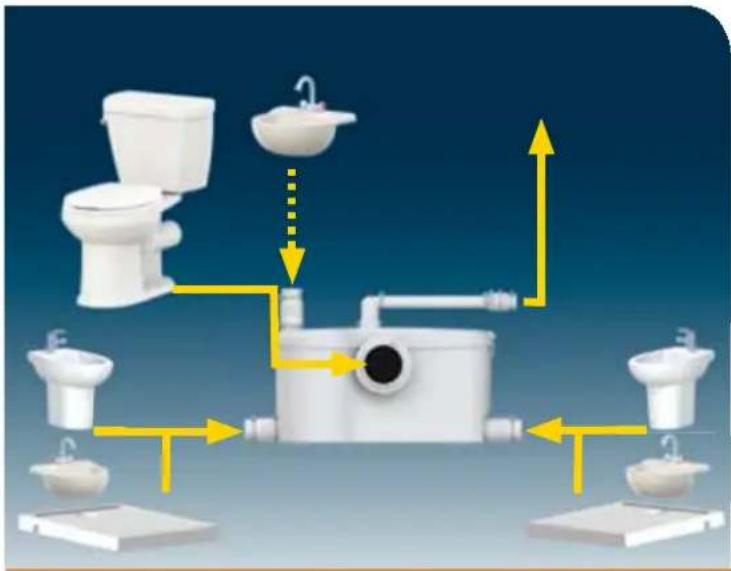

This appliance is a compact lift pump unit designed for removing waste water from a horizontal outlet toilet*, shower*, bidet* or washbasin* (*; depending on the model). This appliance conforms to EN 12050-3 and the European standards concerning electrical safety and electromagnetic compatibility.

INSTALLATION

The unit should be accessible for possible service.

The fitting and working of your appliance must meet local regulations and the EN 12056-4 standard.

To optimise the latest technical developments concerning soundproofing incorporated into this unit, it is important to:

- position the WC pan so that it is not in contact with a partition or wall of the room - place the WC pan on a perfectly surface to ensure that the resilient mounts are fully efficient

- fix the discharge pipe com distances of not more than one metre between the fastenings.

CONNECTION TO THE ELECTRICAL SUPPLY

The electrical installation should be carried out by a qualified person. The unit requires a 220/240V single phase AC 50 Hz supply (UK specification).

The power supply circuit of the appliance must be earthed (Class I) and protected by a GFCI high sensitivity (30mA). Warning: Ensure the electricity is turned OFF at the main switch board before wiring to connector.

All wiring must conform to BS7671, 1992 requirements for electrical installations not connect the unit to a conventional plug and socket. It must be wired into a fused, unswitched, fixed wiring connector fitted with a 5 amp fuse. The wires in the mains lead are coloured in accordance with

the following code:

Brown - Live

Blue - Neutral

Green/Yellow - Earth

The connection must be used exclusively to power the device.

All work on cable, pressure chamber and motor should only be carried out by a qualified Saniflo servicing agent, as special tools are required. Please do not cut/shorten the electrical supply cable which can make it very difficult to remove in the event of a service requirement.

COMMISSIONING THE UNIT

Flush the WC checking that all seals, and connections are watertight.

Check both the discharge pipework from the unit and the other sanitary appliances connections. Check the watertightness of connections to sanitary appliances:

toilet*, shower*, bidet* or washbasin* (*: depending on the model).

5 MAINTENANCE

WARNING !!! In the event of prolonged absence it is essential to turn off the water supply to protect the installation against sub zero temperatures.

CARE OF YOUR UNIT

In order to remove scale and clean the macerator and the bowl, use the SANIFLO Cleanser/Descalent.

.Disconnect the macerator power supply, .Pour an amount of cleanser into the pan .Leave it to stand for 1 or 2 hours,

.Re-connect the macerator power supply, Rinse by operating the flushing system twice. Carry out the operation once every 3 months on average, but the frequency may need to be changed depending on the hardness of the water.

FAULT FINDING / REMEDIES

IN ALL CASES, YOU MUST DISCONNECT THE MACERATOR FROM THE POWER SUPPLY

SYMPTOMS PROBAB

The motor does not activate

The motor emits a rattling or crunching sound, humis, but does not run

The motor intermittently activates

The motor operates normally, but continues to run for a long time with

The unit stops The unit has be

Motor is surging and water in the WC pan goes down very slowly

Cloudy water comes up into the shower basin (units with side inlets)

CAUSES REMEDIES

electrical power supplyis not activeThe electrical power supply is defectiveThe motor or the control systemis defectiveForeign object into the boxProblem with the motor or thecontrol systemThe connected sanitary devicesare dripping waterThe non-return valve is faultyThe length or height of theinstallation is over thespecification, or there are toomany bonds/elbowsThe pump cover plate is partiallyobscured/blocked

running fortoo long (thermal cut-out)The air dispenser is clogged upProblem with motorShower installed too low ascompared with the macrorator unitHinged side inlet discsclogged up

Restore the electrical supplyCheck the electrical powersupplyOtherwise, ask an approvedrepair agent to intervene

Remove the foreign bodyOtherwise, ask an approvedrepair agent to intervene

Check the installation upstreamClean or replace the non-returnvalve

Check the installationOtherwise, ask an approvedrepair agent to intervene

Wait for reset, then ask anapproved repair agent tointervene

Clear the air relief holeOtherwise, ask an approvedrepair agent to intervene

Check the installationClean the hinged discsOtherwise, ask an approvedrepair agent to intervene

7 GUARANTEE

2 years guarantee as from its date of purchase subject to correct installation and correct use.

Only the disposal of toilet paper, faecal matter, and waste water will be under guarantee. Any damage due to foreign bodies such as cotton, condoms, saniowels, wet wipes, food, hair, metal, wood or plastic objects, will not be under tee. Solvents, acids and other chemicals can also cause damage to the unit, will invalidate the guarantee.

DE

1 BESCHREIBUNG

RENGÖRING OCH AVKALKNING

dilver-SYMPTOM MÖJLIG DF

KOBLE ALLTID FRA STRÖMTILFÖRSELEN FÖR DET GJÖRES INNGREP

3 INSTALLASJON

ELEKTRICKÁ INSTALACE
