Product Type	External Portable Battery
Brand	Mophie
Model	powerstation 3x
Battery Capacity	6000 mAh
Number of USB Output Ports	2 USB-A ports (5V/2.4A max per port)
Input Port	Micro-USB (5V/2A)
Dimensions (approx.)	120 x 70 x 15 mm
Weight (approx.)	200 g
Housing Material	Anodized Aluminum
Charging Technology	Adaptive Smart Charging, Digital Power Management
Priority+ Function	Yes (prioritizes charging the connected device, then the battery)
LED Indicators	4 LED lights for charge status
Charging Cycles	More than 500 full cycles
Safety Protections	Short-circuit, overcharge, overheat protection
Compatibility	Smartphones, tablets, USB peripherals
Maintenance	Clean with a soft, damp cloth; do not use chemicals
Storage	Recharge for 1 hour before long-term storage; recharge every 3 months
Warranty	1 year (registration required at mophie.com)
Customer Service	1-888-8mophie (US) or [phone]

Frequently Asked Questions - powerstation 3x Mophie

How do I charge my powerstation 3x battery?

Use the provided micro-USB cable to connect the battery's micro-USB port to a computer or USB wall adapter. The battery comes partially charged.

Can I charge two devices at the same time?

Yes, the powerstation 3x has two USB ports that allow charging two devices simultaneously.

What does the Priority+ function mean?

Priority+ allows charging your connected device first, then the powerstation battery itself when it is plugged into a power source, like a computer. This function is available on ports marked with the Priority+ icon.

How do I interpret the LED indicators?

Press the status button: 4 LEDs = full battery, 1 LED = battery almost empty. The LEDs indicate the current charge level.

Which devices are compatible with the powerstation 3x?

It is compatible with most smartphones, tablets, and other USB peripherals. Check that your device charges via USB.

How do I maintain my battery?

Keep it dry, clean the casing with a soft, damp cloth (no chemicals). Recharge it for one hour before long-term storage and every three months if not used.

What should I do if the battery no longer charges my device?

Make sure the battery is well charged. Check the cable and connection. If the problem persists, consult the online FAQ or contact customer service.

What is the battery lifespan?

It can perform more than 500 full charge cycles before its capacity decreases.

Is the battery safe?

Yes, it integrates protection against short circuits, overcharges, and overheating thanks to the Digital Power Management circuit.

How to benefit from the warranty?

The warranty is one year from the date of purchase. You must register your product at mophie.com and keep your proof of purchase.

USER MANUAL powerstation 3x Mophie

Simplified Chinese 141

Traditional Chinese 151

EN

Welcome

Thank you for purchasing the mophie powerstation external battery. Your powerstation battery is a compact yet powerful mobile charging solution for any smartphone or other USB device.

Package Contains

• mophie powerstation 1X, powerstation 2X or powerstation 3X External Battery
- Micro USB Cable
- Quick-Start Guide

Features

Your mophie powerstation external battery extends the battery life of your smartphone, tablet or other USB device for hours with more power to rock, talk, surf and send. Power through a full day with ease.

Here are just some of the reasons why your powerstation external battery is so great:

• Streamlined design is thin enough to fit in a pocket or handbag, making this the perfect accessory for your active lifestyle.
• Compatible with most smartphones and other USB devices. (The powerstation 2X and 3X batteries are even powerful enough to charge most tablets!)

• Anodized aluminum case for enhanced durability and a premium look.
- Dual USB output ports (powerstation 3X model) let you charge two devices at the same time.
- Simply connect the powerstation battery to your device to begin charging.
• Priority+ pass-through charging enables pass-through charge and sync when connected to a computer. Your connected device recharges first, then the powerstation battery recharges (powerstation 2X and powerstation 3X models).
- Track battery power at a glance with the integrated four-light LED status indicator. You can keep tabs on charging status and current battery life. Know before you go!
- Rechargeable for over 500 full cycles. Our battery is built to last, letting you do more, longer.
- mophie's smart adaptive charging technology identifies your connected device and always delivers the fastest, most efficient charging speeds available.
- Digital Power Management circuitry provides built-in short-circuit, overcharge and temperature protection. Safety First!

Compatibility

mophie powerstation 1X, powerstation 2X and powerstation 3X external batteries have been designed to work with most popular smartphones,

tablets (powerstation 2X and powerstation 3X) and other USB devices.

- If you experience any issues with charging your particular device, ensure that the powerstation battery is fully charged and check the FAQ section on this website.

As always, no matter what device you have, before using your powerstation battery carefully read through the Warning section in this manual and in the included quick-start guide.

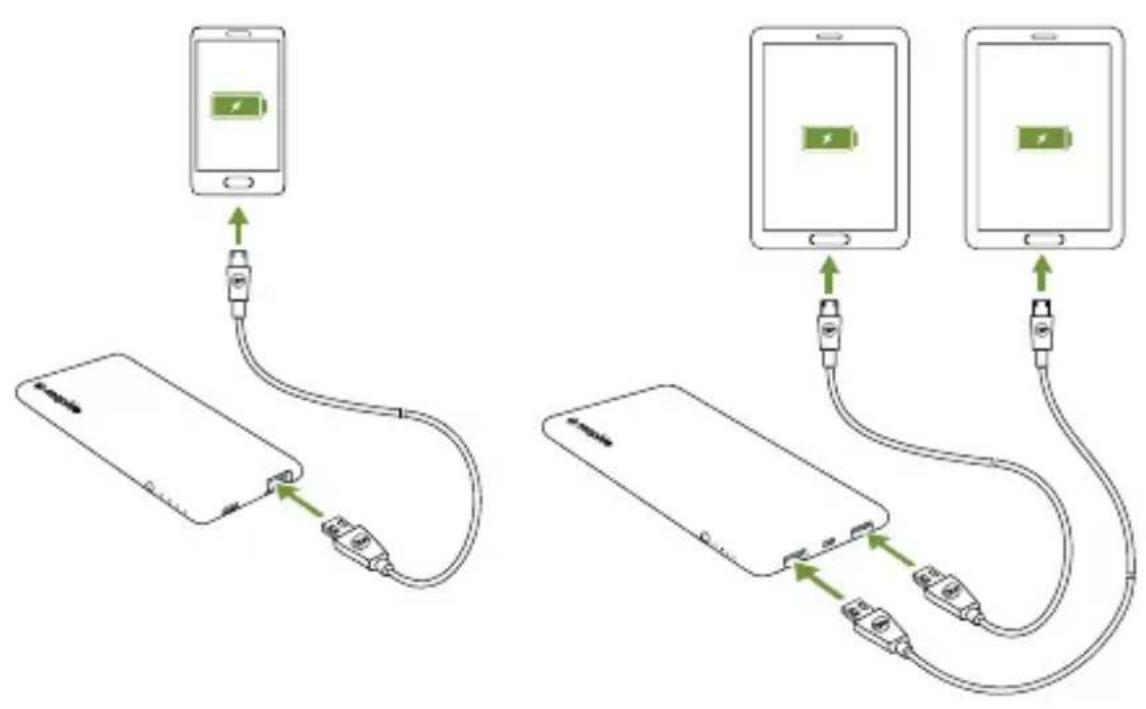

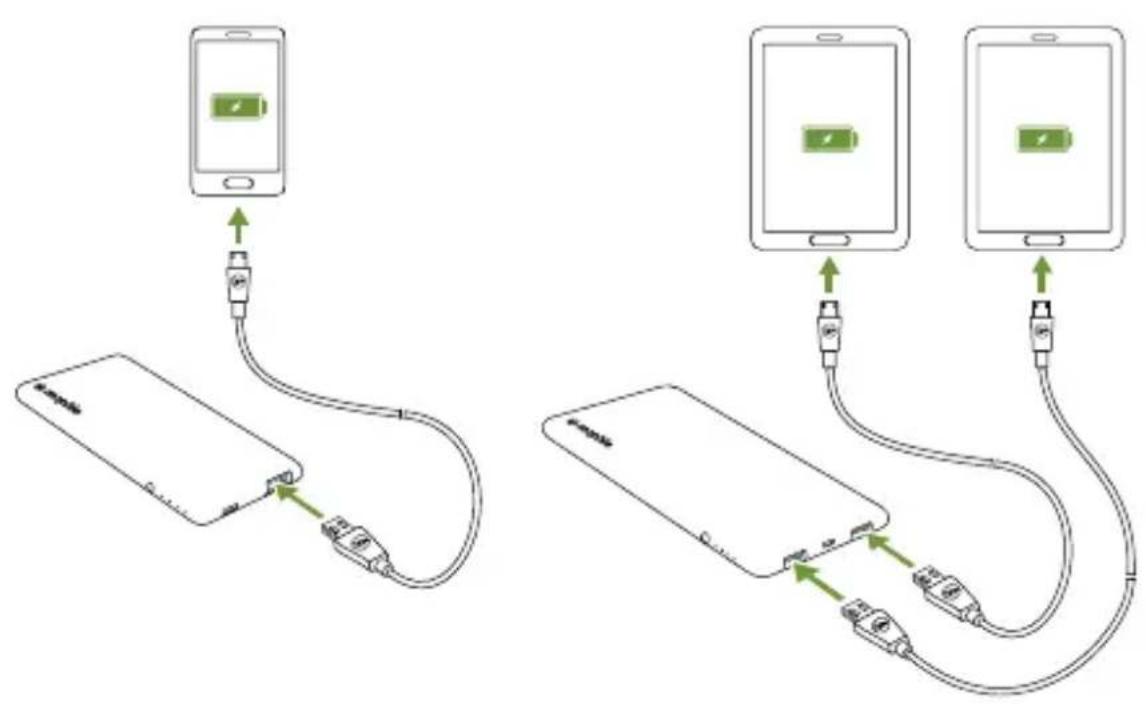

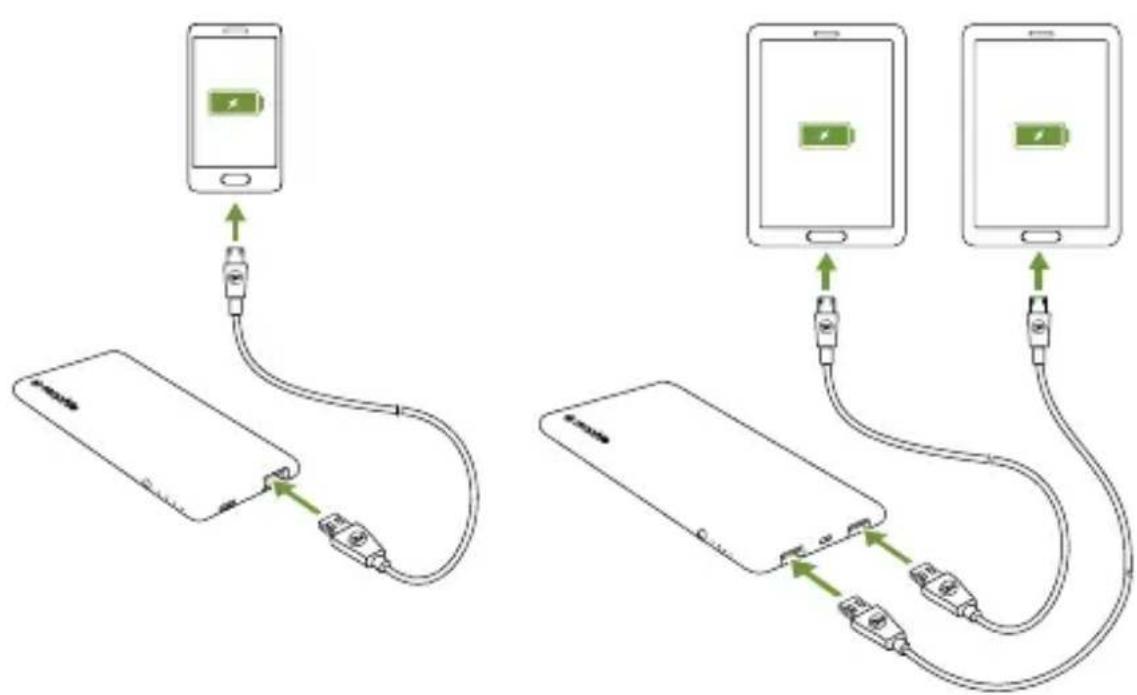

Charging your device using your powerstation battery

Connect the supplied USB cable (or the cable that came with your device) to your device and to the USB port on the powerstation battery. The powerstation battery will immediately begin charging your device.

The powerstation 3X battery has two USB ports that let you charge two devices at the same time.

powerstation 3X:powerstation 1X/powerstation 2X:

Diagram showing two smartphone connections with battery charging, connected via cable and plug-in connector

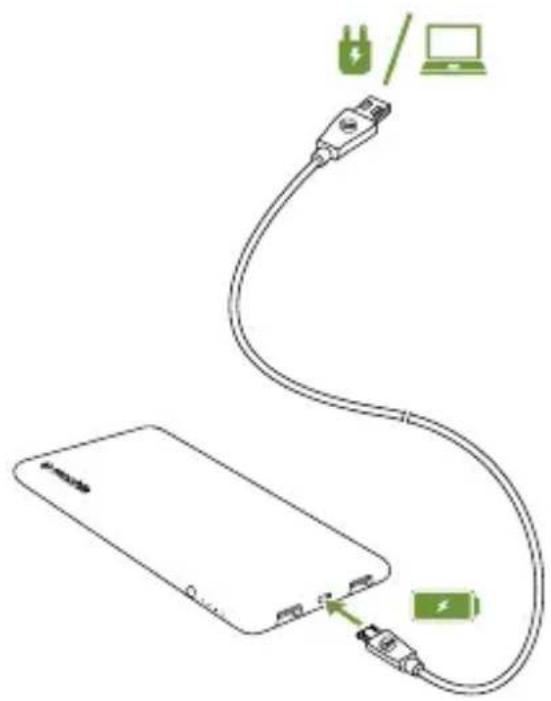

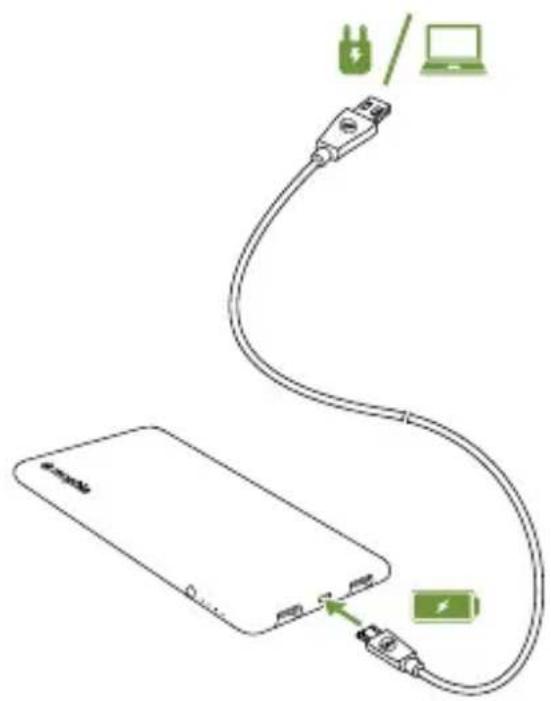

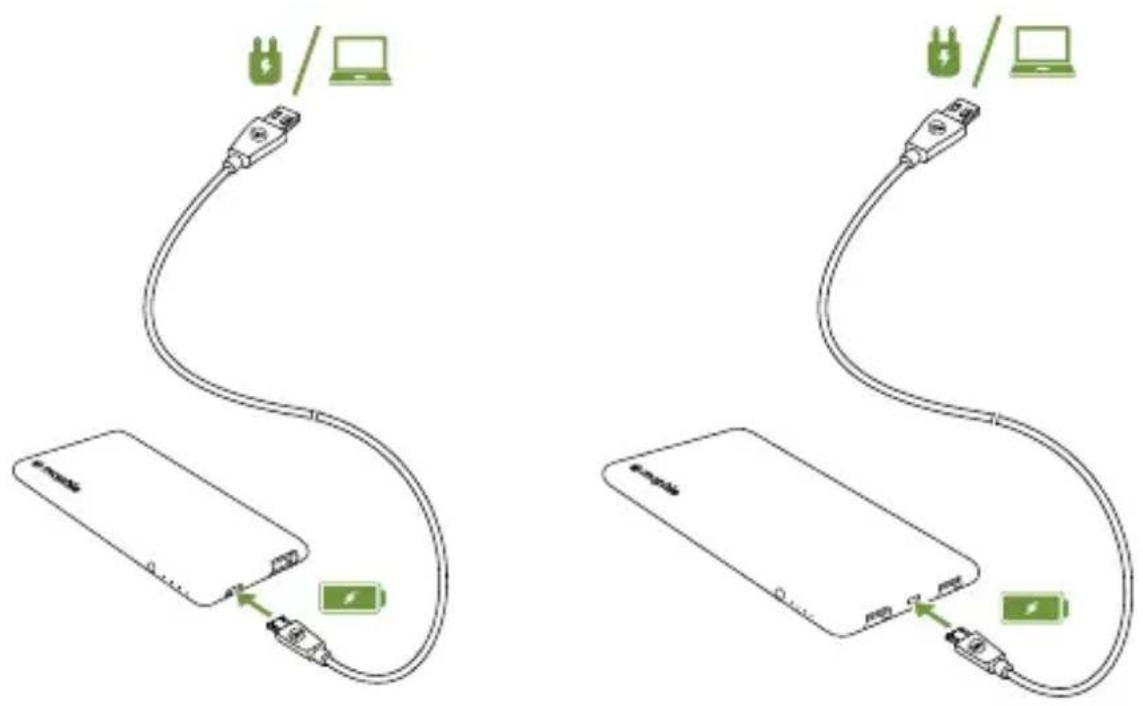

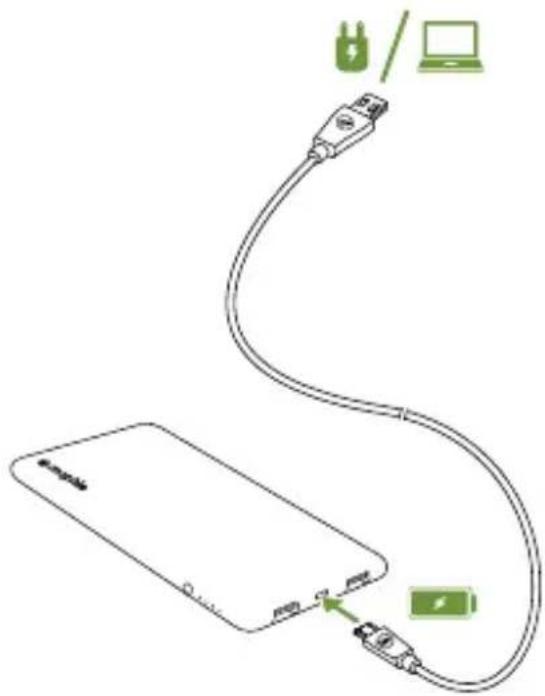

Recharging your powerstation battery

Your powerstation battery comes charged and ready to go. When it does need charging, use the supplied micro USB cable to connect its micro USB port to your computer or any power source with a USB out, like the USB wall adapter included with your device.

powerstation 3X:powerstation 1X/powerstation

Diagram showing two connected devices with USB and laptop connectivity labels

Priority+ pass-through charging (powerstation 3X and powerstation 2X models)

powerstation 3X and powerstation 2X batteries have Priority+ pass-through charging, which enables pass-through charge and sync when the powerstation battery is recharging from a computer. Your connected device recharges first, then the powerstation battery recharges. Connect your device to the powerstation battery USB port that is marked with the Priority+ charging icon:

Battery icon with lightning bolt symbol and bidirectional arrows (no text or labels)

Although the powerstation 3X battery can charge two devices simultaneously, it can only charge one device while it is being recharged. Connect the device to the powerstation 3X USB port that is marked with the Priority+ charging icon. (The other USB port is shut off while the powerstation 3X battery is being recharged.)

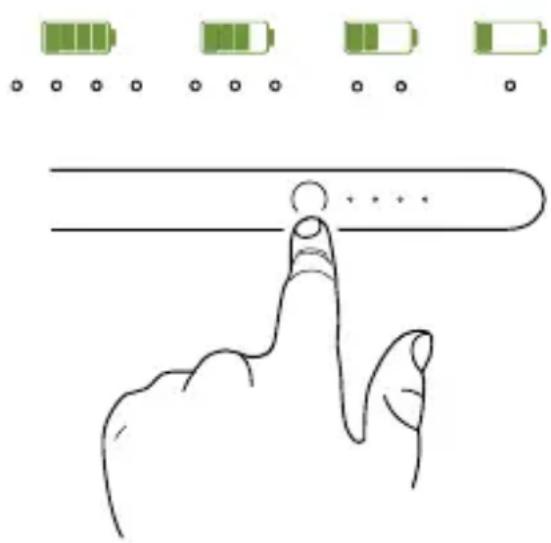

Checking your powerstation battery's charging status

Press the status button on your powerstation battery and the status LEDs will indicate its charge level. Four LEDs means that the powerstation battery is fully charged, while one LED means that it's almost empty. Know before you go!

Diagram showing a hand pressing a progress bar with battery icons above it, indicating progress or status.

Taking care of your powerstation external battery

• Keep your powerstation battery dry and away from moisture and corrosive materials.
• Do not clean your powerstation battery with harsh chemicals, soaps or detergents. Just wipe the case with a soft, water-dampened cloth.
• Recharge your powerstation battery once every three months when not in use. If you plan on putting it away, charge it for one hour first.

Warranty

At mophie, we are dedicated to making the best quality products we can. To back this up, this product is warranted for 1 full year from date of purchase. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at mophie.com. Failure to register your product and/or provide proof of purchase may void the warranty.

Exclusions & Limitations

Except for the limited warranty expressly set forth or to the extent restricted or prohibited by applicable law, mophie expressly disclaims any and all other warranties express or implied, including any warranty of quality, merchantability, or fitness for a particular purpose, and you specifically agree that mophie shall not be liable for any special, incidental, indirect, punitive, or consequential damages for breach of any warranty of any type on any mophie product. In addition to and without limiting the generality of the foregoing disclaimers, the limited warranty does not, under any circumstances, cover the replacement or cost of any electronic device or personal property inside or outside of the mophie product.

Customer Service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not mophie llc ("Manufacturer") are responsible.

Do not store device in high-temperature environment, including heat caused by intense sunlight or other forms of heat. Do not place device in fire or other excessively hot environments.

Be cautious of excessive drops, bumps, abrasions, or other impacts to this device. If there is any damage to the device such as dents, punctures, tears, deformities, or corrosion due to any cause, discontinue use. Contact Manufacturer or dispose of it in an appropriate manner at your local battery-recycling center.

The powerstation battery should be operated only in open-air conditions. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket or purse. Failure

to follow these instructions may cause damage to the powerstation battery by overheating.

Do not disassemble this device or attempt to re-purpose or modify it in any manner.

Do not attempt to charge this device using any method, apparatus, or connection other than the device's USB connector. For questions or instructions for the various ways to charge the device refer to the Charging your powerstation battery section of this manual.

Do not attempt to replace any part of this device.

If this device is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.

All products have gone through a thorough quality assurance inspection. If you find that your device is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all product use and contact Manufacturer.

Before storing your battery for an extended period of time, charge it for one hour.

✗ Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful

under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

This product contains chemicals known to the state of California to cause cancer and birth defects or other reproductive harm.

Legal

This product is meant for use only in conjunction with the appropriate device. Please consult your device packaging to determine whether this product is compatible with your particular device. Manufacturer is not responsible for any damages to any device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this product in conjunction with any device or accessory other than the appropriate device for which this product is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this product as outlined above. If you are responsible for product use with an unintended device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

mophie, powerstation, Digital Power Management, Stay Powerful, Priority+, the five-circles design, and the mophie logo are trademarks of mophie inc. Patents: mophie.com/patents.

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, this device must be used with certified peripherals and shielded cables. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

FR

Bienvenue

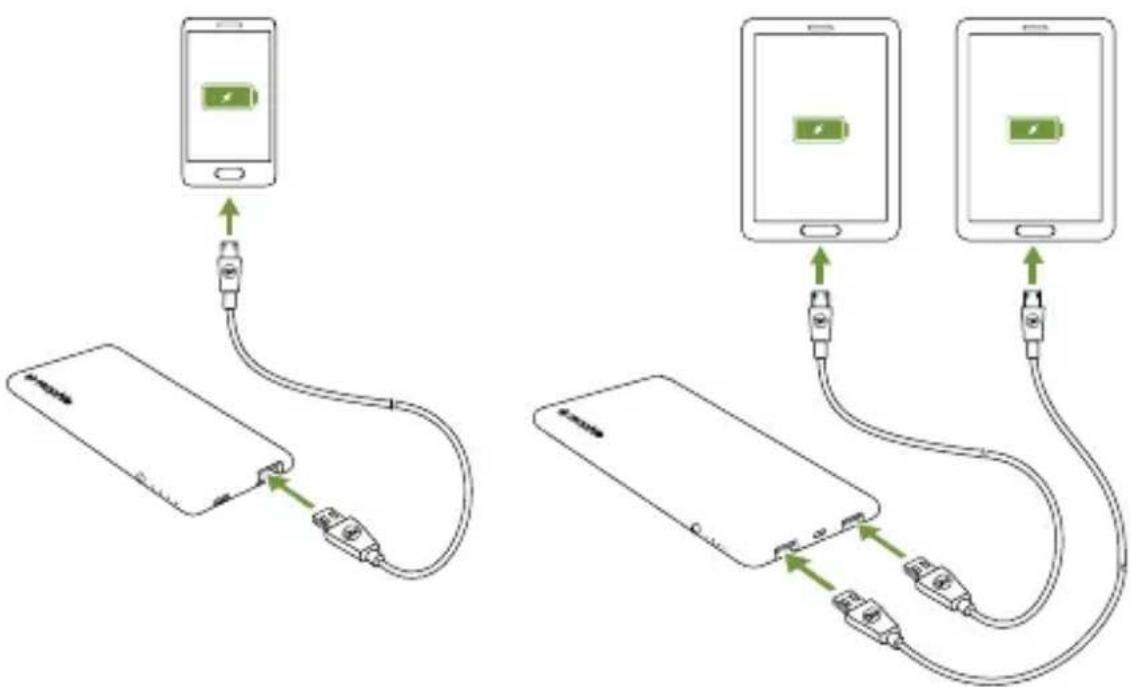

powerstation 3X:powerstation 1X/powerstation 2X:

Diagram showing two connected devices with battery charging, illustrating network connection and charging direction.

Diagram showing two connected devices with battery and power connections, one with a switch and laptop, the other with a switch and laptop.

Simple black battery icon with lightning bolt symbol and bidirectional arrows (no text or labels)

Diagram showing battery status indicators and a hand gesture pointing to a progress bar with dots

powerstation 3X:powerstation 1X/powerstation 2X:

Diagram showing two cable connections with labeled devices and icons, likely illustrating wireless or network topology.

Battery icon with lightning bolt symbol and bidirectional arrows (no text or labels)

Diagram showing battery charging process with progress bar and hand gesture

powerstation 3X:powerstation 1X/powerstation 2X:

Diagram showing two cable connections with battery symbols and a laptop, illustrating network topology or data transmission.

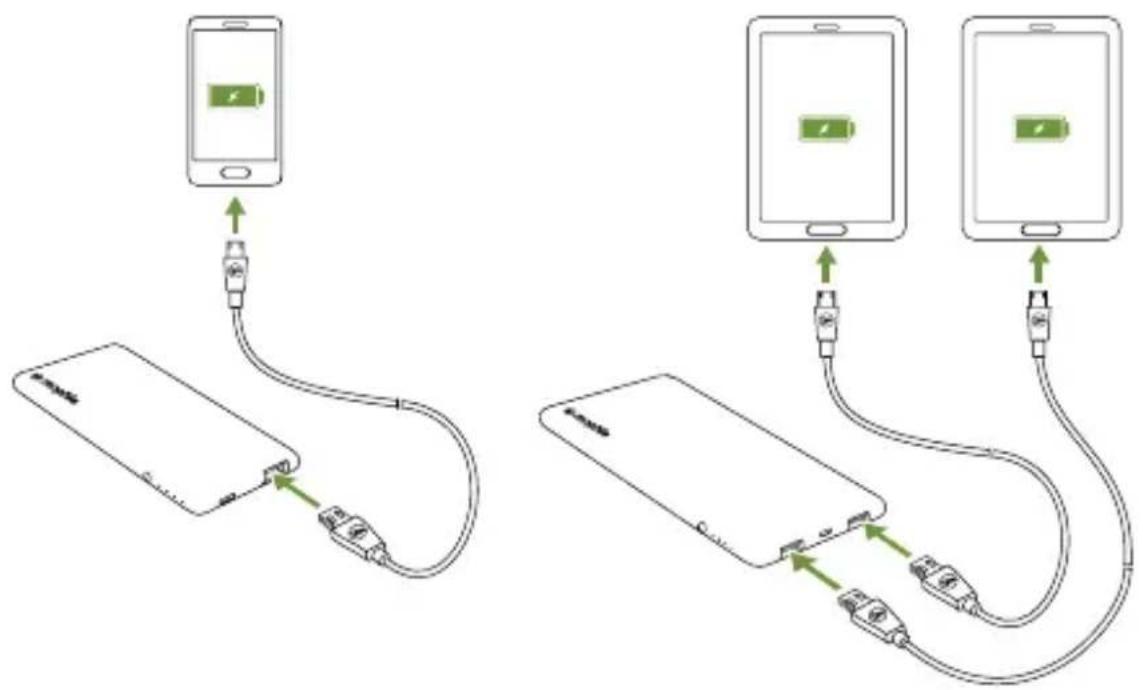

Pass-Through-Ladevorgang Priority+ (Modelle powerstation 3X und powerstation 2X)
