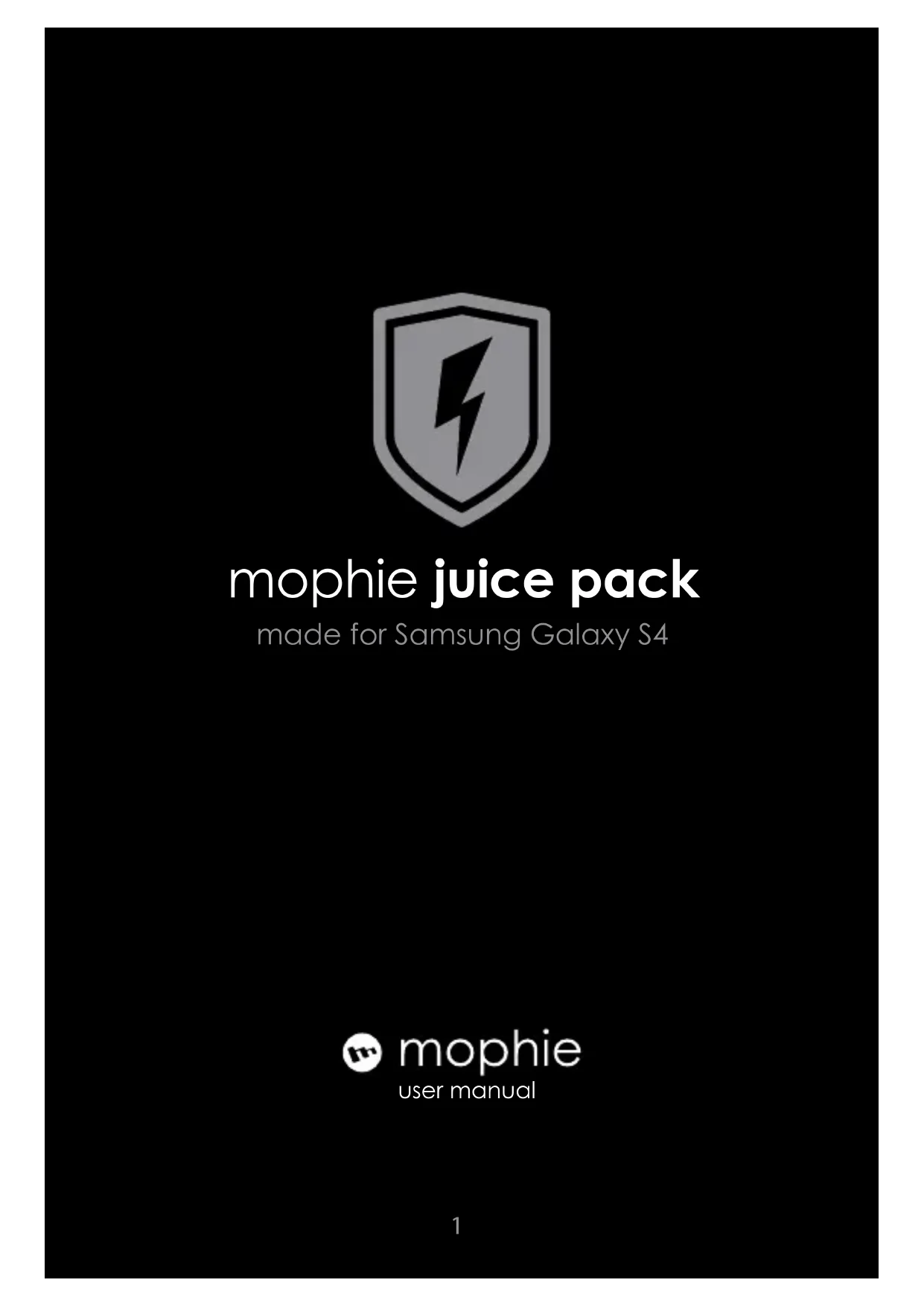

USER MANUAL Juice pack for Galaxy S4 Mophie

made for Samsung Galaxy S4

mophie

user manual

English 04

French 16

Italian 31

German 45

Spanish 60

Japanese 74

Korean 87

Simplified Chinese 99

Traditional Chinese 109

EN

Welcome

Thank you for purchasing the mophie juice pack made for Samsung Galaxy S 4. You will now be able to travel great distances; be the master of your own destiny, no longer bound by the limitations of your phone's internal battery. Let's get juiced!

Package Contains

• morphie juice pack for Samsung Galaxy S 4
• Micro USB Cable
  Quick Start Guide

Features

The mophie juice pack extends the battery life of your Android phone for hours and provides a comfortable ergonomic design with the protection of a hard shell case.

Here's a rundown of why the juice pack is so fantastic:

1. (Take a breath) Ergonomic, form-fitting, fully protective ultra-impact-resistant case-and-battery-in-one for your Android phone.

2. Integrated power switch allows you to put the juice pack into standby mode. Only use the battery when you need it. In standby mode (red), the juice pack still allows charge and sync capabilities through the micro-USB port and offers the complete protection of a case.

3. Uses breakthrough rechargeable lithium polymer battery. (Much safer than those troublesome lithium-iron batteries).

4. State-of-the-art battery technology extends the life of your Android phone for hours... and you can even recharge it while it's still connected to the phone! This battery rocks.

5. Track battery power status at a glance with an integrated 4-light LED status indicator which shows charging mode and current battery life. Know before you go!

6. It's the included USB micro cable connect that allows you to charge and sync your phone while refilling your juice pack at the same time. Really, you don't ever have to disconnect the juice pack, though it's a snap when you do.

7. Rechargeable for over 500 cycles. (These are FULL cycles. Partial cycles don't count as full. So, you can charge your juice pack 10% of the way ten times before you get to a complete cycle. Don't be afraid to top it off.)

8. Once the standby switch is in charging mode, smart battery technology actually instructs the phone to drain out the juice pack first. When you're done with the juice pack, you can pull it off and still have a fully charged phone.

9. The juice pack offers complete protection from top to bottom. No more choosing between protection and power.

10. Built-in short circuit, over-charge and temperature protection. Safety First!

Compatibility

Though the juice pack for Samsung Galaxy S 4 comes with a standard micro USB connector, this battery is intended solely for use with the Galaxy S 4 phone. Please do not attempt to use the product with any other device - things could go haywire, but contact us if they do.

Charging your juice pack

Connect the juice pack to a power source using only the micro USB cable that came with your juice pack. The USB cable can be plugged in t computer or any wall- plug style power source with USB out including the standard USB wall adaptor included with your phone. (The LEDs located on the back of the device will blink when charging, as the juice pack becomes more charged the LEDs will indicate how full it is, but one LED will remain blinking until completely full.)

Important

The juice pack comes charged and ready to go, but after the initial use, normal charging will take only 2 to 3 hours for maximum power – AND you can then charge it while the phone is inserted or separated.

Charging your phone using the juice pack

If your phone is drained of power or if you want to extend the battery life of your phone, simply slide

the phone into the juice pack. Make sure that the connector is securely inserted into the bottom of the phone and the switch is turned "On" (green).

When the phone recognizes the juice pack, a battery symbol will appear on the screen and you will hear a chirp from the phone; this indicates that the phone is charging and/or using the power from the juice pack rather than from the phone itself.

If your phone is drained of power, the juice pack will first charge your phone. If your phone is fully charged, the juice pack will act as your primary battery and no power will be lost from the phone's internal battery until the juice pack is depleted. So you keep on talkin', rockin', surfin' and sendin'!

Checking the status of the juice pack

You are always in the KNOW! To check the battery status of the juice pack, press the button located on the back of the device. When pressed, the LED lights will illuminate for several seconds. Four LEDs means that the juice pack is fully charged, and one LED means that it is almost empty.

Switching your juice pack to standby mode

If you'd rather use your internal battery and not the juice pack, use the switch on back of the juice pack, to put it into standby mode. The dot near the switch will indicate whether the juice pack is in standby mode (red) or charging mode (green). When your internal battery is low, simply flick the switch to the charging mode and your phone will begin charging immediately.

*Note: Using the standby switch will give you even more total battery life, as the phone uses additional power to be on a constant charge.

Sync with your computer without removing the juice pack

While connected to the juice pack, you can still sync your phone with a computer. Simply connect the included micro USB cable from the juice pack to the computer and sync your phone the same as if it was directly connected.

To keep your juice pack operating to its fullest potential, make sure to do the following:

1. Keep your juice pack dry and away from moisture and corrosive materials.

2. Do not wash the juice pack with harsh chemicals, soaps or detergents. Just wipe the case with a soft, water-dampened cloth. Wipe the pins gently with a soft, dry cloth.

3. Re-charge your juice pack once every three months when not in use, and remember to charge it for one hour before putting it away the first time.

Warranty

At mophie, we are dedicated to making the best quality products we can. To back this up, your morphie juice pack is warranted for 1 full year from the date of purchase. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at mophie.com to activate. Failure to register your product or to provide proof of purchase may void the warranty.

Customer Service

Telephone: 1-888-8mophie

International: [phone]

Web: www.mophie.com/cs

Service Hours: 9am to 6pm M-F ET

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not mophie, LLC ("Manufacturer") are responsible.

Do not store battery in high temperature environment, including intense sunlight heat. Do not place battery in fire or other excessively hot environments.
Be cautious of excessive drops, bumps, abrasions or other impacts to this battery. If there is any damage to the battery such as dents, punctures, tears, deformities or corrosion, due to any cause, discontinue use and contact manufacturer or dispose of it in an appropriate manner at your local battery recycling center.
Do not disassemble this battery or attempt to re-purpose or modify it in any manner.
Do not expose this battery to moisture or submerge it in liquid. Keep battery dry at all times.
Do not attempt to charge battery using any method, apparatus or connection other than the device's USB connector. For questions instructions for the various ways to charge the juice pack refer to this manual's "Charging your phone using the juice pack" section.
Do not attempt to replace any part of this battery.
If this battery is intended by Purchaser used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.

兴

All batteries have gone through a thorough quality assurance inspection. If you find that your battery is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all battery use and contact Manufacturer.

X

For extended storage, first charge your battery for one hour.

Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

X

This product contains a chemical known to the state of California to cause cancer and defects or other reproductive harm.

Legal

This Battery is meant for use only in conjunction with the appropriate mobile device. Please consult your device packaging to determine whether this Battery is compatible with your particular mobile device.

Manufacturer is not responsible for any damages to any mobile device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this battery in conjunction with any device or accessory other than the appropriate mobile device for which this battery is designed. Manufacturer will not be responsi for any damages you or any third party may suffer as a result of misuse of this battery as outlined above. If you are responsible for battery use with an unintended mobile device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

mophie, mophie juice pack, juice pack, and the morphie logo are registered in the U.S. Patent Trademark Office and are registered and pending in other countries. morphie loves you and do more are pending trademarks in the U.S. and other countries. Samsung and Galaxy S are trademarks of Samsung Electronics Co., Ltd. Android is a trademark of Google Inc. The Android robot is reproduced or modified from work created and shared by Google and used according to terms described in the Creative Commons 3.0 Attribution License. All rights reserved. Patents: mophie.com/patents

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class D digital device, pursuant to Part 15 of the FCC Rules, this device is comply with Class B limits. All peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

FAQ

What are the best methods for charging my juice pack?

Connect the morphie juice pack to a power sour using the USB cable that came with your juice pack.

The USB cable can be plugged in to your computer or any wall- plug style power source w/ USB out.

How many charge cycles do you get in the juice pack?

The juice pack is rechargeable for over 500 cycles (These are full cycles. Partial cycles don't cou full. So, you can charge your juice pack 10 % of the way 10 times before it counts as a complete cycle.) Don't be afraid to top it off!

What are the benefits of switching the juice pack to standby mode?

Using the standby switch will give you even more total battery life, as the phone uses additional power to be on a constant charge.

Can I sync my phone while the juice pack is still connected?

You can charge and sync your phone without removing it from its juice pack via the included micro USB cable.

What is mophie's return policy?

mophie reserves the right to claim a 20 % restocking fee upon return. (For a full “Return Policy,” please go to mophie.com)

Will I always receive up to 80 % extra battery life with my juice pack?

We cannot guarantee that you will receive up to 80% extra battery life. The amount of additional battery you will receive depends on a variety of factors that are different for every user.

Does the juice pack block the speaker, microphone or cameras?

Of course not! The juice pack features a speaker chamber with acoustic routing to keep speakerphone audio clear.

Does the juice pack interfere with antenna reception?

Not a chance.
