USER MANUAL Juice Pack Powerstation mini Mophie

made for smartphones

mophie

user manual

English 05
French 16
Italian 29
German 41
Spanish 54
Portuguese 66
Russian 78

Turkish

93

Japanese

104

Korean

115

Simplified Chinese 126

Traditional Chinese 135

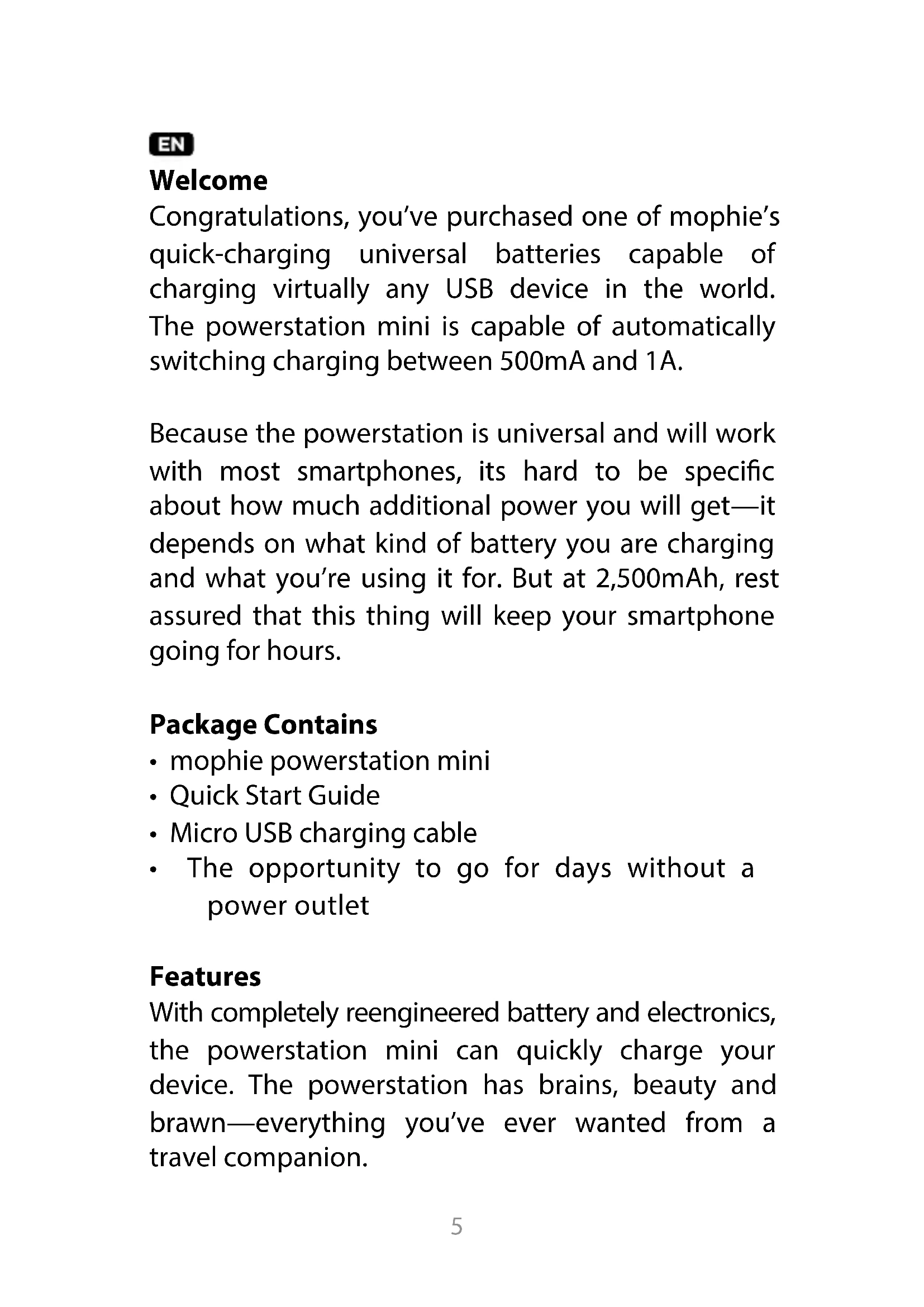

EN

Welcome

Congratulations, you've purchased one of mophie's quick-charging universal batteries capable of charging virtually any USB device in the world. The workstation mini is capable of automatically switching charging between 500mA and 1A.

Because the workstation is universal and will work with most smartphones, its hard to be specific about how much additional power you will get—it depends on what kind of battery you are charging and what you're using it for. But at 2,500mAh, rest assured that this thing will keep your smartphone going for hours.

Package Contains

• mophie workstation mini
• Quick Start Guide
• Micro USB charging cable
• The opportunity to go for days without a power outlet

Features

With completely reengineered battery and electronics, the workstation mini can quickly charge your device. The workstation has brains, beauty and brawn—everything you've ever wanted from a travel companion.

Here's a rundown of why this is such a great charger:

1. 2,500mAh device that is compatible with most USB devices.
2. High-density, high-output battery charges at up to 1 amp.
3. Check the fuel tank with the 4 LED charge status indicator. Always know before you go!
4. Rechargeable for over 500 cycles (way better than average, and that's full cycles—partials don't count. Go ahead, top it off.)
5. Built-in short-circuit, overcharge and temperature protection. mophie's got your back.

Compatibility

The workstation mini has been designed principally with most USB products in mind, especially the iPhone and iPod touch. We have done extensive testing on these products and can assure you that this device is fully compatible with all versions. As always, carefully read through all of the warnings in this manual before using this product.

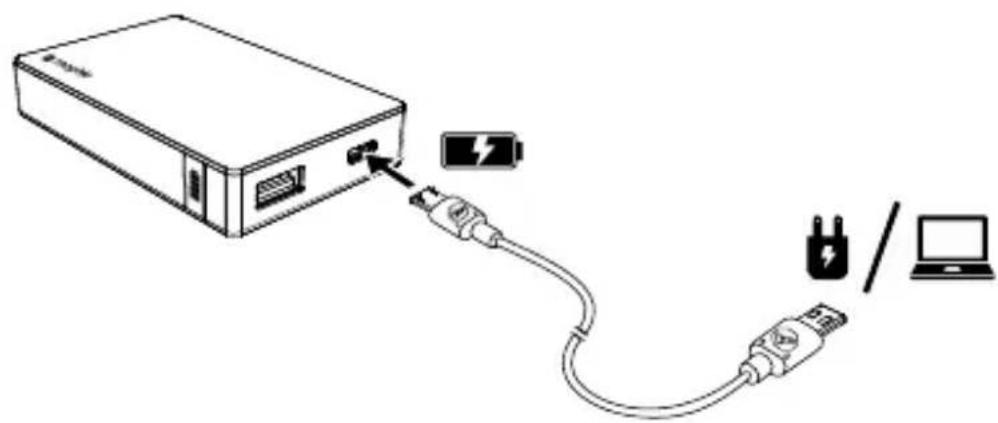

Charging your workstation mini

Connect your workstation using the included USB cable. You can charge your workstation using your computer or using a third-party USB wall adaptor, such as the one that came with your device.

The LEDs located on the top of the workstation will blink when charging; after 30 seconds the lights will turn off. Press the status indicator button before you disconnect to make sure the workstation is fully charged.

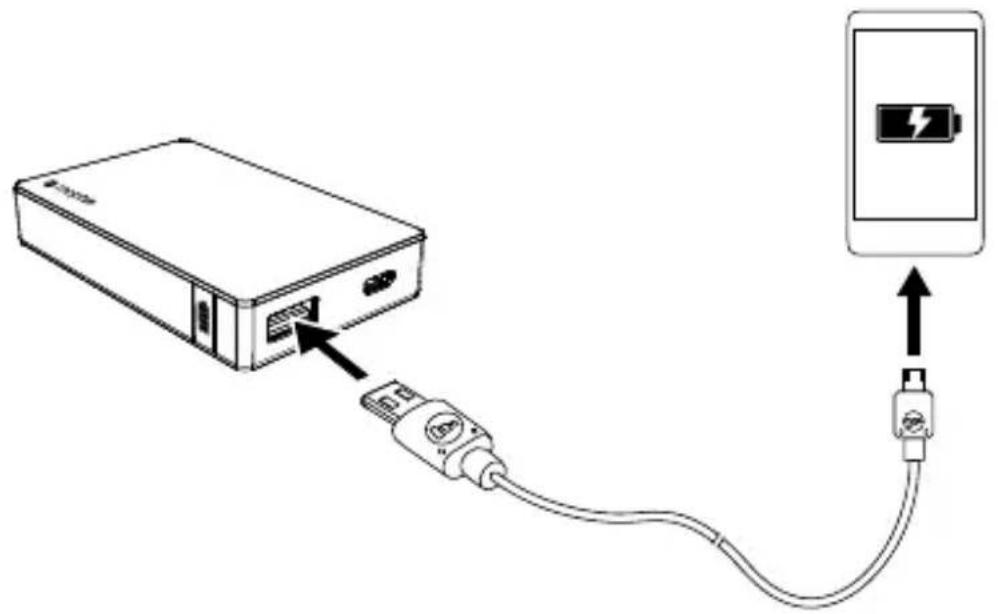

Charging your device using the workstation mini

You will notice there is no output cable included with the powerstation. That's because the powerstation has a "BYOC" (bring your own cable) policy. This way, the powerstation can play with whichever device and connector you have, without being limited to what we choose to ship it with.

To charge your device, plug the Standard USB end of your device's cable into the workstation. Plug the other end of the cable into your device. Your device will begin charging immediately.

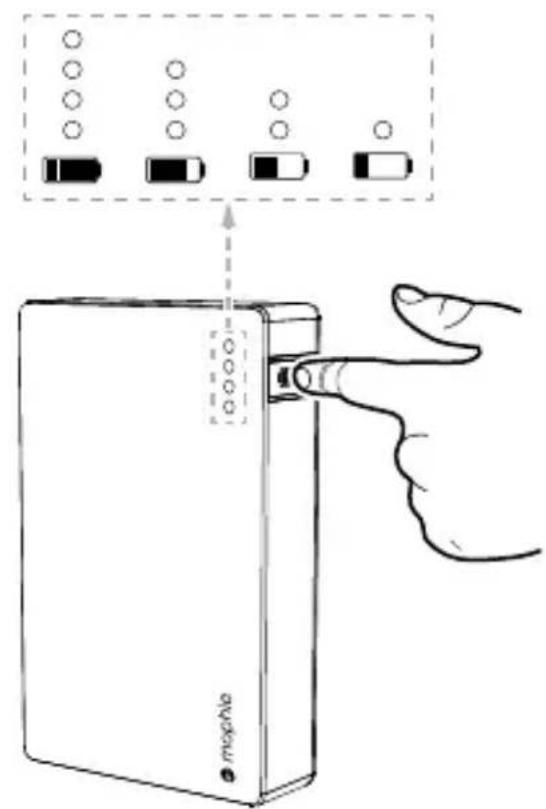

Checking the workstation's charge status

You can check the amount of juice your workstation has by pressing the status indicator button on its side. There are 4 status LEDs. When you press the button the LEDs will illuminate for several seconds. Four LEDs means that the workstation is fully charged, while one LED means that it's almost empty.

To keep your workstation operating to its fullest potential, make sure to do the following:

1. Keep your workstation dry and away from moisture and corrosive materials.
2. Do not wash the powerstation with harsh chemicals, soaps or detergents. Just wipe the case with a soft, water-dampened cloth. Wipe the connectors gently with a soft, dry cloth.
3. Re-charge your workstation once every three months when not in use, and remember to charge it for one hour before storing it for an extended period of time.

Warranty

At mophie, we are dedicated to making the best quality products we can. To back this up, your morphie workstation is warranted for 1 full year from the date of purchase. This warranty does not affect any statutory rights that you may be entitled to. Keep a copy of your purchase receipt as proof of purchase. Be sure to register your product at morphie.com. Failure to register your product and/or to provide proof of purchase may void the warranty.

Customer Service

Telephone: 888.8mophie

International: [phone]

Web: www.mophie.com/cs

Service Hours: 9am to 6pm M - F ET

Warning

Read all instructions and warnings prior to using this product. Improper use of this product may result in product damage, excess heat, toxic fumes, fire or explosion, for which damages you ("Purchaser"), and not mophie, LLC ("Manufacturer") are responsible.

The powerstation should be operated only in open-air conditions. It should not be operated in an enclosed, unventilated space such as a carrying bag, pocket, or purse. Failure to follow these instructions may cause damage to the powerstation by overheating.
Do not store battery in high temperature environment, including heat caused by intense sunlight. Do not place battery in fire or other excessively hot environments.
Be cautious of excessive drops, bumps, abrasions or other impacts to this battery. If there is any damage to the battery such as dents, punctures, tears, deformities or corrosion, due to any cause, discontinue use and contact Manufacturer or dispose of it in an appropriate manner at your local battery recycling center.
Do not disassemble this battery or attempt to re-purpose or modify it in any manner.
Do not expose this battery to moisture or submerge it in liquid. Keep battery dry at all times.

Do not attempt to charge battery using any method, apparatus or connection other than the device's USB connector. For questions or instructions on the various ways to charge the workstation, refer to this manual's Charging your workstation section.
Do not attempt to replace any part of this battery.
If this battery is intended by Purchaser to be used by a minor, purchasing adult agrees to provide detailed instructions and warnings to any minor prior to use. Failure to do so is sole responsibility of Purchaser, who agrees to indemnify Manufacturer for any unintended use/misuse by a minor.
All batteries have gone through a thorough quality assurance inspection. If you find that your battery is excessively hot, is emitting odor, is deformed, abraded, cut or is experiencing or demonstrating an abnormal phenomenon, immediately stop all battery use and contact Manufacturer.
For extended storage, first charge your battery for one hour.
Never dispose of batteries in the garbage. Disposal of batteries in the garbage is unlawful under state and federal environmental laws and regulations. Always take used batteries to your local battery-recycling center.

This product contains chemicals that are known to the state of California to cause cancer and birth defects or other reproductive harm.

Legal

This battery is meant for use only in conjunction with the appropriate mobile device. Please consult your device packaging to determine whether this battery is compatible with your particular mobile device. Manufacturer is not responsible for any damages to any mobile device incurred through the use of this product.

Manufacturer shall not in any way be liable to you or to any third party for any damages you or any third party may suffer as a result of use, intended or unintended, or misuse of this battery in conjunction with any device or accessory other than the appropriate mobile device for which this battery is designed. Manufacturer will not be responsible for any damages you or any third party may suffer as a result of misuse of this battery as outlined above. If you are responsible for battery use with an unintended mobile device and damages result from such use, you agree to indemnify Manufacturer for any resulting injuries to any third part(ies).

mophie, juice pack, workstation mini, Do more, morphie loves you and the morphie logo are

trademarks of mophie, Inc. Apple, iPod, iPhone and iPad are trademarks of Apple Inc. All rights reserved. Patents: mophie.com/patents.

This device complies with part 15 of the FCC Rules and RSS-Gen of IC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.

CAUTION: To comply with the limits of the Class B digital device, pursuant to Part 15 of the FCC Rules, all peripherals must be shielded and grounded. Operation with non-certified peripherals or non-shielded cables may result in interference to radio or reception.

MODIFICATION: Any changes or modifications of this device could void the warranty.

FAQ

Will the workstation mini charge my iPhone?

You bet. The workstation is fully compatible with every iPhone and most smartphones.

Can I charge my iPad with the workstation mini?

Not recommended. We suggest the morphie workstation XL, morphie workstation PRO or the morphie workstation duo for charging tablet devices.

Will the workstation mini charge my device?

The workstation mini has been designed to charge a variety of USB devices - specifically smartphones. We have done extensive testing on a variety of products and can assure you that this device is fully compatible with most smart devices available today. Go to mophie.com and check out the compatibility chart to see if your device is compatible.

Which port is used for charging the workstation mini and which port is used to charge my device?

Connect your cable using the bigger, rectangular USB port to charge your device. The smaller, micro USB port is used to recharge the workstation.

Can I charge the workstation mini from a computer's USB port?

Yes, the workstation will charge from any high-current USB port—available on most computers. Lower-current ports available on some computers, as well as USB ports on keyboards and hubs, may not effectively charge the workstation.

Why aren't the LEDs blinking while the workstation mini is charging?

After connecting to a power source, the LED status indicators will start blinking to indicate charging. The lights will turn off after 30 seconds allowing for a good night's rest. Remember to check the status

indicators before you disconnect to make sure the workstation is fully charged.

How many charge cycles do you get with the workstation mini?

The workstation is rechargeable for over 500 cycles (These are full cycles. Partial cycles don't count as full. So, you can charge your workstation 10% of the way 10 times before it counts as a complete cycle.) Don't be afraid to top it off!

Can I charge my device while charging the workstation mini?

Sorry. workstation does not have pass-through capability. Please charge the workstation separately from your other devices.

Once I've connected my device, how do I start charging it?

The workstation will automatically begin charging your device as soon as you connect them to each other.

What is mophie's return policy?

mophie reserves the right to claim a 20 % restocking fee upon return. (For our full “Return Policy”, please go to mophie.com)
