USER MANUAL MR 7152 EINHELL

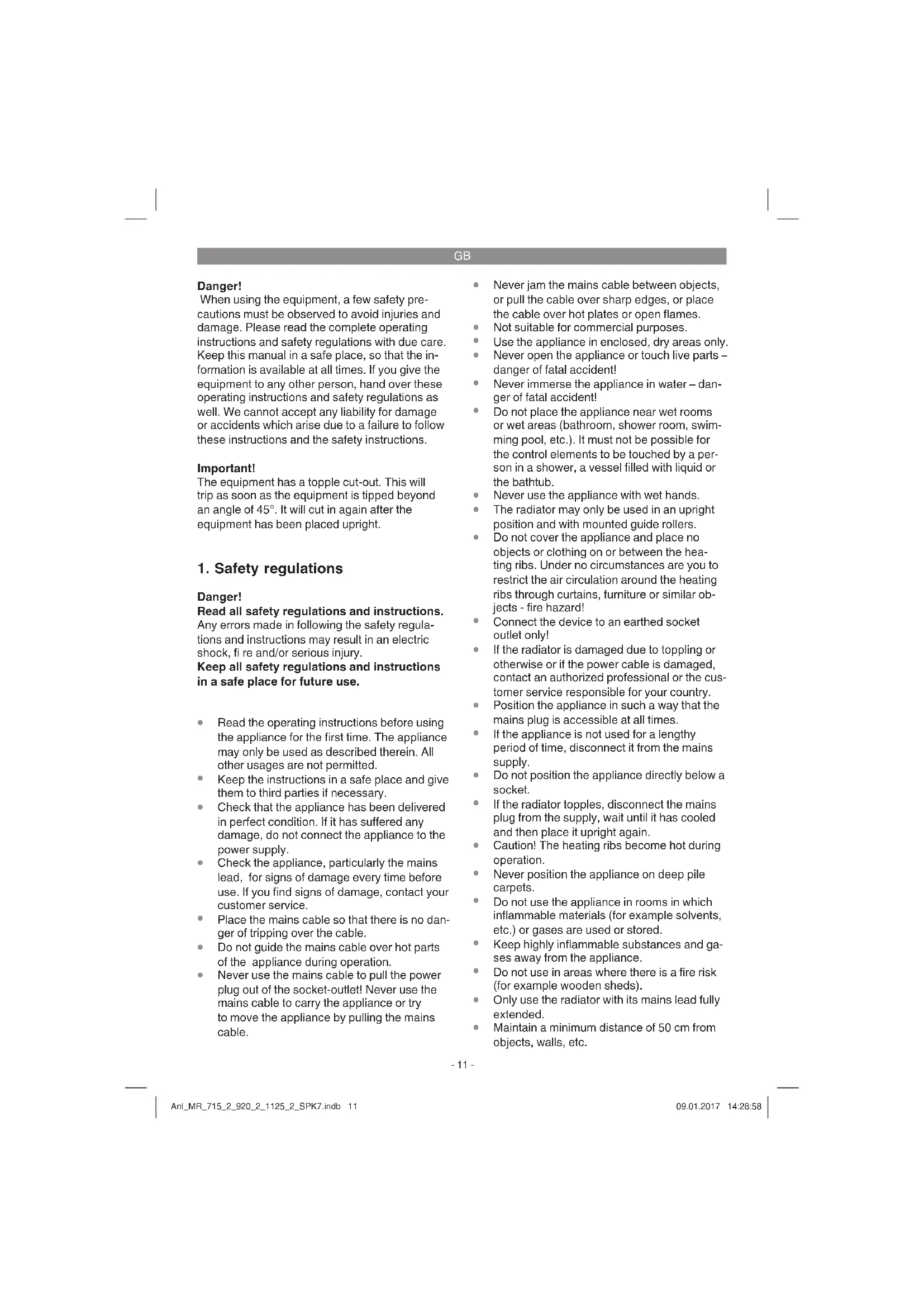

Danger! When using the equipment, a few safety pre- cautions must be observed to avoid injuries and damage. Please read the complete operating instructions and safety regulations with due care. Keep this manual in a safe place, so that the in- formation is available at all times. If you give the equipment to any other person, hand over these operating instructions and safety regulations as well. We cannot accept any liability for damage or accidents which arise due to a failure to follow these instructions and the safety instructions. Important! The equipment has a topple cut-out. This will trip as soon as the equipment is tipped beyond an angle of 45°. It will cut in again after the equipment has been placed upright.

1. Safety regulations

Danger! Read all safety regulations and instructions. Any errors made in following the safety regula- tions and instructions may result in an electric shock, fi re and/or serious injury. Keep all safety regulations and instructions in a safe place for future use.

Read the operating instructions before using the appliance for the first time. The appliance may only be used as described therein. All other usages are not permitted.

Keep the instructions in a safe place and give them to third parties if necessary.

Check that the appliance has been delivered in perfect condition. If it has suffered any damage, do not connect the appliance to the power supply.

Check the appliance, particularly the mains lead, for signs of damage every time before use. If you find signs of damage, contact your customer service.

Place the mains cable so that there is no dan- ger of tripping over the cable.

Do not guide the mains cable over hot parts of the appliance during operation.

Never use the mains cable to pull the power plug out of the socket-outlet! Never use the mains cable to carry the appliance or try to move the appliance by pulling the mains cable.

Never jam the mains cable between objects, or pull the cable over sharp edges, or place the cable over hot plates or open flames.

Not suitable for commercial purposes.

Use the appliance in enclosed, dry areas only.

Never immerse the appliance in water – dan- ger of fatal accident!

Do not place the appliance near wet rooms or wet areas (bathroom, shower room, swim- ming pool, etc.). It must not be possible for the control elements to be touched by a per- son in a shower, a vessel filled with liquid or the bathtub.

Never use the appliance with wet hands.

The radiator may only be used in an upright position and with mounted guide rollers.

Do not cover the appliance and place no objects or clothing on or between the hea- ting ribs. Under no circumstances are you to restrict the air circulation around the heating ribs through curtains, furniture or similar ob- jects - fire hazard!

Connect the device to an earthed socket outlet only!

If the radiator is damaged due to toppling or otherwise or if the power cable is damaged, contact an authorized professional or the cus- tomer service responsible for your country.

Position the appliance in such a way that the mains plug is accessible at all times.

If the appliance is not used for a lengthy period of time, disconnect it from the mains supply.

If the radiator topples, disconnect the mains plug from the supply, wait until it has cooled and then place it upright again.

Caution! The heating ribs become hot during operation.

Never position the appliance on deep pile carpets.

Do not use the appliance in rooms in which inflammable materials (for example solvents, etc.) or gases are used or stored.

Keep highly inflammable substances and ga- ses away from the appliance.

Do not use in areas where there is a fire risk (for example wooden sheds).

Only use the radiator with its mains lead fully extended.

Not suitable for installation on permanently installed electrical cables.

Do not insert any foreign objects in the appliance’s openings.- Danger of electric shock and damage to the appliance.

Keep children and people on medication or under the influence of alcohol away from the appliance.

Maintenance and repair work may only be carried out by authorized trained personnel.

Important! Do not cover the appliance – fire risk! Pay attention to the symbol on the appli- ance (Fig. 6)

This equipment can be used by children of 8 years and older and by people with limited physical, sensory or mental capacities or tho- se with no experience and knowledge if they are supervised or have received instruction in how to use the equipment safely and un- derstand the dangers which result from such use. Children are not allowed to play with the equipment. Unless supervised, children are not allowed to clean the equipment and carry out user-level maintenance work.

Children younger than 3 years must be kept away unless they are continuously supervised

Children of 3 years and younger than 8 years are allowed to use the equipment only if they are supervised or have received instruction in how to use the equipment safely and understand the dangers which result from such use, provided that the equipment is positioned or installed in its normal place of use. Children of 3 years and younger than 8 years are not allowed to insert the plug into the socket, regulate the equipment, clean the equipment and/or perform the maintenance which a user is expected to perform.

Caution – Some parts of the product can become very hot and cause burns. Spe- cial care is required when children and persons in need of protection are pre- sent.

It is advisable only to connect the equipment to an electricity supply which is protected by a residual-current operated protective device (RCD) with a release current of max. 30 mA.

2. Layout and items supplied

1 Heating ribs 2 Handle 3 Heat setting switch 4 Thermostat control 5 Cable store 6 Castors

Please check that the article is complete as specifi ed in the scope of delivery. If parts are missing, please contact our service center or the sales outlet where you made your purchase at the latest within 5 working days after purchasing the product and upon presentation of a valid bill of purchase. Also, refer to the warranty table in the service information at the end of the operating instructions.

Open the packaging and take out the equip- ment with care.

Remove the packaging material and any packaging and/or transportation braces (if available).

Check to see if all items are supplied.

Inspect the equipment and accessories for transport damage.

If possible, please keep the packaging until the end of the guarantee period. Danger! The equipment and packaging material are not toys. Do not let children play with plastic bags, foils or small parts. There is a danger of swallowing or suff ocating!

4x castor with cap nut

2x fastening bar with wing nut

The equipment is designed exclusively for use as an additional heater in dry, closed rooms. It is designed to be operated only when placed on the fl oor. The equipment is to be used only for its prescri- bed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or inju- ries of any kind caused as a result of this. Please note that our equipment has not been de- signed for use in commercial, trade or industrial applications. Our warranty will be voided if the machine is used in commercial, trade or industrial businesses or for equivalent purposes.

5. Before starting the equipment

The equipment can be used indoors in a free standing position. Keep a minimum distance of 50 cm between the housing and walls, combustible materials (furniture, curtains, etc.). The equipment may only be used completely mounted and standing vertically on a stable surface. It is prohibited to operate the equipment on an instable surface (e.g. on a bed). Important! Before using the appliance for the first time, check that the voltage supply is the same as the voltage details set out on the data plate. Read safety instructions listed under section 1.

5.1 Fitting the castors (Fig. 2 – 4)

Important! To prevent damage, place the radiator upside down on a soft surface (for example a carpet).

Place 2 castors (6) on each castor carrier (A) and secure them with the cap nut (B).

Slide the fastening bar (C) under the radiator element (A) and secure the castors carrier with the wing nuts (D). Repeat the above on the last space between the ribs.

If the equipment should topple or fall over, the power supply will be cut off by a safety switch integrated in the equipment. The power supply resumes as soon as the equipment is stood upright again. When the equipment is used for the first time or after a long period of rest it may emit an odor for a short time. This is not a fault.

High heat output – Switch in position „I+II“ The possible output levels are listed in the technical data in point 4. Note: For safety reasons, the heater will switch off at a certain heating rib temperature in order to prevent overheating of the heating ribs at maximum heat Anl_MR_715_2_920_2_1125_2_SPK7.indb 13Anl_MR_715_2_920_2_1125_2_SPK7.indb 13 09.01.2017 14:28:5809.01.2017 14:28:58GB

output. The heater will switch on again and the heating cycle will restart as soon as the heating ribs have cooled down to a certain temperature. This is not an equipment defect.

6.2 Thermostat control/Room thermostat

(Fig. 5 / Item 4): Note: When the equipment is moved to a new location, the thermostat will not work properly until the equipment has adopted the ambient temperature. Switch on the required output using the two function switches. Turn the control to “MAX” until the required room temperature has been reached. Then turn down the control until you hear a clear click. The thermostat control will switch the radiator on and off automatically to maintain the room temperature at an almost constant level. However, this presupposes that the radiator has a sufficient output to cover the heating requirements for the room.

7. Cleaning, maintenance and

ordering of spare parts

Before carrying out any cleaning and main- tenance work the equipment must be turned off, disconnected from the power supply and cooled down.

Use a damp cloth to clean the casing.

Remove dust pollution with a vacuum cleaner.

Maintenance and repair work may only be carried out by an electrical servicing contrac- tor or ISC GmbH.

Check the mains lead at regular intervals for signs of defects or damage. A damaged mains lead may only be replaced by an elec- trician or ISC GmbH in compliance with the relevant regulations.

There are no parts inside the equipment which require additional maintenance.

7.3 Ordering replacement parts:

Please quote the following data when ordering replacement parts:

Article number of the machine

Identification number of the machine

Replacement part number of the part required For our latest prices and information please go to www.isc-gmbh.info

8. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled. The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

The ribs are filled with a special oil. Repairs that necessitate the oil seal to be opened may only be carried out by the customer ser- vice responsible for your country. If oil leaks from the appliance, return it to the customer service responsible for your country for exa- mination.

It is imperative to follow the applicable oil disposal directives when the equipment is scrapped.

Store the equipment and accessories out of children’s reach in a dark and dry place at above freezing temperature. The ideal storage temperature is between 5 and 30 °C. Store the electric tool in its original packaging. Anl_MR_715_2_920_2_1125_2_SPK7.indb 14Anl_MR_715_2_920_2_1125_2_SPK7.indb 14 09.01.2017 14:28:5809.01.2017 14:28:58GB

For EU countries only Never place any electric power tools in your household refuse. To comply with European Directive 2012/19/EC concerning old electric and electronic equipment and its implementation in national laws, old electric power tools have to be separated from other waste and disposed of in an environment-friendly fashion, e.g. by taking to a recycling depot. Recycling alternative to the return request: As an alternative to returning the equipment to the manufacturer, the owner of the electrical equipment must make sure that the equipment is properly disposed of if he no longer wants to keep the equipment. The old equipment can be returned to a suitable collection point that will dispose of the equipment in accordance with the national recycling and waste disposal regulations. This does not apply to any ac- cessories or aids without electrical components supplied with the old equipment. The reprinting or reproduction by any other means, in whole or in part, of documentation and papers accompanying products is permitted only with the express consent of the iSC GmbH. Subject to technical changes Anl_MR_715_2_920_2_1125_2_SPK7.indb 15Anl_MR_715_2_920_2_1125_2_SPK7.indb 15 09.01.2017 14:28:5809.01.2017 14:28:58GB

Warranty certifi cate Dear Customer, All of our products undergo strict quality checks to ensure that they reach you in perfect condition. In the unlikely event that your device develops a fault, please contact our service department at the address shown on this guarantee card. You can also contact us by telephone using the service number shown. Please note the following terms under which guarantee claims can be made:

1. These guarantee terms apply to consumers only, i.e. natural persons intending to use this product

neither for their commercial activities nor for any other self-employed activities. These warranty terms regulate additional warranty services, which the manufacturer mentioned below promises to buyers of its new products in addition to their statutory rights of guarantee. Your statutory guarantee claims are not aff ected by this guarantee. Our guarantee is free of charge to you.

2. The warranty services cover only defects due to material or manufacturing faults on a product which

you have bought from the manufacturer mentioned below and are limited to either the rectifi cation of said defects on the product or the replacement of the product, whichever we prefer. Please note that our devices are not designed for use in commercial, trade or professional applica- tions. A guarantee contract will not be created if the device has been used by commercial, trade or industrial business or has been exposed to similar stresses during the guarantee period.

3. The following are not covered by our guarantee:

- Damage to the device caused by a failure to follow the assembly instructions or due to incorrect installation, a failure to follow the operating instructions (for example connecting it to an incorrect mains voltage or current type) or a failure to follow the maintenance and safety instructions or by ex- posing the device to abnormal environmental conditions or by lack of care and maintenance. - Damage to the device caused by abuse or incorrect use (for example overloading the device or the use or unapproved tools or accessories), ingress of foreign bodies into the device (such as sand, stones or dust, transport damage), the use of force or damage caused by external forces (for ex- ample by dropping it). - Damage to the device or parts of the device caused by normal or natural wear or tear or by normal use of the device.

4. The guarantee is valid for a period of 24 months starting from the purchase date of the device. Gu-

arantee claims should be submitted before the end of the guarantee period within two weeks of the defect being noticed. No guarantee claims will be accepted after the end of the guarantee period. The original guarantee period remains applicable to the device even if repairs are carried out or parts are replaced. In such cases, the work performed or parts fi tted will not result in an extension of the guarantee period, and no new guarantee will become active for the work performed or parts fi tted. This also applies if an on-site service is used.

5. To make a claim under the guarantee, please register the defective device at: www.isc-gmbh.info.

Please keep your bill of purchase or other proof of purchase for the new device. Devices that are returned without proof of purchase or without a rating plate shall not be covered by the guarantee, because appropriate identifi cation will not be possible. If the defect is covered by our guarantee, then the item in question will either be repaired immediately and returned to you or we will send you a new replacement. Of course, we are also happy off er a chargeable repair service for any defects which are not covered by the scope of this guarantee or for units which are no longer covered. To take advantage of this service, please send the device to our service address. Also refer to the restrictions of this warranty concerning wear parts, consumables and missing parts as set out in the service information in these operating instructions. Anl_MR_715_2_920_2_1125_2_SPK7.indb 16Anl_MR_715_2_920_2_1125_2_SPK7.indb 16 09.01.2017 14:28:5809.01.2017 14:28:58F
