USER MANUAL HL 1097 CB BOMANN

Exterior view of a modern office electric heater with two heat sinks and a mesh grille (no visible text or symbols)

D Dieses Produkt ist nur für gut isolierte Räume oder für den gelegentlichen Gebrauch geeignet.
NL Dit product is alleen geschikt voor goed geïsoleerde ruimtes of voor incidenteel gebruik.
Ce produit est seulement adapté à une utilisation dans les pièces correctement isolées, ou pour les utilisations occasionnelles.
Este producto solo es adecuado para utilizarlo en habitaciones bien aisladas o para un uso ocasional.
① Questo prodotto è adatto solo per ambienti ben isolati o per l'uso occasionale.
GB This product is only suitable for well isolated rooms or for occasional use.
PL Ten produkt nadaje się tylko do dobrze izolowanych pomieszczeń lub do sporadycznego użytku.
H Ez a termék kizárólag jól szigetelt helyiségekben vagy alkalmanként használható.
Цей виріб призначений тільки для приміщень із якісною теплоізоляцією чи для нерегулярного використання.
Этот прибор пригоден только для хорошо изолированных комнат или для нечастого применения.
هذا المنتج مناسب فقط للغرف المعزولة жидًا أو للاستخدم العرضي.

CE

Technical diagram of a portable energy heater with labeled components and a magnified view showing internal components.

Bedienungsanleitung

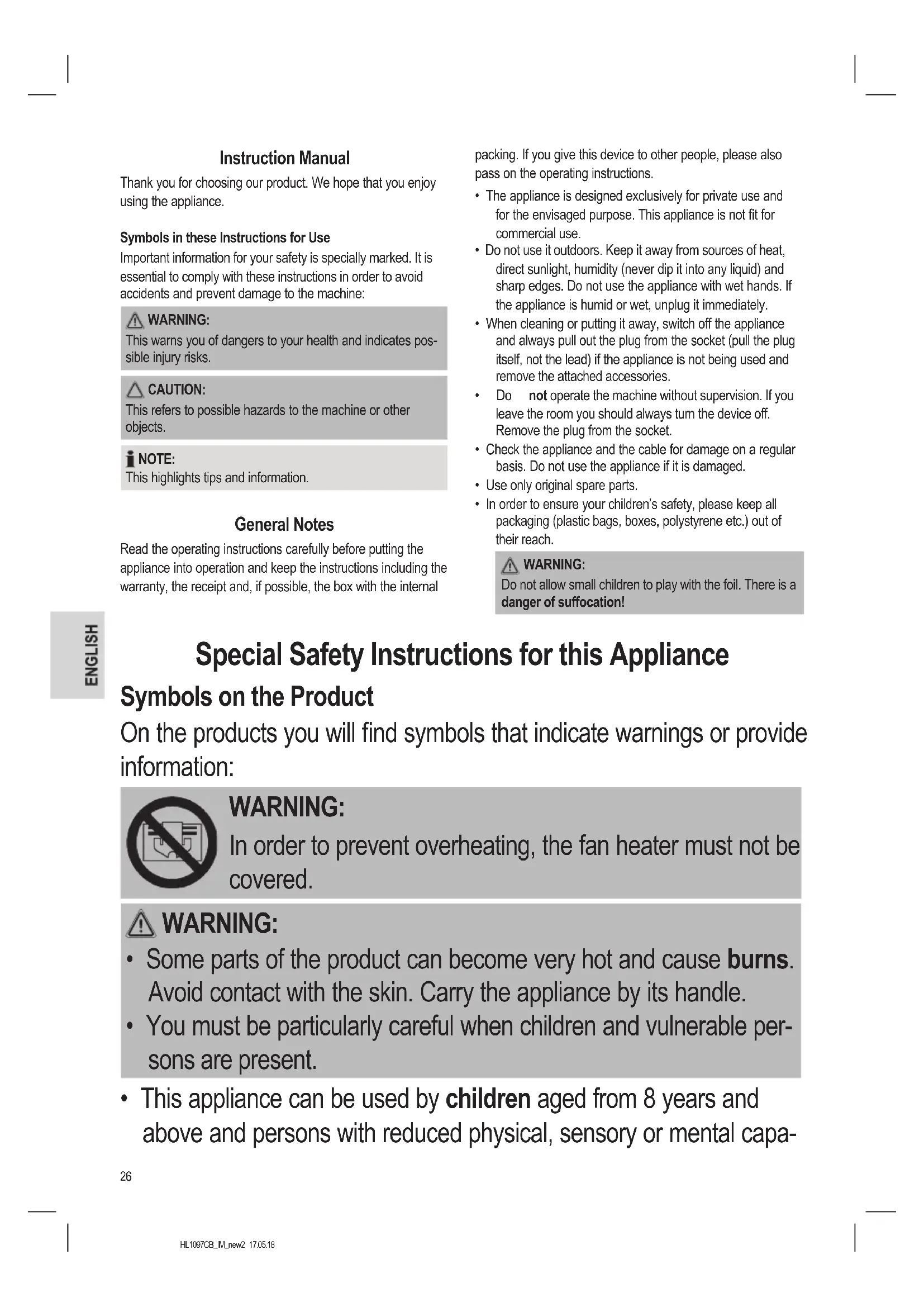

Thank you for choosing our product. We hope that you enjoy using the appliance.

Symbols in these Instructions for Use

Important information for your safety is specially marked. It is essential to comply with these instructions in order to avoid accidents and prevent damage to the machine:

WARNING:

This warns you of dangers to your health and indicates possible injury risks.

CAUTION:

This refers to possible hazards to the machine or other objects.

NOTE:

This highlights tips and information.

General Notes

Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing. If you give this device to other people, please also pass on the operating instructions.

• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use.
• Do not use it outdoors. Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull the plug itself, not the lead) if the appliance is not being used and remove the attached accessories.
• Do not operate the machine without supervision. If you leave the room you should always turn the device off. Remove the plug from the socket.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Use only original spare parts.
• In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.

WARNING:

Do not allow small children to play with the foil. There is a danger of suffocation!

Special Safety Instructions for this Appliance

Symbols on the Product

On the products you will find symbols that indicate warnings or provide information:

WARNING:

In order to prevent overheating, the fan heater must not be covered.

WARNING:

• Some parts of the product can become very hot and cause burns. Avoid contact with the skin. Carry the appliance by its handle.
• You must be particularly careful when children and vulnerable persons are present.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capa-

bilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.
- Cleaning and user maintenance shall not be made by children without supervision.
- Children younger than 3 years of age should be kept away from the appliance, unless they are supervised at all times.
- Children from the age of 3 and younger than 8 years of age may only turn the appliance on and off if they are supervised, or have been instructed with regard to the safe use of the appliance, and if they have understood the risks resulting from it, provided that the appliance has been placed and installed in its normal position of use.
- Children from the age of 3 and younger than 8 years of age may not insert the plug into the socket, may not clean the appliance and/ or may not perform the maintenance by the user.
- Please keep a safety distance of at least 90 cm between all sides of the device and furniture and other objects.
- Under no circumstances may the fan heater be used in rooms with explosive gas (e.g. petrol) or while work is being carried out with inflammable adhesives or solvents (e.g. when gluing or painting parquet, PVC etc).
- Do not insert any objects into the fan heater.
- Ensure that a safety distance is maintained between the power cord and the housing.
- Do not use the fan heater in the open air.
- Do not use the fan heater in close proximity to bathtubs, showers or swimming pools.

• The fan heater should not be placed directly below a mains power socket.
• The fan heater should only be used in an upright position.
• Do not repair the appliance by yourself. Always contact an authorized technician. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Overview of the Components

1 Handle
2 Function control knob
2a = Fan (oscillating)
2b =1000 Watt (oscillating)
2c =11500 Watt (oscillating)
2d 0 = Off
2e = Ean
2f =1000 Watt
2g =11500 Watt
2h 0 = Off
3 Temperature control
4 Filter
5 Foot
6 Safety switch
7 Grille for heating elements
8 Indicator lamp

Instructions for Use

Unpacking the Appliance

1. Remove the appliance from its packaging.
2. Remove all packaging material such as foils, padding, cable holders and cardboard.
3. Fully unwind the cable.

i NOTE:

There might be dust and production residue present on the appliance. We recommend cleaning the device as described under "Cleaning".

Electric Connection

• Make sure the voltage of the appliance (see rating label) matches the mains voltage to be used.
• Set the control knob to 0.
• Connect the mains plug to a properly installed isolated ground socket.

Connected Load

The appliance supports a power input of 1500 W.

CAUTION: Overload:

• When using an extension cord, it must have a cable cross-section of at least 1.5 ~mm^2 .
• Do not use multi-outlet power strips, since this appliance is too powerful.
• Do not connect any other powerful devices to the same electric circuit.

Safety Switch

Your fan heater features a safety switch that disconnects the power supply in case the appliance falls over. The safety switch prevents hazards caused by overheating.

WARNING:

Place the appliance on a smooth, horizontal surface. Avoid carpets in order to prevent failure of the safety switch.

OTE:

The appliance turns on automatically once back in an upright position.

Filter

There is a coarse filter located on the rear side of the appliance. This filter collects and retains dust.

Setting the Temperature

The thermostat constantly switches the fan heater on and off, thereby keeping the temperature at the desired level. Set the desired temperature as followed:

1. Set the temperature control to its highest setting.
2. Once the desired temperature has been reached, slowly turn the temperature control back, until the fan heater switches off audibly. The indicator lamp turns off.

NOTE:

The audible position of the temperature control depends on the ambient temperature.

1. The fan heater will then keep the desired temperature level.

CAUTION:

When not using the appliance, disconnect the mains plug.

Oscillation

The appliance is equipped with an oscillating function in order to provide uniform heating or ventilation.

Use the control knob positions 2a-d to activate and use the oscillating function.

CAUTION:

Never adjust the swiveling mechanism manually. The mechanism could become damaged.

OTE:

The appliance features a swiveling range of approx. 45°.

Fan Operation

If you want to use the device as a fan, turn the function control knob to the fan icon and turn the temperature control to highest position.

Stop Operation

Stop operation by setting the control knob to the 0 position. The indicator lamp turns off. Then disconnect the mains plug from the socket.

Overheat Protection

The device features an overheat protection mechanism causing the device to switch off automatically in case of overheating.

1. Turn the function control knob to 0 position and disconnect the mains plug from the socket.
2. Let the appliance cool down for approx. 10 minutes before using it again.

NOTE:

If the overheat protection mechanism causes the appliance to switch off again after a short period, this might indicate a defect.

1. Switch off the appliance and disconnect it from the mains.
2. Have the appliance checked by your dealer or our customer service.

Cleaning

WARNING:

• Always disconnect from the mains before cleaning and wait until the appliance has cooled down.
- Never immerse the appliance in water to clean it. This may lead to electrical shock or fire.

CAUTION:

• Do not use wire brushes or other abrasive materials.

• Do not use caustic or scouring agents.

• Wipe away dust with a dry cloth.

• Flecks can be removed with a suitably damp cloth.

Cleaning the Filter

Open the filter cover on the rear side. Remove the filter and clean it under running water.

CAUTION:

Let the filter dry completely before using it again.

Technical Data

Model: HL 1097 CB
Power supply: 220-240 V\~, 50 Hz
Power consumption: 1500 W
Protection class: II
Net weight:......approx. 1.45 kg

The right to make technical and design modifications in the course of continuous product development remains reserved.

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Disposal

Meaning of the "Dustbin" Symbol

Protect our environment: do not dispose of electrical equipment in the domestic waste.

Please return any electrical equipment that you will no longer use to the collection points provided for their disposal.

This helps avoid the potential effects of incorrect disposal on the environment and human health.

This will contribute to the recycling and other forms of reutilisation of electrical and electronic equipment.

Information concerning where the equipment can be disposed of can be obtained from your local authority.
