Product type	Centrifugal juice extractor
Brand	Bomann
Model	CB 1082
Power supply	230 V, 50 Hz
Maximum filling capacity	500 ml
Filter material	Stainless steel (estimate)
Delivery contents	Motor base, bowl, centrifugal filter, transparent lid, pusher, juice container, pulp container
Functions	On/off switch, indicator light
Safety devices	Safety lock, stop if lid not locked (estimate)
Cleaning	Removable parts washable with soapy water; filter cleaned with a brush; exterior with a damp cloth
Warranty	24 months

Frequently Asked Questions - CB 1082 BOMANN

How to use the Bomann CB 1082 juice extractor?

Place the juice extractor without transparent lid. Install the centrifuge filter on the shaft. Place the transparent lid and engage the two safety locks. Cut the fruits into pieces. Plug in the appliance and set the switch to on position. Introduce the fruits into the filling opening and push with the pusher. The juice flows into the juice container and the pulp into the pulp container. Do not exceed 500 ml of filling.

What fruits and vegetables can be pressed with the CB 1082?

The appliance is suitable for pressing hard fruits and vegetables such as apples, carrots, beets, etc. Avoid fruits that are too soft or with hard pits. Cut the food into pieces before introducing them.

How to clean the juice extractor?

Always unplug the appliance before cleaning. Wash the containers with soapy water. Clean the centrifuge filter with a brush (caution, it is very sharp). Wipe the exterior with a damp cloth. Never use abrasive products.

What to do if the appliance does not start?

Check that the appliance is plugged into a 230 V outlet and the switch is in the on position. Make sure the transparent lid is correctly locked (both locks must engage). If the problem persists, contact a qualified technician.

What to do if the juice does not flow or the appliance jams?

Immediately turn off the appliance and unplug it. Check that the filter is not clogged. Clean it if necessary. Reduce the quantity of fruits introduced and cut them into smaller pieces. Do not exceed 500 ml.

Is the centrifuge filter difficult to clean?

The filter is very sharp, handle it with care. Use a brush to remove residues. You can rinse it under water. Avoid soaking it for too long.

Is it safe for children?

The appliance should not be used by children without supervision. The filter blades are very sharp. Do not let the cord hang within reach of children. Store the appliance out of their reach.

What is the maximum filling capacity?

The filling capacity is limited to 500 ml. Do not exceed this amount to avoid any malfunction of the appliance.

Does the juice extractor make a lot of noise?

As with any centrifugal extractor, a certain noise level is normal. Place the appliance on a stable and flat surface. If the noise becomes excessive, check that the filter is correctly installed and that the appliance is not clogged.

How to store the juice extractor after use?

Clean all parts and dry them thoroughly. Reassemble the appliance or store the detached parts away from dust. Keep the user manual and original packaging if possible.

USER MANUAL CB 1082 BOMANN

White BOMANN brand juice maker with clear lid and control panel (no visible text or symbols on body)

CB 1082

CE

BOMANN®

Inhalt

Inhoud • Sommaire • Indice • Índice • Indice

Contents • Spis treści • Obsah • Tartalom • Continut • Содержание

D Übersicht Bedienelemente . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Bedienungsanleitung . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Garantie . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

NL Overzicht bedieningselementen....Pagina 3

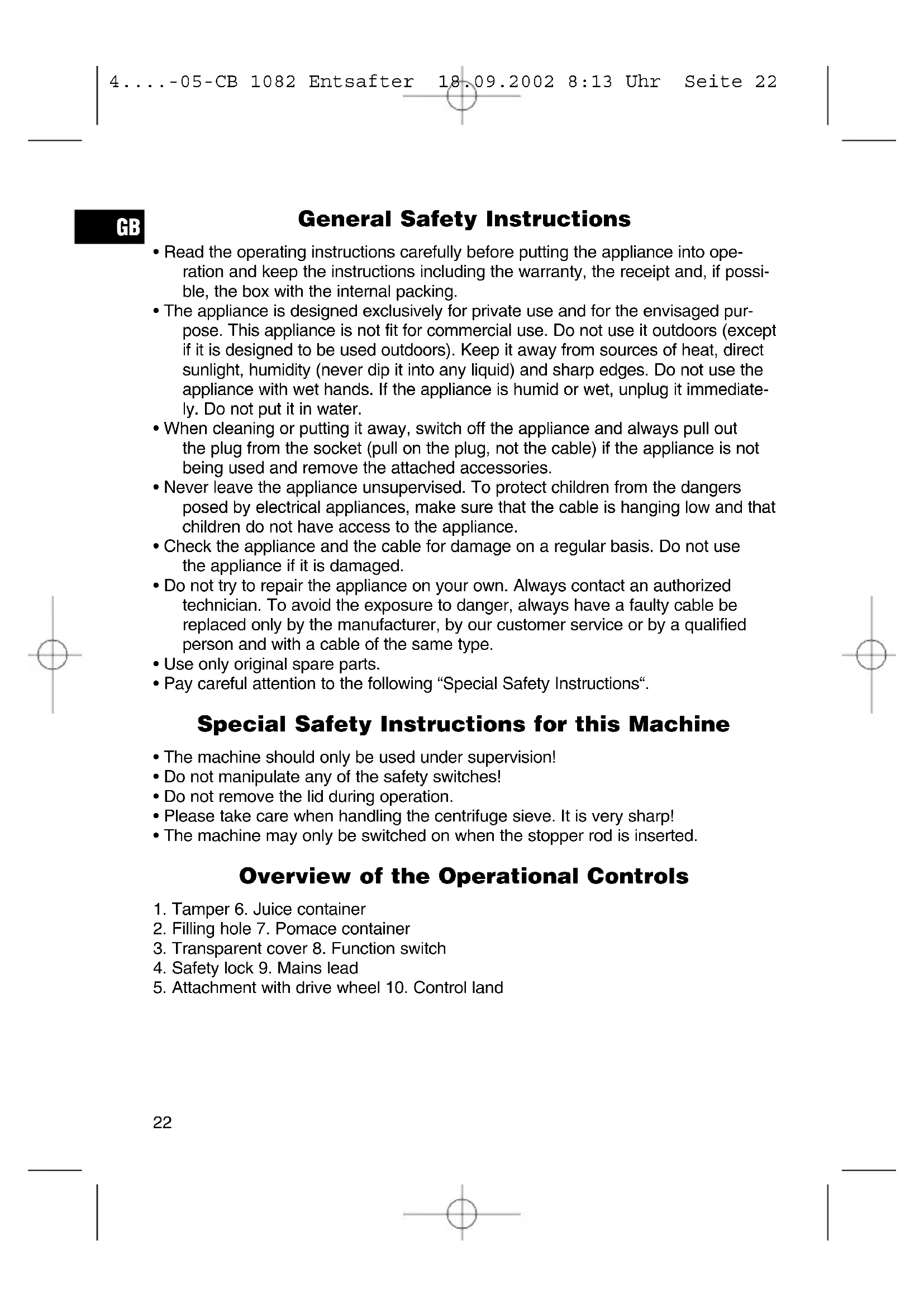

General Safety Instructions

• Read the operating instructions carefully before putting the appliance into operation and keep the instructions including the warranty, the receipt and, if possible, the box with the internal packing.
• The appliance is designed exclusively for private use and for the envisaged purpose. This appliance is not fit for commercial use. Do not use it outdoors (except if it is designed to be used outdoors). Keep it away from sources of heat, direct sunlight, humidity (never dip it into any liquid) and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately. Do not put it in water.
• When cleaning or putting it away, switch off the appliance and always pull out the plug from the socket (pull on the plug, not the cable) if the appliance is not being used and remove the attached accessories.
• Never leave the appliance unsupervised. To protect children from the dangers posed by electrical appliances, make sure that the cable is hanging low and that children do not have access to the appliance.
• Check the appliance and the cable for damage on a regular basis. Do not use the appliance if it is damaged.
• Do not try to repair the appliance on your own. Always contact an authorized technician. To avoid the exposure to danger, always have a faulty cable be replaced only by the manufacturer, by our customer service or by a qualified person and with a cable of the same type.
• Use only original spare parts.
• Pay careful attention to the following "Special Safety Instructions".

Special Safety Instructions for this Machine

• The machine should only be used under supervision!
• Do not manipulate any of the safety switches!
• Do not remove the lid during operation.
• Please take care when handling the centrifuge sieve. It is very sharp!
• The machine may only be switched on when the stopper rod is inserted.

Overview of the Operational Controls

1. Tamper 6. Juice container
2. Filling hole 7. Pomace container
3. Transparent cover 8. Function switch
4. Safety lock 9. Mains lead
5. Attachment with drive wheel 10. Control land

Operation

1. Place the container of the juice extractor (without transparent cover, 3) in position.
2. Position the centrifuge sieve on the drive wheel in such a way that it can turn freely. WARNING! This is sharp! Insert the lid into the left-hand recess.
3. Replace the transparent cover (3) and fix the two safety locks (4) so that they lock in place in the housing.
4. Now cut the fruit from which juice is to be extracted into strips.
5. Ensure that the function switch (8) is in the "OFF" position.
6. Connect the mixer to a properly installed power socket, 230 V, 50 Hz.
7. Put the fruit into the filling aperture (2) and then press in with the stopper(1) rod after switching on.
8. The juice will now flow into the juice container (6). The flesh of the fruit is collected in the pomace container (7).

In order to avoid malfunctions the maximum filling level of 500 ml should not be exceeded.

Cleaning

• Before cleaning remove the mains lead from the socket.
• For cleaning the outside of the machine use only a damp washing-up cloth.
• Do not use any sharp or abrasive detergents.
• Both accessories can be cleaned in soapy water.
• In order to clean the centrifuge sieve, please use a brush.

CAUTION: the centrifuge sieve is very sharp! Danger of injury!

This device has been tested according to all relevant current CE guidelines, such as electromagnetic compatibility and low voltage directives, and has been constructed in accordance with the latest safety regulations.

Subject to technical changes without prior notice!

Guarantee

The device supplied by our Company is covered by a 24 month guarantee starting on the date of purchase (receipt).

During the life of the guarantee any fault of the device or its accessories *) ascribable to material or manufacturing defects will be eliminated free of charge by repairing or, at our discretion, by replacing it. The guarantee services do not entail an extension of the life of the guarantee nor do they give rise to any right to a new guarantee!

Proof of the guarantee is provided by the proof of purchase. Without proof of purchase no free replacement or repair will be carried out.

GB

If you wish to make a claim under the guarantee please return the entire machine in the original packaging to your dealer together with the receipt.

*) Damage to accessories does not mean automatic free replacement of the whole machine. In such cases please contact our hotline. Broken glass or breakage of plastic parts are always subject to a charge.

Defects to consumables or parts subject to wearing (e.g. motor pistons, kneading blades, drive shafts, spare remote control, spare toothbrushes, saw blades, etc.) as well as cleaning, maintenance or the replacement of said parts are not covered by the guarantee and hence are to be paid!

The guarantee lapses in case of unauthorized tampering.

After the expiry of the guarantee

After the expiry of the guarantee repairs can be carried by the competent dealer or repair service against the payment of the ensuing costs.
