USER MANUAL Vaporetto Handy 20 POLTI

VT HANDY_PURE VT HANDY 25_PLUS VT HANDY 20 only HANDY_PURE

only HANDY_PURE only HANDY 25_PLUS only HANDY 20

only HANDY25_PLUS only HANDY_PURE OFF only HANDY20 only HANDY_PURE only HANDY25_PLUS only HANDY_PURE only HANDY25_PLUS only HANDY_PURE only HANDY25_PLUS only HANDY_PURE only HANDY_PURE only HANDY_PURE only HANDY_PURE only HANDY25_PLUS

only HANDY_PURE only HANDY25_PLUS only HANDY20 17| 4 | N. 3 SPAZZOLINI TONDI PICCOLI CON SETOLE IN NYLON

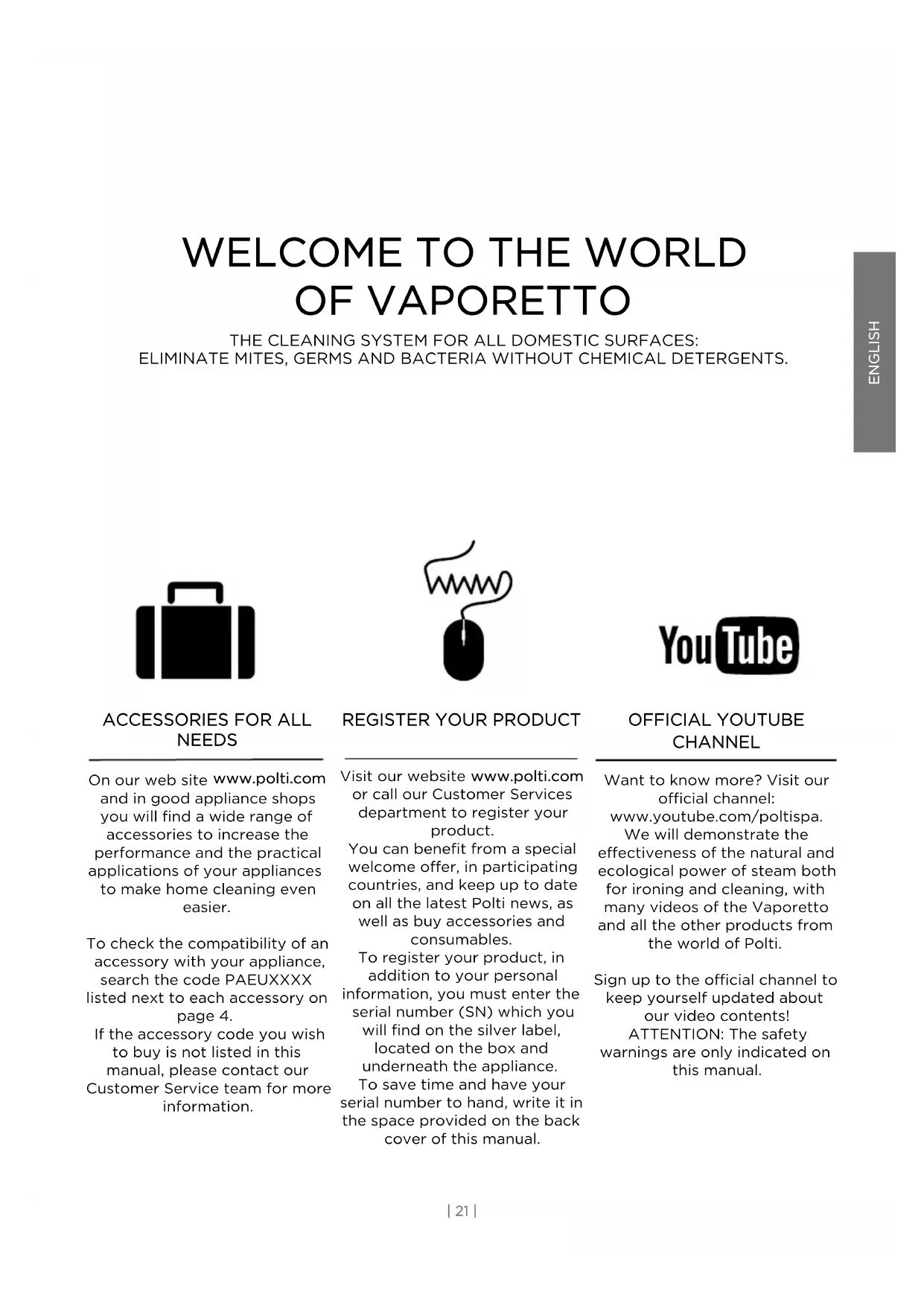

The optional accessories are on sale at all the best domestic appliance retailers, an Authorised Polti Service Centre or online at www.polti.com

NEEDS On our web site www.polti.com and in good appliance shops you will find a wide range of accessories to increase the performance and the practical applications of your appliances to make home cleaning even easier. To check the compatibility of an accessory with your appliance, search the code PAEUXXXX listed next to each accessory on page 4. If the accessory code you wish to buy is not listed in this manual, please contact our Customer Service team for more information.

REGISTER YOUR PRODUCT

Visit our website www.polti.com or call our Customer Services department to register your product. You can benefit from a special welcome offer, in participating countries, and keep up to date on all the latest Polti news, as well as buy accessories and consumables. To register your product, in addition to your personal information, you must enter the serial number (SN) which you will find on the silver label, located on the box and underneath the appliance. To save time and have your serial number to hand, write it in the space provided on the back cover of this manual. OFFICIAL YOUTUBE CHANNEL Want to know more? Visit our official channel: www.youtube.com/poltispa. We will demonstrate the effectiveness of the natural and ecological power of steam both for ironing and cleaning, with many videos of the Vaporetto and all the other products from the world of Polti. Sign up to the official channel to keep yourself updated about our video contents! ATTENTION: The safety warnings are only indicated on this manual.SAFETY WARNINGS

IN THIS MANUAL, AND ON THE APPLIANCE ITSELF. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. Correct use of the product is only as detailed in this instruction manual. Any use which does not comply with these instructions will invalidate the warranty. SAFETY SYMBOLS:

WARNING: High temperature. Risk of scalding!

If shown on the product, do not touch as parts may be very hot.

Risk of scalding! This appliance reaches very high temperatures. Incorrect use of the device can cause scalding.

• Never disassemble or carry out maintenance on the appliance apart from that indicated in this manual. In the event of a fault or malfunction, do not try to repair the appliance yourself. Incorrect use or a lack of respect for the instructions herein may lead to serious accidents. Always contact Authorised Service Centres.

• This appliance must not be used if it has been dropped, if there are visible signs of damage or if it leaks.

• The plug must be removed from the socket before the tank/boiler is filled with water.

• During use there is pressure inside the boiler. Do not remove the boiler cap if the equipment is switched ON.

• To carry out any maintenance or cleaning requiring access to the boiler, ensure that the appliance is switched off at the ENGLISH | 22 |power switch and disconnected from the mains for at least two hours.

• Always unplug the appliance if it is not in use.

• This appliance can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must be supervised to ensure they do not play with the appliance.

• Keep the appliance out of reach of children when it is plugged in or cooling down.

• Keep all the parts of the packaging out of the reach of children; they are not toys. Keep the plastic bag out of the reach of children: danger of suffocation.

• The appliance must not be left unattended if plugged in to the mains.

• Steam must not be directed towards equipment containing electrical components, such as the interior of ovens.

• This appliance is intended exclusively for indoor domestic use. In order to reduce the risk of accidents, including: fires, electrocution, personal injury and scalding, both during use and during preparation, maintenance and storage, always take the basic precautions listed in this manual. RISKS CONNECTED TO THE POWER SUPPLY – ELECTROCUTION

• The earthing system and highly sensitive residual-current circuit breaker, complete with magnetothermic cut-out for your domestic system, guarantee safe use of electrical appliances. Therefore, for your own safety, check that the electrical system to which the appliance is connected complies with current laws.

• Do not connect the appliance to the mains if the voltage does not correspond with that of the domestic electrical circuit in use.

• Do not overload sockets with adaptors and/or transformers. Only connect the product to a single socket with current that is compatible with the plug supplied.

• Electrical extension leads that are unsuitable for the power rating or which are not compliant with law may overheat and ENGLISH | 23 |possibly lead to short circuiting, fire, power outage or damage to the equipment. Only use extension leads which are certified, suitable for the power rating, supporting 16A and earthed.

• Always turn the appliance off before unplugging it.

• To remove the plug from the socket, do not pull the power cable, but hold the plug itself to avoid damage to the plug and the cable.

• Fully unwind the cable from the cable winder before connecting the appliance to the mains and before use. Always use the product with the cable completely unwound.

• Do not pull or jerk the cable or expose it to tensions (twisting, crushing or stretching). Keep the cable away from hot and/or sharp surfaces and elements. Avoid crushing the cables in doors and windows. Do not pull the cable tight around corners. Avoid treading on the cable. Do not wind the power cable around the appliance, especially if the appliance is hot. Do not place the appliance on top of the power cable, this can be dangerous.

• Do not substitute the plug on the power cable.

• If the power cable is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid all possible hazards. Do not use the product if the power cable is damaged.

• Do not touch or use the appliance barefoot and/or with wet body or feet.

• Do not use the appliance near containers full of water, e.g. sinks, baths and swimming pools.

• Never immerse the cleaner in water or other fluid. RISKS DURING USE OF THE PRODUCT – INJURIES/SCALDING

• The product should not be used in areas where there is a danger of explosions or in the presence of toxic substances.

• Do not pour toxic substances, acids, solvents, detergents, corrosive substances and/or explosives or perfumes into the boiler.

• Only pour water or the water mix indicated in the section “Which water to use in the boiler” into the boiler.

• Do not direct the steam jet onto toxic substances, acids, solvents, detergents or corrosive substances. ENGLISH | 24 |• Do not direct the steam jet onto explosive powders or liquids, hydrocarbons, open flames and or extremely hot objects.

• The handling and removal of dangerous substances must be carried out according to the indications of the manufacturers of these substances.

• Do not position the product near sources of heat such as fireplaces, stoves and ovens.

• Do not position the product near electromagnetic fields such as induction plates.

• Re-wind the cable when the appliance is not in use.

• Use the special carry handle for transport. Do not pull the power cable. Do not use the power cable as a handle. Do not lift the appliance using the power cable or the steam hoses/vacuum tubes.

• Do not obstruct the openings and grills on the product.

• Do not direct the steam jet on any part of the body of people or animals.

• Do not direct the steam jet onto clothes while they are being worn.

• Cloths and rags and fabrics which have been subjected to a deep steam reach very high temperatures, above 100°C. Wait a few minutes and check that they have cooled before handling them. Therefore, avoid contact with the skin if they have just been steamed.

• During use, keep the base in a horizontal position on stable surfaces. The steam lock on the handle guarantees greater safety, as it prevents the accidental activation of steam delivery by children or people who are unaware of the function of the appliance. When steam is not being used, engage the steam lock. To continue steam delivery, return the switch to its original position.

• Always use the appliance with the safety cap supplied or an original replacement part. Using non-original Polti safety caps can lead to accidents.

• When accessing the pressurised boiler (removing the cap, filling up), ensure that the appliance has been switched off at the power switch and disconnected from the mains for at ENGLISH | 25 |least two hours, allowing it to cool. There is a risk of accidents while the boiler is switched on/hot and pressurised.

• Do not connect the appliance with the safety cap removed. Carefully tighten the safety cap before plugging in and turning on the appliance.

• Before turning on the appliance, check that there is nothing blocking the mouth of the boiler (filler bottle, funnel, or other objects), and that the safety cap is closed.

• Check that the safety cap is correctly tightened; if steam is escaping from the cap, switch off the boiler, unplug the power cable, wait for two hours for the appliance to cool, and then unscrew. Check the condition of the safety cap and seal. If the cap is in good condition, screw it back on completely. If steam continues to escape from the cap, leave it to cool for 2 hours, then take the appliance to the nearest authorised service centre.

• Periodically check the condition of the safety cap and seal. Impact and being dropped may compromise the safety of the cap. Replace with an original spare part or replace the seal.

• If the cap spins freely, this indicates that the boiler is still pressurised and therefore hot. Never force the cap open, whether the appliance is switched on or the boiler is switched off and the appliance is disconnected from the mains. Always wait for the boiler to cool for 2 hours before opening the cap without forcing it.

• Do not use tools to unscrew the cap. If the cap cannot be removed, even once the appliance has cooled, go to your nearest authorised service centre.

• WARNING Never fill the boiler as soon as the safety cap has been opened when the boiler is still hot, even if the appliance is unplugged from the mains. On contact with the hot, empty boiler, cold water will evaporate producing a spray of steam which can cause burns. Only fill the boiler when cold and always keep your face away from the boiler mouth when filling.

• The use of non-original Polti caps and disregard for the instructions in this manual constitutes improper use. Polti S.p.A. declines all liability for any accident deriving from any improper use of this appliance. ENGLISH

| 26 |CORRECT USE OF THE PRODUCT

This appliance is intended for internal dome- stic use as a steam cleaner, in accordance with the descriptions and instructions contai- ned in this manual. Please read these instruc- tions carefully and keep them. If this manual is lost, it can be consulted and/or downloaded from the website www.polti.com. Never leave the appliance exposed to weathering. POLTI S.p.A. reserves the right to make the aesthetic, technical and construction changes it deems necessary, without prior notice. Before leaving our factory all our products are rigorously tested. This is the reason why your Vaporetto may contain some residual water in the boiler. Correct use of the product is only as detailed in this instruction manual. Any other use may damage the appliance and invalidate the war- ranty.

INFORMATION FOR USERS

Pursuant to European Directive 2012/19/EU, regarding electric and electronic appliances, this appliance must not be disposed of with domestic waste, but sent to an official collection facility. This appliance complies with EU Directive 2011/65/EU. The crossed-out bin symbol on the appliance indicates that, at the end of its useful lifespan, the product must be disposed of separately from other waste. Therefore, at the end of its life, the user must hand over the appliance to an appropriate collection centre for electric and electronic waste or, according to the legislation in force in the country, leave the used appliance with the distributor when buying a new product to replace it. Proper separate waste collection to facilitate the subsequent recycling, treatment and environmentally compatible disposal of the appliance helps to prevent negative effects on the environment and human health, and promotes recycling of the materials the product is made of. Unlawful disposal by the owner may result in the sanctions envisaged by current legislation.

WHICH WATER TO USE IN THE

BOILER This appliance has been designed to function with medium-hardness tap water between 8°f and 20°f. If the tap water is very hard, do not just use demineralised water but a mix composed of 50% tap water and 50% demineralised water which is widely available to purchase.

Warning: check the hardness of the water at

the technical office at your local council or the local water supplier. If you only use tap water, you can reduce the formation of limescale by using the special Kalstop (PAEU0094) anti-limescale product, distributed by Polti, and available for sale at all major domestic-appliance stores or online at www.polti.com. Do not use distilled water, undiluted demineralised water, rain water or water containing additives (e.g. starch, perfumes), scented water or water produced by other domestic appliances, by water softeners and filter jugs. Do not add chemical, natural, detergent, or limescale removing substances, etc.

1. PREPARING FOR USE

1.1 Remove the appliance from the packaging,

checking that the product is whole and that all the parts are there.

1.2 Unscrew the safety cap (1) and fill the

boiler with 0.75 l of water (if completely empty), making sure it does not overflow, using the special funnel (2). Carefully screw the safety cap back on, checking that it is completely closed.

1.3 Open the door of the one-piece socket

and insert the moulded plug until a click is heard (3). Make sure that it is firmly connected before proceeding any further. To release the sheath, simply press the release keys and at the same time remove the moulded plug (4). The steam gun has a safety switch that prevents the accidental starting of the steam delivery by children or people unfamiliar with how the appliance works (5)-(6).

For the Handy_Pure model only, the steam gun has a tank to be used exclusively with FrescoVapor, the natural deodorant that, besides leaving a pleasant fragrance, also captures bad smells. To use FrescoVapor, proceed as described in

1.5 Connect the cable plug to an earthed

ENGLISH | 27 |power supply of the correct voltage (7). Completely unwind the power cable before plugging it into the mains and before use, and always use the appliance with the power cable completely unwound.

1.6 Press the ON/OFF switch (8). The

operating indicator light and the “steam ready” indicator light will come on.

1.7 Wait for the “steam ready” indicator light

to go out (approx. 5 minutes). Vaporetto is now ready for use.

2. CONNECTION OF ACCESSORIES

2.1 To connect the extension tubes to the

grip, the large brush and the lance joint, simply join them to one another until the accessory locking button clicks into place (10). To release the accessories simply hold the button down and separate the components (10). Before using the accessories, make sure that they are firmly in place.

2.2 To connect the small brush with window

cleaner, the spatula, the steam concentrator, the small brushes, and the grout accessory to the flexible hose or the extension hoses, you must first attach the lance connection. Once attached, connect the chosen accessory, aligning the arrows (11), then turn it clockwise (11).

You can optimise the steam flow by means of the steam adjustment knob (9). You can increase the steam flow by turning the control in an anti-clockwise direction. Turning it in a clockwise direction reduces the steam flow. Here are some suggestions for the choice of steam flow level:

Strong steam: for encrusted dirt, stains, sanitising, grease.

Normal steam: for carpets, rugs, glass, tiles etc.

Delicate steam: for vaporising plants and cleaning delicate fabrics, upholstery, wallpaper, parquet, laminate, etc.

4.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

4.2 Connect the extension tubes to the steam

hose and the floor brush to the extension tubes.

4.3 Attach the supplied cloth to the floor

brush, locking it in place with the special lever hooks (12).

4.4 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Medium level steam.

4.5 Deactivate the steam lock (5)-(6) and

continue with steam delivery, pressing the steam trigger on the handle of the steam hose.

4.6 Clean the floors by moving the brush

5.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

WARNING: If steam is escaping from the

safety cap, switch the appliance off and unplug it from the mains. Wait for one two for the appliance to cool before unscrewing the cap and screwing it back on.

WARNING: Never leave the filling bottle or

the funnel resting on the mouth of the boiler, with the product connected to the power supply, since this could cause burns.

WARNING: When first operating steam,

there may be some drops of water mixed with the steam due to temperature imbalances. Direct the first jet of steam onto a rag. For the Handy_Pure and Handy25_Plus models, some accessories are contained in the base. Before using the appliance on delicate surfaces, ensure that the part in contact with the surface is free from foreign bodies that could cause scratches. Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool.

WARNING: Do not use the appliance

WARNING: For additional safety, test steam

delivery on a hidden part, leave the steamed part to dry to ensure that no changes in colour or deformations have occurred.

WARNING: Before cleaning fabrics with

steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. ENGLISH | 28 |5.2 Connect the extension tubes to the steam hose and the floor brush to the extension tubes.

5.3 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Medium level

5.4 Deactivate the steam lock (5)-(6) and

continue with steam delivery, pressing the steam trigger on the handle of the steam hose.

5.5 Pass the brush without cloth over the

surface to bring dirt to the surface.

5.6 Attach the supplied cloth to the floor

brush, locking it in place with the special lever hooks (12).

5.7 Go back over the surface to collect the

6.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

6.2 Connect the extension tubes to the steam

hose and the floor brush to the extension tubes.

6.3 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Medium level

6.4 Ensure that the steam lock on the handle

is deactivated (5)-(6).

6.5 Attach the supplied cloth to the floor

brush, locking it in place with the special lever hooks (12). Proceed rapidly and without pressing over the carpet, running the brush forward, backward and sideways without pausing too long at the same point.

7.1 Make sure that Section 1 has been followed

and connect the accessories as indicated in

7.2 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Medium level

7.3 Ensure that the steam lock on the handle

is deactivated (5)-(6).

7.4 To clean windows and mirrors, steam the

surface thoroughly to dissolve the dirt. Connect the small brush with window cleaner to the accessory adapter and the flexible hose and go back over the surface to remove the dirt, without dispensing steam. The extension hoses can be connected to the flexible hose to reach high surfaces.

7.5 To clean tiles, attach the cap to the small

brush, connect it to the accessory adapter and the flexible hose and pass over the surface, dispensing steam, in order to eliminate the dirt. The extension hoses can be connected to the flexible hose to reach high surfaces.

8. CLEANING UPHOLSTERY

(mattresses, sofas, car interiors, etc.)

8.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

8.2 Connect the small brush to the steam

8.3 Attach the cap to the small brush.

8.4 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Minimum level of steam.

8.5 Ensure that the steam lock on the handle

is deactivated (5)-(6).

8.6 Press and hold the steam trigger on the

handle of the steam hose and pass over the surface. Before removing the cloth from the brush, wait a few minutes to allow the cloth to cool.

WARNING: Before cleaning fabrics with

steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. If the carpet is very dirty or saturated with cleaning products, do not to insist too much. Results will be evident only after a few uses of Vaporetto.

WARNING: To clean glass surfaces during

cold weather, preheat the windows starting to vacuum from a distance of about 50 cm from the surface.

WARNING: Before cleaning leather or

fabrics with steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. ENGLISH | 29 |9. CLEANING BATHROOM

FIXTURES, GROUTING AND

9.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

9.2 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Maximum level

9.3 Ensure that the steam lock on the handle

is deactivated (5)-(6).

9.4 Press and hold the steam trigger on the

handle and steam the surface thoroughly to dissolve the dirt. Use a dry cloth to remove the dirt dissolved by the steam. The accessory adapter and one of the following accessories recommended for removing encrusted dirt from very narrow surfaces can be connected to the flexible hose: steam concentrator, small round brush, large round brush, spatula, or grout accessory.

10.1 Make sure that Section 1 has been

followed and connect the accessories as indicated in Section 2.

10.2 Adjust the intensity of the steam by

turning the adjustment knob (9); for this type of surface we recommend Minimum level

10.3 Press and hold the steam trigger on the

handle and direct the jet onto a cloth.

10.4 Use the cloth previously steamed to

clean the surface, avoiding prolonged use on the same spot.

DRAPES Mites and dust can be removed from curtains and drapes by steaming the fabric with just the handle. The steam is able to remove odours and brighten up colours, allowing the fabric to be washed less frequently. For this surface, set the steam to level minimum

11.2 REMOVING STAINS FROM CARPETS

AND UPHOLSTERY Connect the lance, direct the steam directly onto the stain with the greatest angle possible (never vertically with respect to the surface to be cleaned) and place a cloth beyond the stain to collect the dirt that has been “blown” away by the steam pressure. For this surface, set the steam to level minimum

HUMIDIFYING ROOMS To care for your house plants, remove the dust from the leaves using the steam. Steam the surface directly from the handle, at a minimum distance of 50 cm, adjust the steam to the minimum level

Plants breathe better and will be cleaner and brighter. Furthermore, you can also use the steam to refresh spaces, especially those frequented by smokers.

When the product no longer dispenses steam, it means that there is no water in the boiler. To continue with use, proceed as follows:

Unplug from the mains electricity. The different coloured small round brushes allow for a different colour to be used for each surface or environment.

WARNING: Before cleaning fabrics with

steam, consult the manufacturer’s instructions and always carry out a test on a hidden part or on a sample of the material.

WARNING: Do not direct the steam jet

directly onto surfaces.

WARNING: Before cleaning the surface,

always do a test on a hidden part and see how it reacts to the application of steam.

WARNING: Never fill the boiler as soon as

the safety cap is opened. The boiler is still hot, even if the appliance is unplugged. On contact with the hot, empty boiler, cold water will evaporate producing a spray of steam which could cause burns. Only fill the boiler when it is cold and always keep your face away from the boiler opening when filling.

Risk of scalding! ENGLISH | 30 |• Act on the steam request lever until steam flow ceases.

• Wait 10 minutes and remove the safety cap, unscrewing it without force.

• Leave the appliance to cool for at least 10 minutes.

• Filling the boiler as indicated on chapter 1.

• Carefully screw the safety cap back on, checking that it is completely closed.

13. GENERAL MAINTENANCE

To clean the outside of the appliance, only use a damp cloth and tap water. All accessories can be cleaned using running water, ensuring they are completely dry before the next use. After using the brushes, we recommend letting the bristles cool down in their natural position, in order to avoid any deformation. Do not use detergents of any type. Regularly check the status of the coloured washer located in the connector assembly. If necessary, replace with the appropriate spare part, as described below. Carry out the same inspection on the connection seals of the handle of the flexible hose, the extension hoses and the accessory adapter. Every 2 months, rinse the boiler with tap water.

14. KALSTOP optional

Kalstop is the limescale product for appliances with boiler for ironing and steam cleaning. Regular use of Kalstop, every time the tank is filled with water: - Extends the life of the appliance. - Allows emission of a “drier” steam - Prevents limescale build up. - Protects the walls of the boiler. - Contributes to saving energy.

15. ACCESSORY HOLDER BASE

WITH WHEELS only for the Handy_Pure/Handy15_Plus models The smaller accessories are housed in the base (13). In order to access them, press the lever (14) and at the same time lift the upper part of the appliance.

One of the great advantages of this appliance is that it can be taken everywhere, using the wheeled base or the shoulder strap. To move it with the base, only for the Handy_Pure/Handy25_Plus models, make sure that it is attached to the appliance. To attach it, proceed as follows: - First insert the front part, then push the appliance downwards until you hear the lever click (15). - To release the base, press the lever downward (14), and lift the appliance using the handle. For transporting with the carrying strap, make sure that the base is released from the appliance (only for the Handy_Pure/Handy25_Plus models), then hook the carrying strap to the two holes (16)- (17)

17.1 Turn off the appliance and disconnect

from the mains electricity.

17.2 The floor brush can be replaced in the

For the Handy_Pure/Handy25_Plus models only, it is possible to replace the appliance by placing the brush with the hoses and the flexible hose in the parking unit (19)- (20). Wind the power cable around the special cable winders of the extension hoses (20). The smaller accessories can be replaced in the accessory-holder base (13).

only for the Handy_Pure model

WARNING: If, during unscrewing, the cap

spins freely or if steam is escaping, immediately stop the operation, ensuring that the boiler is switched off and the power cable is unplugged from the mains. Wait for the appliance to cool (two hour) and unscrew the cap before removal. TAKE CARE OF YOUR FACE !!! - Remove the damaged washer. - Insert the new washer, attaching it on the steam nozzle and pushing it into place. - Lubricate the gasket with silicone grease or Vaseline, or alternatively with small quantities of vegetable oils.

WARNING: Especially when the appliance

has just been filled, during cleaning and consequently when moving the appliance, a small amount of water may leak out mixed with the steam from the accessories.

WARNING: Never put FrescoVapor in the

boiler. Only use water in the boiler, following the instructions listed in the section 1. ENGLISH | 31 |FrescoVapor is a air freshener that contains natural substances. When mixed with steam it releases a fresh perfume in every space and, thanks to its special composition, it is able to eliminate bad odours. To use FrescoVapor, proceed as follows: - Unscrew the cap (21) of the deodorant reservoir of the steam gun and fill it with FrescoVapor (22). - Screw on the cap. - To adjust the quantity of deodorant, use the adjustment (23), to reduce, to increase. FrescoVapor can be used combined with the steam to clean all surfaces and with all the accessories, as described in the paragraph “Use”. Contents: 200 ml FrescoVapor is on sale at household appliance stores, at Polti authorised service centres or on the site www.polti.com. By increasing the quantity of deodorant, the surface will be slightly damper, since FrescoVapor mixes with the steam being dispensed. To avoid dispensing FrescoVapor, turn the adjustment completely forward ( OFF). The adjustment only determines the quantity of deodorant that mixes with the steam. It does not regulate the quantity of steam. To adjust the quantity of steam, you must use the steam-adjustment dial (9).

WARNING: Before using FrescoVapor on

upholstery, leather, special fabrics and wood surfaces, consult the manufacturer’s instructions and always carry out a test on a hidden part or sample of the material. Allow the steamed part to dry to make sure that no changes in colour or deformations have occurred. ENGLISH | 32 |19. TROUBLESHOOTING If problems persist or are not listed above, please contact a Polti Authorised Service Centre (www.polti.com for the updated list) or contact Customer Services.

he appliance does not turn on. No power. Check that the appliance has been disconnected from the

ains, as indicated in Section 1. Does not dispense steam. Out of water Steam lock activated. The boiler is not yet pressurised. Steam hose trapped or twisted. Add water to the boiler as described in Section 12. Deactivate the steam lock on the handle Wait until the steam indicator light comes on. Check that the steam hose is not trapped or twisted. Steam does not come out and the cap won’t unscrew. Steam button broken. Take the appliance to an Authorised Service Centre. The appliance is pressurized but little steam comes out. Steam adjustment dial set to the minimum. Adjust the position of the dial for the desired increase. Accessories are difficult to assemble. The seals produce friction. Lubricate the seals with silicone grease or Vaseline, or alternatively with a small amount of vegetable oil.

FrescoVapor perfume is not released when using steam. FrescoVapor knob regulation in OFF position. Please check the Frescovapor level. Turn the FrescoVapor regulation knob in min or max regulation. Fill the Frescovapor tank. Steam too damp using FrescoVapor. The steam is mixing with FrescoVapor. Reduce the quantity of FrescoVapor as desired, to reduce the humidity of the steam. FrescoVapor has been to inserted into the boiler. -------------- Take it to Authorized Service Centre ENGLISH | 33 |WARRANTY This appliance is for domestic use only and is guaranteed for two years from the date of purchase against any defects present at the time the goods are handed over; the date of purchase must be proven via a proof of purchase document valid for tax purposes and issued by the seller. For repairs, the appliance must be accompanied by proof of purchase. This warranty does not affect the consumer rights deriving from European Directive 99/44/EC as regards some aspects of sale and warranty of consumer goods, rights which the consumer should uphold against to the seller. This warranty is valid in the countries which adhere to European Directive 99/44/EC. For other countries, local regulations on warranties apply.

WHAT THE WARRANTY COVERS

During the warranty, Polti guarantees free repair of a product with a manufacturing or factory defect and, therefore, the client is not liable to pay for any work or materials. In case of irreparable defects, Polti may replace the product free of charge. To avail of the warranty, the customer should visit one of the Polti Authorised Service Centres or contact Customer Services with proof of purchase from the seller valid for tax purposes and bearing the date of purchase of the product. Without proof of purchase and the relative date of purchase, the work will be charged for. Store the proof of purchase document safely for the whole duration of the warranty.

WHAT THE WARRANTY DOES NOT COVER

• Any fault or damage not deriving from a manufacturing defect.

• Any fault due to improper use or use other than that indicated in the instruction booklet, an integral part of the product sales contract.

• Any defect resulting from force majeure (fires, short circuits) or caused by third parties (tampering).

• Damage caused by the use of non-original Polti parts, and repairs or modifications performed by staff or service centres not authorised by Polti.

• Damage caused by the customer.

• Parts (filter, brush, hose, battery, etc.) damaged by use (consumable goods) or normal wear and tear.

• Any damage caused by limescale.

• Defects resulting from lack of maintenance/cleaning according to the manufacturer’s instructions.

• Assembly of non-original Polti accessories or those that have been modified or which are not suitable for the appliance. Inappropriate use and/or use not compliant with the instructions for use and any other warnings or indications contained in this manual invalidates the warranty. Polti takes no responsibility for any direct or indirect damage to people, objects or animals caused by non-compliance with the instructions indicated in this instruction booklet, regarding warnings for use and product maintenance. To see the up-to-date list of the Polti Authorised Service Centres, visit the website www.polti.com ENGLISH | 34 |FRANÇAIS | 35 |

SÓLO PARA HANDY-PURE
