USER MANUAL HQC486 PHILIPS

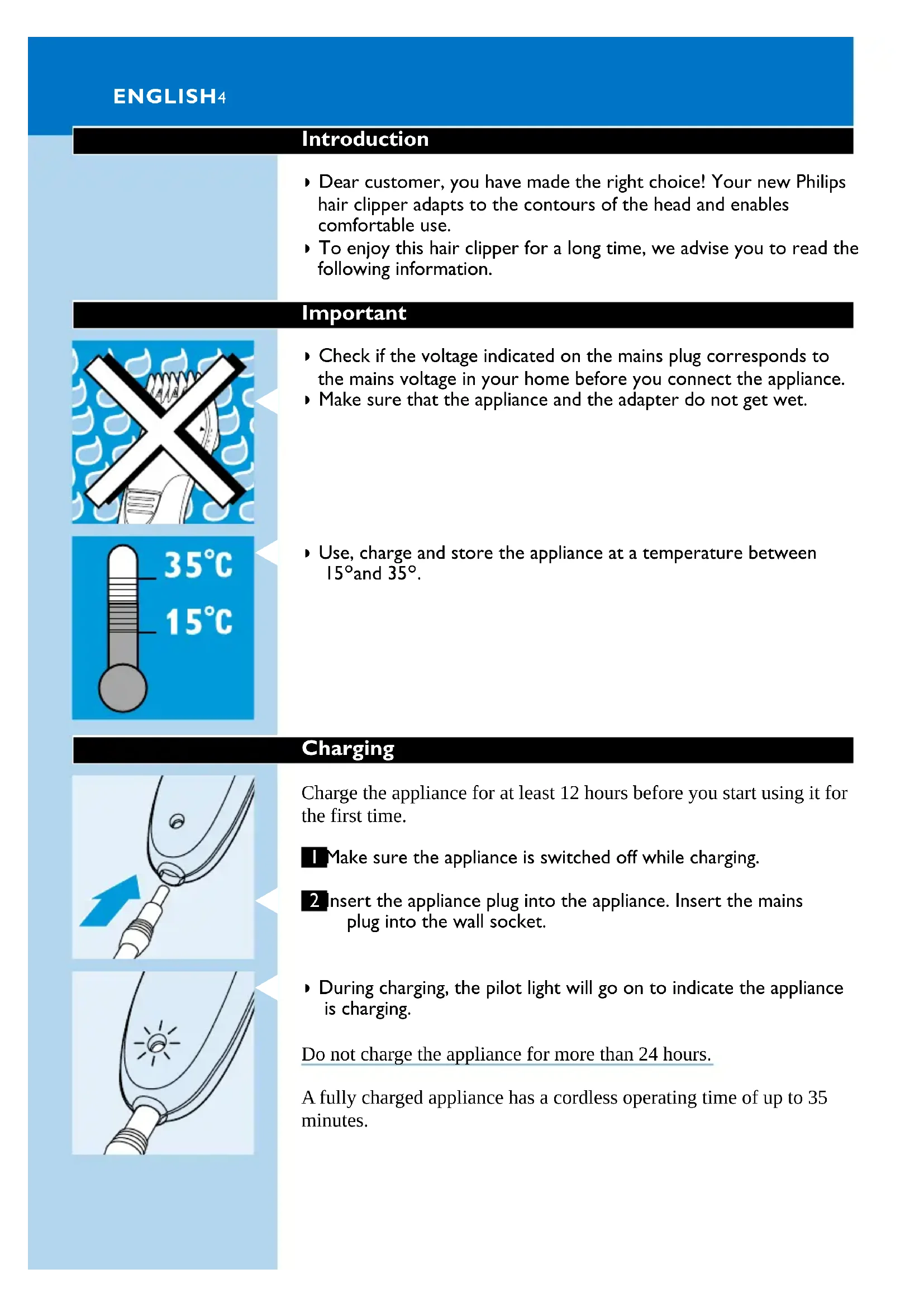

• Dear customer, you have made the right choice! Your new Philips hair clipper adapts to the contours of the head and enables comfortable use.
  To enjoy this hair clipper for a long time, we advise you to read the following information.

Important

• Check if the voltage indicated on the mains plug corresponds to the mains voltage in your home before you connect the appliance.

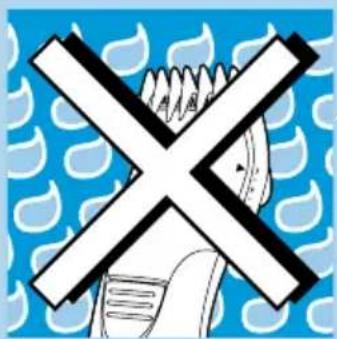

• Make sure that the appliance and the adapter do not get wet.

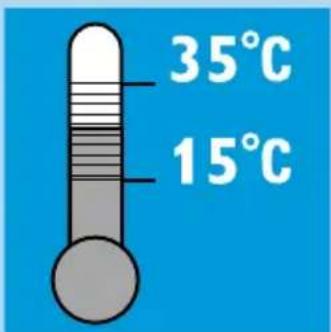

Use, charge and store the appliance at a temperature between 15^ and 35^ .

Charging

Charge the appliance for at least 12 hours before you start using it for the first time.

Make sure the appliance is switched off while charging.

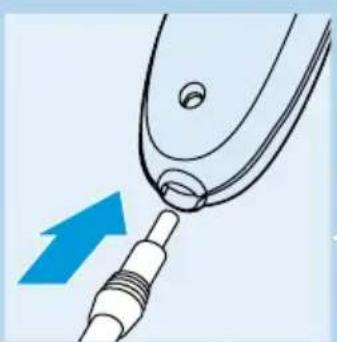

2 Insert the appliance plug into the appliance. Insert the mains plug into the wall socket.

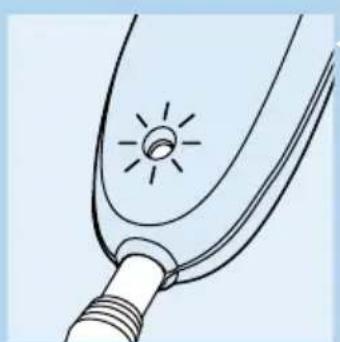

- During charging, the pilot light will go on to indicate the appliance is charging.

Do not charge the appliance for more than 24 hours.

A fully charged appliance has a cordless operating time of up to 35 minutes.

Optimising the lifetime of the battery

• Discharge the battery completely twice a year by letting the motor run until it stops.
• Do not keep the cord plugged into the wall socket all the time.
• If the appliance has not been used for a long period of time, it must be recharged for at least 12 hours.

Cored clipping

To use the hair clipper connected to the mains:

Switch the hair clipper off, connect it to the mains and wait a few seconds before switching it on.

If the battery is completely empty, wait a few minutes before switching the appliance on.

Do not run the appliance from the mains when the battery is fully charged.

Preparing for clipping

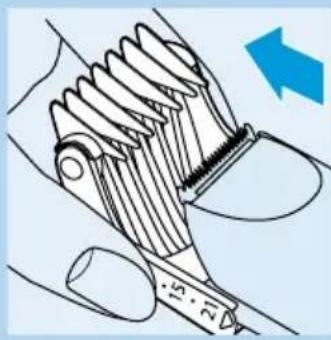

Clipping with comb attachment:

Slide the comb attachment onto the rails on the appliance until you hear a click.

Select the small or large comb attachment, depending on the desired hair length (see table).

2 Make sure that the arms of the comb attachment have been properly slid onto the rails on both sides.

Hair length settings

The hair length settings are indicated in millimetres on the arms of the comb attachment. The settings correspond to the remaining hair length after cutting.

smallcomb largecomb
hair length hair length
3mm 23mm
6mm 26mm
9mm 29mm
12mm 32mm
15 mm 35mm
18 mm 38mm
21mm 41mm

• For clipping techniques, see the booklet supplied with the appliance.

Cleaning

Clean the appliance every time you have used it.

Do not use abrasives, scourers or liquids such as alcohol, petrol or acetone to clean the appliance.

Make sure the appliance is switched off and disconnected from the mains before you start cleaning it.
2 Remove the comb attachment.

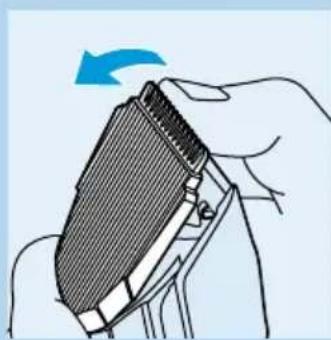

3 Press the middle part of the cutting unit with your thumb until the unit opens and then pull the cutting unit upwards to remove it.

Be careful that the cutting unit does not fall to the floor.

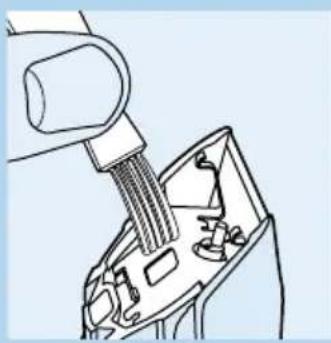

4 Clean the cutting unit and the inside of the appliance with the brush supplied.

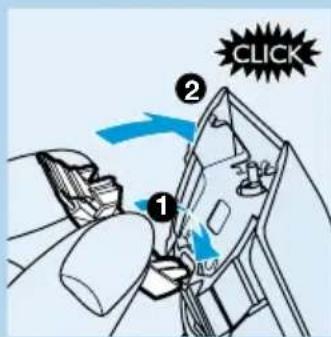

5 Place the two lugs of the cutting unit into the guiding slots and push the unit back onto the appliance.
6 Make sure you push the cutting unit back until you hear a click.

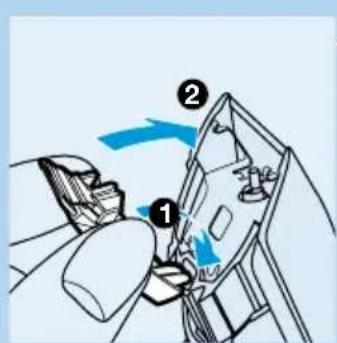

Replacement

A worn or damaged cutting unit should only be replaced with an original Philips cutting unit.

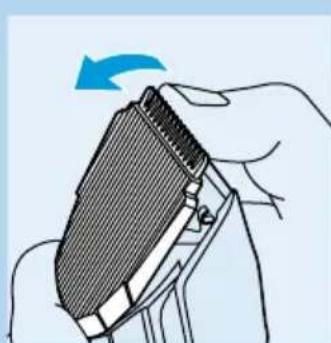

Open the cutting unit by pressing the middle part and then remove it by pulling it upwards.

2 Place the two lugs of the new cutting unit into the guiding slots and push the cutting unit back until you hear a click.

Environment

The built-in rechargeable battery contains substances that may pollute the environment.

Remove the rechargeable battery when you discard the appliance.

Do not throw the battery away with the normal household waste but hand it in at an official collection point.

You can also take the appliance to a Philips service centre, where staff will be happy to help you remove the battery and dispose of it in an environmentally safe way.

Disconnect the appliance from the mains and let the appliance run until the motor stops.

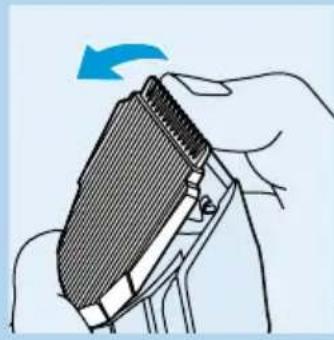

2 Open and remove the cutting unit.
3 Remove the metal clip by means of a screwdriver.

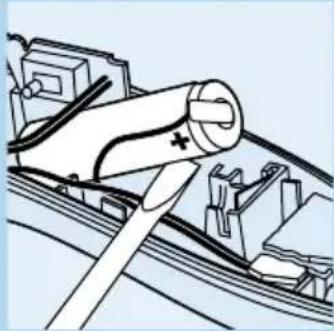

4 Open the housing.

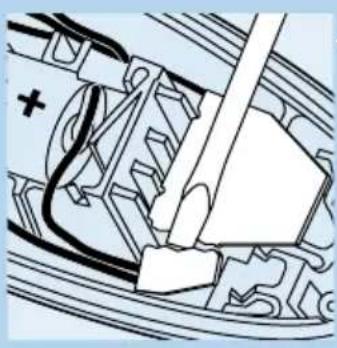

Insert a screwdriver into one of the grooves next to the socket for the appliance plug. Turn the screwdriver to separate the two housing halves.

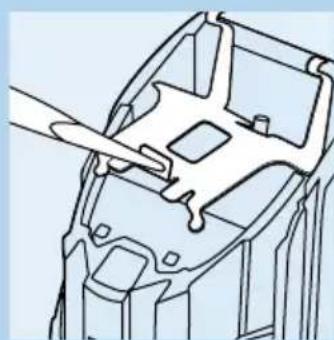

5 insert a screwdriver into the small slot in the printed circuit board marked with an arrow. Push the screwdriver down until part of the printed circuit board breaks off.

6 Pull the battery out of the appliance.

Dispose of the battery and the other components in an environmentally safe way.

Do not connect the appliance to the mains again after it has been opened!

Information & service

If you need information or if you have a problem, please visit the Philips Web site at www.philips.com or contact the Philips Customer Care Centre in your country (you will find its phone number in the worldwide guarantee leaflet). If there is no Customer Care Centre in your country, turn to your local Philips dealer or contact the Service Department of Philips Domestic Appliances and Personal Care BV.

Einleitung

12mm 32mm
15mm 35mm
18mm 38mm
21mm 41mm

Tia TeXvikeKoupeMaTOs,TeTo EvTuTO Nou TApexEaIe Tn OUsKEUn.

Kaθαρισμός

Creating different hairstyles has become very easy with Philishave's new line of hair clippers. Forget those expensive and time-consuming appointments at the barber's. Create your own hairstyle at home, whenever you want! In the directions for use you can read how to charge, use, clean and store your clipper. In this booklet we show you the basic clipping techniques and how to use them to obtain the haircut you like. You've never done this before? No problem! Read these instructions and you will be able to create a neat, fashionable hairstyle straightaway.

Before you start clipping

Before you start clipping, it is important to familiarise yourself with the Philishave hair clipper by reading the directions for use. To get the best results, stick to the following procedure during clipping.

Before you start clipping we recommend that you do the following.

1 First, find a comfortable place in front of a mirror where the person whose hair you are going to cut can sit down.
2 Make sure that the person's head is at the same level as your chest so that all parts of the head are clearly visible and within easy reach.
3 Comb the hair in the direction of growth. Now you are ready to start clipping.

Tip: to get the best results, only use the hair clipper on dry hair. Do not use it on freshly washed hair.

Basic clipping techniques

Start clipping

Always start clipping the hair at the nape at the longest setting to establish whether you have set the comb attachment to the correct length setting. Adjust the setting, if necessary. When you have used the hair clipper before, start clipping at the longest setting you have previously selected to create the same hairstyle. Use this length setting to clip the whole head.

2 Then use a shorter length setting to clip the areas near the temple and at the nape.
3 Finally, contour the hairline round the ears and at the nape.

Tip: regularly remove cut hair from the comb while clipping.

Clipping with comb attachment

The comb has been specially designed to always keep the cutting element at the same distance from the scalp. The flexible comb easily follows the contours of the head.

If you use the hair clipper with a comb attachment, you can obtain different hair lengths of up to 41 mm. The appliance comes with two comb attachments, offering 14 different hair length settings altogether (see table).

The hair length settings are indicated in millimetres on the arms of the comb attachment.

You can simply slide a comb attachment onto the appliance and choose the desired hair length setting.

Cutting length settings

Small Comb setting	hair length	Large Comb setting	hair length
1 3 mm	8 23 mm
2	6	mm	9
3 9 mm	10 29 mm
4	12	mm	11
5 15 mm		12 35 mm
6	8	mm	13
7	21	mm	14

Please note that with certain hair types the resulting hair length may deviate from the length indicated.

Clipping without comb attachment

You can obtain hair lengths of over 4 cm by using a styling comb or your fingers together with the hair clipper without comb attachment.

Comb a small section of hair upwards against the direction of growth.
2 Lift the hair with the comb or hold it between your fingers until only the length that needs to be cut sticks out.
3 Use the clipper without the comb attachment to cut the hair protruding from the comb or fingers.

The right cutting techniques

Always move the hair clipper AGAINST the direction of hair growth, otherwise it will not cut the hair properly.
- Make sure the comb attachment is always fully in contact with the scalp to obtain an even cutting result.
- Make slow and smooth movements and carefully follow the contours of the head.
Comb the hair frequently to remove cut hair.
- When clipping the crown, pass the clipper slowly over the crown from different directions to achieve an even cutting result.
- Make overlapping passes over the head to ensure that the clipper catches all the hairs that need to be cut.
Comb the hair in the direction of hair growth from time to time so that the clipper can catch the hair more easily.
To achieve a good result with curly, sparse or long and thin hair, use a comb to guide the hair towards the clipper.

Graduation

The Philishave hair clipper not only allows you to cut hair evenly at the same length all over the head, it also enables you to achieve a smooth transition from longer hair on top of the head to shorter hair on the back and sides of the head.

First clip all the hair at the longest setting.
2 Then choose a shorter setting and cut the hair on all parts of the head except the top, where you want the hair to be longer.

3 You can repeat this procedure until the hair on every part of the head has the desired length and a smooth transition between the long hair on the top and the shorter hair on the back and sides of the head has been achieved.

Precise contouring without comb attachment

To contour the hairline round the ears and at the nape, remove the comb attachment by pulling it off the clipper.

Be careful when you are clipping without comb attachment, for the clipper will remove every hair it touches.

Contouring the hairline round the ears

I First comb the hair ends over the ear.
2f necessary, bend the person's ear to get it out of the way.
3 Hold the clipper without comb attachment with the cutter pointing downwards.
4 Place one edge of the cutter onto the skin and then slowly and carefully shape the desired outline.

Always keep the teeth of the clipper at a safe distance from the ears. Tilt the clipper in such a way that only one edge of the cutting element touches the hair ends.

Trimming the sideburns

5 Turn the clipper and hold it with the cutter pointing downwards.
6 Cut only the hair ends. The hairline should be close to the ear.

Contouring the nape hairline

7 Use the clipper without the comb attachment and hold it with the cutter pointing downwards.
8 Make slow and steady downward strokes.
9 Do not place the clipper too high up on the back of the head. Follow the natural hairline.
10 Do not try to comb the hair downwards with the clipper, as the appliance will remove all the hair it touches.

Create your favourite haircut!

The Philishave hair clipper has been designed to give you optimum freedom when cutting hair at home. With its 14 different hair length settings and a styling comb the possibilities are nearly endless. Of course, the results depend on the type of hair, your own personal taste and creativity. To make sure you get good results right from the start, we have selected a few hairstyles. The following hairstyles give you an idea of what can be achieved with a Philishave hair clipper. The numbers indicated in the picture are the settings used to create each particular style.

Short and simple

Use the small comb.

Hair length settings:

sides: 9 mm

top: 18 mm

Long on top and short on the sides of the head

Hair length settings:

lower part of back and sides: 9 mm

upper part of back and sides: 18 mm

top:41mm

Fashionably short

Hair length settings:

nape: 9 mm

lower part of back and sides: 12 mm

upper part of back and sides: 18 mm

top: 32 mm

Curly hair

Hair length settings:

nape: 6 mm

lower part of back and sides: 15 mm upper part of back and sides: 21 mm

top: with clipper over fingers

Remember your personal settings!

Clipping with the Philishave hair clipper is much easier than it looks. After a few haircuts you can experiment with other settings than the ones mentioned above. You will see that there are many possibilities. To help you remember the settings you have used for yourself and others, simply fill in the Personal Setting Table at the end of this booklet.

Personal Setting Table

Name:

nape:

lower part of back and sides:

upper part of back and sides:

top:

Name:

nape:

lower part of back and sides:

upper part of back and sides:

top:

Name:

nape:

lower part of back and sides:

upper part of back and sides:

top:

Einführung

O1 owoTeCs TExVikEcs KoImuToCs

Na 1eakiei e navta nV koupueukn mXavn ANTIOETA aio Tn foopa twv tpiXwv, aaiwcs ta aalia 6ev tha konouv owoTa.
Bebaiomegaite oTo EAptnma TnC XTevac Eival navTa Oe nnpnn Eanp nE To Kefal yia va EITUXETO OoiOpopa anoteleouata OTO KoUpeua.
Kavte apyec kal aatae c kivnoeic kal akolouthetaiote pooektka TIC kaPTuAeTou Kefaaiou.
XTeviEe Ta maAia TAKIka yia va aphipeoet E TIG KOmuEvEc TpiXeS.
OTAV KOUPEUETO NAVW MEOCTOU KEaIou, TEPaote TNV KOUPEUTIKN Mxavn apya ano TO NAVW MEOC aTIO diaOpETIKc KaTeuOvOeIC yia va EITUXETE ooiOOPo aNTeAeOma.
KavTE eTavaaNTIKA TepaOmaTa NAVW ano To KefalYia va a i OTI N KOUPEUTIKN Mxavn TIaVcI Ola Ta MaAIA Toun PpETeI VA KOIOUV.

Ava diaotnmuata xTeviZeTe Ta paAia npoc Tn opa Tov TpiXwv EtoI wote n KOUpeutikn mynavn va niavei Ta paAia TIO Eukoia.
Iia va eituyte eva kao anoteloeu ma tata katoapapa, apai a n kaipia kal eTTa maalia, xpoioonote u xteva yia va kateuovete ta maalia npoc Tny KOUPEUTIKn mXavn.

△iaβaθμiση

H Koupeutikn mynxavn Philipshave oac eitipeniei movo va KoupéuTE Ta maalia ocag ooiopopa oTo iio uKoC oO to Kefa, aAa eionc oac divei Tn duvatotnta va eituxte eva Ouao nepaa ano ta maakputepa maaiia oTo naW uEpoC tou Kefaioou oTa Kovtutepa maaiia oTo niow uEpoC kai oTa nnaiiva epn Tou Kefaioiu.

Tpwa koupépsi 0la ta maalia oTo eyautepo nkoC.
2 Meta eiléxi e iia uipotepn puoion kai koyte ta aalia oAoTo Kefai EKTO ano To navw epoc, Tou thelte Ta maalia va eivai TIO paaki.
3 Mnpoeite va eTavaaIaeTe autn Tn diaikaoia expi Ta a i 0E kaOe MPoTou KcphiaiouvaexouvTO EINuHTo mkoCkai unapxoi maIo nepaosa avaeoa Ota paakia MaAIA Tou Navw MPouc Tou Kcphiaioukai OTA Kovtutepa oTo Niow MPocKai Ota PAAivTou Kcphiaiou.

Koupema akpiBεia xwpiC To xTevac

Tia va koupéψετe Ta μaλla yúρω anó Ta autiá kal στο σβερko, βγαλτε To εξαρτημa Tnç xTévac Tpaβωvτac To anó Tny Koupεutikn μnxavn.

Na eioTE pooektikoi otav koupeuEe XwpiT O EApTma TnC xTevac, yiaTI n koupeutikn mnxavn 0a aphaipoei oTnla Tpixa akoumuTnoEi.
