Product type	Wall-mounted extractor hood
Brand	Gaggenau
Model	AW560190
Width	560 mm
Depth	350 mm
Height (installation)	430 to 650 mm (above the cooking surface)
Weight (extraction mode)	27.7 kg
Weight (recirculation mode)	29.1 kg
Electrical supply	230 V, 50 Hz, earthed plug
Total power	Not specified (bulbs 20 W max per bulb)
Number of speeds	3 speeds + intensive (5 min automatic)
Lighting	2 halogen bulbs 12 V, 20 W max, G4 socket, with dimmer
Special functions	Delayed shut-off (10 min), intermittent ventilation (5 min/hour), filter saturation indicator
Grease filters	Metal, dishwasher safe, monthly cleaning recommended
Activated carbon filter	Optional for recirculation mode, annual replacement
Operating modes	External extraction or recirculation (with activated carbon kit)

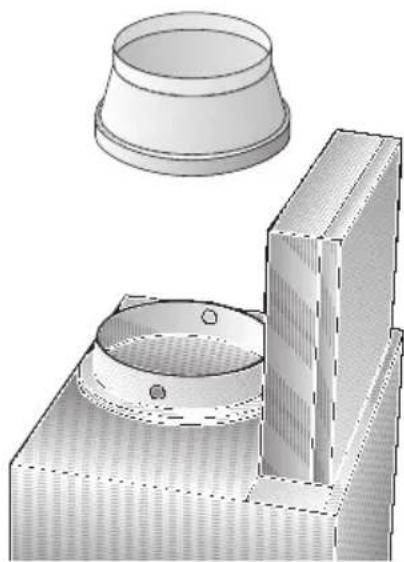

Duct diameter	150 mm (120 mm with reducer)

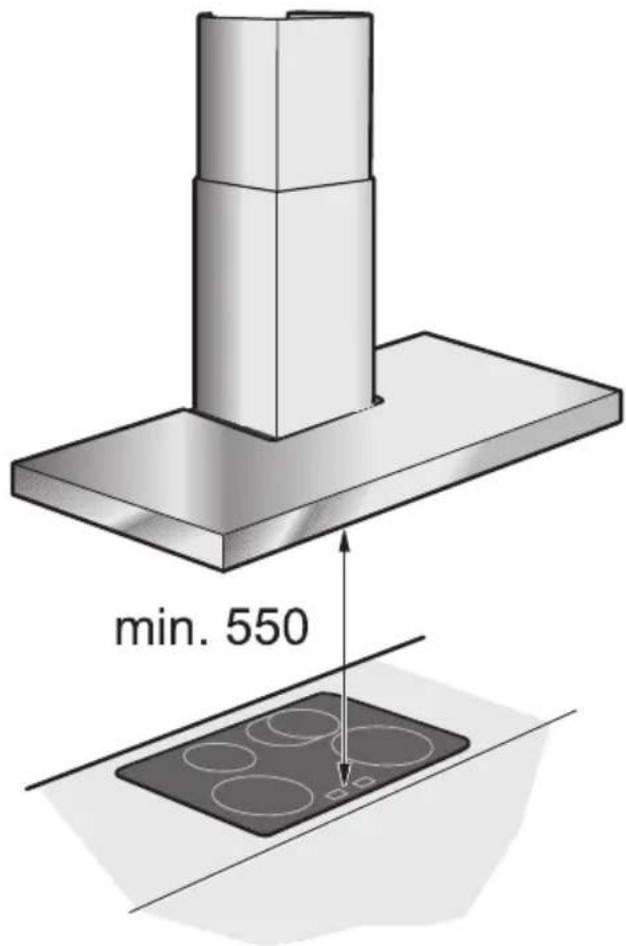

Minimum distance (electric)	550 mm
Minimum distance (gas)	650 mm
Material	Stainless steel, glass, aluminium, plastic
Repairability	Bulbs and filters replaceable (original parts recommended)

Frequently Asked Questions - AW560190 GAGGENAU

How to clean the metal grease filters?

The metal grease filters can be cleaned in the dishwasher or by hand with hot water and dish soap. With normal use (1-2 h/day), clean them once a month. After cleaning, reinsert them and press the F button to reset the saturation indicator.

How to replace the activated carbon filter?

Replace the activated carbon filter once a year. To do so, first remove the metal grease filters, then the air deflector plate. Install the new filter by clipping the side tabs, then replace the plate and grease filters. Use only genuine Gaggenau filters.

How to replace a halogen bulb?

Turn off the power supply. Remove the bulb ring with a screwdriver, replace with a halogen bulb 12 V, 20 W max, G4 socket (handle it with a clean cloth). Re-engage the ring and restore power.

What to do if the hood does not respond to the buttons?

Unplug the hood from the power supply for about one minute, then plug it back in. If the problem persists, contact customer service.

How to set the delayed shut-off?

First press the desired speed (1, 2, 3 or Int), then press the delayed shut-off button. The hood will automatically stop after 10 minutes. The lighting remains on.

Can I use the hood with a gas cooker?

Yes, but keep a minimum distance of 650 mm between the cooking surface and the lower edge of the hood. Never operate all burners at full power for more than 15 minutes. Use the hood at maximum power if three or more burners are on.

How to activate intermittent ventilation?

Press the 0 button and one of the speed buttons (1, 2 or 3) simultaneously. The hood will run for 5 minutes every hour. To deactivate, press the 0 button.

What does the flashing of the letter F mean?

The F indicator flashes after 30 hours of operation to indicate that the metal grease filters need cleaning. Clean them and press the F button to reset the signal.

How to install the hood in recirculation mode?

You must use a recirculation kit (recirculation duct AD560-112 or AD560-122) and an activated carbon filter. The recirculation duct redirects filtered air back into the kitchen. Follow the assembly instructions provided with the kit.

Where to find the after-sales service numbers?

The E and FD numbers are on the rating plate inside the appliance, after removing the filter grille. Note them down before calling Gaggenau customer service.

USER MANUAL AW560190 GAGGENAU

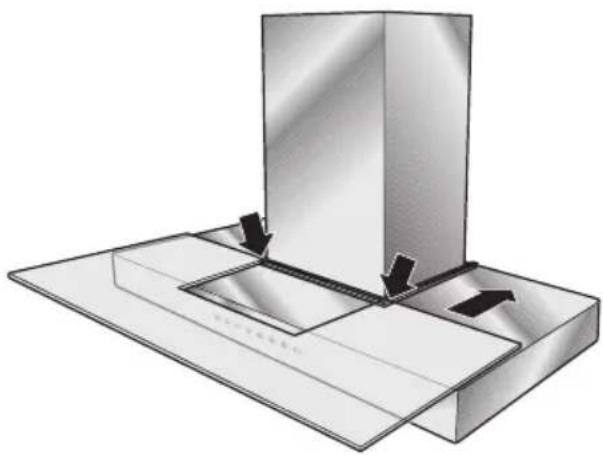

Illustration of a stainless steel kitchen range hood with ventilation grilles and mounting flanges (no text or symbols)

de Seite 3-17

en page 18 - 32

fr page 33 - 47

nl pagina 48 – 62

it pagina 63 - 77

es página 78 - 93

pt página 94 – 108

el Σελίδα 109 – 125

Abb. 1

GAS

GAZ

KAASU

GASS

ELEKTRO

ELECTR.

ELETT.

EL.

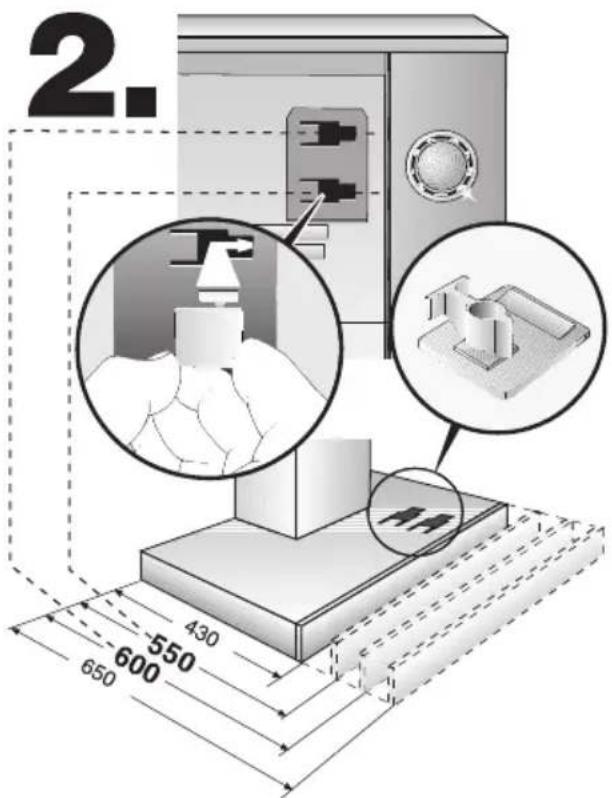

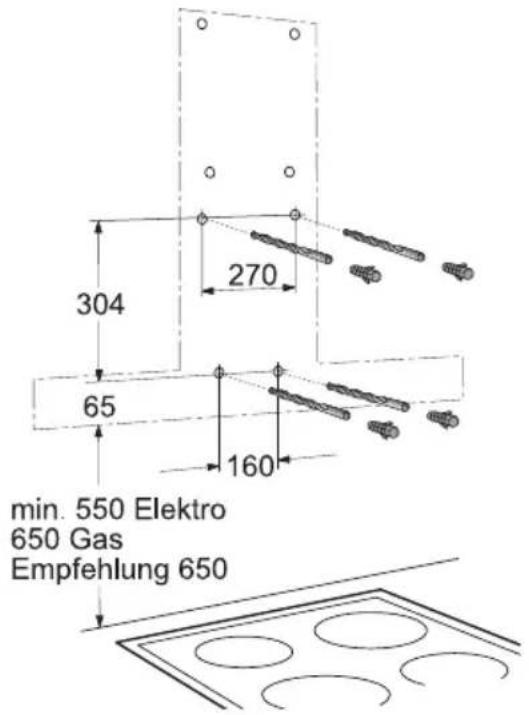

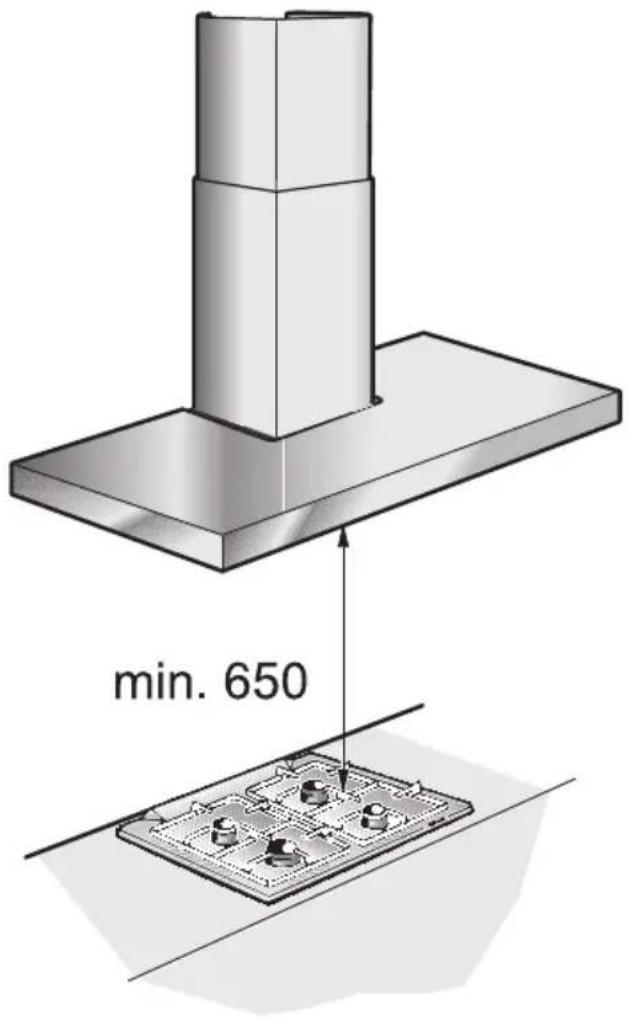

min. 650

min. 550

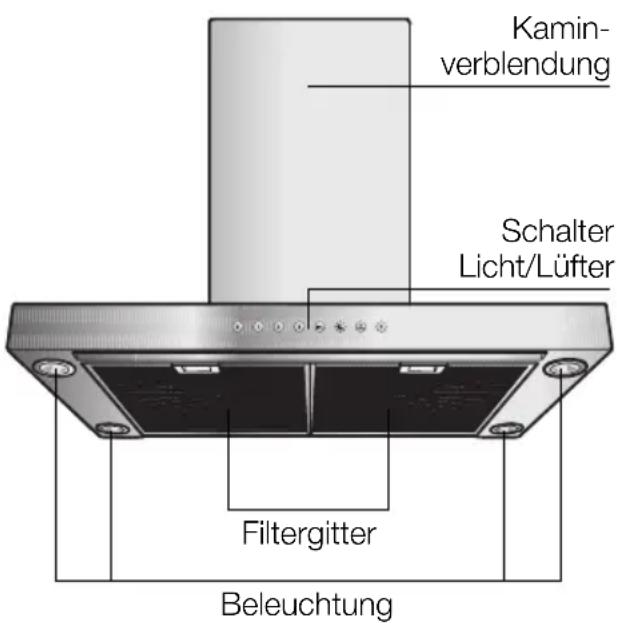

Gerätebeschreibung

Simple line drawing of a trash bin with no text or symbols

Transportsicherung:

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Diagram of a mechanical press or cutting tool with arrows indicating force application (no text or symbols present)

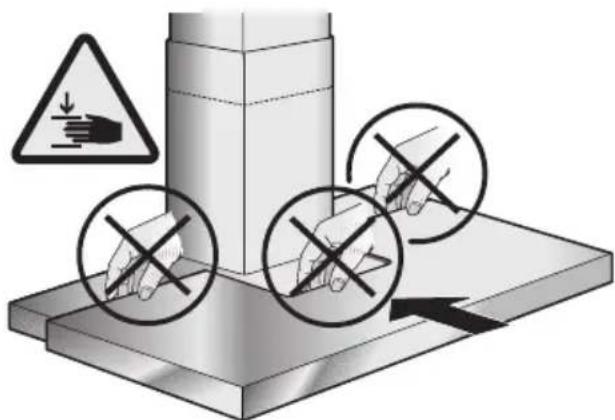

Diagram illustrating safety hazard with hand and cross symbols, showing incorrect handling of a hand and incorrect handling of a tool or device.

Diagram of a cabinet or rack with mesh insulation and directional arrows indicating movement (no text or symbols)

Diagram of a kitchen appliance with arrows indicating directional movement (no text or symbols)

Illustration of hands holding a device with a magnified circular view showing internal components (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Illustration of hands holding a sheet of material with arrows indicating process, no text or symbols present

Diagram illustrating safety hazard with hand crossed out, warning sign, and directional arrow

Safety warning illustration showing hand cleaning and no-watching symbols with Chinese text

Illustration of a metallic tool with a circular handle and handle, no text or symbols present.

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

Diagram of a mechanical or fluid system with directional arrows and layered components (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

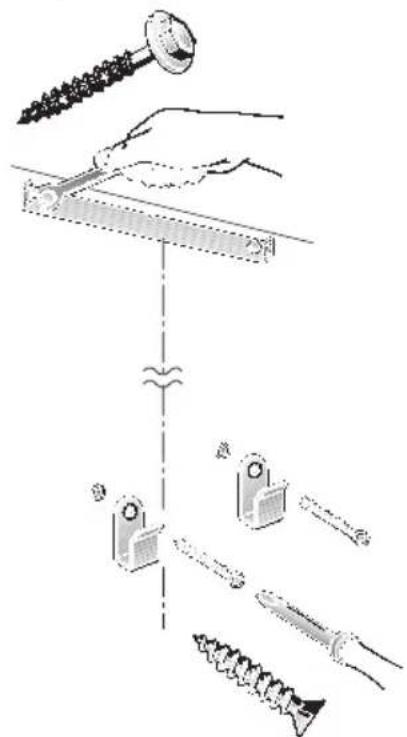

Diagram illustrating the installation of screw and pin components with labeled parts and assembly steps

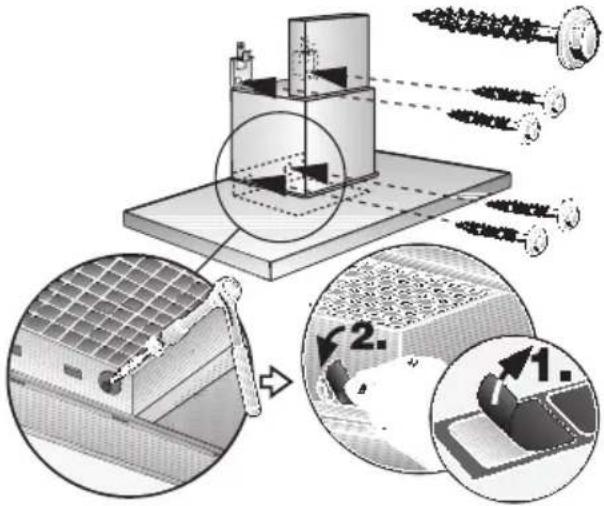

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Einbauen

Technical illustration of mechanical assembly with three views showing structural components (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and process steps, including magnified views of the component.

Diagram illustrating a device with labeled components and a magnified view showing a device with a lock mechanism.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

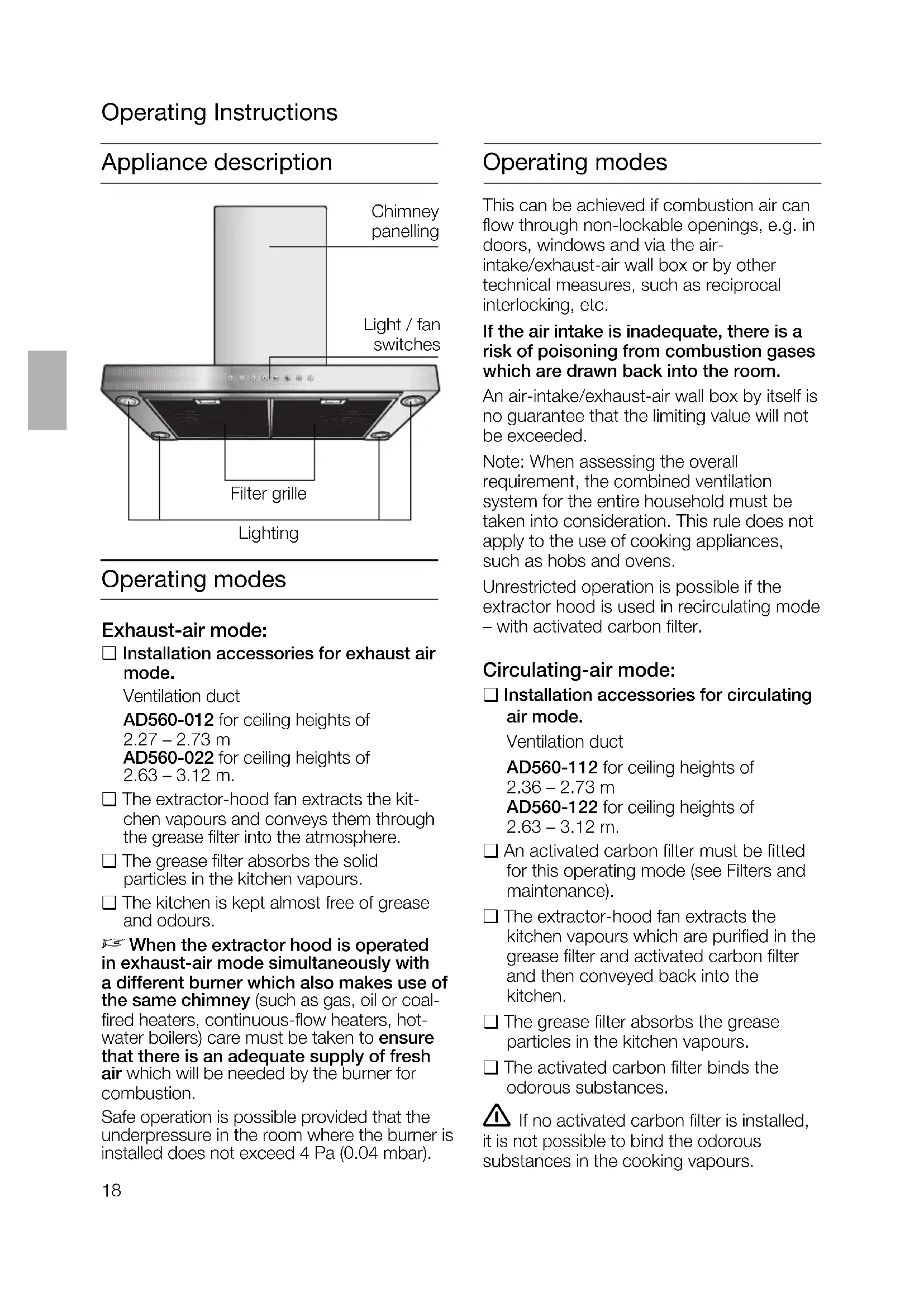

Operating Instructions

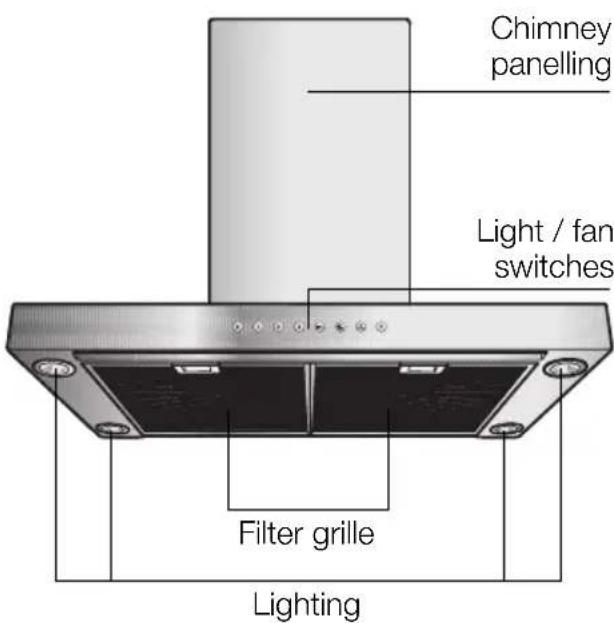

Appliance description

Chimney panelling Light / fan switches Filter grille Lighting

Operating modes

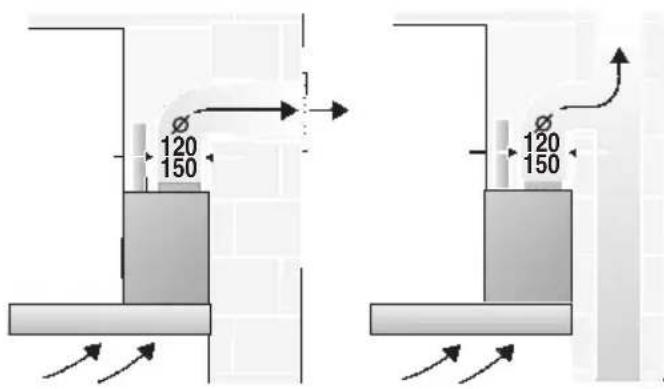

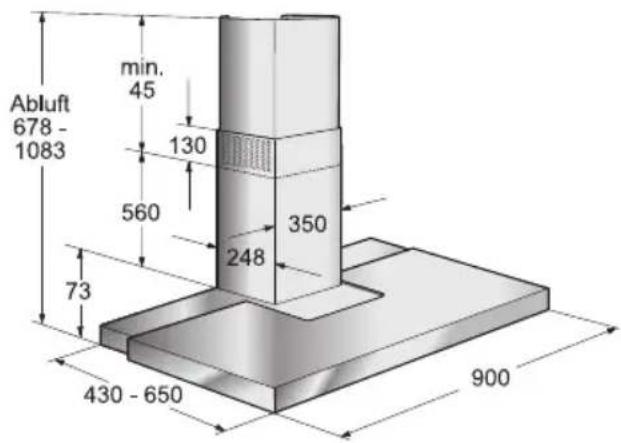

Exhaust-air mode:

□ Installation accessories for exhaust air mode.

Ventilation duct

AD560-012 for ceiling heights of 2.27 - 2.73 m

AD560-022 for ceiling heights of 2.63 - 3.12 m.

☐ The extractor-hood fan extracts the kitchen vapours and conveys them through the grease filter into the atmosphere.

☐ The grease filter absorbs the solid particles in the kitchen vapours.

☐ The kitchen is kept almost free of grease and odours.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

Operating modes

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

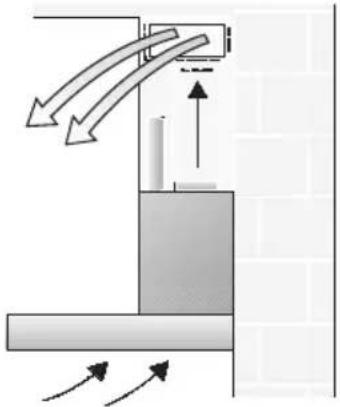

Circulating-air mode:

□ Installation accessories for circulating air mode.

Ventilation duct

AD560-112 for ceiling heights of 2.36 - 2.73 m

AD560-122 for ceiling heights of 2.63 - 3.12 m.

☐ An activated carbon filter must be fitted for this operating mode (see Filters and maintenance).

☐ The extractor-hood fan extracts the kitchen vapours which are purified in the grease filter and activated carbon filter and then conveyed back into the kitchen.

☐ The grease filter absorbs the grease particles in the kitchen vapours.

☐ The activated carbon filter binds the odorous substances.

⚠️ If no activated carbon filter is installed, it is not possible to bind the odorous substances in the cooking vapours.

Important notes:

☐ The Instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
☐ This extractor hood complies with all relevant safety regulations.

Repairs should be carried out by qualified technicians only.

Improper repairs may put the user at considerable risk.

☐ Before using your appliance for the first time, please read these Instructions for Use carefully. They contain important information concerning your personal safety as well as on use and care of the appliance.
☐ Please retain the operating and installation instructions for a subsequent owner.

☐ This appliance is labelled in accordance with European Directive 2002/96/EG concerning used electrical and electronic appliances (waste electrical and electronic equipment – WEEE). The guideline determines the framework and recycling of used application applicable throughout the

Simple line drawing of a trash bin with no text or symbols

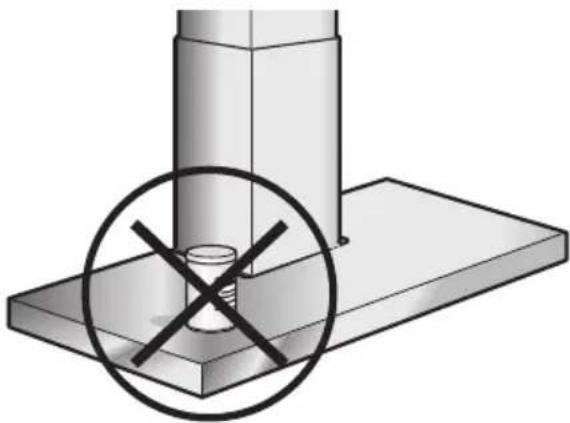

Transportation protection device:

☐ The transportation protection device prevents the filter drawer from sliding out.
☐ Check that the fitter has removed the transportation protection device (see installation manual).
☐ Please retain the transportation protection device in case you move house.

Gas hobs / Gas cookers

Do not use all the gas hotplates simultaneously for a prolonged period (max. 15 minutes) at maximum thermal load, otherwise there is a risk of burns if the housing surfaces are touched or a risk of damage to the extractor hood. If the extractor hood is situated over a gas hob, operate the hood at maximum setting if three or more gas hotplates are operated simultaneously.

Safety instructions

Do not flambé food directly under the extractor hood.
Risk of grease filter catching fire due to flames.

⚠ The hotplates must always be covered with a utensil.

⚠️ Restrictions apply to the use of the extractor hood over a solid-fuel burner (coal, wood, etc.). (See Installation instructions).

Do not use the appliance if damaged.

The appliance is not intended for use by young children or infirmed persons without supervision.

Young children should be supervised to ensure they do not play with the appliance.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

⚠ The appliance may be connected to the mains by a qualified technician only.

⚠ Dispose of packaging materials properly (see Installation instructions).

This extractor hood is designed for domestic use only.

Light bulbs must always be fitted when the extractor hood is in use.

⚠️ Defective bulbs should be replaced immediately to prevent the remaining bulbs from overloading.

⚠️ Never operate the extractor hood without a grease filter.

Overheated fat or oil can easily catch fire. If you are cooking with fat or oil, e.g. chips, etc., never leave the cooker unattended.

⚠️ Carefully clean the extractor hood before switching on for the first time. ⚠️ Do not place any objects on the extractor hood.

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

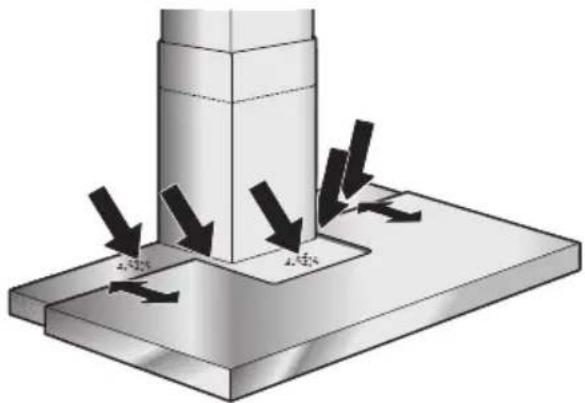

The sliding surfaces of the filter drawer must not be dirty. Slide marks may occur. However, these will not impair function.

3D diagram of a mechanical press or cutting tool with arrows indicating force application (no text or symbols present)

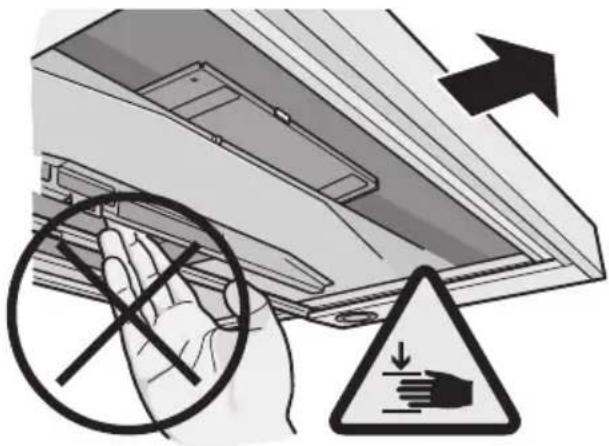

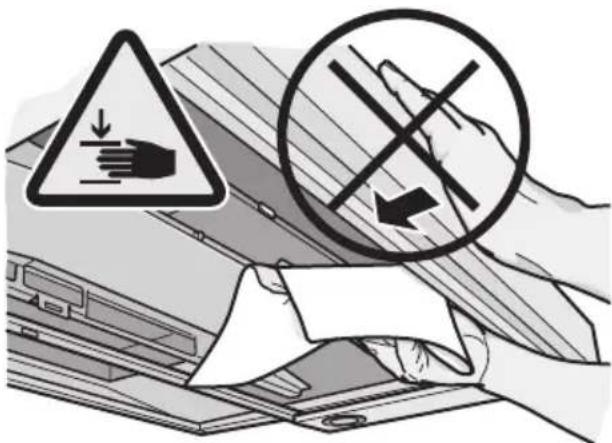

When moving the filter drawer, do not place hand in the marked areas, danger of crushing!

Safety warning illustration showing hand holding a tool with crosshair symbols and warning symbol

⚠ The most effective method of removing vapours produced during cooking is to:

☐ Switch the ventilator ON as soon as you begin cooking.
☐ Switch the ventilator OFF a few minutes after you have finished cooking.

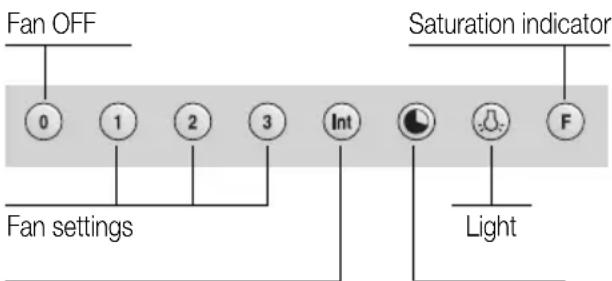

Fan OFF 0 1 2 3 Int Saturation indicator Fan settings Light

Intensive setting Fan follow-on

☐ Press the 1, 2 or 3 button or pull out the filter drawer.

If you pull out just the filter drawer, the fan switches to setting 2.

Maximum power is obtained at the intensive setting. It is only required for short intervals.

☐ The Int key for the intensive level should be pressed when browning and frying in an open pan.
If you have switched on the hood by selecting the intensive level, it will be switched off again automatically after 5 minutes.
☐ If you press the Int key while the hood is running at fan level 1, 2 or 3, the electronic control will switch back automatically to the previously selected fan level after 5 minutes.
☐ If you would like to end the intensive level before the five minutes have elapsed, press the 0 key ("Motor off") or select a different level. It is possible to switch off the extraction function at any time by pressing the 0 key (motor "off").

Special functions:

Intensive time:

☐ You can set the intensive level running time to 3, 5 or 10 minutes by simultaneously pressing the Int key and the 1, 2 or 3 key and you can store this setting. When delivered, the appliance is set to five minutes, i.e. the combination of the Int key and the key 2.

Fan follow-on:

☐ Delayed shut-off is possible at any level. First press the required key 1, 2, 3 or Int and then press the Key.

The delayed shut-off time for all levels is ten minu-tes. After these ten minutes, the ventilation switches off, but the lighting stays on.

Interval ventilation:

☐ Interval ventilation is a special feature of this appliance which periodically activates the fan for five minutes every hour. You can activate this function by simultaneously pressing the 0 key and, depending on the required extraction capacity, the 1, 2 or 3 key.

This mode of operation is indicated by alternating illumination of the key together with the corresponding fan level indicator.

You can switch off interval ventilation by pressing the 0 key.

Lighting:

□ Briefly press the button to switch the light on and off.
☐ The light can be switched on at any time, even though the fan is switched off.
□ Adjusting the brightness:

Hold down the button until the desired brightness is obtained.

Filters and maintenance

Grease filters:

Metal filters are used to trap the greasy element of the vapours that develop during cooking.

The filter mats are made from non-combustible metal.

Caution:

As the filter becomes more and more saturated with grease, not only does the risk of it catching fire increase but the efficiency of the extractor hood can also be adversely affected.

Important:

By cleaning the metal grease filters at appropriate intervals, the possibility of them catching fire as a result of a build-up of heat such as occurs when deep-fat frying or roasting is taking place, is reduced.

Saturation indicator: F

The grease filter saturation display F flashes after an operating time of 30 hours to you indicate to you that you should clean the grease filter. The grease filters can of course be cleaned at any time, even if the grease filter saturation display has not started to flash.

Cleaning the metal grease filters:

☐ In normal operation (1 to 2 hours daily), the metal grease filter must be cleaned 1 x a month.
☐ The filters can be cleaned in a dish-washer. It is however possible that they will become slightly discoloured.
☐ The filter must be placed loosely, and NOT wedged, in the dishwasher.

Important:

Metal filters that are saturated with grease should not be washed together with other dishes etc.

□ When cleaning the filters by hand, soak them in hot soapy water first of all. Do not use aggressive, acidic or caustic cleaners.
Then brush the filters clean, rinse them thoroughly and leave the water to drain off.

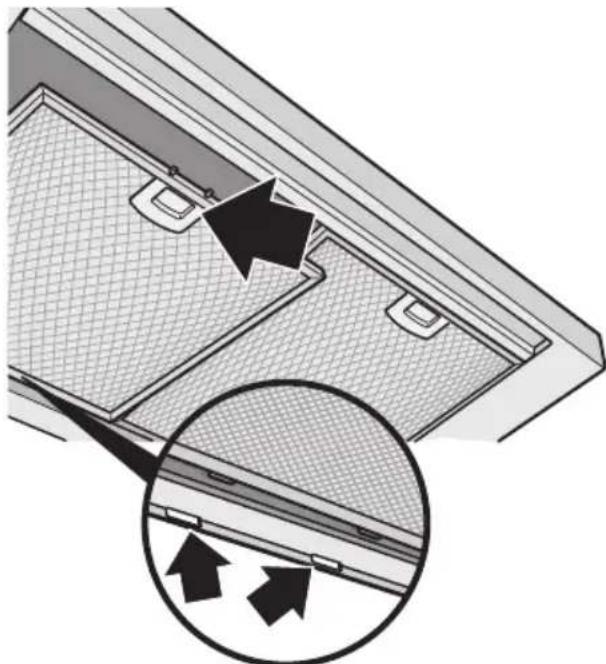

Removing and inserting the metal grease filters:

Warning: The halogen bulbs must be switched off and cool.

⚠️ Before changing the grease filters, ensure that the filter drawer has been pushed in.

1. Press the catches on the front grease filters and fold down the grease filters.

Diagram of a double door with ventilation grilles and a magnified inset showing airflow direction (no text or symbols)

1. Press the catches on the rear grease filters and fold down the grease filters.

Diagram of a kitchen appliance with arrows indicating directional movement or force (no text or symbols present)

1. Clean the grease filter.
2. Insert the clean filters back into the hood.
3. Cancel the F in the display.
   □ Press the button F.

Filters and maintenance

Activated carbon filter:

For neutralizing odours in recirculating mode.

Caution:

As the filter becomes more and more saturated with grease, there is an increased risk of fire and the function of the extractor hood may be impaired.

Important:

Change the activated carbon filter promptly to prevent the risk of fire from the accumulation of heat when deep-fat frying or roasting.

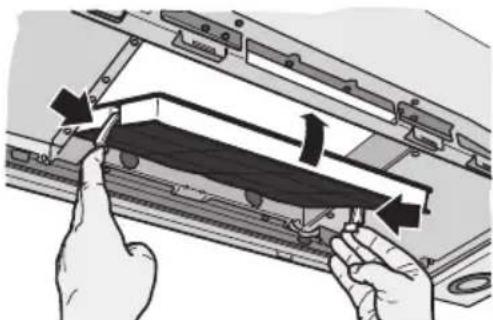

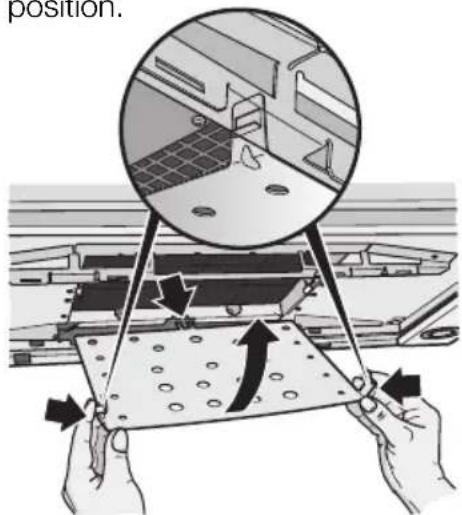

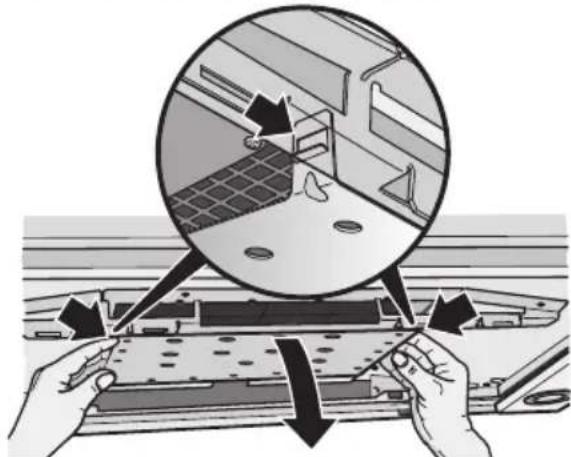

Inserting the filter:

Warning: The halogen bulbs must be switched off and cool.

⚠ Before changing the grease filters, ensure that the filter drawer has been pushed in.

1. Remove the metal-mesh filters (see "Removing and inserting the metal-mesh grease filters").
2. Remove the air conduction plate.

Illustration of hands holding a car with a magnified circular view showing interior components (no text or symbols)

1. Insert the activated carbon filter. The catches at the side must lock into position.

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

1. Re-insert the air conduction plate. The catches at the side must lock into position.

position.

1. Insert the metal grease filters (see "Removing and inserting the metal grease filters").

Replacing the activated carbon filter:

☐ During normal operation (1 to 2 hours per day) the activated carbon filters should be replaced approximately 1 x year.
☐ A replacement filter can be obtained from any authorized dealer (see optional accessories).
□ Use original filters only. By doing so you will obtain maximum performance from your extractor hood.

Disposing of the old activated carbon filter:

☐ There are no pollutants in the activated carbon filters. They can therefore be disposed of as part of your normal domestic refuse.

Cleaning and care

Isolate the extractor hood by pulling out the mains plug or switching off the fuse.

Do not clean the extractor hood with abrasive sponges or with cleaning agents which contain sand, soda, acid or chlorine!
⚠️ Tofacilitate cleaning, pull out the filter drawer. Do not catch hand between the filter brackets, danger of crushing!

Diagram illustrating safety hazard with hand holding crossed-out electrical panel, warning sign indicating inspection, and directional arrows

⚠ Do not insert the filter drawer while cleaning it. Danger of crushing!

Safety warning illustration showing hand holding a device with warning symbol and crossed-out hand gesture

□ Clean the extractor hood with a hot soap solution or a mild window cleaner.
☐ Do not scrape off dried-on dirt but wipe off with a damp cloth.

☐ When cleaning the grease filters, remove grease deposits from accessible parts of the housing. This prevents the risk of fire and ensures that the extractor hood continues operating at maximum efficiency.
☐ Note: Do not use alcohol (spirit) on plastic surfaces, as dull marks may appear.

Caution: Ensure that the kitchen is adequately ventilated. Avoid naked flames!

⚠ Clean the operating buttons with a mild soapy solution and a soft, damp cloth only. Do not use stainless-steel cleaner to clean the operating buttons.

Stainless steel surfaces:

□ Use a mild non-abrasive stainless steel cleaner.
□ Clean the surface in the same direction as it has been ground and polished.
☐ We recommend our stainless steel cleaner no. 461731. See enclosed service booklet for order address.

Aluminium and plastic surfaces:

□ Do not use dry cloths.
□ Use a mild window cleaning agent.
☐ Do not use aggressive, acidic or caustic cleaners.

Air conduction plate:

☐ The air conduction plate can be removed for cleaning.

For removal and installation see Filter and Maintenance – Activated carbon filter.

Observe the warranty regulations in the enclosed service booklet.

Replacing the light bulbs

1. Switch off the extractor hood and pull out the mains plug or switch off the electricity supply at the fuse box.
   When switched on, the halogen bulbs become very hot. Even for some time after the bulbs have been switched off there is still a risk of burns.
2. Remove the bulb ring with a screwdriver or similar tool.

Illustration of a magnifying glass with handle and circular lens (no text or symbols)

1. Replace the halogen light bulb (conventional halogen bulb, 12 Volt, max. 20 Watt, G4 bulbholder). Caution: Plug-in bulbholder. Take hold of the bulb with a clean cloth.

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

1. Re-insert the bulb ring.
2. Restore the power by inserting the mains plug or switching on the fuse.

Note: If the light does not function, check that the bulbs have been inserted correctly.

If you encounter a problem

If an F appears in the display:

☐ See "Filters and maintenance" Section.

If is not possible to operate the extractor hood:

☐ Disconnect the extractor hood from the mains electricity supply by pulling out the plug or switching it off at the main fuse box. Wait for approx. 1 minute and then switch it on again.

If you have any questions or if a fault occurs, please call Customer Service.

(See list of Customer Service representatives).

When you call, please quote the following:

E-Nr.

FD

Enter the relevant numbers into the box above. The E-Nr. (product no.) and FD (production date) are shown on the nameplate which can be seen inside the extractor hood after the filter frame has been detached.

⚠ The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Important information

⚠️ Old appliances are not worthless rubbish. Valuable raw materials can be reclaimed by recycling old appliances. Before disposing of your old appliance, render it unusable.
⚠️ You received your new appliance in a protective shipping carton. All packaging materials are environmentally friendly and recyclable. Please contribute to a better environment by disposing of packaging materials in an environmentally-friendly manner.
Please ask your dealer or inquire at your local authority about current means of disposal.
⚠ The extractor hood can be used in exhaust air or circulating air mode.
⚠️ Always mount the extractor hood over the centre of the hob.
⚠️ Minimum distance between electric hob and bottom edge of extractor hood: 550 mm, Fig. 1.
⚠ The extractor hood must not be installed over a solid fuel cooker – a potential fire hazard (e.g. flying sparks) – unless the cooker features a closed, non-removable cover and all national regulations are observed.
⚠ The smaller the gap between the extractor hood and hotplates, the greater the likelihood that droplets will form on the underside of the extractor hood.

Additional information concerning gas cookers:

⚠ When installing gas hotplates, comply with the relevant national statutory regulations (e.g. in Germany: Technische Regeln Gasinstallation TRGI).
⚠️ Always comply with the currently valid regulations and installation instructions supplied by the gas appliance manufacturer.
⚠️ Only one side of the extractor hood may be installed next to a high-sided unit or high wall. Gap at least 50 mm.
⚠️ Minimum distance on gas hotplates between the upper edge of the trivet and lower edge of the extractor hood: 650 mm, Fig. 1.

Exhaust-air mode:

□ Installation accessories for exhaust air mode.

Ventilation duct

AD560-012 for ceiling heights of 2.27 - 2.73 m

AD560-022 for ceiling heights of 2.63 - 3.12 m.

120 150 120 150

Abluft 678 - 1083 min. 45 130 560 248 350 73 430 - 650 900

The exhaust air is discharged upwards through a ventilation shaft or directly through the outside wall into the open.

Exhaust air should neither be directed into a smoke or exhaust flue that is currently used for other purposes, nor into a shaft that is used for ventilating rooms in which stoves or fireplaces are also located.

Exhaust air may be discharged in accordance with official and statutory regulations only (e.g. national building regulations).

Local authority regulations must be observed when discharging air into smoke or exhaust flues that are not otherwise in use.

When the extractor hood is operated in exhaust-air mode simultaneously with a different burner which also makes use of the same chimney (such as gas, oil or coal-fired heaters, continuous-flow heaters, hot-water boilers) care must be taken to ensure that there is an adequate supply of fresh air which will be needed by the burner for combustion.

Safe operation is possible provided that the underpressure in the room where the burner is installed does not exceed 4 Pa (0.04 mbar).

This can be achieved if combustion air can flow through non-lockable openings, e.g. in doors, windows and via the air-intake/exhaust-air wall box or by other technical measures, such as reciprocal interlocking, etc.

If the air intake is inadequate, there is a risk of poisoning from combustion gases which are drawn back into the room.

An air-intake/exhaust-air wall box by itself is no guarantee that the limiting value will not be exceeded.

Note: When assessing the overall requirement, the combined ventilation system for the entire household must be taken into consideration. This rule does not apply to the use of cooking appliances, such as hobs and ovens.

Unrestricted operation is possible if the extractor hood is used in recirculating mode – with activated carbon filter.

If the exhaust air is going to be discharged into the open, a telescopic wall box should be fitted into the outside wall.

Prior to installation

For optimum extractor hood efficiency:

☐ Short, smooth air exhaust pipe.
☐ As few bends in the pipe as possible.
☐ Diameter of pipe to be as large as possible and no tight bends in pipe. If long, rough exhaust-air pipes, many pipe bends or smaller pipe diameters are used, the air extraction rate will no longer be at an optimum level and there will be an increase in noise.

The manufacturer of the extractor hoods accepts no liability for complaints which can be attributed to the design and layout of the pipework.

Round pipes:
We recommend Internal diameter: 150 mm (at least 120 mm).

☐ Flat ducts must have an internal cross-section that equates to that of round pipes.

There should be no sharp bends.

∅ 120 mm approx. 113 cm

150 mm approx. 177 cm ^2

☐ If pipes have different diameters: Insert sealing strip.

☐ For exhaust-air mode, ensure that there is an adequate supply of fresh air.

Circulating-air mode

□ Installation accessories for circulating air mode.

Ventilation duct

AD560-112 for ceiling heights of 2.36 - 2.73 m

AD560-122 for ceiling heights of 2.63 - 3.12 m.

□ With activated carbon filter if exhaust-air mode is not possible..

Diagram of a mechanical or fluid system with directional arrows indicating flow or movement (no text or symbols present)

Connecting a 150 mm exhaust-air pipe:

□ Mount the pipe directly onto the air outlet on the hood.

Connecting a 120 mm exhaust-air pipe:

☐ Attach the reducing connector directly to the air pipe.

3D technical illustration of a mechanical assembly with a conical component and a stepped base (no text or symbols)

☐ Attach the exhaust-air pipe to the reducing connector.

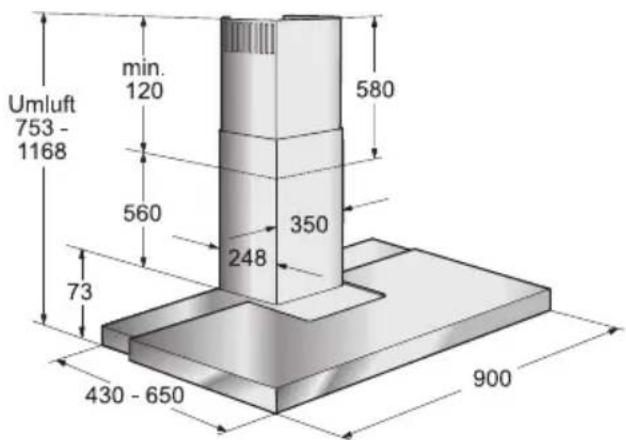

Umluft 753 - 1168 min. 120 580 560 350 248 73 430 - 650 900

Prior to installation

Preparing the wall

☐ The wall must be flat and perpendicular.
☐ Ensure that the wall is capable of providing a firm hold for mounting screws and plugs.

Weight in kg:

Exhaust air Recirculating air
27,7 29,1

We reserve the right to construction changes within the context of technical development.

Electrical connection

WARNING: THIS APPLIANCE MUST BE EARTHED

IMPORTANT: Fitting a Different Plug:

The wires in the mains lead are coloured in accordance with the following code:

Green and Yellow – Earth

Blue - Neutral

Brown – Live

If you fit your own plug, the colours of these wires may not correspond with the identifying marks on the plug terminals.

This is what you have to do:

1. Connect the green and yellow (Earth) wire to the terminal in the plug marked 'E' or with the symbol (≡), or coloured green or green and yellow.
2. Connect the blue (Neutral) wire to the terminal in the plug marked 'N' or coloured black.
3. Connect the brown (Live) wire to the terminal marked 'L', or coloured red.

Electrical connection

The extractor hood should only be connected to an earthed socket that has been installed according to relevant regulations.

If possible, site the earthed socket directly behind the chimney panelling.

Electrical data:

Are to be found on the name plate inside the appliance after removal of the filter frame.

⚠️ Before undertaking any repairs, always disconnect the extractor hood from the electricity supply.

Length of the connecting cable: 1.30 m. If it is necessary to wire the extractor hood directly into the mains:

The extractor hood should only be connected to the electricity supply by a properly qualified electrician.

A separator must be installed in the household circuit. A suitable separator is a switch that has a contact gap of more than 3 mm and interrupts all poles. Such devices include circuit breakers and contactors.

⚠️ If the connecting cable for this appliance is damaged, the cable must be replaced by the manufacturer or his customer service or a similarly qualified person in order to prevent serious injury to the user.

This extractor hood corresponds to EC regulations concerning RF interference suppression.

Installation

This extractor hood is intended to be mounted onto the kitchen wall.

1. Remove the grease filter (refer to Operating Instructions).
2. Draw a line on the wall from the ceiling to the lower edge of the hood at the centre of the location where the hood is going to be mounted.
3. Use the template to mark the points on the wall where the screws will be mounted. In order to make it easier to hook the hood onto the screws, draw the outline of the area where the hood will be attached.

⚠ Ensure that the minimum distance between the hob and the extractor hood is maintained – 550 mm for an electric hob and 650 mm for a gas hob. The bottom edge of the template equates to the lower edge of the extractor hood.

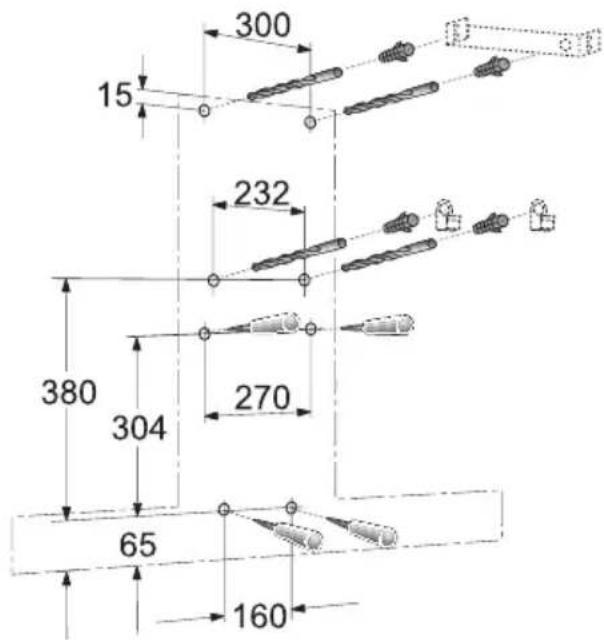

4. Drill 2x 8 mm ∅ holes for the upper fixing bracket and 2x 8 mm ∅ holes for the lower fixing bracket and press in wall plugs flush with the wall.

300 15 232 380 304 270 65 160

Note: Take into account any special accessories that are going to be fitted.
5. Screw on the upper and the two lower fixing brackets.

Diagram illustrating the assembly of screw and pin components, showing how they are assembled into a mechanical clamp.

1. We recommend inserting the enclosed cover plate if the back wall under the chimney is covered with e.g. tiles, natural stone, stainless steel, glass, ...

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Installation

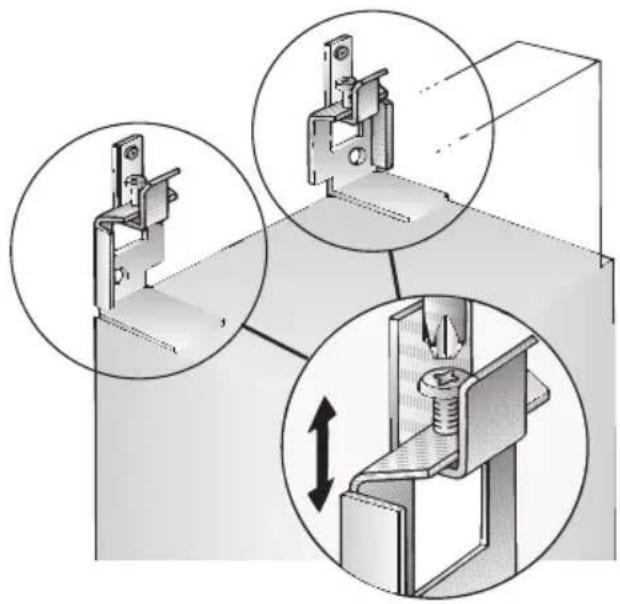

1. Attach the extractor hood.

Adjust the height and align horizontally with the adjusting screws.

⚠️ Remove air conduction plate (see Activated-carbon filter).

⚠️ Check that the 4 lower fixing holes have been correctly marked. If required, mark again.

Technical illustration of mechanical assembly with three views showing structural components (no text or symbols)

1. Remove the extractor hood. Drill the 4 lower 8 mm ø fixing holes and press in the wall plugs flush with the wall.

304 270 65 160 min. 550 Elektro 650 Gas Empfehlung 650

1. Attach the extractor hood and screw into position with the remaining 4 screws.
2. Stick protective film over the holes of the 2 lower mounting bolts in the protective grid.

Technical diagram illustrating a mechanical assembly with labeled components and process steps, including magnified views of structural details.

⚠️ Re-insert air conduction plate (see Activated-carbon filter).

1. Connect up the air outlet pipe.
2. Connect the hood to the electricity supply.
3. Carefully remove the protective foil. ⚠️ Avoid damage to the sensitive surface.

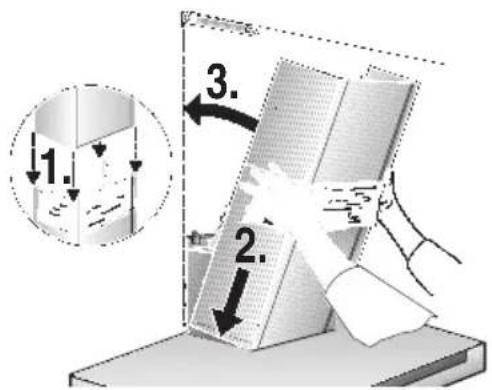

4. Insert the upper flue duct (slots downwards) into the lower flue duct. ⚠️ Protect the cover panels from scratches, for example by laying the template used for marking the wall over the top edge of the lower section.
5. Insert the complete flue duct at an angle and swivel to the rear.

1. 2. 3.

Installation

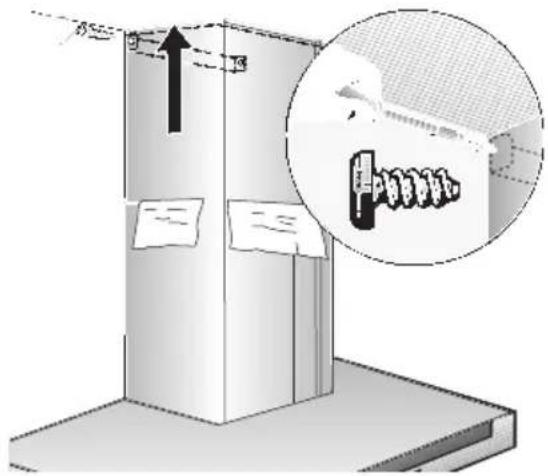

1. Carefully pull the upper flue duct upwards and screw the sides to the fixing bracket with 2 screws.

Diagram showing a cabinet with labeled documents and an inset image of a door mechanism with Chinese text.

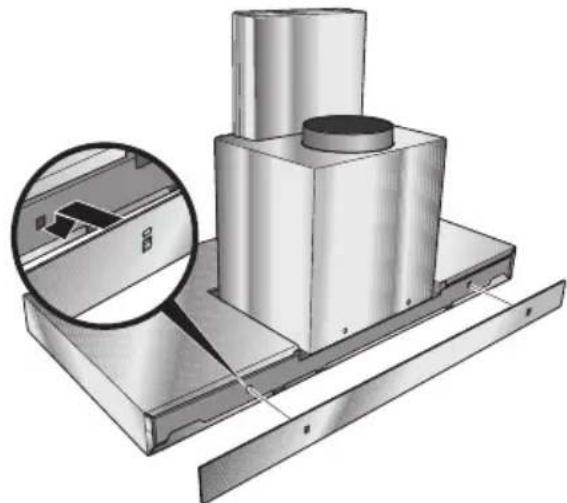

1. Insert glass plate.

3D diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols)

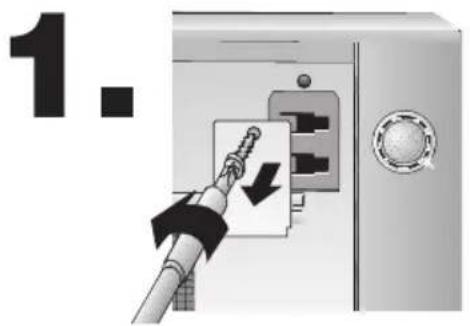

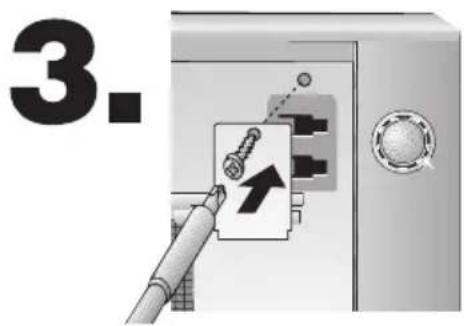

1. Unscrew the transportation protection devices on the left and right. The transportation protection devices must be handed to customer for safe-k

⚠️ After removing the transportation protection devices, follow the safety instructions and the cleaning and care instructions regarding the dangers of being crushed.

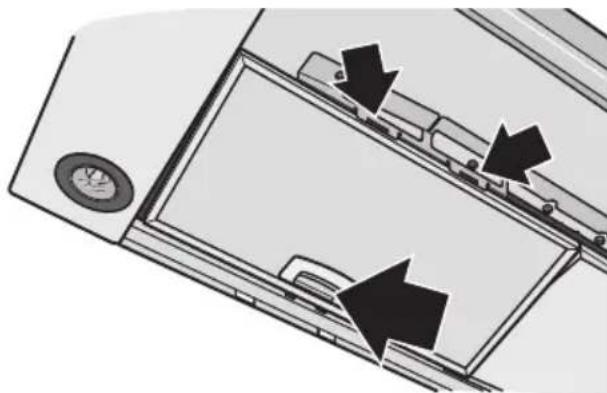

1. Insert the grease filter (refer to Operating Instructions).

If required, the length of the filter drawer can be adjusted:

1.

2. 430 550 600 650

3.

Simple line drawing of a trash bin with no text or symbols

Cales de transport:

Technical diagram showing a mechanical assembly with a central cylindrical component and a crosshair overlay (no text or symbols)

Diagram showing a mechanical press or cutting process with arrows indicating direction (no text or symbols present)

Safety warning illustration showing hand holding a tool with crosshair symbols and warning symbol

Ventilation intensive:

Ventilation intermittent:

Diagram of a cabinet or rack with arrows indicating movement, showing internal structure and mounting points (no text or symbols)

Diagram of a kitchen appliance with arrows indicating movement or force (no text or symbols present)

Illustration of hands holding a device with arrows indicating motion or force, showing internal components and movement (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Diagram illustrating a hand holding a switch inside a device, with warning symbols and directional arrows indicating electrical hazard.

Diagram illustrating hand cleaning and anti-smoking behaviors with warning symbols and labels

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

Diagram showing airflow or particle movement between two stacked blocks with directional arrows (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Technical diagram illustrating the assembly of screw fasteners with labeled components and motion arrows

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Encastrement

Technical illustration of mechanical assembly with three circular views showing different components (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and directional arrows, including parts numbered 1 and 2.

Diagram illustrating a device with labeled components and an inset showing a device with a door handle.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

Safety warning illustration showing hand holding pencil and crossed-out circles with Chinese text, indicating no need for using a tool or device.

Diagram of a cabinet or rack with arrows indicating movement, showing internal structure and alignment (no text or symbols)

1. Druk de vergrendelingen van de achterste vetfilters in en klap de vetfilters omlaag.

Diagram of a refrigerator interior with arrows indicating movement or change, no text or symbols present

Illustration of hands holding a car with a magnified circular view showing interior details (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Illustration of hands holding a sheet of paper with arrows indicating movement or force, no text or symbols present

Diagram illustrating a hand holding a device with a crosshair and warning symbol indicating overload or hazard.

Safety warning illustration showing hand holding a device with warning symbol and crossed-out hand gesture

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Let op: plugfitting.

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present.

3D technical illustration of a mechanical assembly with a conical component and a rectangular base (no text or symbols)

Diagram illustrating the installation or assembly of screw and pin components, showing hand positioning and assembly steps.

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Inbouwen

Technical diagram illustrating mechanical assembly steps with magnified views and directional arrows indicating motion or force.

Technical diagram illustrating a mechanical assembly with labeled components and process steps, including magnified views of the component.

Diagram illustrating a device with labeled components and a magnified view showing a device with a lock mechanism.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

Diagram showing a device inside a container with Chinese text labels and an arrow indicating direction

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

3D diagram of a mechanical press or cutting tool with arrows indicating force application (no text or symbols present)

Diagram illustrating safety hazard with crossed hands and warning symbols, showing a collision detection mechanism.

Diagram of a cabinet interior with arrows indicating movement or force, showing structural details without any text or symbols.

Diagram of a refrigerator interior with arrows indicating movement or change, no text or symbols present

Illustration of hands assembling a mechanical component with a magnified circular view showing internal components (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Illustration of hands holding a sheet of paper with arrows indicating movement or force, no text or symbols present

Diagram illustrating safety warning with hand holding crosshair and warning sign indicating overload hazard

Safety warning illustration showing hand holding a device with warning symbol and crossed-out hand gesture

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a device with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a stepped base (no text or symbols)

Diagram illustrating the installation or assembly of a screw and pin assembly process, showing hand positioning and tool positioning steps.

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Montaggio

Technical illustration of mechanical assembly with three circular views showing different components (no text or symbols)

Technical diagram illustrating a solar panel installation process with labeled components and steps

Diagram illustrating a device with labeled components and a magnified view of a device with Chinese text labels.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and nut on a base plate with a circular cross symbol (no text or labels)

3D diagram of a mechanical press or cutting tool with arrows indicating force application (no text or symbols)

Safety warning illustration showing hazard symbols and a warning sign with a hand holding a tool, indicating hazard or hazard.

Diagram of a kitchen drawer with arrows indicating airflow or movement, showing internal structure and window pattern (no text or symbols)

Diagram of a refrigerator interior with arrows indicating movement or force (no text or symbols present)

Illustration of hands holding a device with a magnified circular view showing internal components (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating assembly (no text or symbols present)

Diagram illustrating safety hazard with hand holding cross symbol, warning sign, and directional arrows indicating movement

Safety warning illustration showing hand holding a device with warning symbol and crossed-out hand gesture

Illustration of a metallic-handled eyepiece with a circular lens and handle (no text or symbols)

Illustration of a hand holding a circular object with an arrow pointing to it, no text or symbols present.

3D technical illustration of a mechanical assembly with a conical component and a base plate (no text or symbols)

Diagram illustrating the installation of screw and nut components with labeled parts and assembly steps

Technical illustration of a mechanical assembly with a magnified inset showing internal components (no text or symbols)

Montaje

1. Enganchar la campana extractora.

Technical illustration of mechanical assembly with three circular views showing different components (no text or symbols)

1. Desmontar la campana extractora.

Technical diagram illustrating a solar panel installation process with labeled components and steps 1 and 2.

Diagram showing a door mechanism with paper labels and an inset magnified view of a device with a lock icon.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a bolt and base plate with a crosshair symbol (no text or labels)

3D diagram of a mechanical press or cutting tool with arrows indicating force application (no text or symbols present)

Safety warning illustration showing hand holding a tool with crosshair symbols and warning sign

Diagram of a cabinet or rack with arrows indicating movement, showing internal structure and airflow direction (no text or symbols)

Diagram of a refrigerator interior with arrows indicating movement or force (no text or symbols present)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Illustration of hands holding a sheet of plastic components with arrows indicating movement or force, no text or symbols present.

Diagram illustrating hand holding a switch and warning sign with arrows and a warning symbol

Safety warning illustration showing hand holding a device with warning symbol and incorrect hand holding a document

Illustration of a circular object with a handle and central lens (no text or symbols)

Illustration of a hand holding a tool with a circular component and an arrow indicating rotation (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a flanged base (no text or symbols)

Diagram illustrating the installation or assembly of a screwdriver with labeled components and motion indicators.

Technical illustration of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

Montagem

1. Pendurar o exaustor.

Technical illustration of mechanical assembly with three circular views showing different components (no text or symbols)

1. Retirar o exaustor.

Technical diagram illustrating a mechanical assembly with labeled components and process steps, including magnified views of the component.

⚠️ Voltar a montar a chapa de encaminhamento do ar (ver filtros de carvão activo).

Diagram illustrating a device with labeled parts and a magnified view showing a device with Chinese text.

1. Aplicar a placa de vidro.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

r as e- s- e vem as clients

Simple line drawing of a trash bin with no text or symbols

Mechanical assembly diagram showing a cylindrical component inserted into a base plate with a cross symbol indicating a dislocation or restriction (no text or labels present)

Diagram showing a mechanical press or cutting process with arrows indicating direction (no text or symbols present)

Safety warning illustration showing hand holding pencil and crossed-out circles with Chinese text, indicating no need for using a tool or device.

Diagram of a cabinet or rack with arrows indicating movement, showing internal structure and alignment (no text or symbols)

Diagram of a kitchen appliance with arrows indicating directional movement (no text or symbols)

Illustration of hands assembling a mechanical component with a magnified circular detail showing internal components (no text or symbols)

Illustration of hands installing or adjusting a mechanical component with arrows indicating motion (no text or symbols present)

Illustration of hands holding a sheet of paper with arrows indicating movement or force, no text or symbols present

Diagram illustrating a hand holding a cross symbol with a warning sign and directional arrows, indicating a hazard or hazard.

Diagram illustrating safety hazard with warning symbols and document handling, including a hand holding a hand above a warning sign.

Illustration of a magnifying glass with a handle and circular lens (no text or symbols)

Illustration of a hand holding a tool with a curved arrow pointing to a circular component (no text or symbols)

3D technical illustration of a mechanical assembly with a conical component and a rectangular base (no text or symbols)

Diagram illustrating the installation or assembly of a screw and nut assembly process, with labeled components and directional arrows.

3D mechanical assembly diagram showing a cylindrical component mounted on a base plate with a magnified inset detail (no text or symbols)

Τοποθέτηση

Technical illustration of mechanical assembly with three circular views showing different components (no text or symbols)

Technical diagram illustrating a mechanical assembly with labeled components and process steps, including magnified views of the component.

Diagram illustrating a device with labeled components and a magnified view of a device with Chinese text labels.

Diagram of a mechanical assembly with a central component and two directional arrows indicating movement or force (no text or symbols present)

Diagram of a mechanical device inside a tilted rectangular frame, showing a circular inset with an arrow indicating direction (no text or symbols present)
